DOOR AND PANEL PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

03−08 Litho in U.S.A. (els)(mek) Part No. W10201189 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10084438

Energy Guide

W10193743

Guide, Use & Care

Spanish

W10193742

Guide, Use & Care

English/French

W10142826

Tech Sheet

W10158347

Tech Sheet, French

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

W10073520

Insulation, Door

5 Access Panel

8573255 Black

8573256 White

6 Panel, Full Front

(Includes Items

4, 10, 16 & 17)

W10078007

Black

W10078008

White

W10137623

Stainless

7 8534008 Screw

8 Toe Panel

(Includes

Items 11 & 18)

8558252 Black

8558253 White

9 Handle Assy

(Includes Item 7)

W10083936

Black

W10083937

White

W10083935

Stainless

10 8564951 Stud, Mounting

11 8268581 Insulation,

Toe Panel

12 Screw

302868 Black

3400836 White

13 304392 Screw

15 3400071 Screw

16 Nameplate

W10021860

Black

W10021870

White

W10021850

Stainless

17 2004333 Nut

18 8269016 Clip, Grounding

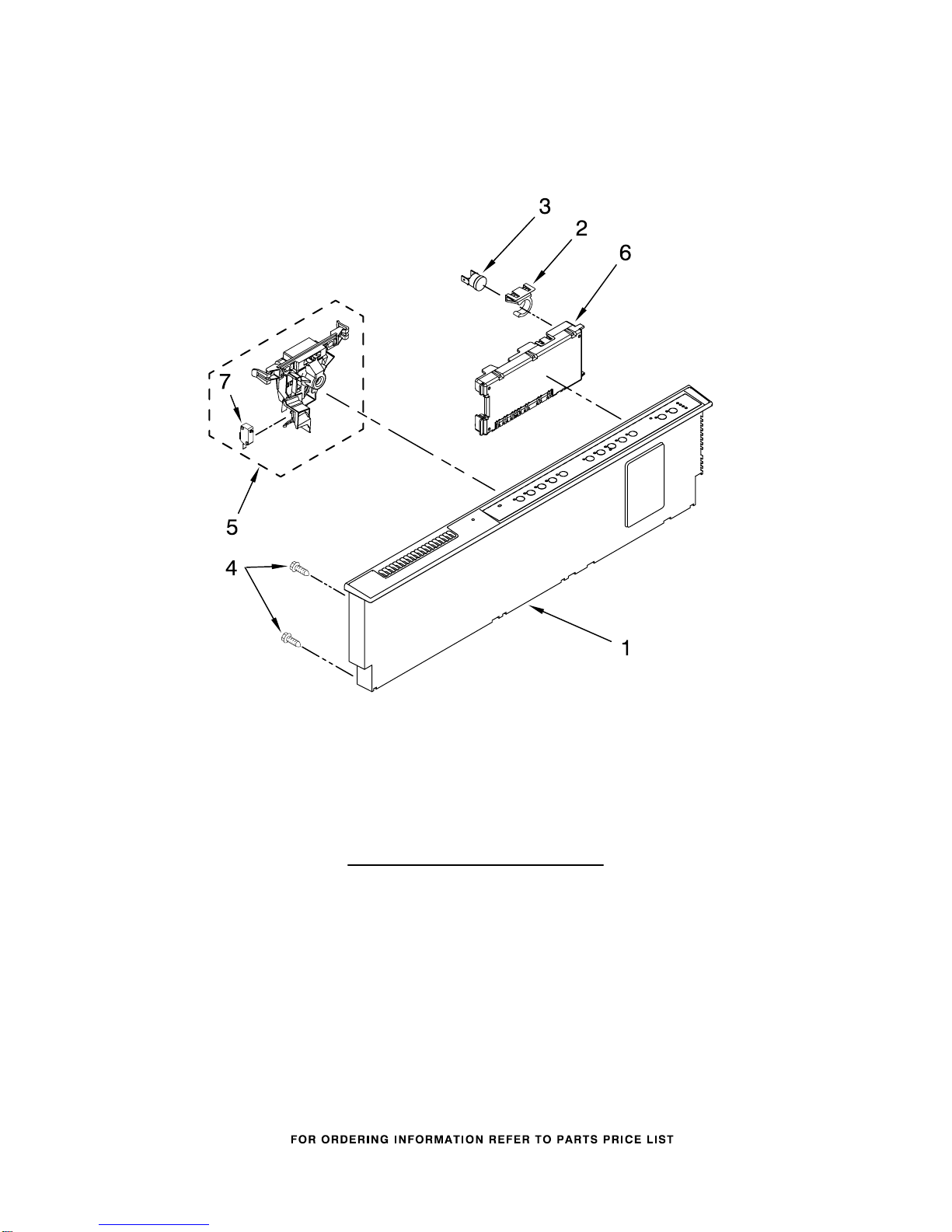

CONTROL PANEL PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10084465

Black

W10084466

White

W10084467

Stainless

2 8546546 Clip, Bi−Metal

3 661663 Bi−Metal

4 3369051 Screw

W10077360

Latch Assembly

W10158345

Control,

Electronic

W10134019

Switch, Door

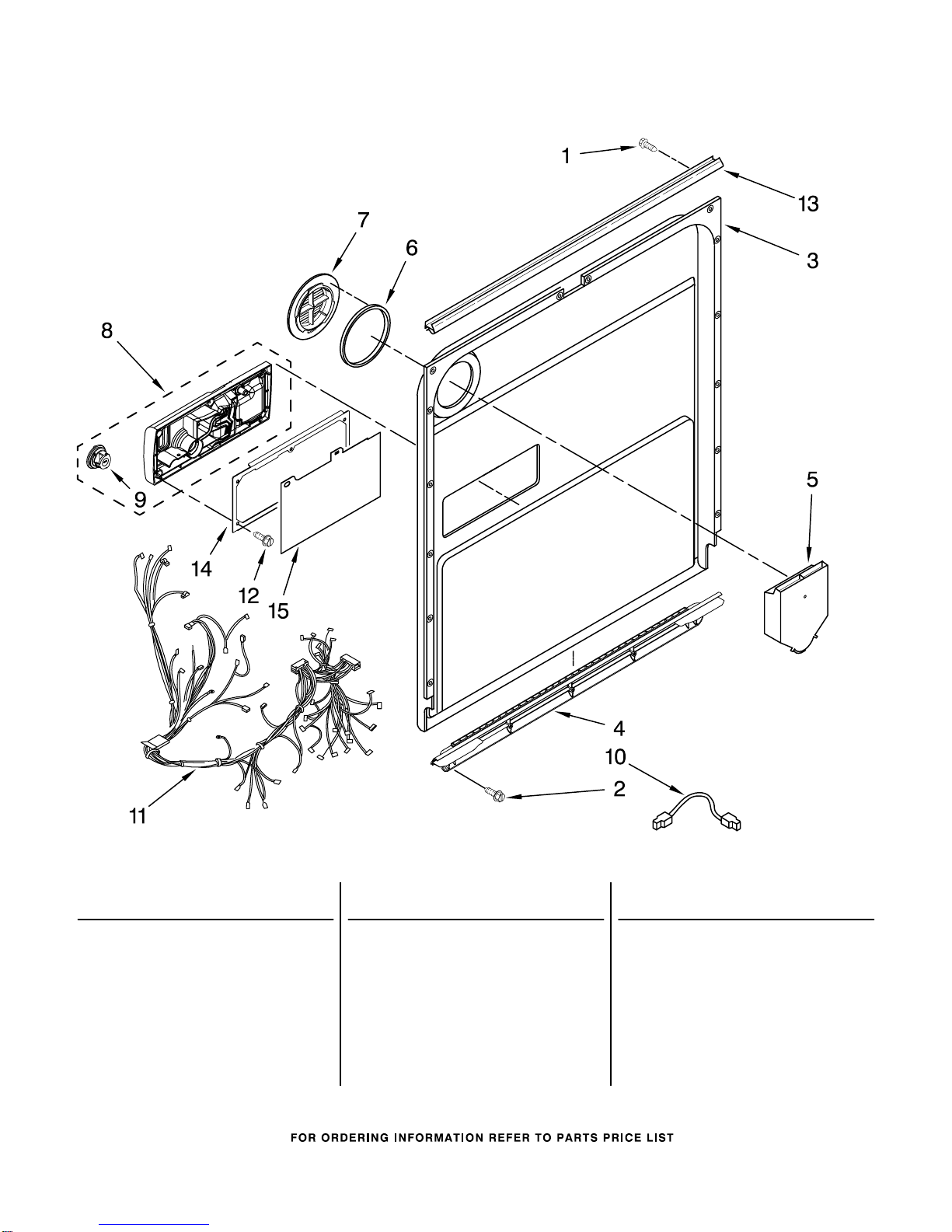

DOOR AND LATCH PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10137633

Wiring Harness

12 8281154 Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

15 8531865 Shield,

Dispenser

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563407 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

15 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

TUB AND FRAME PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION

W10056238

Tub Assembly

2 8574123 Barrier, Moisture

Undercounter

W10112096

Door Seal

W10082838

Plug Tub

5 8545574 Absorber, Sound

6 3400014 Screw

7 8269110 Seal, Cabinet

8 8573061 Strain Relief

9 8270021 Mount, Door

Balance

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

13 3400924 Retainer, Push−in

14 3370389 Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 8524474 Wheel, door

Balance

18 8270020 Spring, Door

Balance

19 3400892 Screw

20 8268991 Cover, Terminal

Box

21 8535568 Link, Door

Balance

22 8268582 Insulator, Sound

23 304666 Retainer, Push

24 8573239 Shield, Sound

Tub

25 9742648 Bracket,

Thermostat

26 661566 Thermostat

W10077370

Strike, Latch

28 3378128 Washer,

Pronged Cup

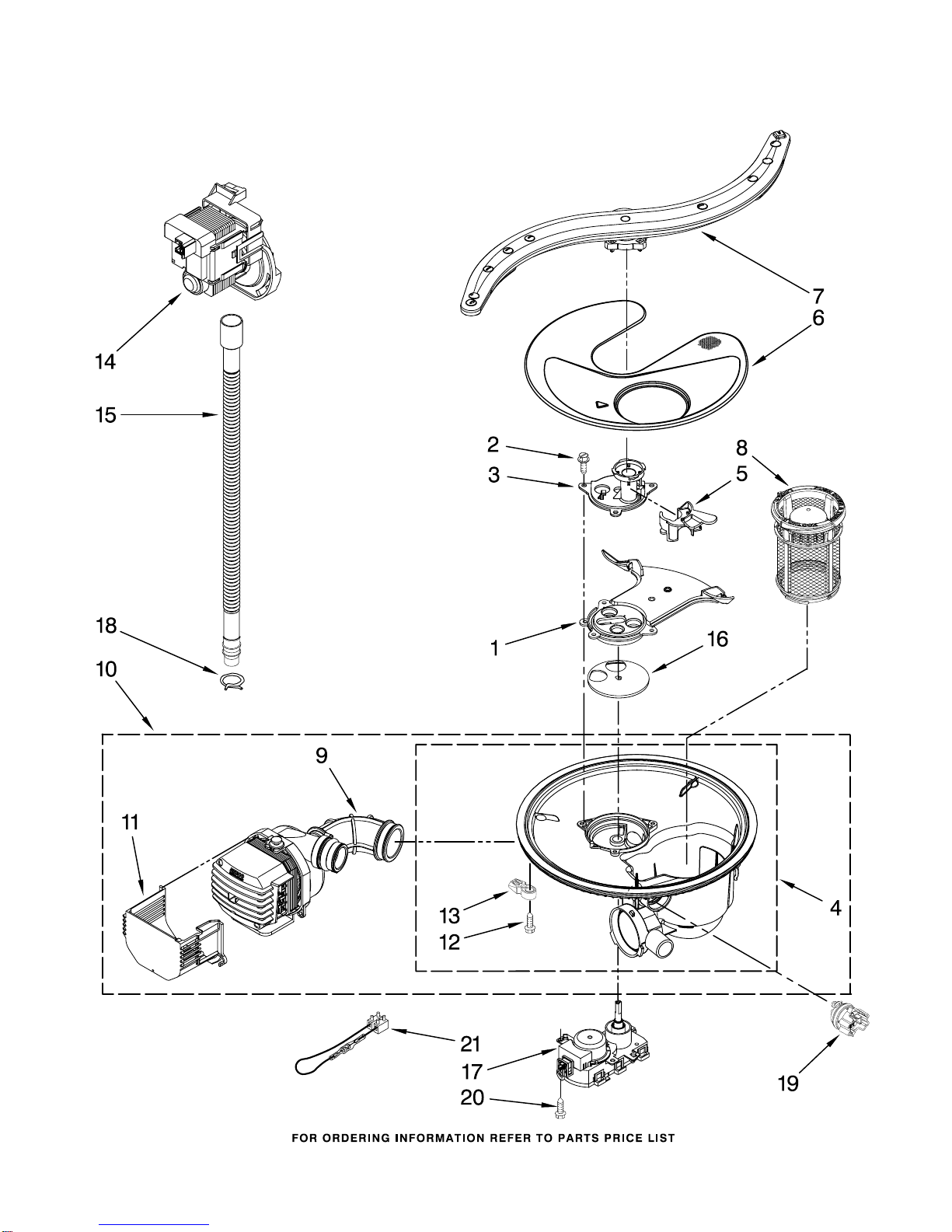

PUMP, WASHARM AND MOTOR PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

PUMP, WASHARM AND MOTOR PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION

1 8579241 Cover, Sieve

2 3400069 Screw

3 8579240 Cover, Outlet

W10134035

Sump With Seal

(Includes Items

12, 13 and

2 Hose Clamps)

5 8579298 Retainer,

Feed Tube

6 8579253 Screen

W10084508

Wash Arm Assembly

W10142911

Filter Cup,

Assembly

9 8579311 Hose, Inlet

(Includes 3 Hose

Clamps)

W10164292

Motor & Sump Assy.

(Includes Item 21)

11 8579272 Shield, Motor

12 3400072 Screw

13 8579289 Tab, Sump

W10158351

Pump, Drain

15 8269144 Hose, Drain

16 8579251 Disc−Valve

Diverter

17 8579252 Motor, Diverter

Valve

(Includes Item 21)

18 356138 Hose Clamp

W10134016

Optical Water

Indicator

20 9741232 Screw

W10083167

Fuse In−Line

UPPER WASH AND RINSE PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION

1 8579262 Feed Tube

Assembly

(Also Includes

Item 3)

2 8557720 Sprayarm, 3rd

Level

3 8579242 Mount

4 8579259 Manifold

5 8579279 Sprayarm

W10084221

Manifold,

Turbo Wash

HEATER PARTS

For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1

(Black) (White) (Stainless)

W10201189

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
