COOKTOP, BURNER AND GRATE PARTS

For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05

(Black) (White) (Biscuit) (Stainless Steel)

10−03 Litho in U.S.A. (cre) Part No.8186149

30" GAS COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05

(Black) (White) (Biscuit) (Stainless Steel)

8186149

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT4455834

Installation

Instructions

LIT3193071

Use & Care Guide

LIT3192098

Wiring Diagram

LIT3191638

Safe Cooking Tips

LIT3192742

LP Conversion

Instructions

2 Collar, Knob

3192165 White

3192164 Black

3192167 Biscuit

4 Nameplate

3191516 White

3191514 Black

3191920 Biscuit

5 Cooktop

3191246 White

3191245 Black

3191294 Biscuit

3191248 Stainless Steel

6 Cap, (RF)

3191729 White

3191728 Black

3191730 Biscuit

3192486 Use w/Stainless

Steel Model

7 Cap, (LR)

3191732 White

3191731 Black

3191733 Biscuit

3192487 Use w/Stainless

Steel Model

8 Cap, (RR)

3191735 White

3191734 Black

3191736 Biscuit

3192488 Use w/Stainless

Steel Model

9 Cap, (LF)

3191738 White

3191737 Black

3191739 Biscuit

3192489 Use w/Stainless

Steel Model

10 Grate, Burner

4456436 White

4456435 Black

4456437 Biscuit

4456438 Use w/Stainless

Steel Model

11 Grate, Filler

4456440 White

4456439 Black

4456441 Biscuit

4456442 Use w/Stainless

Steel Model

12 Knob, Control (4)

3191923 White

3191922 Black

3191925 Biscuit

15 Holder, Orifice

4456622 Turbi

4456620 Semi Rapid

4456621 Auxi

4456619 Rapid

16 Head, Burner

4455979 (6K)

4455980 (9K)

4455981 (12K)

4455849 (Turbi)

18 4449809 Screw

20 3368921 Screw

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05

(Black) (White) (Biscuit) (Stainless Steel)

8186149

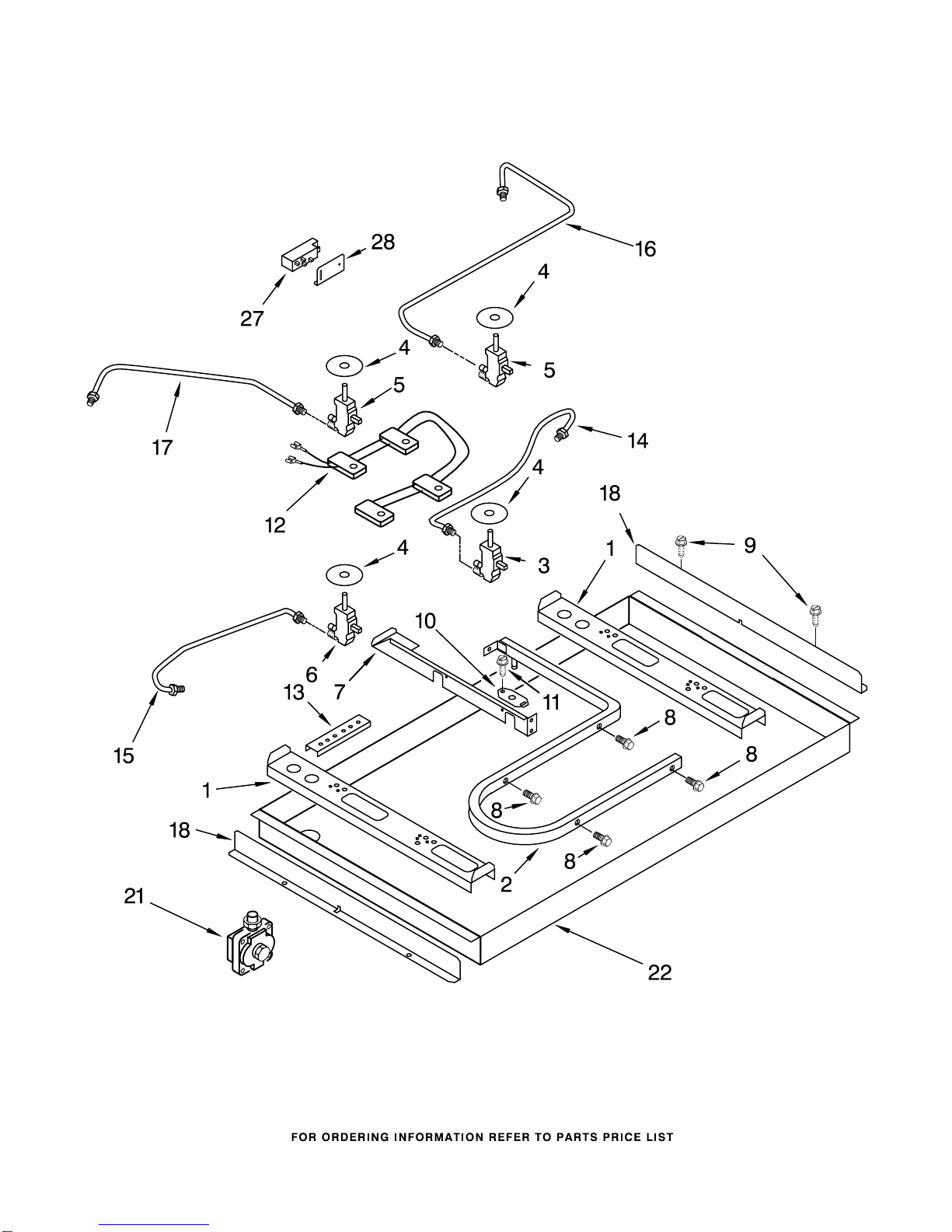

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05

(Black) (White) (Biscuit) (Stainless Steel)

8186149

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3191557 Rail, Burner

2 6610011 Pipe, Manifold

3 3191292 Valve, Gas Burner

Burner, (RF)

4 3191387 Seal, Shaft

5 3191293 Valve, Gas Burner

(RR & LR)

6 3192157 Valve, Gas

Burner (LF)

7 3192819 Rail, Center

8 3185829 Bolt, Gas Valve

9 3400843 Screw

10 3192491 Bracket, Mainfold

11 3196160 Screw

12 4456702 Harness & Switches

13 4455917 Bracket, Mounting

3400093 Screw

14 3191324 Tubing, Gas

Burner (RF)

15 3191326 Tubing, Gas

Burner (LF)

16 3191325 Tubing, Gas

Burner (RR)

17 3191327 Tubing, Gas

Burner (LR)

18 3191462 Shield, Heat (2)

21 3177120 Regulator, Pressure

22 4456785 Burner Box

27 8522423 Module Spark

28 4455837 Bracket, Spark

Module

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3177991 Screw

3183401 Bracket, Mounting

4167077 Tinnerman Nut

Miscellaneous

3188310 Hardware, Mounting

3192741 Conversion Kit

Natural Gas To L.P.

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

4456627 Harness,

Ignitor 28" (2)
