COOKTOP PARTS

For Models: KECD865HBL1, KECD865HWH1, KECD865HBT1

(Black) (White) (Biscuit)

11−99 Litho in U.S.A. (RS) Part No. 8177483

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

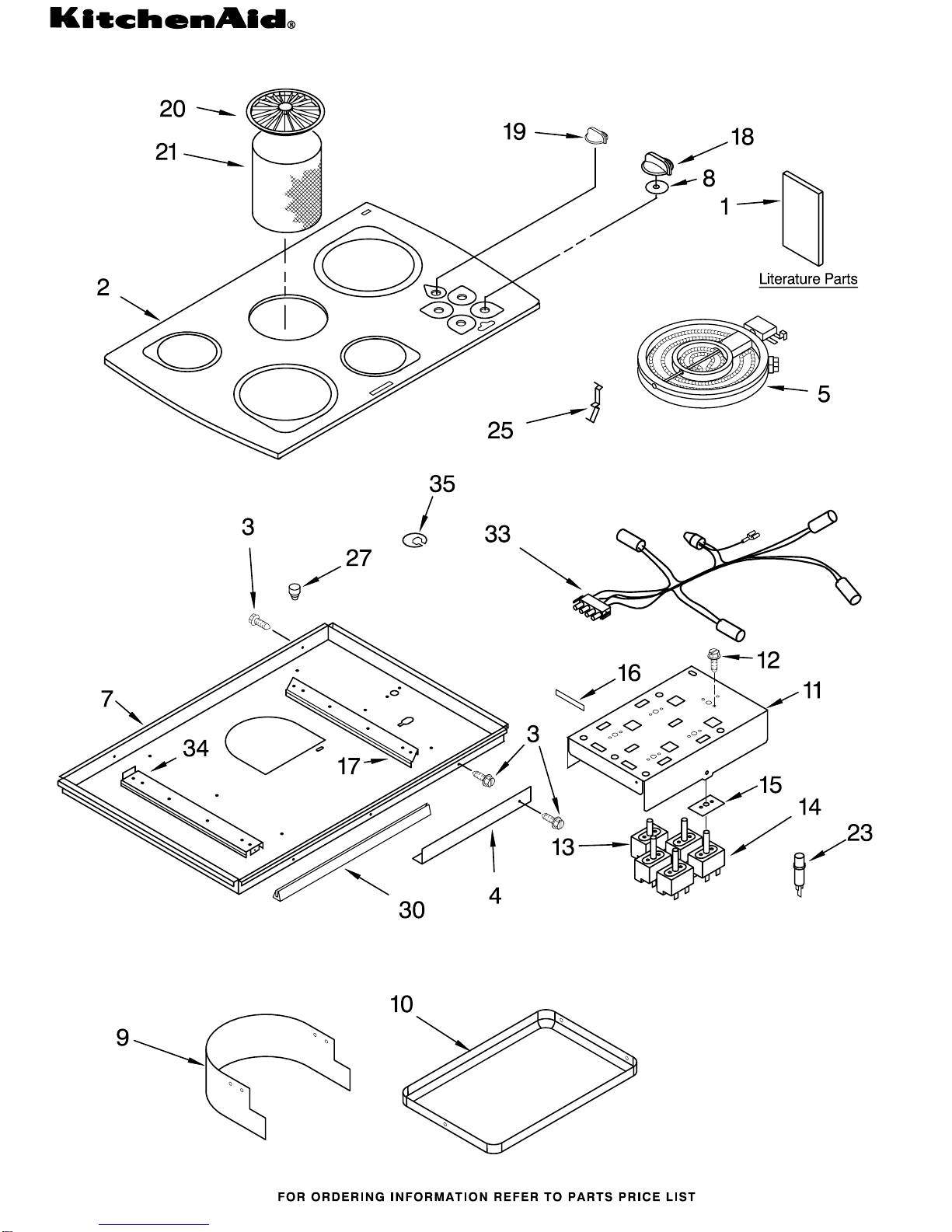

COOKTOP PARTS

For Models: KECD865HBL1, KECD865HWH1, KECD865HBT1

(Black) (White) (Biscuit)

8177483

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3192516

Installation

Instructions

LIT3192911

Wiring Diagram

LIT3192515

Use & Care Guide

2 Cooktop, Glass &

Bracket Assembly

4455331 Black

4455330 White

4455329 Honeycomb

3 3196537 Screw, 8−18 x 3/8

4 4455364 Bracket, Support

5 Element, Surface

8272567 L.R. (1200W)

8272563 L.F. (1000/2400W)

8272566 R.R. (1800W)

8272564 R.F. (1500W)

7 4455325 Box, Burner

8 3183956 Seal, Switch

9 3192401 Shield, Vent

10 3190656 Drip Bowl, Grease

11 4455354 Bracket, Mounting

Control

12 311865 Screw, 8−32 x 7/32

13 3190639 Switch, Speed

Control

14 Switch, Infinite

3191049 LR & RF

3191050 RR

3188516 LF

15 3182435 Seal, Switch

16 3192439 Seal, Limiter

17 3192520 Rail, Element

Right Hand

18 Knob, Control

9750372FF

Black

9750372FW

White

9750372FC

Biscuit

19 Knob, Blower

Switch

3190723 Black

3190724 White

3192502 Biscuit

20 3192418 Grille, Air

21 3192530 Filter, Grease

23 3193012 Light, Indicator

25 3191791 Spring, Locator

27 3192477 Bumper, Rubber

30 3193032 Gasket, Vent

Shield

33 3191343 Light, Hot Surface

Indicator

34 3192521 Rail, Element

Left Hand

35 3193094 Plate, Cover

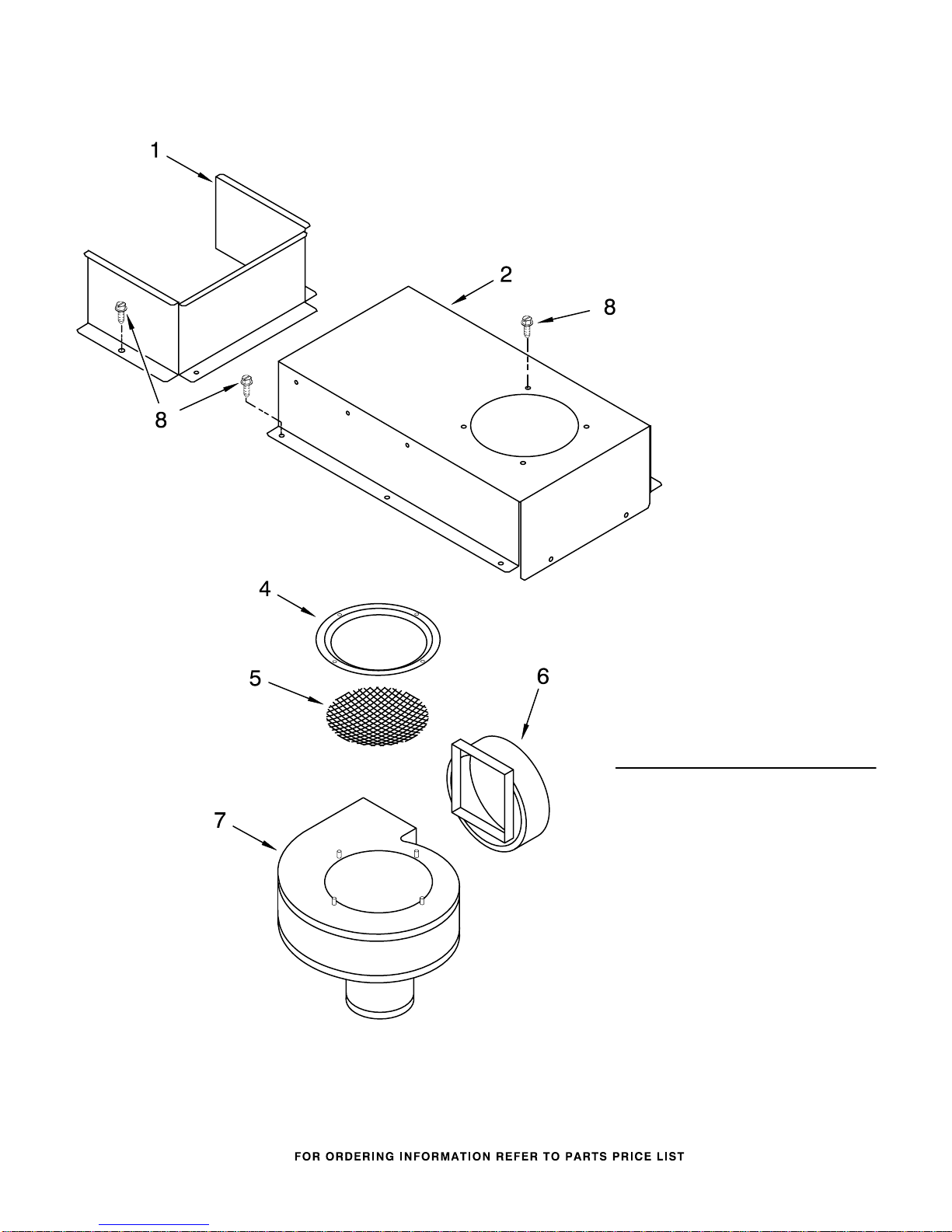

BLOWER UNIT PARTS

For Models: KECD865HBL1, KECD865HWH1, KECD865HBT1

(Black) (White) (Biscuit)

8177483

Illus. Part

No. No. DESCRIPTION

1 4455355 Bracket, Shield

2 3192403 Bracket, Blower

Mounting

4 3190735 Ring, Inlet

5 3190947 Screen, Inlet

6 3190736 Adapter, Vent

7 3190737 Blower Motor Asm.

(Includes Fan Asm)

8 3196537 Screw, 8−18 x 3/8

MISCELLANEOUS PARTS

For Models: KECD865HBL1, KECD865HWH1, KECD865HBT1

(Black) (White) (Biscuit)

8177483

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Hardware, Mounting

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

4455279 Harness, Wire

(Ceran Downdraft)

3190722 Harness, Wire

(Blower/Switch)

98997 Clip

3190962 Strain Relief

3192704 Conduit, Downdraft

3400015 Screw, 10−32 x 3/8
