Kirby Morgan MOD-1 Manuel utilisateur

Kirby Morgan Dive Systems, Inc.®

1430 Jason Way Santa Maria, California 93455

Phone: 805/928-7772 Fax: 805/928-0342

www.KirbyMorgan.com email: [email protected]

K

I

R

B

Y

M

O

R

G

A

N

D

I

V

E

S

Y

S

T

E

M

S

,

I

n

c

.

© MMXXII Kirby Morgan Dive Systems, Inc. All Rights Reserved Document #220323001 Page 1 of 8

Part #825-076 (S/M) and 825-077 (L/XL)

MOD-1 Hood Assembly w/Bib L/XL 7 mm Kit

Installation Guide

PART NUMBER DESCRIPTION QTY

330-105 Nut (Pre-installed to secure bracket to hood) 4

530-052 Screw 4

805-076 or 805-077 7 mm Mod-1 Hood w/Bib S/M or 7 mm Mod-1 Hood w/

Bib L/XL 1

830-047 Screw (Pre-installed to secure bracket to hood) 4

840-010 Hood Frame Bracket 4

Tools Required:

• Flathead Screwdriver

HOOD

FRAME

PULL TAB

EAR

POCKET

BRACKET

OUTER SEAL

Kirby Morgan Dive Systems, Inc.®

1430 Jason Way Santa Maria, California 93455

Phone: 805/928-7772 Fax: 805/928-0342

www.KirbyMorgan.com email: [email protected]

K

I

R

B

Y

M

O

R

G

A

N

D

I

V

E

S

Y

S

T

E

M

S

,

I

n

c

.

© MMXXII Kirby Morgan Dive Systems, Inc. All Rights Reserved Document #220323001 Page 2 of 8

Assembly Procedures

The hood can be installed with the mask strap on the mask.

1. Bring the hood assembly to the mask, as shown in the

picture.

2. Align tabs to mask and insert screws.

Kirby Morgan Dive Systems, Inc.®

1430 Jason Way Santa Maria, California 93455

Phone: 805/928-7772 Fax: 805/928-0342

www.KirbyMorgan.com email: [email protected]

K

I

R

B

Y

M

O

R

G

A

N

D

I

V

E

S

Y

S

T

E

M

S

,

I

n

c

.

© MMXXII Kirby Morgan Dive Systems, Inc. All Rights Reserved Document #220323001 Page 3 of 8

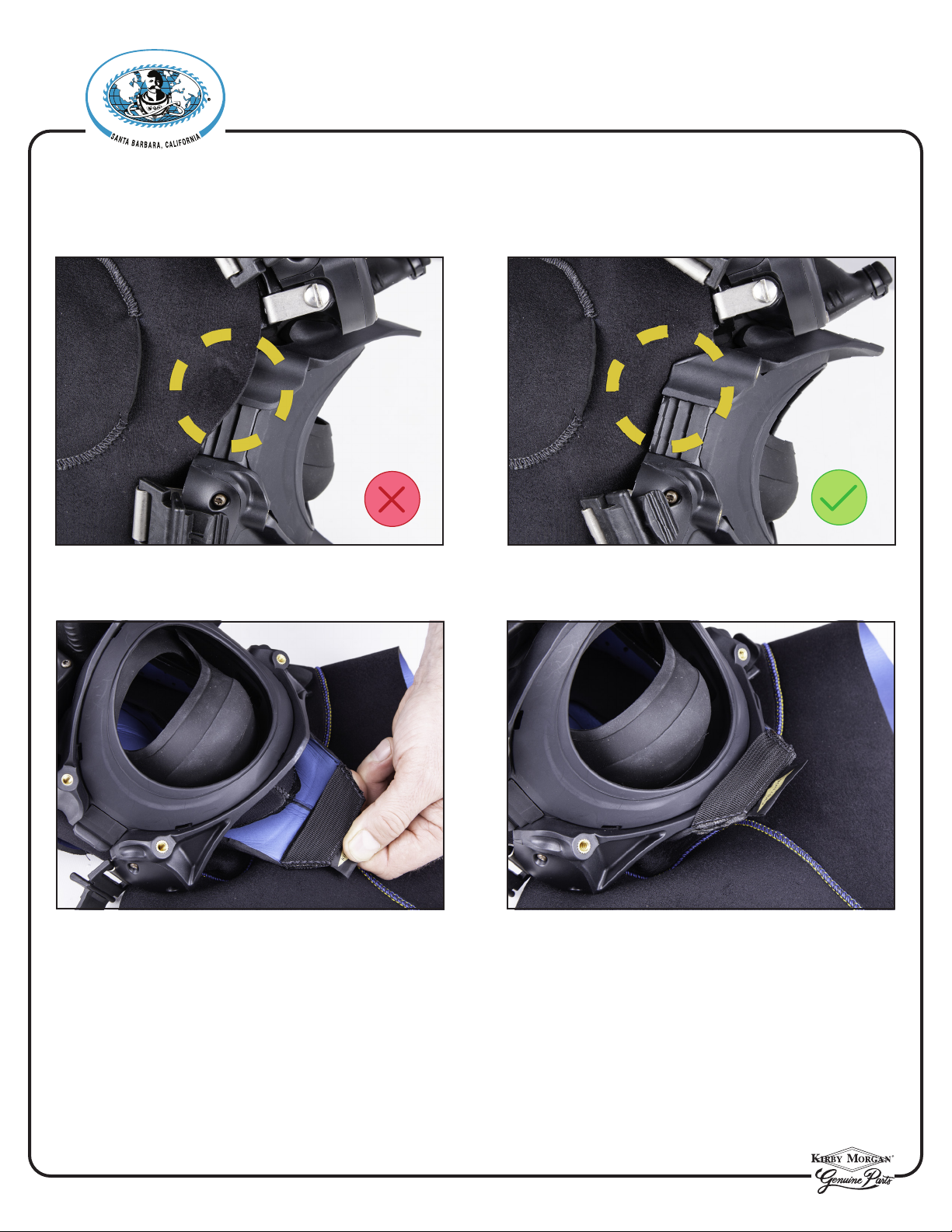

3. Ensure that, on both sides of the mask, the neoprene material tucks inside of the leading edge

where the lens body and jaw frame meet.

This will permit proper removal and replacing of the Pod both above and below the water.

4. Stretch the pull tab away from the mask and over the apex of the lower jaw frame. Use the

nylon pocket to capture the apex of the jaw frame.

Kirby Morgan Dive Systems, Inc.®

1430 Jason Way Santa Maria, California 93455

Phone: 805/928-7772 Fax: 805/928-0342

www.KirbyMorgan.com email: [email protected]

K

I

R

B

Y

M

O

R

G

A

N

D

I

V

E

S

Y

S

T

E

M

S

,

I

n

c

.

© MMXXII Kirby Morgan Dive Systems, Inc. All Rights Reserved Document #220323001 Page 4 of 8

The comm ports are on the outside of the neoprene – NOT

the INSIDE of the hood.

5. Ensure the leading edge of the outer seal is clear of the mask skirt. The mask skirt should touch

the diver’s face ﬁrst and the hood outer seal will surround the face where the mask skirt stops.

Kirby Morgan Dive Systems, Inc.®

1430 Jason Way Santa Maria, California 93455

Phone: 805/928-7772 Fax: 805/928-0342

www.KirbyMorgan.com email: [email protected]

K

I

R

B

Y

M

O

R

G

A

N

D

I

V

E

S

Y

S

T

E

M

S

,

I

n

c

.

© MMXXII Kirby Morgan Dive Systems, Inc. All Rights Reserved Document #220323001 Page 5 of 8

Repetitive Dives

When doing multiple dives and if the hood is taken on and off, ensure that the hood’s outer seal is

pushed past the mask skirt before donning.

Post Dive

Depending on water conditions, the MOD-1 hood can be left in place when performing post dive

cleaning and inspection. When doing multiple dives for multiple days, it is recommended that the

hood be removed and inspected at least every seven days.
