Kingston Technology DT4000M-R Manuel utilisateur

User’s Guide

DataTraveler 4000 Managed-Ready Solution

Find the language and latest documentation for your Kingston®DT4000M-R here.

DT4000M-R User’s Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en français

. . . . . . . . . . . . . . . . . . Per le istruzioni in italiano

............Por as instruções em português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku polskim

. . . . . . . . . . . . . . . . . . Для инструкции на русском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 1 of 14

DataTraveler®4000

Managed-Ready Solution

User Manual

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 2 of 14

About This User Guide

This quick start guide is for Kingston's DataTraveler®4000 – Managed-Ready Secure USB

device (referred to simply as DT4000M-R from this point forward) using the default system

values and no customisations.

System Requirements

PC Platform

•Pentium III processor or equivalent (or

faster)

•15MB free disk space

•USB 2.0

•Two available consecutive drive letters

after the last physical drive

Supported PC Operating Systems

•Windows 8, 8.1 (non RT)

•Windows 7 (SP1)

•Windows Vista®(SP2)

Mac Platform

•15MB free disk space

•USB 2.0

Supported Operating Systems

•Mac OS X 10.6.x - 10.9x

(Note: Administrator privileges required to set up console preferences on Mac clients.)

Figure 1.1 – USB 2.0 ports, type A

Figure 1.2 – DT40000M-R

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 3 of 14

Recommendations

To ensure that ample power is provided to the DT4000M-R device, insert it directly into a USB

2.0 port on your notebook or desktop, as seen in Figure 1.3. Avoid connecting it to any

peripheral device(s) that may feature a USB port, such as a keyboard or USB-powered hub, as

seen in Figure 1.4.

Figure 1.3 – Recommended usage

Figure 1.4 – Not recommended

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 4 of 14

Setup (Windows environment)

1. Insert the DT4000M-R into an available USB port

on your notebook or desktop and wait for

Windows to detect it.

•Windows Vista/7/8 users will receive a device

driver notification as seen in Figure 2.1.

Once the new hardware detection is complete,

Windows will prompt you to begin the initialisation

process.

•Windows Vista/7/8 users will see an AutoPlay

window similar to the one in Figure 2.2.

2. Select the option ‘Run DT4000M-R.exe’.

If Windows does not AutoPlay, you can browse to

the CD-ROM partition (Figure 2.3) and manually

execute the DT4000M-R program. This will also

start the initialisation process.

Figure 2.3 – DT4000M-R contents

Figure 2.1 – Device driver installation

Figure 2.2 – AutoPlay window

(Note: Menu options in the AutoPlay

window may vary depending on what

programs are currently installed on

your computer.AutoRun will start the

initialisation process automatically.)

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 5 of 14

Device Initialisation (Windows environment)

DT4000M-R can be initialised in one of two ways: standalone or managed. When you insert

the drive into a USB port on the host, DT4000M-R will look for a 'safestick' registry key which

provides the location of the SafeConsole server:

(*Note: You can also use the Windows installer from the SafeConsole's deployment page.)

HKey_Current_User\Software\BlockMaster\DT4000M-R

If the registry key does NOT exist, DT4000M-R will bypass the management option and allow

you to initialise the device as a standalone drive. If the registry key DOES exist, a message

box prompt is displayed that allows you to decide whether or not the DT4000M-R drive will be

managed. Figure 3.1

Figure 3.1 – Found SafeConsole

1. Decide whether DT4000M-R will be managed or not.

Clicking 'Yes' will register DT4000M-R with SafeConsole and inherit the policies that are

in place on the management console, including password criteria, device auditing and

other managed features. To confirm ownership of this device, you will be prompted for

the credentials of the local host/domain user prior to initialisation. Figure 3.2

Figure 3.2 – Confirm ownership

The DT4000M-R will remain in the managed state until the device is reset. Continue on

next page.

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 6 of 14

Device Initialisation (Windows Environment), Continued:

Clicking 'No' will prevent the DT4000M-R from registering with SafeConsole and it will

initialise as a standalone drive. This message box will continue to appear each time the

device is plugged in, until you opt to register with SafeConsole.

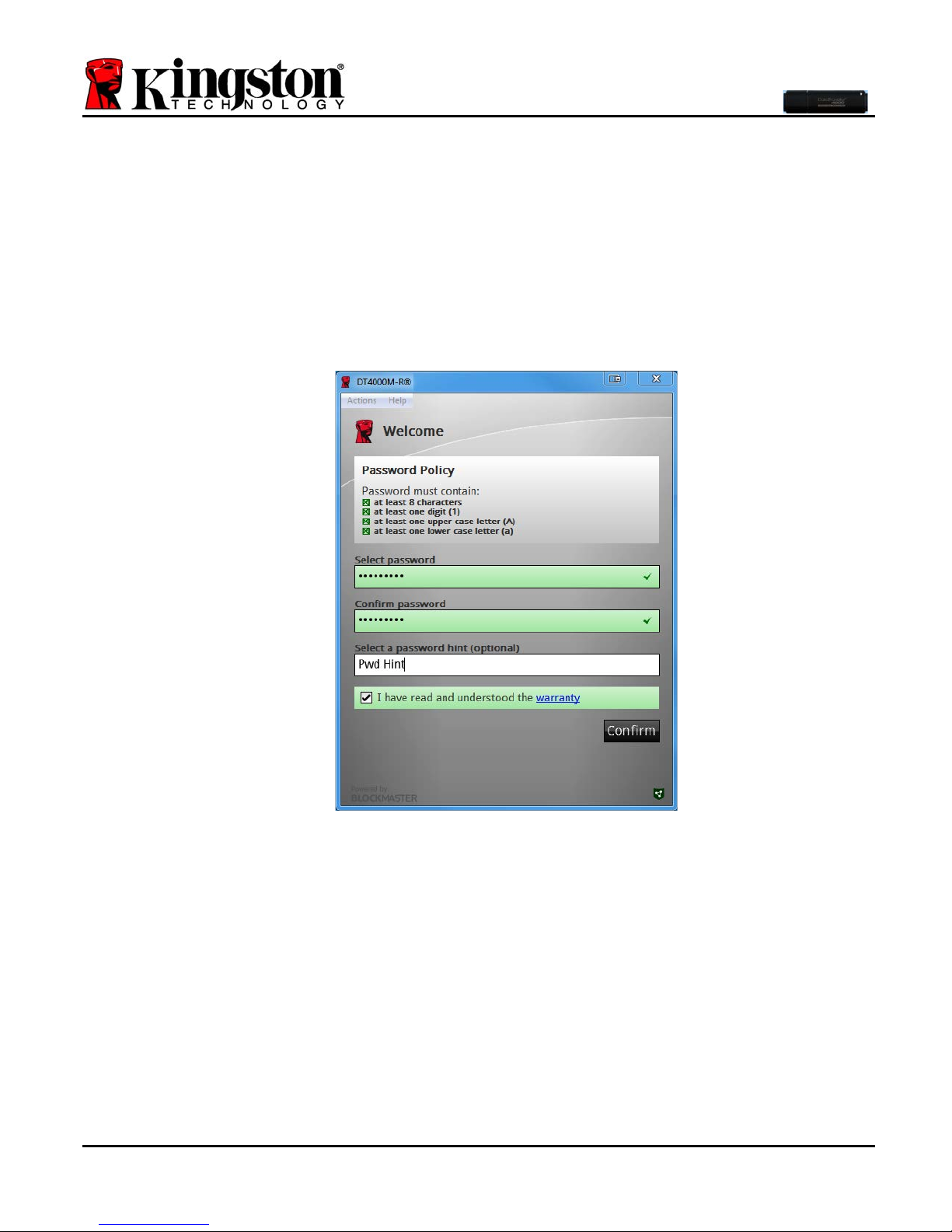

2. Select a password. Non-managed and standalone drives require a password with the

following criteria (Figure 3.3):

Minimum of eight (8) characters, including 1 upper-case, 1 lower-case and 1 digit

Figure 3.3 – Confirm password

Managed drives require passwords that meet the criteria set forth in the policy of the

SafeConsole management server.

3. Once a password has been selected (and it meets the specified criteria), you must enter

it a second time in the 'Confirm Password' text box to ensure proper entry.

4. Click the checkbox to accept the warranty statement.

5. Click [Confirm] to complete initialisation.

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 7 of 14

Device Usage (Windows Environment)

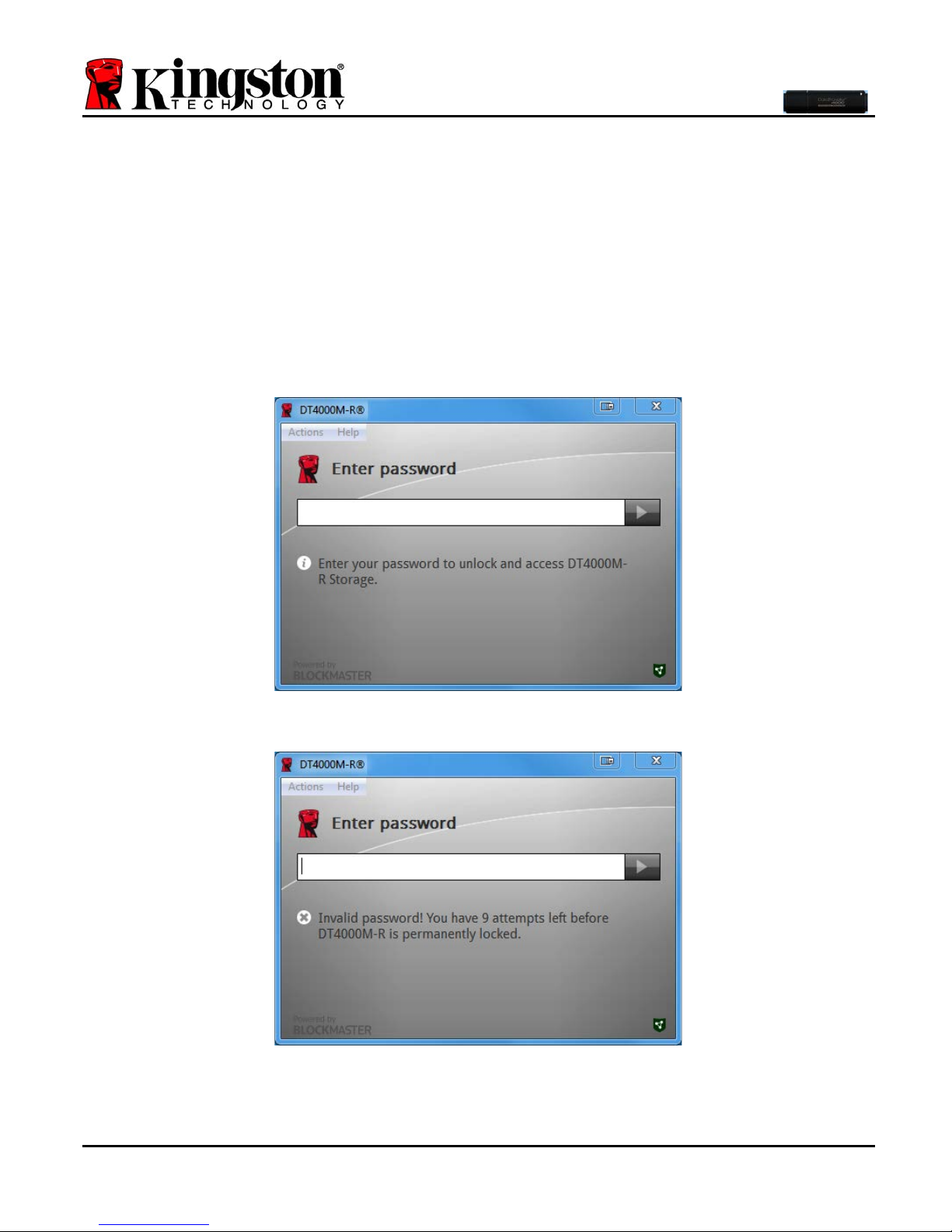

Each time that you insert the DT4000M-R, you will be prompted to enter the password created

during the initialisation process (Figure 4.1). During the login process, if you enter an invalid

password (Figure 4.2), you will be given another opportunity to enter the correct password. Note

that there is a built-in security feature that tracks the number of invalid login attempts. If this

number reaches the pre-configured value of 10 (maximum number of invalid logins), the

DT4000M-R will lock you out and require a device reset. Figure 4.3 on next page

(Note: If you log in successfully before reaching the limit of 10 invalid password attempts, the

Figure 4.1 – Enter password

Figure 4.2 – Login failure

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 8 of 14

Device Initialisation (Windows Environment), Continued:

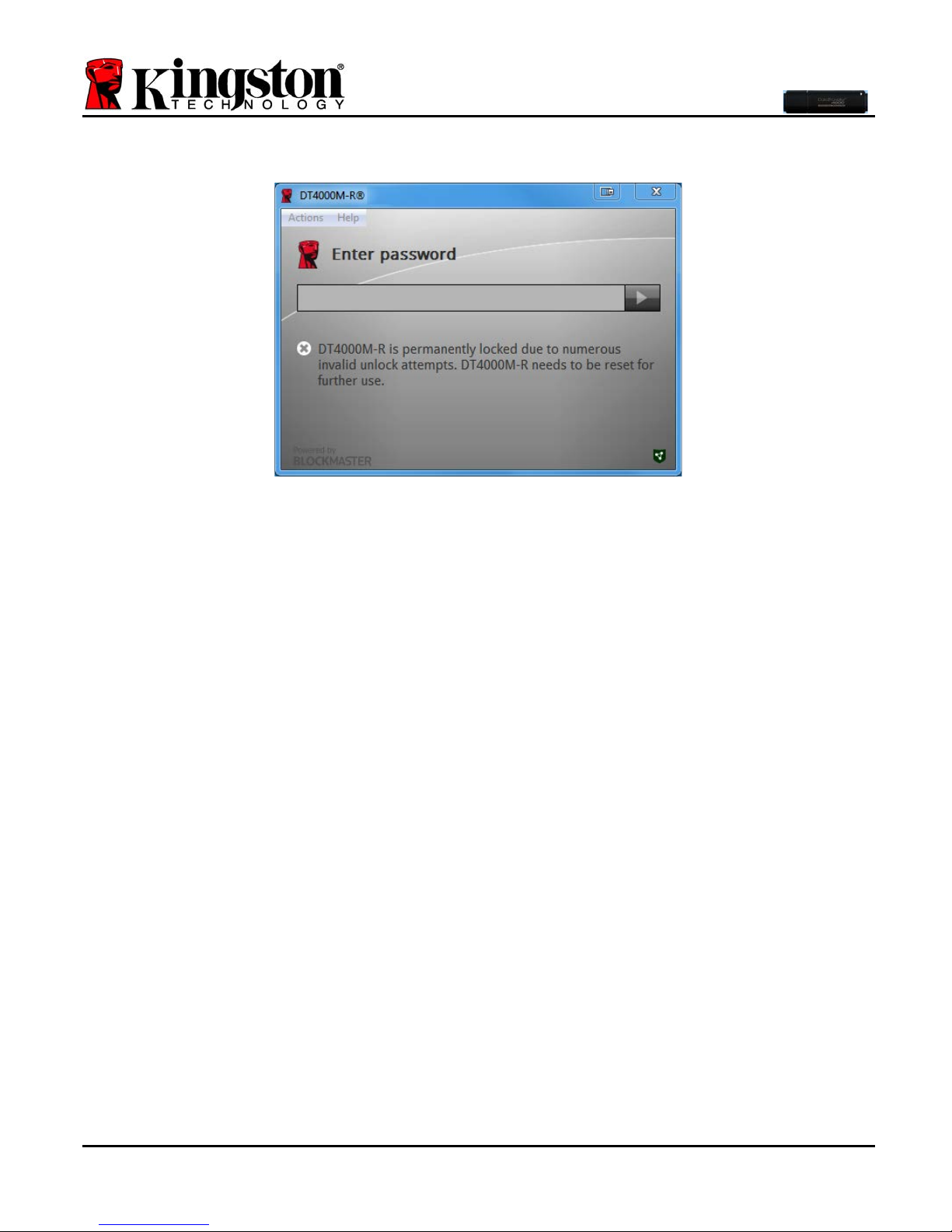

Figure 4.3 – MaxNoA reached

Document No. 480DT4000M-R.A01

Managed-Ready Solution

Page 9 of 14

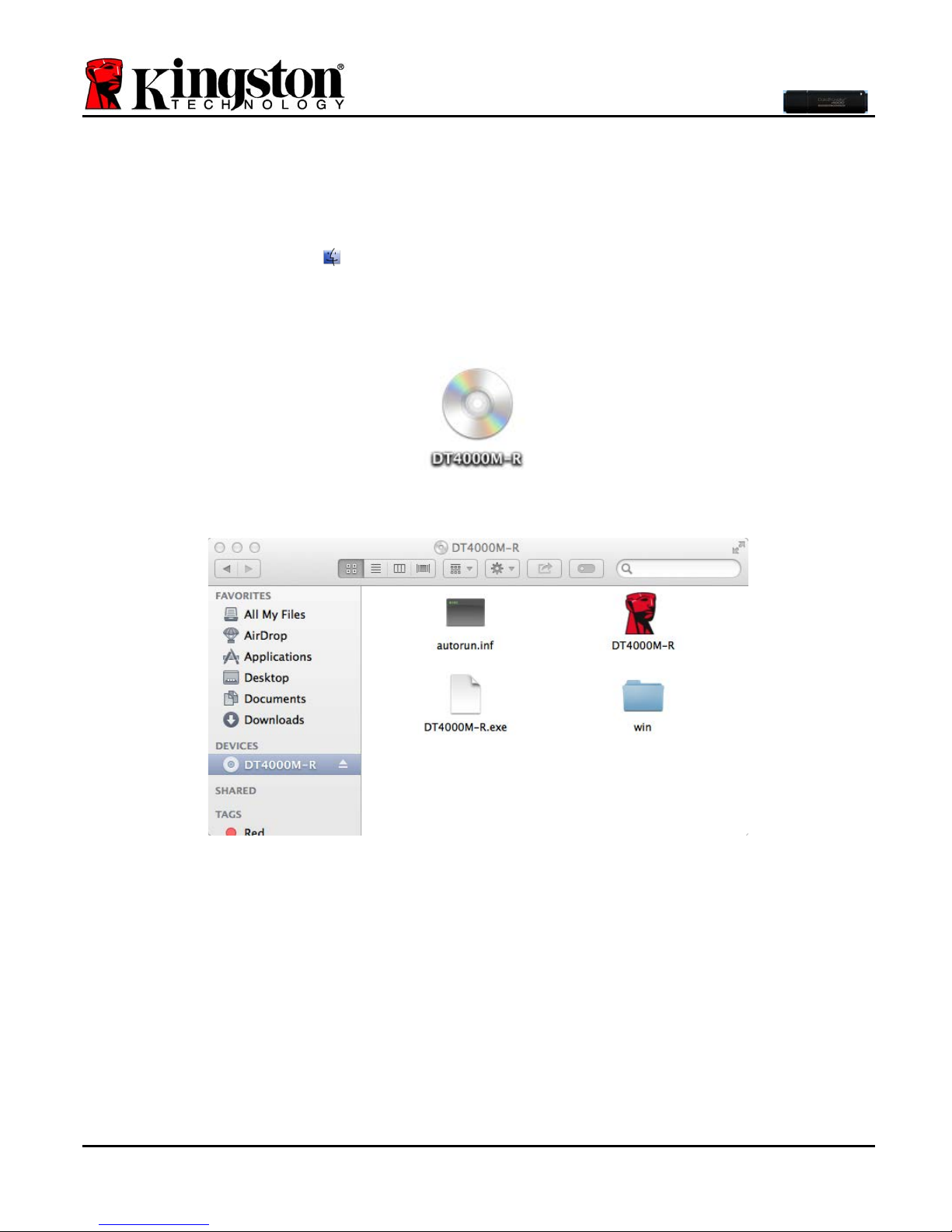

Setup (Mac environment)

Insert the DT4000M-R into an available USB port on your Mac notebook or desktop and wait

for the operating system to detect it. If the 'DT4000M-R' volume (Figure 5.1) does not appear

on the desktop, open Finder and locate the 'DT4000M-R' volume (Figure 5.2) on the left side

of the Finder window (listed under DEVICES.) Highlight the volume and double-click the

'DT4000M-R' application icon the 'Finder' window (Figure 5.2). This will start the initialisation

process.

Figure 5.1 – DT4000M-R

Figure 5.2 – Contents
