Kingston Technology TurboChip 200 MMX Enhanced Manuel utilisateur

Kingston Technology

TurboChip 200

MMX™Enhanced

User’s Guide

Model: TCMMX/200

TurboChip 200 User’s Guide - Rev. A01 Kingston Technology Company

Kingston Technology’s

TurboChip®200

200MHz MMX™Enhanced

Processor Upgrade For

Pentium®Desktop Computers

User’s Guide

Part No. 4460055-001.A01

Kingston Technology Company

17600 Newhope

Fountain Valley, CA 92708

(714) 435-2600

TurboChip®is a registered trademark of Kingston Technology Company. MMX™is a

trademark and Pentium®is a registered trademark of Intel Corporation. AMD-K6™is a

trademark of Advanced Micro Devices, Inc. All other trademarks and registered trademarks

are the property of their respective owners.

TurboChip 200 User’s Guide - Rev. A01 Kingston Technology Company

TABLE OF CONTENTS

Introduction.......................................................................................1

Special Features .........................................................................2

Package Contents.......................................................................2

Before You Begin.............................................................................3

Pin 1 Orientation..........................................................................3

Installing the TurboChip ...................................................................4

Step 1. Opening the Computer....................................................4

Step 2. Locating the CPU............................................................4

Step 3. Removing the CPU Chip.................................................5

Step 4. Orienting the TurboChip..................................................6

Step 5. Inserting the TurboChip ..................................................7

Step 6. Completing the Installation..............................................9

Appendices.....................................................................................11

Appendix A Running the Landmark Speed Test....................12

Appendix B Troubleshooting..................................................14

Appendix C Product Warranties and Notices.........................18

General Information 1

TurboChip 200 User’s Guide - Rev. A01 Kingston Technology Company

Introduction

Congratulations on the purchase of your Kingston TurboChip 200 MMX™

Enhanced 200MHz processor upgrade designed for Pentium®75MHz or

higher computers. The TurboChip model TCMMX/200 incorporates the

AMD-K6™MMX™enhanced processor to combine the power of Pentium®

200MHz processing with graphics-enhancing multimedia extensions to equip

your system with the necessary tools for today’s exciting media-intensive

graphics, sound, and video software applications.

TurboChip 200 features 64KB of internal Level 1 cache, integrated cooling

unit, and onboard voltage regulator to interface the processor with either a 2.9V

or 3.3V system motherboard automatically. TurboChip 200 is a convenient,

high-performance solution to increase your computer’s CPU speed an estimated

250% over its current pentium processor providing a perfect fit for 16-bit or 32-

bit operating systems such as Microsoft Windows®95 and Windows NT.

TurboChip 200 is a chip-for-chip processor upgrade which installs directly into

your existing Socket 5 or Socket 7 pentium processor socket. Almost all

pentium desktop computers use ZIF (zero-insertion-force) sockets with a swing

lever to make removing the CPU chip quick and easy. There are no software

drivers to install or hardware jumpers to set. The TurboChip package also

includes an integrated heat sink and fan cooling unit to control the TurboChip’s

operating temperature for years of reliable service.

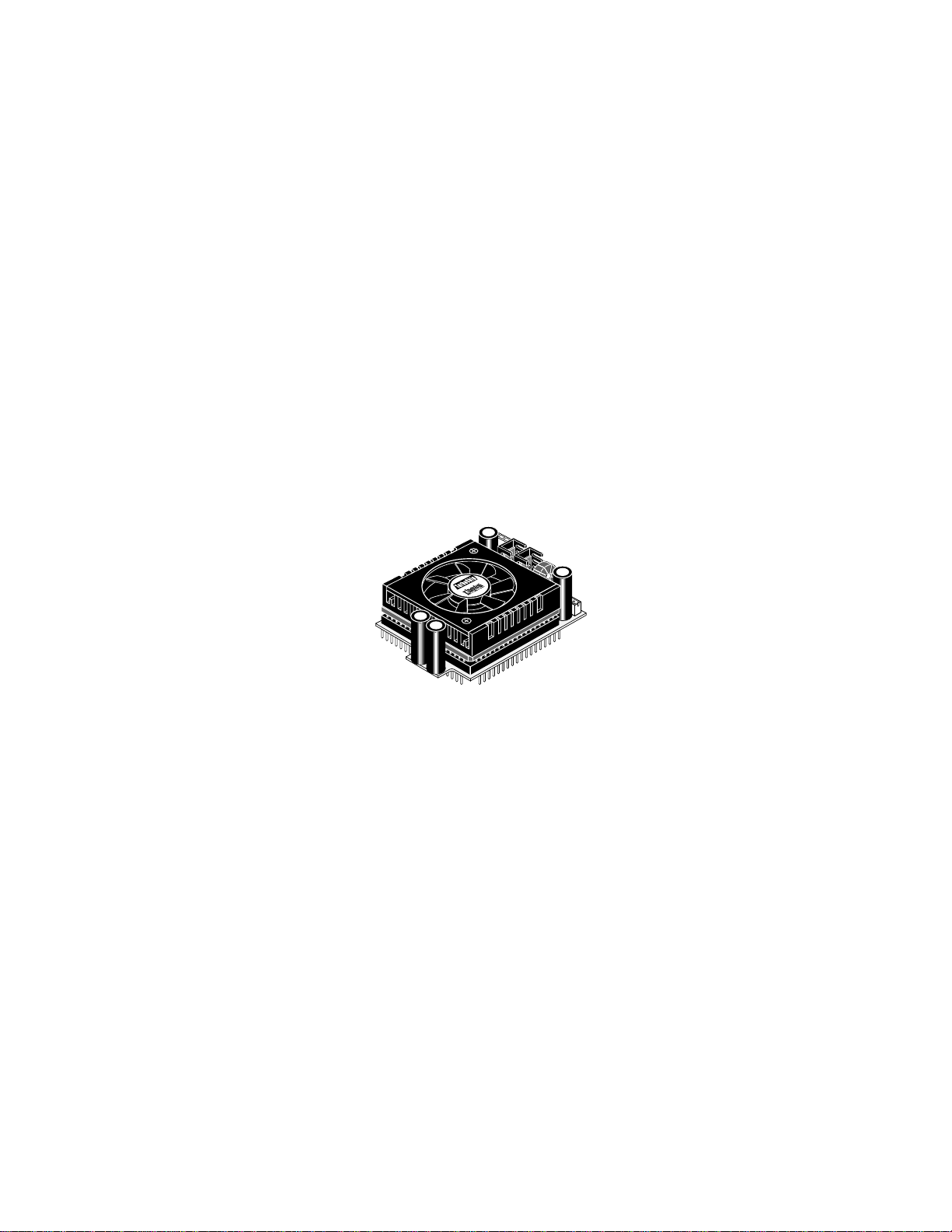

TurboChip®200

200MHz MMX™Enhanced Processor Upgrade

2 General Information

Kingston Technology Company TurboChip 200 User’s Guide - Rev. A01

Special Features

Your Kingston TurboChip 200 includes these important features:

•Powerful AMD-K6™MMX™enhanced microprocessor

running at 200MHz processing speed.

•64KB Level One (L1) Cache:

(32K dual-ported data cache and 32K write-back cache)

•Onboard voltage regulator to interface with either 2.9V or 3.3V

system motherboard automatically.

•Supports multimedia extensions instructions

•“Plug and Play” installation. No software drivers to install.

Kingston features the Landmark System Speed Test®Version 2.10 for testing

the performance of your new TurboChip upgrade. The Speed Test program is

located on a 3.5” Utility Diskette included in your TurboChip package.

Kingston suggests running the speed test before and after installation to

compare the performance increase. Refer to Appendix A for instructions on

running Landmark System Speed.

Package Contents

The TurboChip package should contain the following items:

•TurboChip processor upgrade with cooling fan

•Screwdriver (for removing heatsink retaining clip)

•Utility Diskette

•User’s Guide

If any of the items are missing or damaged, please contact your Kingston dealer

for a replacement. Remove the Processor Upgrade from its special anti-static

foam pad only when you are at the point of installing it into your computer.

Remember to ground yourself first to avoid static electricity discharge. Do this

by applying both hands to a neutral metal surface like the rear of the computer

or the power supply metal housing. Remove the protective foam pad from the

TurboChip connector pins very carefully, and take care not to damage the pins

when installing the upgrade. Retain all the protective packaging for future use.

Before You Begin 3

TurboChip 200 User’s Guide - Rev. A01 Kingston Technology Company

Before You Begin

The TurboChip installation should take less than 15 minutes to complete.

Before you begin, however, there is one very important point to be aware of.

First, notice the location of Pin 1 on the TurboChip upgrade denoted by a white

triangle on the bottom of the unit. This corner of the upgrade must match Pin 1

on the processor socket (See figures below). Your Pentium®computer should

be using either a Socket 5 or Socket 7 type processor socket. Pin 1 orientation

is standard for both socket types. Take a few moments to read the section

below before beginning the installation process.

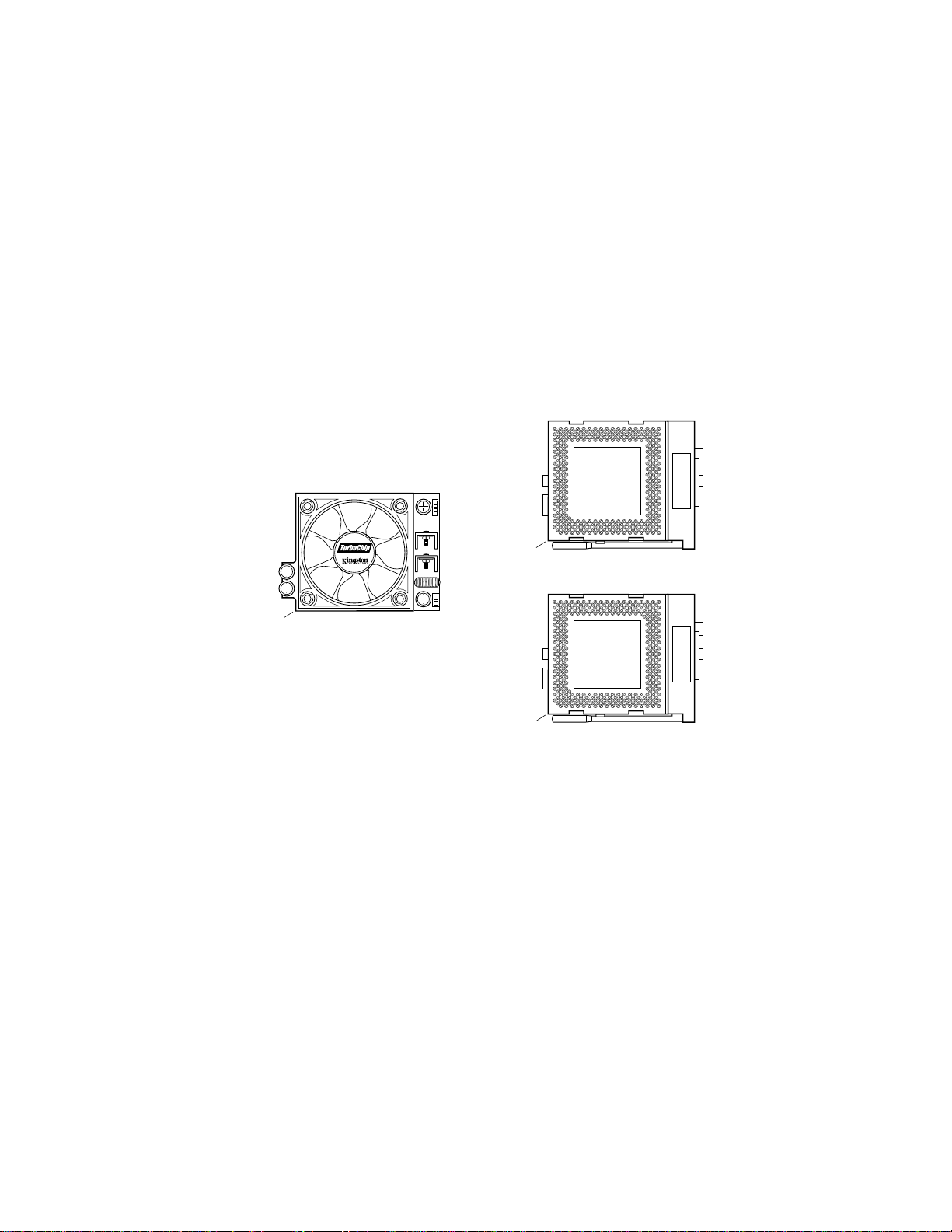

Pin 1 Orientation

The location of Pin 1 on the TurboChip must be oriented to match Pin 1 on the

processor socket. The TurboChip upgrade is keyed to fit only one way into the

CPU socket. If the pins are aligned, the upgrade should easily slide into the

socket. Refer to the figures below for proper orientation:

Pin 1

Figure 1: TurboChip Top View

Pin 1

Socket 5

320 Pins

Figure 2: Empty Socket 5

Pin 1

Socket 7

321 Pins

Figure 3: Empty Socket 7

4 Hardware Installation

Kingston Technology Company TurboChip 200 User’s Guide - Rev. A01

Installing the TurboChip

The TurboChip 200 processor upgrade is designed to work in Pentium 75, 90,

100, 120, 133, 150, 166, and 200MHz computers. The installation procedure

will differ slightly according to the location of your processor socket. Follow the

steps below to install TurboChip into your computer.

Step 1. Opening the Computer

1. Set the power switch on the system unit to OFF.

2. Set all external power switches OFF (i.e. display, printer, etc.).

3. Disconnect all power cords and cables from the rear of the computer.

4. Remove the cover from your computer as described in your owner’s

manual. Make sure you have room to work. If necessary, place the

computer on a desktop surface that is easily accessible with plenty of

area to work.

Step 2. Locating the CPU

1. Locate the Pentium CPU chip on your system board or CPU

expansion card. The CPU chip will most likely have a large metal

heatsink attached on top (See Figure 4 on the next page to view a

standard heatsink). Note: some system manufacturers also include a

cooling fan on top of the heatsink.

2. Make sure the CPU chip is accessible. If the CPU socket is located

under an expansion card, move any full-length adapter cards to other

expansion slots. If no slots are available, place a half-length card in

the slot nearest the CPU socket so that the CPU socket is

unobstructed. If the CPU socket is located under the floppy drive

(e.g., IBM ValuePoint™), loosen the retaining screws and remove the

drive bay for easier installation.
