KinAn RHD108 Manuel utilisateur
HDMI KVM Switch
（
8 Port / 16 Port
）
User Manual
www.kinankvm.com
@all right reserved Shenzhen Kinan Technology Co., Ltd.
Printing date：2022/04
Version：V1.1
8 Port /16 Port User
Manual
-1-
Overview
Descriptions
HDMI switch is a control device which controls multiple computers from a
single console (keyboard, video and mouse). It is easy and fast to install the
KVM switch, you just need to connect corresponding cables to the right ports
of the KVM. Since the KVM directly get the signal input from the keyboard and
mouse, there is no software setup or other complex installation, so no worry
about compatibility
Features
Control 8 / 16 pcs HDMI computers from a single console
Fit for standard 19” rack mounting
Fully complied with HDCP
Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
Support wireless keyboard and mouse from different suppliers
Convenient computer switching via front panel pushbuttons, hotkeys, or
mouse
Complete keyboard & mouse emulation for error-free booting.
Auto scan feature for monitoring user-selected computers
Broadcast mode – operations simultaneously performed on all selected
computers
Support hot-plugging
8 Port /16 Port User
Manual
-2-
Hardware Installation
Rack Mounting
Make sure all the computers and external device are shut down before
installation.
Put the KVM switch in place, screw the brackets to the two sides of the KVM to
install the KVM in the standard 19” rack. Pay attention to the cable length, to
keep a certain distance between the KVM and the computer.
Bear bracket
Appearance
8 Port /16 Port User
Manual
-3-
Rear View
Installation Diagram
Make sure the KVM has been connected to the ground(①)
Connect the power adapter to KVM(②)
Connect Screen, keyboard, mouse to local CONSOLE(③)
Connect PC and KVM with HDMI cable(④)
Power on the pc and switch to start to use it
1.2 Installation Diagram
No.
Instruction
1
Grounded Screw
2
Power adapter socket
3
Console HDMI port
4
Console USB port ( keyboard, Mouse)
5
KVM Port
8 Port /16 Port User
Manual
-4-
LED Instructions
1.3 KVM front view
Table 1.2
Mouse Switching
Single click Scroll button and Left-click button to switch to previous port(↑)
Single click Scroll button and Right-click button to switch to next port(↓)
No.
Components
Function
1
1-8 or 1-16
1)Switching freely from port 1 to port 8/16
2
Port Selection
Buttons& LEDs
1）An online LED light(orange) indicates that
the KVM has connected to its corresponding
computer and power on.
2）A selected LED light(green) indicates that
the computer attached to its
corresponding port is up and running.
3
Port ID
It shows the current Port
8 Port /16 Port User
Manual
-5-

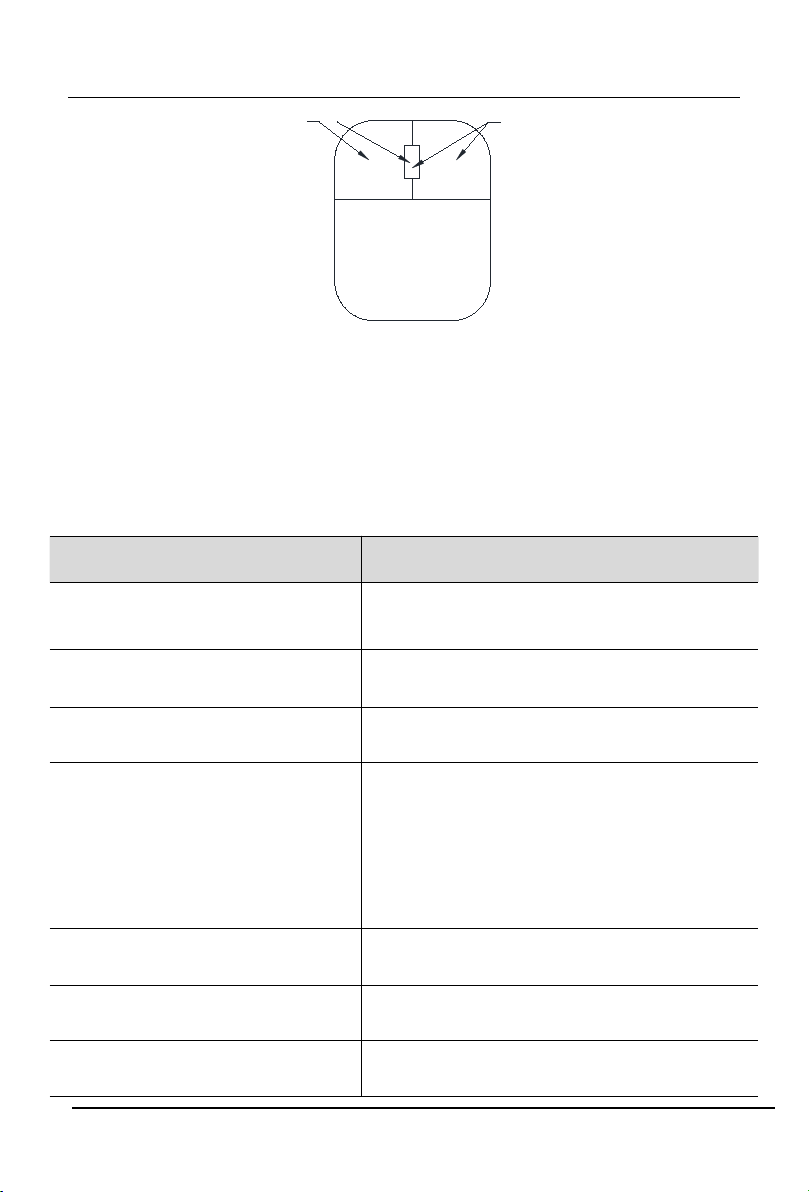

Scroll + Right:
to next port
Left Right
Scroll + Left:
to previous port
Hotkey Operation
Double click【Scroll Lock】(in 2 seconds) , when you heard the beep sound,
you are in hotkey mode. If there are no any operations in Hotkey Mode in 2
second, keyboard out hotkey mouse.
Hotkey commands are as follows：
Double click【Scroll Lock】+ the corresponding function key
Operating
Function description
【Scroll-Lock】+【Scroll-Lock】
+【1~8】
Switch from port 1- 8
【Scroll-Lock】+【Scroll-Lock】
+【F1-F8】
Switch from port 9 – 16
【Scroll-Lock】+【Scroll-Lock】
+【↑ / ↓】
Switch to previous or next port
【Scroll-Lock】+【Scroll-Lock】
+【S】
Scan all ports automatically (default
interval: 5s)
1. Press【+】add 5s (Max: 30S)
2. Press【-】reduce 5s (Min: 5S)
3. Move mouse to extend the scan time
4. Press【Esc】to exit auto scan
【Scroll-Lock】+【Scroll-Lock】
+【Z】
On/Off Beeper
【Scroll-Lock】+【Scroll-Lock】
+【M】
On/Off mouse switch function
【Scroll-Lock】+【Scroll-Lock】
+【B】
Under broadcast mode, the computer
keyboard and mouse can be operated
8 Port /16 Port User
Manual
-6-
synchronously.
【Scroll-Lock】+【Scroll-Lock】
+【F】
Default hotkey mode:【Scroll Lock】
Hotkey cycling mode:
【L_Ctrl】--> 【Caps Lock】-->
【F12】-->【Scroll Lock】
【Scroll-Lock】+【Scroll-Lock】
+【R】
Restore to the original factory setting
Specification
Model
RHD108
RHD116
Direct Computer Connection
8
16
Max Computer Connection
8
16
Port Selection
Pushbutton, Hotkey
Connector
Console
Monitor
Keyboard
Mouse
1x HDMI Type A
2x USB type A
KVM
8x HDMI Type A
8x USB Type B
16x HDMI Type A
16x USB Type B
Switch
Port Selection
8x buttons
16x buttons
LEDs
Online
8x (orange)
16x (orange)
Selected
8x (green)
16x (green)
Port Display
2x 7- Segment (orange)
I/R Value
DC12V/2A
Resolution
1920x1080@60Hz
Consumption
5W
7W
Emulation
Keyboard/Mouse
USB
8 Port /16 Port User
Manual
-7-
Environment
Operating
Temperature
0-50℃
Storage Temperature
-20-60℃
Humidity
0-80%RH, Non-condensing
Physical
Features
Material
Metal
Weight
2.0kg
2.2kg
Dimension
440x169x43mm
