Smoke Alarm

User’s Guide

i9010CA

SINGLE STATION

SMOKE ALARM

10 Year Sealed Lithium Battery Operated

i9010CA

Introduction . . . . . . . . . . . . . . . . . . . . . . . . 1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . 13-14

Fire Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 15-18

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents

Introduction

Thank you for purchasing this smoke alarm. It is an

important part of your family’s home safety plan. You can

trust this product to provide the highest quality safety

protection. We know you expect nothing less when the

lives of your family are at stake.

Please take a few minutes to thoroughly read this alarm

manual, and save it for future reference. Teach children

how to respond to the alarms, and that they should never

play with the unit.

If you have any questions about the operation or

installation of your alarm, please call our toll free

Consumer Hotline at 1-800-880-6788.

Image 1C will help you determine the correct location of

safety products that will help make your home a safer place.

IMPORTANT: Read all instructions before installation and keep

this manual near the alarm for future reference.

Do not try to repair the smoke alarm yourself. Refer to the

instructions in Warranty section for service.

Made in China. Patents Pending

Kidde Canada Inc.

P.O. Box 40, Apsley, ON K0L 1A0

www.kiddecanada.com

Recommended Locations

• Locate the first alarm in the immediate area of the

bedrooms. Try to protect the exit path, as the

bedrooms are usually farthest from the exit. If more

than one sleeping area exists, locate additional alarms

in each sleeping area (Image 1A).

• Locate additional alarms to protect any stairway as

stairways act like chimneys for smoke and heat.

• Locate at least one alarm on every floor level (Image

1B).

• Locate an alarm in every bedroom.

• Locate an alarm in every room where electrical

appliances are operated (i.e. portable heaters or

humidifiers).

• Locate an alarm in every room where someone sleeps

with the door closed. The closed door may prevent the

alarmfrom waking the sleeper.

• Smoke, heat, and combustion products rise to the

ceiling and spread horizontally. Mounting the smoke

alarmon the ceiling in the center of the room places it

closest to all points in the room. Ceiling mounting is

preferred in ordinary residential construction.

• When mounting an alarm on the ceiling, locate it at a

minimum of 10 cm (4") from the side wall (Image 2A).

• When mounting the alarm on the wall, use an inside

wall with the top edge of the alarm at a minimum of

10 cm (4") and a maximum of 30.5 cm (12") below the

ceiling (Image 2A).

• Put smoke alarms at both ends of a bedroom hallway

or large room if the hallway or room is more than 9.1

m(30') long.

• For mobile home installation, select locations carefully

to avoid thermal barriers that may format the ceiling.

For more details, see Mobile Homes.

Installation

• Install smoke alarms on sloped, peaked or cathedral

ceilings at or within 0.9 m (3') of the highest point

(measured horizontally). NFPAStandard 72 states:

“Smoke alarms in rooms with ceiling slopes greater than

0.3 m in 2.4 m (1 foot in 8 feet) horizontally shall be

located on the high side of the room.” NFPA Standard 72

states: “A row of detectors shall be spaced and located

within 0.9 m (3') of the peak of the ceiling measured

horizontally” (Image 2B).

DINING

ROOM

LIVING

ROOM

Smoke Alarms for Minimum Protection

Ionization Type Smoke Alarm with

Hush® Control or Photoelectric Type

Smoke Alarms for Additional Protection

KITCHEN BEDROOM

BEDROOM

LIVING

ROOM KITCHEN

BEDROOMBEDROOM HALL

BASEMENT

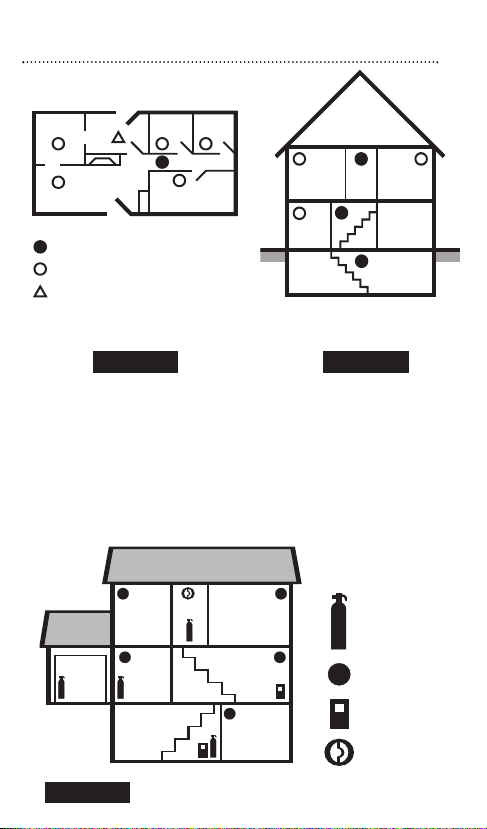

IMAGE 1A

IMAGE 1C

IMAGE 1B

SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN

BEDROOM

FAMILY ROOM

WORKSHOPBASEMENT

KITCHEN

HALL

GARAGE

MASTER

BEDROOM

FIRE

EXTINGUISHERS

SMOKE

ALARMS

CARBON

MONOXIDE

ALARMS

TALKING

SMOKE/CO

ALARM

TOTAL HOME PROTECTION

Installation

Locations to Avoid

• Do not install within 0.9 m (3') of the following: The

door to a kitchen, or a bathroom that contains a tub or

shower, forced air ducts used for heating or cooling,

ceiling or whole house ventilating fans, or other high

air-flow areas.

• Do not place the alarm where drapes or other objects

will block the sensor. Smoke must be able to reach the

sensor to accurately detect conditions.

• Do not install in peaks of vaulted ceilings, “A” frame

ceilings or gabled roofs. (Less than 10 cm (4") from the

peak of an “A” frame type ceiling.)

• Install at least 30.5 cm (12") away from fluorescent

lights as electronic noise may cause nuisance alarms.

• Keep out of insect infested areas. Avoid excessively

dusty, dirty or greasy areas. Dust particles may cause

nuisance alarms or failure to alarm.

• Extreme temperatures may effect the sensitivity of the

alarm. Do not install in areas where the temperature is

colder than 4.4°C (40°F) or hotter than 37.8°C (100°F),

such as garages and unfinished attics.

• Do not install in areas where the relative humidity (RH)

is greater than 85%. Very humid areas, with moisture or

steam, can cause nuisance alarms.

• Avoid placing ionization smoke alarms in kitchen areas.

Normal cooking may cause nuisance alarms. If a

kitchen alarm is desired, it should have an alarm silence

feature or be a photoelectric type.

• Do not place in the garage. Particles of combustion are

present when you start your automobile.

• Smoke alarms are not to be used with detector guards

unless the combination (alarm and guard) has been

evaluated and found suitable for that purpose.

Installation

IMAGE 2A

IMAGE 2B

HORIZONTAL DISTANCE FROM PEAK

CEILING

10 cm (4”)

MINIMUM

10 cm (4”)

MINIMUM

30.5 cm (12”)

MAXIMUM

SIDE WALL

BEST

PLACEMENT

ACCEPTABLE

PLACEMENT

NEVER HERE

STAGNANT

AIR

10 cm (4”)

0.9 m (3’) 0.9 m (3’)

NOT IN

THIS AREA

BEST

ANYWHERE IN

THIS AREA

Installation

Mounting

CAUTION: This unit is sealed (including the battery). The cover

is not removable!

• After selecting the proper smoke alarm location as

described previously, attach the mounting plate to the

ceiling (Image 3B).

• To ensure aesthetic alignment of the alarm with the

hallway, or wall, the “A” line on the mounting plate

must be parallel with the hallway when ceiling

mounted, or horizontal when wall mounted (Image 3A).

• Secure the mounting plate to the wall or ceiling with

the anchors and screws provided (Image 3B). Use a

3/16" drill bit for anchors.

• For aesthetic reasons, the suggested position for wall

mounting is as shown in Image 3C.

NOTE: This alarm has a battery permanently sealed inside the

alarm. No battery installation is necessary.

Activation

This model is equipped with a featurethat automatically

activates the alarm when the alarm is attached to the

mounting plate for the first time. Once activated, the battery

will supply power to the alarmfor the life of the alarm(10

years). Be sure that the mounting plate is installed correctly

before attaching the alarm to it.

• Install the alarm on the mounting plate and rotate the

alarmin the direction of the “ON” arrow on the cover

until the alarm ratchets into place (Image 3D). This

ratcheting function allows for aesthetic alignment. Note:

The alarm will attach to the mounting plate in 4

positions (every 90 degrees).

The alarm is now activated!

CAUTION: Due to the loudness (85 decibels) of the alarm, always

stand an arms-length away from the unit when testing.

• After installation, test your alarm by depressing and

holding down the Test button for a minimum of 5

seconds (or until the alarm sounds). This will sound the

alarm if the electronic circuitry, horn, and battery are

working. If the alarm does not sound, the unit has a

defective battery or another failure.

Mobile Homes

Mobile homes built in the past five to seven years have

been designed to be energy efficient. Install smoke alarms

as recommended in Recommended Locations and Image 2A.

In mobile homes that are not well insulated compared to

present standards, extreme heat or cold can be transferred

from the outside to the inside through poorly insulated

walls and roof. This may create a thermal barrier that can

prevent the smoke from reaching an alarm mounted on

the ceiling. In such units, install the smoke alarmon an

inside wall with the top edge of the alarm at a minimum

of 10 cm (4") and a maximum of 30.5 cm (12") below the

ceiling (Image 2A).

If you are not sure about the insulation in your mobile

home, or if you notice that the outer walls and ceiling are

either hot or cold, install the alarm on an inside wall. For

minimum protection, install at least one alarmclose to the

bedrooms. For additional protection, see Image 1A.

WARNING: Test your smoke alarm operation after mobile home

vehicle has been in storage, before each trip and at least once a

week during use.

Installation

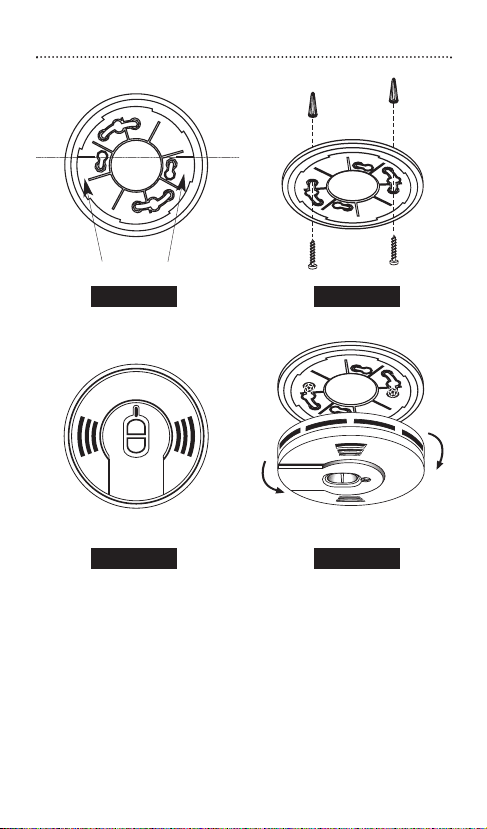

A A

IMAGE 3A IMAGE 3B

IMAGE 3C IMAGE 3D

“A” LINE

ALIGNMENT MARKS

SUGGESTED WALL

MOUNTING POSITION ROTATE TO MOUNT OR

TO REMOVE

Installation

Alarm Tamper Resist Feature

This alarm is equipped with an automatic tamper resist

feature that prevents someone from removing the unit

from the mounting plate. The feature engages when the

alarm is rotated onto the mounting plate.

Rotate the alarm onto the mounting plate until you hear

the tamper resist tab snap into place, locking the alarm.

To remove the alarm, press on the tamper resist tab, and

rotate the alarm off of the mounting plate (Image 4).

IMAGE 4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kidde Détecteur de fumée

Kidde

Kidde p9050CA Manuel utilisateur

Kidde

Kidde i9010 Manuel utilisateur

Kidde

Kidde P4010ACS-WCA Manuel utilisateur

Kidde

Kidde 900-0122 Manuel utilisateur

Kidde

Kidde VM-1 Manuel utilisateur

Kidde

Kidde 900-CUDR-V Manuel utilisateur

Kidde

Kidde P4010ACLEDS-2 Manuel utilisateur

Kidde

Kidde i9070CA Manuel utilisateur

Kidde

Kidde RF-SND Manuel utilisateur

Kidde

Kidde 1275E Mode d’emploi

Kidde

Kidde KN-COSM-B Manuel utilisateur

Kidde

Kidde P4010ACLEDSCA-2 Manuel utilisateur

Kidde

Kidde I12020 Manuel utilisateur

Kidde

Kidde p9040CA Manuel utilisateur

Kidde

Kidde P4010ACLEDSCA Manuel utilisateur

Kidde

Kidde P4010ACSCO Manuel utilisateur

Kidde

Kidde P3010CU Manuel utilisateur

Kidde

Kidde P4010ACSAQ-WF Fiche technique

Kidde

Kidde KN-COSM-IBA Manuel utilisateur

Kidde

Kidde P4010ACSCO-W Manuel utilisateur

Kidde

Kidde 2030-DSR Manuel utilisateur

Kidde

Kidde KIR-OSHCD Instructions de montage

Kidde

Kidde PI9000 Manuel utilisateur

Kidde

Kidde 21027311 Manuel utilisateur

Manuels Détecteur de fumée populaires d'autres marques

x-sense

x-sense SD19-W Manuel utilisateur

BRK electronic

BRK electronic First Alert P1010 Manuel utilisateur

FireAngel

FireAngel Thermoptek ST-622 Manuel utilisateur

teko

teko Astra-42A Manuel utilisateur

Safetec

Safetec SDS-2/6 Manuel du propriétaire

Siemens

Siemens PE-11C Manuel utilisateur

System Sensor

System Sensor DH500ACDC Manuel utilisateur

Resolution Products

Resolution Products RE612 CryptiX Manuel utilisateur

First Alert

First Alert PC900V Manuel utilisateur

Eminent

Eminent EM6590 E-Domotica Manuel utilisateur

Ei Electronics

Ei Electronics Ei Ei168RC Manuel utilisateur

Carrier

Carrier Kidde Quell Q301 Manuel utilisateur

VESDA

VESDA VLF-500 Manuel utilisateur

ELRO

ELRO FS8110 Manuel utilisateur

Heiman

Heiman SMOKI NS-626PHS Manuel utilisateur

Regin

Regin SDD-S65 Manuel utilisateur

Family Gard

Family Gard FG225 Manuel utilisateur

Greystone

Greystone DSD120 Manuel utilisateur
