AC Wire-in Single and/or Multiple Station (up to 24 Devices) Ionization Smoke

Alarm with HUSHTM Control to temporarily silence nuisance alarms.

Models i12040A and i12080A have a 9-Volt Battery Back Up and the model

i12080A has a battery powered safety light.

Thank you for purchasing this smoke alarm. It is an important part of your family’s

home safety plan. You can trust this product to provide the highest quality safety pro-

tection. We know you expect nothing less when the lives of your family are at stake.

Kidde alarms and accessories CAN ONLY BE interconnected with other Kidde alarms

and accessories as well as specified brands and models of interconnect compatible

alarms. Connection of Kidde products to a non-specified manufacturer’s interconnect

system, or connection with non-specified equipment from another manufacturer into

an existing Kidde system could result in nuisance alarming, failure to alarm, or dam-

age to one or all of the devices in the interconnect system. Refer to the User’s Guide

supplied with each Kidde product for interconnect compatible models, brands, and

devices. Refer to the wiring instructions in section 3 for NFPA initiating device limits.

For models:

i12020A, i12040A, i12080A

Manual P/N 820-1183 Rev.D

1220-7205-00

i12020A

i12040A

i12080A

For your convenience, write down the following information. If you call

our Consumer Hotline, these are the first questions you will be asked.

Smoke Alarm Model Number

(located on back of alarm):

Date Code (located on back of alarm): The

National Fire Protection Association (NFPA)

and the manufacturer recommend replacing

this alarm ten years from the date code.

Date of Purchase:

Where Purchased:

Smoke Alarm User’s Guide

SIGNALING

LISTED

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 1

This alarm detects products of combustion using the ionization technique. It

contains 0.9 microcurie of Americium 241, a radioactive material (see section 9).

Distributed under U.S. NRC License No. 32-23858-01E. Manufactured in compli-

ance with U.S. NRC safety criteria in 10 CFR 32.27. The purchaser is exempt

from any regulatory requirements. Do not try to repair the smoke alarm yourself.

Refer to the instructions in section 12 for service.

WARNING! WARNING! ON MODELS WHICH CONTAIN BATTERIES, THE

BATTERY DOOR WILL NOT CLOSE UNLESS ALL THE REQUIRED BATTERIES

ARE PRESENT.

DISCONNECTION OR LOSS OF POWER (AC AND/OR BATTERY BACKUP) TO

THE ALARM WILL RENDER THIS ALARM INOPERATIVE.

ELECTRICAL RATING: 120 VAC, 60HZ, 80mA maximum per alarm (maximum

80mA for originating unit with 24 devices interconnected).

IMPORTANT! READ ALL INSTRUCTIONS BEFORE INSTALLATION AND KEEP

THIS MANUAL NEAR THE ALARM FOR FUTURE REFERENCE.

CONTENTS OF THIS MANUAL

1 -- RECOMMENDED LOCATIONS FOR SMOKE ALARMS

2 -- LOCATIONS TO AVOID

3 -- INSTALLATION INSTRUCTIONS

4 -- OPERATION AND TESTING

5 -- NUISANCE ALARMS

6 -- MAINTENANCE

7 -- LIMITATIONS OF SMOKE ALARMS

8 -- GOOD SAFETY HABITS

9 -- NRC INFORMATION

10 -- NFPA PROTECTION STANDARD 72

11 -- CALIFORNIA STATE FIRE MARSHAL REQUIRED INFORMATION

12 -- SERVICE AND WARRANTY

1. RECOMMENDED LOCATIONS FOR ALARMS

• Locate the first alarm in the immediate area of the bedrooms. Try to monitor

the exit path as the bedrooms are usually farthest from the exit. If more than

one sleeping area exists, locate additional alarms in each sleeping area.

• Locate additional alarms to monitor any stairway as stairways act like chim-

neys for smoke and heat.

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 2

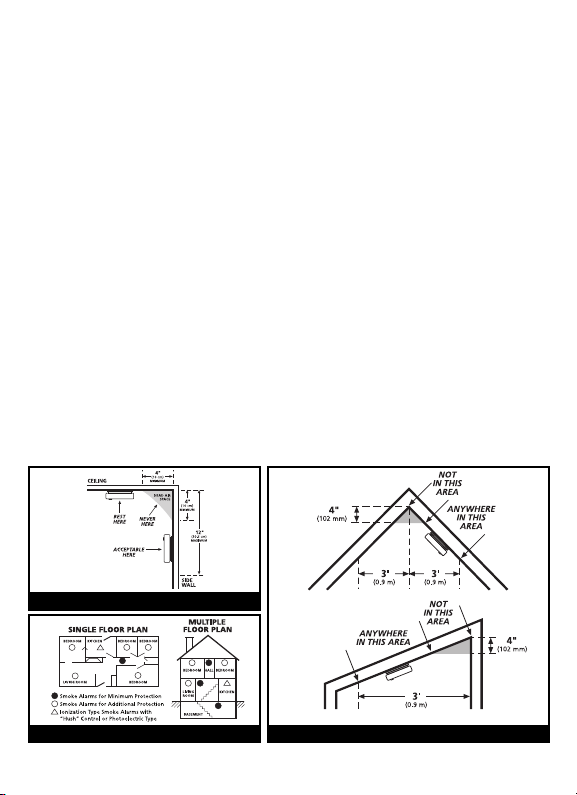

FIGURE 1

FIGURE 2 FIGURE 3

• Locate at least one alarm on every floor level.

• Locate an alarm in every sleeping room.

• Locate an alarm in every room where electrical appliances are operated (i.e.

portable heaters or humidifiers).

• Locate an alarm in every room where someone sleeps with the door closed.

The closed door may prevent an alarm not located in that room from waking

the sleeper.

• Smoke, heat, and combustion products rise to the ceiling and spread horizon-

tally. Mounting the smoke alarm on the ceiling in the center of the room

places it closest to all points in the room. Ceiling mounting is preferred in

ordinary residential construction.

• For mobile home installation, select locations carefully to avoid thermal

barriers that may form at the ceiling. For more details, see MOBILE HOME

INSTALLATION.

• When mounting an alarm on the ceiling, locate it at a minimum of 4” (10 cm)

from the side wall (see figure 1).

• When mounting the alarm on the wall, use an inside wall with the top edge

of the alarm at a minimum of 4” (10 cm) and a maximum of 12” (30.5 cm)

below the ceiling (see figure 1).

• Put smoke alarms at both ends of a bedroom hallway or large room if the

hallway or room is more than 30 ft (9.1 m) long.

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 3

• Install Smoke Alarms on sloped, peaked or cathedral ceilings at or within 3ft

(0.9m) of the highest point (measured horizontally). NFPA 72 states: “Smoke

alarms in rooms with ceiling slopes greater than 1 ft in 8 ft (.3m in 2.4 m) hor-

izontally shall be located on the high side of the room.” NFPA 72 states: “A

row of detectors shall be spaced and located within 3 ft (0.9m) of the peak of

the ceiling measured horizontally” (see figure 3).

MOBILE HOME INSTALLATION

Modern mobile homes have been designed and built to be energy efficient.

Install smoke alarms as recommended above (refer to RECOMMENDED LOCA-

TIONS and figures 1 and 2).

In older mobile homes that are not well insulated compared to present stan-

dards, extreme heat or cold can be transferred from the outside to the inside

through poorly insulated walls and roof. This may create a thermal barrier

which can prevent the smoke from reaching an alarm mounted on the ceiling.

In such units, install the smoke alarm on an inside wall with the top edge of the

alarm at a minimum of 4” (10 cm) and a maximum of 12” (30.5 cm) below the

ceiling (see figure 1).

If you are not sure about the insulation in your mobile home, or if you notice

that the outer walls and ceiling are either hot or cold, install the alarm on an

inside wall. For minimum protection, install at least one alarm close to the bed-

rooms. For additional protection, see SINGLE FLOOR PLAN in figure 2.

WARNING: TEST YOUR SMOKE ALARM OPERATION AFTER RV OR MOBILE

HOME VEHICLE HAS BEEN IN STORAGE, BEFORE EACH TRIP AND AT

LEAST ONCE A WEEK DURING USE.

2. LOCATIONS TO AVOID

• In the garage. Products of combustion are present when you start your auto-

mobile.

• Less than 4” (10cm) from the peak of an “A” frame type ceiling.

• In an area where the temperature may fall below 40ºF (4.4˚C) or rise above

100ºF (37.8˚C), such as garages and unfinished attics.

• In dusty areas. Dust particles may cause nuisance alarm or failure to alarm.

• In very humid areas (Greater than 85% R.H.). Moisture or steam can cause

nuisance alarms.

• In insect-infested areas.

• Smoke alarms should not be installed within 3 ft (.9m) of the following: the

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 4

door to a kitchen, the door to a bathroom containing a tub or shower, forced

air supply ducts used for heating or cooling, ceiling or whole house ventilating

fans, or other high air flow areas.

• Kitchens. Normal cooking may cause nuisance alarms. If a kitchen alarm is

desired, it should have an alarm silence feature or be a photoelectric type.

• Near fluorescent lights. Electronic “noise” may cause nuisance alarms.

• Smoke alarms are not to be used with detector guards unless the combination

(alarm and guard) has been evaluated and found suitable for that purpose.

3. INSTALLATION INSTRUCTIONS

WIRING REQUIREMENTS

• This smoke alarm should be installed on a U.L. listed or recognized junction

box. All connections should be made by a qualified electrician and all wiring

used shall be in accordance with articles 210 and 300.3(B) of the U.S. National

Electrical Code ANSI/NFPA 70, NFPA 72 and/or any other codes having jurisdic-

tion in your area. The multiple station interconnect wiring to the alarms must

be run in the same raceway or cable as the AC power wiring. In addition, the

resistance of the interconnect wiring shall be a maximum of 10 ohms.

• The appropriate power source is 120 Volt AC Single Phase supplied from a

non-switchable circuit which is not protected by a ground fault interrupter.

• WARNING: This alarm cannot be operated from power derived from a square

wave, modified square wave or modified sine wave inverters. These types of

inverters are sometimes used to supply power to the structure in off grid

installations, such as solar or wind derived power sources. These power

sources produce high peak voltages that will damage the alarm.

WIRING INSTRUCTIONS FOR AC QUICK CONNECT HARNESS

CAUTION! TURN OFF THE MAIN POWER TO THE CIRCUIT BEFORE WIRING

THE ALARM.

• For alarms that are used as single station, DO NOT CONNECT THE RED WIRE

TO ANYTHING. Leave the red wire insulating cap in place to make certain that

the red wire cannot contact any metal parts or the electrical box.

• When alarms are interconnected, all interconnected units must be powered

from a single circuit.

• A maximum of 24 Kidde devices may be interconnected in a multiple station

arrangement. The interconnect system should not exceed the NFPA intercon-

nect limit of 12 smoke alarms and/or 18 alarms total (smoke, heat, carbon

monoxide, etc.). With 18 alarms interconnected, it is still possible to intercon-

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 5

nect up to a total of 6 remote signaling devices and/or relay modules.

• When mixing models which have battery backup (i12040, i12040A, i12060,

i12060A, i12080, i12080A, i12090A, i4618, i4618A, i5000, 1275, 1276,

1285, 1296, PE120, PI2000, PI2010, KN-COSM-IB, RF-SM-ACDC, KN-COPE-I,

KN-SMFM-I, HD135, KN-COB-IC, KN-COP-IC) with models without battery

backup, (1235, i12020, i12020A, KN-COSM-I SM120X, CO120X SL177I) be

advised that the models without battery backup will not respond during an

AC power failure.

• The maximum wire run distance between the first and last unit in an intercon-

nected system is 1000 feet.

• Figure 4 illustrates interconnection wiring. Improper connection will result in

damage to the alarm, failure to operate, or a shock hazard.

• Make certain alarms are wired to a continuous (non-switched) power line.

NOTE: Use standard UL listed household wire (as required by local codes) avail-

able at all electrical supply stores and most hardware stores.

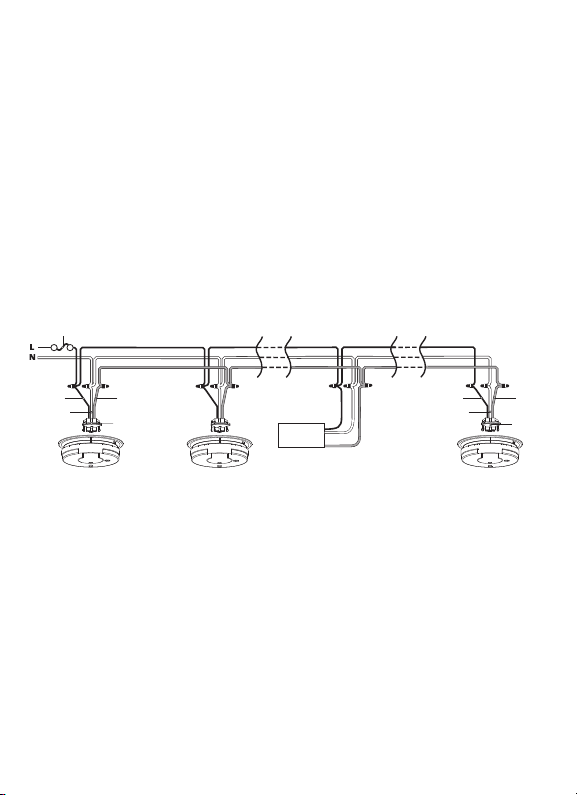

FIGURE 4 INTERCONNECT WIRING DIAGRAM

WIRES ON ALARM HARNESS CONNECTED TO

Black Hot Side of AC Line

White Neutral Side of AC Line

Red Interconnect Lines (Red Wires) of Other

Units in the Multiple Station Set up

BATTERY INSTALLATION (models i12040A and i12080A only)

See MAINTENANCE (section 6) for battery installation.

CAUTION! IF THE BATTERY REMINDER FINGER(S) ARE NOT HELD DOWN

IN THE BATTERY COMPARTMENT BY THE BATTERY, THE BATTERY DOOR

WILL NOT CLOSE, THE AC QUICK CONNECTOR WILL NOT ATTACH TO THE

ALARM, AND THE ALARM WILL NOT ATTACH TO THE TRIM RING (SEE

SECTION 6, FIGURE 9).

FUSE OR CIRCUIT BREAKER

REDBLACK

WHITE

BLACK

WHITE

RED

CONNECTOR CONNECTOR

Kidde

Relay Module

SM120X

First

Alarm

Additional

Alarm Optional

Accessory Additional

Alarm

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 6

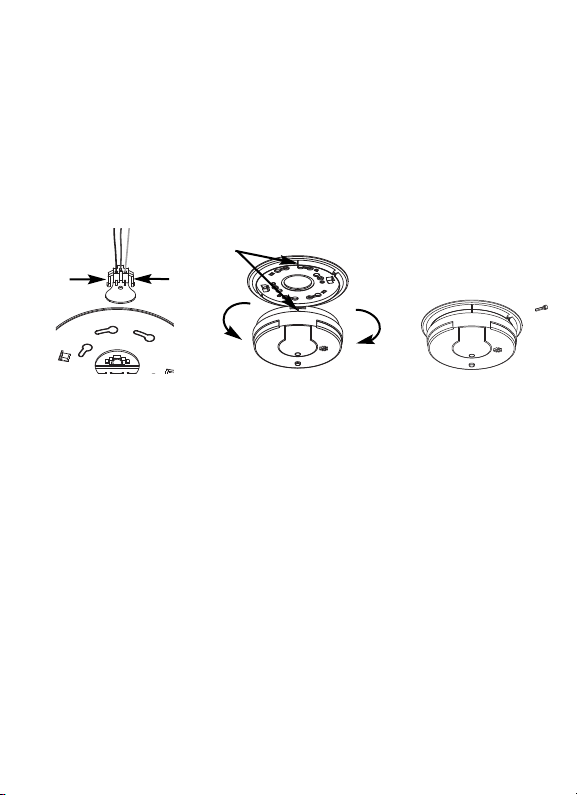

MOUNTING INSTRUCTIONS

CAUTION: THIS UNIT IS SEALED. THE COVER IS NOT REMOVABLE!

1. Remove the trim ring from the back of the alarm by holding the trim ring and

twisting the alarm in the direction indicated by the “OFF” arrow on the alarm cover.

2. After selecting the proper smoke alarm location as described in section 1 and

wiring the AC QUICK CONNECT harness as described in the WIRING INSTRUC-

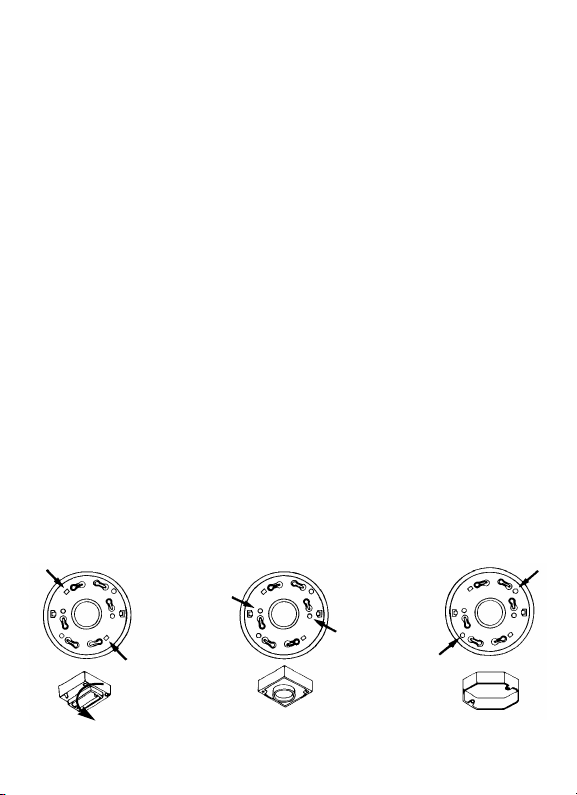

TIONS, attach the trim ring to the electrical box (see figure 5).

3. Use a screwdriver to punch out only the pair of holes in the trim ring that

match your type of electrical box or plaster ring. Mount the trim ring to the elec-

trical box, using the appropriate holes. NOTE: Use the circle, square and octagon

markings near each mounting hole in the trim ring to help you select the correct

mounting holes (see figure 5).

4. Pull the AC QUICK CONNECTOR through the center hole in the trim ring and

mount the ring, making sure that the mounting screws are positioned in the

small ends of the keyholes before tightening the screws (see figure 5).

5. Plug the AC QUICK CONNECTOR into the back of the alarm (see figure 6),

making sure that the locks on the connector snap into place. Then push the excess

wire back into the electrical box through the hole in the center of the trim ring.

6. If you have finished all the WIRING, BATTERY INSTALLATION AND TRIM RING

MOUNTING STEPS, you can install the alarm on the trim ring. Alignment marks

are provided on the side of the alarm and on the trim ring (see figure 7).

7. Install the alarm on the trim ring with the indicating marks aligned and rotate

the alarm in the direction of the “ON” arrow on the cover until the alarm snaps

in place (see figure 7).

8. Turn on the AC power. The green AC Power On Indicator should be lit when

the alarm is operating from AC power.

FIGURE 5 SELECT CORRECT MOUNTING HOLES ON TRIM RING

Rectangular

Plaster Ring

Circular

Plaster Ring

Octagonal

Electrical Box

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 7

TAMPER RESIST LOCKING PIN: To make your smoke alarm tamper resistant, a

locking pin has been provided with your alarm. Using this pin will help deter

children and others from removing the alarm from trim ring. To use the pin,

insert it into the hole in the side of the alarm after the alarm has been installed

on the trim ring (see figure 8). NOTE: The tamper resist pin will have to be

removed in order to change the batteries. Use long nose pliers to pull the pin

out of the hole. It is now possible to remove the alarm from the trim ring.

After installation, TEST your alarm by pressing and holding the test/hush button

for several seconds. This should sound the alarm and activate the Safety Light.

4. OPERATION AND TESTING

OPERATION: The smoke alarm is operating once AC power is applied, fresh bat-

teries are installed and testing is complete. When the smoke alarm ionization

chamber senses products of combustion, the horn will sound a loud (85db) tem-

poral alarm until the sensing chamber is cleared of smoke particles.

HUSHTM CONTROL: The “HUSH” feature has the capability of temporarily desen-

sitizing the alarm circuit for up to 8 minutes. This feature is to be used only

when a known alarm condition, such as smoke from cooking, activates the

alarm. The smoke alarm is desensitized by pushing the “TEST / HUSH” button

on the smoke alarm cover. If the smoke is not too dense, the alarm will silence

immediately. The red LED will illuminate for 1.5 seconds every 8-10 seconds

while in hush. This indicates that the alarm is in a temporarily desensitized con-

dition. The smoke alarm will automatically reset after approximately 8 minutes

and sound the alarm if particles of combustion are still present. The “HUSH”

feature can be used repeatedly until the air has been cleared of the condition

causing the alarm. Pushing the Test / Hush button on the alarm will end the

hush period.

FIGURE 6 FIGURE 7 FIGURE 8

To remove AC

connector,

squeeze

locking arms

and pull

Alignment

marks

Tamper Resist

Locking Pin

Install Remove

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 8

This alarm has a low battery HUSH feature. If the alarm is sounding a low bat-

tery warning chirp, you can silence this chirp for approximately 13 hours by

pressing the Test/Hush button.

NOTE: DENSE SMOKE WILL OVERRIDE THE HUSH CONTROL FEATURE AND

SOUND A CONTINUOUS ALARM.

CAUTION: BEFORE USING THE ALARM HUSH FEATURE, IDENTIFY THE

SOURCE OF THE SMOKE AND BE CERTAIN A SAFE CONDITION EXISTS.

SAFETY LIGHT: The model i12080A has a Safety Light feature. When the

smoke alarm ionization chamber senses smoke, the 85 db horn will sound and

the Safety Light will illuminate until the sensing chamber is cleared of smoke

particles.

NOTE: THE SAFETY LIGHT IS NOT INTENDED TO SATISFY THE REQUIRE-

MENTS FOR APPROVED ILLUMINATION UNDER VARIOUS LOCAL CODES.

VERY THICK AND/OR DENSE SMOKE MAY OBSCURE THE LIGHT.

LED INDICATORS: This smoke alarm is equipped with red and green LED indica-

tors. The green LED (when illuminated) indicates the presence of AC power. The

red LED ( located under the Test / Hush button) has four modes of operation:

Standby Condition: The red LED will flash every 40 seconds to indicate

that the smoke alarm is operating properly.

Alarm Condition: When the alarm senses products of combustion and

goes into alarm, the red LED will flash one flash per

second. The flashing LED and pulsating alarm will

continue until the air is cleared.

WHEN UNITS ARE INTERCONNECTED, only the red LED

of the alarm which senses the smoke or is being tested

(the originating unit) will flash. All other units in the

interconnect system will sound an alarm but their red

LED’s will NOT be flashing.

Alarm Memory: This smoke alarm is equipped with an alarm memory, which

provides a visual indication when an alarm has been activated.

The red LED will illuminate for about 1.5 seconds every 20

seconds to indicate the memory condition.

The memory will

remain activated until pushing the test button resets it or will

time-out between 11 to 13 hours. In an interconnected installa-

tion only the memory of the originating alarm will be activated

Hush®mode: The red LED will illuminate for 1.5 seconds every 10

seconds, indicating the smoke alarm is in the Hush®mode.

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 9

Testing: Test by pushing the Test/Hush button on the cover and

hold it down for a minimum of 5 seconds. This will sound

the alarm if the electronic circuitry and horn are working.

In an interconnected installation all interconnected alarms

should sound when the Test/Hush button on any of the

interconnected alarm is pressed. If no alarm sounds, check

the fuse or circuit breaker supplying power to the alarm

circuit. Verify that the green LED is on. If the alarm still

does not sound, the alarm may have defective batteries

(on battery backup models) or other failure. DO NOT use

an open flame to test your alarm. You could damage the

alarm or ignite combustible materials and start a structure

fire.

Note: When the alarm sounds the Safety Light on the model i12080A will also

illum

inate.

TEST THE ALARM WEEKLY TO ENSURE PROPER OPERATION. Erratic or low sound

coming from your alarm may indicate a defective alarm, and it should be

returned for service (see section 12).

5. NUISANCE ALARMS

Smoke alarms are designed to minimize nuisance alarms. Cigarette smoke will

not normally set off the alarm, unless the smoke is blown directly into the alarm.

Combustion particles from cooking may set off the alarm if the alarm is located

close to the cooking area. Large quantities of combustible particles are generat-

ed from spills or when broiling. Using the fan on a range hood which vents to

the outside (non-recirculating type) will also help remove these combustible

products from the kitchen.

These models are equipped with a "Hush" feature that is extremely useful in a

kitchen area or other areas prone to nuisance alarms. For more information,

refer to section 4 OPERATION AND TESTING.

If the alarm does sound, check for fires first. If a fire is discovered, get out and

call the fire department. If no fire is present, check to see if one of the reasons

listed in section 2 may have caused the alarm.

6. MAINTENANCE / TROUBLESHOOTING

ALARM REMOVAL

IF TAMPER RESIST PIN HAS BEEN USED, REFER TO TAMPER RESIST LOCK-

ING PIN IN SECTION 3 FOR PIN REMOVAL INSTRUCTIONS.

1220-7205-00(820-1183D-EN).qxd:_ 2010.9.3 7:04 PM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kidde Détecteur de fumée

Kidde

Kidde HD135F Manuel utilisateur

Kidde

Kidde 1235 Manuel utilisateur

Kidde

Kidde 0915 Manuel utilisateur

Kidde

Kidde P4010ACS-WCA Manuel utilisateur

Kidde

Kidde I5000 Manuel utilisateur

Kidde

Kidde 916 Manuel utilisateur

Kidde

Kidde RF-SM-DC Manuel utilisateur

Kidde

Kidde PE910 Manuel utilisateur

Kidde

Kidde 29J Manuel utilisateur

Kidde

Kidde I9070 Manuel utilisateur

Kidde

Kidde PI9000 Manuel utilisateur

Kidde

Kidde i12060 Manuel utilisateur

Kidde

Kidde 0916LL Manuel utilisateur

Kidde

Kidde 945 Manuel utilisateur

Kidde

Kidde PE910UK Manuel utilisateur

Kidde

Kidde 915 Manuel utilisateur

Kidde

Kidde Fyrnetics Slick 1SFW Manuel utilisateur

Kidde

Kidde GSA-PS Instructions de montage

Kidde

Kidde P4010ACSCO-W Manuel utilisateur

Kidde

Kidde V-PS Instructions de montage

Kidde

Kidde I12020 Manuel utilisateur

Kidde

Kidde Slick 1SF23/9HI Manuel utilisateur

Kidde

Kidde DC-9102E-KID Manuel utilisateur

Kidde

Kidde KN-COSM-ICA Manuel utilisateur

Manuels Détecteur de fumée populaires d'autres marques

x-sense

x-sense SD19-W Manuel utilisateur

BRK electronic

BRK electronic First Alert P1010 Manuel utilisateur

FireAngel

FireAngel Thermoptek ST-622 Manuel utilisateur

teko

teko Astra-42A Manuel utilisateur

Safetec

Safetec SDS-2/6 Manuel du propriétaire

Siemens

Siemens PE-11C Manuel utilisateur

System Sensor

System Sensor DH500ACDC Manuel utilisateur

Resolution Products

Resolution Products RE612 CryptiX Manuel utilisateur

First Alert

First Alert PC900V Manuel utilisateur

Eminent

Eminent EM6590 E-Domotica Manuel utilisateur

Ei Electronics

Ei Electronics Ei Ei168RC Manuel utilisateur

Carrier

Carrier Kidde Quell Q301 Manuel utilisateur

VESDA

VESDA VLF-500 Manuel utilisateur

ELRO

ELRO FS8110 Manuel utilisateur

Heiman

Heiman SMOKI NS-626PHS Manuel utilisateur

Regin

Regin SDD-S65 Manuel utilisateur

Family Gard

Family Gard FG225 Manuel utilisateur

Greystone

Greystone DSD120 Manuel utilisateur

Kidde i12020A Manuel utilisateur

Manuels Détecteur de fumée populaires d'autres marques
