Instruction Manual

15" Terna LED

A Kichler

Decor

™

ceiling fan

300230

3066708

Includes our new

CoolTouch Control System

Looks permanent, but goes wherever you go!

U.S. Patent Pending

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualiﬁed

licensed electrician.

3. WARNING: To reduce the risk of ﬁre or

electric shock, do not use this fan with any

solid-state speed control. Use only the

control provided with the fan.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting ﬁxtures are not acceptable for fan

support and may need to be replaced,

consult a qualiﬁed electrician if in doubt.

5. WARNING: To reduce the risk of ﬁre,

electric shock, or Personal Injury, mount

directly to a structural framing member or

to an outlet box marked 'Acceptable for

Fan Support of 15.9 kg (35 lbs) or less'. For

outlet box mounting, use mounting screws

provided with the outlet box.

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the ﬂoor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running. A few seconds later the fan will

slow to a stop and then reverse direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

box.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the ground wire and white

(common) wire to one side with the black

(load) wire to the other side of the outlet

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be ETL Listed and marked suitable

for use with the model fan you are

installing. Switches must be ETL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

1. SAFETY RULES

WARNING

To reduce the risk of ﬁre, electric shock, or

Personal Injury, mount directly to a structural

framing member or to an outlet box marked

'Acceptable for Fan Support of 15.9 kg(35 lbs)

or less'. For outlet box mounting, use mounting

screws provided with the outlet box.

3. PACKAGE CONTENTS

Unpack your fan and check the contents .

You should have the following items:

A. Mounting bracket

B. Ball / downrod assembly (1)

C. Canopy

D. Canopy Hole Cover

E. Coupling cover

F. Motor Body

G. Blades (5)

H. Blade Arms (5)

J. LED Assembly

K. Glass Shade

M. Package hardware

1)Mounting hardware :

Wood screws (2) , ﬂat washers (2) ,

screws (2) , lock washers (2),

wire nuts (3)

2) Blade attachment hardware :

Flat head screws (12) ,

truss head screws (12)

3) Safety cable hardware :

Wood screw (1) , spring washer (1),

ﬂat washer (1)

4)Balance kit

5)Screw hardware:

Screw (3)

L. Cool TouchTM Control System

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

I. Adapter Plate

15" TernaTM LED

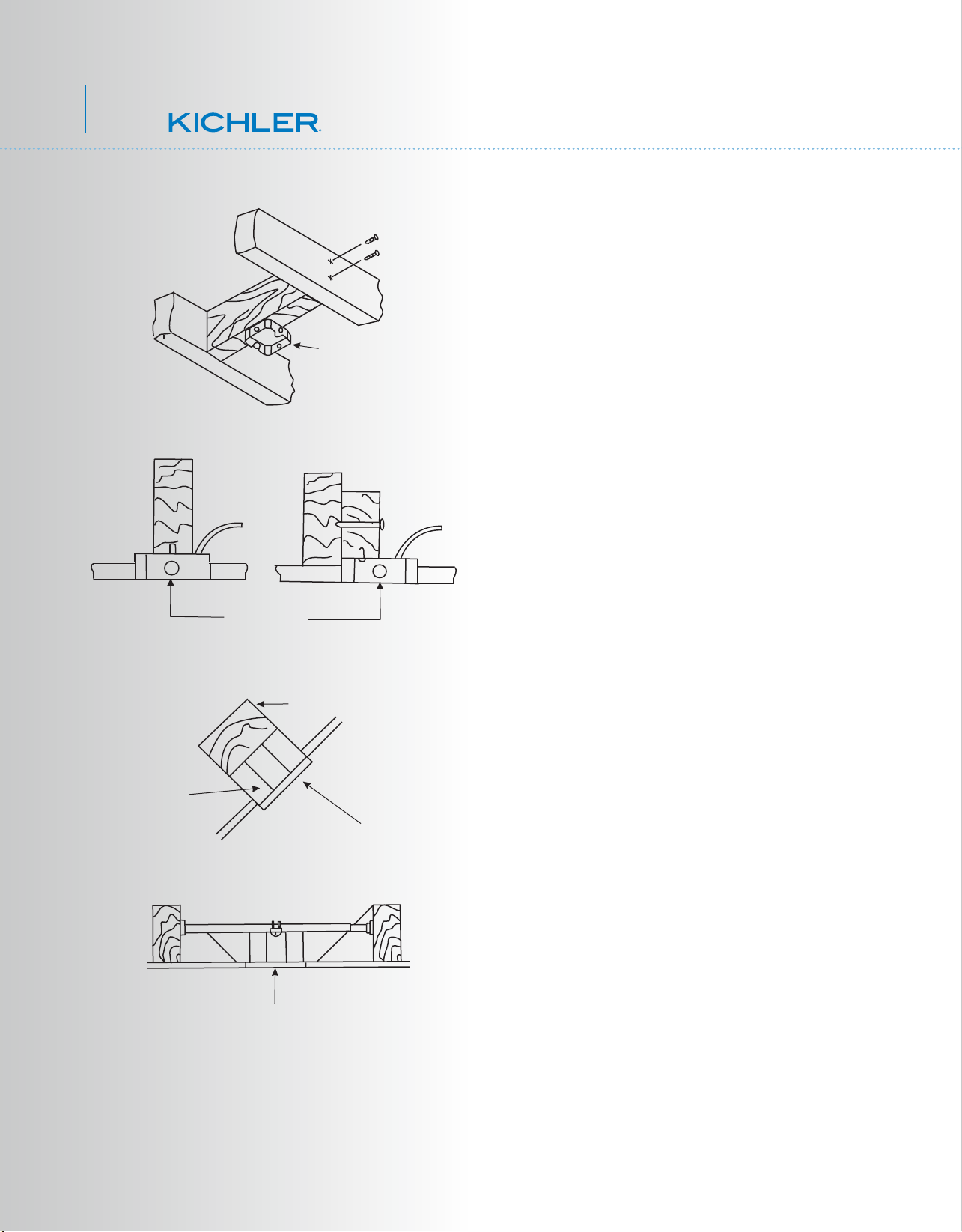

4. MOUNTING OPTIONS

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 30°ANGLE

If there isn't an existing ETL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling.

A minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

5. ASSEMBLE YOUR CEILING FAN

6. ASSEMBLY THE BLADE

Step 3. Remove the cardboard from the

motor body. ( Fig. 7)

Step 1. Remove the hanger ball from downrod

assembly by loosening set screws , removing the

cross pin, and sliding ball off the rod. ( Fig. 5)

Step 1. Place the fan assembly into the styrofoam

pad. (The styrofoam pad serves as a holder for the

fan during the ﬁrst stages of assembly). Insert the

blade into one of the slots on the ﬂywheel, as

shown. Attach the top of blade to the ring with two

ﬂat head blade screws provided in hardware bag.

Do not tighten screws. (Fig. 8)

Step 2. Remove the fan motor and housing

assembly from the protective plastic bag and

take the lower styrofoam packing pad out of the

carton. Place the styrofoam pad on the ﬂoor.

Loosen the two set screws and remove the clip

and cross pin from the top coupling of the motor

body.

Carefully feed the fan wires up through the downrod.

Thread the downrod onto the motor coupling until

the cross pin holes are aligned. Next, replace the

cross pin and clip, and tighten both set screws.

(Fig. 6)

Fig. 7

Fig. 8

Fig. 5

Downrod

Cross Pin Set Screw

Hanger Ball

Fig. 6

Cross Pin

Set Screw

Clip

Cross Pin

Motor Body

Cardboard

Blade

Blade Screw

Blade

Blade Screw

Ring

15" TernaTM LED

Step 2. Carefully turn over the motor body with

the bottom of motor facing up. Attach the blade

arm to the ﬂywheel and let the tab on the blade

leg pass through the hole on the blade arm, as

shown (Fig. 9).

Make sure yellow tab is visible

through hole and metal bracket

. Align the two

mounting holes on both side of blade arm with

the holes on the ﬂywheel and tighten them with

truss head blade screws provided. Finally, tighten

the two ﬂat head blade screws in the ring. Repeat

this procedure for the remaining Four (4) blades.

(Fig. 9)

Step 2. Slip the coupling cover, canopy hole cover

and canopy onto the downrod. Carefully reinstall

the hanger ball onto the downrod . Make sure the

cross pin is in the correct position and the set

screws are tight and the wires are not twisted.

(Fig. 11)

Step 3. Now lift the motor body into position

and place the hanger ball into the hanger bracket.

Rotate until the "Check Tab" has dropped into the

"Registration Slot " and seats ﬁrmly. ( Fig. 12) The

entire motor body should not rotate if this is done

correctly.

Fig. 11

Canopy

Canopy Hole Cover

Coupling Cover

Motor Body

REMEMBER to turn off the power before you

begin installation. This is necessary for your

safety and also the proper programming of the

control system.

To properly install your ceiling fan, follow the

steps below.

Step 1. Before attaching fan to outlet box (not

included), ensure the outlet box is securely

fastened to at least two points to a structural

ceiling member (a loose box will cause the fan

to wobble). Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. Install mounting

bracket to outlet box in ceiling using the screws

and washers included with the outlet box or

screws and washers in the hardware bag. (Fig. 10)

Fig. 10

Flat Washer

Screw

Ceiling Mounting Bracket

ETL Listed Outlet Box

Screw

Fig. 9

7. HANGING YOUR CEILING FAN

Fig. 12

Check Tab Registration Slot

Blade

Blade Arm

Blade Screw

Tab (Yellow)

8 . INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

9. ELECTRICAL CONNECTIONS

A safety support cable is provided to help

prevent the ceiling fan from failing, please install

it as follows.

Step2. Insert the safety cable through the

mounting bracket and one of the holes in the

outlet box into the ceiling. Adjust the length of

the safety cable to reach the screw and washers

by pulling the extra cable through the cable

clamp until the overall length is correct, put the

end of the cable back through the cabel clamp,

forming a loop at the end of the cable. Tighten

the cable clamp securely. Now, put the loop in

the end of the safety cabel over the wood screw

and under the washer. Tighten the wood screw

securely. (Fig. 14)

NOTE:Although the safety support cable is

required for Canadian installations only. It’s a

good idea to make the attachment with any

installation.

WARNING:To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel before wiring.

WARNING:If your house wires are different

colors than referenced in this manual, stop

immediately. A professional electrician is

recommended to determine proper wiring.

Follow the steps below to connect the fan to

your household wiring. Use the wire connecting

nuts supplied with your fan. Secure the

connector with electrical tape. Make sure there

are no loose wire stands or connections.

Step 1.Drive a wood screw and washers into

the side of the brace that holds the outlet box.

Leave 3mm (1/8") of space between the support

brace and the washer. (Fig. 13)

Fig. 14

Fig. 13

Safety Cable Bolt

Wood Screw

Flat Washer

Wood Screw

Spring Washer

Outlet Box

Support Brace

Ceiling

15" TernaTM LED

Step 3. Remote Receiver to Outlet Box Electrical

Connections: Connect the BLACK (hot) wire from

the ceiling to the BLACK wire marked “AC in L”

from the receiver . Connect the WHITE ( neutral )

wire from the ceiling to the WHITE wire marked

“ AC in N” from the Receiver . Secure the wire

connections with the plastic wire nuts provided .

( Fig. 17)

Step 1. Insert the receiver into the mounting

bracket, and keep ﬂat in opposition of ceiling.

(Fig. 16)

Step 2. Motor to Receiver Electrical

Connections: Connect the BLACK wire from

the fan to BLACK wire marked "TO MOTOR L"

from the receiver. Connect the WHITE wire from

the fan to the WHITE wire marked "TO MOTOR N"

from the receiver. Connect the BLUE wire from

the fan to the BLUE wire marked "FOR LIGHT "

from the receiver. Secure all the wire connections

with the plastic wire nuts provided. ( Fig. 17)

NOTE: The CoolTouch Control System is

equipped with 16 code combinations to

prevent possible interference from or to

other remote units. The frequency switches

on your receiver and transmitter have been

preset at the factory. Remove the transmitter

battery cover and make sure the switches

are set to the same position. This must be

done so that your fan will communicate

properly. If you are using more than one fan

in the same area and want to control them

separately, change one fan’s dip switch

settings in the transmitter and remote to a

new pattern.

NOTE: If not using for long periods of time,

remove battery to prevent damage to

transmitter. Store the remote away from

excessive heat or humidly. ( Fig. 15)

Step 4. If your outlet box has a ground wire

( green or bare copper ) connect it to the fan

ground wires : otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and black and

blue wires are on the other side. ( Fig. 17)

NOTE: Carefully tuck the wire connections up

into the outlet box.

NOTE: Fan must be installed at a maximum

distance of 30 feet from the transmitting unit for

proper signal transmission between the

transmitting unit and the fan’s receiving unit.

Fig. 15

ON ECE

Battery Compartment

Code Switch

Fig. 16

Mounting Bracket

Receiver

Fig. 17

White (For common)

Blue(FOR LIGHT) Ground wire

White("AC IN N")

White("TO MOTOR N")

Green or bare copper (ground)

Black (For motor)

Black ("TO MOTOR L")

Black ("AC IN L")

Receiver

Black (hot)

Outlex box

White (Neutral)

Blue(FOR LIGHT)

15" TernaTM LED

10 . FINISHING THE INSTALLATION

11 . INSTALLING THE ADAPTER PLATE

Step 1. Remove one of the two shoulder screws

in the mounting bracket. Loosen the second

shoulder screw without fully removing it. (Fig. 18)

Step 2. Assemble canopy by rotating

key slot in canopy over shoulder screw in

mounting bracket. Tighten shoulder screw.

Fully assemble and tighten second shoulder

screw that was previously removed. (Fig. 19)

Step 3. Securely attach and tighten the canopy

hole cover over the shoulder screws in the

mounting bracket utilizing the keyslot twist-lock

feature. (Fig. 20)

Step 1. Remove one of the screws preinstalled

on mounting plate and loosen the other two

(do not remove). Place the two slot holes on the

adapter plate over the 2 screws previously

loosened from the mounting plate. Rotate the

adapter plate until it locks in place at the

narrow end of the key holes. Securely by

tightening the 2 screws previously loosened

and the one previously removed. (Fig. 21)

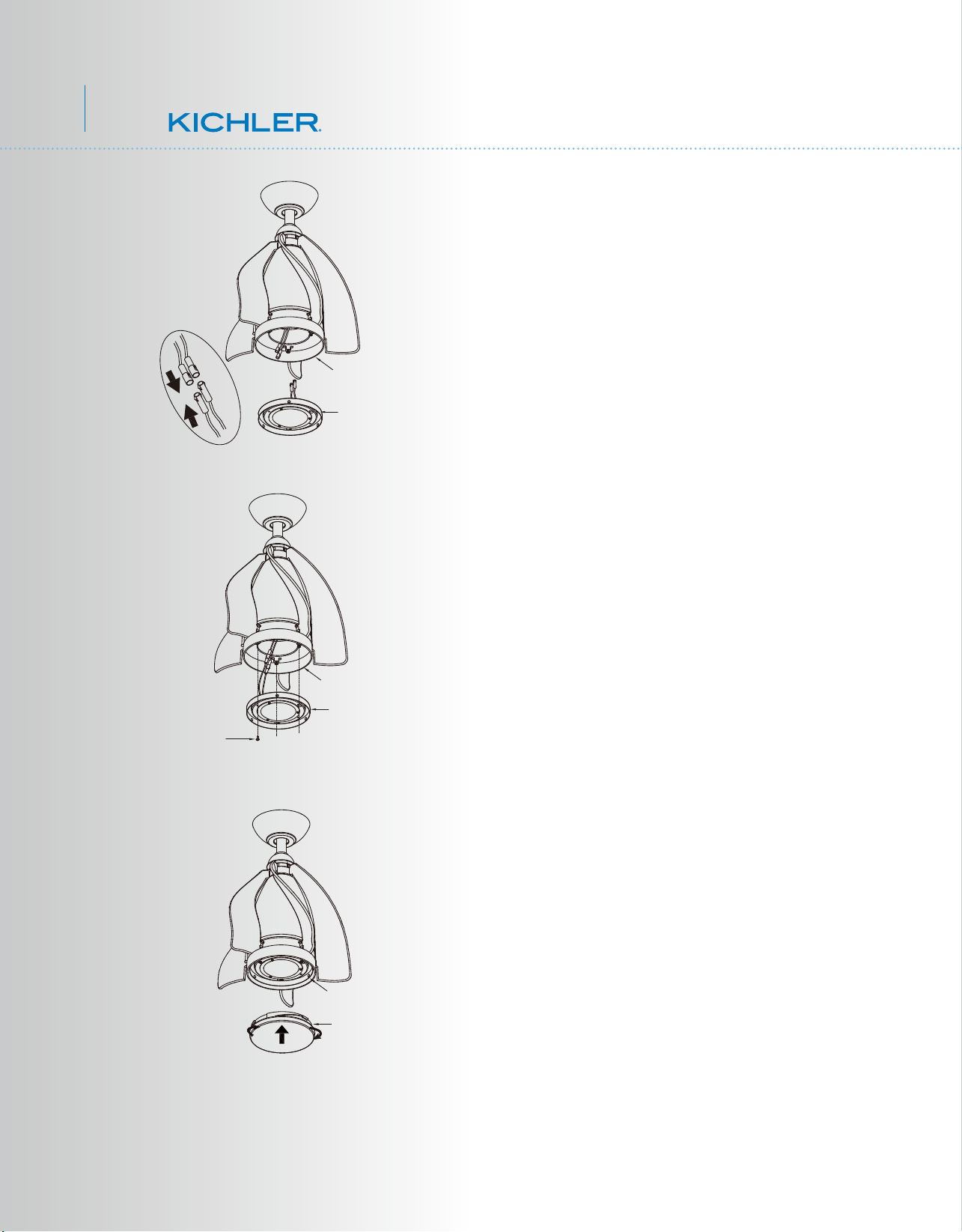

Fig. 18

Shoulder Screw

Mounting Bracket

Fig. 19

Shoulder Screw

Fig. 20

Shoulder Screw

Canopy Hole Cover

Fig. 21

Mounting Screw

Adapter Plate

Step 1. Remove 1 of the 3 screws from the

adapter plate and loosen the other 2 screws

(do not remove). (Fig. 22)

Step 2. Hold the LED assembly close to

the adapter plate and connect the WHITE

wires from the adapter plate and fan by

pushing the connectors together. Follow

the same procedure with the BLACK wires.

(Fig. 22)

Step 1. Assemble the glass shade to the

light kit by twisting in a clockwise direction.

Do not overtighten. (Fig. 24)

NOTE: Before continuing installation,

conrm that the power is still turned off at

the main circuit breaker or by removing the

correct fuse. Turning the power off using a

wall switch is not sufcient to prevent

electrical stock.

12. INSTALLING THE LED Assembly

13. INSTALLING THE GLASS SHADE

Fig. 23

Fig. 24

Fig. 22

Step 3. Tuck the connections neatly into

the LED assembly. Align the key holes on

the LED assembly with the 2 screws on the

adapter plate. Turn the LED assembly until

it locks in place at the narrow end of the key

holes. Securely by tighten all three screws.

(Fig. 23)

Adapter Plate

LED Assembly

Screw

Adapter Plate

LED Assembly

Glass Shade

Adapter Plate

Table des matières

Autres manuels Kichler Lighting Ventilateur

Kichler Lighting

Kichler Lighting ZEUS KLF-ZEUS-60-WHT-BN Manuel utilisateur

Kichler Lighting

Kichler Lighting Starkk 330180MWH Manuel utilisateur

Kichler Lighting

Kichler Lighting 35153 Manuel

Kichler Lighting

Kichler Lighting 310155 Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" Chiara LED Manuel utilisateur

Kichler Lighting

Kichler Lighting Cottage Grove Manuel utilisateur

Kichler Lighting

Kichler Lighting KOSMUS Manuel utilisateur

Kichler Lighting

Kichler Lighting Monarch II Manuel utilisateur

Kichler Lighting

Kichler Lighting Spyn Manuel utilisateur

Kichler Lighting

Kichler Lighting POLA Manuel utilisateur

Kichler Lighting

Kichler Lighting 330163 Manuel utilisateur

Kichler Lighting

Kichler Lighting LYNDON Manuel utilisateur

Kichler Lighting

Kichler Lighting XETY LED Manuel utilisateur

Kichler Lighting

Kichler Lighting Kevlar 310150WCP Manuel utilisateur

Kichler Lighting

Kichler Lighting Lucia Manuel utilisateur

Kichler Lighting

Kichler Lighting Terna 300215 Manuel utilisateur

Kichler Lighting

Kichler Lighting Selectlight fixture Manuel utilisateur

Kichler Lighting

Kichler Lighting Lucian II 330241 Manuel utilisateur

Kichler Lighting

Kichler Lighting Cameron 310204WH Manuel utilisateur

Kichler Lighting

Kichler Lighting Sterling Manor Patio Manuel utilisateur

Kichler Lighting

Kichler Lighting IMARI 300365SBK Manuel utilisateur

Kichler Lighting

Kichler Lighting Bentzen Manuel utilisateur

Kichler Lighting

Kichler Lighting Cortez Manuel utilisateur

Kichler Lighting

Kichler Lighting Crystal Bay Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
