Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

Monarch IITM

A Kichler®Select™

ceiling fan

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

1. SAFETY RULES

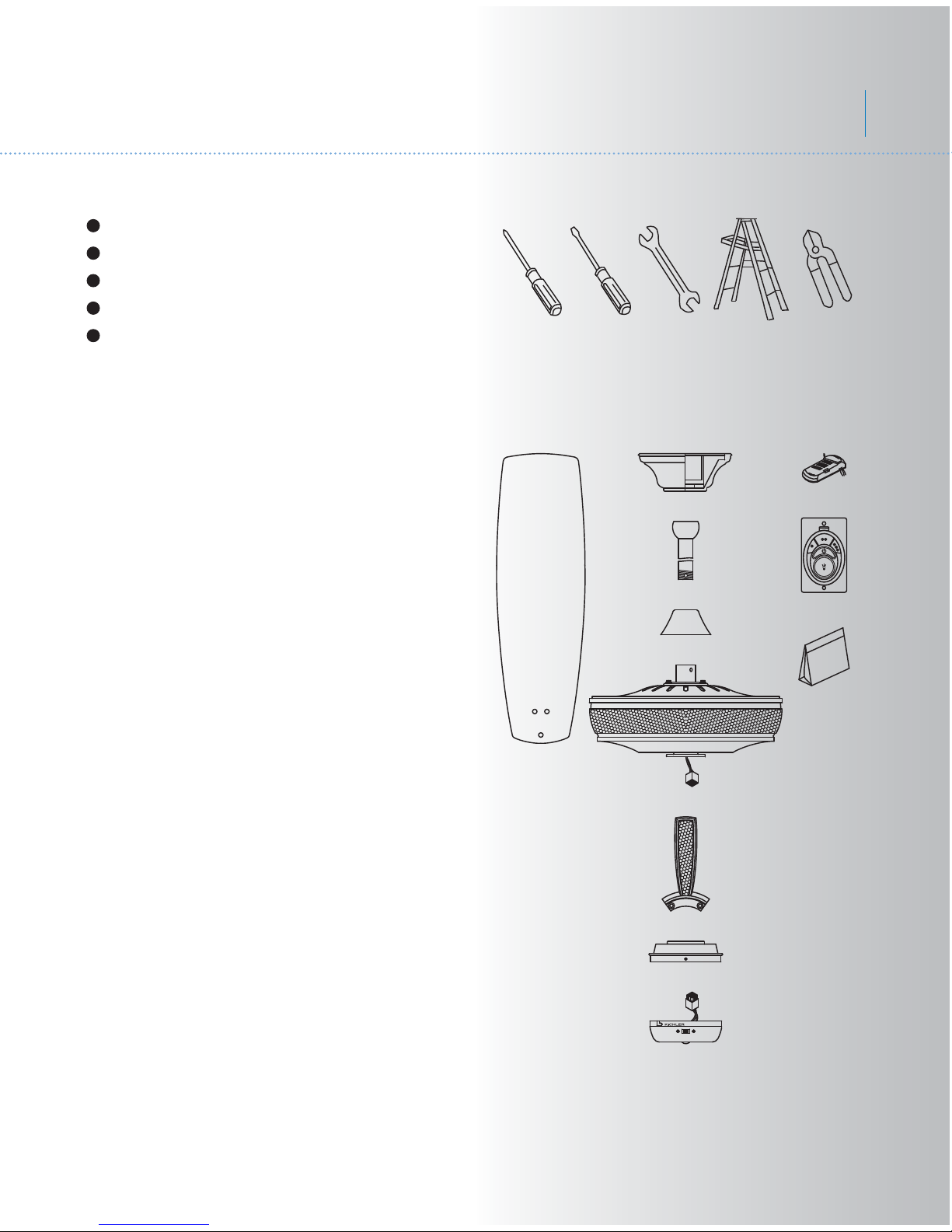

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of 5 blade brackets and Pre-Installed

mounting screws

g. Switch house mounting plate

h. Switch housing

i. Receiver

j. Limited Function CoolTouch™ Control

System

k. Part bag contents

1) Mounting hardware:

star washers (2), wire nuts (3),

machine screws (2), washers (2),

screws (2)

2) Blade attachment hardware:

Allen screws (17), ﬁber washers (17)

3) Safety cable hardware:

wood screw, lock washer, ﬂat washer

4) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

Monarch IITM

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 30°ANGLE

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Downrod

Cross pin

Hanger

ball Set screw

Fig. 6

5. HANGING THE FAN

Supply wires

Downrod

Hitch pin Retaining clip

Set screws

Coupling

Set screws

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save) one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set

screw, removing the cross pin and sliding the

ball off the rod. (Fig.7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Fig. 5

Ceiling mounting

bracket

Canopy

cover

Monarch IITM

Fig. 9

Fig. 10

Registration slot Check tab

Hanger ball

Canopy

Downrod

Canopy cover

Set screws

Hitch pin Retaining clip

Coupling cover

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats ﬁrmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

7. ELECTRICAL CONNECTIONS

Fig. 12

Fig. 13

Code Switch

Receiver

Ceiling Mounting

Bracket

WARNING: To avoid possible electrical

shock, be sure you have turned off the power

at the main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan.

Secure the connectors with electrical tape.

Make sure there are no loose wire strands or

connections.

NOTE: The CoolTouch™ Control System is

equipped with 16 possible frequency

combinations to prevent interference from or

with other remote control units. The frequency

switches on your receiver and transmitter

have been preset at the factory. Please

recheck to make sure the switches on

transmitter and receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter and

receiver are set to the same position. (Fig. 12)

Step 1. Insert the receiver in the ceiling

mounting bracket with the ﬂat side of the

receiver facing the ceiling. (Fig. 13) For best

performance, make sure the Black Antenna,

on the end of the receiver, remains extended

and not tangled with any of the electrical

wires.

Fig. 11

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable

to reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming

a loop at the end of the cable. Tighten the

cable clamp securely. Now, put the loop in the

end of the safety cable over the wood screw

and under the washer. Tighten the wood

screw securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

Monarch IITM

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 14

Step 2. Motor to Receiver Electrical

Connections: (Fig. 14)

Connect the black wire from the fan to the

black wire marked "TO MOTOR L" on the

receiver.

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" on the

receiver.

Connect the blue wire from the fan to the blue

wire marked "FOR LIGHT" on the receiver.

Secure each set of wire connections with the

plastic wire nuts provided in the parts bag.

NOTE: If the receiver included with your

ceiling fan has an "orange wire", Insure that it

has a wire nut attached to the end of the wire.

No exposed wire should show.

The Orange wire is used for decorative

up lighting on some models

Step 3. (Fig. 14) Receiver to House Supply

Wires Electrical Connections:

Connect the black (hot) wire from the ceiling

to the black wire marked "AC in L" from the

receiver.

Connect the white(neutral) wire from the

ceiling to the white wire marked "AC in N"

from the Receiver.

Secure the wire connections with the plastic

wire nuts provided.

Step 4. (Fig. 14) If your outlet box has a

ground wire (green or bare copper) connect it

to the fan ground wires; otherwise connect

the hanging bracket ground wire to the

mounting bracket. Secure the wire connection

with a plastic nut provided. After connecting

the wires, spread them apart so that the green

and white wires are on one side of the outlet

box and black and blue wires are on the other

side. Carefully tuck the wire connections up

into the outlet box.

Note: Fan must be installed at a maximum

distance of 30 feet from the CoolTouch™

Remote Transmitter for optimal signal

transmission between the transmitter and the

fan's receiving unit.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green) (Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Black (motor)

Monarch IITM

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See ﬁgure 15.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting

screw heads by inserting the screw heads into

the bottom side of the canopy cover and

rotating the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 15)

8. FINISHING THE INSTALLATION

Fig. 15

Outlet box

Ceiling mounting

brackrt

Canopy

Screw

Canopy cover

Screws

Fig. 16

Fig. 17

9. ATTACHING THE FAN BLADES

10. INSTALLING THE SWITCH HOUSE

MOUNTING PLATE

CAUTION: Remove the ﬁve rubber shipping

blocks attached to the face of the motor.

These blocks keep the motor from shifting

during shipping and MUST be removed during

installation.

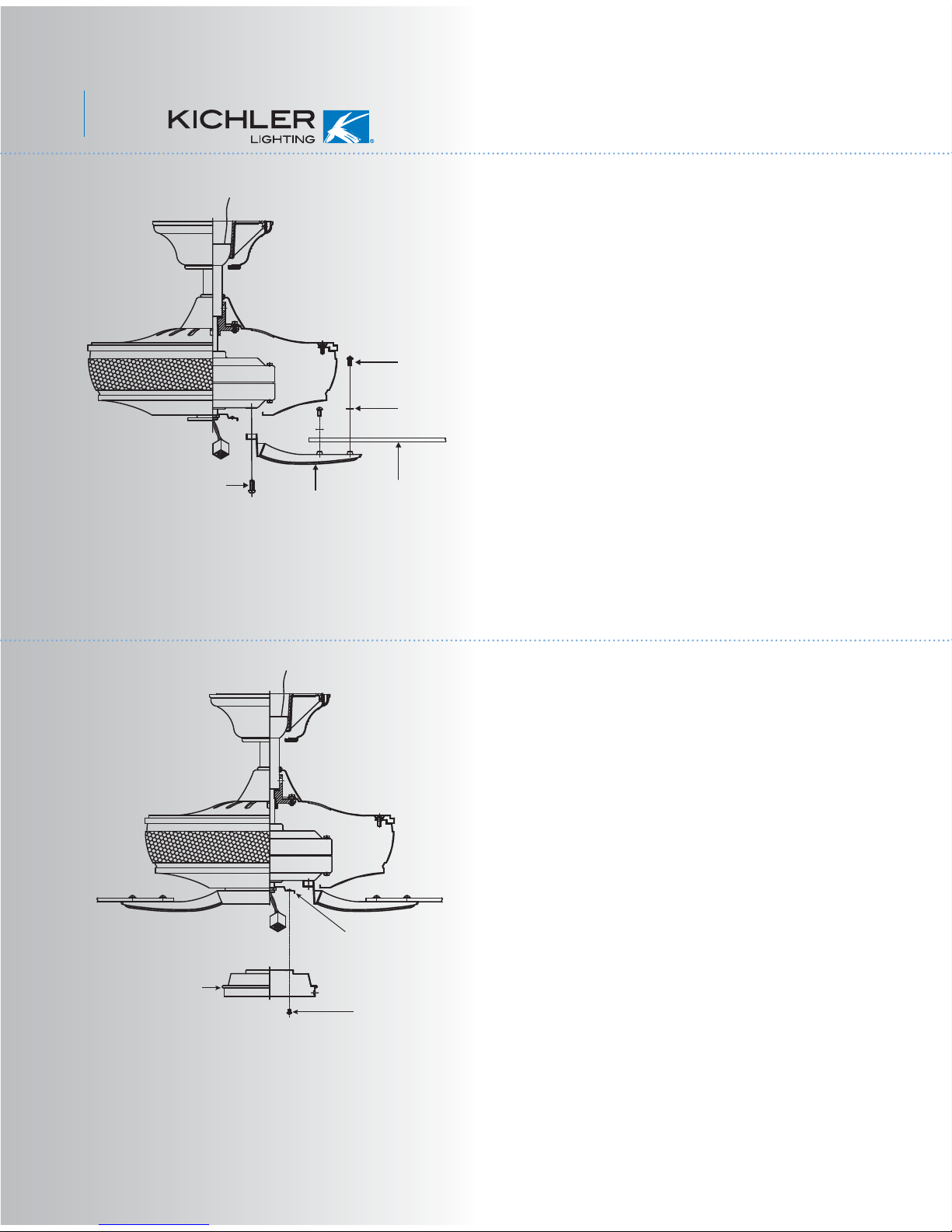

Step 1. Attach a blade to a blade bracket

using the screws and ﬁber washers provided.

(Fig. 16)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw until the ﬁber washer is slightly

compressed. Repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 16)

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 17)

Step 2. Place the key hole slots on the switch

house mounting plate over the two screws

previously loosened on the mounting ring.

Turn the switch house mounting plate until is

locks in place at the narrow section of the key

hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Screws Blades

Blade brackets

Screws

Fiber

washers

Switch house

mounting plate

Mounting ring

Screws

Table des matières

Autres manuels Kichler Lighting Ventilateur

Kichler Lighting

Kichler Lighting 54 Meredith Manuel utilisateur

Kichler Lighting

Kichler Lighting Decor Kimberley Manuel utilisateur

Kichler Lighting

Kichler Lighting Lyndon 300120 Manuel utilisateur

Kichler Lighting

Kichler Lighting Rana 310155 Manuel utilisateur

Kichler Lighting

Kichler Lighting Salvo 330045 Manuel utilisateur

Kichler Lighting

Kichler Lighting 52 inch Colerne LED Manuel utilisateur

Kichler Lighting

Kichler Lighting Vassar 330002OZ Manuel utilisateur

Kichler Lighting

Kichler Lighting Universal 3 Light Fitter Manuel utilisateur

Kichler Lighting

Kichler Lighting Szeplo 370060 Manuel utilisateur

Kichler Lighting

Kichler Lighting 330013 Manuel utilisateur

Kichler Lighting

Kichler Lighting Surrey Climates 60 Manuel utilisateur

Kichler Lighting

Kichler Lighting Windham Manuel utilisateur

Kichler Lighting

Kichler Lighting Bentzen Manuel utilisateur

Kichler Lighting

Kichler Lighting Richland II Manuel utilisateur

Kichler Lighting

Kichler Lighting Golden Iridescence Manuel utilisateur

Kichler Lighting

Kichler Lighting Humble 300415 Manuel utilisateur

Kichler Lighting

Kichler Lighting Vinea 52 Manuel utilisateur

Kichler Lighting

Kichler Lighting Harbour Walk Patio Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" Basics Pro Manuel utilisateur

Kichler Lighting

Kichler Lighting Canfield Manuel utilisateur

Kichler Lighting

Kichler Lighting Larissa Manuel utilisateur

Kichler Lighting

Kichler Lighting Arkwet Patio Manuel utilisateur

Kichler Lighting

Kichler Lighting 54 Skye LED Manuel utilisateur

Kichler Lighting

Kichler Lighting 310155 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
