1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the grounded conductor and the

equipment-grounding conductor on one

side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN TO

OUTLET BOX MARKED "ACCEPTABLE FOR FAN

SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO

REFERRED TO AS FLANGES) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

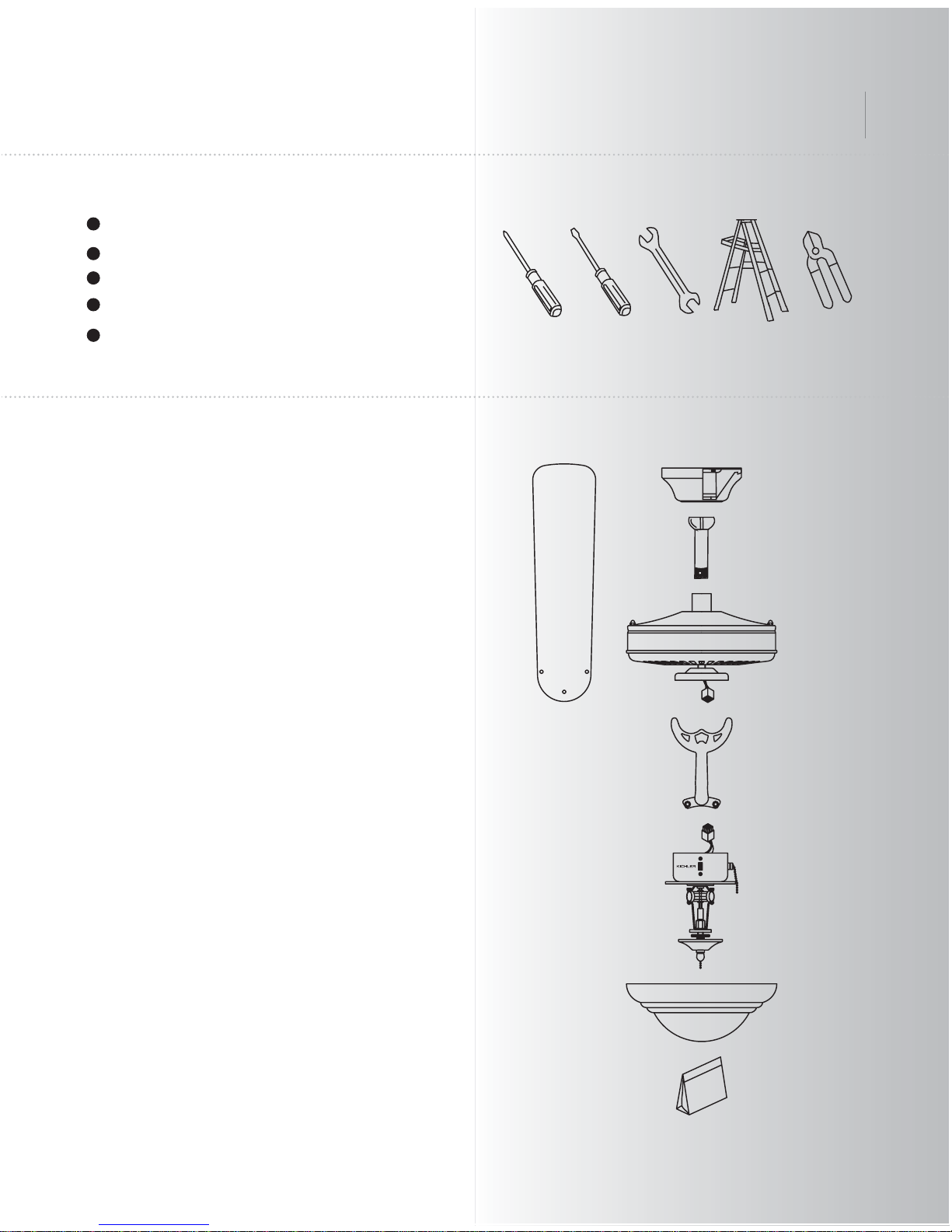

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Hanger bracket and canopy

c. Ball/downrod assembly

d. Fan motor assembly

e. Set of blades brackets (5)

f. Light kit assembly

g. Glass shade

h. Part bag contents

1) Mounting hardware :

wood screws (2), flat washers (2),

star washers (2), wire nuts (3)

2) Blade attachment hardware:

screws (17), washers (17),

fiber washers (17)

3) Blade brackets hardware:

screws (10)

4) Safety cable hardware:

wood screw, lock washer, flat washer

5) Pull chain and fobs (2)

6) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

Sterling Manor Select

4. MOUNTING OPTIONS

If there isn't an existing UL (CUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power

by removing fuses or turning off circuit

breakers

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

NOTE: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Fig 4.

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

Sterling Manor Select

Fig. 6

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

CUL Listed

electrial

box

120V Wires

Washers

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise. (Fig. 5)

Step 2. Remove the hanger bracket from the

canopy by loosening the two screws on the

bottom of the hanging bracket. Turn the

canopy counterclockwise and remove. (Fig, 5)

Step 3. Secure the hanger bracket to the

ceiling outlet box using screws and washers

included with your outlet box. (Fig. 6)

Step 4. Remove hanger ball from downrod

assembly by loosening set screws, removing

the cross pin, and sliding ball off rod. (Fig. 7)

Step 5. Loosen the two set screws and

remove the hitch pin and lock pin from the top

coupling of the motor assembly. (Fig. 8)

Step 6. Carefully feed the fan wires up through

the downrod. Thread the downrod into the

coupling until the Hitch pin holes are aligned.

Next, replace the lock clip and hitch pin then

tighten the set screws. (Fig. 8)

Downrod

Cross pin

Hanger

ball Set screw

Fig. 5

Hanger bracket

Ceiling

canopy

Canopy

cover

Supply wires

Downrod

Hitch pin

Lock pin Set screws

Set screws

5. HANGING THE FAN

Fig. 9

Fig. 10

Registration slot

Downrod Canopy

Canopy cover

Step 7. Slip canopy cover and canopy onto

downrod. Carefully reinstall hanger ball onto

rod being sure that cross pin is in correct

position, the set screw on hanger ball is tight

and wires are not twisted. (Fig. 9)

Step 8. Now lift the motor assembly into

position and place the hanger ball into the

hanger bracket. Rotate until the "Check Tab"

has dropped into the "Registration Slot" and

seats firmly. (Fig. 10). The entire motor

assembly should not rotate if this is done

correctly.

Set screws

Hitch pin Lock pin

Fig. 11

Fig. 12

Fig. 13

7. MAKE THE ELECTRIC CONNECTIONS

Remember to disconnect the power.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan.

Secure the connectors with electrical tape.

Make sure there are no loose strands or

connections.

Step 1 Connect the fan supply (black) wire and

light supply (blue) wire to the black household

supply wire as shown in Figure 12.

Step 2. Connect the neutral fan (white) wire to

the white neutral household wire.

Step 3 Connect the fan ground wire (green) to

the household ground wire.

Step 4 After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and the black

and the blue wires are on the other side.

Step 5 Turn the connecting nuts upward and

push the wiring into the outlet box.

6. INSTALLATION OF SAFETY SUPPORT

(for Canadian Installation ONLY)

Sterling Manor Select

Wiring

box

Ground to

mounting

bracket

or downrod

Power lines 120v

BLUE

BLK BLK

FAN

LIGHT

BLK

BLUE WH

Light

switch

Green ground

BLUE

BLK BLK

GRN

Wiring

box

Ground to

mounting

bracket

or downrod

BLUE

BLK WH

FAN

LIGHT

Power lines 120v

Green ground

An additional safety support is provided to

prevent the fan from falling fan). Place the end

of cable through the loop of ceiling support

cable. Pull as much cable through loop as

possible. Feed end of cable into clamp hole

and fi rmly tighten screw (Fig. 11). Cut off

excess safety cable. Secure the safety cable

to the ceiling joist with screw and washer.

Hanger bracket Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 14

Fig. 15

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and

over the two screws on hanger bracket. Rotate

canopy clockwise, next, while holding the

canopy with one hand, slide the canopy cover

over the screws and rotate clockwise until

tight. NOTE: adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig.15)

Warning: Make sure the "Check Tab" at the

bottom of the hanger bracket is properly

seated in the "Registration Slot" on the side of

the hanger ball before attaching the canopy to

the bracket. Failure to properly seat the

"Check Tab" could damage the electrical wires

when to ceiling fan blade direction is changed

while the fan is running.

Figures 13 and 14 illustrate the wiring

connections for optional wall control (The wire

color out of wall control may vary, see wall

control's installation manual for correct wire

connections.)

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, OR OTHER PERSONAL

INJURY. MOUNT FAN ONLY ON AN

OUTLET BOX OR SUPPORTING SYSTEM

MARKED ACCEPTABLE FOR FAN

SUPPORT.

Outlet box

Hanger

bracket

Canopy

Canopy cover

Screws

8. FINISHING THE INSTALLATION

GROUND TO

MOUNTING

BRACKET

OR DOWNROD

POWER LINES 120V

GREEN

GROUND

WIRING

BOX

BLUE

BLK BLK

FAN

LIGHT

BLUE

BLK

LIGHT FAN

9. ATTACHING THE FAN BLADES

Fig. 16

Fig. 17

Caution: Remove 5 rubber packing mounts

and discard before installation.

Step 1 Attach the blade to the blade bracket

using the screws, washers and fiber washers

as shown in Figure 18. Start screw into

bracket. Repeat for the two remaining screws.

Step 2 Make sure the blade is straight and

tighten each screw.

Step 3 Fasten blade assembly to motor using

"Pre-Installed" mounting screws in the blade

bracket.

10. INSTALLING THE LIGHT KIT

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

1. While holding the light kit assembly under

your fan, snap together the wire connection

plugs .

2. Carefully push all wires back into the switch

housing, then install the light kit assembly onto

the mounting plate with 3 screws provided. Be

sure to tighten all screws. (Fig. 17)

Sterling Manor Select

Screws Blade

Blades bracket

Screws

Washers

Fiber

washers

Light kit

assembly

Wire connector

Screws

Mounting plate

Fig. 18

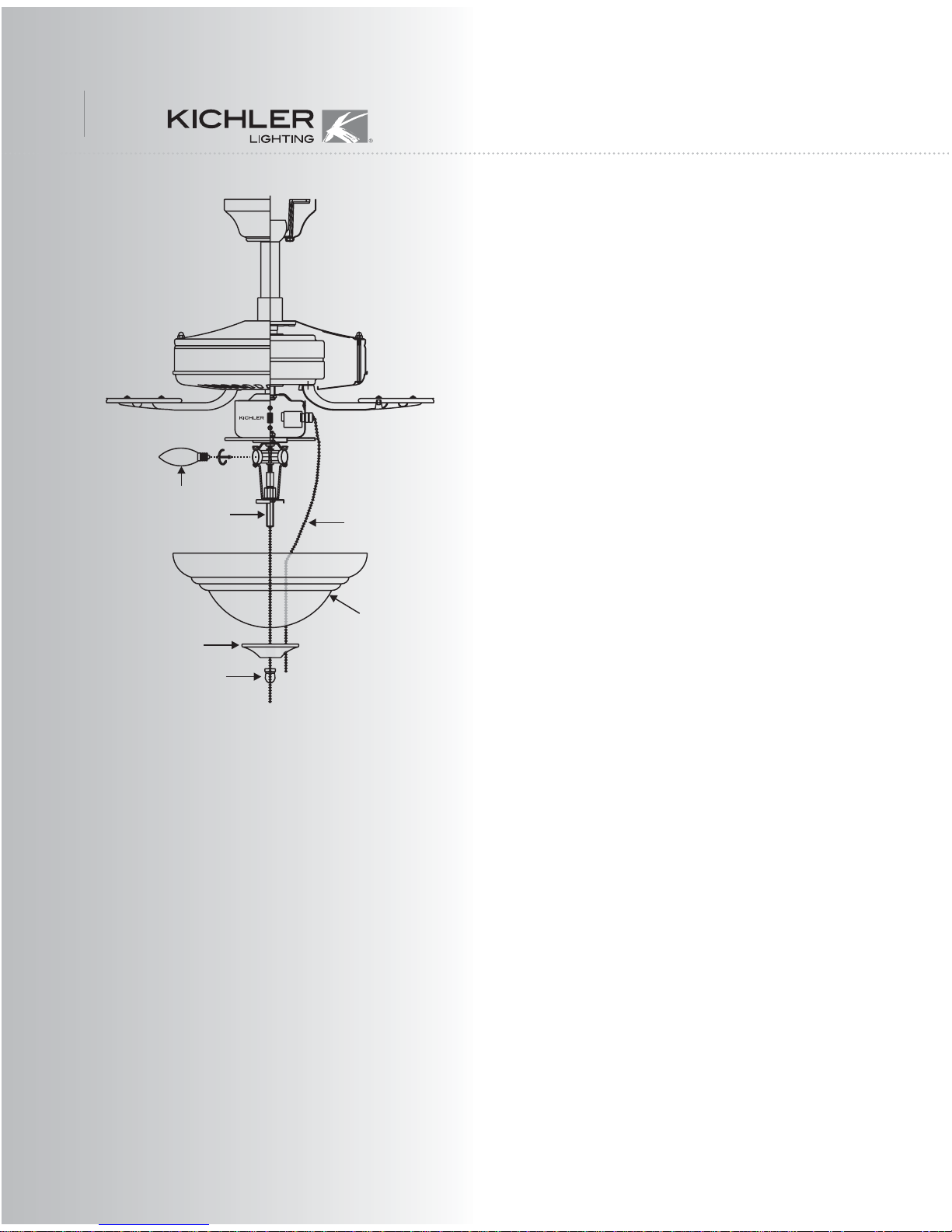

1. Install 3 x 40w candelabra bulbs (not

included). (Fig. 18)

2. Remove the metal nut. glass cap and

decorative nut from the light kit. Place glass

shade over the light kit stem, secure with

the metal nut (rubber side on the top), glass

cap and decorative nut. Do not overtighten.

(Fig. 18)

3. Insert the pull chains through the eyelet

in the shade and cap. Secure the glass cap

and decorative nut provided. Do not

overtighten. (Fig. 18)

4 Restore power and your light kit is ready

for operation.

Note: Make sure to leave enough space

between the fan pull chain and the bulbs so

the chain doesn't rub against any of the

bulbs.

11. ATTACHING THE LIGHT BULBS

AND GLASS SHADE

Glass

shade

Pull chains

Glass cap

Light kit

Bulbs

Decorative nut

Table des matières

Autres manuels Kichler Lighting Ventilateur

Kichler Lighting

Kichler Lighting Maeve LED 52 Manuel utilisateur

Kichler Lighting

Kichler Lighting 35162 Manuel utilisateur

Kichler Lighting

Kichler Lighting Lucian II 330241 Manuel utilisateur

Kichler Lighting

Kichler Lighting Saxon Premier Manuel utilisateur

Kichler Lighting

Kichler Lighting Renew Select Manuel utilisateur

Kichler Lighting

Kichler Lighting Szeplo 370060 Manuel utilisateur

Kichler Lighting

Kichler Lighting Guardian 330057 Manuel utilisateur

Kichler Lighting

Kichler Lighting Terna 300230 Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" RENEW DESIGNER Manuel utilisateur

Kichler Lighting

Kichler Lighting Deckard Manuel utilisateur

Kichler Lighting

Kichler Lighting Cottage Grove Manuel utilisateur

Kichler Lighting

Kichler Lighting Windham Manuel utilisateur

Kichler Lighting

Kichler Lighting Incus Manuel utilisateur

Kichler Lighting

Kichler Lighting Decor InnesII 300130 Manuel utilisateur

Kichler Lighting

Kichler Lighting Lija Manuel utilisateur

Kichler Lighting

Kichler Lighting Crystal Bay Manuel utilisateur

Kichler Lighting

Kichler Lighting Kevlar 310150WCP Manuel utilisateur

Kichler Lighting

Kichler Lighting 35157 Manuel utilisateur

Kichler Lighting

Kichler Lighting Makoda Manuel utilisateur

Kichler Lighting

Kichler Lighting Surrey Climates 60 Manuel utilisateur

Kichler Lighting

Kichler Lighting Decor Dorset Manuel utilisateur

Kichler Lighting

Kichler Lighting Canfield Manuel utilisateur

Kichler Lighting

Kichler Lighting 54 Skye LED Manuel utilisateur

Kichler Lighting

Kichler Lighting Pacific Edge 300157 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Kichler Lighting sterling manor select Manuel utilisateur

Manuels Ventilateur populaires d'autres marques
