Kichler Lighting 35157 Manuel utilisateur

ITEM #0803774

MODEL #35157

LED CEILING FAN

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.

Français p. 16

Español p. 31

PACKAGE CONTENTS

Hanging Bracket

Down Rod

Canopy

Blade

Motor Coupling Cover

Motor Assembly

PART DESCRIPTION QTY

Led Housing

Light Kit

Canopy Hole Cover

Shade

Blade Plate

PART DESCRIPTION QTY

HARDWARE CONTENTS

SAFETY INFORMATION

Hanging bracket Screw

Hanging bracket Washer

Wire Connector

Blade Screw

Wire Connector

HARDWARE BAG REMOTE CONTROL

Remote Control and Receiver

Battery

Wood Screw

Lag Screw

Blade Plate Screw

Flat Washer + Spring Washer

Please read and understand this entire manual before attempting to assemble, operate or install the

product. Save this manual when finished.

WARNING:

• Important: When using an existing outlet box, be sure the box is securely attached to the building

structure and can support the full weight of the fan. Failure to do so can result in serious injury or

death.

• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to

disconnect power supply prior to installation may result in serious injury or death.

• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the

receiver. This fan must be wired to continually receive power. Failure to do so will drastically

reduce the lifespan of this fan.

• Do not install fan on a ceiling with a pitch greater than 20°.

• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.

• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of

the blades.

• Chemical Burn Hazard. Keep batteries away from children. This remote contains a lithium button

cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can

cause severe internal burns and can lead to death in as little as 2 hours. Always completely

secure the battery compartment. If the battery compartment does not close securely, stop using

the product, remove the batteries, and keep it away from children. If you think batteries might

have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Dispose of cells properly and keep away from children. Even used cells may cause injury.

Balance Kit

WARNING (continued)

CAUTION:

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.

Contact customer service for replacement parts.

Estimated assembly time: 30 minutes to 1 hour.

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,

electrical tape, ladder, safety glasses.

A B C

ASSEMBLY INSTRUCTIONS

• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked

“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the

outlet box and/or support directly from building structure. Most outlet boxes commonly used for

the support of luminaries are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly

supported from a structural framing member of a building and (see examples in figures A & B) or

may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg

(35 lbs) (see example in figure C).

• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed

device or variable speed control.

• Do not touch hot LED

• The LED light output is strong enough to injure human eyes. Precautions must be taken to

prevent looking directly at the LEDs with unaided eyes for more than a few seconds.

• Read and understand all instructions and illustrations completely before proceeding with assembly

and installation of this fixture.

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate

completely, please contact a qualified licensed electrical contractor.

• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts

out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate

the UL listing, C.S.A. certification, and/or ETL listing of this fixture.

• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all

local code specifications.

• Use ONLY the supplied LED driver to power fixture.

• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

• This fixture is for indoor use only.

ASSEMBLY INSTRUCTIONS

1. Secure the hanging bracket (A) to the ceiling outlet

box using hanging bracket screws and hanging

bracket washers.

Important: If attaching the fan to a sloped ceiling,

make sure open end of mounting bracket is installed

facing the roof. Do not install fan on a ceiling with a

pitch greater than 20°.

2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair

and clevis pin that will be used on a later step.

Outlet Box

Hair Pin Safety Cable

Clevis Pin

Coupling

ASSEMBLY INSTRUCTIONS

3. Insert down rod (B) through canopy (C), canopy hole cover (I), and motor coupling cover (E).

Feed wires from the motor assembly (F) through the down rod (B), then insert the down rod (B)

into the coupling found on top of the motor assembly (F).

4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then

secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).

Hair Pin

Clevis Pin

Coupling

ASSEMBLY INSTRUCTIONS

5. Carefully lift the fan and seat the downrod (B)/hanger

ball assembly on the hanging bracket (A). Be sure

the groove in the ball is lined up with the tab on the

hanging bracket (A).

6. For Canadian installation and for USA fans over 35

lbs, the safety cable must be installed into the house

structure beams using a 3” lag screw. Make sure

that when the safety cable is fully extended the lead

wires are longer than the cable and no stress is

placed on the lead wires.

Safety

Cable

Lag

Screw

Safety

Cable

Flat

Washer

Spring

Washer

Safety

Cable

ASSEMBLY INSTRUCTIONS

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical

tape (not included) around each wire connector and make sure no bare wire or wire strands are

visible after making connections.

• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.

• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.

• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.

• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.

• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.

• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN

or BARE COPPER) from house.

GREEN

BARE

Receiver

BLUE

BLACK

WHITE

BLUE

BLACK

WHITE

WHITE BLACK

Outlet Box

ASSEMBLY INSTRUCTIONS

8. Install the batteries (3-Volt CR2032) into the

remote. Make sure the batteries are seated

correctly in each recess with the positive

symbol facing up, then replace battery cover.

Test the remote control by pushing any button.

A blue light should illuminate. If no blue light

appears make sure the batteries are seated

properly.

This fans control system is

equipped with 16 code combinations to

prevent possible interference from or to

other remote units. The code switches preset

at the factory are all up. Do not use this

position. Simply change the combination code

on your remote contol and receiver as below.

Remove the remote control battery cover and

slide the dip switch code to your choice of

either up or down using a small ballpoint pen

(not included). Next, slide the dip switch code

on the receiver to the same position you just

set the remote control to. Replace the battery

cover.

If you are using more than one fan

in the same area and want to control them

separately, change fan’s dip switch code

settings in the remote control and receiver to a

new pattern.

9. Once wiring step has been completed, slide the

wired remote receiver in between the hanging

bracket (A) and the top of the downrod ball (B) with

the flat side of the receiver facing the ceiling. Turn

lead wires upward and carefully push them into the

outlet box, with the white and green wires to one

side of the box and the black wires toward the other

side.

ON ECE

1234

8REMOTE CONTROL

RECEIVER

ON ECE

NOTE: Remove batteries if remote has

not been used for a long period of time

in order to avoid damage. Store remote

away from excessive heat or humidity.

ASSEMBLY INSTRUCTIONS

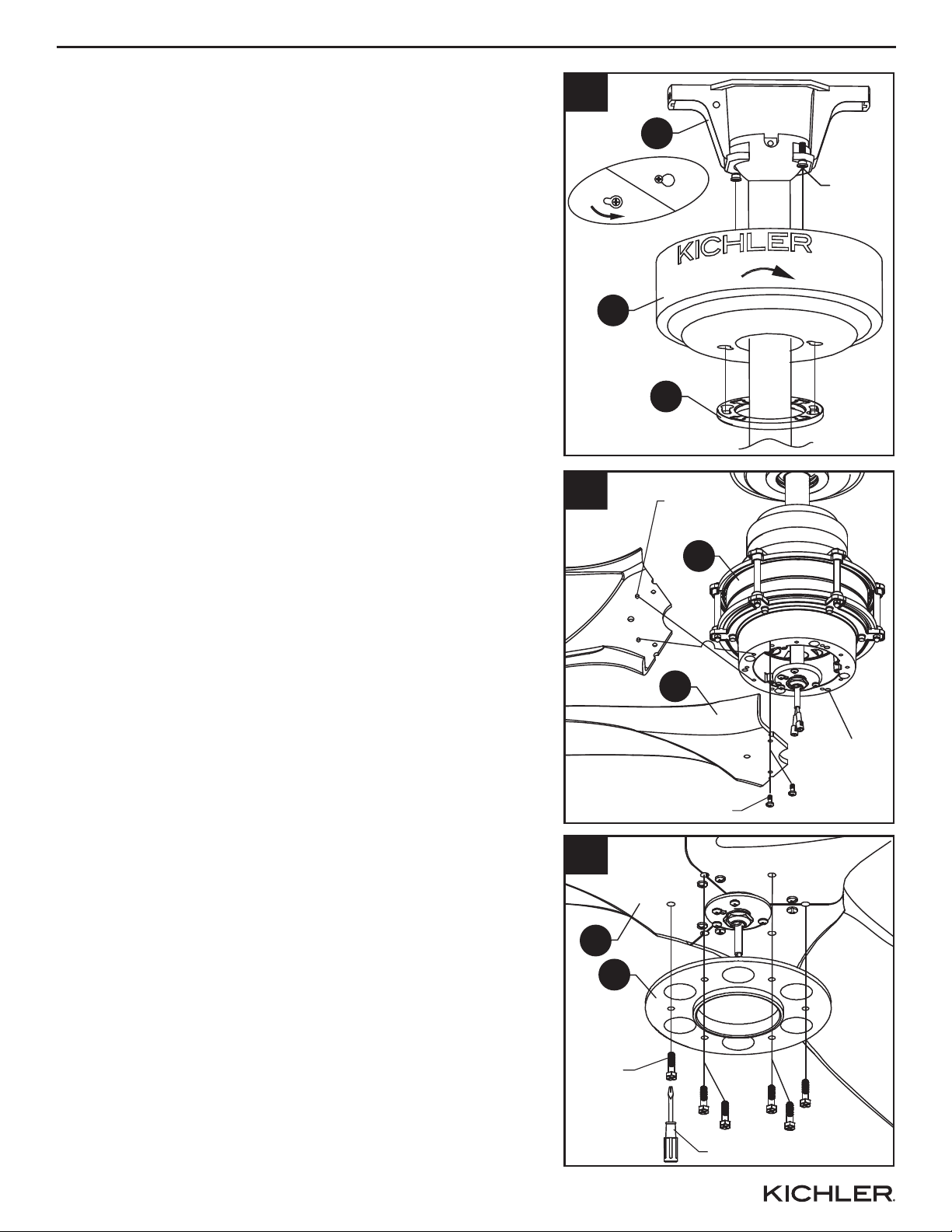

12. Attach blade plate (K) to blades (D) with blade plate

screws using phillips screwdriver (not included).

11.Raise blade (D) to the flywheel located on the motor

assembly (F). Align the center hole on the blade (D)

with the hole on the flywheel marked with a red dot.

Fit the two protrusions on the blade (D) into the

holes on the flywheel. Insert the blade screws into

the two screw holes on the inner side of the flywheel.

Tighten all screws.

Repeat for remaining blades.

10.Loosen the two shoulder screws without fully

removing the hanging bracket (A). Assemble canopy

screws in hanging bracket (A). Tighten shoulder

screws. Securely attach and tighten the canopy hole

cover (I) over the shoulder screws in the hanging

bracket (A) utilizing the keyhole slot twist-lock

feature.

Shoulder

Screw

Blade

Plate

Screw

Screwdriver

Blade Screw

Red Dot

Blade

Protrusion
