INSTRUCTION MANUAL

Model#300375

Product images may vary slightly from actual product.

52" Spyn Lite

READ AND SAVE THESE INSTRUCTIONS

KICHLER.COM2

352" Spyn Lite

TABLE OF CONTENTS

SAFETY RULES..................................................................4

TOOLS REQUIRED............................................................6

PACKAGE CONTENTS ....................................................6

MOUNTING OPTIONS.................................................... 7

HANGING THE FAN..........................................................8

INSTALLATION OF SAFETY SUPPORT................... 10

MAKE THE ELECTRICAL CONNECTIONS .............11

FINISHING THE INSTALLATION ................................12

ATTACHING THE FAN BLADES .................................13

INSTALLING THE SWITCH COVER............................13

INSTALLING THE SWITCH HOUSING .....................14

OPERATING INSTRUCTIONS ......................................16

TROUBLESHOOTING..................................................... 17

KICHLER.COM4

SAFETY RULES

1. CAUTION - RISK OF SHOCK: Disconnect Power at

the main circuit breaker panel or main fusebox before

starting and during the installation.

2. WARNING: All wiring must be in accordance with the

National Electrical Code “ANSI / NFPA70”and local

electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electric shock, this

fan must be installed with a general-use, isolating

wall control / switch.

4. WARNING: Not suitable for use with solid-state speed

controls.

5. WARNING: To reduce the risk of fire, electric shock,

or personal injury, mount to outlet box marked

“acceptable for fan support of 15.9 kg (35 lbs.) or

less” and use mounting screws provided with the

outlet box. Most outlet boxes commonly used for

the support of light fixtures are not acceptable for

fan support and may need to be replaced. Due to the

complexity of the installation of this fan, a qualified

licensed electrician is strongly recommended.

6. The outlet box and support structure must be

securely mounted and capable of reliably supporting

a minimum of 15.9 kg (35 pounds). Use only cULus

Listed outlet boxes marked “Acceptable for Fan

Support of 15.9 kg (35 lbs) or less”.

7. The fan must be mounted with a minimum of 2.1m (7

feet) clearance from the trailing edge of the blades to

the floor.

8. WARNING: Do not operate reversing switch while

fan blades are in motion. Fan must be turned o and

blades stopped before reversing blade direction.

9. Avoid placing objects in the path of the blades.

10. WARNING: make sure the power is disconnected

before cleaning your fan.

WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.

DON'T SECURE THIS FAN TO AN OUTLET BOX.

552" Spyn Lite

SAFETY RULES (CONTINUED)

11. To avoid personal injury or damage to the fan and

other items, be cautious when working around or

cleaning the fan.

12. Do not use water or detergents when cleaning the fan

or fan blades. A dry dust cloth or lightly dampened

cloth will be suitable for most cleaning.

13. After making electrical connections, spliced

conductors should be turned upward and pushed

carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the

outlet box and the ungrounded conductor on the

other side of the outlet box.

14. Electrical diagrams are reference only. Light kits that

are not packed with the fan must be cULus Listed

and marked suitable for use with the model fan you

are installing. Switches must be cULus General Use

Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

15. All set screws must be checked, and retightened

where necessary, before installation.

16. N.W.6.5 KGS(14.33 LBS) / G.W.7.8 KGS(17.19LBS)

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADES DURING ASSEMBLY OR AFTER INSTALLATION.

DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

KICHLER.COM6

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

TOOLS REQUIRED

Phillips screwdriver

Blade screwdriver

11 mm wrench

Step ladder

Wire cutters

A. Mounting Bracket

B. Ball / Downrod Assembly

C. Canopy

D. Canopy Trim Ring

E. Coupling Cover

F. Motor Body

G. Fan Blades (3)

H. Switch Cover

I . Switch Housing

J . Pull Chain Extension and Fob

K. Package Hardware

1)Mounting Hardware:

Wire Connectors (3)

2)Blade Attachment Hardware:

Fan Blade Mounting Screws

and washers (6)

3)Safety Cable Hardware:

Wood Screw (1),

Spring Washer (1),

Flat Washer (1)

752" Spyn Lite

Outlet Box

Ceiling

mounting

plane

Recessed

Outlet box

Provide strong

support

ANGLED CEILING

MAXIMUM 22° ANGLE

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A minimum

clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for installation,

you may need to purchase and install a “Joist Hanger” for the

support of the outlet box. Make sure the joist hanger you purchase

has been designed for use with ceiling fans . (Fig. 4)

MOUNTING OPTIONS

lf there isn't an existing UL(cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and its

support must be able to fully support the full weight of the fan (up

to 15.9 kg (35 pounds)). Do not use plastic outlet boxes.

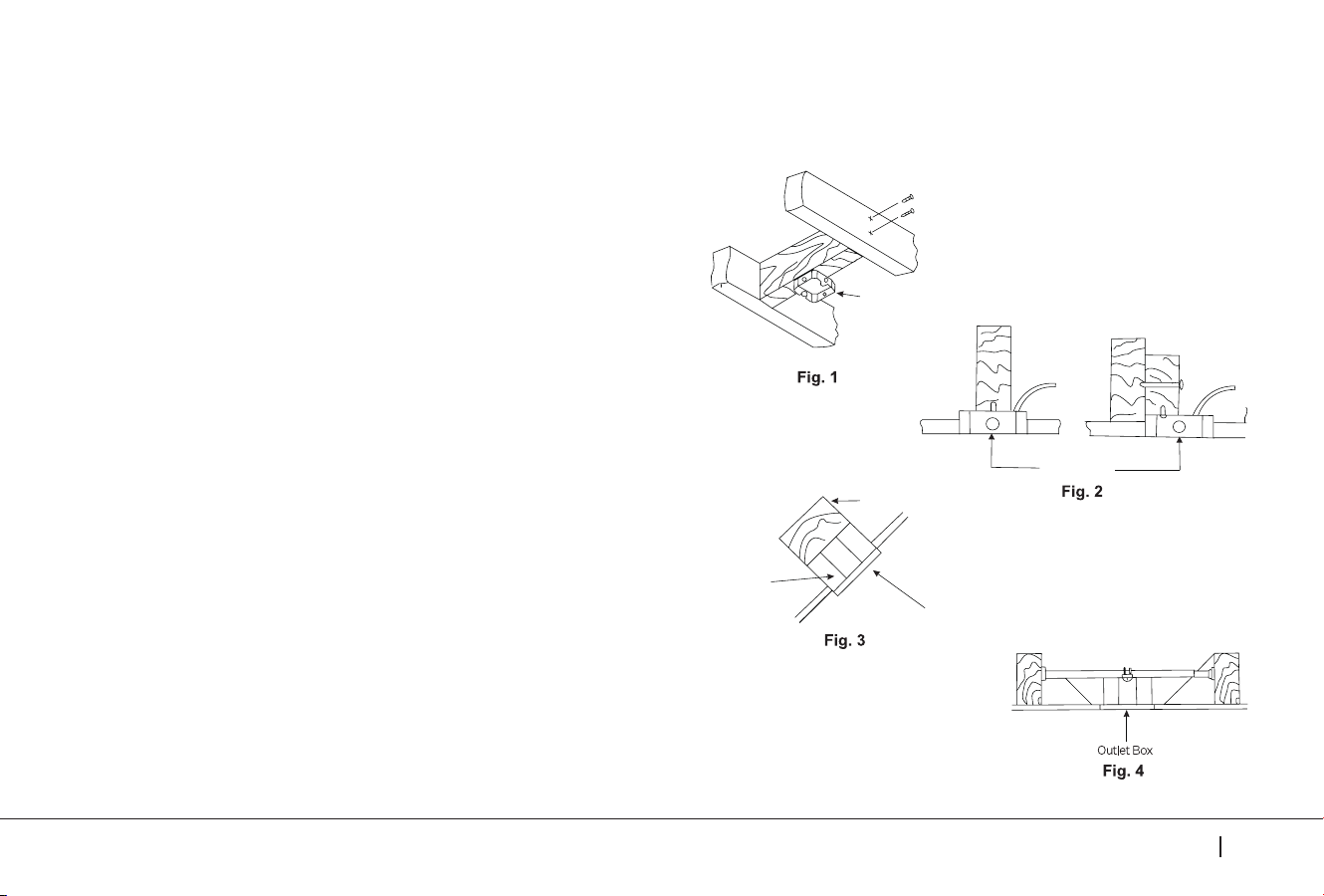

Figures 1, 2 and 3 are examples of dierent ways to mount the outlet

box.

KICHLER.COM8

HANGING THE FAN

To properly install your ceiling fan, follow the steps below.

Step 1. Before attaching fan to outlet box (not included), ensure the

outlet box is securely fastened to at least two points to a structural

ceiling member (a loose box will cause the fan to wobble). Pass the

120 volt supply wires from the ceiling outlet box through the center

of the ceiling mounting bracket. Install mounting bracket to outlet

box in ceiling using the screws and washers included with the outlet

box. (Fig. 5)

Step 2. Remove the retaining clip and hitch pin from the downrod

assembly. Remove the hanger ball from the downrod assembly by

loosening the set screw on the hanger ball (do not remove),

unscrewing and removing the cross pin, and unscrewing the hanger

ball (counterclockwise) from the downrod. (Fig. 6)

NOTE: Make sure to keep removed hardware separate to avoid

confusion during installation.

Step 3. Loosen the two set screws (do not remove) on the motor

coupling. (Fig. 7)

Fig. 5

Fig. 6

Fig. 7

Hanger Ball

Set Screw

Cross Pin

Retaining Clip

Downrod

Hitch Pin

REMEMBER to turn o the power before you begin

installation. This is necessary for your safety .

CAUTION: To avoid possible electrical shock, be sure

you have turned o the power at the main circuit panel. Outlet Box

Ceiling Mounting Bracket

Flat Washer (included with outlet box)

Screw (included with outlet box)

Set Screw

Motor Coupling

952" Spyn Lite

HANGING THE FAN (CONTINUED)

Step 4. Carefully feed fan wires and safety cable up through the

downrod. Thread the downrod into the motor coupling until the

hitch pin holes are aligned. Next, replace the hitch pin and

retaining clip.

NOTE: Be careful not to jam the hitch pin against the

wiring inside of the downrod.Tighten both set screws.

(Fig. 8)

Step 5. Slip the coupling cover, canopy trim ring (smooth finished

side facing motor body) and canopy onto the downrod. Carefully

reinstall the hanger ball onto the downrod. Carefully reinstall the

cross pin through the hanger ball and downrod.

NOTE: Be careful not to jam the cross pin against the

wiring inside of the downrod.

Make sure the cross pin is in the correct position. Tighten the cross

pin. Tighten the set screw on the hanger ball. Make sure the wires

are not twisted. (Fig. 9)

Step 6. Lift the motor body into position and place the hanger ball

into the mounting bracket. Rotate the entire assembly until the “

Check Tab” has dropped into the “Registration Slot” and seats

firmly. (Fig. 10)

The entire motor body should not rotate if this is done correctly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can

cause the fan to fall from the ceiling during operation. Take special care to

make sure this pin is reattached.

Fig. 9

Fig. 8

Fig. 10

Hanger Ball

Check Tab

Registration Slot

Mounting Bracket

Set Screw

Hitch Pin

Motor Body

Hitch Pin

Retaining Clip

Downrod

Hanger Ball

Canopy

Canopy Trim Ring

Coupling Cover

Hanger Ball

Set Screw

Cross Pin

Motor Coupling

KICHLER.COM10

INSTALLATION OF SAFETY SUPPORT

(Required For Canadian Installation Only )

Fig. 11

Fig. 12

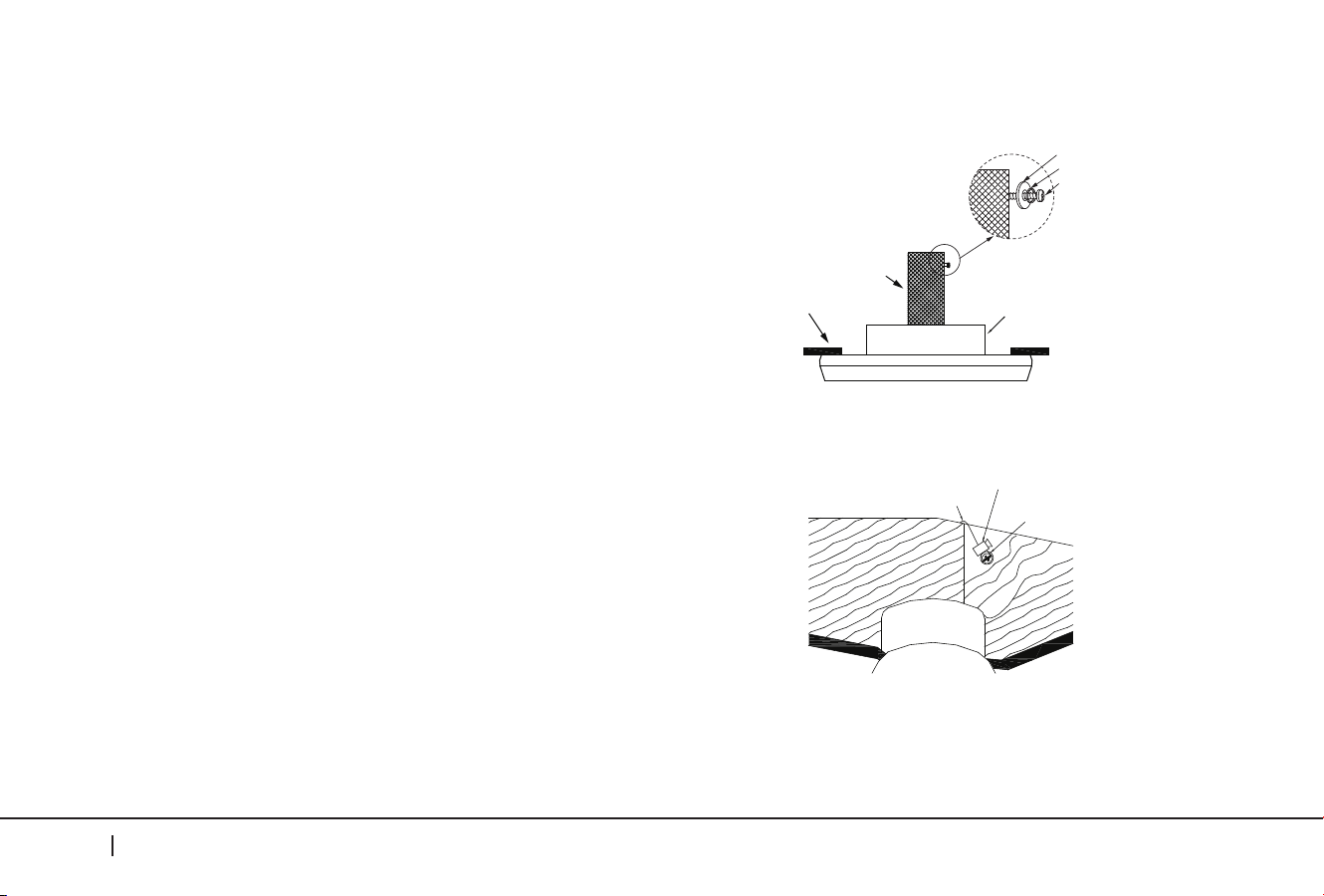

A safety support cable is provided to help prevent the ceiling

fan from falling, please install it as steps below.

Step1. Slip the spring washer, then the flat washer onto the wood screw,

then drive the wood screw into the side of the brace that holds the outlet

box. Leave 3mm (1/8") of space between the support brace and the flat

washer. ( Fig.11 )

Step2. Insert the safety cable through the mounting bracket and one

of the holes in the outlet box into the ceilling. Adjust the length of the

safety cable to reach the screw and flat washer by pulling the extra

cable through the cable clamp until the overall length is correct,

put the end of the cable back through the cable clamp, forming a loop

at the end of the cable. Tighten the cable clamp securely. Now, put

the loop in the end of the safety cable over the wood screw and under

the flat washer. Tighten the wood screw securely. ( Fig.12)

NOTE: Although the safety support cable is required for Canadian

installations only, it is a good idea to make the attachment with any

installation.

Safety Cable Cable Clamp

Wood Screw

Flat Washer

Spring Washer

Wood Screw

Support Brace

Ceiling Outlet Box

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Kichler Lighting Ventilateur

Kichler Lighting

Kichler Lighting Universal 3 Light Fitter Manuel utilisateur

Kichler Lighting

Kichler Lighting Industrial Fan Manuel utilisateur

Kichler Lighting

Kichler Lighting Starkk Manuel utilisateur

Kichler Lighting

Kichler Lighting 339211APP Manuel utilisateur

Kichler Lighting

Kichler Lighting Seaside 310181WZC Manuel utilisateur

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manuel utilisateur

Kichler Lighting

Kichler Lighting Cameron 310204WH Manuel utilisateur

Kichler Lighting

Kichler Lighting BASICS PRO SELECT 330017MWH Manuel utilisateur

Kichler Lighting

Kichler Lighting Todo 330025 Manuel utilisateur

Kichler Lighting

Kichler Lighting Arkwet Weather+ Manuel utilisateur

Kichler Lighting

Kichler Lighting Almere Manuel utilisateur

Kichler Lighting

Kichler Lighting 300044 Manuel utilisateur

Kichler Lighting

Kichler Lighting 35153 Manuel

Kichler Lighting

Kichler Lighting 54 inch Skye Manuel utilisateur

Kichler Lighting

Kichler Lighting Decor Kimberley Manuel utilisateur

Kichler Lighting

Kichler Lighting Highland Manor Manuel utilisateur

Kichler Lighting

Kichler Lighting FERRON Manuel utilisateur

Kichler Lighting

Kichler Lighting Jace LED Manuel utilisateur

Kichler Lighting

Kichler Lighting 35157 Manuel utilisateur

Kichler Lighting

Kichler Lighting Canfield Manuel utilisateur

Kichler Lighting

Kichler Lighting Starkk 330180MWH Manuel utilisateur

Kichler Lighting

Kichler Lighting Renew Premier Manuel utilisateur

Kichler Lighting

Kichler Lighting Compass 300322 Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
