Instruction Manual

A Kichler

Select

™

ceiling fan

Renew Select Patio

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualiﬁed

licensed electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting ﬁxtures are not acceptable for fan

support and may need to be replaced,

consult a qualiﬁed electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the ﬂoor.

7. To operate the reverse function on this

fan, press the reverse button while the fan

is running.

8. WARNING: Use only with light kit marked

"Suitable for Use in Wet Locations".

9. Avoid placing objects in the path of the

blades.

10. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

11. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

12. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the ground wire and white

(common) wire to one side with the black

(load) wire to the other side of the outlet

box.

13. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

1. SAFETY RULES

52" Renew Select Patio

3. PACKAGE CONTENTS

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

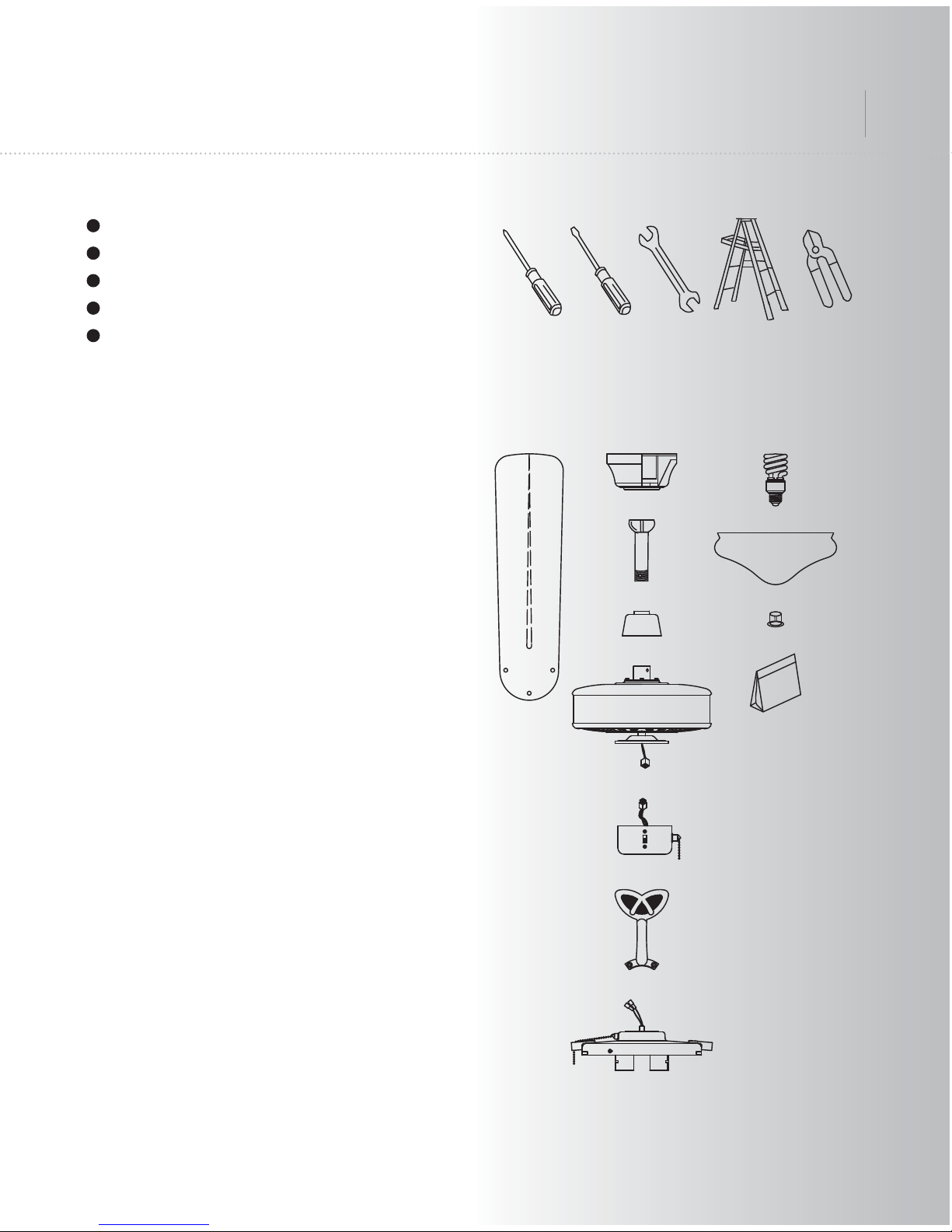

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Switch housing

g. Set of 5 blade brackets and Pre-Installed

mounting screws

h. Light kit

i. 13 Watt compact ﬂuorescent bulbs (2)

j. Glass shade

k. Plastic plug

l. Part bag contents

1) Mounting hardware :

wood screws (2), ﬂat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Rubber gasket

3) Blade attachment hardware:

screws (17), rubber washers (17)

4) Blade brackets hardware:

screws (2)

5) Safety cable hardware:

wood screw, lock washer, ﬂat washer

6) Pull chains and fobs (2)

7) Balance Kit

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power

by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

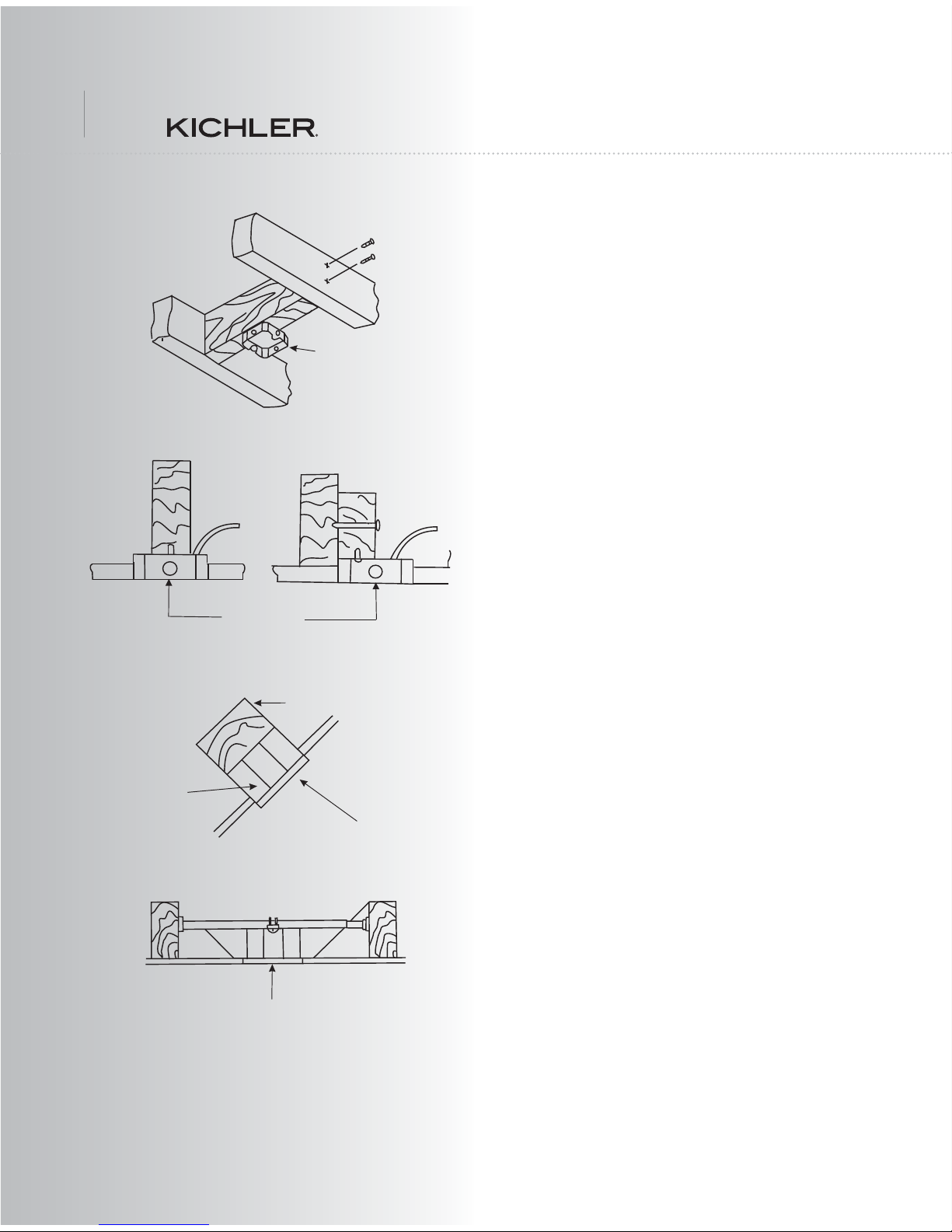

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

5. HANGING THE FAN

NOTE: This ceiling fan is supplied with two

types of hanging assemblies; a downrod and

canopy mounting system and a "close to

ceiling" Canopy ONLY system. The "close-to-

ceiling" installation is recommended in rooms

with less than 8-foot ceilings or in areas where

additional space is desired from the ﬂoor to the

fan blades. Once you have selected which

mounting system you will use, proceed with the

following instructions. Where necessary, each

section of the instructions will note the different

procedures to follow for the two types of

mounting.

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

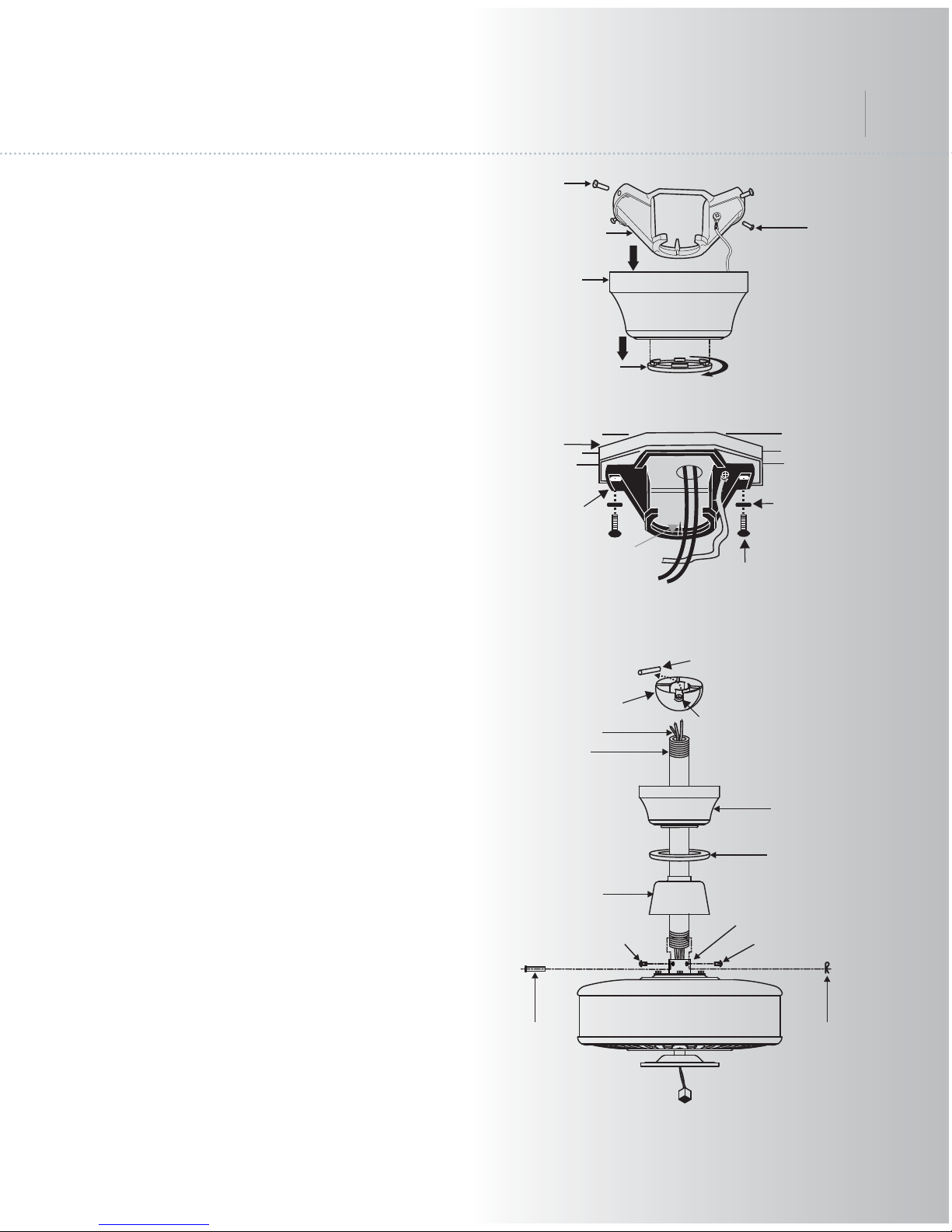

Step 1. Remove the decorative canopy bottom

cover from the canopy. (Fig. 5)

Step 2. Loosen the four screws on the top of

the canopy. Remove the two non-slotted

screws and loosen the slotted screws. This will

enable you to remove the ceiling mounting

bracket. (Fig. 5)

Step 3. Remove the ceiling mounting bracket

from the canopy by loosening the two screws on

the bottom of the ceiling mounting bracket. Turn

the canopy counterclockwise and remove. (Fig.

Step 4. Pass the 120 volt supply wires from the

ceiling outlet box through the center of the

ceiling mounting bracket. (Fig. 6)

Step 5. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

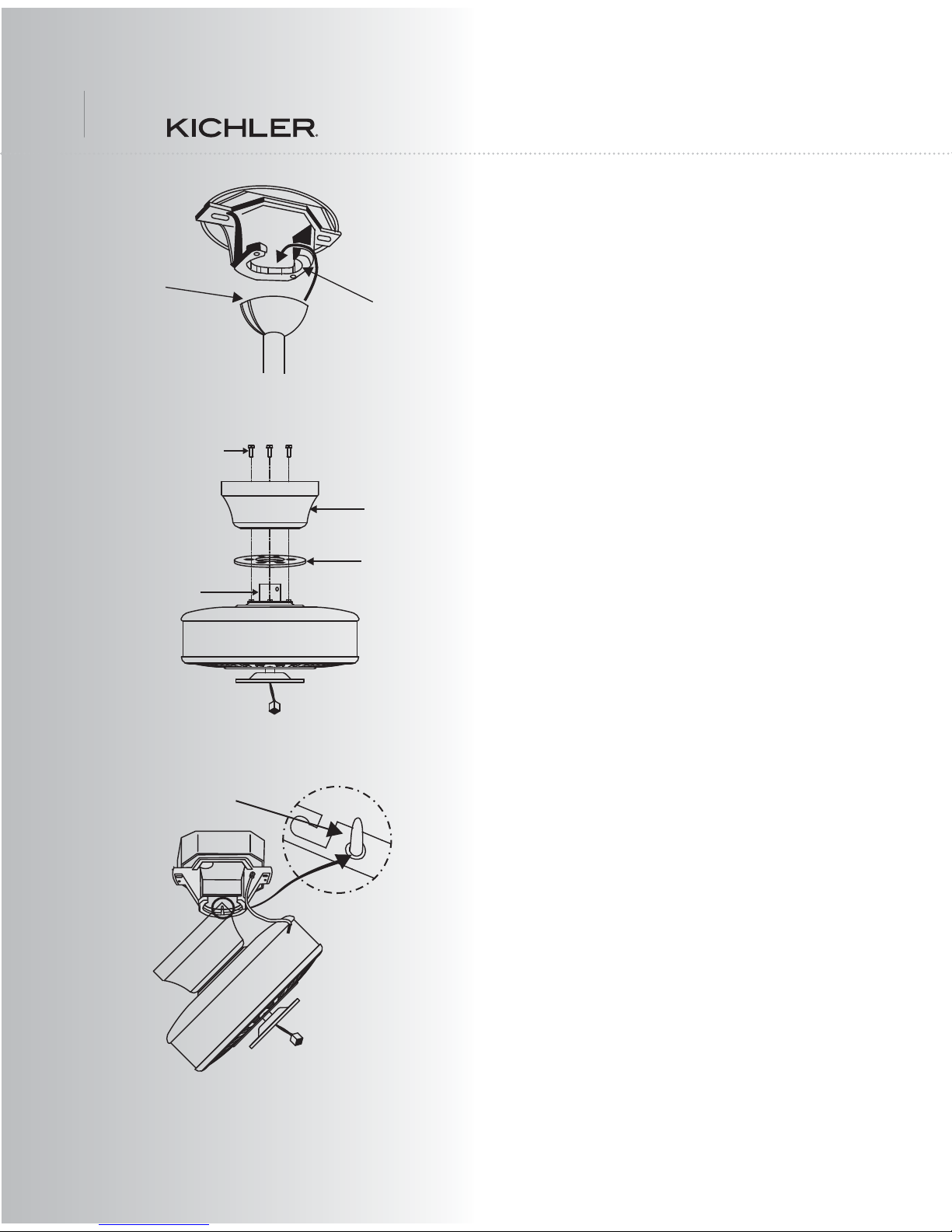

Step 1. Remove the hanger ball from the

downrod assembly by loosening the set screw,

removing the cross pin and unscrewing the ball

off the rod. (Fig.7)

Step 2. Loosen the two set screws and remove

the hitch pin and retaining clip from the

coupling on top of the motor assembly. (Fig. 7)

STANDARD CEILING INSTALLATION

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Fig. 6

Fig. 5

Ceiling mounting

bracket

Canopy

Canopy cover

Screws

Fig. 7

Supply wires

Downrod

Retaining pinHitch pin

Set screws

Coupling

Set screws

Canopy

Rubber cover

Canopy cover

Cross pin

Hanger ball

Set screw

52" Renew Select Patio

Fig. 10

Fig. 9

Fig. 8

Registration slot

Check tab

Canopy

Rubber gasket

Screws and Lock washers

(3 of 6 places)

Coupling

Hook

Step 3. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 7)

Step 4. Slip the rubber cover, canopy cover,

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 7)

Step 5. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats ﬁrmly. (Fig. 8)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

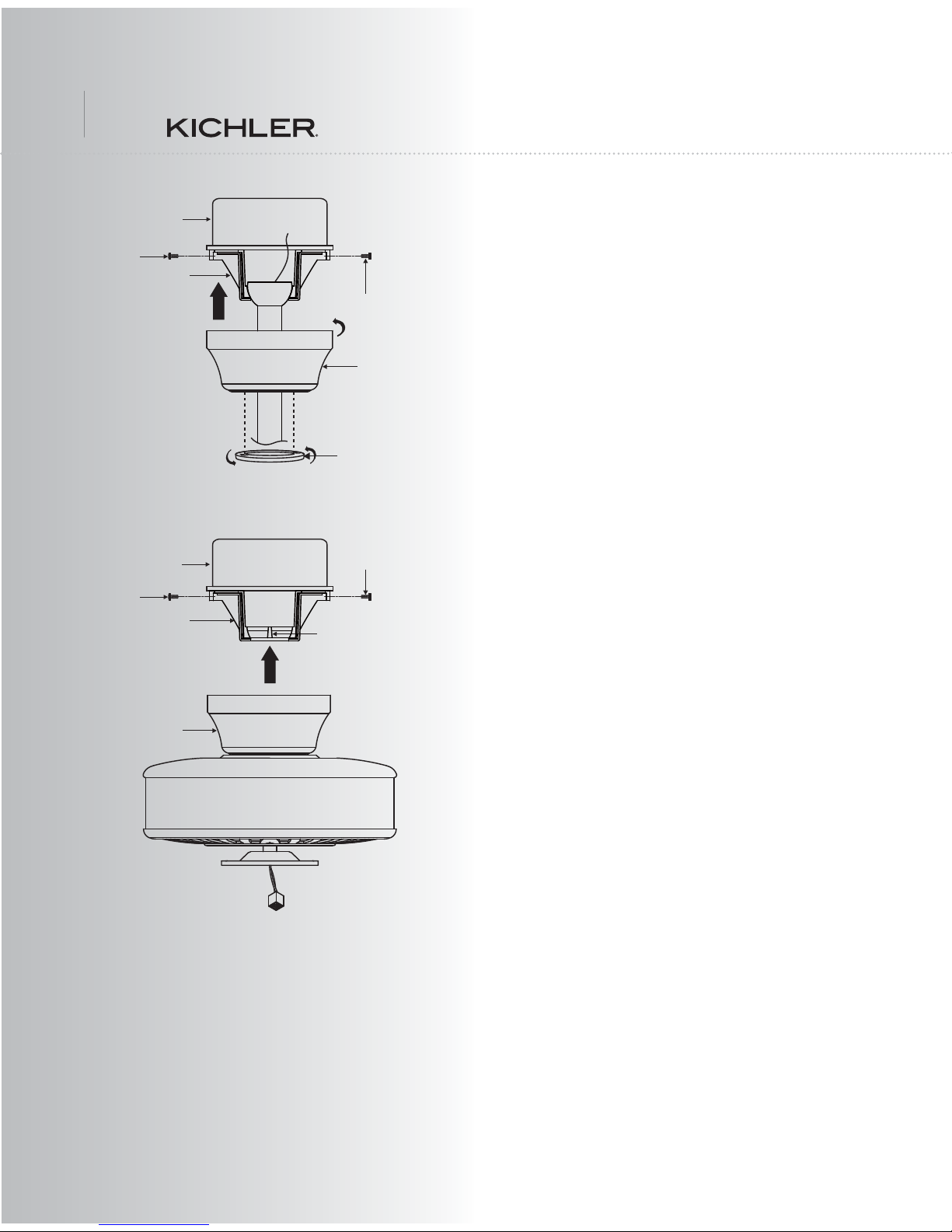

Step 1. Remove three of the six screws and

lock washers (every other one) from the collar

on top of the motor assembly. Place the

ceiling fan canopy and the rubber gasket over

the collar and align the mounting holes with

the holes in the collar. Attach the canopy with

the rubber gasket and the three screws and

lock washers previously removed. (Fig. 9)

WARNING: Failure to completely tighten the

three mounting screws in step 9 could result

in the fan possibly falling from the ceiling.

Step 2. Hang the fan on the ceiling mounting

bracket by inserting the hook on the inside

edge of the ceiling mounting bracket through

one of the screw holes in the ceiling canopy

(Fig. 10). This will allow you to have both

hands free to make the wiring connections.

CLOSE-TO-CEILING INSTALLATION

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

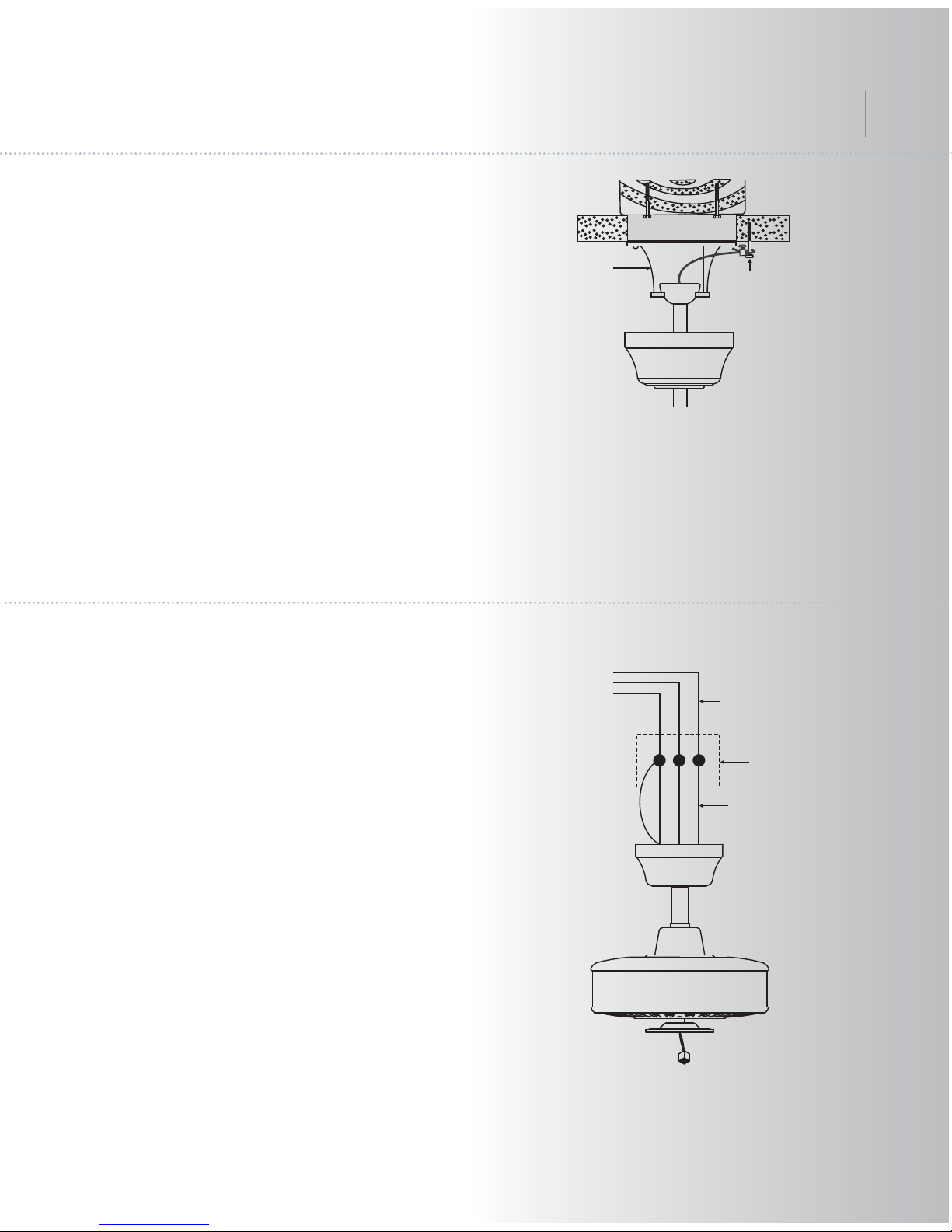

6. INSTALLATION OF SAFET SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please

install it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end

of the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

7. ELECTRICAL CONNECTIONS

Fig. 12

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire connecting

nuts suppled with your fan. Secure the

connectors with electrical tape. Make sure there

are no loose wire strands or connections.

Step 1. Connect the fan supply (black) wire and

light supply (blue) wire to the black household

supply wire as shown in Figure 12.

Step 2. Connect the neutral fan (white) wire to

the neutral household (white) wire.

Step 3. Connect the fan ground wire (green) to

the household ground wire.

Step 4. After connecting the wires, spread them

apart so that the green and white wires are on

one side of the outlet box and the black wires is

on the other side.

Step 5. Turn the connecting nuts upward and

push the wiring into the outlet box.

BLK

BLUE

BLK

GRN

Wiring

box

Ground to

mounting

bracket

or downrod

Power lines 120v

Green ground

52" Renew Select Patio

Fig. 14

Fig. 13

Outlet box

Ceiling mounting

bracket

Canopy

Screws

Outlet box

Ceiling mounting

bracket Hook

Canopy

CLOSE-TO-CEILING INSTALLATION

Step 1. Tuck all the wire connections neatly

above the receiver and into the ceiling outlet

box.

Step 2. Remove the fan from the hook on the

ceiling mounting bracket. Attach the fan

assembly to the ceiling mounting bracket

using 4 screws at the top edge of the

mounting bracket.

Align the keyhole slots on the canopy with the

mounting screw heads on the sides of the

mounting bracket. Lift up and turn the fan

assembly until the heads of the mounting

screws are in the narrow end of the keyhole

slots.

Step 3. Make sure all four mounting screws

are tight. (Fig. 14)

8. FINISHING THE INSTALLATION

STANTARD CEILING INSTALLATION

Step 1. Tuck all the connections neatly into the

ceiling outlet box.

Step 2. Slide the canopy up to ceiling and

attach the canopy to the ceiling mounting

bracket using 4 screws at the top edge of the

mounting bracket. Insert each screw through

the canopy mounting hole and into the

mounting bracket. Slide the canopy cover up

to the canopy and rotate clockwise until tight.

Tighten all screws securely. (Fig. 13)

Canopy cover

9. ATTACHING THE FAN BLADES

10. INSTALLING THE LIGHT KIT

TO SWITCH HOUSING

Fig. 15

Fig. 16

CAUTION: Remove the ﬁve rubber shipping

blocks attached to the face of the motor.

These blocks keep the motor from shifting

during shipping and MUST be removed during

installation.

Step 1. Attach a blade to a blade bracket

using the screws and rubber washers

provided. (Fig. 15)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw until the ﬁber washer is slightly

compressed. Repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 15)

Screws Blades

Blade brackets

Screws

Rubber

washers

52" Renew Select Patio

Step 1. Remove and discard the center plug

from the switch housing.

Step 2. Attach the light kit to the switch

housing by feeding the light kit wires (black

and white) through the hole of switch housing

and then screw it onto the switch housing

cover by nut & lock washer.

Step 3. Be sure it is tight enough to prevent

light kit from vibrating loose. (Fig. 16)

Switch

housing

Nut

Lock washer

Light kit

Center

plug

Fig. 18

Fig. 17

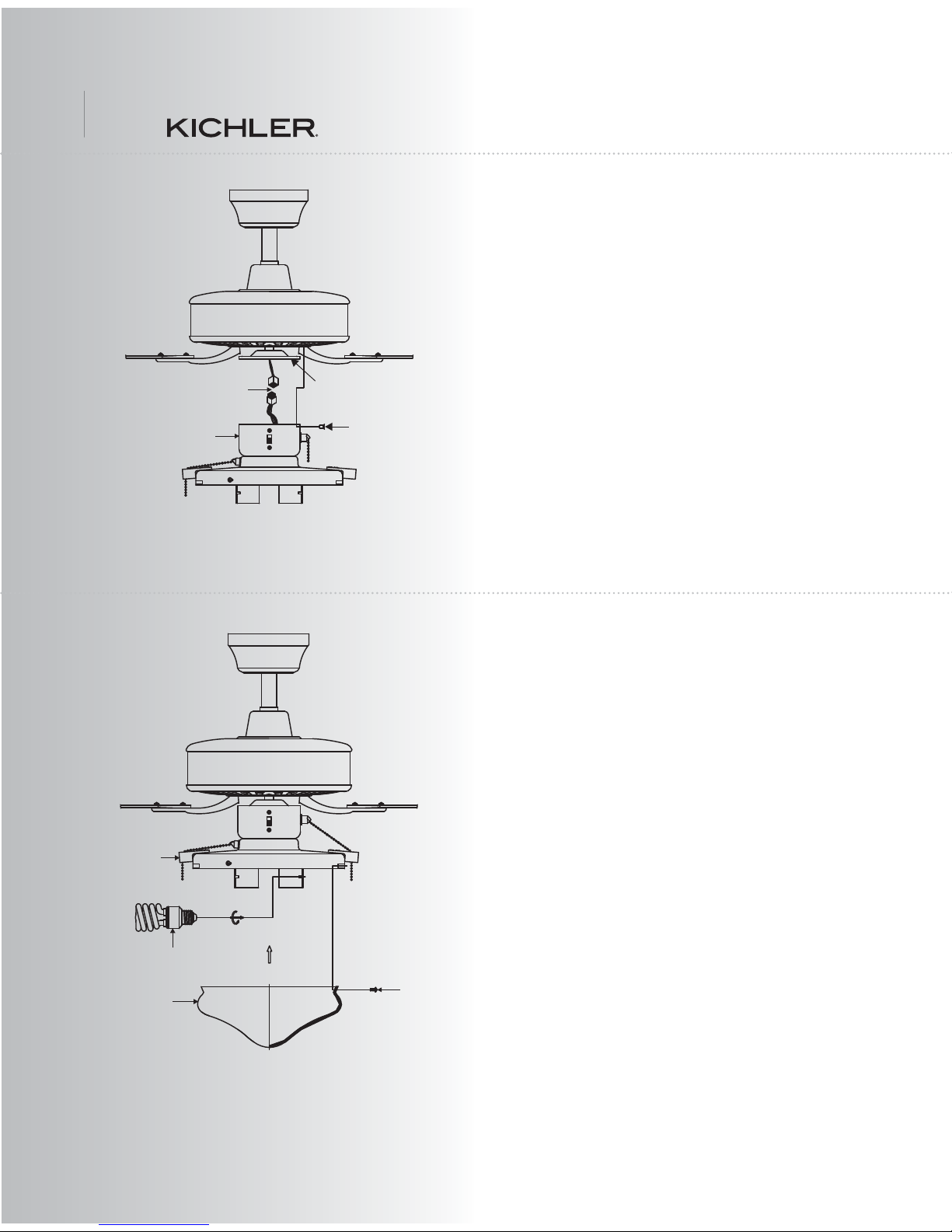

11. INSTALLING THE LIGHT KIT

Light kit

Bulbs

Glass

shade

12. INSTALLING THE LIGHT BULBS &

GLASS SHADE

Step 1. IInstall 2x13 Watt compact

uorescent bulbs (included). One in each

socket.

Step 2. Raise glass shade up against the light

kit and secure with the screws provided. (Fig.

18)

Screws

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box.

Step 1. Loosen the 3 screws from the switch

hosuing.

Step 2. Raise and hold the light kit close to the

switch hosuing. Snap together the wire

connection plugs . (Fig. 17)

Step 3. Carefully push all wires back into the

switch housing, then install the light kit

assembly onto the mounting ring with 3

screws provided. Be sure to tighten all

screws. (Fig. 17)

Connection plugs

Light kit

assembly

Mounting ring

Screws

Table des matières

Autres manuels Kichler Lighting Ventilateur

Kichler Lighting

Kichler Lighting Incus Manuel utilisateur

Kichler Lighting

Kichler Lighting Ried 300356 Manuel utilisateur

Kichler Lighting

Kichler Lighting Crystal Bay Manuel utilisateur

Kichler Lighting

Kichler Lighting Almere Manuel utilisateur

Kichler Lighting

Kichler Lighting Jade 300030 Manuel utilisateur

Kichler Lighting

Kichler Lighting Vinea 52 Manuel utilisateur

Kichler Lighting

Kichler Lighting Tranquil Manuel utilisateur

Kichler Lighting

Kichler Lighting Highland Manor Manuel utilisateur

Kichler Lighting

Kichler Lighting Monarch II Manuel utilisateur

Kichler Lighting

Kichler Lighting Bronson Manuel utilisateur

Kichler Lighting

Kichler Lighting Surrey Climates 60 Manuel utilisateur

Kichler Lighting

Kichler Lighting Riggs 300143 Manuel utilisateur

Kichler Lighting

Kichler Lighting Fit Manuel utilisateur

Kichler Lighting

Kichler Lighting Saxon Premier Manuel utilisateur

Kichler Lighting

Kichler Lighting Salvo 330045 Manuel utilisateur

Kichler Lighting

Kichler Lighting PINION 60 Manuel utilisateur

Kichler Lighting

Kichler Lighting BASICS PRO SELECT 330017MWH Manuel utilisateur

Kichler Lighting

Kichler Lighting Vassar 330002OZ Manuel utilisateur

Kichler Lighting

Kichler Lighting HATTERAS BAY PATIOLED 60" Manuel utilisateur

Kichler Lighting

Kichler Lighting 54 inch Skye Manuel utilisateur

Kichler Lighting

Kichler Lighting Spyn Lite Manuel utilisateur

Kichler Lighting

Kichler Lighting 380106 Manuel utilisateur

Kichler Lighting

Kichler Lighting Starkk 330180MWH Manuel utilisateur

Kichler Lighting

Kichler Lighting FRYST Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
