Kichler Lighting 35155 Manuel utilisateur
ITEM #0747657
MODEL #35155
CEILING FAN
1
Kichler® is a registered trademark of
The L.D. Kichler Co. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
Français p. 17
Español p. 33
PACKAGE CONTENTS
2
A
Hanging Bracket
Motor Assembly
Canopy
Blade Iron
Blade Body
Metal Shade
B
C
D
E
F
1
1
1
4
1
1
PART DESCRIPTION QTY
Light Kit
23-Watt Fluorescent Bulb
Glass Shade
Blade
Inner Canopy
G
H
I
K
J
1
1
1
4
1
PART DESCRIPTION QTY
A
C
II
E
G
B
K
D
F
J
H

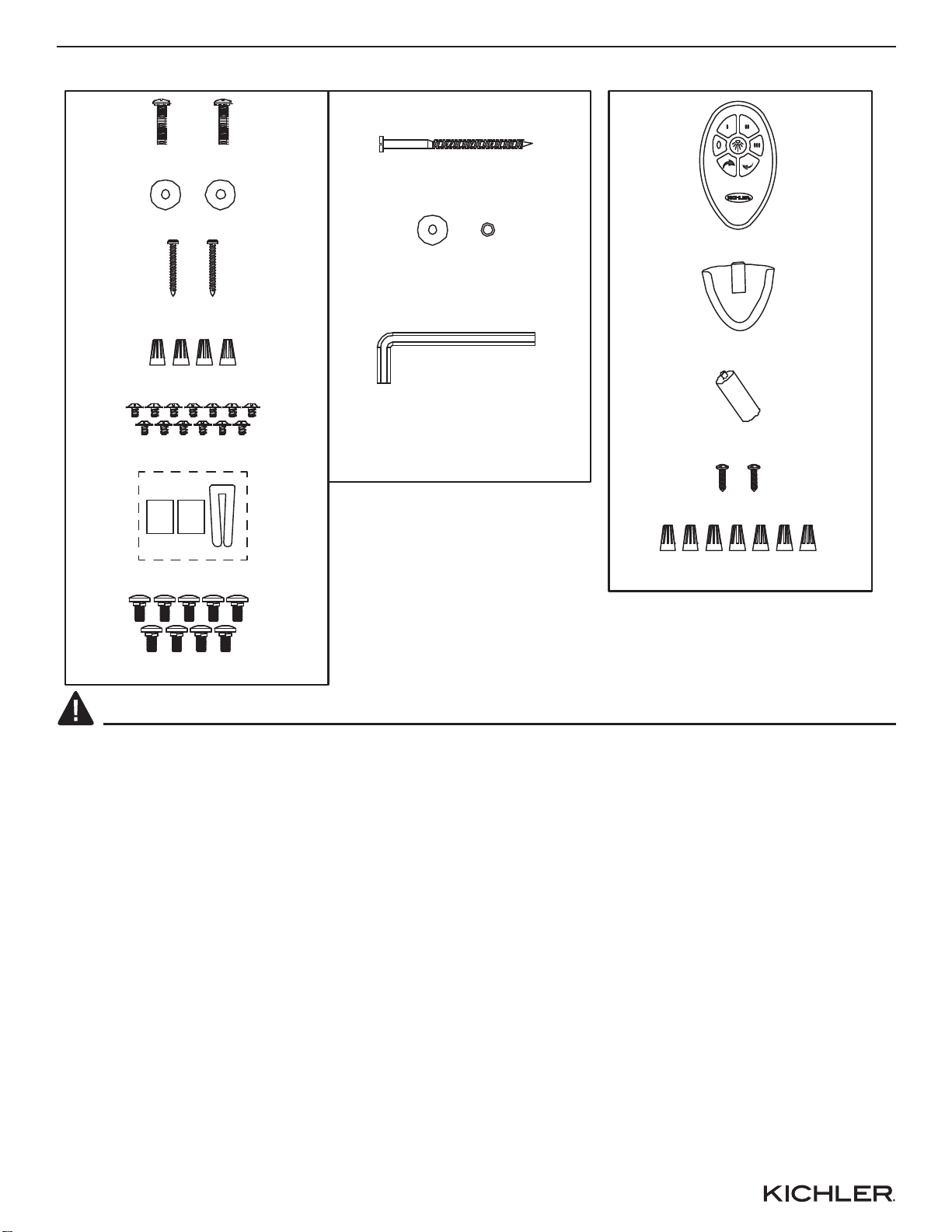

HARDWARE CONTENTS
3
SAFETY INFORMATION
Hanging bracket Screw
Hanging bracket Washer
Wire Connector
Blade Screw
Balance Kit
HARDWARE BAG REMOTE CONTROL
Remote Control
Remote Control Holder
Battery
Wood Screw
Wood Screw
Lag Screw
Wire Connector
Blade Iron Screws
Flat Washer + Spring Washer
Allen Wrench
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at
1-800-554-6504, 8 a.m. - 4:30 p.m., EST.
WARNING:
• Important: When using an existing outlet box, be sure the box is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury or
death.
• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to
disconnect power supply prior to installation may result in serious injury or death.
• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the
receiver. This fan must be wired to continually receive power. Failure to do so will drastically
reduce the lifespan of this fan.
• Fan cannot attach to a slope ceiling.
• WARNING – To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box
Marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less' And Use Mounting Screws
Provided With The Outlet Box and/or Support Directly From Building Structure. Most Outlet Boxes
Commonly Used For The Support of LuminairesAre NotAcceptable For Fan SupportAnd May
Need To Be Replaced. Consult A Qualified Electrician If In Doubt."
• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.
CAUTION
PREPARATION
4
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses, wrench, pliers.
A B C
ASSEMBLY INSTRUCTIONS
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed
device or variable speed control.
• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of
the blades.
• Read and understand all instructions and illustrations completely before proceeding with assembly
and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate
completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts
out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate
the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all
local code specifications.
• This fixture is for indoor use only.
ASSEMBLY INSTRUCTIONS
5
1. Secure the hanging bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: Fan cannot attach to a slope ceiling.
2. Remove hex nuts and washers from the hanging bracket (A) and save for use on a later step.
Raise motor assembly (B) and place the slot hole on the inner canopy (K) onto the hook from the
hanging bracket (A). This will allow for hands free wiring.
1
A
Outlet Box
2
B
K
A
6
ASSEMBLY INSTRUCTIONS
3. For Canadian installation and for USA fans over 35
lbs, the safety cable must be installed into the house
structure beams using a 3” lag screw. Make sure
that when the safety cable is fully extended the lead
wires are longer than the cable and no stress is
placed on the lead wires.
Safety
Cable
Lag
Screw
Safety
Cable Flat
Washer
Spring
Washer
3
Safety
Cable
7
ASSEMBLY INSTRUCTIONS
4. In order to use this remote control the dip switches must match on both the remote control
and the receiver. Make sure they both have the same configuration.
A.) Remove the battery cover from the remote control. Slide dip switches up or down using a
small screw driver (not included). Then match the dip switches on the receiver to the same
position as the remote control.
B.) Install the battery (included) and replace the battery cover you previously removed.
C.) The remote control comes with a cradle that may be attached to the wall with the included
screws.
4a 4b
4c
ASSEMBLY INSTRUCTIONS
8
5. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical
tape (not included) around each wire connector and make sure no bare wire or wire strands are
visible after making connections.
• Connect WHITE wire from the fan to WHITE wire from the outlet box.
• Connect BLACK wire from the fan to BLACK wire from the outlet box.
• Connect GROUND (GREEN) wire from hanger bracket to GROUND (GREEN or BARE COPPER)
from house.
5
OUTLET BOX
WHITE (NEUTRAL) WHITE
BARE COPPER
(GROUND)
GREEN (BRACKET)
BLACK (MOTOR) BLACK
ASSEMBLY INSTRUCTIONS
9
C
6
Washer
Hexnut
6. Pass the inner canopy (K) over the threaded posts protruding on the hanging bracket (A) and
secure with the washers and hex nuts you had previously removed.
Tighten hex nuts with wrench (not included).
7. Remove canopy screws from hanging bracket (A). Raise canopy (C) over hanging bracket (A)
and secure with canopy screws.
Note: A protective ring was added to avoid scratches. Pull off the protective ring after installing
the canopy.
A
K
7
Canopy
Screw
C
A
Protective
Ring
ASSEMBLY INSTRUCTIONS
10
9. Attach blade irons (D) to the blade body (E) with the
screws provided and tighten with allen wrench
(included).
8. Attach blade iron (D) to blade (J) with blade screws.
Do not tighten blade screws until each screw has
been started. Then, tighten each screw starting with
the center screw.
Repeat for remaining blades
8
J
D
J
E
D
9
