Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

Select

Monarch

A Kichler®™

ceiling fan

Includes our new

CoolTouch

6 Speed DC Control System

Looks permanent, but goes wherever you go!

U.S. Patent Pending

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only ETL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be ETL Listed and marked suitable

for use with the model fan you are

installing. Switches must be ETL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

1. SAFETY RULES

Special Notice

This appliance is equipped with a "Wattage

Limiting Device" required by the United

States Department of Energy. The device

has been installed at the factory and can not

be removed.

Installing Lamps in excess of 190 total watts

will disable the unit's light fixture. If this

should happen, you will need to reset the

lighting fixture by turning the power off to

the ceiling fan and/or light fixture,

reinstalling lamps totaling less that 190

watts and then turning the power back on.

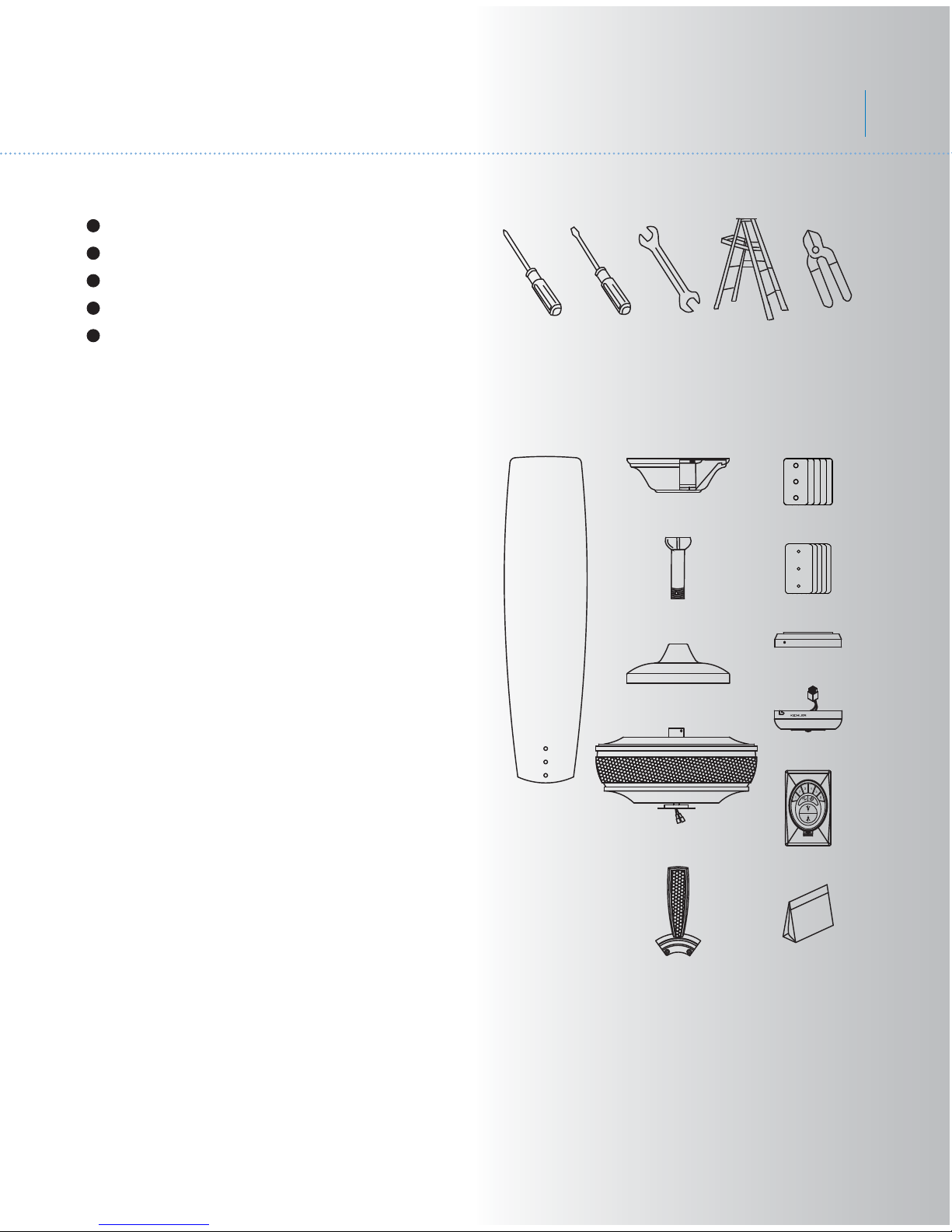

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of 5 blade brackets and Pre-Installed

mounting screws

g. Blade support plates (5)

h. Fiber washers (5)

i. Switch house mounting plate

j. Switch housing

k. CoolTouchTM Control System

l. Part bag contents

1) Mounting hardware :

wood screws (2), flat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (17), spring washers (17)

3) Blade brackets hardware:

extra screws (2)

4) Safety cable hardware:

wood screw, lock washer, flat washer

5) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

MonarchTM

4. MOUNTING OPTIONS

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

If there isn't an existing ETL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

MonarchTM

Fig. 6

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

ETL Listed

electrial

box

120V Wires

Washers

Downrod

Cross pin

Hanger

ball Set screw

Supply wires

Downrod

Retaining clipHitch pin

Set screwsSet screws

Fig. 5

Ceiling mounting

bracket

Ceiling

canopy

Canopy

cover

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save) one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set screw,

removing the cross pin and sliding the ball off

the rod. (Fig.7)

SPECIAL NOTE: For proper Control System

Programing, it is essential that power is NOT

connected or turned on to the ceiling fan

during the installation process.

You will be instructed at the proper time to

power up the system.

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

5. HANGING THE FAN

Fig. 9

Fig. 10

Registration slot

Downrod

Canopy

Canopy cover

Set screws

Hitch pin Retaining clip

Coupling cover

Check tab

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats firmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan to

fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 12

7. ELECTRICAL CONNECTIONS

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please

install it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end of

the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire connecting

nuts suppled with your fan. Secure the

connectors with electrical tape. Make sure there

are no loose wire strands or connections.

Step 1. Connect the fan supply (black) wire to

the black household supply wire as shown in

Figure 12.

Step 2. Connect the neutral fan (white) wire to

the neutral household (white) wire.

Step 3. Connect the fan ground wire (green) to

the household ground wire.

Step 4. After connecting the wires, spread them

apart so that the green and white wires are on

one side of the outlet box and the black and

blue wires are on the other side.

Step 5. Turn the connecting nuts upward and

push the wiring into the outlet box.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Ground (green)

(Connect to ground wire

on hanger bracket if no

house ground wire exists.)

Outlet box

Black ("AC IN L")

Black (motor)

MonarchTM

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See figure 13.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting screw

heads by inserting the screw heads into the

bottom side of the canopy cover and rotating

the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 13)

Warning: Make sure the "Check Tab" at the

bottom of the hanger bracket is properly

seated in the "Registration Slot" on the side of

the hanger ball before attaching the canopy to

the bracket. Failure to properly seat the

"Check Tab" could damage the electrical wires

when to ceiling fan blade direction is changed

while the fan is running.

8. FINISHING THE INSTALLATION

9. ATTACHING THE FAN BLADES

Fig. 13

Fig. 14

Outlet box

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

CAUTION: Remove the five rubber shipping

blocks attached to the face of the motor. These

blocks keep the motor from shifting during

shipping and MUST be removed during

installation.

Step 1. Attach the blade to the blade bracket

using the screws, spring washers, blade

support plate and fiber washers as shown in

Figure 14. Start screw into bracket. Repeat for

the two remaining screws.

Step 2. Make sure the blade is straight and

tighten each screw.

Step 3. Fasten blade assembly to motor using

"Pre-Installed" mounting screws in the blade

bracket.

Blade

Blades bracket

Screws

Spring washers

Support plate

Fiber washers

Screws

Fig. 15

10. INSTALLING THE SWITCH HOUSING

MOUNTING PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 15)

Step 2. Place the key hole slots on the switch

housing mounting plate over the two screws

previously loosened on the mounting ring.

Turn the switch housing mounting plate until is

locks in place at the narrow section of the key

hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Fig. 16

11. INSTALLING THE SWITCH HOUSING

Attach the switch housing to the mounting

plate with the screws provided. Make sure

each screw is tight. (Fig. 16)

Switch housing

mounting plate

Mounting ring

Screws

Switch

housing Screws

Mounting plate

MonarchTM

12. CONTROL SYSTEM SET-UP

Fig. 17

Fig. 18

1 2 3 4

Dip switch

Make sure the power is completely

disconnected before you begin this procedure.

SPECIAL NOTE:

Your new Kichler®Ceiling Fan is State of the

Art and employs a High Efficiency DC (direct

current) Motor with an advanced CoolTouch™

Remote Control System. The DC Motor uses

70% less energy than a conventional ceiling

fan AC Induction Motor. The DC motor is

“Digitally” controlled and operates differently

than conventional ceiling fans motors. Please

read this portion of the manual completely

before proceeding.

Our CoolTouch™ Control system includes an

“Automatic Frequency Selection” feature. To

set the control frequency and program the

control system, follow these steps.

Open the back of the Transmitter (figure 17)

The Frequency Selector is a "Dip Switch

Block" inside the Battery compartment of the

Transmitter. (See figure 18) You change

frequencies by arranging the small switches

numbered 1 through 4 in a up or down

position. 16 possible frequencies or

combinations are possible.

The fifth switch, marked D and X sets the

system for operation with Incandescent or

Fluorescent Lamps. It is essential to set this

switch correctly. If your ceiling fan is equipped

with Incandescent Lamps set this switch to

the D Position, for Fluorescent Lamps, set

the switch to the X Position. If these settings

are reversed, the lighting control system will

operate erratically and could damage your

ceiling fan.

System Programing: Read all of these steps

BEFORE proceeding. Each step must be

followed exactly to properly program the

control system.

1. You can leave the frequency switches at

the factory setting or move them to any

combination of up or down. Use a small flat

bladed screwdriver to move the switches.

Table des matières

Autres manuels Kichler Lighting Ventilateur

Kichler Lighting

Kichler Lighting 330015WH Manuel utilisateur

Kichler Lighting

Kichler Lighting 35155 Manuel utilisateur

Kichler Lighting

Kichler Lighting Lyndon 300120 Manuel utilisateur

Kichler Lighting

Kichler Lighting 35156 Manuel utilisateur

Kichler Lighting

Kichler Lighting Szeplo 370060 Manuel utilisateur

Kichler Lighting

Kichler Lighting Canfield Patio 310192 Manuel utilisateur

Kichler Lighting

Kichler Lighting Decor Link Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" Chiara LED Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" Basics Pro Manuel utilisateur

Kichler Lighting

Kichler Lighting RIED Manuel utilisateur

Kichler Lighting

Kichler Lighting Sunburst 300170 Manuel utilisateur

Kichler Lighting

Kichler Lighting Guardian 330057 Manuel utilisateur

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR Manuel utilisateur

Kichler Lighting

Kichler Lighting Monarch II Manuel utilisateur

Kichler Lighting

Kichler Lighting sterling manor select Manuel utilisateur

Kichler Lighting

Kichler Lighting Lija Manuel utilisateur

Kichler Lighting

Kichler Lighting 54 inch Skye Manuel utilisateur

Kichler Lighting

Kichler Lighting Pacific Edge 300157 Manuel utilisateur

Kichler Lighting

Kichler Lighting Porters Lake Manuel utilisateur

Kichler Lighting

Kichler Lighting Selectlight fixture Manuel utilisateur

Kichler Lighting

Kichler Lighting Verdi Manuel utilisateur

Kichler Lighting

Kichler Lighting FERRON Manuel utilisateur

Kichler Lighting

Kichler Lighting Decor Kimberley Manuel utilisateur

Kichler Lighting

Kichler Lighting Maor 310136 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
