EXTERIOR OVERVIEW (FRONT)

1. Front removable towing hook .................6-38

2. Front windscreen wiper ..........................7-37

3. Outside rearview mirror ..........................4-36

4. Door lock ................................................4-13

5. Head lamp.....................................4-63, 7-64

6. Front fog lamp.........................................4-65

7. Bonnet ...................................................4-24

8. Tyre and wheel .......................................7-42

OYN015001R

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:08 PM Page 1

EXTERIOR OVERVIEW (REAR)

1. Roof antenna ........................................4-100

2. Rear window defroster............................4-72

3. Rear wiper.....................................4-69, 7-38

4. Rear parking assist system ....................4-57

5. Child-protector rear door lock.................4-16

6. Fuel filler .................................................4-26

7. Rear towing hook....................................6-38

8. Rear combination lamp ..........................7-68

9. Tailgate handle switch ...........................4-17

10. High mounted stop lamp ......................7-70

11. Rearview camera..................................4-60

OYN015002L

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:08 PM Page 2

INTERIOR OVERVIEW

1. Inside door handle ............................4-14

2. Outside rearview mirror folding

button*...............................................4-39

3. Outside rearview mirror control

switch ................................................4-38

4. Power window lock button* ...............4-22

5. Power window switches*...................4-20

6. Bonnet release lever .........................4-24

7. Fuse box ............................................7-52

8. Head lamp levelling device*..............4-66

9. ISG OFF button*...............................5-14

10. ESP OFF button*............................5-29

11. Instrument panel illumination*.........4-42

12. Parking assist OFF button*.............4-57

13. Steering wheel ................................4-33

14. Steering wheel tilt lever...................4-33

15. Seat...................................................3-2

16. Fuel filler lid release lever ...............4-26

* if equipped

OYN025001R

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:08 PM Page 3

INSTRUMENT PANEL OVERVIEW

1. Driver’s front air bag* .......................3-45

2. Light control / Turn signals ...............4-61

3. Instrument cluster.............................4-40

4. Wiper/Washer...................................4-67

5. Steering wheel audio controls* ......4-126

6. Auto cruise controls* / Speed limiter*

..................................................5-35/5-39

7. LCD display* / Trip computer* ..4-93/4-44

8. Audio controls* ................................4-101

9. Hazard warning flasher switch....4-61/6-2

10. Central door lock/unlock button......4-14

11. Seat warmer* ...................................3-9

12. Climate control system*..................4-73

13. Passenger’s front air bag*..............3-45

14. Glove box .......................................4-91

15. Power outlet* / Cigarette lighter*

...............................................4-96/4-93

16. Shift lever* ......................................5-19

17. Parking brake .................................5-25

18. Brake pedal ....................................5-24

19. Accelerator pedal .............................5-6

20. Vent controls...................................4-76

21. Steering wheel warmer*

.....See the page 11 in this supplement.

* if equipped

OYN025002R

* The actual instrument panel in the vehicle may differ from the illustration.

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:09 PM Page 4

ENGINE COMPARTMENT - DIESEL ENGINE

OYN075002R

❈The actual engine room in the vehicle

may differ from the illustration.

1. Engine coolant reservoir................7-25

2. Engine oil filler cap ........................7-24

3. Brake fluid reservoir.......................7-28

4. Positive battery terminal ................7-38

5. Negative battery terminal...............7-38

6. Fuse box ........................................7-52

7. Air cleaner......................................7-33

8. Auto transaxle oil dipstick*.............7-29

9. Radiator cap ..................................7-27

10. Engine oil dipstick........................7-24

11. Windscreen washer fluid reservoir .7-31

12. Fuel filter ......................................7-32

* if equipped

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:09 PM Page 5

❖❖Please see this page instead of page 3-2 in owner's manual.

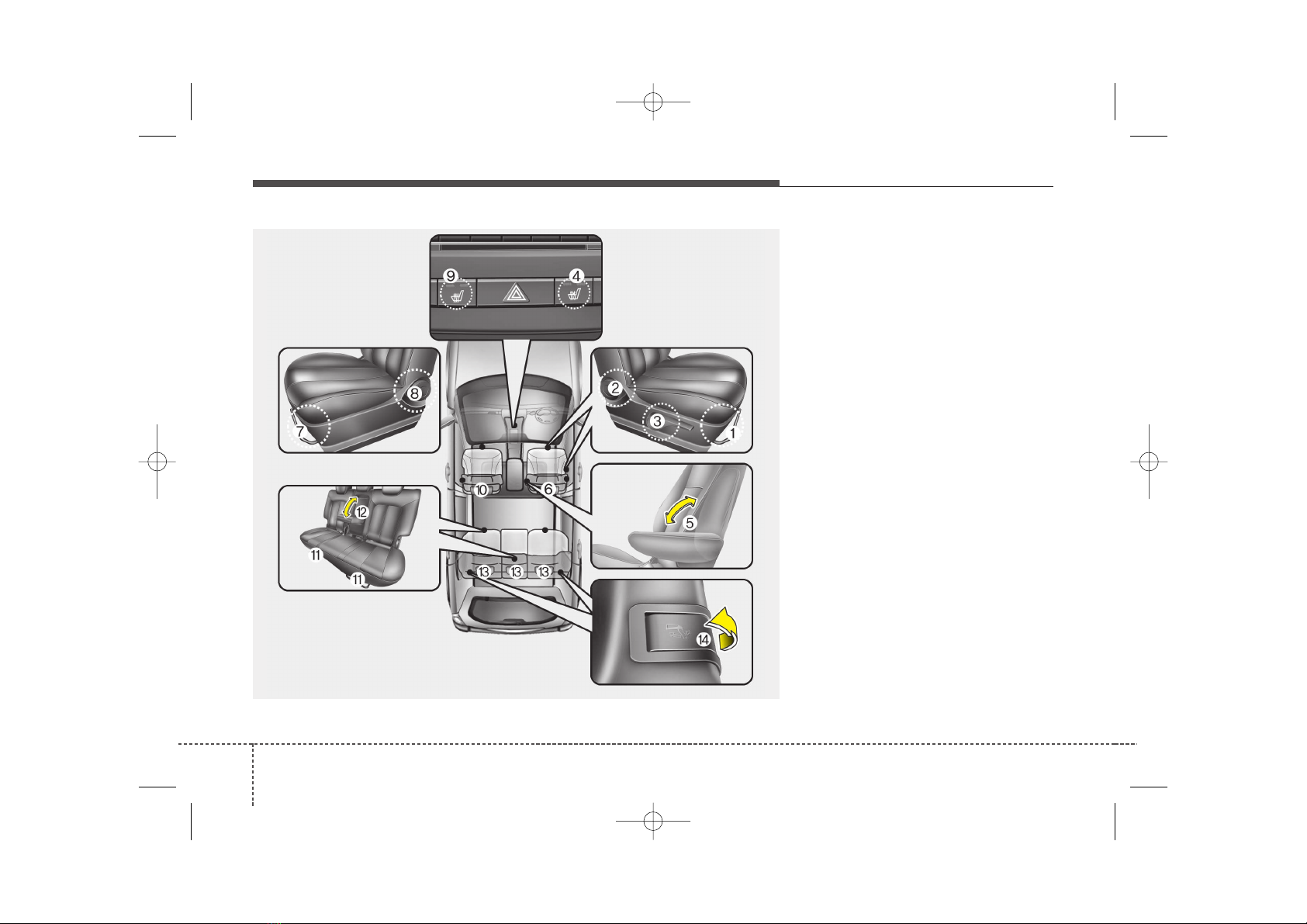

SEATS

Driver’s seat

(1) Seat adjustment, forward / backward

(2) Seatback recliner

(3) Seat adjustment, height*

(4) Seat warmer*

(5) Armrest*

(6) Headrest adjustment

Front passenger seat

(7) Seat adjustment, forward /

backward

(8) Seatback recliner

(9) Seat warmer*

(10) Headrest adjustment

Rear seat

(11) Seat adjustment, forward / backward

(12) Armrest*

(13) Headrest adjustment

(14) Split folding rear seat

* if equipped

OYN035001R

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:09 PM Page 6

❖❖Please see this page instead of page 4-2 in owner's manual.

Seat warmer (if equipped)

The seat warmer is provided to warm the

front seats during cold weather. With the

ignition switch in the ON position, push

either of the switches to warm the driver's

seat or the front passenger's seat.

The seat warmer defaults to the OFF

position whenever the ignition switch is

turned on.

During mild weather or under conditions

where the operation of the seat warmer

is not needed, keep the switches in the

"OFF" position.

• Each time you press the button, the

temperature setting of the seat will

change as follows :

Key operations

• Used to start the engine.

• Used to lock and unlock the doors.

Type B

To unfold the key, press the release but-

ton then the key will unfold automatically.

To fold the key, fold the key manually

whilst pressing the release button.

Type C

To remove the mechanical key, press and

hold the release button and remove the

mechanical key.

To reinstall the mechanical key, put the

key into the hole and push it until a click

sound is heard.

KEYS

CAUTION

Do not fold the key without press-

ing the release button. This may

damage the key.

OYN049001

■Type A

■Type B

OXM043003

■Type C

ORP042001

OYN035009L

OFF → HIGH( ) → LOW( )

→

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:09 PM Page 7

❖❖Please see this page instead of page 4-5 in owner's manual.

Remote keyless entry system

operations

Lock (1)

All doors are locked if the lock button is

pressed.

If all doors are closed, the hazard warning

lights blink once to indicate that all doors are

locked. If any door is opened when the lock

button is pressed, all doors will not lock.

Unlock (2)

All doors are unlocked if the unlock but-

ton is pressed.

The hazard warning lights will blink twice

to indicate that all doors are unlocked.

After depressing this button, the doors

will be locked automatically unless you

open any door within 30 seconds.

Tailgate unlock (3, if equipped)

The tailgate is unlocked if the button is

pressed for more than 1 second.

The hazard warning lights will blink twice

to indicate that the tailgate is unlocked.

After depressing this button, the tailgate

will be locked automatically unless you

open the tailgate within 30 seconds.

Also, once the tailgate is opened and

then closed, the tailgate will be locked

automatically.

❈The word “HOLD” is written on the but-

ton to inform you that you must press

and hold the button for 1 second.

Battery replacement

The transmitter uses a 3 volt lithium bat-

tery which will normally last for several

years. When replacement is necessary,

use the following procedure.

1. Insert a slim tool into the slot and gen-

tly pry open the transmitter centre

cover (1).

2. Replace the battery with new one.

When replacing the battery, make sure

the battery position.

3. Install the battery in the reverse order

of removal.

For transmitter replacement, we recom-

mend that you contact an authorised Kia

dealer.

REMOTE KEYLESS ENTRY (IF EQUIPPED)

ORP042235

OXM043002

■Type A

■ Type B OYDDCO2005

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:09 PM Page 8

❖❖Please see this page instead of page 4-13 in owner's manual.

Operating door locks from inside

the vehicle

With central door lock switch

It is operated by depressing the door lock

switch.

• When pushing the door lock switch, all

vehicle doors will lock and the indicator

light on the switch will illuminate.

If any door is opened when the switch

is pushed, all doors will not lock.

• If any door is unlocked, the indicator of

the door lock switch will blink. If you

push the switch when the indicator is

blinking, all doors will lock.

• When pushing the door lock switch

again, all vehicle doors will unlock and

the indicator light on the switch will not

illuminate.

DOOR LOCKS

OYN045009L

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:10 PM Page 9

Roller blind

The roller blinds are installed inside of

the sunroof and glass roof.

Open or close it manually when you need

to.

Before opening or closing the sunroof,

open the roller blind.

✽✽NOTICE

It is normal for wrinkles to form on the

blind because of its material character-

istic.

PANORAMA SUNROOF (IF EQUIPPED)

❖❖Please see this page instead of page 4-29 in owner's manual.

OYN049027

YN leaflet-ENG(RHD)-A1PO-EA48A(L).qxp 11/6/2014 5:10 PM Page 10
