Keysight Technologies U3042AM04 Manuel

Keysight Technologies

U3042AM04

User’s and

Service Guide

Notice: This document contains references to

Agilent. Please note that Agilent’s Test and

Measurement business has become Keysight

Technologies. For more information, go to

www.keysight.com.

Use this manual with the following document:

PNA Series Network Analyzer On-line Help

System

Notices

2013, 2018

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent

from Keysight Technologies, Inc. as

governed by United States and

international copyright laws.

Trademark Acknowledgments

Manual Part Number

U3042-90013

Edition

Edition 1, February 2018

Supersedes: April 2017

Printed in USA

Published by:

Keysight Technologies

1400 Fountaingrove Parkway Santa

Rosa, CA 95403

Warranty

THE MATERIAL CONTAINED IN

THIS DOCUMENT IS PROVIDED “AS

IS,” AND IS SUBJECT TO BEING

CHANGED, WITHOUT NOTICE, IN

FUTURE EDITIONS. FURTHER, TO

THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, KEYSIGHT

DISCLAIMS ALL WARRANTIES,

EITHER EXPRESS OR IMPLIED WITH

REGARD TO THIS MANUAL AND

ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT

LIMITED TO THE IMPLIED

WARRANTIES OF

MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE.

KEYSIGHT SHALL NOT BE LIABLE

FOR ERRORS OR FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE

FURNISHING, USE, OR

PERFORMANCE OF THIS

DOCUMENT OR ANY INFORMATION

CONTAINED HEREIN. SHOULD

KEYSIGHT AND THE USER HAVE A

SEPARATE WRITTEN AGREEMENT

WITH WARRANTY TERMS

COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH

THESE TERMS, THE WARRANTY

TERMS IN THE SEPARATE

AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance

with the terms of such license.

U.S. Government Rights

The Software is “commercial

computer software,” as defined

byFederalAcquisitionRegulation

(“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and

Department of Defense FAR

Supplement(“DFARS”)227.7202,

the U.S. government acquires

commercial computer software

under the same terms by which

the software is customarily

provided to the public.

Accordingly, Keysight provides

the Software to U.S. government

customers under its standard

commercial license, which is

embodied in its End User License

Agreement (EULA), a copy of

which can be found at

http://www.keysight.com/find/sweula

The license set forth in the EULA

representstheexclusive authority

by which the U.S. government

may use, modify, distribute, or

disclose the Software. The EULA

and the license set forth therein,

does not require or permit,

among other things, that

Keysight: (1) Furnish technical

information related to

commercial computer software

or commercial computer

software documentation that is

not customarily provided to the

public; or (2) Relinquish to, or

otherwise provide, the

government rights in excess of

these rights customarily provided

to the public to use, modify,

reproduce, release, perform,

display, or disclose commercial

computer software or

commercial computer software

documentation. No additional

government requirements

beyond those set forth in the

EULA shall apply, except to the

extent that those terms, rights, or

licenses are explicitly required

from all providers of commercial

computer software pursuant to

the FAR and the DFARS and are

set forth specifically in writing

elsewhere in the EULA. Keysight

shall be under no obligation to

update, revise or otherwise

modify the Software. With

respect to any technical data as

defined by FAR 2.101, pursuant

to FAR 12.211 and 27.404.2 and

DFARS 227.7102, the U.S.

government acquires no greater

than Limited Rights as defined in

FAR 27.401 or DFAR 227.7103-5

(c), as applicable in any technical

data.

Safety Notices

A CAUTION notice denotes a hazard. It

calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or adhered

to, could result in damage to the

product or loss of important data. Do

not proceed beyond a CAUTION

notice until the indicated conditions

are fully understood and met.

A WARNING notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or adhered

to, could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

Table of Contents

Contents-1

U3042AM04

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Measurement Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Verifying the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Low Loss Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Switch Configuration Command Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Network Analyzer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Available Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Test Set Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Network Analyzer Interface Kit Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

General Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Definitions for Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Equipment Heating and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Required Conditions for Accuracy Enhanced Measurement . . . . . . . . . . . . . . . . . . . . . . . . . .6

Dimensions and Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Maximum and Recommended Power Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Typical Reflection Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Front and Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

System Setup with N5230C and N5232A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Locking the Test Set to the PNA-L. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

PNA-L RF Interface Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System Setup with N5222A and N5242A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Locking the Test Set to the PNA or PNA-X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

N5222A or N5242A RF Interface Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

System Operational Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Equipment Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Verify Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Controlling the Test Set with N5222/32/42A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Typeface Key Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Sweep Setup for Multiport and Standalone Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contents-2

Table of Contents

Multiport Mode (Option 551) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

How to Access Multiport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

External Test Set control Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Trace Measure S-Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

New Trace Measure S-Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

RF Path Configuration with Analyzer Option 029 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

N-Port Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Interface Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Overview of the Interface Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

How to Access Interface Control Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using Interface Control Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

SCPI Control .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 37

Overview of the SCPI Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

How to Access the Command Processor . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

SCPI Command Processor Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Address and Data Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Setting the Test Ports Paths with Address and Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Control Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Internal Voltage Supply Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

External Voltage Supply Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Setting the Control Lines with Address and Data Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Setting the Analyzer to Standalone Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Cal Kit Operational Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Verification Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Cal Kit Operational Check Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Preparing the Network Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

1-Port Calibration and Verification Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Verifying Cal Kit Operational Check Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

ECal Confidence Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Interconnect Cable Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 56

Replaceable Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table of Contents

Contents-3

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Test Set Control Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Switch Interface Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Front Panel LED Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

DUT Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

RF Coupler/Bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

RF Switch Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Source and Receiver Switch Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Test Set Control Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Troubleshooting the Test Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Non-RF Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

RF Switching Failures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Test Set and RF Switching Path Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Equipment Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Equipment Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Source Signal Path Insertion Loss Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

RF Performance Fails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Troubleshooting Diagrams and Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Safety and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Safety Earth Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 73

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Statement of Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Before Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Connector Care and Cleaning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Instrument Markings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 77

Battery Collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Electrical Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

EMI and EMC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Keysight Support, Services, and Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Service and Support Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Contents-4

Table of Contents

Contacting Keysight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Shipping Your Product to Keysight for Service or Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

U3042AM04

User’s and Service Guide

U3042AM04

Introduction

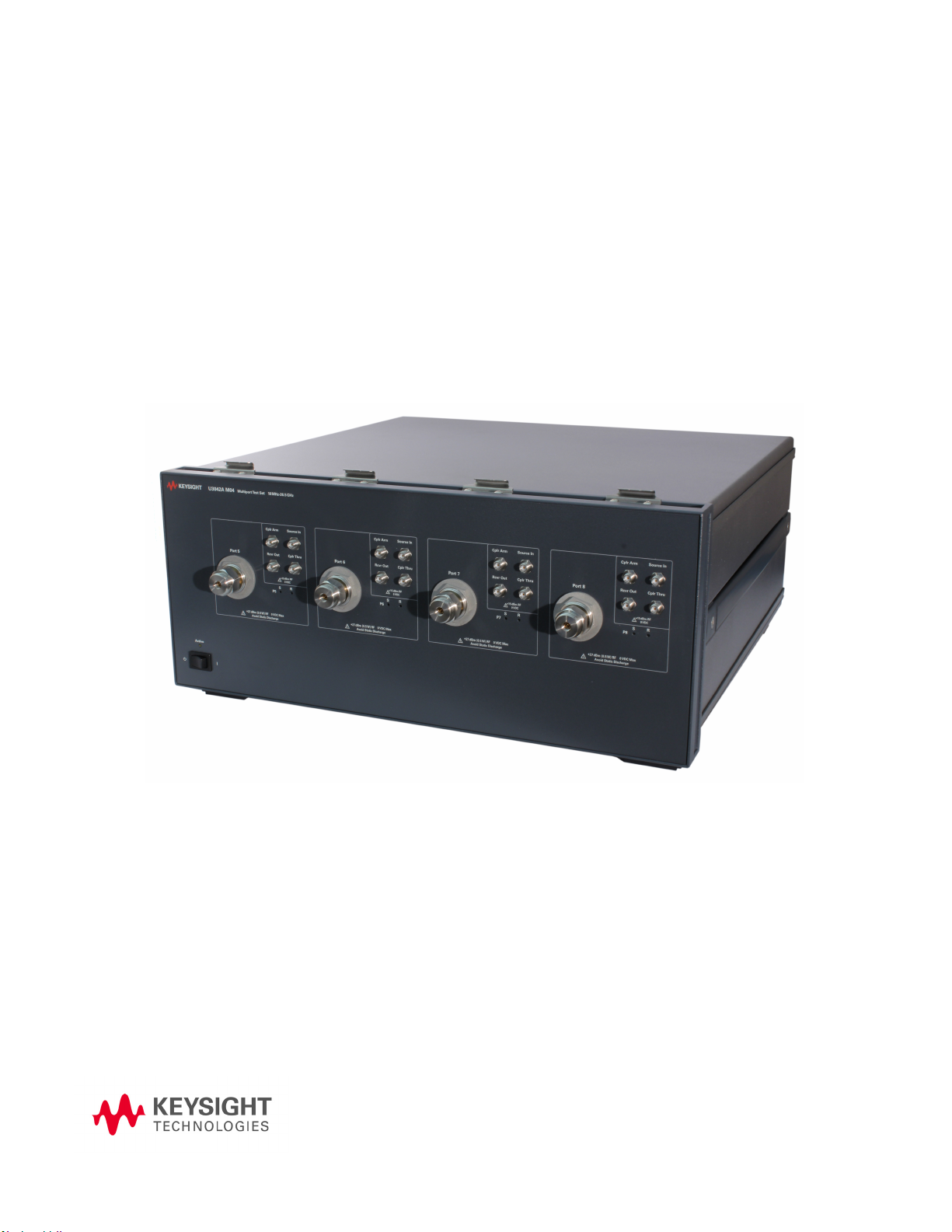

This document describes how to use and service the U3042AM04 Multiport Test Set.

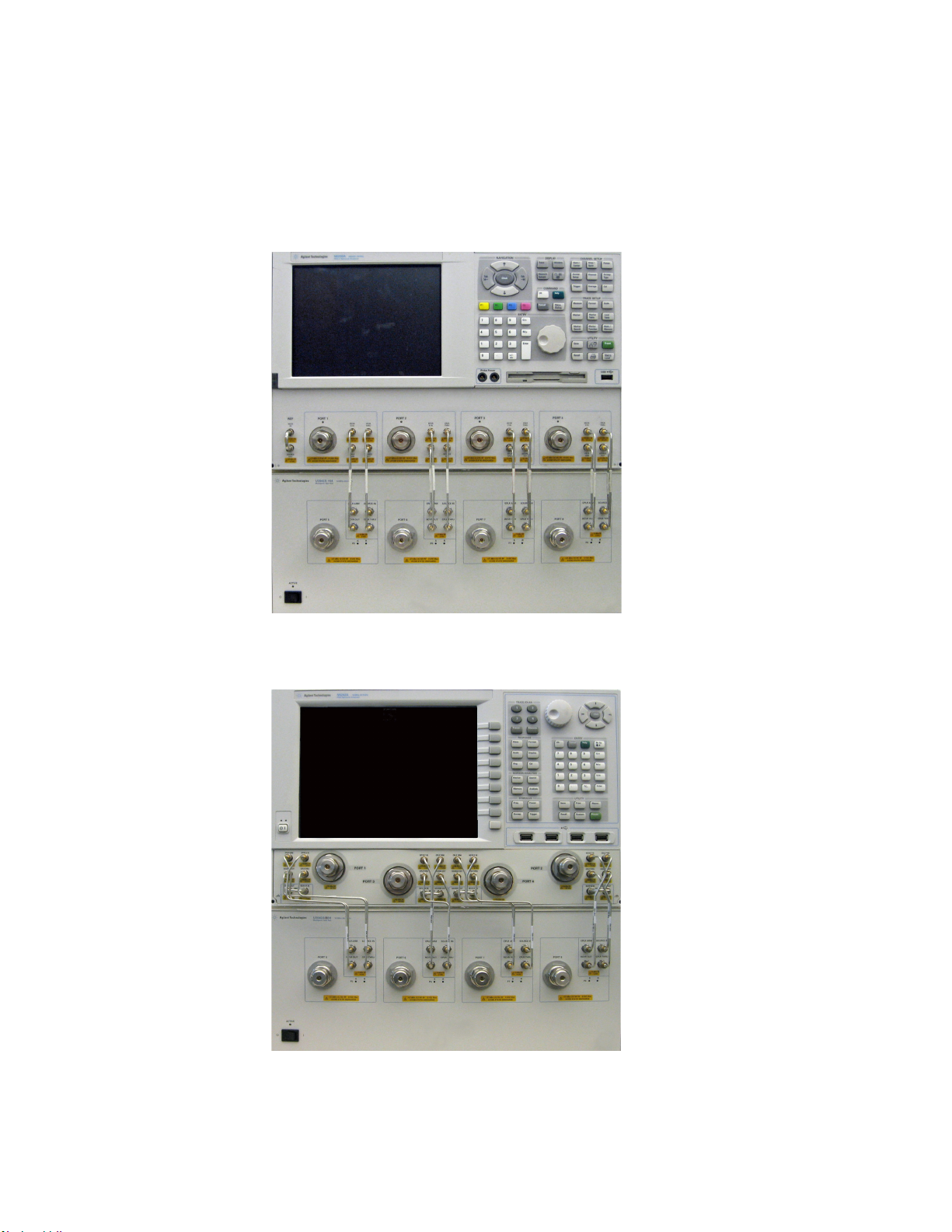

Figure 1 4-Port PNA-L with U3042AM04

Figure 2 4-Port PNA or PNA-X with U3042AM04

Keysight U3042AM04 User's and Service Guide

U3042AM04

Description

The U3042AM04 is a Multiport Test Set Extension designed to be configured in an

8 Port network analyzer measurement system. The U3042AM04 has the

following key features:

•4 Test Ports (3.5mm Male connectors)

•Low Loss mechanical RF switching

•Frequency Range of Operation: 300 KHz - 26.5 GHz

•Keysight PNA compatibility with rear panel Test Set I/O interface for operational

control. The PNA Option 551 is required. An external personal computer is not

required.

The N5222A/B PNA, N5230A/C & N5231/2A/B PNA-L and N5241/2A/B PNA-X

Network Analyzers will be referred to throughout this document as the PNA, PNA-L

and PNA-X. Analyzer refers to all series of PNA. PNA-L and PNA-X. The

U3042AM04 will be referred to as the Test Set. The N5221, N5231, and N5241 can

be used, but will limit the frequency range to 13.5 GHz.

Measurement Application Notes

Table 1

Low Loss DUT Measurements

Low loss trace ripple is a product of switch repeatability and calibration

technique. Low insertion loss measurements exhibiting a 0.1 dB uncertainty

ripple residing on the measurement response is not uncommon.

Switch Configuration Command Speed

When writing address and data values to the test set directly, include a 15ms

wait before issuing another address and data set. The delay of 15ms is required

for the test set internal switches to settle. Failure to add the delay could cause

the test set internal switches to stick or cause intermittent failures.

Short, 3.5 mm (female) 85052-60007 1

User's and Service Guide U3042-90013 1

Description Part Number Quantity

Keysight U3042AM04 User's and Service Guide

Verifying the Shipment

To verify the contents shipped with your product, refer to the “Box Content List”

included with the shipment.

Inspect the shipping container. If the container or packing material is damaged, it

should be kept until the contents of the shipment have been checked mechanically

and electrically. If there is physical damage refer to “Contacting Keysight” on page

79.Keep the damaged shipping materials (if any) for inspection by the carrier and a

Keysight Technologies representative.

U3042AM04 Accessories Supplied

U3042AM04

Network Analyzer Requirements

•Network Analyzer Firmware -

http://na.support.keysight.com/pna/firmware/firmware.html

•U3042AM04 Test Set Files -

http://na.support.keysight.com/multiport (see test set files link)

Table 2

All network analyzers require Option 551 be installed, for multiport operation (N-Port

error correction and measurement capability). Table 2 provides a listing of other

network analyzer option requirements. The analyzer’s frequency range must be equal

to or exceed that of the test set so that the measurement system covers the full

frequency range of the test set.

The Test Set files indicated in Table 2 must be installed into this network analyzer file

directory location: c:\Program Files\Keysight\Network Analyzer\testsets

Network Analyzer Configuration Requirements

4 Port Network

Analyzer

Options Test Set File System

Figure

N5221/2A/B PNA 401 or 417 or 419 U3042AM04_pnax_p4.tsx 2a

N5230A/C PNA-L 145 or 146 or 245 or

246

U3042AM04_p4.tsx 1

N5231/2A/B PNA-L 416 U3042AM04_p4.tsx 1a

N5241/2A/B PNA-X 400 U3042AM04_pnax_p4.tsx 2

a. Image does not show the actual analyzer but the port configuration is similar.

Insure the network analyzer has the latest version of firmware installed. The following

web site links will provide the necessary information needed:

Keysight U3042AM04 User's and Service Guide
