Keysight Technologies MSO-X 2002A Manuel utilisateur

Keysight InfiniiVision

2000 X-Series Oscilloscopes

User's Guide

2 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

Notices

No part of this manual may be reproduced in

any form or by any means (including

electronic storage and retrieval or translation

into a foreign language) without prior

agreement and written consent from

Keysight Technologies, Inc. as governed by

United States and international copyright

laws.

Manual Part Number

75015-97057

Edition

Eighth edition, August 2017

Printed in Malaysia

Published by:

Keysight Technologies, Inc.

1900 Garden of the Gods Road

Colorado Springs, CO 80907 USA

Print History

75015-97000, January 2011

75015-97011, February 2011

75015-97012, June 2011

75015-97023, March 2012

75015-97034, July 2012

75015-97045, April 2013

75015-97056, April 2017

75015-97057, August 2017

Warranty

The material contained in this document is

provided "as is," and is subject to being

changed, without notice, in future editions.

Further, to the maximum extent permitted

by applicable law, Keysight disclaims all

warranties, either express or implied, with

regard to this manual and any information

contained herein, including but not limited

to the implied warranties of merchantability

and fitness for a particular purpose.

Keysight shall not be liable for errors or for

incidental or consequential damages in

connection with the furnishing, use, or

performance of this document or of any

information contained herein. Should

Keysight and the user have a separate

written agreement with warranty terms

covering the material in this document that

conflict with these terms, the warranty

terms in the separate agreement shall

control.

Technology License

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in

accordance with the terms of such license.

U.S. Government Rights

The Software is "commercial computer

software," as defined by Federal Acquisition

Regulation ("FAR") 2.101. Pursuant to FAR

12.212 and 27.405-3 and Department of

Defense FAR Supplement ("DFARS")

227.7202, the U.S. government acquires

commercial computer software under the

same terms by which the software is

customarily provided to the public.

Accordingly, Keysight provides the Software

to U.S. government customers under its

standard commercial license, which is

embodied in its End User License Agreement

(EULA), a copy of which can be found at

www.keysight.com/find/sweula. The

license set forth in the EULA represents the

exclusive authority by which the U.S.

government may use, modify, distribute, or

disclose the Software. The EULA and the

license set forth therein, does not require or

permit, among other things, that Keysight: (1)

Furnish technical information related to

commercial computer software or

commercial computer software

documentation that is not customarily

provided to the public; or (2) Relinquish to, or

otherwise provide, the government rights in

excess of these rights customarily provided

to the public to use, modify, reproduce,

release, perform, display, or disclose

commercial computer software or

commercial computer software

documentation. No additional government

requirements beyond those set forth in the

EULA shall apply, except to the extent that

those terms, rights, or licenses are explicitly

required from all providers of commercial

computer software pursuant to the FAR and

the DFARS and are set forth specifically in

writing elsewhere in the EULA. Keysight shall

be under no obligation to update, revise or

otherwise modify the Software. With respect

to any technical data as defined by FAR

2.101, pursuant to FAR 12.211 and 27.404.2

and DFARS 227.7102, the U.S. government

acquires no greater than Limited Rights as

defined in FAR 27.401 or DFAR 227.7103-5

(c), as applicable in any technical data.

Safety Notices

This product has been designed and tested in

accordance with accepted industry

standards, and has been supplied in a safe

condition. The documentation contains

information and warnings that must be

followed by the user to ensure safe operation

and to maintain the product in a safe

condition.

CAUTION

A CAUTION notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or

adhered to, could result in damage

to the product or loss of important

data. Do not proceed beyond a

CAUTION notice until the indicated

conditions are fully understood and

met.

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 3

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in personal injury or death.

Do not proceed beyond a WARNING

notice until the indicated

conditions are fully understood and

met.

4 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

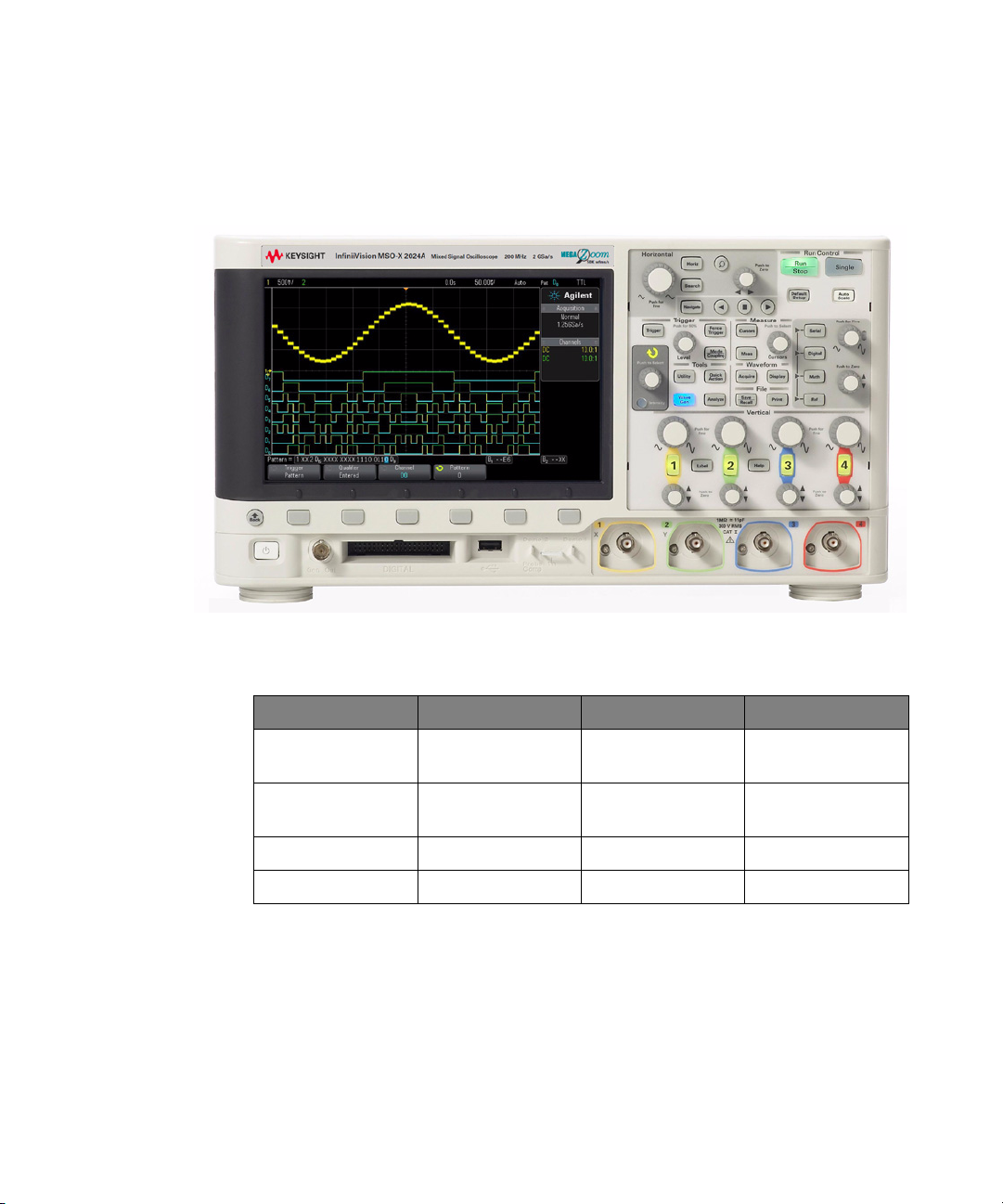

InfiniiVision 2000 X-Series Oscilloscopes—At a Glance

The Keysight InfiniiVision 2000 X-Series oscilloscopes deliver these features:

• 70 MHz, 100 MHz, and 200 MHz bandwidth models.

• 2- and 4-channel digital storage oscilloscope (DSO) models.

• 2+8-channel and 4+8-channel mixed-signal oscilloscope (MSO) models.

Table 1 2000 X-Series Model Numbers, Bandwidths

Bandwid th 70 MHz 100 MHz 200 MHz

2-Channel + 8 Logic

Channels MSO

MSO-X 2002A MSO-X 2012A MSO-X 2022A

4-Channel + 8 Logic

Channels MSO

MSO-X 2004A MSO-X 2014A MSO-X 2024A

2-Channel DSO DSO-X 2002A DSO-X 2012A DSO-X 2022A

4-Channel DSO DSO-X 2004A DSO-X 2014A DSO-X 2024A

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 5

An MSO lets you debug your mixed-signal designs using analog signals and

tightly correlated digital signals simultaneously. The 8 digital channels have a

1 GSa/s sample rate, with a 50 MHz toggle rate.

• 8.5 inch WVGA display.

• Interleaved 2 GSa/s or non-interleaved 1 GSa/s sample rate.

• 100 Kpts per channel MegaZoom IV acquisition memory for the fastest

waveform update rates, uncompromised. Upgradeable to 1 Mpts per channel.

• All knobs are pushable for making quick selections.

• Trigger types: edge, pulse width, pattern, and video.

• Serial decode/trigger options for: CAN/LIN, I2C/SPI, and UART/RS232. There

is a Lister for displaying serial decode packets.

Digital channels and serial decode cannot be on at the same time. The [Serial]

key takes precedence over the [Digital] key. Serial triggers can be used when

digital channels are on.

• Math waveforms: add, subtract, multiply, and FFT.

• Reference waveforms (2) for comparing with other channel or math waveforms.

• Many built-in measurements.

• Built-in license-enabled waveform generator with: sine, square, ramp, pulse,

DC, noise.

• USB ports make printing, saving and sharing data easy.

• Optional LAN/VGA module for connecting to a network and displaying the

screen on a different monitor.

• Optional GPIB module.

• A Quick Help system is built into the oscilloscope. Press and hold any key to

display Quick Help. Complete instructions for using the quick help system are

given in “Access the Built-In Quick Help" on page 47.

For more information about InfiniiVision oscilloscopes, see:

www.keysight.com/find/scope

6 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

In This Guide

This guide shows how to use the InfiniiVision 2000 X-Series oscilloscopes.

When unpacking and using the

oscilloscope for the first time, see:

•Chapter 1, “Getting Started,” starting on page 23

When displaying waveforms and

acquired data, see:

•Chapter 2, “Horizontal Controls,” starting on page 49

•Chapter 3, “Vertical Controls,” starting on page 63

•Chapter 4, “Math Waveforms,” starting on page 71

•Chapter 5, “Reference Waveforms,” starting on page

•Chapter 6, “Digital Channels,” starting on page 89

•Chapter 7, “Serial Decode,” starting on page 107

•Chapter 8, “Display Settings,” starting on page 113

•Chapter 9, “Labels,” starting on page 119

When setting up triggers or changing

how data is acquired, see:

•Chapter 10, “Triggers,” starting on page 125

•Chapter 11, “Trigger Mode/Coupling,” starting on

page 147

•Chapter 12, “Acquisition Control,” starting on page

155

Making measurements and analyzing

data:

•Chapter 13, “Cursors,” starting on page 171

•Chapter 14, “Measurements,” starting on page 181

•Chapter 15, “Mask Testing,” starting on page 201

•Chapter 16, “Digital Voltmeter,” starting on page 213

When using the built-in waveform

generator, see:

•Chapter 17, “Waveform Generator,” starting on page

217

When saving, recalling, or printing,

see:

•Chapter 18, “Save/Recall (Setups, Screens, Data),”

starting on page 229

•Chapter 19, “Print (Screens),” starting on page 241

When using the oscilloscope's utility

functions or web interface, see:

•Chapter 20, “Utility Settings,” starting on page 247

•Chapter 21, “Web Interface,” starting on page 267

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 7

For reference information, see: •Chapter 22, “Reference,” starting on page 283

When using licensed serial bus

triggering and decode features, see:

•Chapter 23, “CAN/LIN Triggering and Serial Decode,”

starting on page 301

•Chapter 24, “I2C/SPI Triggering and Serial Decode,”

starting on page 317

•Chapter 25, “UART/RS232 Triggering and Serial

Decode,” starting on page 335

NOTE

Abbreviated instructions for pressing a series of keys and softkeys

Instructions for pressing a series of keys are written in an abbreviated manner. Instructions for

pressing [Key1], then pressing Softkey2, then pressing Softkey3 are abbreviated as follows:

Press [Key1]> Softkey2 > Softkey3.

The keys may be a front panel [Key] or a Softkey. Softkeys are the six keys located directly

below the oscilloscope display.

8 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 9

Contents

InfiniiVision 2000 X-Series Oscilloscopes—At a Glance / 4

In This Guide / 6

1GettingStarted

Inspect the Package Contents / 23

Install the Optional LAN/VGA or GPIB Module / 26

Tilt the Oscilloscope for Easy Viewing / 26

Power-On the Oscilloscope / 27

Connect Probes to the Oscilloscope / 28

Maximum input voltage at analog inputs / 28

Do not float the oscilloscope chassis / 29

Input a Waveform / 29

Recall the Default Oscilloscope Setup / 29

Use Auto Scale / 30

Compensate Passive Probes / 32

Learn the Front Panel Controls and Connectors / 33

Front Panel Overlays for Different Languages / 41

Learn the Rear Panel Connectors / 43

Learn the Oscilloscope Display / 45

Access the Built-In Quick Help / 47

10 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

2HorizontalControls

To adjust the horizontal (time/div) scale / 50

To adjust the horizontal delay (position) / 51

Panning and Zooming Single or Stopped Acquisitions / 52

To change the horizontal time mode (Normal, XY, or Roll) / 52

XY Time Mode / 53

To display the zoomed time base / 56

To change the horizontal scale knob's coarse/fine adjustment

setting / 57

To position the time reference (left, center, right) / 58

Searching for Events / 58

To set up searches / 59

Navigating the Time Base / 59

To navigate time / 59

To navigate search events / 60

To navigate segments / 60

3VerticalControls

To turn waveforms on or off (channel or math) / 64

To adjust the vertical scale / 65

To adjust the vertical position / 65

To specify channel coupling / 65

To specify bandwidth limiting / 66

To change the vertical scale knob's coarse/fine adjustment

setting / 66

To invert a waveform / 67

Setting Analog Channel Probe Options / 67

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Keysight Technologies Équipement de test

Keysight Technologies

Keysight Technologies TN2870A Series Manuel utilisateur

Keysight Technologies

Keysight Technologies U3020AD01 Manuel

Keysight Technologies

Keysight Technologies 85052C Manuel

Keysight Technologies

Keysight Technologies U3042AE12 Manuel

Keysight Technologies

Keysight Technologies 85051B Manuel

Keysight Technologies

Keysight Technologies U9361C Manuel utilisateur

Keysight Technologies

Keysight Technologies Infiniium 9000 Series Manuel utilisateur

Keysight Technologies

Keysight Technologies U3042AM04 Manuel

Keysight Technologies

Keysight Technologies X Series Manuel utilisateur

Keysight Technologies

Keysight Technologies 16454A Manuel d'utilisation

Keysight Technologies

Keysight Technologies 16117B Manuel d'utilisation

Keysight Technologies

Keysight Technologies U3047AM12 Manuel

Keysight Technologies

Keysight Technologies 16453A Manuel utilisateur

Keysight Technologies

Keysight Technologies InfiniVision 6000L Series Manuel utilisateur

Keysight Technologies

Keysight Technologies D9020DDRC Manuel utilisateur

Keysight Technologies

Keysight Technologies E5405A-Pro Series Manuel utilisateur

Keysight Technologies

Keysight Technologies 85059V Manuel de service

Keysight Technologies

Keysight Technologies IOT8700 Series Manuel utilisateur

Keysight Technologies

Keysight Technologies InfiniiVision MSO-X 4022A Manuel

Keysight Technologies

Keysight Technologies U1610/20A Manuel utilisateur

Keysight Technologies

Keysight Technologies E5092A Manuel utilisateur

Keysight Technologies

Keysight Technologies 16047A Manuel d'utilisation

Keysight Technologies

Keysight Technologies InfiniiVision 6000 X Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N5224AU-401 Manuel d'installation et d'exploitation

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur
