User’s Guide

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Notices

No part of this manual may be reproduced

in any form or by any means (including

electronic storage and retrieval or transla-

tion into a foreign language) without prior

agreement and written consent from

Keysight Technologies as governed by

United States and international copyright

laws.

Manual Part Number

E5404-97006, November 2014

Printed in Malaysia

Published By:

Keysight Technologies

Plot No. CP-11, Sector- 8,

IMT Manesar, Gurgaon - 122051, India

Warranty

THE MATERIAL CONTAINED IN THIS

DOCUMENT IS PROVIDED "AS IS," AND IS

SUBJECT TO BEING CHANGED, WITHOUT

NOTICE, IN FUTURE EDITIONS. FURTHER,

TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, KEYSIGHT DISCLAIMS

ALL WARRANTIES, EITHER EXPRESS OR

IMPLIED WITH REGARD TO THIS MANUAL

AND ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. KEYSIGHT SHALL

NOT BE LIABLE FOR ERRORS OR FOR

INCIDENTAL OR CONSEQUENTIAL

DAMAGES IN CONNECTION WITH THE

FURNISHING, USE, OR PERFORMANCE OF

THIS DOCUMENT OR ANY INFORMATION

CONTAINED HEREIN. SHOULD KEYSIGHT

AND THE USER HAVE A SEPARATE

WRITTEN AGREEMENT WITH WARRANTY

TERMS COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH THESE

TERMS, THE WARRANTY TERMS IN THE

SEPARATE AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software described in

this document are furnished under a

license and may be used or copied only in

accordance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of

a U.S. Government prime contract or sub-

contract, Software is delivered and

licensed as "Commercial computer soft-

ware" as defined in DFAR 252.227-7014

(June 1995), or as a "commercial item" as

defined in FAR 2.101(a) or as "Restricted

computer software" as defined in FAR

52.227-19 (June 1987) or any equivalent

agency regulation or contract clause. Use,

duplication or disclosure of Software is

subject to Keysight Technologies’ standard

commercial license terms, and non-DOD

Departments and Agencies of the U.S. Gov-

ernment will receive no greater than

Restricted Rights as defined in FAR

52.227-19(c)(1-2) (June 1987). U.S. Gov-

ernment users will receive no greater than

Limited Rights as defined in FAR 52.227-14

(June 1987) or DFAR 252.227-7015 (b)(2)

(November 1995), as applicable in any

technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a hazard.

It calls attention to an operating pro-

cedure, practice, or the like that, if

not correctly performed or adhered

to, could result in damage to the

product or loss of important data. Do

not proceed beyond a CAUTION

notice until the indicated conditions

are fully understood and met.

WARNING

A WARNING notice denotes a hazard.

It calls attention to an operating pro-

cedure, practice, or the like that, if

not correctly performed or adhered

to, could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

2Keysight E5400-Pro Series Soft Touch User’s Guide

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Keysight E5400-Pro Series Soft Touch User’s Guide 3

Contents

1 Overview, Installation, and Selection of Probing Options

The E5400-Pro Series Soft Touch Probes — at a Glance 8

Installation Instructions 10

Selection of Probing Options 12

Retention Modules 13

The E5402A-Pro Series Low-profile Right-angle 34-channel

Single-ended Soft Touch Probe (for analyzers with 90-pin

cable connectors) 14

The E5404A-Pro Series 34-channel Single-ended Soft Touch

Probe

(for analyzers with 40-pin cable connectors) 15

The E5405A-Pro Series 17-channel Differential Soft Touch

Probe

(for analyzers with 90-pin cable connectors) 16

The E5406A-Pro Series 34-channel Single-ended Soft Touch

Probe

(for analyzers with 90-pin cable connectors) 17

The E5386A Half-channel Adapter (for use with the 16760A

logic analyzer) 18

2 Mechanical Considerations

Characteristics 20

Probe Dimensions 21

Board Layout Dimensions 25

Retention Module Dimensions 25

Footprint Dimensions 28

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

4Keysight E5400-Pro Series Soft Touch User’s Guide

Contents

Pin Outs for the Probes 29

Probing with E5404A-Pro Series Probe 30

Probing with the E5405A-Pro Series Probe 33

Probing with the E5402A/E5406A-Pro Series Probe 36

E5386A Half-channel Adapter Dimensions 39

Pin out for the E5386A half-channel adapter when connected

to E5405A 40

Pin out for two E5386A half-channel adapters connected to one

E5402A or E5406A 42

3 Operating the E5404A-Pro Series Probes

Equivalent Probe Loads 46

Time Domain Transmission (TDT) 48

4 Operating the E5402A, E5405A, and E5406A-Pro Series Probes

Equivalent Probe Loads 52

Time Domain Transmission (TDT) 54

Step Inputs 57

Eye Opening 60

5 Circuit Board Design

Transmission Line Considerations 64

Recommended Routing 65

Data and Clock Inputs per Operating Mode 67

Thresholds 70

E5404A-pro series single-ended soft touch probes 70

E5405A-pro series differential soft touch probe 70

E5402A and E5406A-pro series single-ended soft touch probes 70

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Keysight E5400-Pro Series Soft Touch User’s Guide 5

Contents

Signal Access 71

Labels split across probes 71

Reordered bits 71

Half-channel 1.25 and 1.5 Gb/s modes (16760A only) 71

6 Recommended Reading

For More Information 74

MECL System Design Handbook 74

High-speed Digital Design 74

Designing High-speed Target Systems for Logic Analyzer Probing 74

Safety Notices 75

Warnings 75

To clean the instrument 76

Safety Symbols 76

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6Keysight E5400-Pro Series Soft Touch User’s Guide

Contents

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Keysight E5400-Pro Series Soft Touch Connectorless Probes

User’s Guide

1Overview,

Installation, and

Selection of Probing

Options

The E5400-Pro Series Soft Touch Probes — at a Glance / 8

Installation Instructions / 10

Selection of Probing Options / 12

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

8Keysight E5400-Pro Series Soft Touch User’s Guide

1 Overview, Installation, and Selection of Probing Options

The E5400-Pro Series Soft Touch Probes — at a Glance

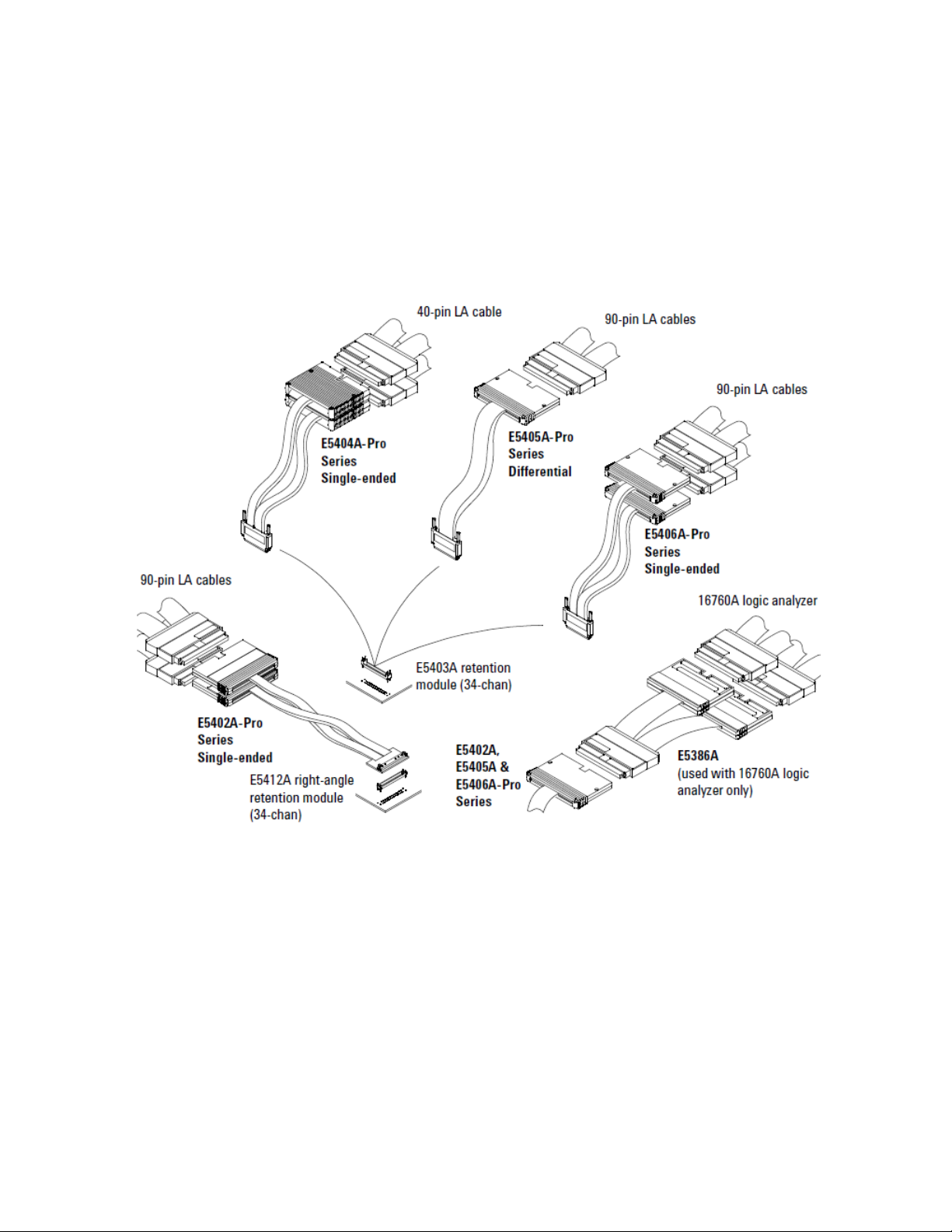

The new Keysight E5400-pro series soft touch probes are ultra-low-load

connector-less probes that work with the Keysight logic analysis modules.

The probes attach to the PC board using a retention module which ensures

pin-to-pad alignment and holds the probe in place.

• The E5402A-pro series probe is a low-profile right-angle 34-channel

single-ended connector-less soft touch probe (for analyzers with

90-pin cable connectors).

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Keysight E5400-Pro Series Soft Touch User’s Guide 9

Overview, Installation, and Selection of Probing Options 1

• The E5404A-pro series probe is a 34-channel single-ended

connector-less soft touch probe (for analyzers with 40-pin cable

connectors).

• The E5405A-pro series probe is a 17-channel differential

connector-less soft touch probe (for analyzers with 90-pin cable

connectors).

• The E5406A-pro series probe is a 34-channel single-ended

connector-less soft touch probe (for analyzers with 90-pin cable

connectors).

Use the following information to design your target system board for use

with the Keysight soft touch probes.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
