PresentAir™Pro
Bluetooth®4.0 LE Presenter
QUICK START GUIDE
2
If you require assistance during assembly, our Customer Service
team can help you!
PresentAir™Pro
Bluetooth®4.0 LE Presenter
Components 3
Getting started 3
Power and Battery 4
Pairing 4
Modes 4
Mode Switching 4
Hardware Reset 6
Stylus Replacement 6
Windows® 8
Pairing with Windows 8 7
Pairing using PresenterWorks™ App — Windows 8 8
Using PresenterWorks for Windows 8 9
Waking PresentAir Pro 9
Unpairing PresentAir Pro While Using PresenterWorks 9
iOS™
Pairing with iOS 10
Pairing using PresenterWorks App — iOS 11
Using PresenterWorks for iOS 12
Waking PresentAir Pro 12
Unpairing PresentAir Pro While Using PresenterWorks 12
Android™
Pairing with Android 13
Pairing using PresenterWorks App — Android 14
Using PresenterWorks for Android 15
Waking PresentAir Pro 15
Unpairing PresentAir Pro While Using Android 15
Technical Support 16
3
Components
A
G
F
I
H
B
C
D
E
Getting started
1. Unscrew cap assembly from PresentAir Pro
2. Insert battery negative (–) side first into PresentAir Pro
3. Screw cap assembly back onto PresentAir Pro
ADual LEDs
BUp Button
CMiddle Button
DDown Button
ELaser Button
FLaser
GMode Button
HReset Button
IStylus
5
Modes
PresentAir Pro has three modes: Presentation Mode, Media Mode, and Custom Mode. Each mode function is
shown below. Mode functions can also be reconfigured using the optional PresenterWorks app, which is
available online at the Windows Store, the Apple App Store, and the Google Play Store.
Mode Switching
To switch between modes, press the Mode Button and the Up, or Middle, or Down button at the same time
to switch between Presenter, Media, or Custom mode respectively.
Button Presenter Mode
(LED = Orange )
Media Mode
(LED = Blue )
Custom Mode
(LED = Green )
Up Button Next slide Next track Select text right
Middle Button Black screen Play/Pause Copy text
Down Button Previous slide Previous track Select text left
Laser Button Turn on Laser Turn on Laser Turn on Laser
Mode Selection Button
Combination
Up + Mode Middle + Mode Down + Mode
Up
Middle Mode
Down
6
Hardware Reset
If the device stops functioning properly or has become unresponsive, perform a hardware reset by pressing
the reset button. The Reset Button can be accessed using a paper clip. When the Reset Button is pressed, the
LED indicator will blink green. After resetting, the pairing sequence may need to be performed again before use.
Stylus Replacement
To replace the stylus tip, unscrew the cap assembly. Within the cap assembly, remove the previous stylus tip
and replace with the new stylus tip. With all the components in place, screw the cap assembly back onto the
PresentAir Pro.
Windows
7
Pairing with Windows 8
1. Before pairing to a Bluetooth 4.0 compatible device, make sure of the following:
a. Your device’s Bluetooth function is on
b. A battery has been installed into the PresentAir Pro
c. The PresentAir Pro is with 30 feet (10 meters) of your device
d. The PresentAir is powered OFF

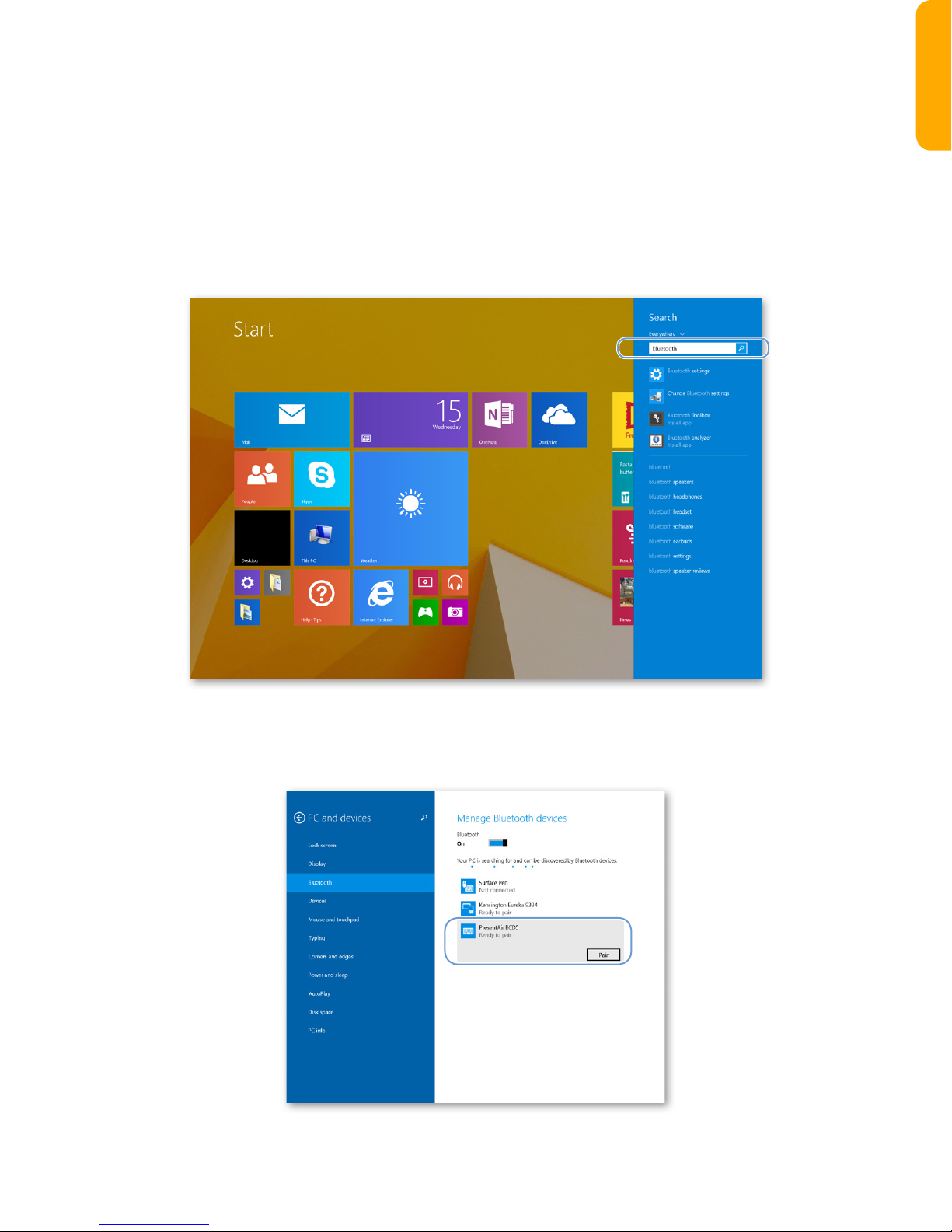

2. In the search bar on the start screen, type “Bluetooth” and select Bluetooth Settings.
3. On the PresentAir Pro, press and hold the Mode Button until the blue LED blinks, then release. If the
PresentAir Pro blinks red instead, release the Mode Button and try again. A device will show up as
PresentAir. Select this device and select Pair.
Windows
8
4. Ensure that the pairing process completes before using.
5. When connected, the PresentAir Pro is ready to use.
Pairing using PresenterWorks App — Windows 8
1. Before pairing to a Bluetooth 4.0 compatible device, make sure of the following:
a. Your device’s Bluetooth function is on
b. A battery has been installed into the PresentAir Pro
c. The PresentAir Pro is with 30 feet (10 meters) of your device
d. The PresentAir is powered OFF
2. Download and install the PresenterWorks App
a. The app can be downloaded from the Windows Store
3. Pair the PresentAir Pro to your Windows 8 compatible device using the above pairing instructions.
iOS
10
Pairing with iOS
1. Before pairing to a Bluetooth 4.0 compatible device, make sure of the following:
a. Your device’s Bluetooth function is on
b. A battery has been installed into the PresentAir Pro
c. The PresentAir Pro is with 30 feet (10 meters) of your device
d. The PresentAir is powered OFF

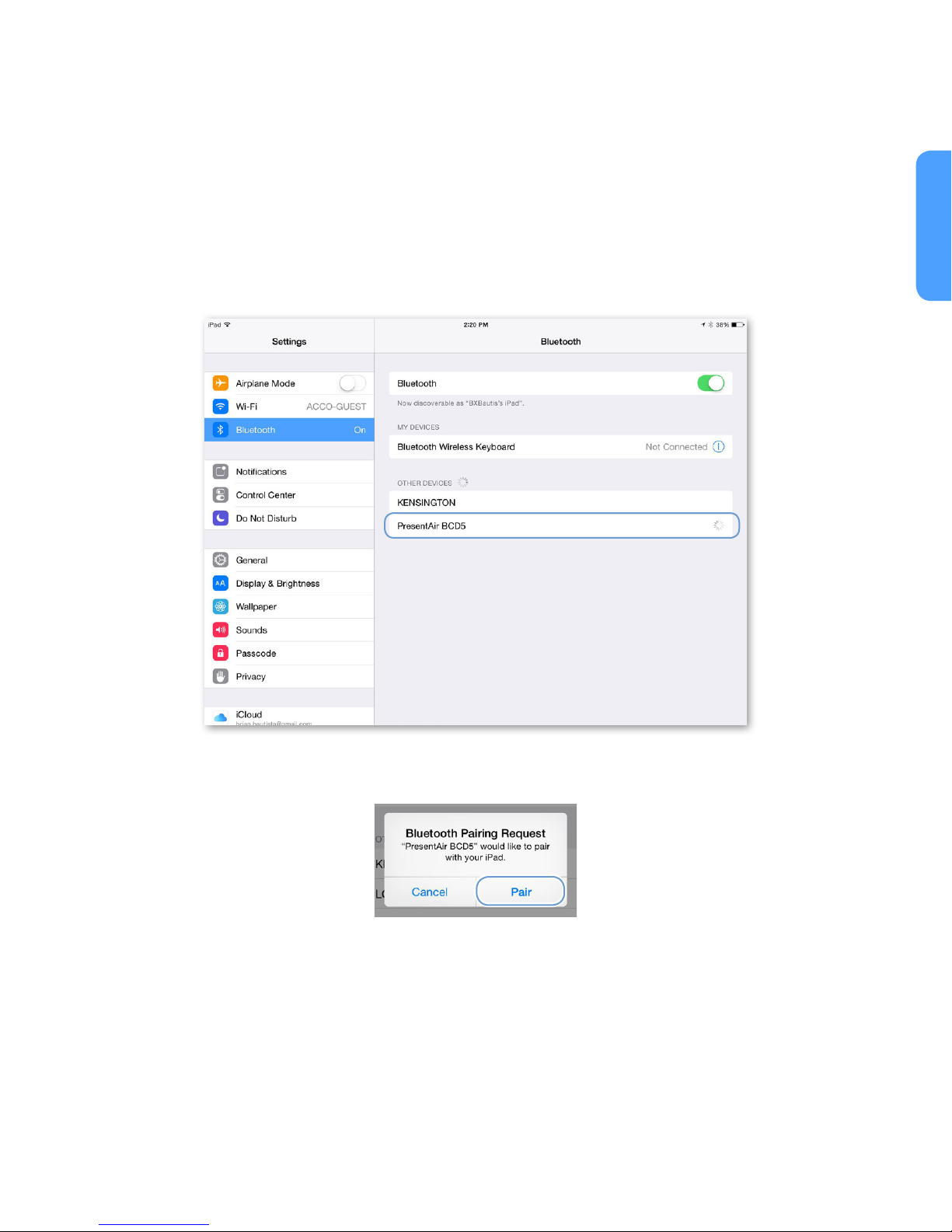

2. From the Settings Menu, select Bluetooth. On the PresentAir Pro, press and hold the Mode Button until
the blue LED blinks, then release. A device will show up as PresentAir.
3. Select PresentAir. When prompted, select Pair.
