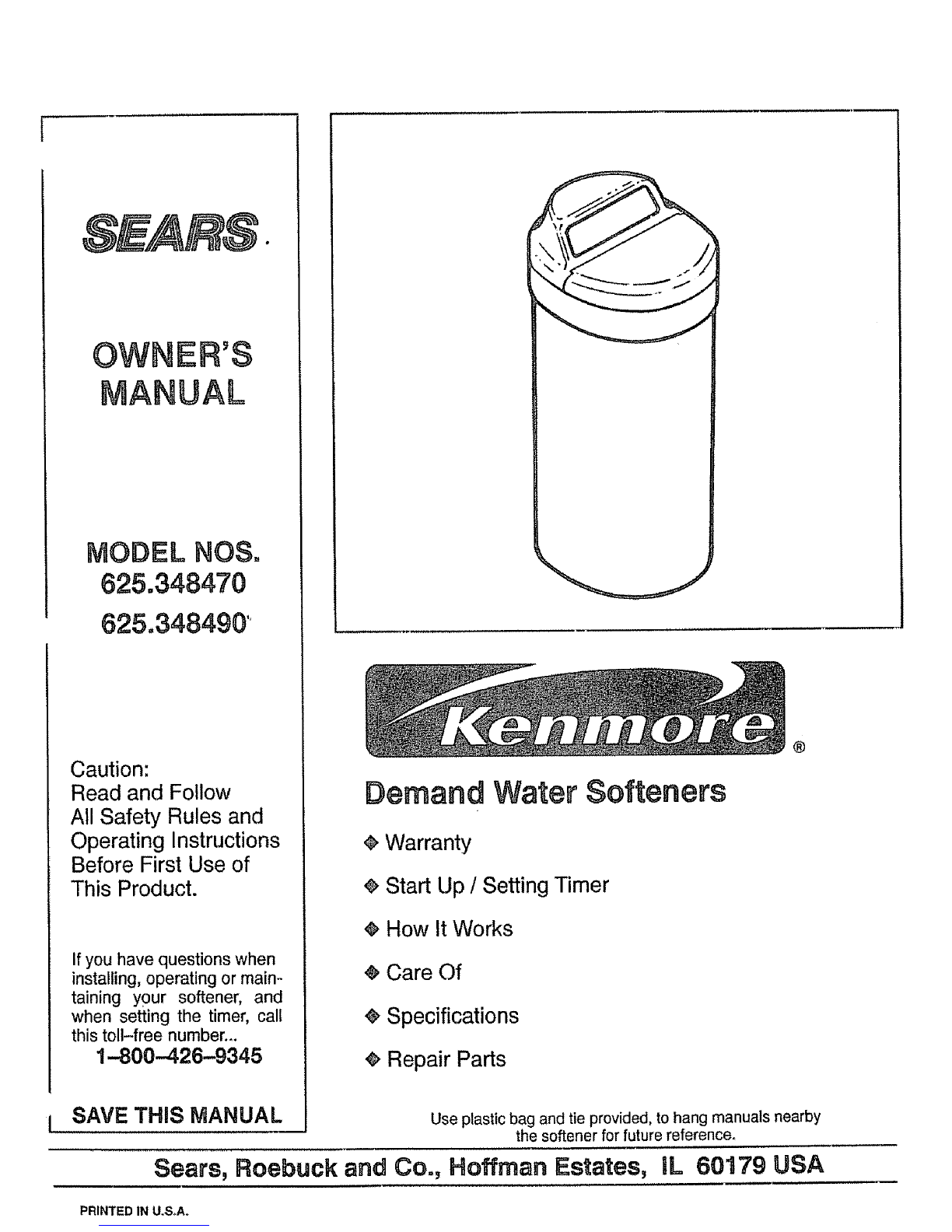

Kenmore 625.34847 Manuel utilisateur

MODEL NOS.

625.348470

625.348490'

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

If you have questions when

installing, operating or main-

taining your softener, and

when setting the timer, call

this toll-free number...

1-800-426-9345

SAVE THiS MANUAL

Demand Water Softeners

_, Warranty

÷ Start Up /Setting Timer

How ItWorks

4_Care Of

÷ Specifications

e, Repair Parts

Use plastic bag and tie provided, to hang manuals nearby

the softener for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

PRINTED IN U,S.A.

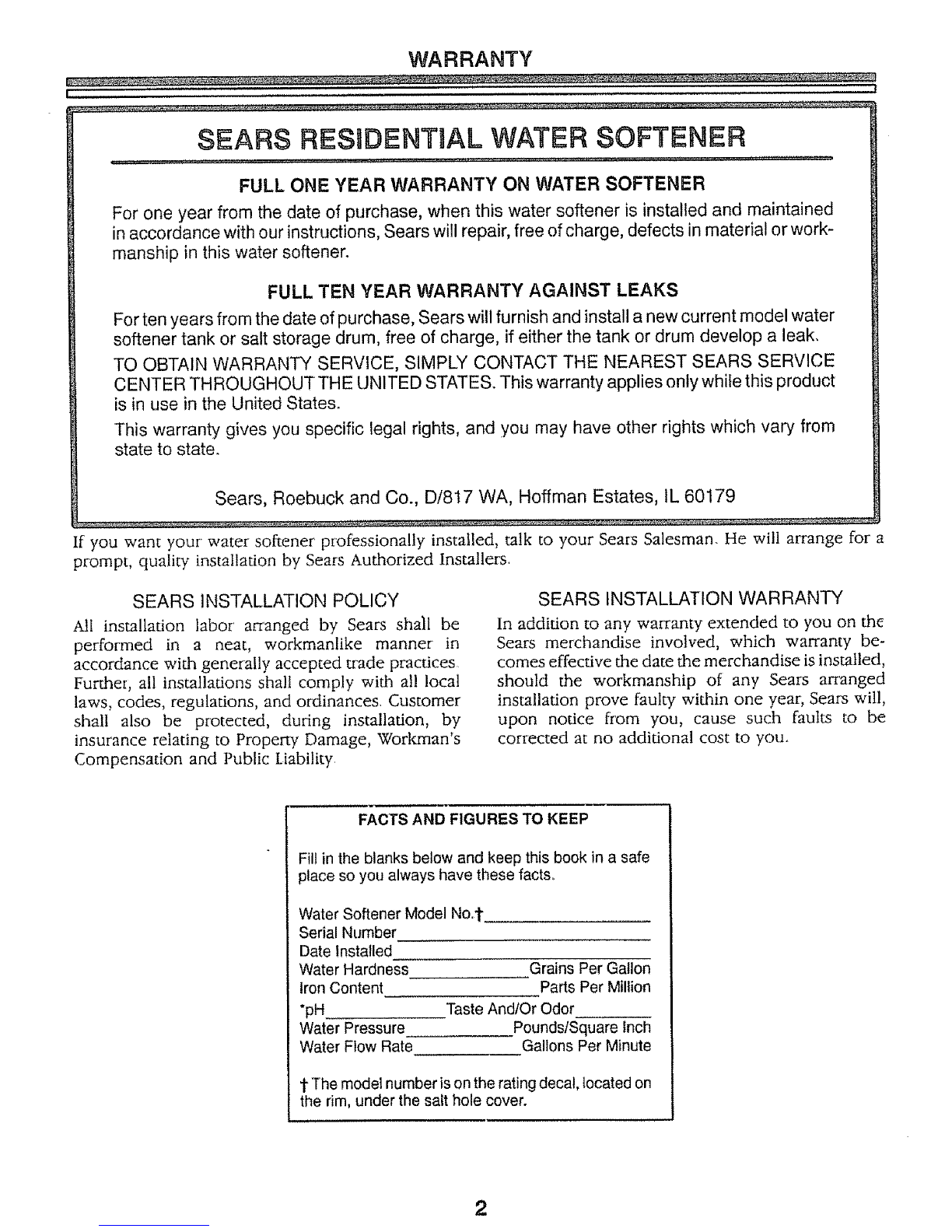

WARRANTY

SEARS RESSDENTIAL WATER SOFTENER

FULL ONE YEAR WARRANTY ON WATER SOFTENER

For one year from the date of purchase, when this water softener is installed and maintained

in accordance with our instructions, Sears will repair, free of charge, defects in material or work-

manship in this water softener.

FULL TEN YEAR WARRANTY AGAINST LEAKS

For ten years from the date of purchase, Sears will furnish and install a new current model water

softener tank or salt storage drum, free of charge, if either the tank or drum develop a leak.

TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS SERVICE

CENTER THROUGHOUT THE UNITED STATES. This warranty applies only while this product

is in use in the United States.

This warranty gives you specific legal rights, and you may have other rights which vary from

state to state.

Sears, Roebuck and Co., D/8t7 WA, Hoffman Estates, IL 60179

If you want you[ water softener professionally installed, talk to your Sears Salesman. He will arrange for a

prompt, quality installation by Sears Authorized Installers.

SEARS INSTALLATION POLICY

All installation labor' arranged by Sears shall be

performed in a neat, workmanlike manner in

accordance with generally accepted trade practices

Further, all installadons shall comply with all local

laws, codes, regulations, and ordinances. Customer

shall also be protected, during installation, by

insurance relating to Property Damage, Workman's

Compensation and Public Liability.

SEARS INSTALLATION WARRANTY

In addition to any warranty extended to you on th_

Sears merchandise involved, which warranty be-

comes effective the date the merchandise is installed,

should the workmanship of any Sears arranged

installation prove faulty within one year', Sears will,

upon notice from you, cause such faults to be

corrected at no additional cost to you.

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe

place so you always have these facts.

Water Softener Model No.t

Serial Number

Date Installed

Water Hardness

Iron Content

*pH

Water Pressure

Water Flow Rate

Grains Per Gallon

Parts Per Million

Taste AndlOr Odor

PoundslSquare Inch

Gallons Per Minute

t The model number is on the rating decal, located on

the rim, under the salt hole cover.

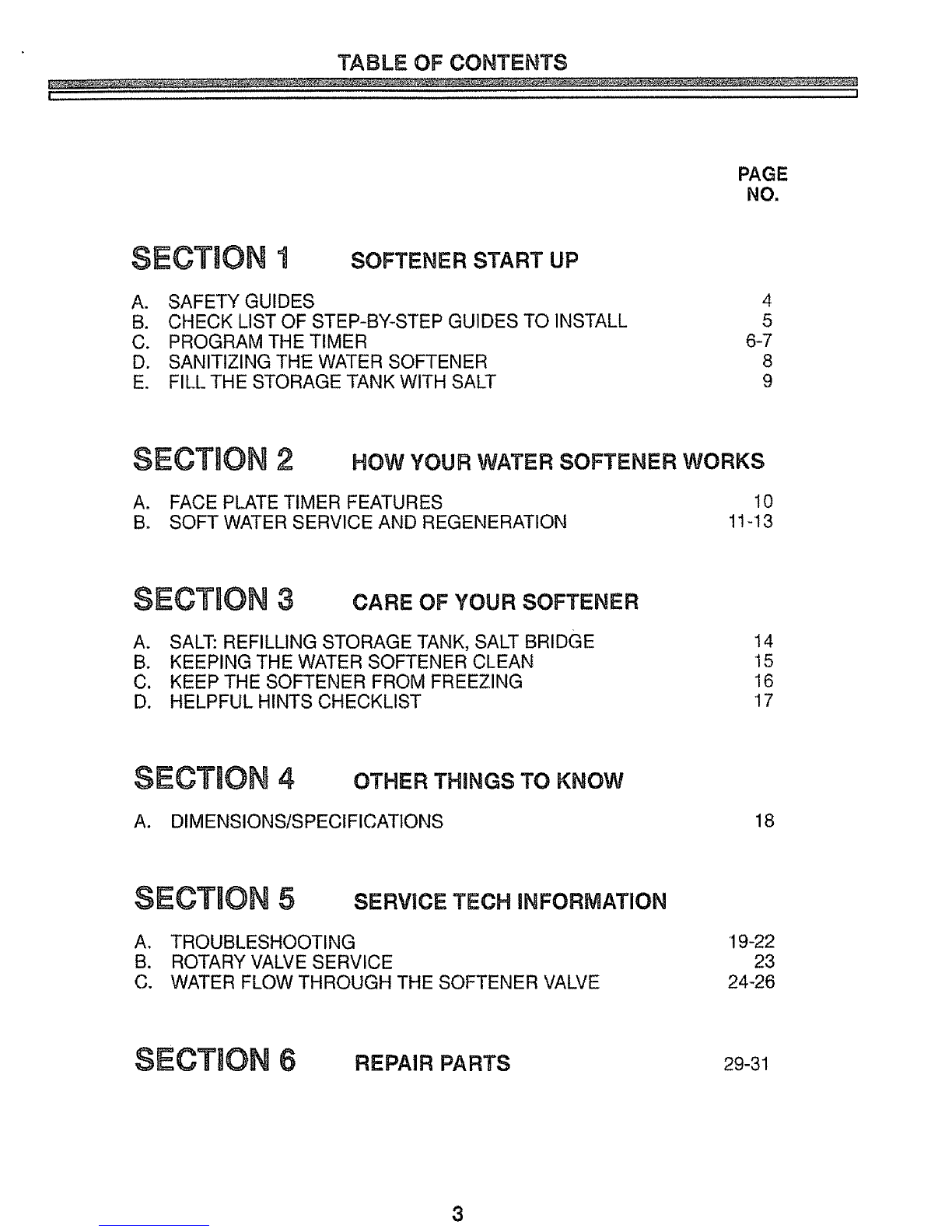

TABLE OF CONTENTS

I i

PAGE

NO.

SECTnON ISOFTENER START UP

A. SAFETY GUIDES

B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL

C. PROGRAM THE TIMER

D, SANITIZING THE WATER SOFTENER

E. FILl, THE STORAGE TANK WITH SALT

6-7

SEOT_ON 2 HOW YOUR WATER SOFTENER WORKS

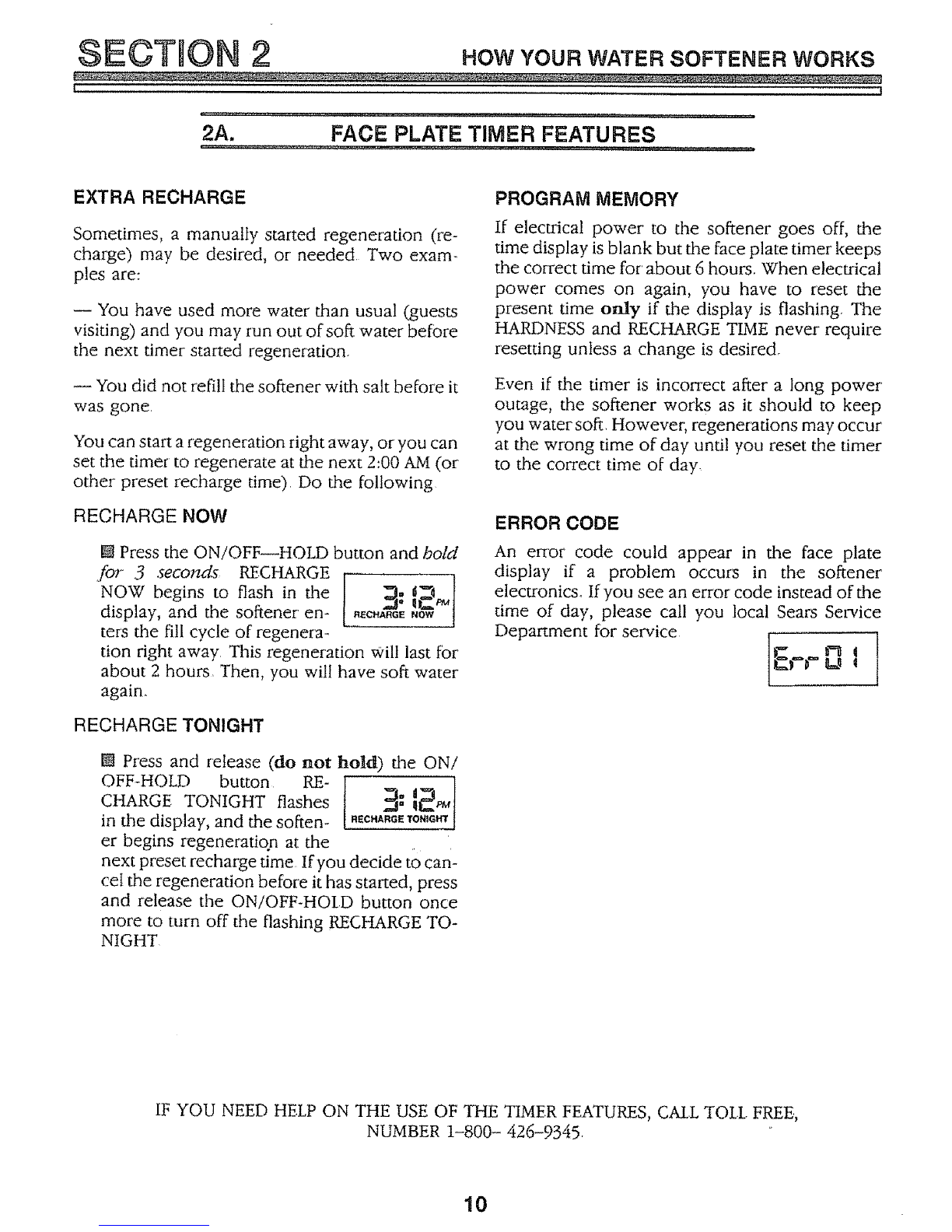

A, FACE PLATE TIMER FEATURES 10

B, SOFT WATER SERVICE AND REGENERATION !!-13

SECTION 3CARE OF YOUR SOFTENER

A. SALT: REFILLING STORAGE TANK, SALT BRIDGE

B. KEEPING THE WATER SOFTENER CLEAN

C. KEEP THE SOFTENER FROM FREEZING

D. HELPFUL HINTS CHECKLIST

SEOT_ON 4 OTHER THINGS TO KNOW

A. DIMENSIONS/SPECIFICATIONS 18

SECTION 5 SERVICE TECH iNFORMATION

A, TROUBLESHOOTING

B. ROTARY VALVE SERVICE

C. WATER FLOW THROUGH THE SOFTENER VALVE

19-22

24-26

SECTnON 6REPAIR PARTS 29-31

SECTION 1 WATER SOFTENER START=UP

1A. SAFETY GUIDES

Read all steps, guides and rules carefully be-

fore installing and using your new water softener.

Follow all steps exactly to correctly install. Fail-

ure to follow them could cause personal injury or

property damage. Reading this book will also

help you to get alt of the benefits from your water

softener.

AYour water softener will remove hardness min-

erals and "clear water" iron from water, up to the

limits shown on page 18. It will not remove other

types of iron, acids, tastes and odors, etc. It will

not purify polluted water or make it safe to drink.

AProtect the softener and piping from freezing.

Damage from freezing voids the softener warran-

ty. See page 16.

CAUTIONS

PLEASE READ AND COMPLY WiTH THE FOL-

LOWING GUIDES TO PREVENT DAMAGE TO

THE SOFTENER OR OTHER PROPERTY,

PERSONAL INJURY, OR POSSIBLE FATAL

SHOCK.

A THIS SOFTENER WORKS ON 24 VOLTS

ONLY. BE SURE TO USE THE TRANSFORMER

INCLUDED, AND PLUG IT INTO A 120V OUT-

LET.

A Unplug the transformer right away if the

power cable should become damaged Or

frayed. Make repairs before plugging back

into the power outRet.

A Always unplug the softener from electrical

power before removing outer valve covers.

Refer to the Installation Manual, part no. 7159931,

for' step-by-step guides.

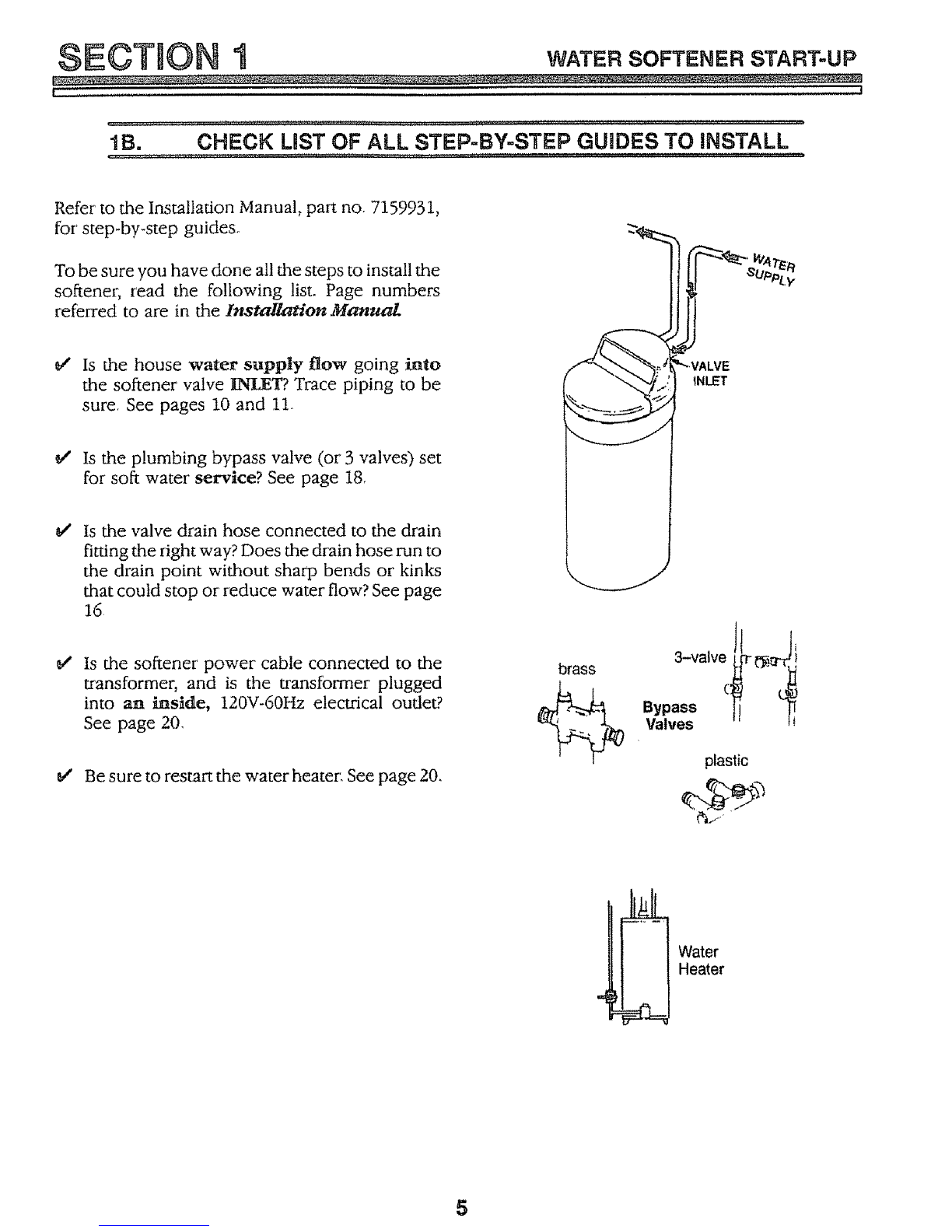

To be sure you have done all the steps to install the

softener, read the following list. Page numbers

referred to are in the Installation Manual.

_' Is the house water supply flow going into

the softener valve INLET? Trace piping to be

sure, See pages 10 and 11,

_" Is the plumbing bypass valve (or 3 valves) set

for soft water servtce. See page 18,

_' Is the valve drain hose connected to the drain

fitting the right way? Does the drain hose run to

the drain point without sharp bends or kinks

that could stop or reduce water flow? See page

v" Is the softener' power cable connected to the

transformer, and is the transformer plugged

into an inside, 120V-60Hz electrical oudet?

See page 20.

_" Be sure to restart the water heater: See page 20.

SUppLy

"-,VALVE

iNLET

brass 3 valve Jt |_

Bypass (

Valves

plastic

_Water

Heater

10. PROGRAM THE TIMER

r r ............. .........

display

Sears Wate_Line

lerCustomerAssistance

_.,800.426-9345

DOWN

UP button button

®7

SELECT button

ON/OFF-HOLD button

(Recharge Tonight-Now)

DemandWaterSoftener

When the transformer is plugged in, the model

code SR22 shows in the face plate display for a few

seconds, followed by a test number (example:

$3_0). After the test number, 12:00 AM begins to

flash PRESENT TIME and RECHARGE TONIGHT

show at the bottom of the display

CODE 1i

•-• =,= L%*I

PR ESE N'I" TIME

NOTE:

tf SR- - is flashing in the display, press the U£{_

button (FIG 1) until SR22 shows Then, press the

SELECT button to display the flashing 12:00 AM. If

other tha_t SR22 shows, when the transformer is

plugged in, please see page 1"7 to reset.

SOUND "BEEPER": A "beeper" sounds while

pressing buttons for timer set-up. One beep

signals a change in the face plate display.

Repeated beeps means the timer will not accept a

change from the button you have pressed, telling

you to use another button. For example, in setting

the hardness (step 2), the beeper sounds repeat-

edly when the display reaches i using the DOWN

button, or the highest hardness setting using the

UP button,

1, SET PRESENT TIME OF DAY:

NOTE:

If the words PRESENT TIME do not show in the

display, press the SELECT button (FIG. 1) until

they do.

Press the [] UP/DOWN _ buttons to set the

present time. Press UP to move the display ahead;

press DOWN to move the time backward.

If' the present time is between I

noon and midnight, be sure PM |_..ESEUr

shows. TiME

If the present time is between ;: ;;_.,_,'""....

midnight and noon, be sure AM l.._.r *,M_

shows.

NOTE:

Each press of the UP or DOWN buttons changes

the time by 1 minute. Pressing and holding the

buttons changes the time 32 minutes each second.

S_CT_ON "_ WATER SOFTENER START-UP

I, _,, !

10. PROGRAM THE TIMER

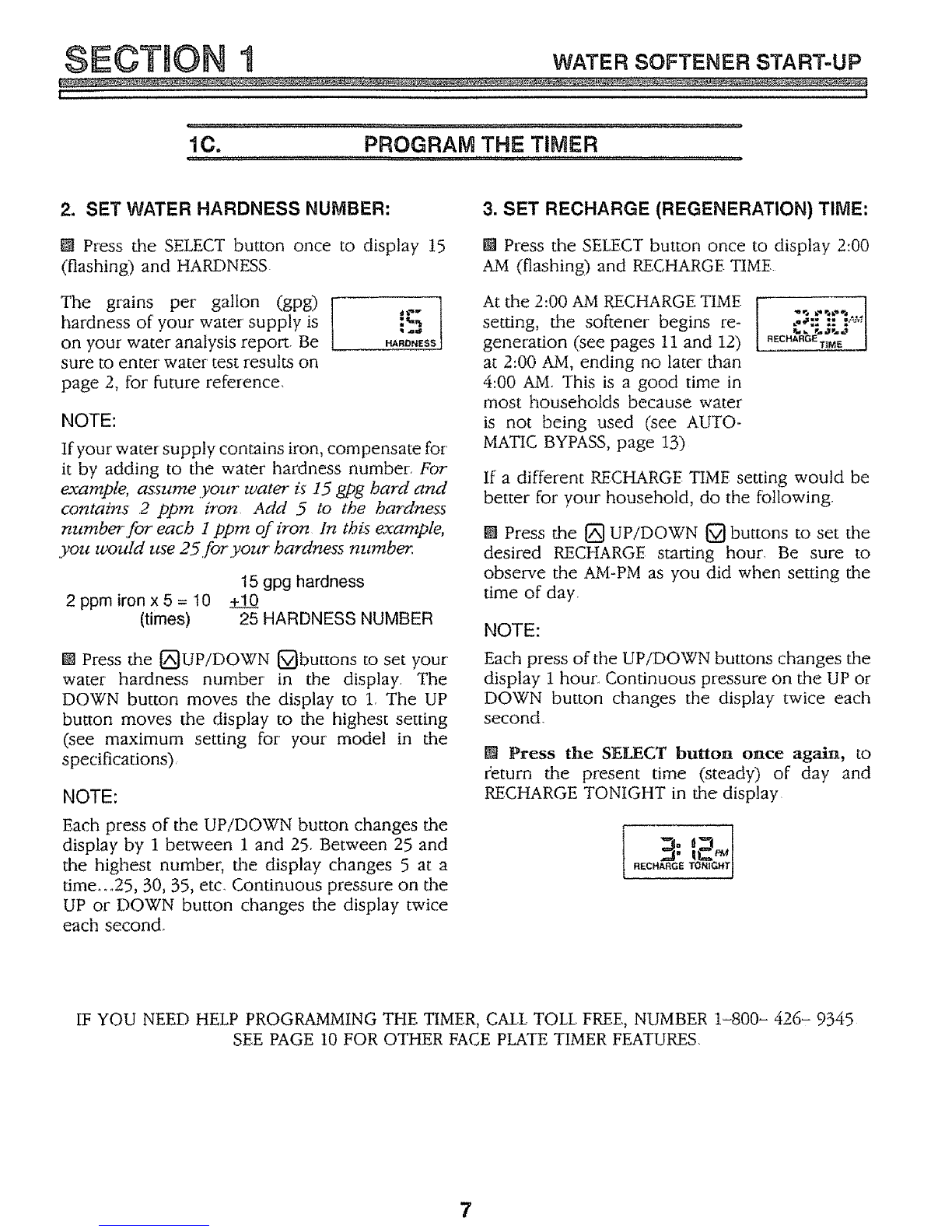

2. SET WATER HARDNESS NUMBER:

[] Press the SELECT button once to display t5

(flashing) and HARDNESS

The grains per gallon (gpg)

hardness of your water' supply is

on your water analysis report, Be

sure to enter water test results on

page 2, for future reference,

d_w

HARONESS

NOTE:

If your water supply contains iron, compensate for

it by adding to the water hardness number, For

example, assume your water is 15 gpg hard and

contains .2 ppm iron, Add 5 to the hardness

number for each I ppm of iron In thLs e_cample,

you would use 25 for your hardness nzonber

15 gpg hardness

2 ppm iron x5 = 10 +10

(times) 25 HARDNESS NUMBER

[] Press the {_UP/DOWN []buttons to set your'

water hardness number in the display, The

DOWN button moves the display to 1, The UP

button moves the display to the highest setting

(see maximum setting for your' model in the

specifications)

NOTE:

Each press of the UP/DOWN button changes the

display by 1 between 1 and 25. Between 25 and

the highest number, the display changes 5 at a

time,.o25, 30, 35, etc. Continuous pressure on the

UP or DOWN button changes the display twice

each second.

3. SET RECHARGE (REGENERATION) TIME:

[] Press the SELECT button once to display 2:00

AM (flashing) and RECHARGE TIME

At the 2:00 AM RECHARGE TIME

setting, the softener begins re-

generation (see pages 11 and 12)

at 2:00 AM, ending no later than

4:00 AM, This is a good time in

most households because water

is not being used (see AUTO-

MATIC BYPASS, page 13)

RECHARGE TIME ]

If a different RECHARGE TIME setting would be

better for your household, do the following.

[] Press the [] UP/DOWN [] buttons to set the

desired RECHARGE starting hour. Be sure to

observe the AM-PM as you did when setting the

time of day.

NOTE:

Each press of the UP/DOWN buttons changes the

display 1 hour,. Continuous pressure on the UP or

DOWN button changes the display twice each

second.

[] Press the SELECT button once again, to

return the present time (steady) of day and

RECHARGE TONIGHT in the display

" {F2.,I

RECHARGE

IF YOU NEED HELP PROGRAMMING THE TIMER, CAH_, TOLL FREE, NUMBER 1-800- 426- 9345

SEE PAGE 10 FOR OTHER FACE PLATE TIMER FEATURES,

SECTION I WATER SOFTENER START-UP

r'---

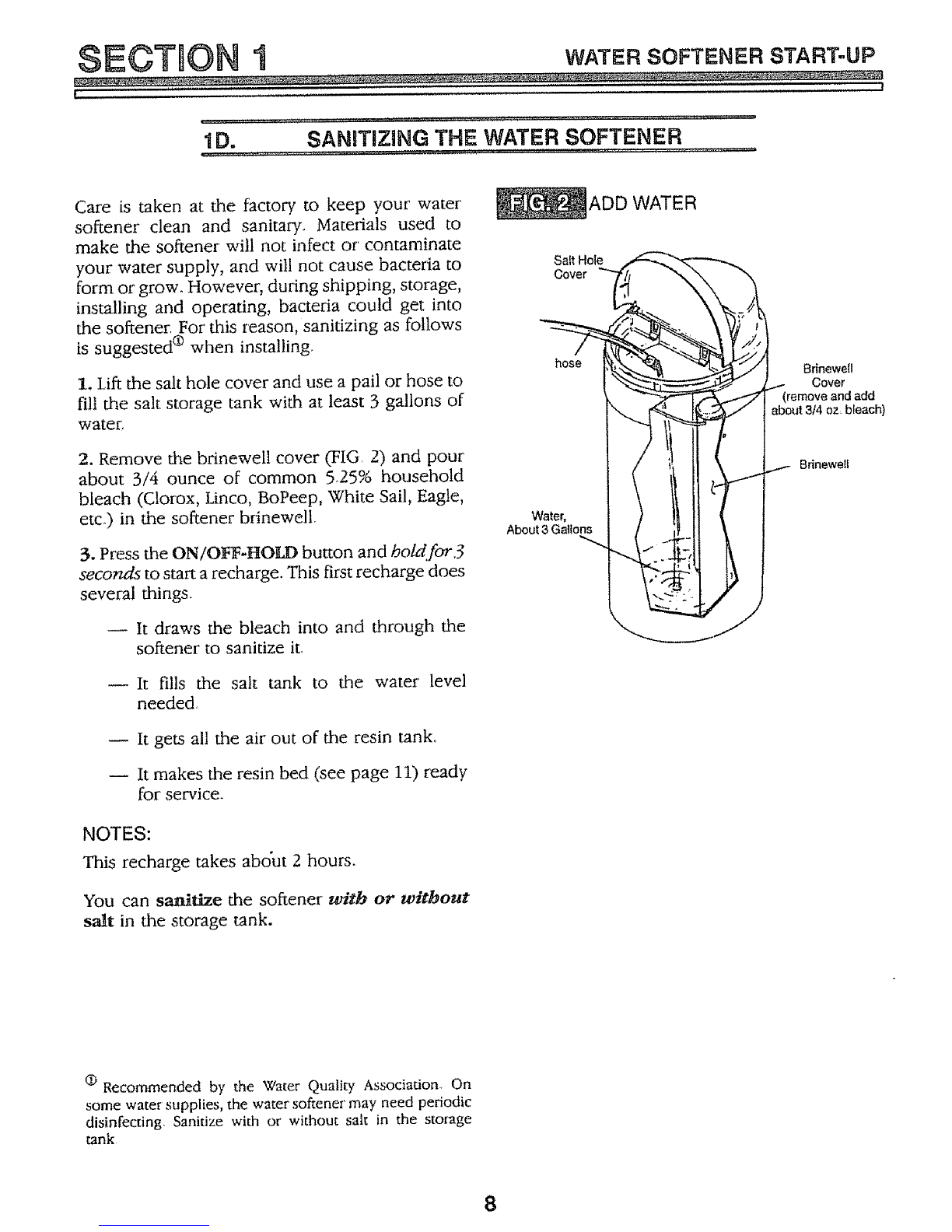

1D. ,,, SANBTiZING THE WATER SOFTENER

Care is taken at the factory to keep your water

softener clean and sanitary. Materials used to

make the softener will not infect or contaminate

your water supply, and will not cause bacteria to

form or grow. However, during shipping, storage,

installing and operating, bacteria could get into

the softener. For this reason, sanitizing as follows

is suggested ® when installing

1. Lift the salt hole cover and use a pail or hose to

fill the salt storage tank with at least 3 gallons of

water.

2. Remove the brinewell cover (FIG 2) and pour

about 3/4 ounce of common 5.25% household

bleach (Clorox, Linco, BoPeep, White Sail, Eagle,

etc.) in the softener bdnewell.

3. Press the ON/OFF.HOLD button and bold for3

seconds to start a recharge. This first recharge does

several things,

-- It draws the bleach into and through the

softener' to sanitize it.

--It fills the salt tank to the water' level

needed •

-- It gets all the air out of the resin tank,

-- It makes the resin bed (see page 11) ready

for service.

NOTES:

This recharge takes about 2 hours.

You can sanitize the softener with or without

salt in the storage tank.

ADD WATER

SaltHole

Cover

hose

Wate£

About3Gailons

-._

Brinewell

Cover

(remove and add

about 3t4 oz, bleach)

Brinewell

@ Recommended by the Water Quality Association. On

some water supplies, the water softener' may need periodic

disinfecting, Sanitize with or without salt in the storage

tank

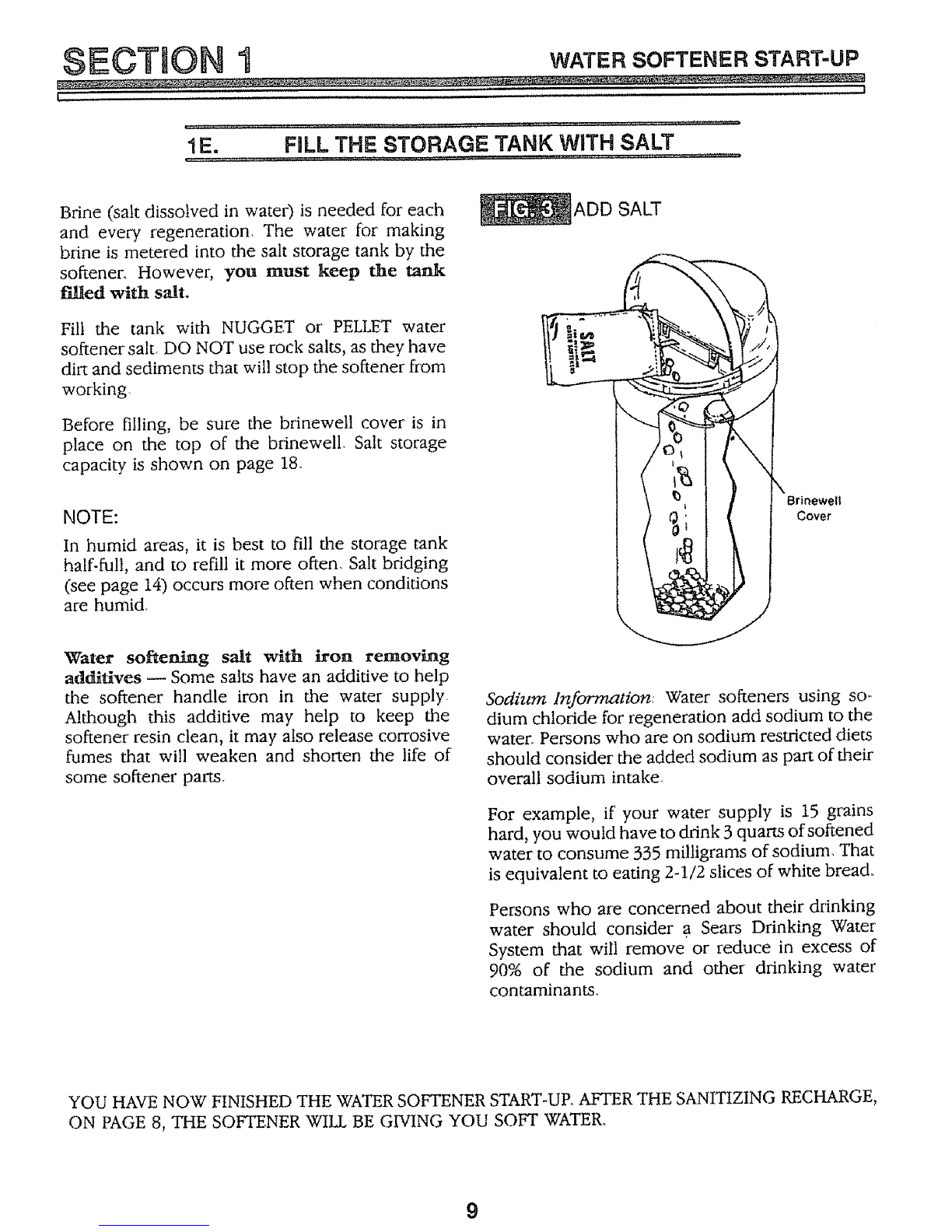

SEOT ON I WATER SOFTENER START-UP

r'-

1E. RLL THE STORAGE TANK WiTH SALT

Brine (salt dissolved in water) is needed for each

and every regeneration. The water for making

brine is metered into the salt storage tank by the

softener. However; you must keep the tank

f'd]iedwith salt.

Fill the tank with NUGGET or PELLET water

softener salt. DO NOT use rock salts, as they have

dirt and sediments that will stop the softener from

working

Before filling, be sure the brinewell cover is in

place on the top of the brinewelL Salt storage

capacity is shown on page 18.

NOTE:

In humid areas, it is best to fill the storage tank

half-full, and to refill it more often, Salt bridging

(see page 14) occurs more often when conditions

are humid,

Water softening salt with iron removing

additives -- Some salts have an additive to help

the softener handle iron in the water supply.

Although this additive may help to keep the

softener' resin clean, it may also release corrosive

fumes that will weaken and shorten the life of

some softener parts.

ADD SALT

\Brinewett

Cover

Sodium Infcrrmation: Water' softeners using so-

dium chloride for regeneration add sodium to the

water. Persons who are on sodium restricted diets

should consider the added sodium as part of their

overall sodium intake,

For example, if your water' supply is 15 grains

hard, you would have to drink 3 quarts of softened

water to consume 335 milligrams of sodium, That

is equivalent to eating 2-112 slices of white bread.

Persons who are concerned about their drinking

water should consider a Sears Drinking Water

System that will remove or reduce in excess of

90% of the sodium and other drinking water

contaminants.

YOU HAVE NOW FINISHED THE WATER SOFTENER START-UP. AFTER THE SANITIZING RECHARGE,

ON PAGE 8, THE SOFTENER WILL BE GMNG YOU SOFT WATER_

SECTION 2HOW YOUR WATER SOFTENER WORKS

I' i

2A. FACE PLATE TIMER FEATURES

,,,,,,,,, ......... _,,,,,,, ,, _................ ,_., .

EXTRA RECHARGE

Sometimes, a manually started regeneration (re-

charge) may be desired, or needed. Two exam-

ples are:

-- You have used more water than usual (guests

visiting) and you may run out of soft water before

the next timer started regeneration.

-- You did not refill the softener with salt before it

was gone

You can start a regeneration right away, or you can

set the timer to regenerate at the next 2:00 AM (or

other preset recharge time). Do the following

RECHARGE NOW

m Press the ON/OFF--HOLD button and hold

for3 .seconds RECHARGE 6D ]

NOW begins to flash in the 3: q_i

display, and the softener en- .ECUA.G_NOWJ

ters the fill cycle of regenera-

tion right away. This regeneration Will last for

about 2 hours Then, you will have soft water

again.

RECHARGETONIGHT

[] Press and release (do not hold) file ON!

OFF-HOLD button RE- ,_/., !_ 1i

CHARGE TONIGHT flashes J qt,= 1

in tile display, and the soften- ._C.A.G_TO.,CU*J

er begins regeneration at the

next preset recharge time If you decide to can-

cel the regeneration before it has started, press

and release the ON/OFF-HOI.D button once

more to turn off the flashing RECHARGE TO-

NIGHT

PROGRAM MEMORY

If electrical power to the softener goes off, the

time display is blank but the face plate timer keeps

the correct time for' about 6 hours. When electrical

power comes on again, you have to reset the

present time only if the display is flashing. The

HARDNESS and RECHARGE TIME never require

resetting unless a change is desired.

Even if the timer is incorrect after a long power

outage, the softener works as it should to keep

you water soft. However', regenerations may occur

at the wrong time of day until you reset the timer

to the correct time of day

ERROR CODE

An error code could appear in the face plate

display if a problem occurs in the softener

electronics° If you see an error code instead of the

time of day, please call you local Sears Service

Department for service ...........

iErr0 E

IF YOU NEED HELP ON THE USE OF THE TIMER FEATURES, CALL TOLL FREE,

NUMBER 1-800- 426-9345,

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kenmore Distributeur d'eau

Kenmore

Kenmore Elite IntelliSoft 625.384260 Manuel utilisateur

Kenmore

Kenmore 625.383000 Manuel utilisateur

Kenmore

Kenmore 625.3835 Manuel utilisateur

Kenmore

Kenmore TANNIN 625.348261 Manuel utilisateur

Kenmore

Kenmore 625.75116 Manuel utilisateur

Kenmore

Kenmore Deluxe Demand 625.348571 Manuel utilisateur

Kenmore

Kenmore 625.34842 Manuel utilisateur

Kenmore

Kenmore 625.343400 Manuel utilisateur

Kenmore

Kenmore UltraSoft 170 Manuel utilisateur

Kenmore

Kenmore ULTRASOFT 625.3888 Manuel utilisateur

Kenmore

Kenmore 625.383760 Manuel utilisateur

Kenmore

Kenmore 350 Series Manuel utilisateur

Kenmore

Kenmore microMAX 625.348460 Manuel utilisateur

Kenmore

Kenmore 625.388270 Manuel utilisateur

Kenmore

Kenmore 625.383500 Manuel utilisateur

Kenmore

Kenmore DELUXE-VALVE-SOFTENER-INSTALLATION Manuel utilisateur

Kenmore

Kenmore ULTRASOFT 400 625.3884 Manuel utilisateur

Kenmore

Kenmore IntelliSoft 370 Series Manuel utilisateur

Kenmore

Kenmore GENIUS II 625.34867 Manuel utilisateur

Kenmore

Kenmore 625.383500 Manuel utilisateur

Kenmore

Kenmore 625.348571 Manuel utilisateur

Kenmore

Kenmore 625.384600 Manuel utilisateur

Kenmore

Kenmore 300 Series Manuel utilisateur

Kenmore

Kenmore 625.3486 Manuel utilisateur

Manuels Distributeur d'eau populaires d'autres marques

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuel utilisateur

Haier

Haier HLM-109B Manuel utilisateur

abc

abc Fleck 5600SXT Manuel utilisateur

GE GXOF18G Mode d'emploi

Innova

Innova CEV+ Guide de démarrage rapide

Aries

Aries Hydra DI Manuel

GE GNCF02H Manuel utilisateur

ProFlo

ProFlo PFB Series Manuel utilisateur

Hydrotech

Hydrotech 89DF HIM Manuel utilisateur

A.O. Smith

A.O. Smith FREZYA 300S Manuel utilisateur

Frakco

Frakco Travelsoft RV 2400HD Manuel utilisateur

GE GXSF30V Mode d'emploi

Avanti

Avanti WD31EC Manuel utilisateur

Avanti

Avanti WD360 Manuel utilisateur

BRIO

BRIO CLCTTL520 Guide de l'utilisateur

3M HCD-1 Manuel utilisateur

Elkay

Elkay EFHFA8_2CJO Manuel d'installation

Coway

Coway CHP-671L Manuel utilisateur
