Kenmore 216.31703 Manuel utilisateur

Owner's Manual

Manual Del Propietario

Manuel Du Propri_taire

Vacuum Cleaner

Aspiradora

Aspirateur

Model, Modelo, Mod61e

216.37030, 37035 (US)

216.31703 (Canada)

CAUTION:

Read and follow all

safety and operating

instructions before first

use of this producL

CUIDADO:

Lea y sigue todas las

instrucciones de operaci6n

y seguridad antes del uso de

este producto,

ATTENTION :

Veuillez lire toutes les

consignes de s_curit6 et le

mode d'emploi avant d'utiliser

ce produiL

Sears Brands, LLC, Hoffman Estates, IL 60179 U.S.A.

www.sears.com

Part # 1-113884-000 Rev, 9/07

Printed in China

lmpreso en China

lmprim_ en Chine

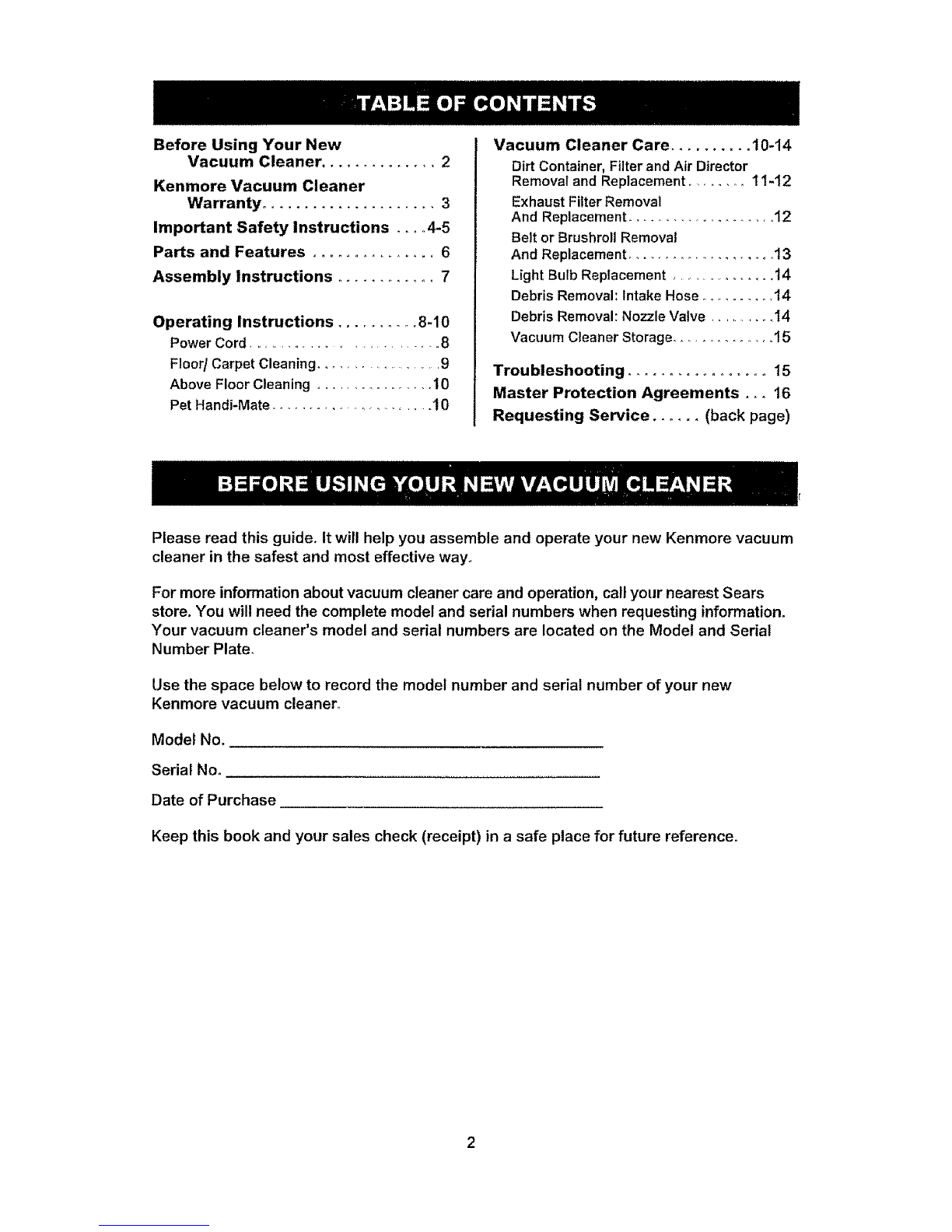

Before Using Your New

Vacuum Cleaner .............. 2

Kenmore Vacuum Cleaner

Warranty ..................... 3

Important Safety Instructions .... 4-5

Parts and Features ................. 6

Assembly Instructions ............ 7

Operating Instructions .......... 8-10

Power Cord ............................. 8

Floor/Carpet Cleaning .................... 9

Above Floor Cleaning ................. 10

Pet Handi-Mate ......................... t 0

Vacuum Cleaner Care .......... 10-14

Dirt Container, Filter and Air Director

Removal and Replacement ........ 11-12

Exhaust Filter Removal

And Replacement ..................... 12

Belt or Brushroll Removal

And Replacement ................... 13

Light Bulb Replacement ................ 14

Debris Removal: Intake Hose .......... 14

Debris Removal: Nozzle Valve ........... 14

Vacuum Cleaner Storage ................. 15

Troubleshooting .................... 15

Master Protection Agreements., o16

Requesting Service ...... (back page)

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way,,

For more information about vacuum cleaner care and operation, call your nearest Sears

store. You will need the complete model and serial numbers when requesting information.

Your vacuum cleaner's model and serial numbers are located on the Model and Serial

Number Plate.

Use the space below to record the model number and serial number of your new

Kenmore vacuum cleaner°

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

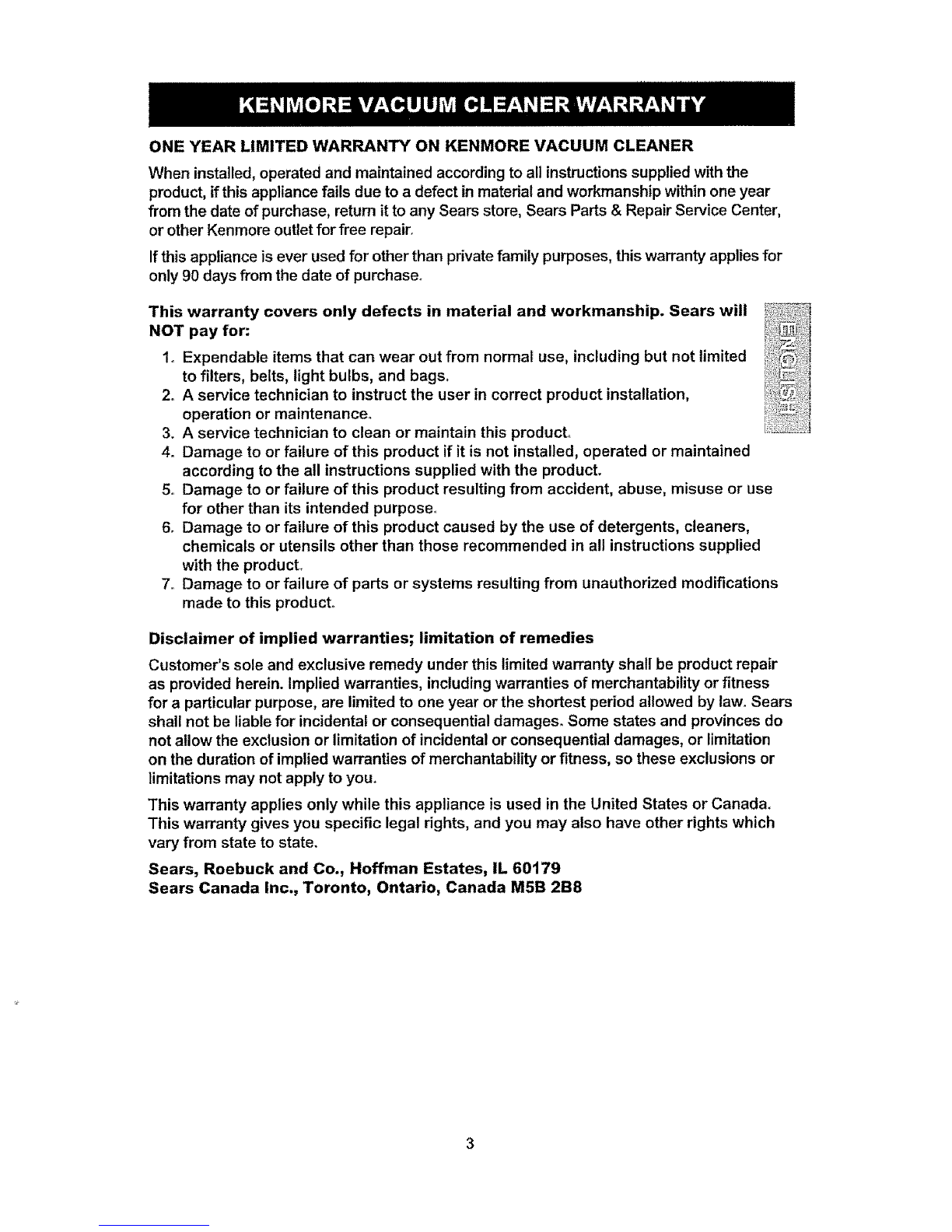

ONE YEAR LIMITED WARRANTY ON KENMORE VACUUM CLEANER

When installed, operated and maintained according to all instructions supplied with the

product, if this appliance fails due to a defect in material and workmanship within one year

from the date of purchase, return it to any Sears store, Sears Parts & Repair Service Center,

or other Kenmore outlet for free repair.

If this appliance is ever used for other than private family purposes, this warranty applies for

only 90 days from the date of purchase°

This warranty covers only defects in material and workmanship. Sears will

NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited

to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation,

operation or maintenance°

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained

according to the all instructions supplied with the product.

5.. Damage to or failure of this product resulting from accident, abuse, misuse or use

for other than its intended purpose..

6. Damage to or failure of this product caused by the use of detergents, cleaners,

chemicals or utensils other than those recommended in all instructions supplied

with the product.

7.. Damage to or failure of parts or systems resulting from unauthorized modifications

made to this product°

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair

as provided herein, implied warranties, including warranties of merchantability or fitness

for aparticular purpose, are limited to one year or the shortest period allowed by law. Sears

shall not be liable for incidental or consequential damages. Some states and provinces do

not allow the exclusion or limitation of incidental or consequential damages, or limitation

on the duration of implied warranties of merchantability or fitness, so these exclusions or

limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60479

Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

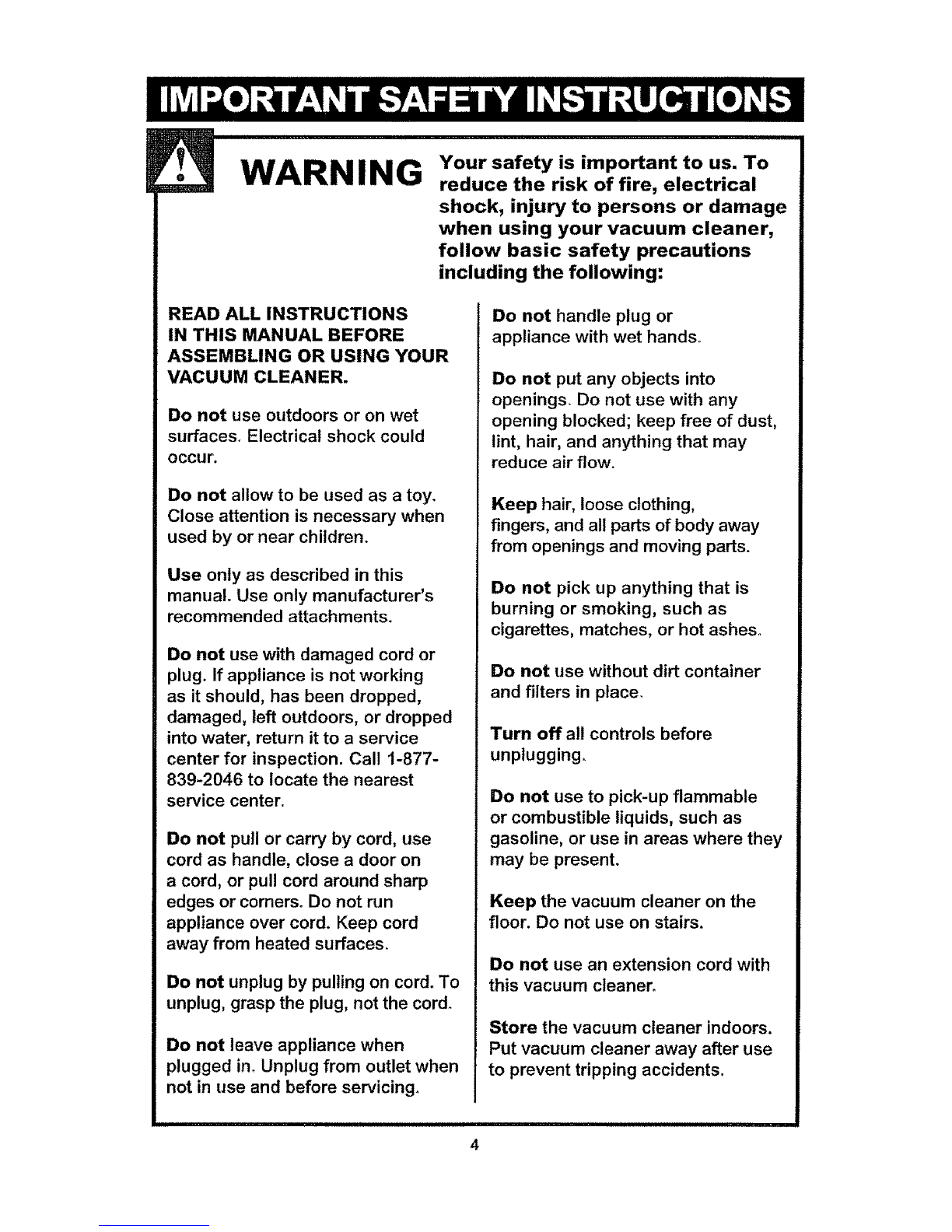

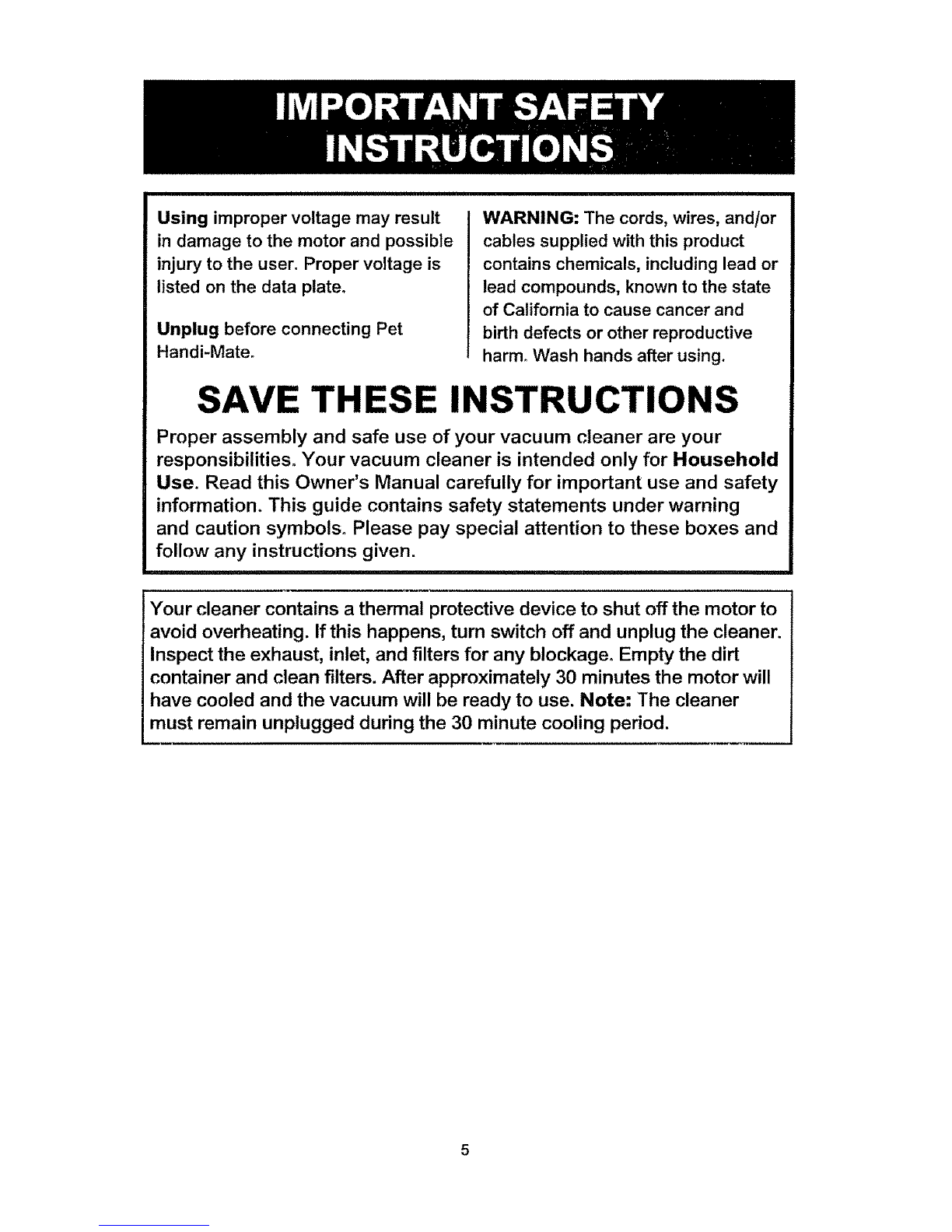

WARNING Your safety is important to us. To

reduce the risk of fire, electrical

shock, injury to persons or damage

when using your vacuum cleaner,

follow basic safety precautions

including the following:

READ ALL INSTRUCTIONS

IN THIS MANUAL BEFORE

ASSEMBLING OR USING YOUR

VACUUM CLEANER.

Do not use outdoors or on wet

surfaces. Electrical shock could

Occur.

Do not allow to be used as a toy.

Close attention is necessary when

used by or near children.

Use only as described in this

manual. Use only manufacturer's

recommended attachments.

Do not use with damaged cord or

plug. If appliance is not working

as it should, has been dropped,

damaged, left outdoors, or dropped

into water, return it to a service

center for inspection. Call 1-877-

839-2046 to locate the nearest

service center.

Do not pull or carry by cord, use

cord as handle, close a door on

a cord, or pull cord around sharp

edges or comers. Do not run

appliance over cord. Keep cord

away from heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not leave appliance when

plugged im Unplug from outlet when

not in use and before servicing.

Do not handle plug or

appliance with wet hands°

Do not put any objects into

openings. Do not use with any

opening blocked; keep free of dust,

lint, hair, and anything that may

reduce air flow.

Keep hair, loose clothing,

fingers, and all parts of body away

from openings and moving parts.

Do not pick up anything that is

burning or smoking, such as

cigarettes, matches, or hot ashes°

Do not use without dirt container

and filters in place.

Turn off al! controls before

unplugging.

Do not use to pick-up flammable

or combustible liquids, such as

gasoline, or use in areas where they

may be present.

Keep the vacuum cleaner on the

floor. Do not use on stairs.

Do not use an extension cord with

this vacuum cleaner.

Store the vacuum cleaner indoors.

Put vacuum cleaner away after use

to prevent tripping accidents.

IIII'IIIIIIIIIHIIIIIIII

Using improper voltage may result

in damage to the motor and possible

injury to the user. Proper voltage is

listed on the data plate°

Unplug before connecting Pet

Handi-Mateo

WARNING: The cords, wires, and/or

cables supplied with this product

contains chemicals, including lead or

lead compounds, known to the state

of California to cause cancer and

birth defects or other reproductive

harm. Wash hands after using.

Proper assembly and safe use of your vacuum cleaner are your

responsibilities. Your vacuum cleaner is intended only for Household

Use. Read this Owner's Manual carefully for important use and safety

information. This guide contains safety statements under warning

and caution symbols. Please pay special attention to these boxes and

follow any instructions given.

i i i, i i

Your cleaner contains a thermal protective device to shut off the motor to

avoid overheating. If this happens, turn switch off and unplug the cleaner.

Inspect the exhaust, inlet, and filters for any blockage. Empty the dirt

container and clean filters. After approximately 30 minutes the motor will

have cooled and the vacuum will be ready to use. Note: The cleaner

must remain unplugged during the 30 minute cooling period.

It is important to know your vacuum cleaner's parts and features to assure its proper and

safe use. Review these before using your vacuum cleaner,

Item

Pleated Filter

Exhaust Filter

Belt

Part No.

K-500000-000

K*700000_000

1-860140-600

Style No.

In U.S.

DCF-3

EF-3

UB-I 1

Power

Dirt container

release

Stretch

hose

Dirt finder!

Performance

indicator

Telescoping

wand

Cord clip Exhaust cover

(exhaust filter

Handle

Release

Pedal

Carry handle

Power

cord

Pet Handi-Mate

Wheels

Hose

wand

Crevice tool

Rotary

valve

Dust brush

Nozzle

Bumper

On/off

switch for

brushrofl

Height adjust

knob

Dust Pet Handi-Mate

c L

Telescoping wand Crevice

tool

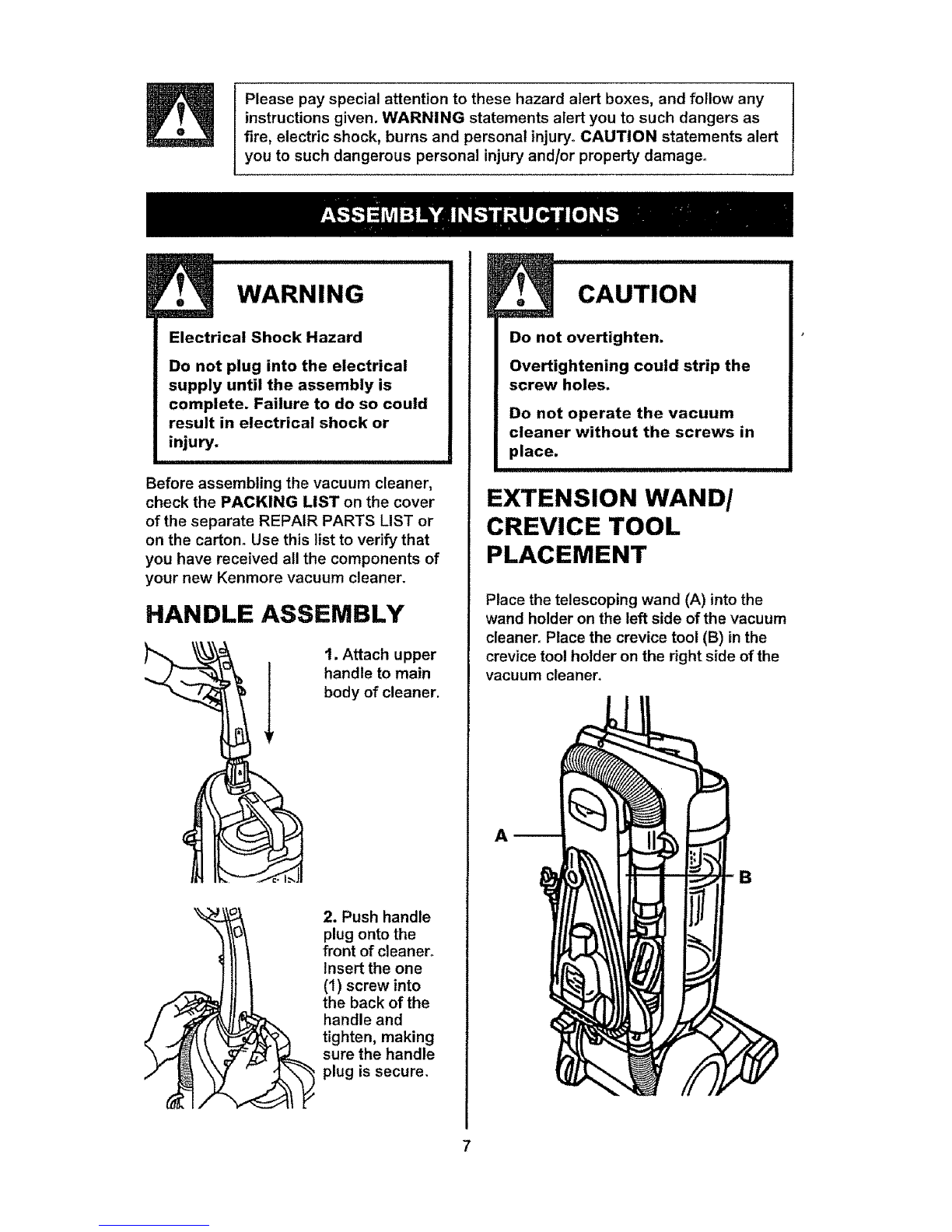

Please pay special attention to these hazard alert boxes, and follow any

instructions given. WARNING statements alert you to such dangers as

fire, electric shock, burns and personal injury_ CAUTION statements alert

you to such dangerous personal injury and/or property damage°

WARNING

Electrical Shock Hazard

Do not plug into the electrical

supply until the assembly is

complete. Failure to do so could

result in electrical shock or

injury.

Before assembling the vacuum cleaner,

check the PACKING LIST on the cover

of the separate REPAIR PARTS LIST or

on the carton. Use this list to verify that

you have received all the components of

your new Kenmore vacuum cleaner.

HANDLE ASSEMBLY

t. Attach upper

handle to main

body of cleaner.

2. Push handle

plug onto the

front of cleaner.

Insert the one

(1) screw into

the back of the

handle and

tighten, making

sure the handle

plug is secure.

CAUTION

Do not overtighten.

Overtightening could strip the

screw holes.

Do not operate the vacuum

cleaner without the screws in

place.

EXTENSION WAND/

CREVICE TOOL

PLACEMENT

Place the telescoping wand (A) into the

wand holder on the left side of the vacuum

cleaner° Place the crevice tool (B) in the

crevice tool holder on the right side of the

vacuum cleaner.

OPERATING INSTRUCTIONS

1. Rotate the quick release upper cord

hook to either side and down to release

the power cord.

WARNING

To reduce the risk of electric

shock, this appliance has a polarized

plug (one blade is wider than

the other). This plug will fit in a

polarized outlet only one way. If

the plug does not fit fully in the

outlet7 reverse the plug. If it still

does not fit, contact aqualified

electrician to install the proper

outlet. Do not change the plug in

any way.

2, Unclip the power cord \

plug from the power cord.

Make sure the power

cord is placed into the

cord clip on the body as

shown.This helps keep

the power cord out from

under the vacuum cleaner II

nozzle. //

3, Plug the polarized //

power cord into a 120 II

Volt outlet located near FltJ

the floor° f

4. To store cord, turn upper cord hook to

the up position, then wrap cord.

Personal Injury and Product

Damage Hazard

•DO NOT plug in if switch is in

the ON position. Personal injury

or damage could result.

.DO NOT use outlets above

counters. Damage from cord to

items in surrounding area could

occur.

HEIGHT ADJUST KNOB

IMPORTANT: For easiest adjustment,

place cleaner in full upright position°

Turn the height adjust knob to match the

surface being cleaned_

ON/OFF BUTTON

==D! Turn cleaner on by

depressing the power

onloff switch on the

front of the handle.

PERFORMANCE

iNDICATOR AND DIRT

FINDER

The Performance Indicator light turns

red when vacuum needs to be serviced.

Please see Troubleshooting Section on

page 15 for Service Instructions. Dirt

Finder lights up as dirt is collected. When

light turns off, the carpet is clean,

HANDLE RELEASE

To release handle, push the handle

release pedal located on the lower left

side of the cleaner.

ON/OFF BRUSHROLL

Depress pedal to turn off brushroll for

bare floor cleaning. Press pedal again to

re-engage brushroll.

Rotate the handle and adjust it to the

desired position for (A) storing the upright,

(B) operating the cleaner, and (C) to clean

under furniture. NOTE: Rotating brush

could cause area rug fringe to become

tangled within cleaner, Use caution when

vacuuming any rugs with fringe.

CARRY HANDLE

Use the carry handle located on the back

of the cleaner to carry from room to room.

JCAUTION

Brush agitator continues to rotate

while hose is removed or in use

and at all times while cleaner is on.

Keep hair, loose clothing, fingers,

and all parts of body away from

brush area while cleaner is on.

Cleaner must be in the upright

position to lift the rotating brushroll

off the carpet when cleaning

above the floor.

ii i

Cleaner must

be in its upright

position to raise

brushroll from

floor. Remove

the hose from

the tool caddy.

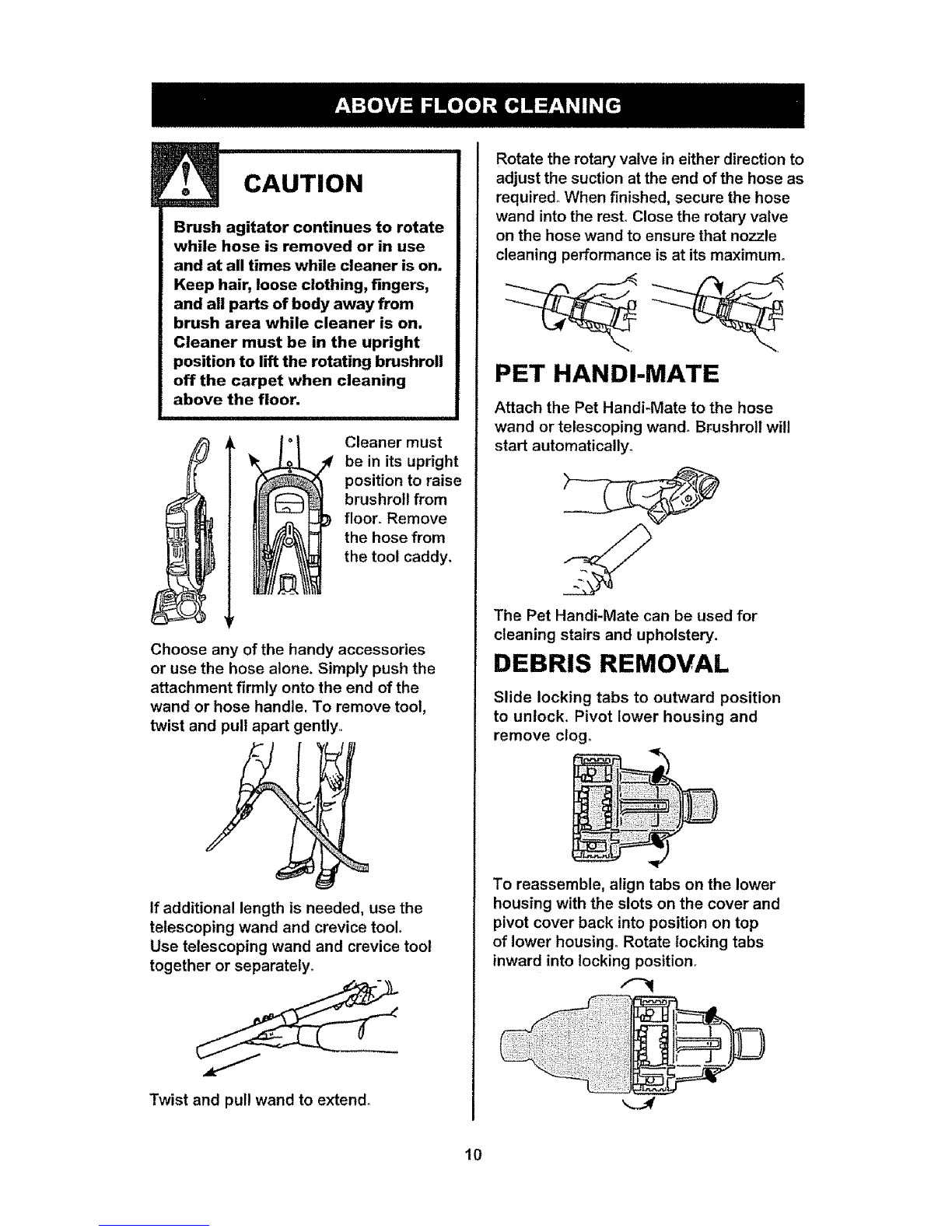

Choose any of the handy accessories

or use the hose alone. Simply push the

attachment firmly onto the end of the

wand or hose handle. To remove tool,

twist and pull apart gently..

If additional length is needed, use the

telescoping wand and crevice toolo

Use telescoping wand and crevice tool

together or separately°

Twist and pull wand to extend.

Rotate the rotary valve in either direction to

adjust the suction at the end of the hose as

required_ When finished, secure the hose

wand into the rest. Close the rotary valve

on the hose wand to ensure that nozzle

cleaning performance is at its maximum.

PET HANDI-MATE

Attach the Pet Handi-Mate to the hose

wand or telescoping wand. Brushroll will

start automatically.

The Pet Handi-Mate can be used for

cleaning stairs and upholstery.

DEBRIS REMOVAL

Slide locking tabs to outward position

to unlock. Pivot lower housing and

remove clog.

To reassemble, align tabs on the lower

housing with the slots on the cover and

pivot cover back into position on top

of lower housing° Rotate locking tabs

inward into locking positionr

Ce manuel convient aux modèles suivants

Autres manuels Kenmore Aspirateur

Kenmore

Kenmore 31510 Manuel utilisateur

Kenmore

Kenmore 116.23205C Manuel utilisateur

Kenmore

Kenmore 24195 - Magic Canister Vacuum Manuel utilisateur

Kenmore

Kenmore CROSSOVER MAX 116.10325 Manuel utilisateur

Kenmore

Kenmore 125.10135610 Manuel utilisateur

Kenmore

Kenmore KW3050 Manuel utilisateur

Kenmore

Kenmore 216.31701 Manuel utilisateur

Kenmore

Kenmore 116.31675 Manuel utilisateur

Kenmore

Kenmore 116.27614 Manuel utilisateur

Kenmore

Kenmore 116.30611C Manuel utilisateur

Kenmore

Kenmore CSV Max Manuel utilisateur

Kenmore

Kenmore 116.36724 Manuel utilisateur

Kenmore

Kenmore Aspiradora 116.21814 Manuel utilisateur

Kenmore

Kenmore Vacuum Cleaner Manuel utilisateur

Kenmore

Kenmore 116.28014 Manuel utilisateur

Kenmore

Kenmore 116.30613C Manuel utilisateur

Kenmore

Kenmore Elite 21814 Manuel utilisateur

Kenmore

Kenmore FeatherLite Lift-Up DU4080 Manuel utilisateur

Kenmore

Kenmore DESTINY PLUS 204.3699969 Manuel utilisateur

Kenmore

Kenmore SSV Complete DS6028 Manuel utilisateur

Kenmore

Kenmore 116.31189 Manuel utilisateur

Kenmore

Kenmore 116.31810 Manuel utilisateur

Kenmore

Kenmore Intuition BU4018 Manuel utilisateur

Kenmore

Kenmore 116.22813 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
