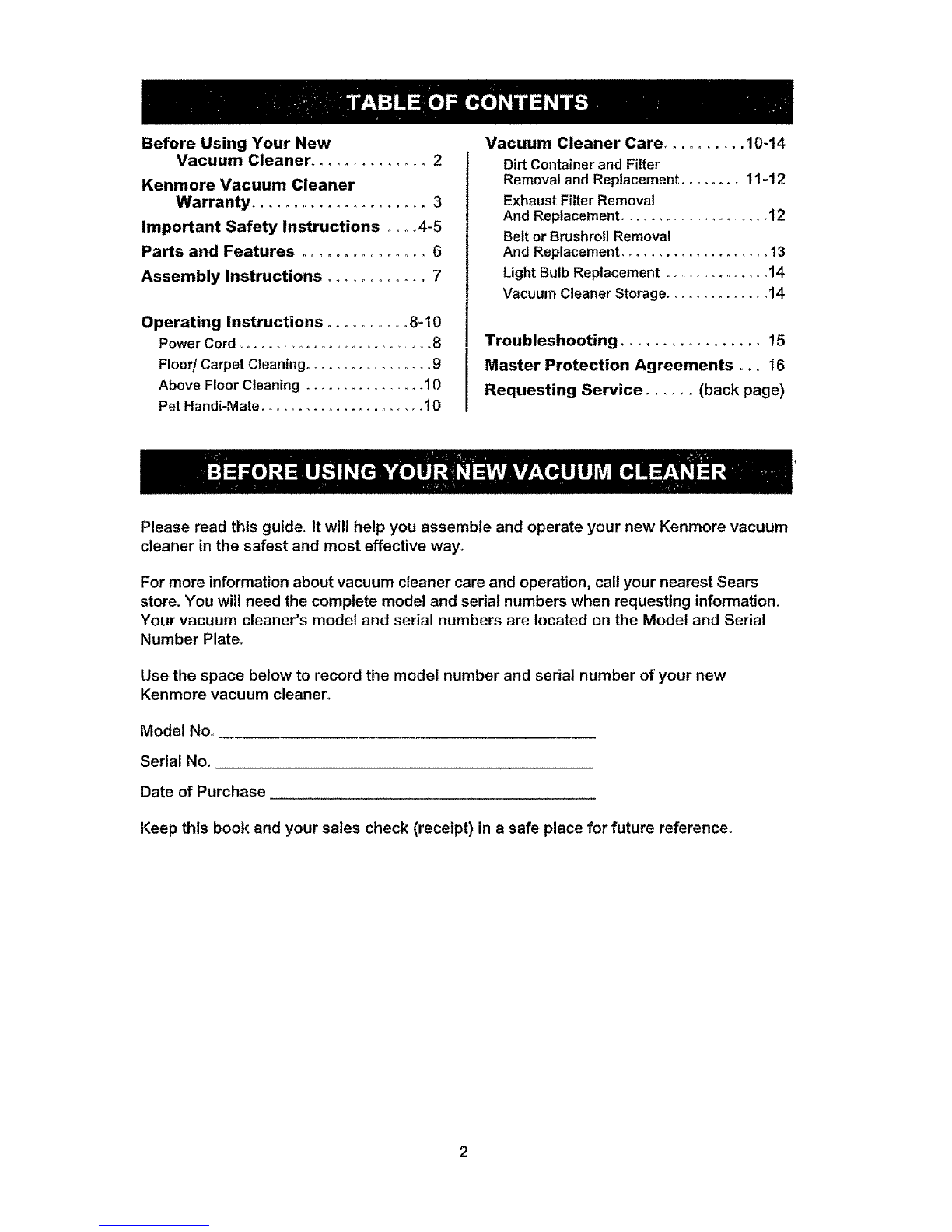

Before Using Your New

Vacuum Cleaner .............. 2

Kenmore Vacuum Cleaner

Warranty ...................... 3

Important Safety Instructions ..... 4-5

Parts and Features ................ 6

Assembly Instructions ............ 7

Operating Instructions ........... 8-'I0

Power Cord ................................. 8

Floor/Carpet Cleaning ................ 9

Above Floor Cleaning ................ 10

Pet Handi-Mate ...................... t 0

Vacuum Cleaner Care .......... 10-14

Dirt Container and Filter

Removal and Replacement ........ 11-12

Exhaust Filter Removal

And Replacement ......................... 12

Belt or Brushroll Removal

And Replacement .................... 13

Light Bulb Replacement .................... 14

Vacuum Cleaner Storag e.............. 14

Troubleshooting .................. 15

Master Protection Agreements .... 16

Requesting Service ...... (back page)

Please read this guide., It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way°

For more information about vacuum cleaner care and operation, call your nearest Sears

store. You will need the complete model and serial numbers when requesting information.

Your vacuum cleaner's model and serial numbers are located on the Model and Serial

Number Plate°

Use the space below to record the model number and serial number of your new

Kenmore vacuum cleaner.

Model No,,

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference,.

ONE YEAR LIMITED WARRANTY ON KENMORE VACUUM CLEANER

When installed, operated and maintained according to all instructions supplied with the

product, if this appliance fails due to a defect in material and workmanship within one year

from the date of purchase, return it to any Sears store, Sears Parts & Repair Service Center,

or other Kenmore outlet for free repair.

If this appliance is ever used for other than private family purposes, this warranty applies for

only 90 days from the date of purchase°

This warranty covers only defects in material and workmanship. Sears will

NOT pay for:

1.. Expendable items that can wear out from normal use, including but not limited

to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation,

operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained

according to the all instructions supplied with the product°

5. Damage to or failure of this product resulting from accident, abuse, misuse or use

for other than its intended purpose.

6o Damage to or failure of this product caused by the use of detergents, cleaners,

chemicals or utensils other than those recommended in all instructions supplied

with the product.

7, Damage to or failure of parts or systems resulting from unauthorized modifications

made to this product.

_i!_ _i_!i!I

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair

as provided herein. Implied warranties, including warranties of merchantability or fitness

for a particular purpose, are limited to one year or the shortest period allowed by law. Sears

shall not be liable for incidental or consequential damages. Some states and provinces do

not allow the exclusion or limitation of incidental or consequential damages, or limitation

on the duration of implied warranties of merchantability or fitness, so these exclusions or

limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

WARNING Your safety is important to us. To

reduce the risk of fire, electrical

shock, injury to persons or damage

when using your vacuum cleaner,

follow basic safety precautions

including the following:

READ ALL INSTRUCTIONS

IN THIS MANUAL BEFORE

ASSEMBLING OR USING YOUR

VACUUM CLEANER.

Do not use outdoors or on wet

surfaces, Electrical shock could

occur.

Do not allow to be used as a toy.

Close attention is necessary when

used by or near children.

Use only as described in this

manual. Use only manufacturer's

recommended attachments.

Do not use with damaged cord or

plug. If appliance is not working

as it should, has been dropped,

damaged, left outdoors, or dropped

into water, return it to a service

center for inspection. Call 1-877-

839-2046 to locate the nearest

service centers.

Do not pull or carry by cord, use

cord as handle, close a door on

a cord, or pull cord around sharp

edges or comers. Do not run

appliance over cord. Keep cord

away from heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not leave appliance when

plugged in. Unplug from outlet when

not in use and before servicing.

Do not handle plug or

appliance with wet hands.

Do not put any objects into

openings. Do not use with any

opening blocked; keep free of dust,

lint, hair, and anything that may

reduce air flow.

Keep hair, loose clothing,

fingers, and all parts of body away

from openings and moving parts.

Do not pick up anything that is

burning or smoking, such as

cigarettes, matches, or hot ashes.

Do not use without dirt container

and filters in place,

Turn off all controls before

unplugging_

Do not use to pick-up flammable

or combustible liquids, such as

gasoline, or use in areas where they

may be present.

Keep the vacuum cleaner on the

floor. Do not use on stairs.

Do not use an extension cord with

this vacuum cleaner.

Store the vacuum cleaner indoors_

Put vacuum cleaner away after use

to prevent tripping accidents.

Using improper voltage may result

in damage to the motor and possible

injury to the user. Proper voltage is

listed on the cleaner plate°

Unplug before connecting Pet

Handi-Mate.

WARNING: The cords, wires, and/or

cables supplied with this product

contains chemicals, including lead or

lead compounds, known to the state

of California to cause cancer and

birth defects or other reproductive

harm. Wash hands after using.

INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your

responsibilities. Your vacuum cleaner is intended only for Household

use. Read this Owner's Manual carefully for important use and safety

information. This guide contains safety statements under warning

and caution symbols. Please pay special attention to these boxes and

follow any instructions given.

Your cleaner contains a thermal protective device to shut off the motor to

avoid overheating. If this happens, turn switch off and unplug the cleaner.

Inspect the exhaust, inlet, and filters for any blockage. Empty the dirt

container and clean filters. After approximately 30 minutes the motor will

have cooled and the vacuum will be ready to use. Note: The cleaner

must remain unplugged during the 30 minute cooling period.

It is important to know your vacuum cleaner's parts and features to assure its proper and

safe use,, Review these before using your vacuum cleaner°

Item Part No. Style No.

In U,S.

Pleated Filter 301974002 DCF-4

Belt 1-860140-600 UB-11

Pet Handi-Mate

Handle

Cord clip

Carry handle

Extension wand

& Crevice tool

Power

cord

Power

On/Off

switch

Wheels

Dirt container

release latch Stretch

/ hose

Dirt container

Exhaust cover

(exhaust filter

inside)

Headlight

Height

adjust

knob

Extension

wand

Hose

wand

Bumper Nozzle

Pet Handi-Mate Dust

brush

Crevice tool

(i/ )

Extension wands

Please pay special attention to these hazard alert boxes, and follow any

instructions given. WARNING statements alert you to such dangers as

fire, electric shock, burns and personal injury,. CAUTION statements alert

you to such dangerous personal injury and/or property damage.,

W,,,,,o

Electrical Shock Hazard

Do not plug into the electrical

supply until the assembly is

complete. Failure to do so could

result in electrical shock or

injury.

Before assembling the vacuum cleaner,

check the PACKING LIST on the cover

of the separate REPAIR PARTS LIST or

on the carton Use this list to verify that

you have received all the components of

your new Kenmore vacuum cleaner.

HANDLE ASSEMBLY

1. Attach upper

handle to main

body of cleaner.

2. Push handle

plug onto the

front of cleaner°

Insert the one

(1) screw into

the back of the

handle and

tighten, making

sure the handle

plug is secure.

c,uT,0.

Do not overtighten.

Overtightening could strip the

screw holes.

Do not operate the vacuum

cleaner without the screws in

place.

EXTENSION WAND/

CREVICE TOOL

PLACEMENT

Place the crevice tool (A) in the top of the

extension wand° Place in wand holder on

left side of vacuum cleaner° Place the extra

extension wand (B) in the wand holder on

the right side of the vacuum cleaner.

OPERATI NG INSTRUCTIONS

1, Turn the quick release upper cord hook

to either side and down to release the

power cord.

WARNING

To reduce the risk of electric

shock, this appliance has a polarized

plug (one blade is wider than

the other). This plug will fit in a

polarized outlet only one way. if

the plug does not fit fully in the

outlet, reverse the plug. If it still

does not fit, contact a qualified

electrician to install the proper

outlet. Do not change the plug in

any way.

2. Detach the power cord

plug from the power cord.

Make sure the power

cord is placed into the

cord clip on the body as

shownoThis helps keep

the power cord out from

under the vacuum cleaner

nozzle.

3. Plug the polarized

power cord into a 120

Volt outlet located near

the floor.

4. To store cord, turn upper cord hook to

the up position, then wrap cord,,

WARNING

Personal Injury and Product

Damage Hazard

• DO NOT plug in if switch is in

the ON position. Personal injury

or damage could result.

• DO NOT use outlets above

counters. Damage from cord to

items in surrounding area could

occur.

HEIGHT ADJUST KNOB

IMPORTANT: For easiest adjustment,

place cleaner in full upright position°

Turn the height adjust knob to match the

surface being cleaned.

ON/OFF BUTTON

Turn cleaner on by depressing foot

pedal located on the back left side of the

cleaner_

HANDLE RELEASE

To release handle, push the handle

release pedal located on the lower left

side of the cleaner.

Rotate the handle and adjust it to the

desired position for (A) storing the upright,

(B) operating the cleaner, and (C) to clean

under furniture. NOTE: Rotating brush

could cause area rug fringe to become

tangled within cleaner. Use caution when

vacuuming any rugs with fringe.

CARRY HANDLE

Use the carry handle located on the back

of the cleaner to carry from room to room.

CAUTION

Brush agitator continues to rotate

while hose is removed or in use

and at all times while cleaner is on.

Keep hair, loose clothing, fingers,

and all parts of body away from

brush area while cleaner is on.

Cleaner must be in the upright

position to lift the rotating brushroll

off the carpet when cleaning

above the floor.

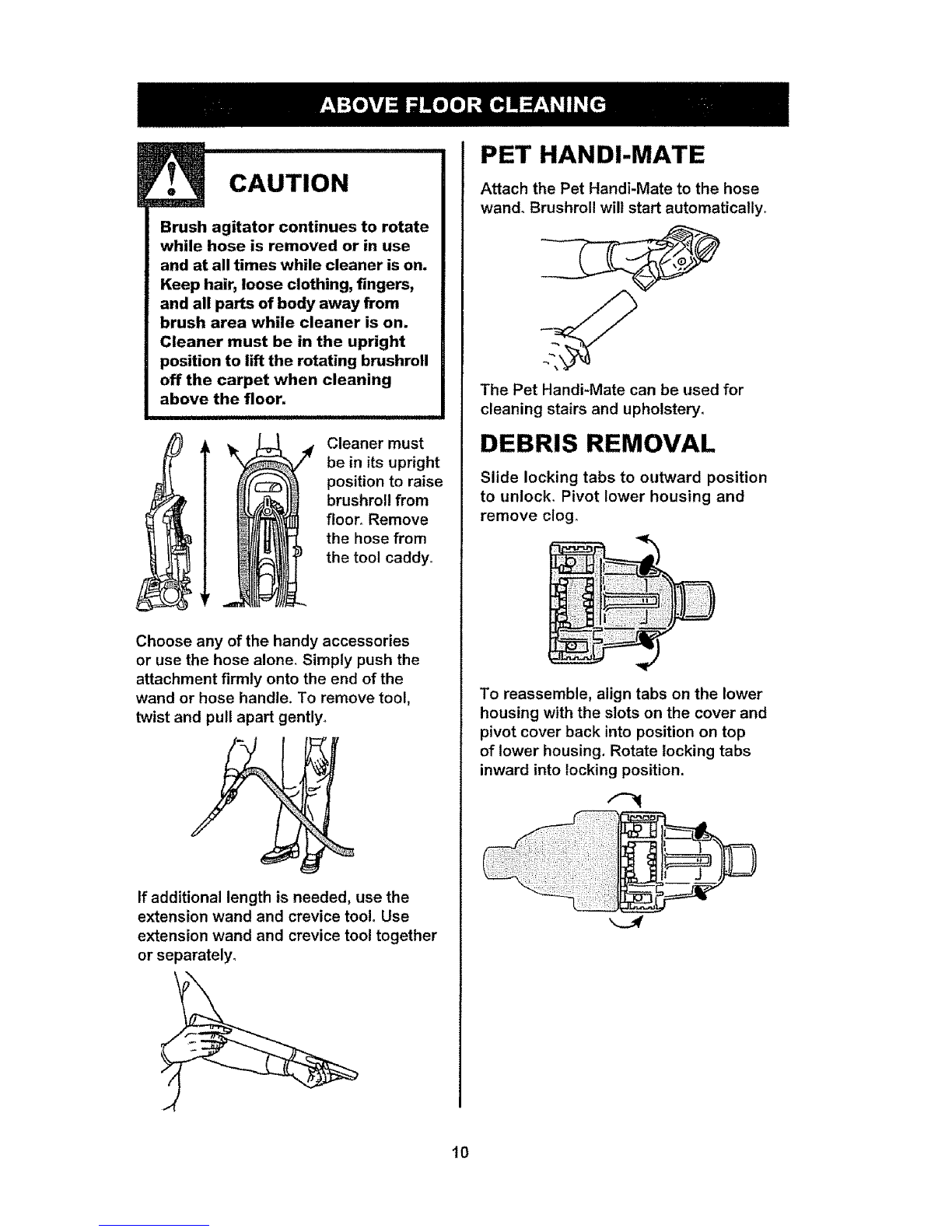

iCleaner must

be in its upright

position to raise

brushrol! from

floor. Remove

the hose from

the tool caddy°

Choose any of the handy accessories

or use the hose alone. Simply push the

attachment firmly onto the end of the

wand or hose handle. To remove tool,

twist and pull apart gently+

If additional length is needed, use the

extension wand and crevice tool. Use

extension wand and crevice tool together

or separately.

PET HANDI-MATE

Attach the Pet Handi-Mate to the hose

wand. Brushroll will start automatically.

The Pet Handi-Mate can be used for

cleaning stairs and upholstery.

DEBRIS REMOVAL

Slide locking tabs to outward position

to unlock. Pivot lower housing and

remove clog.

To reassemble, align tabs on the lower

housing with the slots on the cover and

pivot cover back into position on top

of lower housing, Rotate locking tabs

inward into locking position,

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kenmore Aspirateur

Kenmore

Kenmore 116.20612 Manuel utilisateur

Kenmore

Kenmore Elite CROSSOVER ULTRA Manuel utilisateur

Kenmore

Kenmore 116.29912 Manuel utilisateur

Kenmore

Kenmore ASPIRADORA 116.31591 Manuel utilisateur

Kenmore

Kenmore AquaLITE HF5010 Manuel utilisateur

Kenmore

Kenmore Pet Friendly POP-N-GO 125.81615910 Manuel utilisateur

Kenmore

Kenmore Vacuum Cleaner Manuel utilisateur

Kenmore

Kenmore 116.29229 Manuel utilisateur

Kenmore

Kenmore Stratus DS1030 Manuel utilisateur

Kenmore

Kenmore 125.21814610 Manuel utilisateur

Kenmore

Kenmore 116.30612C Manuel utilisateur

Kenmore

Kenmore Kenmore 721.24195 Manuel utilisateur

Kenmore

Kenmore 116.27614 Manuel utilisateur

Kenmore

Kenmore 116.22262C Manuel utilisateur

Kenmore

Kenmore CROSSOVER ULTRA Manuel utilisateur

Kenmore

Kenmore Aspiradora 125.31140610 Manuel utilisateur

Kenmore

Kenmore Elite BU1018 Manuel utilisateur

Kenmore

Kenmore 125.81714610 Manuel utilisateur

Kenmore

Kenmore 116.25812 Manuel utilisateur

Kenmore

Kenmore 81714 Manuel utilisateur

Kenmore

Kenmore 116.38412 Manuel utilisateur

Kenmore

Kenmore Intuition BU4022 Manuel utilisateur

Kenmore

Kenmore DU4099 Manuel utilisateur

Kenmore

Kenmore 116.23206C Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
