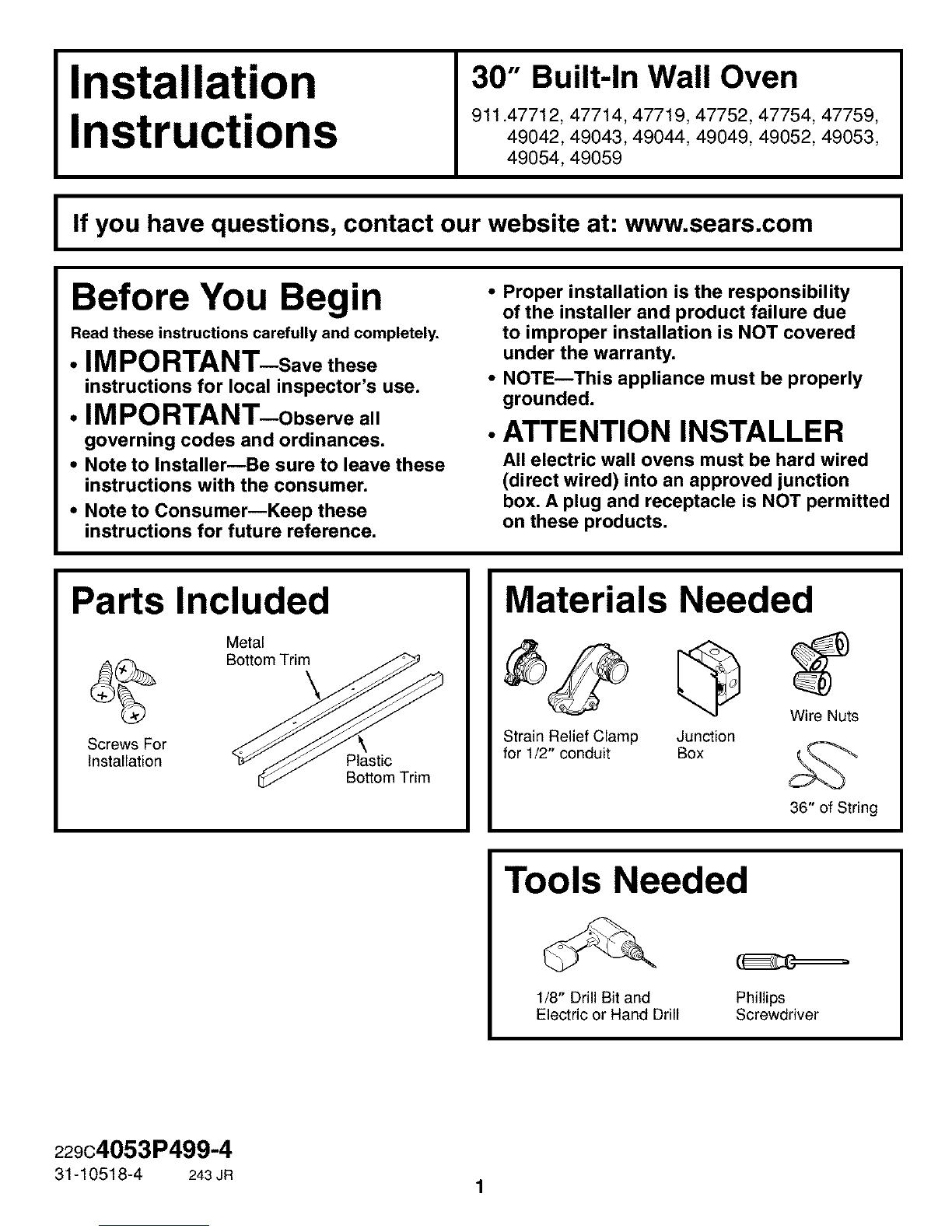

Installation

Instructions 30" Built-In Wall Oven

911.47712,47714,47719,47752,47754,47759,

49042,49043,49044,49049,49052,49053,

49054,49059

I If you have questions, contact our website at: www.sears.com I

Before You Begin

Read these instructions carefully and completely.

• IM PO RTANT-save these

instructions for local inspector's use.

• IMPORTANT-observe all

governing codes and ordinances.

•Note to Installer--Be sure to leave these

instructions with the consumer.

•Note to Consumer--Keep these

instructions for future reference.

•Proper installation is the responsibility

of the installer and product failure due

to improper installation is NOT covered

under the warranty.

•NOTE--This appliance must be properly

grounded.

•ATTENTION INSTALLER

All electric wall ovens must be hard wired

(direct wired) into an approved junction

box, A plug and receptacle is NOT permitted

on these products,

Parts Included

Metal

Bottom Trim

Screws For

Installation Plastic

Bottom Trim

Materials Needed

Strain Relief Clamp

for 1/2" conduit @

Junction

Box

Wire Nuts

36" of String

Tools Needed

1/8" Drill Bit and

Electric or Hand Drill Phillips

Screwdriver

229c4053P499-4

31-10518-4 243JR 1

Installation Instructions

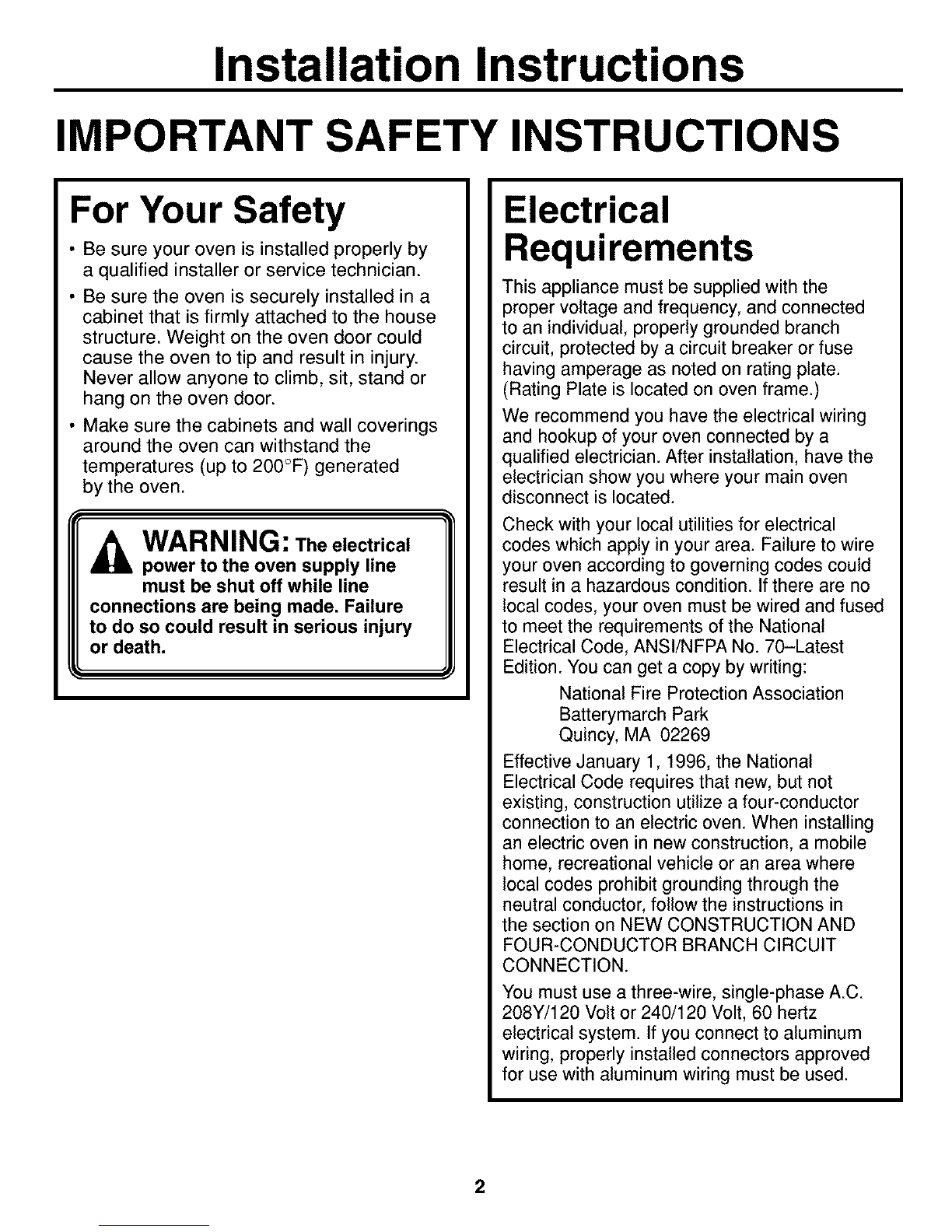

IMPORTANT SAFETY INSTRUCTIONS

For Your Safety

•Be sure your oven is installed properly by

a qualified installer or service technician.

• Be sure the oven is securely installed in a

cabinet that is firmly attached to the house

structure. Weight on the oven door could

cause the oven to tip and result in injury.

Never allow anyone to climb, sit, stand or

hang on the oven door.

• Make sure the cabinets and wall coverings

around the oven can withstand the

temperatures (up to 200°F) generated

by the oven.

WARNING: The electrical

power to the oven supply line

must be shut off while line

connections are being made. Failure

to do so could result in serious injury

or death.

Electrical

Requirements

This appliance must be supplied with the

proper voltage and frequency, and connected

to an individual, properly grounded branch

circuit, protected by a circuit breaker or fuse

having amperage as noted on rating plate.

(Rating Plate is located on oven frame.)

We recommend you have the electrical wiring

and hookup of your oven connected by a

qualified electrician. After installation, have the

electrician show you where your main oven

disconnect is located.

Check with your local utilities for electrical

codes which apply in your area. Failure to wire

your oven according to governing codes could

result in a hazardous condition. If there are no

local codes, your oven must be wired and fused

to meet the requirements of the National

Electrical Code, ANSI/NFPA No. 70-Latest

Edition. You can get a copy by writing:

National Fire Protection Association

Batterymarch Park

Quincy, MA 02269

Effective January 1, 1996, the National

Electrical Code requires that new, but not

existing, construction utilize a four-conductor

connection to an electric oven. When installing

an electric oven in new construction, a mobile

home, recreational vehicle or an area where

local codes prohibit grounding through the

neutral conductor, follow the instructions in

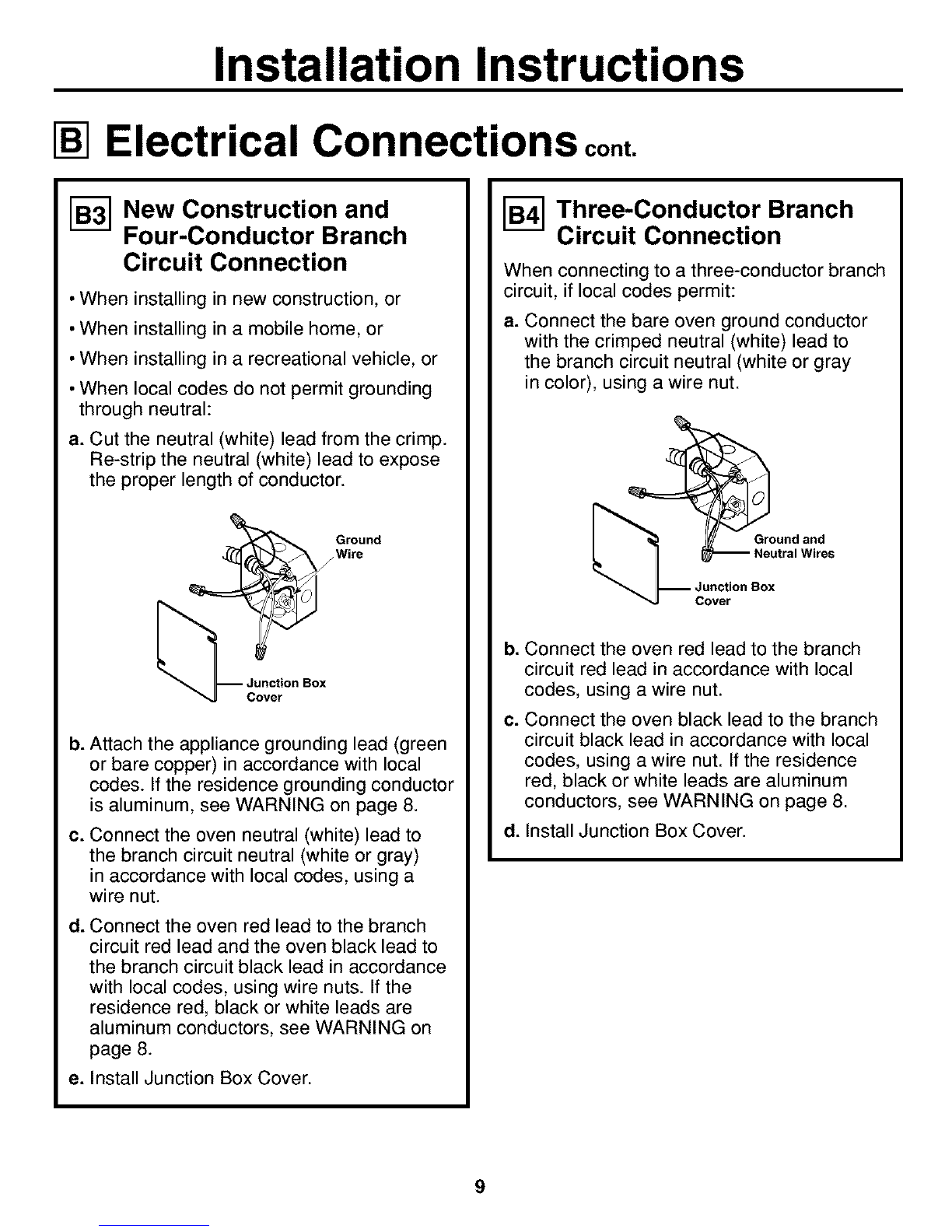

the section on NEW CONSTRUCTION AND

FOUR-CONDUCTOR BRANCH CIRCUIT

CONNECTION.

You must use a three-wire, single-phase A.C.

208Y/120 Volt or 240/120 Volt, 60 hertz

electrical system. If you connect to aluminum

wiring, properly installed connectors approved

for use with aluminum wiring must be used.

Installation Instructions

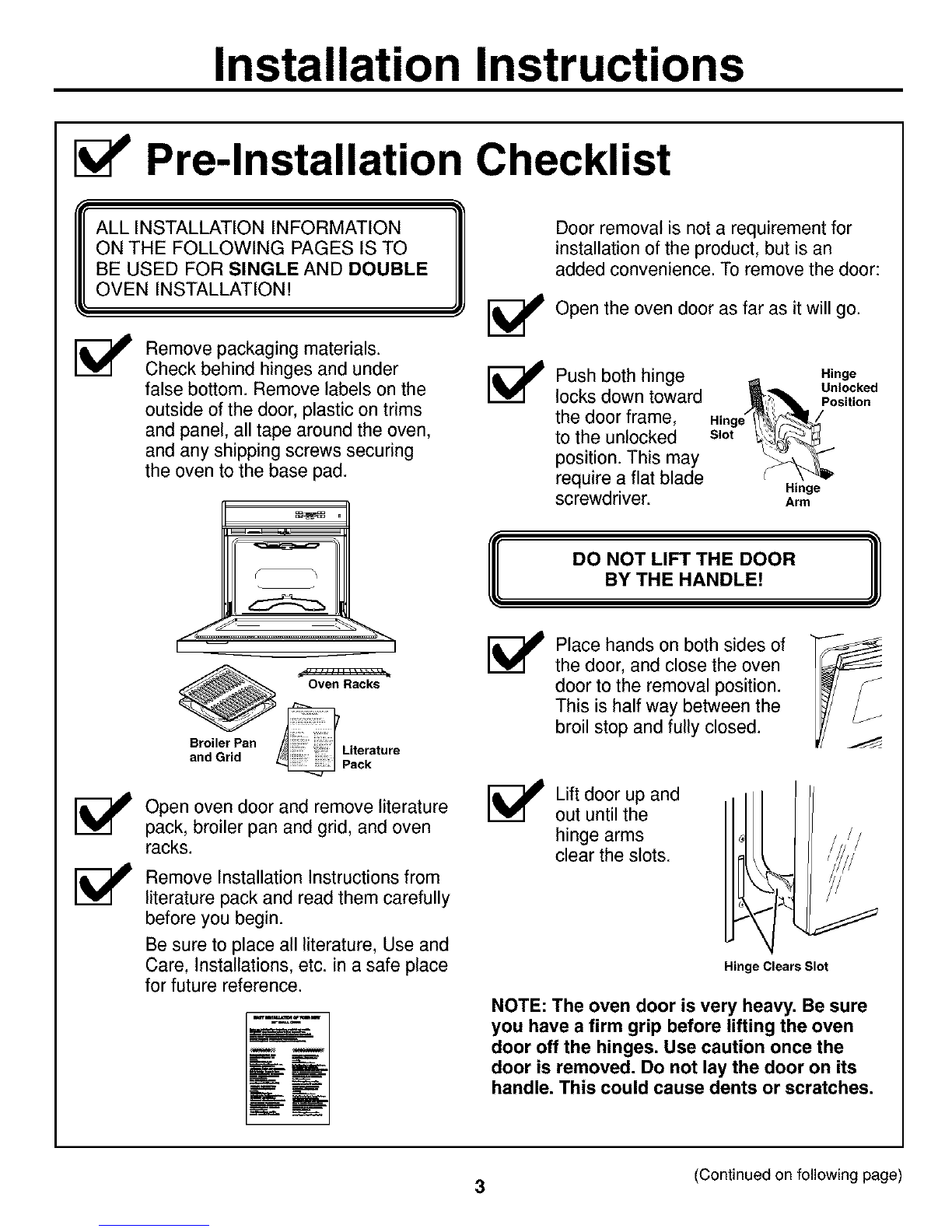

Pre-lnstallation Checklist

ALL INSTALLATION INFORMATION

ON THE FOLLOWING PAGES IS TO

BE USED FOR SINGLE AND DOUBLE

OVEN INSTALLATION!

Remove packaging materials.

Check behind hinges and under

false bottom. Remove labels on the

outside of the door, plastic on trims

and panel, all tape around the oven,

and any shipping screws securing

the oven to the base pad.

Oven Racks

Broiler Pan

and Grid Literature

Pack

Open oven door and remove literature

pack, broiler pan and grid, and oven

racks.

Remove Installation Instructions from

literature pack and read them carefully

before you begin.

Be sure to place all literature, Use and

Care, Installations, etc. in a safe place

for future reference.

Door removal is not a requirement for

installation of the product, but is an

added convenience. To remove the door:

Open the oven door as far as it will go.

Push both hinge Hinge

_ _'qb,,. Unlocked

locks down toward . ._i_l /

',_'I Position

the door frame, Hmgei/_,i

to the unlocked s_ot _

position. This may

require a flat blade Hinge

screwdriver. Arm

DO NOT LIFT THE DOOR

BY THE HANDLE!

Place hands on both sides of

the door, and close the oven

door to the removal position.

This is half way between the

broil stop and fully closed.

[_ Lift door up and

out until the

hinge arms

clear the slots.

Hint e Clears Slot

NOTE: The oven door is very heavy, Be sure

you have a firm grip before lifting the oven

door off the hinges, Use caution once the

door is removed. Do not lay the door on its

handle, This could cause dents or scratches,

(Continued on following page)

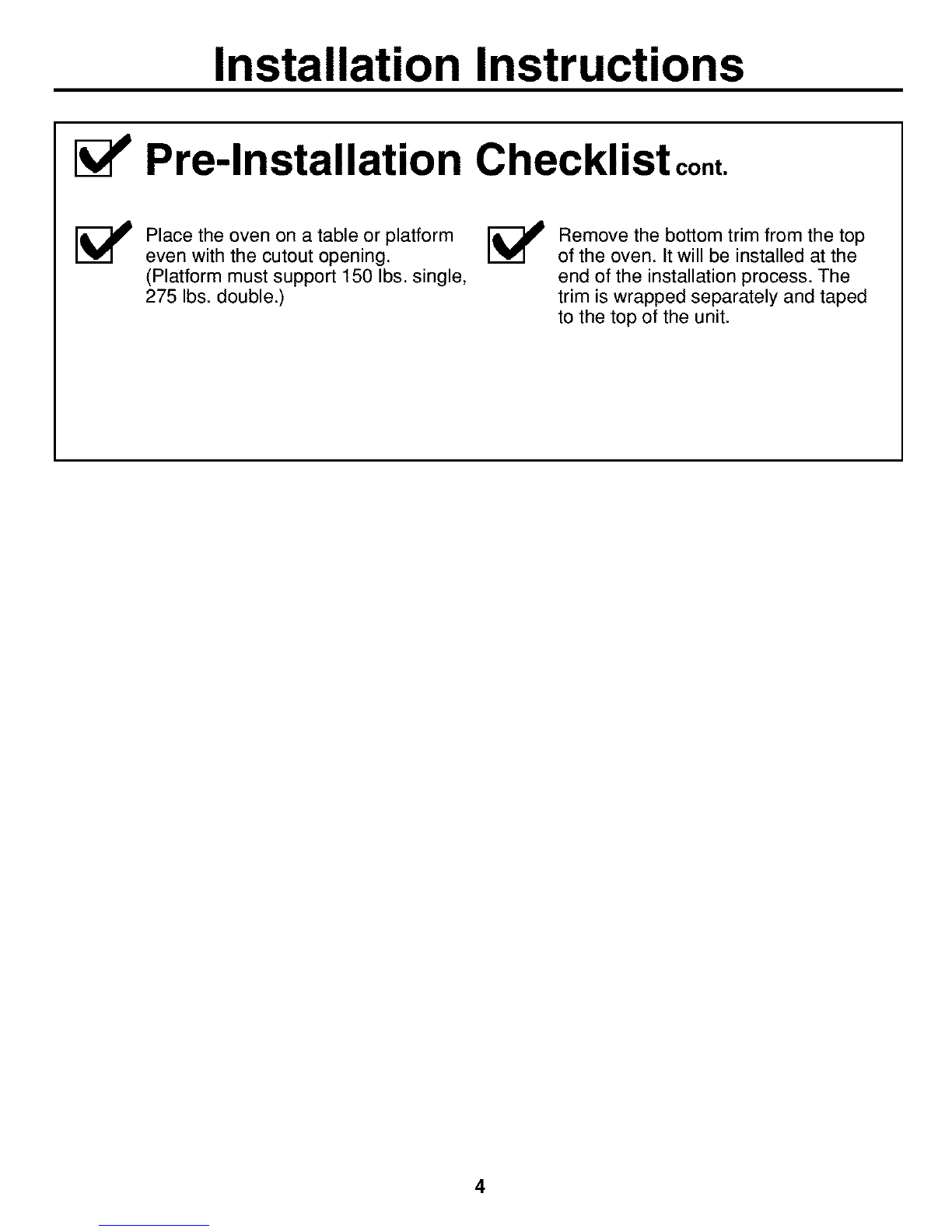

Installation Instructions

[_ Pre-lnstallation Checklist cont.

Place the oven on a table or platform

even with the cutout opening.

(Platform must support 150 Ibs. single,

275 Ibs. double.)

Remove the bottom trim from the top

of the oven. It will be installed at the

end of the installation process. The

trim is wrapped separately and taped

to the top of the unit.

Installation Instructions

I-A-11Cutout for Single Built-In Oven

Allow 11/16" for

overlap of oven

over side edges

of cutout

Allow a minimum of

21" for clearance to

adjacent corners,

drawers, walls, etc.

when door is open

Cutout Cabinet Width 30"

Width

28 1/2" Min.

Between

inside Walls

Must Be

At Least

28 1/2- Wide

Allow 1" minimum

for overlap of

oven top and and

1_/4"for bottom

of cutout

Cabinet

Width

30"

Height

27 1/4" Min. i

27 5/16" Max,_

Recommended

minimum cutout

location from

floor 32 1/2"

Junction Box

22" to

Bottom of

Junction Box

Recommended

Minimum

Cutout Location

from Floor

Cutout Depth

Cutout Width

Cutout Height

32 1/2"

23 1/2" Min.

28 1/2" Min.

28 5/8" Max.

27 1/4" Min.

27 5/16" Max.

NOTE: If the cabinet does not

have a front frame and the

sides are less than 3/4" thick,

shim both sides equally to

establish the cutout width.

If the cabinet does not have a solid bottom,

two braces or runners must be installed

level with the bottom of the cutout to

support the weight of the oven. For single

ovens, the runners and braces must

support 150 Ibs.

NOTE: If marks, blemishes or the

cutout opening are visible above the

installed oven, it may be necessary to

add wood shims under the runners and

front trim until the marks or opening

are covered.

Suitable

Bracing

to Suppo_

Runners--

21 5/8"

Over Centerline

of Cabinet

-- 2"x4"or

equivalent

runners

level with

the bottom

of cutout

This oven is not approved for

stackable or side by side installation.

Installation Instructions

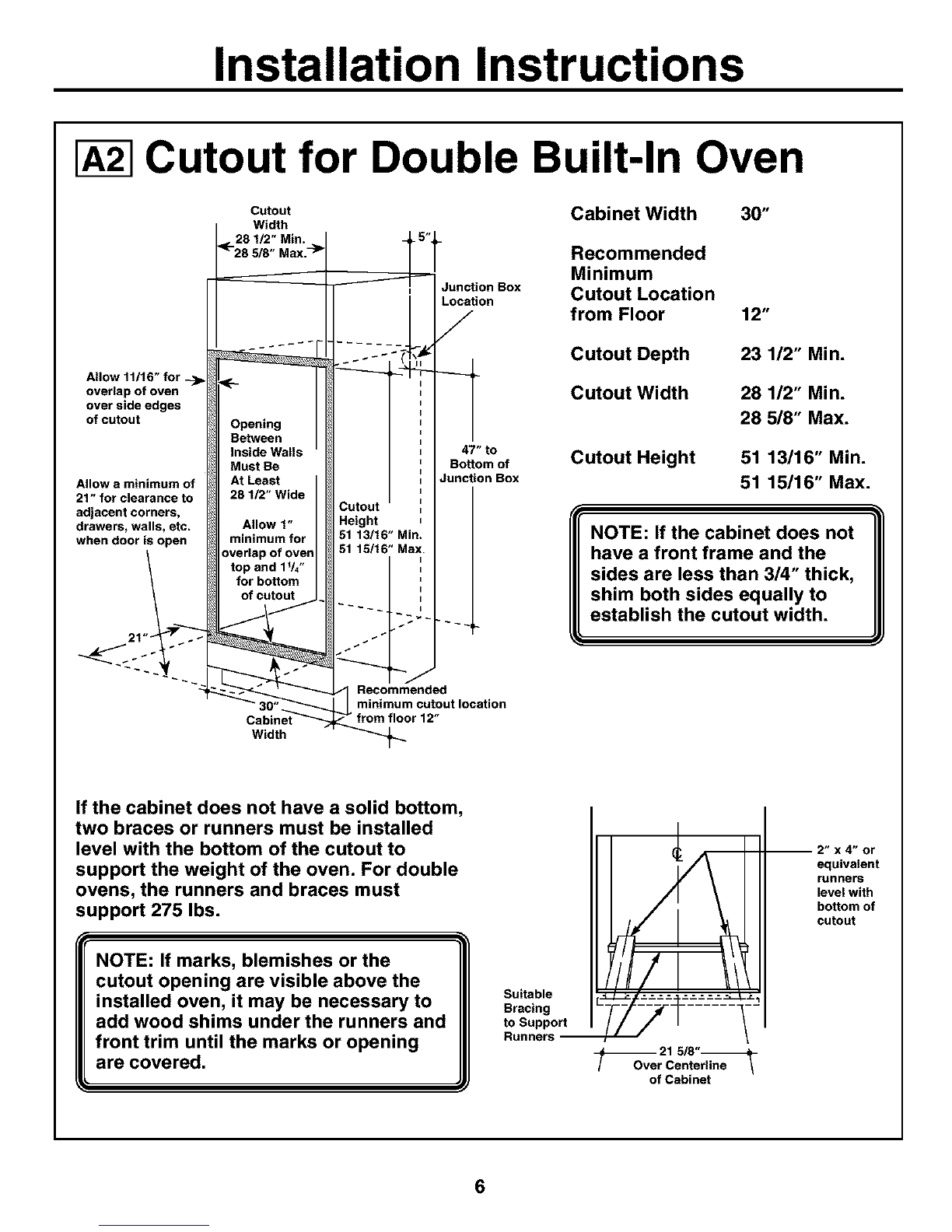

Cutout for Double Built-In Oven

Allow 11/16" for

overlap of oven

over aide edgea

of cutout

Allow aminimum of

21" for clearance to

adjacent corners_

drawers, walls, etc.

when door is open

21"

Cutout

Width

28 l/2"Min,

<--28 518" Max. -'_

Opening

Between

Inside Wails

Must Be

At Least

28 1/2" Wide

Allow 1"

minimum for

overlap of oven

top and 1V¢'

for bottom

of cutout

_5"fJunction Box

47" to

Bottom of

Junction Box

Height

51 13116" Min.

15/16" Max.

_._-_'_ _ Recomn_ended

30"_-_-L I minimum cutout location

Cab'met_--_____rom ,floor 12"

Width

Cabinet Width 30"

Recommended

Minimum

Cutout Location

from Floor

Cutout Depth

Cutout Width

Cutout Height

12"

23 1/2" Min.

28 1/2" Min.

28 5/8" Max.

51 13/16" Min.

51 15/16" Max.

NOTE: If the cabinet does not

have a front frame and the

sides are less than 3/4" thick,

shim both sides equally to

establish the cutout width.

If the cabinet does not have a solid bottom,

two braces or runners must be installed

level with the bottom of the cutout to

support the weight of the oven. For double

ovens, the runners and braces must

support 275 Ibs.

NOTE: If marks, blemishes or the

cutout opening are visible above the

installed oven, it may be necessary to

add wood shims under the runners and

front trim until the marks or opening

are covered.

Suitable

Bracing

to Support

Runners --

_21 5/8"_

r Centerline /

of Cabinet

--2"x4"or equivalent

runners

level with

bottom of

cutout

Installation Instructions

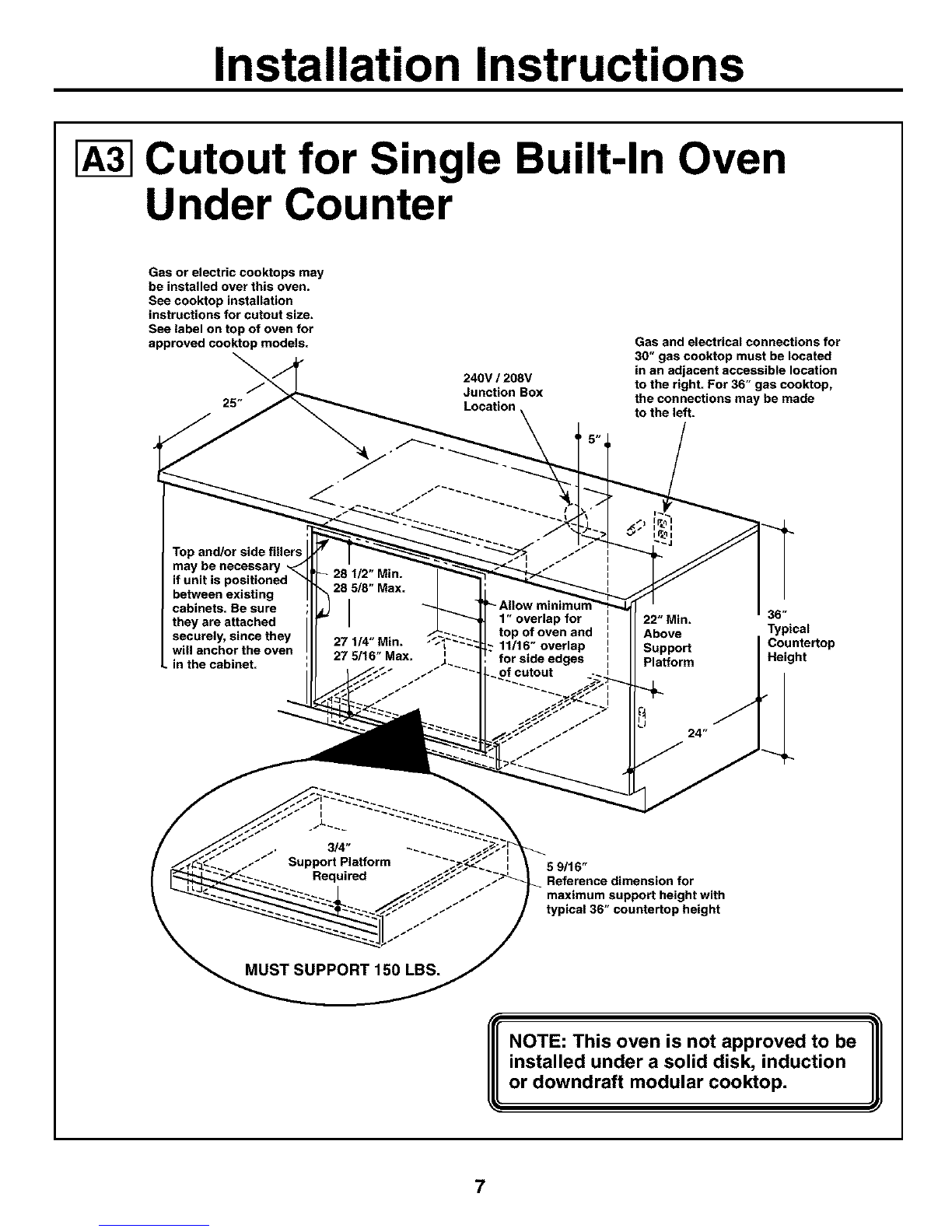

I_ Cutout for Single Built-In Oven

Under Counter

Gas or electric cooktops may

be installed over this oven.

See cooktop installation

instructions for cutout size.

See label on top of oven for

approved cooktop models.

Top and/or side fillers

may

between existing

cabinets. Be sure

they are attached

securely, since they

will anchor the oven

• in the cabinet.

240V /208V

Junction Box

Location

1" overlap for

top of oven and

_._11/16" overlap

for side edges

of cutout

Gas and electrical connections for

30" gas cooktop must be located

in an adjacent accessible location

to the right. For 36" gas cooktop,

the connections may be made

to the left.

22" Min. 36"

Above Typical

Support Countertop

Platform Height

sJ*_

3/4"

Support Platform

Required 5 9/16"

Reference dimension for

maximum support height with

typical 36" countertop height

MUST SUPPORT 150 LBS.

II installed under a solid disk, induction III

or downdraft modular cooktop.

Installation Instructions

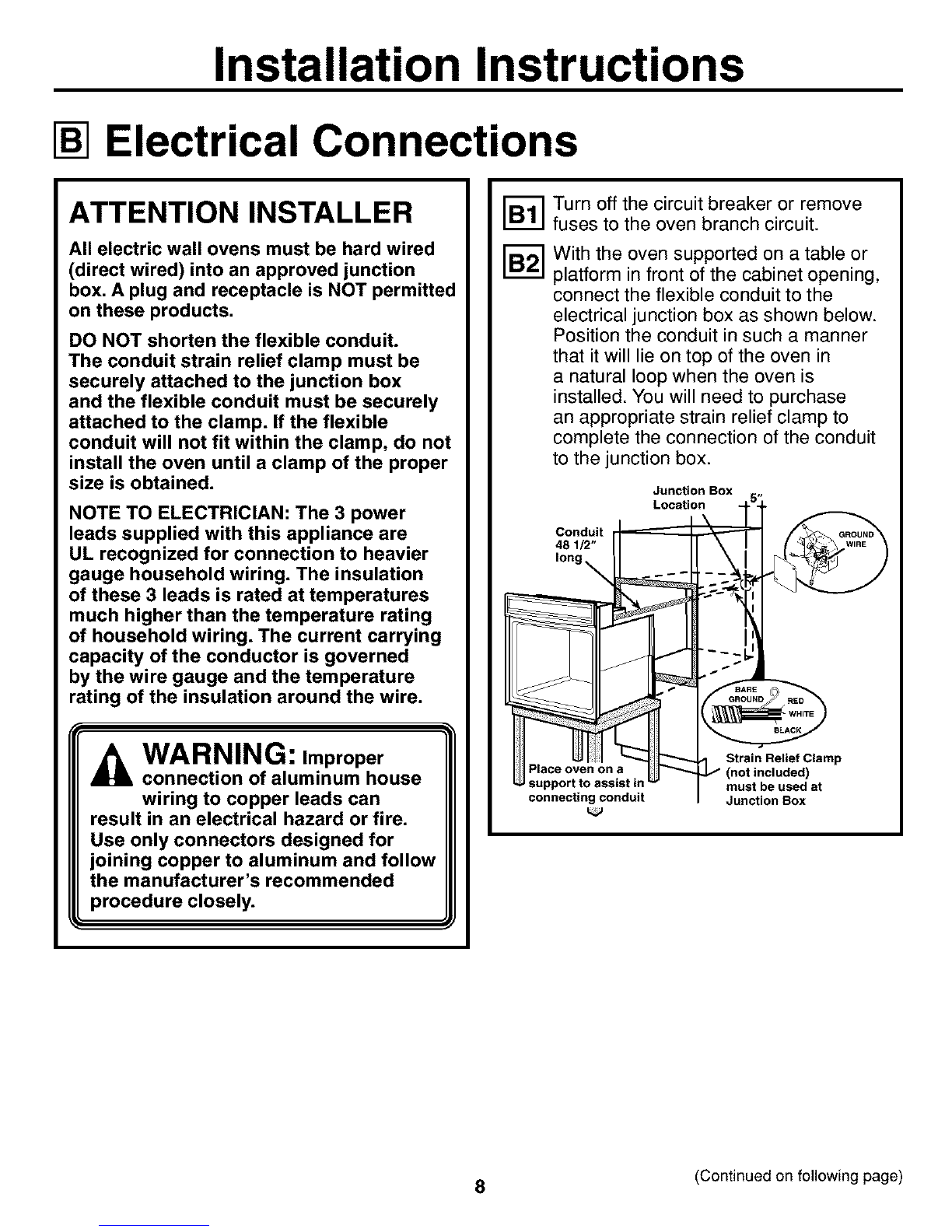

I-B-]Electrical Connections

ATTENTION INSTALLER

All electric wall ovens must be hard wired

(direct wired) into an approved junction

box. A plug and receptacle is NOT permitted

on these products.

DO NOT shorten the flexible conduit.

The conduit strain relief clamp must be

securely attached to the junction box

and the flexible conduit must be securely

attached to the clamp. If the flexible

conduit will not fit within the clamp, do not

install the oven until a clamp of the proper

size is obtained.

NOTE TO ELECTRICIAN: The 3 power

leads supplied with this appliance are

UL recognized for connection to heavier

gauge household wiring. The insulation

of these 3 leads is rated at temperatures

much higher than the temperature rating

of household wiring. The current carrying

capacity of the conductor is governed

by the wire gauge and the temperature

rating of the insulation around the wire.

WARNING: Improper

connection of aluminum house

wiring to copper leads can

result in an electrical hazard or fire.

Use only connectors designed for

joining copper to aluminum and follow

the manufacturer's recommended

procedure closely.

Turn off the circuit breaker or remove

fuses to the oven branch circuit.

With the oven supported on a table or

platform in front of the cabinet opening,

connect the flexible conduit to the

electrical junction box as shown below.

Position the conduit in such a manner

that it will lie on top of the oven in

a natural loop when the oven is

installed. You will need to purchase

an appropriate strain relief clamp to

complete the connection of the conduit

to the junction box.

Junction Box ,,

Location -t-5-4-

Paceoe o s_l _-_ 1/ (notincluded)

support to assist in '_ must be used at

connecting conduit Junction Box

8(Continued on following page)

Installation Instructions

I-B-]Electrical Connections cont.

New Construction and

Four Conductor Branch

Circuit Connection

•When installing in new construction, or

• When installing in a mobile home, or

• When installing in a recreational vehicle, or

• When local codes do not permit grounding

through neutral:

a. Cut the neutral (white) lead from the crimp.

Re-strip the neutral (white) lead to expose

the proper length of conductor.

_Junction Box

Cover

b. Attach the appliance grounding lead (green

or bare copper) in accordance with local

codes. If the residence grounding conductor

is aluminum, see WARNING on page 8.

c. Connect the oven neutral (white) lead to

the branch circuit neutral (white or gray)

in accordance with local codes, using a

wire nut.

d. Connect the oven red lead to the branch

circuit red lead and the oven black lead to

the branch circuit black lead in accordance

with local codes, using wire nuts. If the

residence red, black or white leads are

aluminum conductors, see WARNING on

page 8.

e. Install Junction Box Cover.

Three-Conductor Branch

Circuit Connection

When connecting to a three-conductor branch

circuit, if local codes permit:

a. Connect the bare oven ground conductor

with the crimped neutral (white) lead to

the branch circuit neutral (white or gray

in color), using a wire nut.

b. Connect the oven red lead to the branch

circuit red lead in accordance with local

codes, using a wire nut.

c. Connect the oven black lead to the branch

circuit black lead in accordance with local

codes, using a wire nut. If the residence

red, black or white leads are aluminum

conductors, see WARNING on page 8.

d. Install Junction Box Cover.

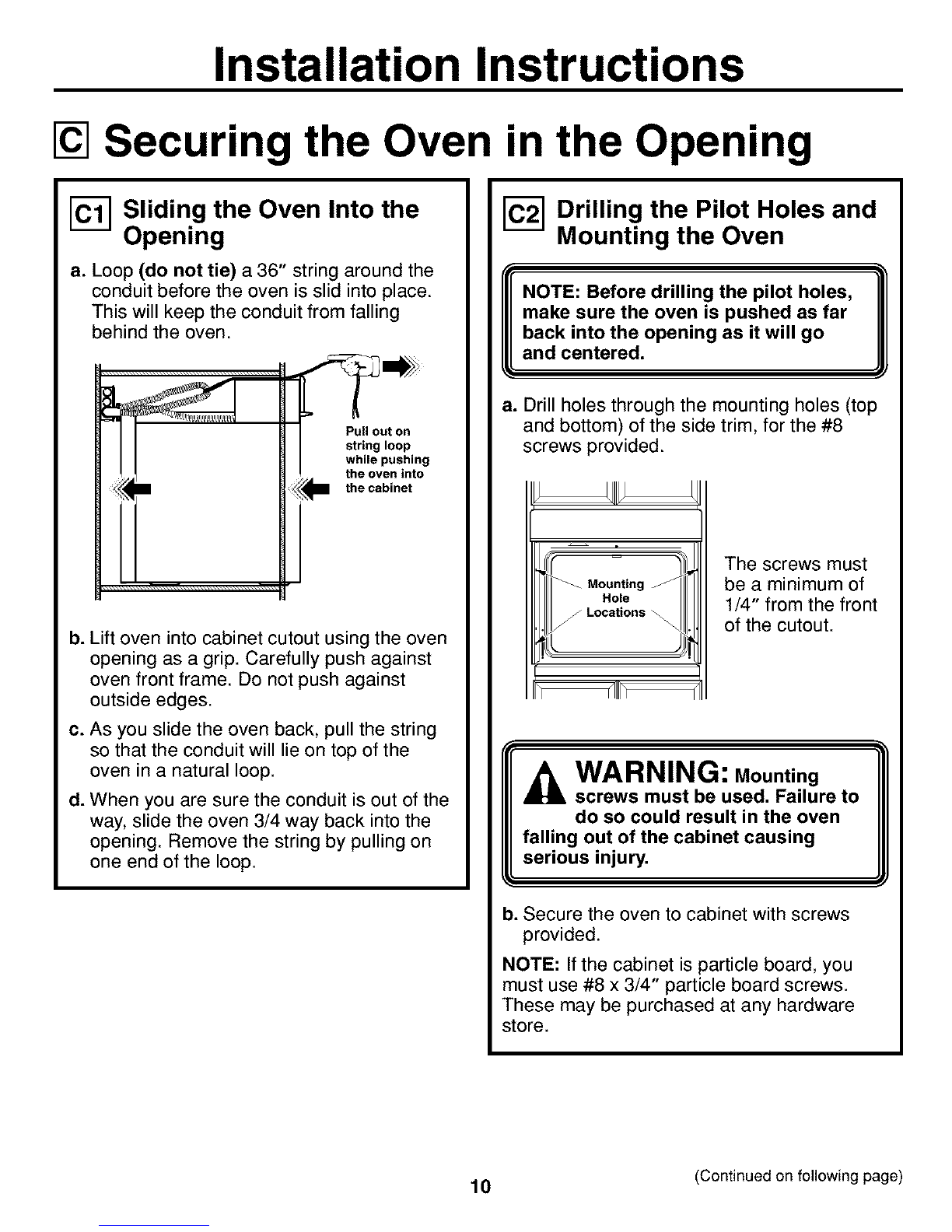

Installation Instructions

Securing the Oven in the Opening

Sliding the Oven Into the

Opening

a. Loop (do not tie) a 36" string around the

conduit before the oven is slid into place.

This will keep the conduit from falling

behind the oven.

Pull out on

string loop

while pushing

the oven into

BB the cabinet

b. Lift oven into cabinet cutout using the oven

opening as a grip. Carefully push against

oven front frame. Do not push against

outside edges.

c. As you slide the oven back, pull the string

so that the conduit will lie on top of the

oven in a natural loop.

d. When you are sure the conduit is out of the

way, slide the oven 3/4 way back into the

opening. Remove the string by pulling on

one end of the loop.

I-_ Drilling the Pilot Holes and

Mounting the Oven

NOTE: Before drilling the pilot holes,

make sure the oven is pushed as far

back into the opening as it will go

and centered.

a. Drill holes through the mounting holes (top

and bottom) of the side trim, for the #8

screws provided.

The screws must

be a minimum of

1/4" from the front

of the cutout.

_i WARNING: Mounting

screws must be used. Failure to

do so could result in the oven

falling out of the cabinet causing

serious injury.

b. Secure the oven to cabinet with screws

provided.

NOTE: If the cabinet is particle board, you

must use #8 x 3/4" particle board screws.

These may be purchased at any hardware

store.

10 (Continued on following page)

Autres manuels pour 911.47712

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Kenmore Four

Kenmore

Kenmore Roaster oven 238.48238 Manuel utilisateur

Kenmore

Kenmore 22-48782 Manuel utilisateur

Kenmore

Kenmore KENMORE 911.41369 Manuel utilisateur

Kenmore

Kenmore 911. 48385 Manuel utilisateur

Kenmore

Kenmore ELECTRIC WALL OVEN Manuel utilisateur

Kenmore

Kenmore SF22-804 Instructions de montage

Kenmore

Kenmore 22-48733 Manuel utilisateur

Kenmore

Kenmore 4061 - 24 in. Clean Double Wall Oven Manuel utilisateur

Kenmore

Kenmore 4100 - Pro 30 in. Electric Single Wall Oven Manuel utilisateur

Kenmore

Kenmore 911.41065 Manuel utilisateur

Kenmore

Kenmore 911.41779790 Manuel utilisateur

Kenmore

Kenmore 790.47735 Series Manuel utilisateur

Kenmore

Kenmore 30-inch electric wall ovens Manuel utilisateur

Kenmore

Kenmore 911.47712 Manuel utilisateur

Kenmore

Kenmore Kenmore 911.40494 Manuel utilisateur

Kenmore

Kenmore 790.4019 Series Manuel utilisateur

Kenmore

Kenmore Kenmore 911.30425 Manuel utilisateur

Kenmore

Kenmore Sears 40429 Instructions d'installation

Kenmore

Kenmore 790.9750 Series Manuel utilisateur

Kenmore

Kenmore 790.4030 SERIES Manuel utilisateur

Kenmore

Kenmore 790. 4043 Manuel utilisateur

Kenmore

Kenmore 911.33465 Manuel utilisateur

Kenmore

Kenmore ELECTRIC WALL OVEN Manuel utilisateur

Kenmore

Kenmore 790.4034 Series Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
