OWNER'S MANUAL IB-832310

HEPA 100

AIR CLEANING

SYSTEM

Model

437.83231

• Operating Instructions

°Parts List

CAUTION:

Read and follow all Safety

Rules and Operating

Instructions before first

use of this product.

INFO-LINE

After having read this manual,

if you have any questions or

comments on your Kenmore

air cleaner, call:

1-800-554-4558

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

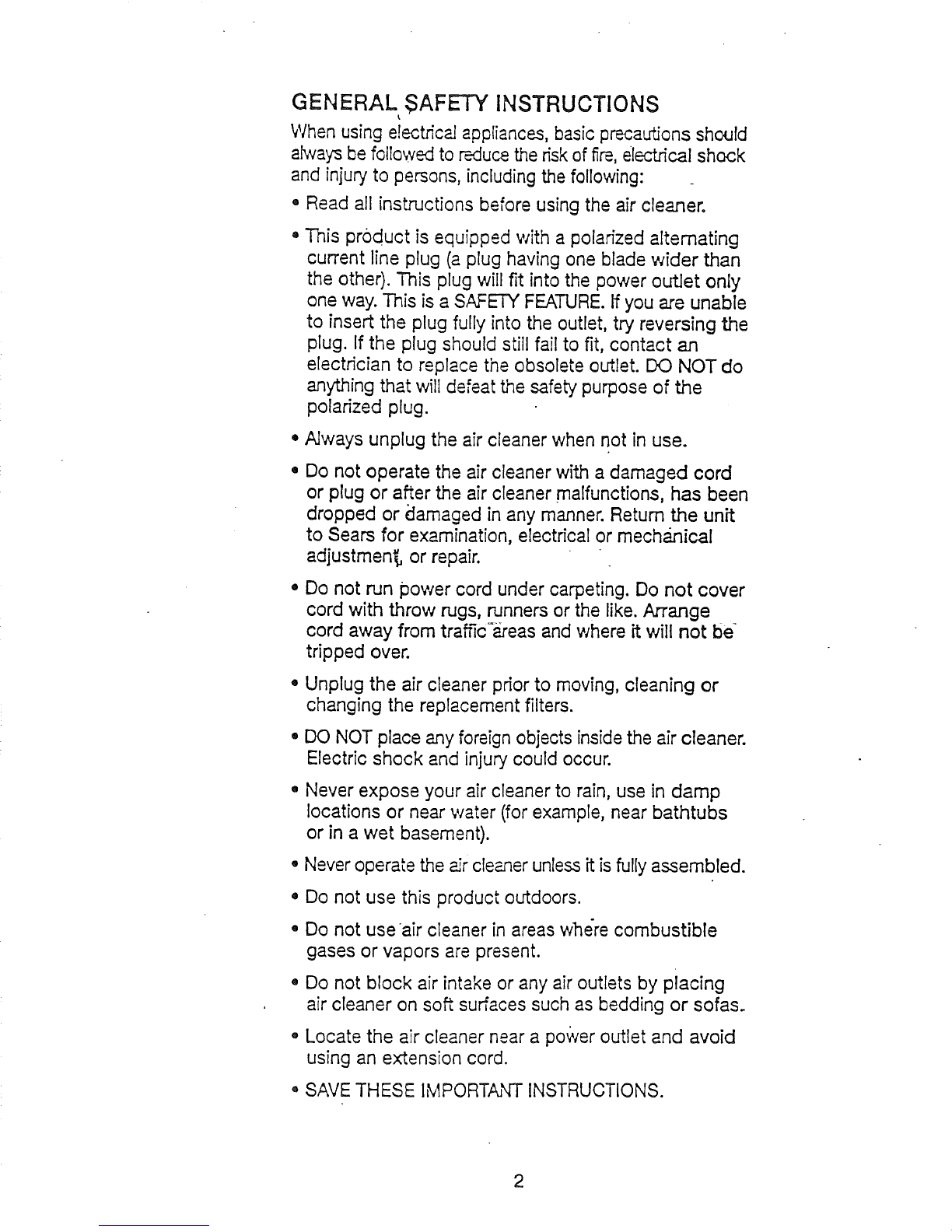

GENERAL SAFETY INSTRUCTIONS

When using e!ectric_ appliances, basic precautions should

always be followed to reducethe risk of fire,electrical shock

and injury to persons, including the following:

° Read all instructions before using the air cleaner.

• This product is equipped with a polarized alternating

current line plug (a plug having one blade wider than

the other). This plug will fit into the power outlet only

one way. This is a SAFETY FEATURE. If you are unable

to insert the plug fully into the outlet, try reversing the

plug. If the plug should still fail to fit, contact an

electrician to replace the obsolete outlet. DO NOT do

anything that will defeat the safety purpose of the

polarized plug.

• Always unplug the air cleaner when not in use.

• Do not operate the air cleaner with a damaged cord

or plug or after the air cleaner malfunctions, has been

dropped or clamaged in any manner. Return the unit

to Sears for examination, electrical or mecha'lical

adjustmenf, or repair.

• Do not run power cord under carpeting. Do not cover

cord with throw rugs, runners or the like. Arrange

cord away from traffic'_eas and where it will not be_

tripped over.

• Unplug the air cleaner prior to moving, cleaning or

changing the replacement filters.

• DO NOT place any foreign objects inside the air cleaner.

Electric shock and injury could occur.

• Never expose your air cleaner to rain, use in damp

locations or near water (for example, near bathtubs

or in a wet basement).

° Never operate the a_rcleaner unless it is fully assembled.

• Do not use this product outdoors.

° Do not use air cleaner in areas where combustible

gases or vapors are present.

° Do not block air intake or any air outlets by placing

air cleaner on soft surfaces such as bedding or sofas.

° Locate the air cleaner near a po_¢er outlet and avoid

using an extension cord.

° SAVE THESE IMPORT/_XrT INSTRUCTIONS.

INTRODUCTION

Congratulations on your choice of the Kenm.oreHEPAAir

Cleaning system. HEPAis an acronym for High Efficiency

PaCdculateAir, which describes a fibrous media designed

to remove99.97% of particulates of 0.3 microns or larger

in size. A micron is one millionth of a meter. Forexample,

a human hair is approximately 100 microns in diameter,

while pollen and plant spores are greater than 1 micron

in diameter. '

Air pollulJoncan and does exist in our homes. The Kenmore

HEPAair cleaner has been designed to thoroughly clean

the airwhich WE CAN CONTROL: the air wff_hinour homes.

With your Kenmore HEPAAir Cleaning System, you can

provide clean and healthy air to your family, air that is free

of smoke particles, dust, pollen and other pollutants.

We highly recommend that yeu utilize the Kenmore HEPA

Air Cleaning System 24 hours each day to ensure that the

air circulating though your room is continuously being

'cleaned _4nclfiltered.

This HEPA airt,cleaning system is most effective when

used in a room with doors and windows closed.

tPurified ,_

Replaceable Clean Air Replaceable

charcoa] u!_zahigh-

pre-filter e_ciency

helps HEPA filter

remove removes up

unpleasant to £9.97% of

odors, pollutants as

sm_l as 0.3

microns.

Dirbj Air Dirty Air

Specially designed

quiet-running motor

FULL ONE YEAR WARRANTY

If within one (l) year from the date of purchase, this Air

Cleaner fails due to a defect in material or wcrkmanship,

Sears will repair or replace it free of charge. -

This warranty applies only while this product is in use

in the United States or Canada.

This warranty gives you specific legal rights and you

may also have other rights which may vary from state

to state.

This warranty DOES NOT cover the replacement HEPA

filter or pre-filter.

Sears, Roebuck and Co.

817WA, Hoffman Estates, IL 60179

GETTING TO KNOW YOUR

HEPA 100 AIR CLEANING SYSTEM

HOW YOUR FILTERING SYSTEM OPERATES:

Dirt, dust, pollen and smoke particulate-laden air is forced

through our thr'_--_stage filteringsystem, including the ionizer,

before it leaves the air cleaner.

Stage 1" Charcoal Pre-filter - Helps remove odors and

harmful gases.

Stage 2" HEPA Filter - The HEPA filter will remove pollen

and most other airborne particulates that affect people

who suffer from allergies and upper respiratory problems.

Stage 3" Elecb-onic IONIZER - Prior to exiting the air

cleaner, the air is exposed to an IONIZER which places

a negative charge on any remaining airborne particles.

The negative charge given to these particulates

enables them to be trapped more easily when they

pass through the system again. A further benefit of

the IONIZER is that it enhances indoor air "freshness".

Camjing Handle

Ion_er Cont_'ol _ /

Switch and_

Indicator " / " '_,,_.,,.._._" ._\

DateCalendars_

Locking __

Mechanism_'--__jj_

(onbottom)

Power Control

SMtch and

IIn_ndicatorUght

Air O_et

Air Intake

Grille

EXPLODED VIEW OF CONTROL PANEL

POWER CONTROL SWITCH and INDICATOR LIGHT -

This switch will turn the air cleaner ON or OFF and has

three speed selections: II1(super), II (high)and ! (low).

IONIZER CONTROL SWITCH and INDICATOR LIGHT°

An ionizer ON/OFF switch is provided so that you can

operate the _r clezner with or without the ionizer operating.

The Ionizer switch will only operate when the power switch

is on. The indicator light will glow when the ionizer is

powered on. The use of the ionizer will reduce the amount

of airborne particulates. If the air cleaner is placed too

close to a wall or is in a very polluted area, you might

notice a sediment of trapped ionized pollutants build up

on obiects adjacent to it.

AIR INTAKE GRILLE - Dirty air is drawn in 3_0: into the

Kenmore HEPA Air Cleaner.

AIR OUTLET -A_er the air has been cleaned by the HEPA

filter, it is dispersed UPWARDS into the surrounding

atmosphere.

CARRYING HANDLE - A convenient handle is provided to

enable easy relocation of your air cleaner.

FILTER CHANGE DATE CALENDARS - Two filter change

date wheels are provided as a convenient reminder when

to replace the pre-fllter and the HEPA filter.

SET-UP

Visually inspect the HEPA air cleaner upon removing the

unit from its box. Remove and discard any packaging

material. Return the unit if it shows any signs of damage or

mishandling. ThiS unit was thoroughly inspected and tested

at the factory prior to packaging.

Upon start up of your Kenmore HEPA Air Cleaner, set the

'Pre-fllter Change Date Calendar ahead 3 months and the

HEPA Change Date Calendar ahead 2 years to indicate

when the ne_ filter replacement is necessary.

CAUTION: DO NOT place the air cleaner within 3 feet of

any computer or any magnetically sensitive devices such

as floppy disks or tapes.

ELECTRICAL HOOK-UP

Plug the air cleaner into a polarized 120 Volt AC wall outleL

WARNING

To avoid fire or shock hazard, the HEPA air cleaner should

only be plugged into a polarized 120 Volt AC outleL

NEVER operate the HEPA air cleaning system without the

HEPA filter properly installed. Permanent motor damage

could result.

OPERATION

Each time the air cleane_ is operated, turn the control

switch to the Iii (super) position for a fast initia! cleaning for

a few seconds. Then adjust the control switch to the

desired output setting:

III (super) - Maximum operation ° fast initial cleaning

II (high) - Daytime operation - fast fan speed

I (low) - Night-time - quieter operation

Turn IONIZER switch ON.

CLEANING

WARNING: Prior to any cleaning operation, the air cleaner

must be turned OFF and unplugged from the power

outlet.

1. Clean the air cleaner with a moistened soft cloth only.

DO NOT pour or splash water on the unit or use any

abrasive type cleaner on it. Clean all external surfaces,

especially the air intake grilles and air outlet.

DO NOTattempt to clean the filter cartridge; it is

NOT washable.

2. Reposition air cleaner. Plug into operational outlet and

turn ON.

FILTER CHANGE SCHEDULE

PRE FILTER (MODEL 83237) -The pre-filter should be

changed every three (3) months or sooner depending

upon the level of the room's air contaminants and the

frequency of use.

HEPA FILTER(.MODEL85239) - The usable lifetime of the

HEPA filter is I - 3 years depending upon the level of air

contaminants in the room and the frequency of use. The air

volume outpu-l;will begin to decrease dramatically when the

filter needs to be changed, It is advisable to have a spare

filter available for later replacement.

FILTER REPLACEMENT

These specially designed filters are made for easy

replacement and maximum performance.

THEY ARE NOT WASHABLE.

Step 1

Turn the HEPA air cleaner OFFand unplug the unit from the

power outlet.

Step 2

Open by gently placing the air cleaner on its side and

unscrewing the locking mechanism.

Step 3

Remove the base assembly from the air cleaner.

Strap Fastener

Power Head

Charcoal Pre-filter

HEPA Rlter

Locking

Mechanism

Base

REPLACING THE CHARCOAL PRE-FILTER

(Model #83237)

Step 4

Removethe filter assembly (consisting of the HEPAfilter

and pre-filter) from the power head.

•Step 5

Removethe strap fastenerand carefullyremovethe pre-filter

and discard.

Step 6

Remove any plastic protective wrapping from the new pre-

filter prior to insertion in.tothe HEPA air cleaner. Carefully

wrap the new pre-filter around the HEPA filter and secure

into place with the strap fastener. Proceed to step #10.

CHANGING THE HEPA FILTER (Model #83239)

Step 7

Follow insb_JctJonsthrough Step 6. Remove used HEPAfilter

assembly and discard the filter.

Step 8

Remove any protective plastic wrapping and packaging from

the New HEPA filter.

Step 9

Replace the pre-filter by wrapping it around the HEPA

filter and use the strap fastener to secure the pre-filter in

place. Please be sure that the pre-filter has been properly

installed and is laying fiat around the HEPA fiiter.

Step 10

Place the filter assembly into the power head and install

the base.

Note: The HEPA filter assembly was designed to easily Frt

into the power head v@hout any orientation: there is no

top or bottom to the HEPA filter.

Step 11

Lock the base Into place by replacing and tightening the

locking mechanism securely.

Step 12

Adjust the filter change calend2_'(s)to properly!ndicate

when the next filter change is nece.ss_ry.

Step 13

Turn the HEPA air cleaner upright and the HEPAair cleaner

is ready for operation.

STORAGE

If you store your Kenmore HEPA Air Cleaning System

for more than 30 days, we recommend that you:

1. Remove both the primary HEPA filter and the

charcoal pre-filter from the unit.

2. Discard the pre-filter.

3. Wrap the HEPA filter in an air-tight plastic bag or

•plastic wrap. Be sure that the filter is totally sealed+

! .lr

To restore the air cleaner to service:

1. Unwrap t_e HEPA filter.

2. Install a ne,w activated carbon pre-filter.

•3. Replace both filters in the air cleaner.

(see "Filter Replacement" section for proper

installation).

Technical Specifications

Diameter. 12.5 inches 31.8 cm

Height: 11.5 inches. 29.2 crn

Weight: 8.1 Ibs. 3.7 kgs.

InputVoltage: 120VoltsAC,

60 Hz

Ionization Voltage: 7500 Volts DC

Sears reserves the right to change or modify any

specification without notice. .. -

REPLACEMENT PARTS LIST

Filter Replacement:

Charcoal Pre-filter 83237

HEPA Filter 83239

Component Parts:

Power Head

Base

Locking Mechanism

83231-1

83231-2

83231-3

CUSTOMER ASSISTANCE LINE

Tnere are no customer-serviceable parts inside this air

cleaner. If you experience any problem, please see.the

warranty for information. Please DO NOT attempt to repair

this unit yourself. Doing so wilt void your wan-__ty and

could cause damage to the air cleaner or pe_onaJ injury

to yoursdf. If you have any quesgons ccncernir,g this appli-

ance, please call toll free:

1-800-554-4558

Business Hours:

Mon.- Fri., 8:00 am o10:00 pm EST,

Sat.- Sun., 8:30am - 5:00 pm EST.

HOW TO ORDER REPLACEMENT PARTS

To order replacement pa_s by phone, call toll free:

1-800-FON-PART (1-800-366-7278)

7am-7pm, 7 days a week

_en orclering' replacement par'_s,always give the

following information:

Part Numbe_

Part Description:

Model Number:.

Name of the Item:

See Replacement Parts List

437-83231

HEPA 100 Air Cleaning System

Power Head

#83231-1

Strap Fastener HEPA Rlter

#83239 Locking

Mechanism

#83231-3

Charcoal Pre-filter

#83237

Base

#&3231-2

Table des matières

Autres manuels Kenmore Purificateur d'air

Kenmore

Kenmore PlasmaWave 85150 Manuel utilisateur

Kenmore

Kenmore 1200e Series Manuel utilisateur

Kenmore

Kenmore 147 Manuel utilisateur

Kenmore

Kenmore KENMORE 635.83142 Manuel utilisateur

Kenmore

Kenmore HEPA 152.8525 Manuel utilisateur

Kenmore

Kenmore 83353 Manuel utilisateur

Kenmore

Kenmore 152.83244 Manuel utilisateur

Kenmore

Kenmore 635.83142 Manuel utilisateur

Kenmore

Kenmore ENVIROSENSE 85500 Manuel utilisateur

Kenmore

Kenmore 83230 Manuel utilisateur

Kenmore

Kenmore KENMORE 437.83163 Manuel utilisateur

Kenmore

Kenmore 1500e Series Manuel utilisateur

Kenmore

Kenmore PlasmaWave 85150 Manuel utilisateur

Kenmore

Kenmore 635.83131 Manuel utilisateur

Kenmore

Kenmore 850e Series Manuel utilisateur

Kenmore

Kenmore 437.85264 Manuel utilisateur

Kenmore

Kenmore 152.83220 Manuel utilisateur

Kenmore

Kenmore D42 M32701 Manuel utilisateur

Kenmore

Kenmore SMART 2300e Series Manuel utilisateur

Kenmore

Kenmore 850e Series Manuel utilisateur

Kenmore

Kenmore 1200e Series Manuel utilisateur

Kenmore

Kenmore 437.83235 Manuel utilisateur

Kenmore

Kenmore PlasmaWave 85300 Manuel utilisateur

Kenmore

Kenmore 1500e Series Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur
