Kendal Lighting AC-16652 Manuel utilisateur

(MODEL NUMBER:AC-16652)

SAFETY PRECAUTIONS

WARNING

To reduce the risk of personal injury,

do not bend the blades when installing

the blades, balancing the blades or

cleaning the fan. Do not insert foreign

objects between rotating fan blades.

WARNING

The box must be supported directly by

the building structure. The box and its

support must be able support the fan

weight - must not twist or work loose.

Do not use plastic boxes.

WARNING-INSTALLATION SHOULD BE PERFORMED BY A QUALIFIED

ELECTRICAN

1. To ensure the success of the installation, be sure to read the instructions and review

the diagrams thoroughly before beginning.

2. All electrical connections must be in accordance with local codes, ordinances or

National Electrical Code. If you are unfamiliar with methods of installing

electrical wiring secure the services of a qualified electrician.

3. Make sure that your installation will not allow rotating fan blades to come in

contact with any object.

4. If you are installing more than one ceiling fan, make sure that you do not mix fan

blade sets.

5. Only mount fan to outlet box marked acceptable for ceiling fan.

6. Installation to a concrete ceiling should be performed by a qualified electrician.

7. Before beginning, disconnect power by removing fuse or turning off circuit

breaker.

8. After fan is completely installed, make sure that all connections are secured to

prevent fan from falling.

9. Do not insert anything into the fan blades while ceiling fan is operating.

10. Fan must be turned off and stopped before reversing fan direction.

11. The fan must be mounted with the blades at least 2.3m from the floor to minimum

the possibility of accidental contact with the fan blades.

12. The supply wires Live & Neutral must be connected to wall switch (double poles)

having a contact separation at least 3mm in all poles.

Putting Your Fan Together

Hanging Your Ceiling Fan

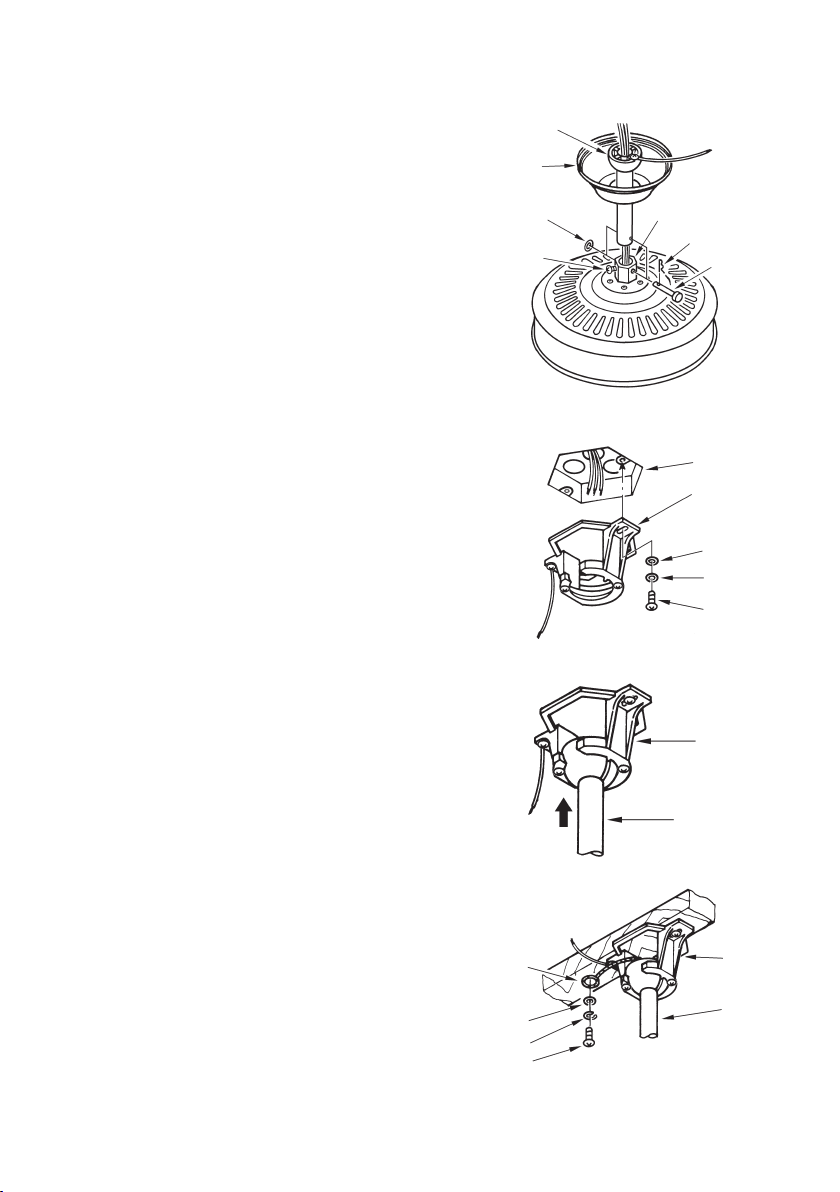

1. Insert the downrod through the center

opening in the canopy and route the

motor leads through the hanger ball/

downrod assembly. Align the clevis pin

holes in the downrod with the holes in

the motor coupling. The clevis pin must

pass through the holes in the motor

coupling and the downrod. Place the

washer onto the clevis pin and install the

hairpin clip making sure to push straight

leg of the hairpin clip through the hole

near hanger ball to make sure the clevis

pin is properly installed (see Fig.1)

2. Remove the 2 set screws in the motor

coupling and securely tighten screws

against the downrod assembly.

Securely attach the hanger bracket to the

outlet box by washers and screws supplied

(see Fig.2)

Carefully lift the fan and seat the downrod

and ball assembly on the hanger bracket.

Be sure the groove in the ball is lined up

with tab on the hanger bracket. (see Fig.

Install the safety cable into the building

structure (see Fig.4)

FIG.2

FIG.3

FIG.4

FIG.1

CLEVIS

HAIR PIN

CLIP

COUPLING

SCREW

WASHER

CANOPY

HANGER

BALL

OUTLET

BOX

HANGER

BRACKET

WASHER

HANGER

BRACKET

SAFETY

CABLE

SPRING

WASHER

HANGER

BRACKET

DOWNROD

WASHER

SCREW

Wiring Your Ceiling Fan

Installing Blade Assembly

Installing The Switch Housing

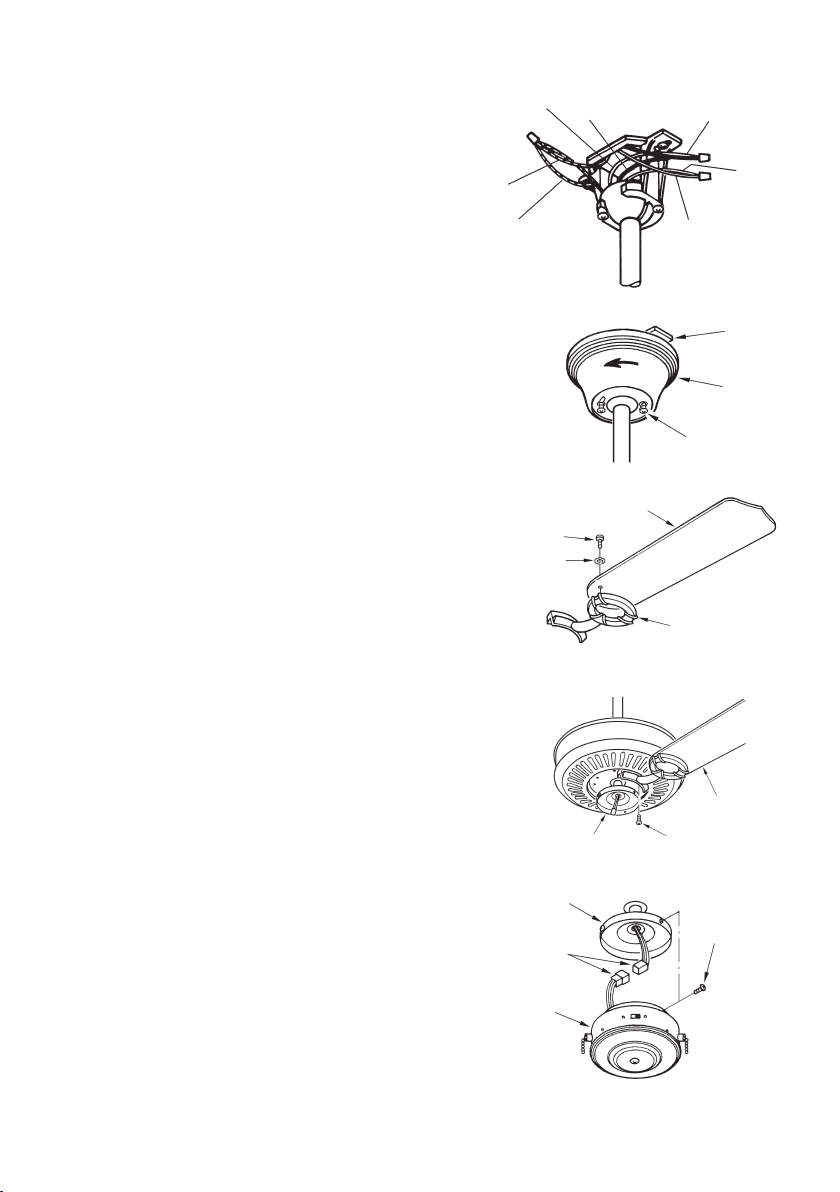

1. If you are not sure that the electrical box

is grounded, contact a licensed electrician

for advice. It must be grounded for safe

operation.

2. Connect the black wire from the outlet

box to the black and blue wire from fan

with wire nut. Connect the white wire

from outlet box to the white wire from

fan with wire nut. Connect the green wire

from the outlet box to the green wire from

the fan (see Fig.5)

3. Loosen the two canopy mounting screws

from the hanger bracket. Mount the canopy

on the two screws in the hanger bracket

and twist the canopy, so the screw heads

hold the canopy in place. Retighten the

two screws (see Fig.6)

Install the screw, washer, blade and blade

bracket together & tighten them securely

(see Fig.7)

Attached each blade assembly to the fan

body using the blade screws. Tighten them

securely (see Fig.8)

Connect the plug from the fan and switch

housing (see Fig.9)

FIG.6

FIG.7

FIG.8

FIG.9

FIG.5 HANGER

BRACKET

CANOPY

SCREW

BLADE

BRACKET

BLADE

SCREW

PLUG

SWITCH

HOUSING

SCREW

SWITCH COVER

BLADE

WASHER

SCREW

WHITE

BLACK

BLUE

GROUND

Caution : To avoid possible electrical

shock, be sure electricity is turned off at

the main fuse box before wiring.

FIG.10

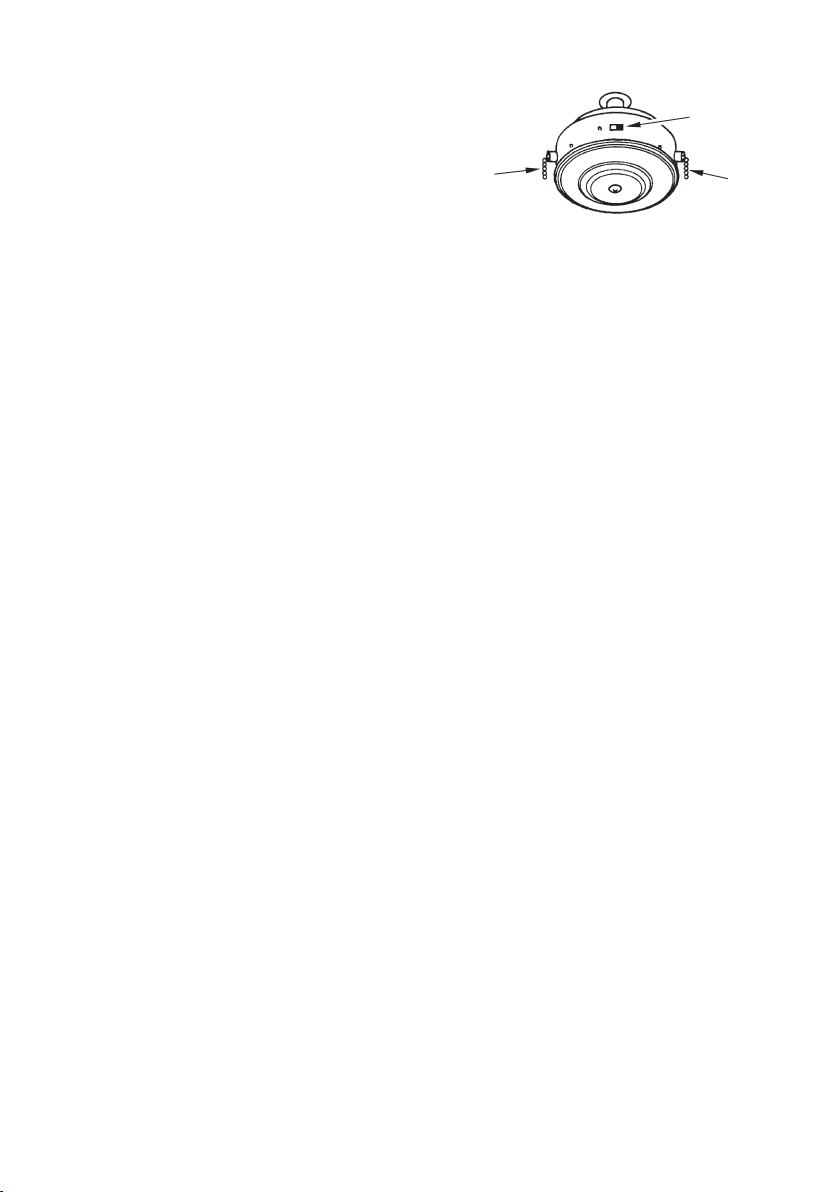

The light pull chain has two positions. One

pull turns the light on, two turns the light

kit off. The fan pull chain has four posit-

ions. One pull is high, two is medium, th-

ree is low and four to turn it off. (see Fig.10)

LIGHT

PULL

CHAIN SPEED PULL

CHAIN

REVERSE

SWITCH

Operation in Summer

In warm weather, the reverse switch should

be set to produce a downward flow of air.

The constant, gentle breeze will transfer

heat from your body; thus, you will feel

cooler even if the temperature remains

unchanged. This cooling effect is referred

to as a wind-chill factor. In an air-

conditioned home, the wind-chill factor

will allow you to set the thermostat higher

than the usual setting. While using less

energy to air-condition your home, you

will stay just as cool.

For summer cooling, set the speed control

on medium or fast speed. This will

provide sufficient airflow to accomplish a

cooling effect. The exception to this is in

bedrooms where a brisk, downward flow

would be too chilly. A low-speed, gentle

breeze is all that is necessary to keep you

comfortable at night.

Operating in Winter

Winter comfort requires a different

approach. Because warm air rises the air

close to the ceiling is always warmer-by

perhaps 15 degrees-than the air close to the

floor. To prevent heat from hovering

where it does little good, move the reverse

switch to create an upward airflow. This

will pull cool air up and force warm air

across the ceiling and down the walls. Set

the variable speed control fast enough to

break up the air stratification, but slow

enough not to create a draft. By keeping

the heat circulating, the heater will not

have to operate as often to keep you warm.

CARE OF YOUR FAN

Here are some suggestions to help you maintain your fan.

1. Because of the fan's natural movement, some connections may become loose. Check the support

connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is

not necessary to remove fan from ceiling.)

2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft

brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to

minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the

motor, or the wood, or possibly cause an electrical shock.

3. You can apply a light coat of furniture polish to the wood blades for additional protection and

enhanced beauty. Cover small scratches with a light application of shoe polish.

4. There is no need to oil your fan. The motor has permanently lubricated sealed ball bearings.

TROUBLESHOOTING

Problem

Fan will not start.

Fan sounds noisy.

Remote control

malfunction.

Lights shut off and will

not come back on.

Fan wobble.

Solution

1. Check main and branch circuit fuses or breakers.

2. Check line wire connections to the fan and switch wire connections in the

switch housing.

3. Check to make sure the dip switches from the transmitter and receiver are

set to the same frequency.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade bracket to the motor hub are

tight.

3. Make sure wire nut connections are not rattling against each other or the

interior wall of the switch housing.

4. Allow a 24-hour "breaking-in" period. Most noises associated with a new fan

disappear during this time.

5. If using ceiling fan light kit, make sure the screws securing the glassware

are tight. Check that the light bulb is also secure.

6. Make sure there is a short distance from the ceiling to the canopy. It should

not touch the ceiling.

7. Make sure your ceiling box is secure and rubber isolator pads are used

between mounting bracket and outlet box.

1. Do not connect the fan with a wall mounted variable speed control(s).

2. Make sure the dip switches are set correctly.

1. This unit may be equipped with a wattage limiting device. Lamping in

excess of 190 watts will disable your ceiling fan's light kit. To reset your light

kit you must turn the power off and relamp, keeping the wattage under 190

watts. Restore power to your ceiling fan and continue normal operation.

1. Check that all blade and blade arm screws are secure.

2. Most fan wobbling problems are caused when blade levels are unequal.

Check this level by selecting a point on the ceiling above the tip of one of

the blades. Measure this distance. Rotate the fan until the next blade is

positioned for measurement. Repeat for each blade. The distance deviation

should be equal within 1/8".

3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.

4. If the blade wobble is still noticeable, interchanging two adjacent (side by

side) blades can redistribute the weight and possibly result in smoother

operation.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT

BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES,

OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS

BETWEEN ROTATING FAN BLADES.

TNA11112123
