Kendal Lighting AC-20152 Manuel utilisateur

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

C.E.T.L. LISTED MODEL: D5201

Weight of Fan: 7.92Kgs

KENDAL LIGHTING

Kendal Lighting (BC) Inc.

#110, 6780 Dennett Place

Delta, BC V4G 1N4

Canada

Tel: (604) 952-5510

Fax: (604) 952-5513

Model: AC-20152

2. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items;

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

1. TOOLS AND MATERIALS

REQUIRED

a. Hanger bracket

b. Canopy

c. Canopy cover

d. Coupling cover

e. Downrod assembly

f. Fan motor assembly

g. Mounting plate

h. Light kit plate

i. 75W JD-type halogen bulbs (2)

j. Glass shade

k. Blade set (4)

l. Blade holder(4)

m. Receiver + 6 wire nuts

n. Transmitter assembly

Screws A(2),Screws B(2)

Screws C(2), Plastic anchor(2)

3 volt (#2032) batteries(2)

o. Package hardware

1) Blade attachment hardware:

screws(13), fiber washers(13)

2) blade holder hardware:

screw(9)

3) Mounting hardware:

wood screws(2),washers(2)

4) Balancing kit (1)

A B

3. SAFETY RULES

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualified

licensed electrician.

3. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

4. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

5. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

6. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

7. Avoid placing objects in the path of the

blades.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX

MARKED "ACCEPTABLE FOR FAN

SUPPORT".

8. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

9. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the grounded conductor and

the equipment - grounding conductor on

one side of the outlet box.

11. Electrical diagrams are reference only.

Light kit that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

ATTENTION: Canada's Office of Energy

Efficiency requires this fan to be equipped with

a 190 watt limiting device. If lamping exceeds

190 watts, the ceiling fan's light kit will shut off

automatically.

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS

If there isn't an existing CUL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

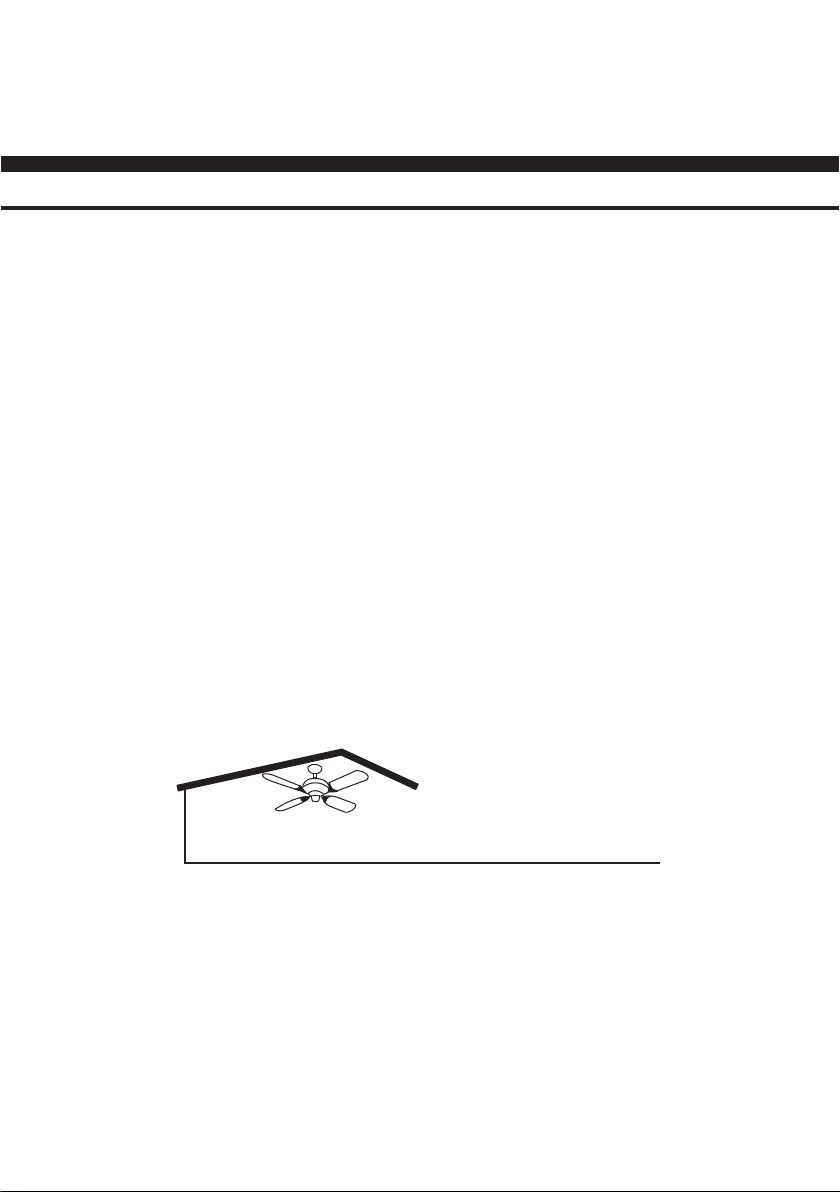

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

Outlet box

Provide strong

support

Recessed

outlet box

Ceiling

mounting

plate

Outlet box

Figure 1

Figure 3

Figure 4

Outlet box

Figure 2

Angled ceiling

maximum

20 angle

Figure 7

Groove

Tab

5. HANGING THE FAN

Figure 6

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Pass the 120-volt supply wires through

the center hole in the ceiling hanger bracket as

shown in Fig. 5.

Step 2. Secure the hanger bracket to the

ceiling outlet box with the screws and washers

provided with your outlet box.

Step 3. Remove the hanger pin, locking pin

from downrod and remove the set screws from

the top of the motor assembly.

Step 4. Route wires exiting from the top of the

fan motor through the couping cover, canopy

cover and canopy, then through the ball/

downrod. (Fig. 6)

Step 5. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig.6). Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin against

the wiring inside the downrod. Insert the

locking pin through the hole near the end of

the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

Step 6. Tighten two set screws on top of the

fan motor firmly. (Fig. 6)

Downrod

Canopy

Set screws

Locking

Hanger pin

Coupling cover

Canopy cover

Figure 5

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

plate

CUL Listed

electrial

box

120V Wires

Washers

Step 7. Place the downrod ball into the hanger

bracket socket. And rotate until groove in

hanger ball lines up with tab in hanger bracket.

(You will feel hanger ball drop into place as

you rotate.) (Fig. 7)

6. MAKE THE ELECTRIC

CONNECTIONS

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

NOTE: This remote control unit is equipped

with 16 code combinations to prevent possible

interference from or to other remote units.

The frequency switches on your receiver and

transmitter have been preset at the factory.

Please recheck to make sure the switches on

transmitter and receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter and

receiver are set to the same position. (Figure

Step 1. (Fig. 9) Insert the receiver into the

mounting bracket with the flat side of the

receiver facing the ceiling.

Step 3. (Fig. 10) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white (neutral) wire from the

ceiling to the white wire marked "AC in N" from

the Receiver. Secure the wire connections

with the plastic wire nuts provided.

Figure 10

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Blue ("to motor L")

Receiver

Blue (for bottom light)

Black (motor)

Figure 8

Figure 9

Receiver

Hanger

bracket

Code switch

Step 4. (Figure 10) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise, connect the hanging

bracket ground wire to the hanger ball ground

wire. Secure the wire connection with a plastic

nut provided. After connecting the wires, spread

them apart so that the green and white wires are

on one side of the outlet box and black and blue

wires are on the other side. Carefully tuck the

wire connections up into the outlet box.

Step 2. (Fig. 10) Motor to Receiver Electrical

Connections: Connect the Black wire from the fan to

Black wire marked "TO MOTOR L" from the receiver.

Connect the White wire from the fan to the White wire

marked "TO MOTOR N" from the receiver. Connect

the Blue wire from the fan to the Blue wire marked

"For bottom Light" from the receiver. Secure wire

connections with the plastic wire nuts provided.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit

for proper signal transmission between the

transmitting unit and the fan's receiving unit.

7. INSTALLATION OF

SAFETY CABLE

8. FINISHING THE

INSTALLATION

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to hanger bracket

and place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until

it locks in place at the narrow section of the

key holes. (Fig.12)

Step 3. Align the circular hole on canopy with

the remaining hole on the hanger bracket,

secure by tightening the two set screws. Note:

Adjust the canopy screws as necessary until

the canopy and canopy cover are snug.

WARNING: Make sure tab at bottom of

hanger bracket is properly seated in groove of

hanger ball before attaching canopy to

bracket. Failure to properly seat tab in groove

could cause damage to electrical wiring.

Figure 11

Figure 12

Hanger bracket Safety cable

Outlet box

Hanger

bracket

Canopy

Canopy cover

Screws

An additional safety cable is provided to prevent

the fan from falling. Secure the safety cable to

the ceiling joist with screw and washer, as

illustrated in Figure 11.

10. INSTALLATING THE

MOUNTING PLATE

Step 1. Remove 1 of 3 screws from the

mounting ring and loosen the other 2 screws.

(Do not remove)

Step 2. Place the key holes on the mounting

plate over the 2 screws previously loosened

from the mounting ring, turn mounting plate

until it locks in place at the narrow section of

the key holes. Secure by tightening the 2

screws previously loosened and the one

screw previously removed. (Fig. 16)

Figure 15

9. ATTACHING THE FAN

BLADES

Figure 13

Figure 14

Screws

Mounting

plate

Mounting

ring

CAUTION: Make sure all screws are

tightened securely.

Step 1. Attach the fan blades to the blade holders

by using three screws and fiber washers as

shown in Figure 13. Start a screw into the blade

holder, do not tighten. Repeat for the 2 remaining

screws and washers.

Step 2. Tighten each screw securely starting with

the center screw. Make sure the blade is straight.

Step3. Attach the blade assembly to the fan

motor assembly by tightening the two screws

previously the package hardware. (Figure 14) Fan motor assemby

Blade assembly

Screws

Fiber washers Blade

Blade holder

Figure 16

11. ATTACHING THE

LIGHT KIT PLATE

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

Figure 17

Figure 18

12. ATTACHING THE

LIGHT BULBS AND

GLASS SHADE

Step 1. Install 1 × 75W halogen bulb

(included). (Fig. 17)

Step 2. Install the glass shade by carefully

turning it clockwise until snug. DO NOT

OVERTIGHTEN. (Fig. 18)

Screw

Glass shade

Bulb

Mounting

plate

Light kit plate

White wire

connectors

WARNING: Shut off the power supply before

removing or replacing lamp. In handling of

halogen bulb, care should be taken not to touch

it with your bare hands. Oil residue will shorten

the life of the halogen bulb. If you accidentally

come into contact, wipe thoroughly with a clean,

lint-free, cotton cloth before installing. Allow the

bulb to cool off before changing the bulb. Use

light bulb in accordance with the fan's specifica-

tion. REDUCE THE RISK OF FIRE DO NOT

EXCEED MAXIMUM WATTAGE RATING.

Remove 1 of 3 screws from the mounting plate

and loosen the other 2 screws(Do not

remove). (Fig 16)

Connect white wire from motor to white wire

from light kit plate. Connect black wire from

motor to black wire from light kit plate.

Place key holes on the light kit plate over the 2

screws previously loosened from the mounting

plate, turn light kit plate until it locks in place at

the narrow setion of the key holes.Secure by

tightening 2 screws previously loosened and

the one previously removed. (Fig 16)

Black wire

connectors

Figure 20

Figure 21

Figure 19

13. INSTALLING THE

TRANSMITTER

HOLDER

Select a location to install your remote control

system transmitter. You can replace an

existing wall switch or, install the transmitter

on ANY flat surface.

Option 1: Install the remote c ontrol system

using an existing wall switch outlet box. Make

sure the electrical power is TURNED OFF at

the main panel before continuing.

Step 1. Remove the existing wall plate and the

old switch from the wall outlet box. Wire nut

the BLACK leads (hot) together and push

back inside the outlet box. (Fig. 19)

Step 2. Install the metal plate and wall plate to

the existing wall outlet box with 4 screws

provided. (Fig. 20)

Option 2: Install the control system on ANY

flat surface.

Select the desired location and use the wall

plate to mark the location for the mounting

holes. Plastic wall anchors and screws are

provided for this type of installation. After

installing the wall anchors, attached the wall

plate with the mounting screws. (Fig. 21)

Holder

Wall

Screws C

Screws B

Screws A

Wall plate

Outlet box Metal plate

Wall plate

Switch

Outlet box

Plastic

anchor

Table des matières

Autres manuels Kendal Lighting Ventilateur

Kendal Lighting

Kendal Lighting AC-19544 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-19242 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-20452 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC11152P-ORB/WN Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-24344 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-23856 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30052 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-20644 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22656 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22054 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21454 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21052 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-20244 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-24144 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30152 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-19856 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21852 Manuel utilisateur

Kendal Lighting

Kendal Lighting Lopro KENAC21352SN Manuel utilisateur

Kendal Lighting

Kendal Lighting Virtua Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21152 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21750 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22552 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30252 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21560 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
