READ AND SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

C.U.L. LISTED MODEL: AC-552

Weight of Fan: 8.04 Kgs

KENDAL LIGHTING

Kendal Lighting (BC) Inc.

#110, 6780 Dennett Place

Delta, BC V4G 1N4

Canada

Tel: (604) 952-5510

Fax: (604) 952-5513

Model: AC-22552

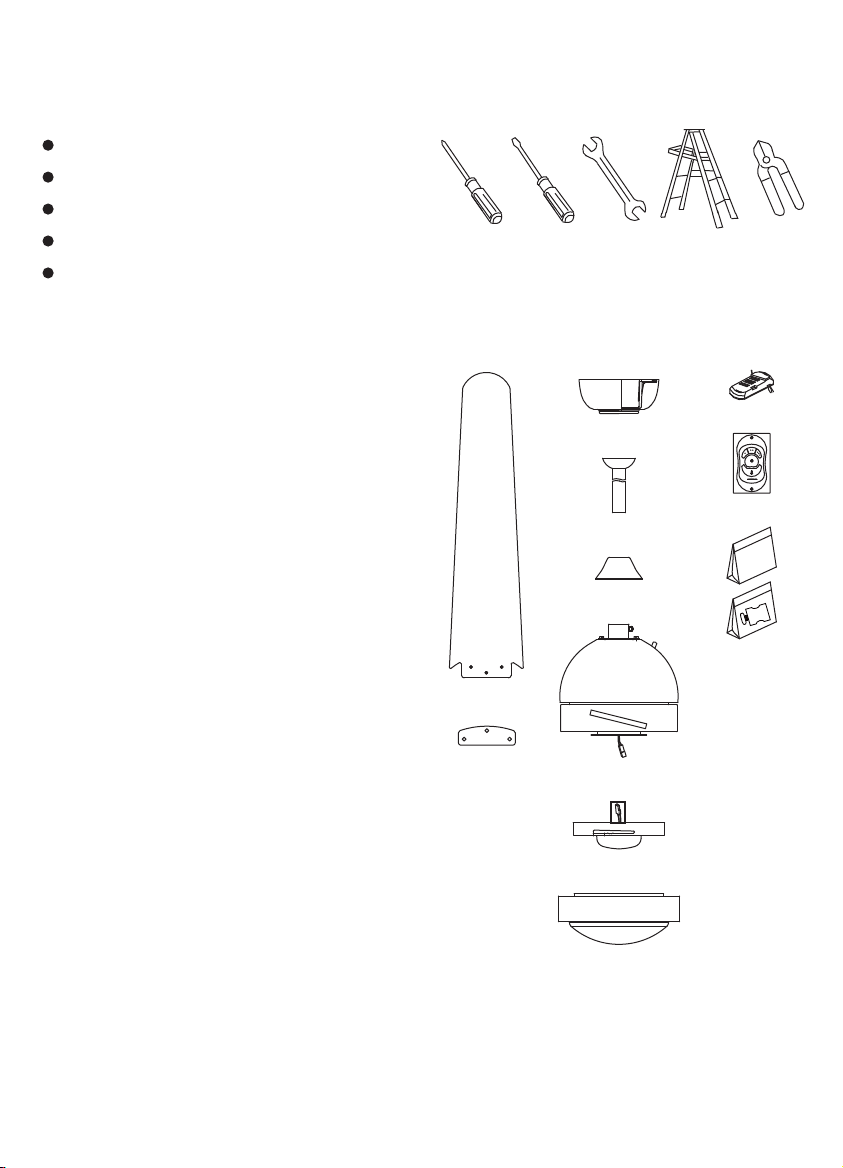

2. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Blade set (3)

b. Blade support plates (3)

c. Hanger bracket assembly

d. Downrod

e. Coupling cover

f. Fan motor assembly

g. 18W LED light kit

h. Glass shade assembly

i. Receiver + 6 wire nuts

j. Transmitter assembly

k. Package hardware

1) Mounting hardware:

wood screws (2), screws (2), lock

washers (4), washers (2), wire nuts

(3), rubber gasket (2)

2) Blade attachment hardware:

screws (10), fiber washers (10)

3) Safety cable clamp w/screw

4) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

1. TOOLS AND MATERIALS

REQUIRED

3. SAFETY RULES

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: To reduce the risk of shock,

this fan must be installed with an isolating

wall control/switch.

4. WARNING: To reduce the risk of fire,

electric shock, or other personal injury,

mount fan only on an outlet box or

supporting system marked acceptable for

fan support of 35 lbs (15.9 kg) or less and

use mounting screws provided with the

outlet box. Most outlet boxes commonly

used for the support of lighting fixtures are

not acceptable for fan support and may

need to be replaced. Consult a qualified

electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the grounded conductor and

the equipment-grounding conductor on

one side of the outlet box.

12. Electrical diagrams are reference only.

Light kit that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

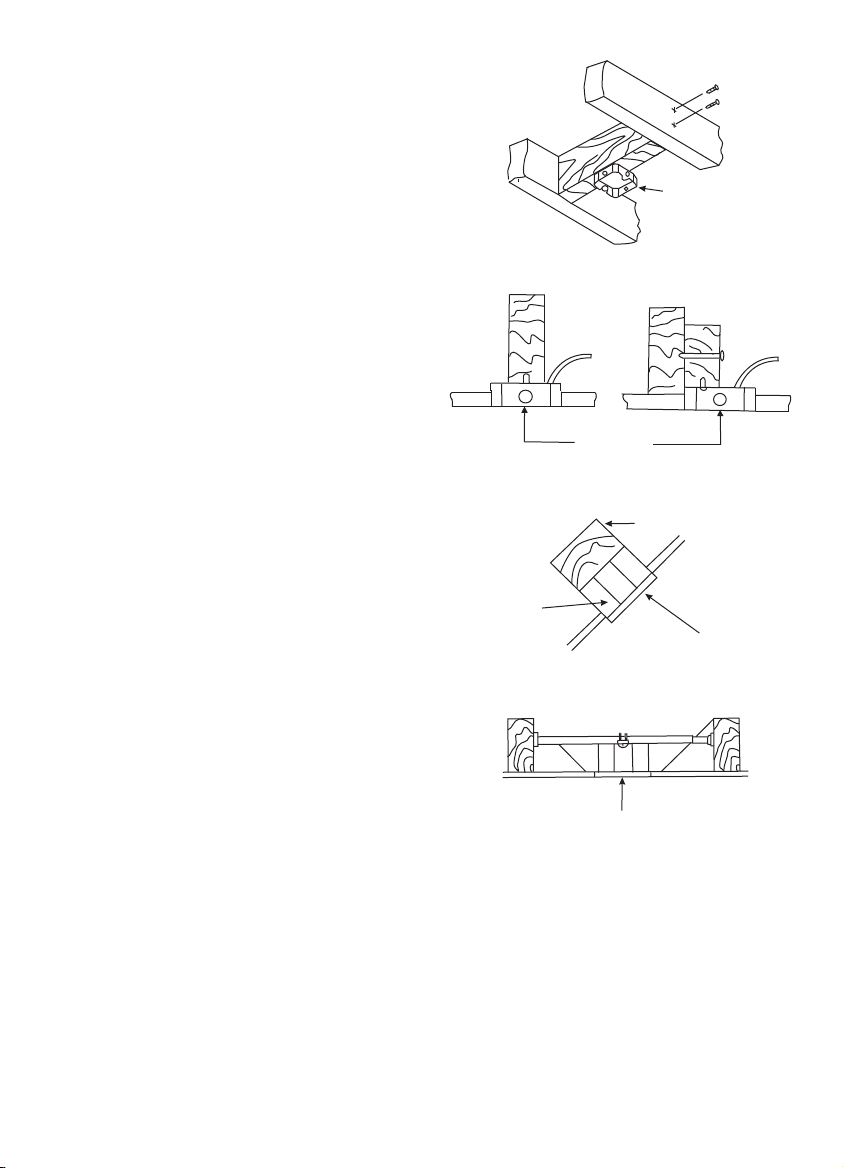

4. MOUNTING OPTIONS

If there isn't an existing CUL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

Outlet box

Provide strong

support

Recessed

outlet box

Ceiling

mounting

plate

Outlet box

Figure 1

Figure 3

Figure 4

Outlet box

Figure 2

Angled ceiling

maximum

20 angle

Figure 8

Registration slot

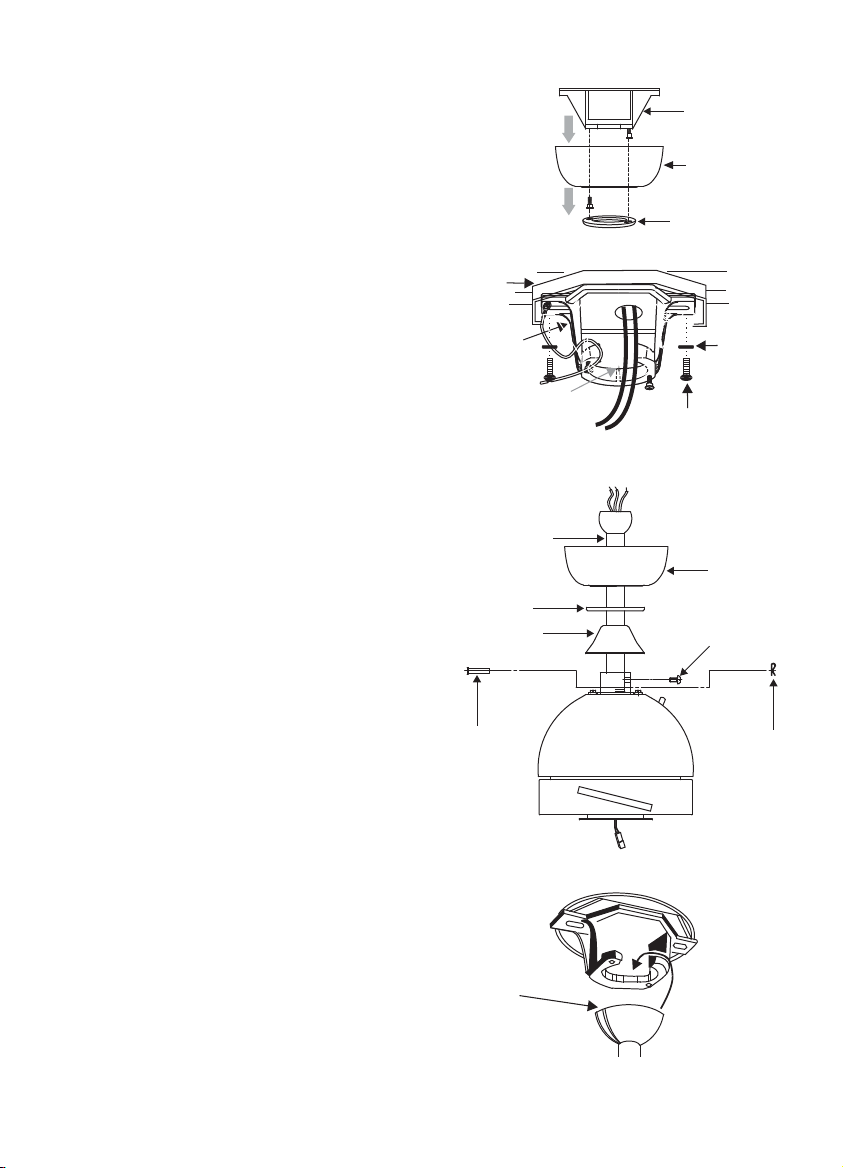

5. HANGING THE FAN

Figure 6

Figure 5

Figure 7

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise. (Fig. 5)

Step 2. Remove the hanger bracket from the

canopy by removing the non-slotted screws

from the bottom of the mounting bracket and

loosening the slotted screw a half turn from the

screw head. Next, turn the canopy counter

clockwise to removing the hanger bracket

form the canopy. (Fig. 5)

Step 3. Pass the 120-volt supply wires through

the center hole in the ceiling hanger bracket as

shown in Fig. 6.

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and washers

provided with your outlet box.

Step 5. Remove the hanger pin, locking pin

and set screws from the top of the motor

assembly.

Step 6. Route wires exiting from the top of the

fan motor through the couping cover, canopy

cover and canopy, then through the ball/

downrod. (Fig. 7)

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig. 7). Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin against

the wiring inside the downrod. Insert the

locking pin through the hole near the end of

the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

Step 8. Tighten two set screws on top of the

fan motor firmly. (Fig. 7)

Step 9. Place the downrod ball into the hanger

bracket socket. (Fig. 8)

Downrod

Canopy

Set screws

Locking

Hanger pin

Coupling cover

Canopy cover

Ceiling hanger

bracket

Ceiling canopy

Canopy cover

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

CUL Listed

electrial

box

120V Wires

Washers

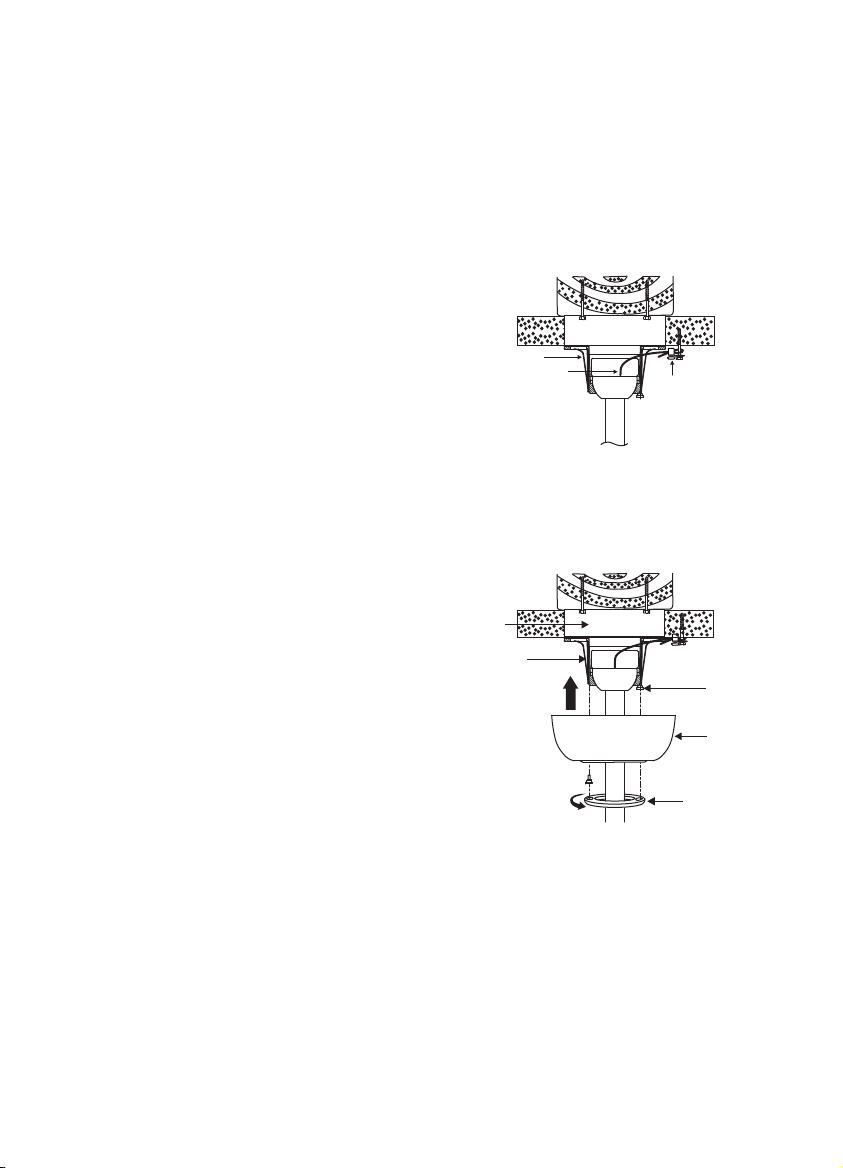

6. MAKE THE ELECTRIC

CONNECTIONS

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

NOTE: This remote control unit is equipped

with 16 code combinations to prevent possible

interference from or to other remote units.

The frequency switches on your receiver and

transmitter have been preset at the factory.

Please recheck to make sure the switches on

transmitter and receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter and

receiver are set to the same position. (Fig. 9)

Step 1. (Fig. 10) Insert the receiver into the

mounting bracket with the flat side of the

receiver facing the ceiling.

Step 2. (Fig. 11) Motor to Receiver Electrical

Connections: Connect the Black wire from the

fan to Black wire marked "TO MOTOR L".

Connect the White wire from the fan to the

White wire marked "TO MOTOR N" from the

receiver. Connect the Blue wire from the fan

to the Blue wire marked "For Light" from the

receiver. Secure wire connections with the

plastic wire nuts provided.

Step 3. (Fig. 11) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white (neutral) wire from the

ceiling to the white wire marked "AC in N" from

the Receiver. Secure the wire connections

with the plastic wire nuts provided.

Step 4. (Figure 11) If your outlet box has a

ground wire (green or bare copper) connect it

to the fan ground wires; otherwise connect the

hanging bracket ground wire to the mounting

bracket. Secure the wire connection with a

plastic nut provided. After connecting the

wires, spread them apart so that the green

and white wires are on one side of the outlet

box and black and blue wires are on the other

side. Carefully tuck the wire connections up

into the outlet box. Figure 11

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for light)

Black (motor)

Figure 9

Figure 10

Receiver

Hanger

bracket

Code switch

ONON

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit

for proper signal transmission between the

transmitting unit and the fan's receiving unit.

7. INSTALLATION OF

SAFETY SUPPORT

Attach the lag bolt and flat washer to ceiling

joist. Attach the safety cable to lag bolt. Slide

cable clamp onto safety cable (from fan).

Place the end of cable through the lag bolt.

Pull as much cable through lag bolt as

possible. Feed end of cable into clamp hole

and firmly tighten screw (Figure 12). Cut off

excess safety cable.

8. FINISHING THE

INSTALLATION

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to hanger bracket

and place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until

it locks in place at the narrow section of the

key holes. (Fig.13)

Step 3. Align the circular hole on canopy with

the remaining hole on the hanger bracket,

secure by tightening the two set screws. Note:

Adjust the canopy screws as necessary until

the canopy and canopy cover are snug.

WARNING: Make sure tab at bottom of

hanger bracket is properly seated in groove of

hanger ball before attaching canopy to

bracket. Failure to properly seat tab in groove

could cause damage to electrical wiring.

Figure 12

Figure 13

Hanger bracket

Safety cable

Outlet box

Hanger

bracket

Canopy

Canopy cover

Screws

Safety cable clamp

10. ATTACHING THE LED

LIGHT KIT

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

Step 1. Remove one of the three light kit

mounting screws from the mounting ring and

loosen the other two screws. (Do not remove.)

Step 2. While holding the 18W LED light kit

under the fan motor assembly, make the 2-pin

wire connections:

- White to white

- Black to black

Step 3. Place the key holes in the LED light kit

over the two mounting screws previously

loosened from the mounting ring. Turn the

light kit until the light kit locks in place at the

narrow section of the key holes. Secure by

tightening the two light kit mounting screws

previously loosened and the one previously

removed. (Fig. 15)

9. ATTACHING THE FAN

BLADES

Step 1. Insert the blade through the slot on the

motor housing. Align the holes in blade and

blade bracket, place the blade support plate

on blade as showing in Figure 14, making sure

the holes are also aligned and secure with

fiber washers and screws provided.

Step 2. Repeat this procedure for remaining

blades.

CAUTION: Make sure all screws are

tightened securely.

Figure 14

Figure 15

Blade

Slots

Blade support

plate

Screws and

fiber washers

Mounting ring

Screws

LED Light kit

Wire connectors

11. ATTACHING THE

GLASS SHADE

ASSEMBLY

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

Raise the glass shade assembly up against

the LED light kit, the three tabs inside the

glass shade should be placed against the

three slots on light kit, twist the glass shade

assembly clockwise until snug. Do not

overtighten. (Fig.

16)

Figure 16

Glass shade

assembly

Slot

Tab

LED Light kit

Figure 18

Figure 19

Figure 17

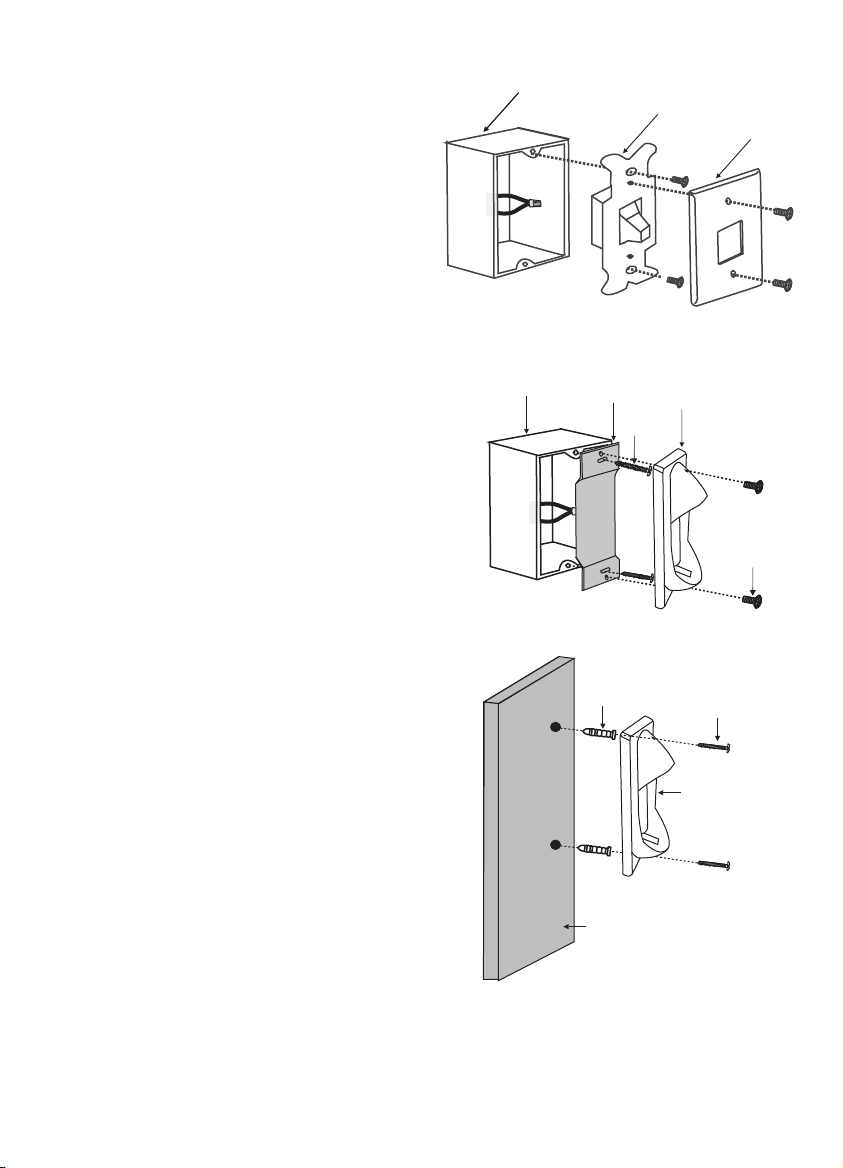

12. INSTALLING THE

TRANSMITTER

HOLDER

Select a location to install your remote control

system transmitter. You can replace an

existing wall switch or, install the transmitter

on ANY flat surface.

Option 1: Install the cremote ontrol system

using an existing wall switch outlet box. Make

sure the electrical power is TURNED OFF at

the main panel before continuing.

Step 1. Remove the existing wall plate and the

old switch from the wall outlet box. Wire nut

the BLACK leads (hot) together and push

back inside the outlet box. (Fig. 17)

Step 2. Install the metal plate and wall plate to

the existing wall outlet box with 4 screws

provided. (Fig. 18)

Option 2: Install the control system on ANY

flat surface.

Select the desired location and use the wall

plate to mark the location for the mounting

holes. Plastic wall anchors and screws are

provided for this type of installation. After

installing the wall anchors, attached the wall

plate with the mounting screws. (Fig. 19)

Holder

Wall

Screws

Wall plate

Outlet box Metal plate

Wall plate

Switch

Outlet box

Plastic

anchor

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kendal Lighting Ventilateur

Kendal Lighting

Kendal Lighting AC-19242 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22452 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC11152P-ORB/WN Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30952 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-24344 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30052 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-19752 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-24060 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21454 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-23960 Manuel utilisateur

Kendal Lighting

Kendal Lighting Triax AC-22352 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-19856 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30252 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-20644 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22054 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-21750 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30152 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-23856 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22852 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-22656 Manuel utilisateur

Kendal Lighting

Kendal Lighting Virtua Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-20070 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-30552 Manuel utilisateur

Kendal Lighting

Kendal Lighting AC-20152 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
