FOUR-PORT ADSL ROUTER

KD318EUI ADSL Router

User Manual

ADSL ROUTER USER MANUAL

NOTICE

This document contains proprietary information protected by copyright, and this Manual

and all the accompanying hardware, software, and documentation are copyrighted. All

rights are reserved. No part of this document may be photocopied or reproduced by

mechanical, electronic, or other means in any form.

The manufacturer does not warrant that the hardware will work properly in all environments

and applications, and makes no warranty or representation, either expressed or implied,

with respect to the quality, performance, merchantability, or fitness for a particular purpose

of the software or documentation. The manufacturer reserves the right to make changes to

the hardware, software, and documentation without obligation to notify any person or

organization of the revision or change.

All brand and product names are the trademarks of their respective owners.

Content

1 Overview.......................................................................................................................................... 1

1.1 FEATURES .............................................................................................................................. 1

1.2 PACKET CONTENTS ................................................................................................................ 2

1.3 SYSTEM REQUIREMENTS ........................................................................................................ 3

1.4 FACTORY DEFAULTS............................................................................................................... 3

1.5 WARNINGS AND CAUTIONS ..................................................................................................... 3

2 HARDWARE DESCRIPTION......................................................................................................... 4

3 HARDWARE INSTALLATION....................................................................................................... 5

4SOFTWARE INSTALLATION........................................................................................................ 5

5PC CONFIGURATION GUIDE....................................................................................................... 6

5.1 LOCAL PC CONFIGURATION.................................................................................................... 6

5.2 ACCESS THE PROGRAM........................................................................................................... 7

5.3 INTERNET ACCESS CONFIGURATION......................................................................................... 7

5.3.1 ADSL Mode Setup............................................................................................................. 7

5.3.2 Remote Access .................................................................................................................. 12

5.3.3 TR069 Client....................................................................................................................... 13

APPENDIX FREQUENT ASKED QUESTIONS............................................................................. 14

ADSL ROUTER USER MANUAL

1 Overview

Thank you for using this Asymmetric Digital Subscriber Line (ADSL) router. With the

asymmetric technology, this device runs over standard copper phone lines. In addition,

ADSL allows you to have both voice and data services in use simultaneously all over one

phone line. It is an ideal solution for the small and medium size business environment.

This ADSL router provides a 10/100BaseT interface for Ethernet connection and an USB

interface for USB connection at the user end. Computers can simultaneously connect to

the router either via its USB, Switch or both ports to share its high-speed Internet access.

You can connect to its Switch port regardless of the operating system you are using, or

connect to its USB port to allow easy installation to a USB equipped computer. It receives

adaptive rates up to 24Mbps and transmits 1Mbps upstream.

1.1 Features

1.1.1 ADSL Compliance

ANSI T1.413 issue 2

Downstream: Up to 24Mbps.

Max upstream speed: 3.5Mbps (With AnnexM enabled)

Rate Adaptive at 32 Kbps steps

Interoperable with all major DSLAM equipment

TR-069 compliant with ACS

1.1.2 Standards & Protocols Conformance

ITU G.994.1(G.hs) G.992.1(G.DMT) G.992.2(G.LITE)

ITU G.992.3(G.DMT.BIS)

ITU G.992.5

T1.413

EoA (PPPoE, IPoE, and Bridge)

PPPoA

IPoA

1.1.3 Operating System Support

WINDOWS 98/98 SE/ME/2000/XP/VISTA/7

Macintosh

LINUX

ADSL ROUTER USER MANUAL

1.1.4 ATM Capabilities

ATM Connection

VPI Range: 0-255

VCI Range: 32-65535

AESA (E.164, DCC, ICD)

PVC Support

UNI 3.0 & 3.1 Signaling

Support AAL 5

1.1.5 Management Support

Web Based GUI

Upgrade or update via FTP/HTTP

Command Line Interface via Telnet

Diagnostic Test

Firmware upgrade-able for future feature enhancement

1.1.6 Environmental

Operating humidity: 10%-90% non-condensing

Non-operating storage humidity: 5%-95% non-condensing

1.2 Packet Contents

The packet contents are as the following:

ADSL Router x 1

External Splitter x 1

Power Adapter x 1

Telephone Line x 1

Ethernet Cable x 1

CD x 1

ADSL ROUTER USER MANUAL

1.3 System Requirements

Before using this ADSL router, verify that you meet the following

requirements:

Subscription for ADSL service. Your ADSL service provider should

provide you with at least one valid IP address (static assignment or

dynamic assignment via dial-up connection).

One or more computers, each contains an Ethernet 10/100M Base-T

network interface card (NIC).

A hub or switch, if you are connecting the device to more than four

computers.

For system configuration using the supplied web-based program: A web

browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or

later.

1.4 Factory Defaults

The device is configured with the following factory defaults:

IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

VPI/VCI: According to local information

1.5 Warnings and Cautions

Never install telephone wiring during storm. Avoid using a telephone

during an electrical storm. There might be a risk of electric shock from

lightening.

Do not install telephone jacks in wet locations and never use the

product near water.

To prevent dangerous overloading of the power circuit, be careful about

the designed maximum power load ratings. Not to follow the rating

guideline could result in a dangerous situation.

Please note that telephone line on ADSL router must adopt the primary

line that directly outputs from junction box. Do not connect ADSL router

to extension phone. In addition, if your house developer divides a

telephone line to multi sockets inside the wall of house, please only use

the telephone that has connected with the splitter of ADSL router when

you access the Internet. Under the above condition, if you also install

telephone with anti-cheat-dial device, please pull out this kind of

telephone, otherwise ADSL router may occur frequently off-line.

ADSL ROUTER USER MANUAL

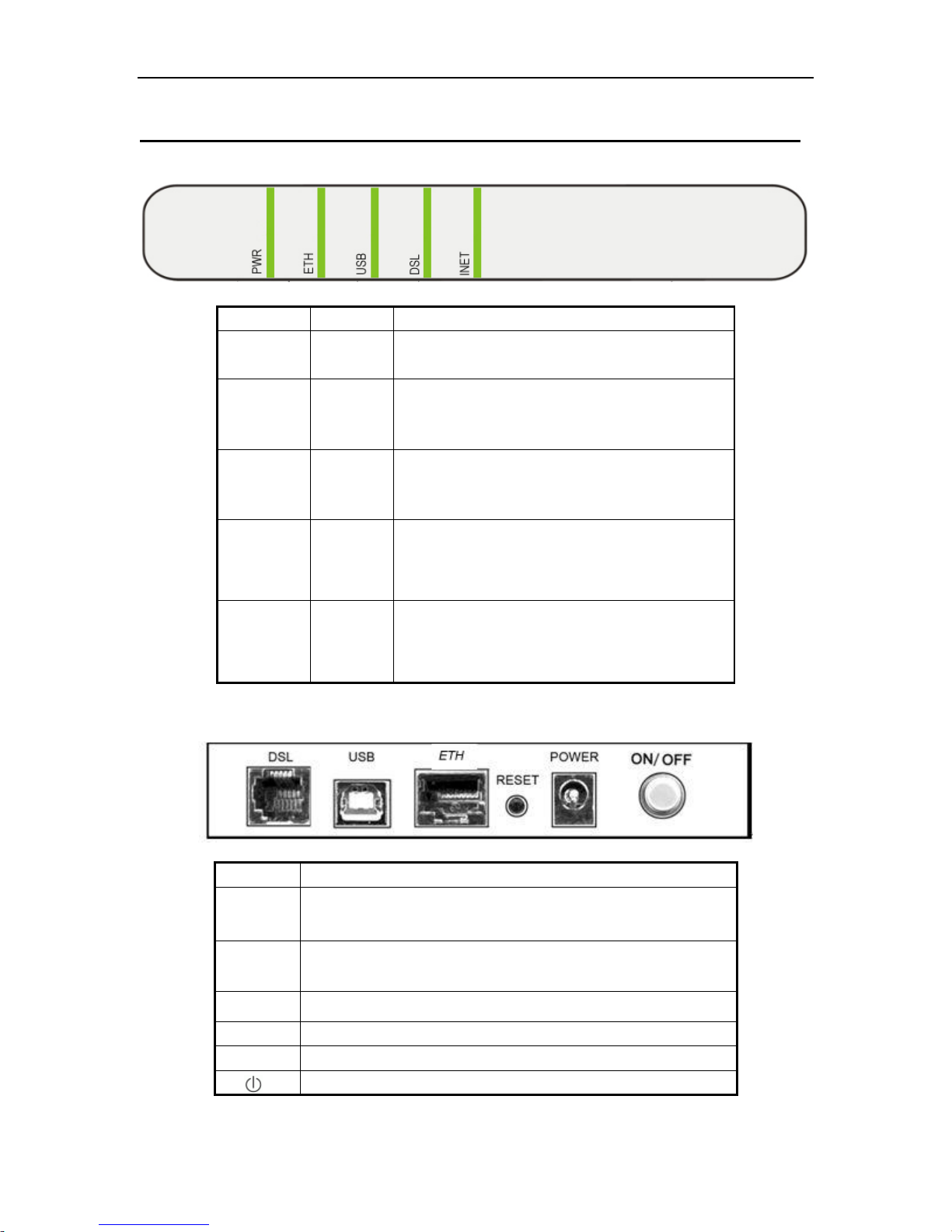

2Hardware Description

Front Panel

Rear Panel

Port

Function

DSL

Connects thedevice to an ADSL telephonejack or splitter usinga RJ-11

telephonecable

ETH

Connects the device to your PC's Ethernet port, or to the uplink port

on your hub/switch, using a RJ-45 cable

USB

Connects thedeviceto your PC's USB port

Reset

System reset or reset to factory defaults.

POWER

Connects to the supplied power adapter

Switches the unit onand off

LED

Color

Function

PWR

Red

On: Power

Off: No power or system boot failed

DSL

Red

On: ADSL link established and active

Blinking: ADSL is trying toestablish aconnection

Off: No ADSLlink

INET

Red

Blinking: ADSL dataactivity occurs.

Off: No ADSL datais being sent or received.

ETH

Red

On: LANlink established and active

Blinking: ADSL dataactivity occurs.

Off: No LANlink.

USB

Red

On: USBlinkestablished and active

Off: No USBlink

ADSL ROUTER USER MANUAL

3 Hardware Installation

This Hardware Installation describes how to connect ADSL router to your computer,

LAN and the Internet. This Installation assumes you have subscribed to an ISP for

ADSL service and only covers the basic configurations to be applied to residential

or corporate networks.

Hardware Connection

1. Using a telephone line to connect the DSL port of ADSL router to the MODEM

port of the splitter, and using another telephone line to connect your telephone

to the PHONE port of the splitter, then connect the wall phone jack to the LINE

port of the splitter.

The splitter comes with three connectors as below:

LINE: Connects to a wall phone jack (RJ-11 jack)

MODEM: Connects to the DSL jack of ADSL router

PHONE: Connects to a telephone set

2. Using an Ethernet Cable to connect the LAN port of the ADSL router to your

LAN or a PC with network card installed.

3. Connect the power cable to the POWER connector on ADSL router, then plug

in the power adapter to the power outlet, and then press the on-off button.

Notes: Without the splitter and certain situation, transient noise from telephone

can interfere with the operation of the ADSL router, and the ADSL router

may introduce noise to the telephone line. To prevent this from happening,

a small external splitter must be connected to each telephone.

4Software Installation

This chapter shows you how to install the router’s USB drivers when PC connects to

the router via its USB port.

1. Insert the rectangular end of a USB cable into the USB port of your PC.

2. Insert the square end of the USB cable into the USB port of the Router.

3. Power on the router and then a dialog box of “ A new hardware is found” is

displayed on the screen.

4. Press “Next” button, the system then search for hardware driving program.

Choose the soft driver in the “assigned position” and press “next”, the system

will automatically install the driving program recorded on the soft disk into the

system.

ADSL ROUTER USER MANUAL

5PC Configuration Guide

5.1 Local PC Configuration

5.1.1 Windows 95, 98, ME, XP

1. In the Windows task bar, click the “Start” button, point to “Settings”, and then

click “Control Panel”.

2. Double-click the “Network” icon.

3. On the “Configuration” tab, select the TCP/IP network associated with your

network card and then click “Properties”.

4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP

address as 192.168.1.x (x can be a decimal number from 2 to 254.) like

192.168.1.2, and the subnet mask as 255.255.255.0.

5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click

“Add”.

6. Configure the “DNS” tab if necessary. For information on the IP address of

the DNS server, please consult with your ISP.

7. Click “OK” twice to confirm and save your changes.

8. You will be prompted to restart Windows. Click “Yes”.

5.1.2 Windows 2000

1. In the Windows task bar, click the “Start” button, point to “Settings”, and then

click “Control Panel”.

2. Double-click the “Network and Dial-up Connections” icon.

3. In the “Network and Dial-up Connections” window, right-click the “Local Area

Connection” icon, and then select “Properties”.

4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.

5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address

as 192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet

mask as 255.255.255.0 and the default gateway as 192.168.1.1. Then click

“OK”.

6. Configure the “DNS” tab if necessary. For information on the IP address of

the DNS server, please consult with your ISP.

7. Click “OK” twice to confirm and save your changes.

ADSL ROUTER USER MANUAL

5.2 Access the program

After configuring the IP Address of you computer, powering on the ADSL Router, and

launching a web browser, such as Internet Explorer, use http://192.168.1.1 to log on to

the setting pages.

Attention: the username and password are both lowercase.

5.3 Internet Access Configuration

5.3.1 ADSL Mode Setup

From home page, you can find Advanced Setup option on the left router

configuration page.

1. From Layer2 Interface, click ATM Interface. you can set it up according to the

following steps. You Choose Add, or Remove to configure DSL ATM interfaces.

2. Click Add to configure PVC identifier, select connection mode according to your

local occasion. After the configuration, you need to click Apply/Save.

Click OK

Enter username ‘admin’

and password ‘adslroot’

Table des matières

Autres manuels Kasda Routeur réseau

Kasda

Kasda KW5863 Manuel utilisateur

Kasda

Kasda KW5813 Manuel utilisateur

Kasda

Kasda KD318MUI Manuel utilisateur

Kasda

Kasda KA1750 Manuel utilisateur

Kasda

Kasda KW5262 Manuel utilisateur

Kasda

Kasda KW5225 Manuel utilisateur

Kasda

Kasda KW5226 Manuel utilisateur

Kasda

Kasda KD318RI Manuel utilisateur

Kasda

Kasda KW5212H Manuel utilisateur

Kasda

Kasda KW9522 Manuel utilisateur

Kasda

Kasda KW55193 Manuel utilisateur

Kasda

Kasda KW6512 Manuel utilisateur

Kasda

Kasda LinkSmart KW6515 Manuel utilisateur

Kasda

Kasda KW 58283 Manuel utilisateur

Kasda

Kasda KD319MI Manuel utilisateur

Kasda

Kasda KS105 Manuel utilisateur

Kasda

Kasda KW5811 Manuel utilisateur

Kasda

Kasda KW5829 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
