Kargo Master 40641 Manuel utilisateur
Assembly Guide
40641
Kargo Master
Rancho Cordova, CA 95742
800-343-7486
CustomerService@KargoMaster.com
DATE:______________
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1
Assembly Instructions –40641
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,
INSTALLING, AND USING THIS PRODUCT*
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
3/8” Wrench and Socket
7/16” Wrench and Socket
Table of Contents
Parts List ................................................................................................................................... 2
Hardware List ........................................................................................................................... 2
Step 1 Assembly ....................................................................................................................... 3
Step 2 Tighten........................................................................................................................... 4
Before You Begin
•Read all instructions.
•Be sure to have wing kit for your van application.
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2
Assembly Instructions –40641

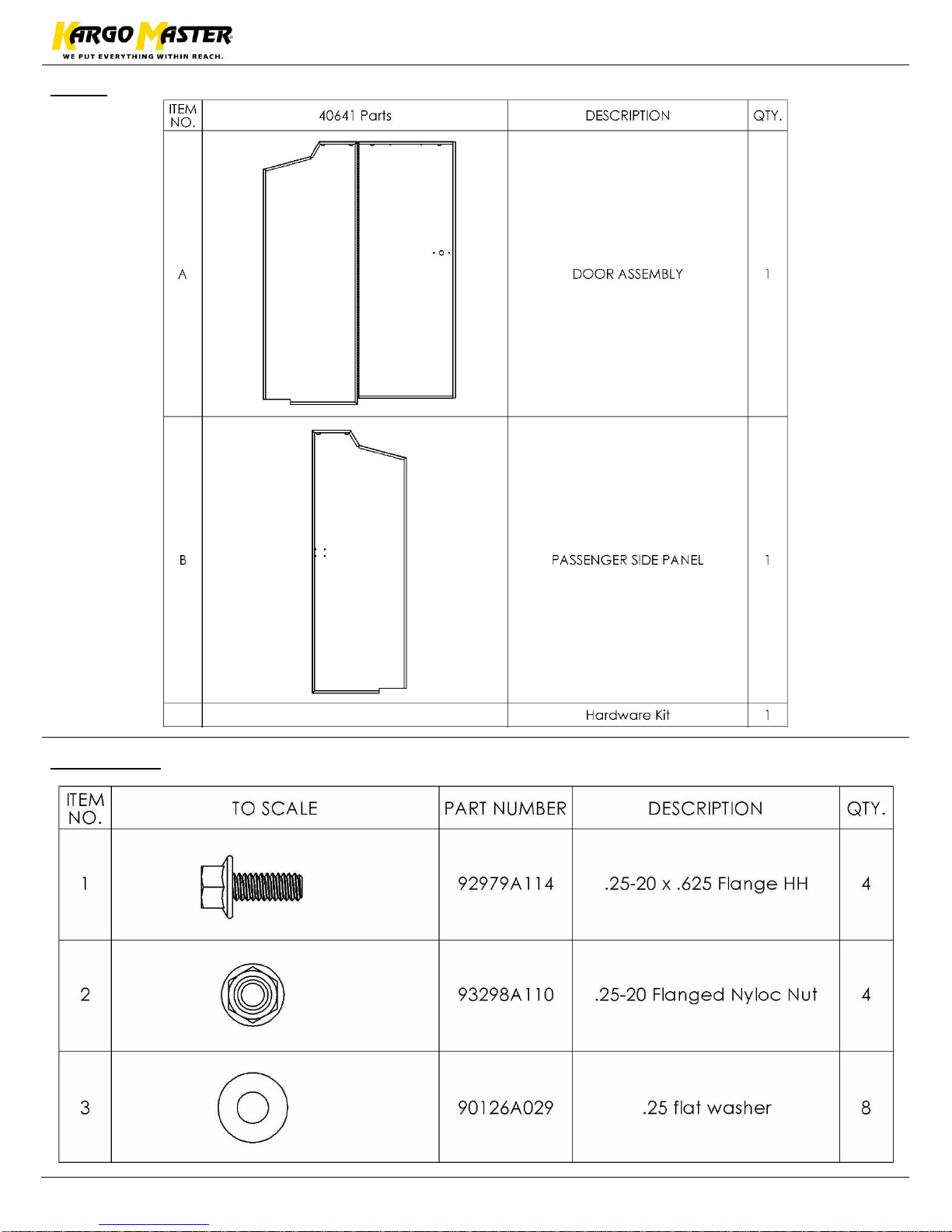

Parts
Hardware
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
Assembly Instructions –40641
Step 1 –Bolt Together
A.
•Place both pieces (A&B) flat on the
ground or table. Be sure to have the
flanges facing upward so you can access
the bolt holes.
•Bolt together using a 1/4"-20 x .625”flanged hex bolt and a 1/4”-20 flanged nyloc nut.
•If installing the Door Kit (40260), Be sure to put two flat washers in between the two
panels. This is used to get correct spacing.
•If no door kit is being used the washers (3) are not needed.
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4
Assembly Instructions –40641
•Repeat 3 more times as shown. Be
sure to insert the washers
between the panels.
•Some like to leave bolts snug tight
to allow movement untill partition
is installed into vehicle.
Follow instructions of desired wing kit to install into vehicle.
