Kargo Master 40390 Manuel utilisateur
Installation Guide
40390
Kargo Master
Rancho Cordova, CA 95742
800-343-7486
CustomerService@KargoMaster.com
DATE: ______________
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1
Install Instructions –40390
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,
INSTALLING, AND USING THIS PRODUCT*
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
Phillips Driver
3/8”Wrench and Socket
1/4” Drill Bit (optional)
Table of Contents
Parts List ................................................................................................................................... 2
Hardware List ........................................................................................................................... 2
Step 1 Establish Location .......................................................................................................... 3
Step 2 Install File Holder ........................................................................................................... 3
Before You Begin
•Read all instructions.
•Have partition or shelf unit ready to install tote holder.
•ENSURE SAFETY BEFORE DRILLING OR CUTTING
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2
Install Instructions –40390

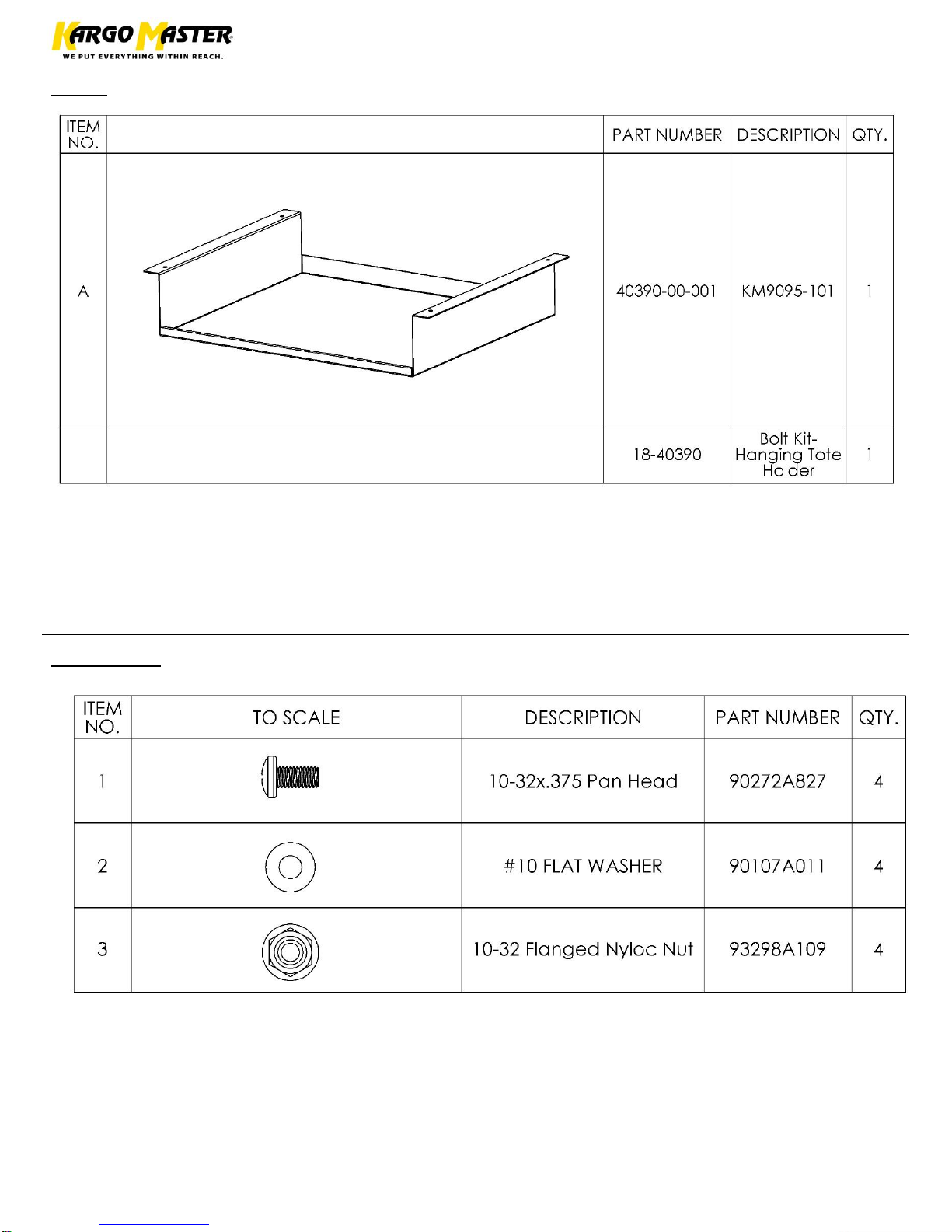

Parts
Hardware
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
Install Instructions –40390

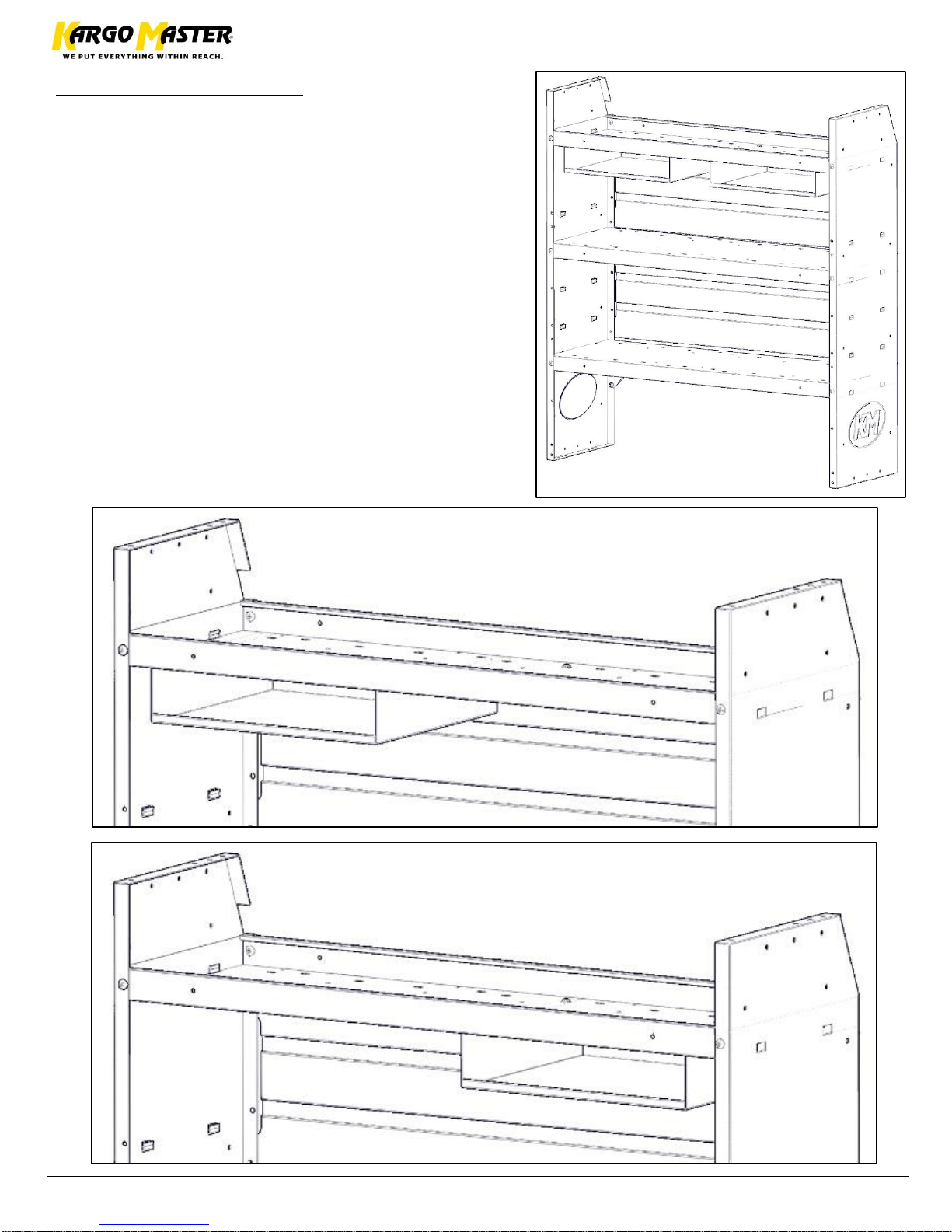

Step 1 –Find Location
•Position hanging tote holder (A) in desired
location for mounting.
•The shelf must be positioned with the shelf flange
facing upwards. (as top shelf is shown)
•Use existing holes, or if a different location is
desired, mark each hole in all corners for a total
of 4x.
•Remove hanging tote holder (A).
•Measure from the reference point to ensure the
holes are marked in a square orientation.
•Drill using a 1/4" bit.
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4
Install Instructions –40390

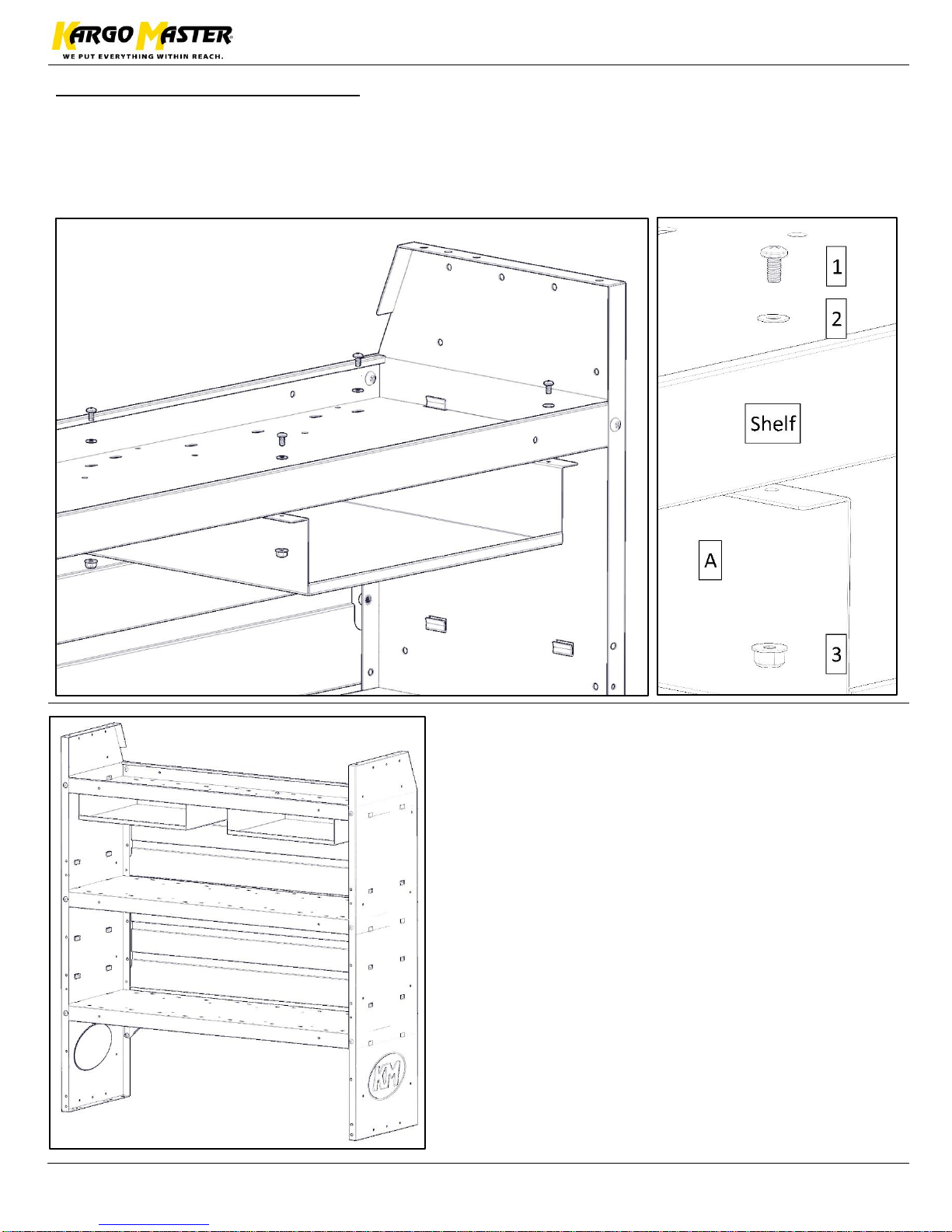

Step 2 –Install Tote Holder
•Place tote holder in desired mounting location.
•Bolt using a #10-32 x .375 pan head (1), a #10 washer (2) and a flanged #10-32 nyloc (3)
•Repeat 4x.
•TIGHTEN
Square and align to your liking.
Tighten all bolts from previous steps.
Your installation is now complete.
