Instructions –4090L

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,

INSTALLING, AND USING THIS PRODUCT*

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

Tools Needed

9/16” Socket and Wrench

1/2” Socket and Wrench

8’ Tape Measure

Table of Contents

Parts List ................................................................................................................................... 2

Hardware .............................................................................................................................. 3-4

Rack Assembly

Step 1 –Load Plate ................................................................................................................ 5

Step 2 –L Bracket .................................................................................................................. 5

Step 3 –Mount Side Tube ..................................................................................................... 6

Step 4 –Install Clamp Tube ................................................................................................... 7

Step 5 –Mount Latch Assembly ............................................................................................ 8

Step 6 –Mount Handle .......................................................................................................... 8

Step 7 –Mount Ladder Stop .................................................................................................. 9

Step 8 –Bows to Feet ............................................................................................................ 9

Before You Begin

•Read all instructions. Find your vehicle roof rail mounting, prior to rack assembly.

•Assembly on top of vehicle is a more user friendly installation.

•Be sure to put E6000 sealant around all threads entering cargo area and between the

rubber spacer and roof of vehicle to prevent water from leaking into cargo area.

•DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2

Instructions –4090L

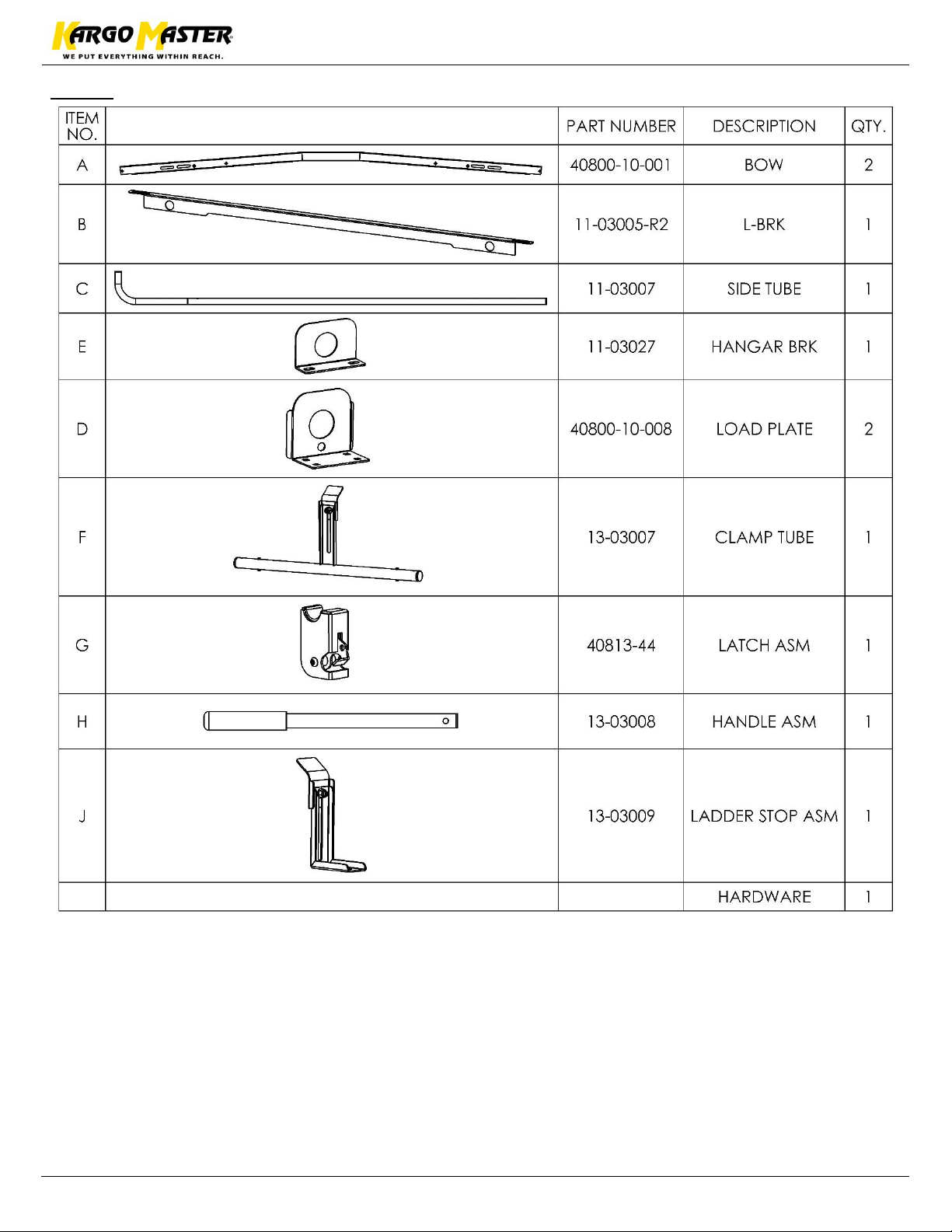

Parts

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3

Instructions –4090L

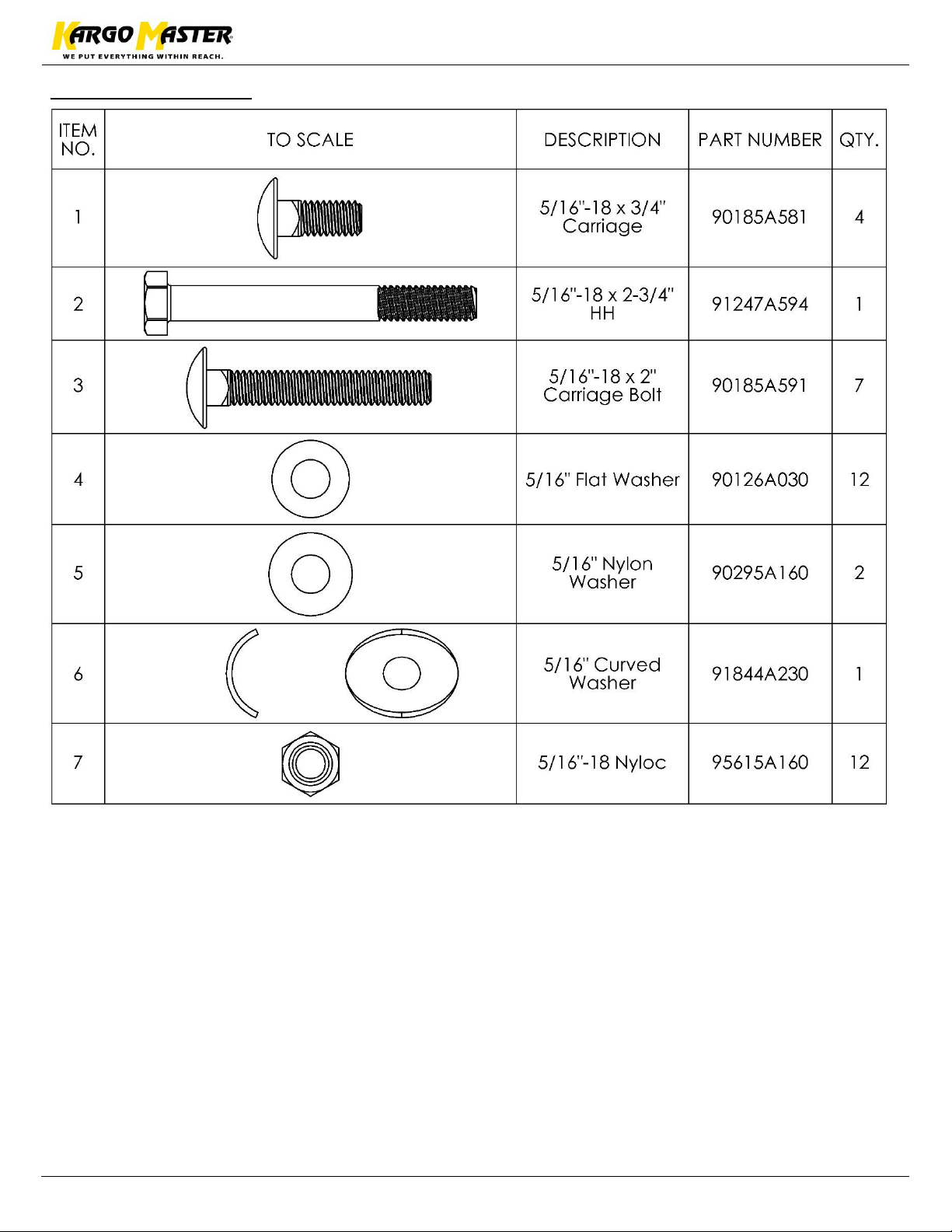

Hardware 1 of 2

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

Instructions –4090L

Hardware 2 of 2

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

Instructions –4090L

Step 1 –Load Plate

•Bolt load plate (D) to one end of each bow (A).

•Use a 5/16” x 3/4" carriage bolt (1), 5/16” flat

washer (4) and a 5/16” nyloc (7).

•TIGHTEN. Skip if adding 40813.

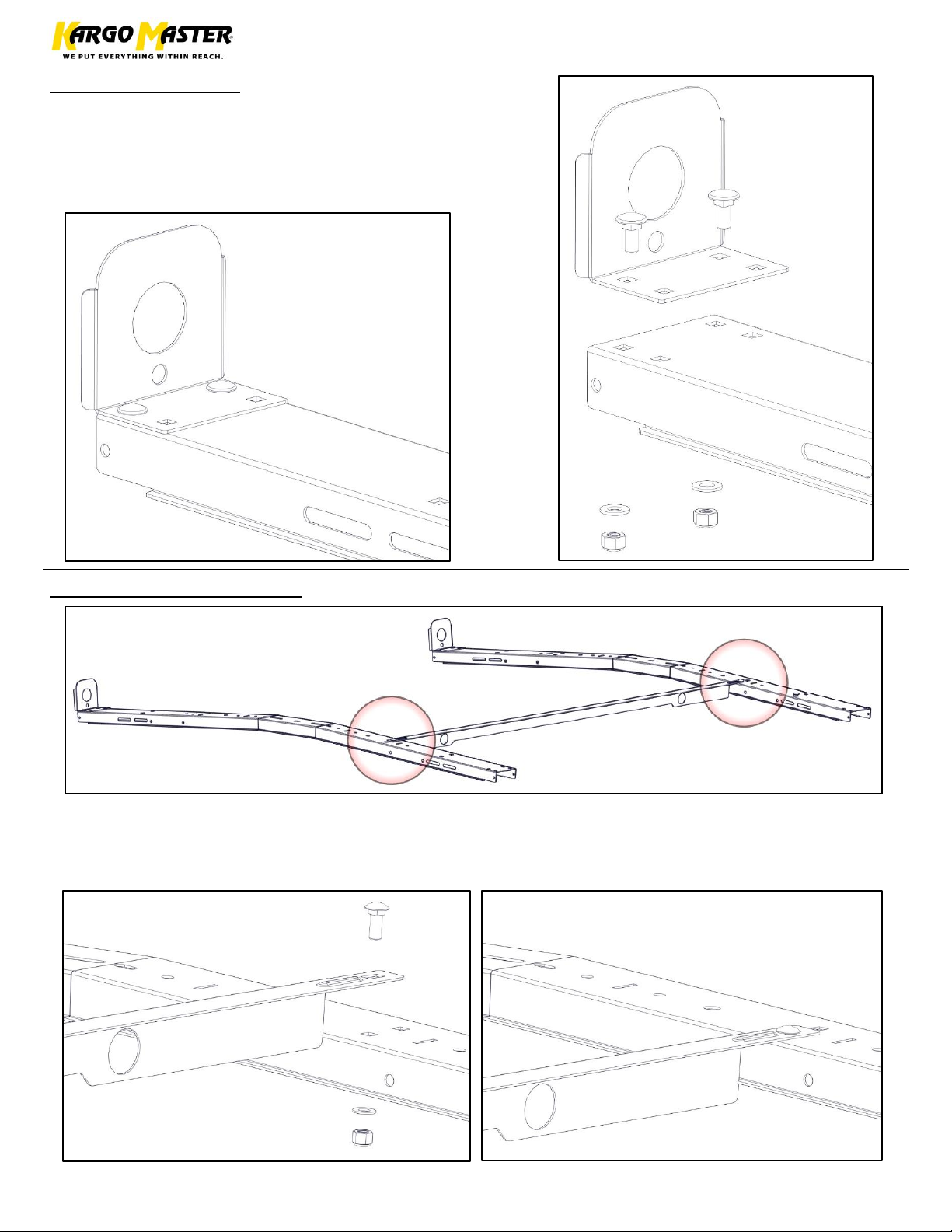

Step 2 –Mount L Bracket

•Place L bracket (B) on top of installed bows in location and orientation shown.

•Bolt together using 3/8” x 1” carriage bolt (9), a 3/8” flat washer (11) and a 3/8” nyloc (12).

•Snug Tighten, but allow movement

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6

Instructions –4090L

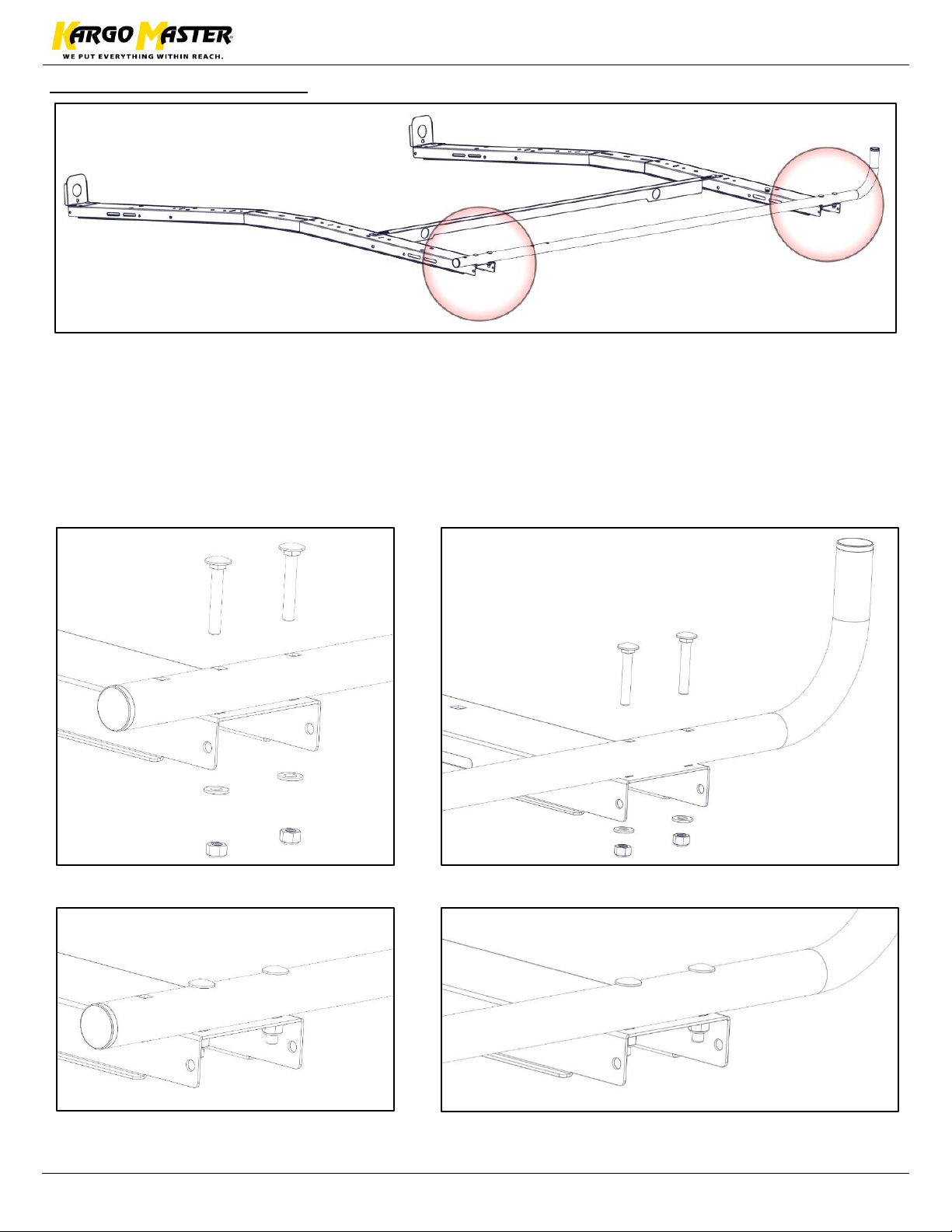

Step 3 –Mount Side Tube

•Place side tube (C) on top of installed bows.

•The bend goes towards the front of the vehicle. Be sure to have orientation to your desire.

•Leave one square slot open at the rear of the side tube.

•Bolt side tube to bows using 5/16” x 2” carriage bolt (3), a 5/16” flat washer (4) and a 5/16”

nyloc (7).

•Snug Tighten, but allow movement.

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 7

Instructions –4090L

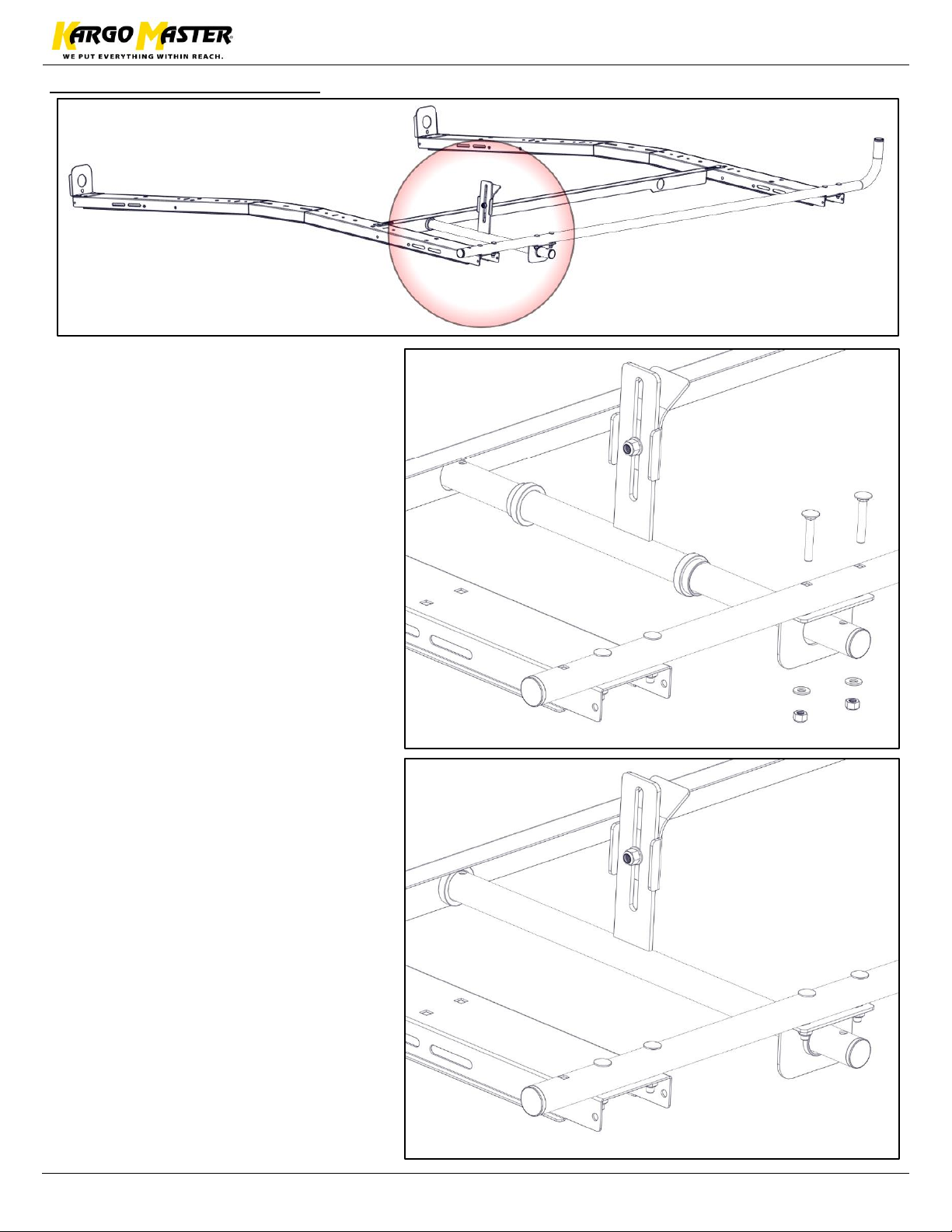

Step 4 –Install Clamp Tube

•Place bushings (13) around clamp

tube in orientation shown.

•Insert clamp tube (F).

•Slide hangar bracket (E) around

tube.

•Bolt hangar bracket into place

using a 5/16” x 2” carriage bolt (3),

a 5/16” flat washer (4) and a 5/16”

nyloc (7).

•Slide bushings into L and hangar

bracket.

•Be sure the flange of the hangar

bracket is in the correct

orientation.

•Snug Tighten, but allow movement.

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 8

Instructions –4090L

Step 5 –Mount Latch Assembly

•Bolt latch (G) at the rear of the mount tube (C) that was installed in Step 3 using a 5/16” x 2”

carriage bolt (2), 5/16” curved washer (6) and a 5/16” nyloc (7).

•TIGHTEN

Step 6 –Mount Handle

•Bolt handle to clamp tube using a 5/16” x 2-3/4” hex head (3), two 5/16” flat washers (4), two

5/16” nylon washers (5) and a 5/16” nyloc (7).

•The nylon washers fit in between the clamp tube and handle and at the bottom in between

the handle and the flat washer.

•TIGHTEN

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 9

Instructions –4090L

Step 7 –Mount Ladder Stop to Bow

•Bolt ladder stop (J) to the front bow in

the orientation shown using a 3/8” x 1”

carriage bolt (9), a 3/8” flat washer (11)

and a 3/8” nyloc (12).

•Be sure the bracket is square to the bow.

•Adjust clamp on bracket to fit firmly

against your ladder.

•TIGHTEN

Step 8 –Bows to Feet

•Set assembled rack onto feet installed using separate mounting package.

•Bolt bow into feet using 3/8” x .3/4” hex head (8), 3/8” split lock washers (10) and 3/8” flat

washers (11).

•Adjust to square rack on vehicle. TIGHTEN.

SQUARE AND ALIGN RACK TO YOUR LIKING.

GO BACK AND ENSURE ALL HARDWARE IS TIGHT

Your installation is now complete.
