Kargo Master 4A815 Manuel utilisateur

Installation Guide

4A815

Kargo Master

Rancho Cordova, CA 95742

800-343-7486

CustomerService@KargoMaster.com

DATE: ______________

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1

Install Instructions –4A815

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,

INSTALLING, AND USING THIS PRODUCT*

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

Tools Needed

1/2” Wrench and Socket

7/16” Driver/Wrench

No. 3 Drill (.210”)

5/16” Drill (.340”)

Table of Contents

Parts List ................................................................................................................................... 2

Hardware List ........................................................................................................................... 2

Step 1 Determine Location ...................................................................................................... 3

Step 2 Drill Locations ................................................................................................................ 3

Step 3 Install EXT bracket ......................................................................................................... 4

Step 4 Re-Locate Ladder Stop................................................................................................... 5

Before You Begin

•Read all instructions.

•Have Clamp N’ Lock ladder assembled.

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2

Install Instructions –4A815

Parts

Hardware

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3

Install Instructions –4A815

Step 1 –Determine Location

•Determine location of ladder rack ext bracket to be installed.

•Be sure this location corresponds to the shorter ladder being installed.

Step 2 –Drill locations

•Once the desired location are found, Drill through the EXT bracket and into the tube using a

No. 3 drill and drill into the cross support using a 5/16” drill.

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

Install Instructions –4A815

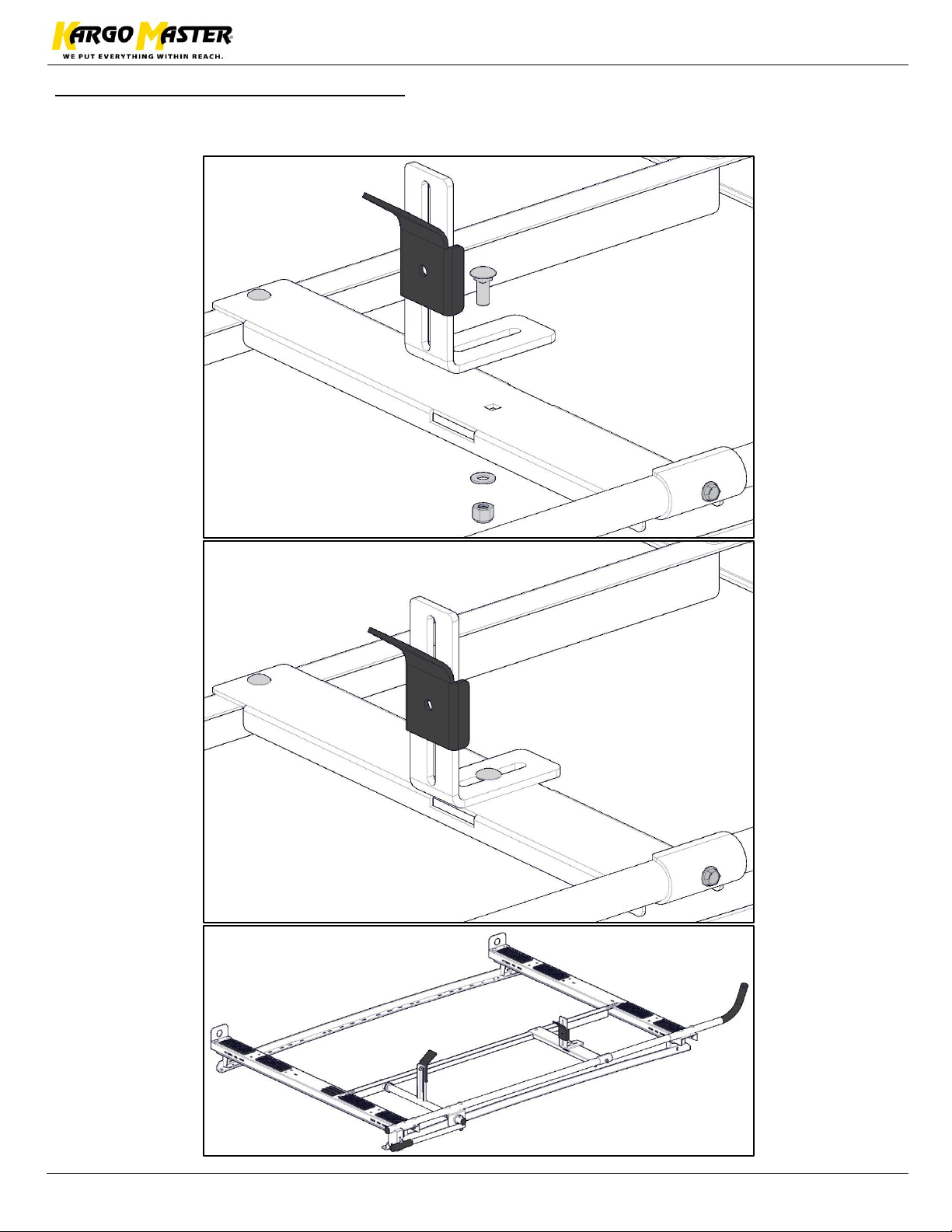

Step 3 –Install EXT bracket

•Place EXT bracket where previous holes were drilled.

•Bolt EXT bracket to the cross support using a 5/16” x 3/4" carriage bolt, a 5/16” flat washer

and a 5/16” nyloc nut.

•Bolt the EXT bracket to the tube using the 1/4" Self tapping screw.

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

Install Instructions –4A815

Step 4 –Re-Locate Ladder Stop

•Move ladder stop to the EXT bracket.

•Remove from the original location and re-bolt to the EXT bracket as shown.

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6

Install Instructions –4A815

ENSURE ALL BOLTS ARE TIGHT

YOUR INSTALLATION IS NOW COMPLETE
