Installing a DC Power Supply in an EX8200 Switch

The DC power supply in an EX8200 switch is a hot-removable and hot-insertable

field-replaceable unit (FRU). Up to six DC power supplies can be installed in an

EX8200 switch. All DC power supplies install in the front of the chassis in the slots

provided at the bottom. See Slot Numbering for an EX8208 Switch and Slot Numbering

for an EX8216 Switch.

NOTE: EX8208 switches support 2000 W DC power supplies.

EX8216 switches support 3000 W DC power supplies.

Before you install a DC power supply in the switch:

■Ensure you understand how to prevent ESD damage. See Prevention of

Electrostatic Discharge Damage on EX Series Switches.

Ensure that you have the following parts and tools available to install a DC power

supply in an EX8200 switch chassis:

■Electrostatic discharge (ESD) grounding strap

■Phillips (+) screwdriver, number 1

To install a DC power supply in an EX8200 switch (see Figure 1):

1. Attach the electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to the ESD point on the chassis.

2. If the power supply slot has a cover panel on it, unscrew the screw on the side

of the cover panel in the counterclockwise direction using the Phillips (+)

screwdriver, number 1, and remove the cover panel. Save the cover panel for

later use.

3. Taking care not to touch power supply components, pins, leads, or solder

connections, remove the power supply from its bag.

4. Flip the Enable switch on the power supply to the Standby position.

5. Unscrew the captive screw in the counterclockwise direction using the Phillips

(+) screwdriver, number 1.

6. Pull the captive screw away from the faceplate of the power supply to release

the latch.

7. Pull the handle away from the faceplate of the power supply until it is

perpendicular to the faceplate.

NOTE: Power supplies can be installed in any slot. You do not have to install the

power supplies in serial order.

Installing a DC Power Supply in an EX8200 Switch ■1

8. Using both hands, place the power supply in the power supply slot on the front

of the switch. Slide the power supply straight into the chassis until the power

supply is fully seated in the slot. Ensure the power supply faceplate is flush with

any adjacent power supply faceplates or power supply cover panels.

9. Push the handle towards the faceplate of the power supply until it is flush against

the faceplate.

10. Push the captive screw into the power supply faceplate. Ensure that the screw

is seated inside the corresponding hole on the faceplate.

11. Tighten the captive screw by turning it clockwise using the Phillips (+)

screwdriver, number 1. When the screw is completely tight, the latch locks into

the switch chassis.

To connect power to a DC power supply, see Connecting DC Power to an EX8200

Switch

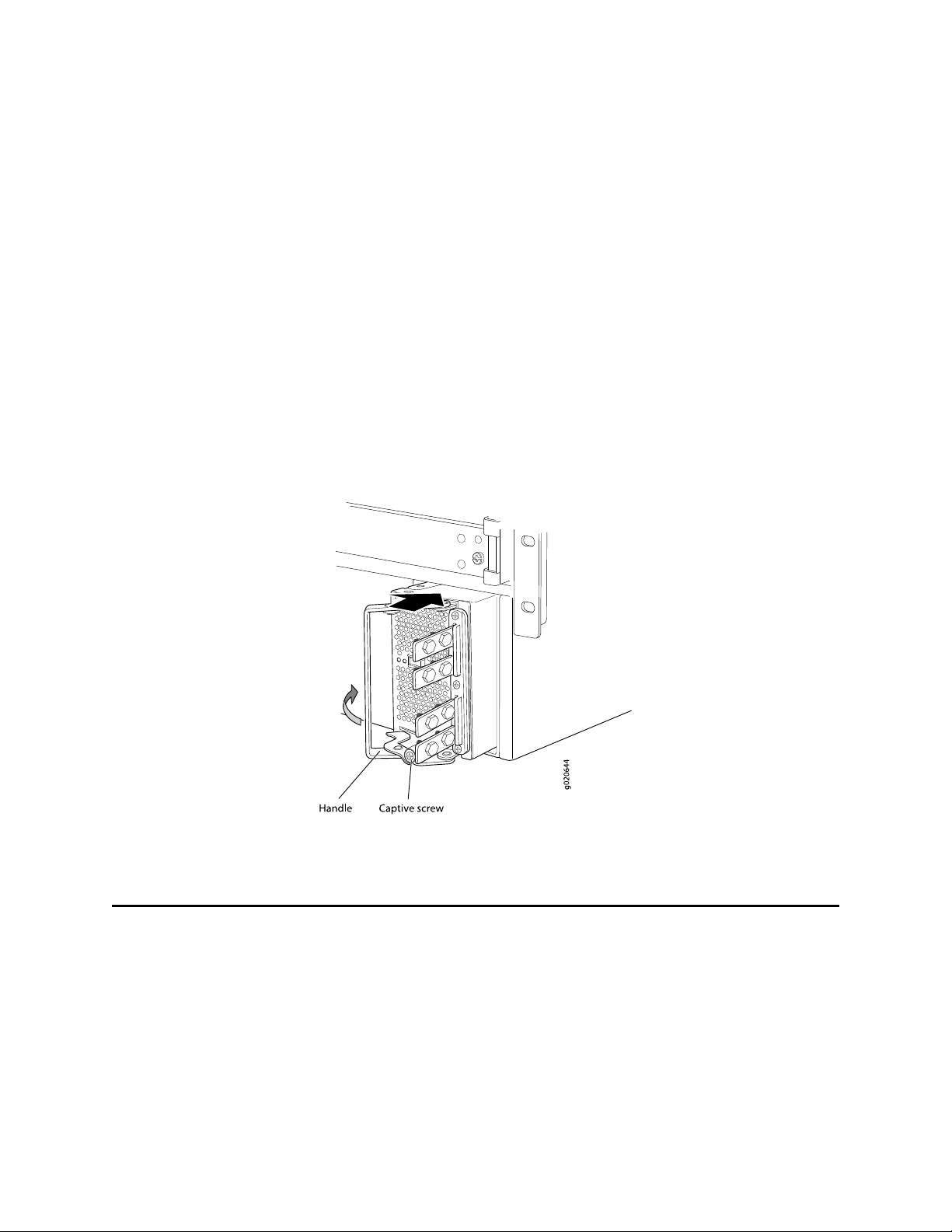

Figure 1: Installing a DC Power Supply in an EX8200 Switch

Related Topics Removing a DC Power Supply from an EX8200 Switch■

■DC Power Supply in an EX8200 Switch

Published: 2009-10-08

2■Installing a DC Power Supply in an EX8200 Switch
