Quick Start Guide

MX10016 Universal Routing Platform Quick Start Guide

IN THIS GUIDE

Quick Start Description | 1

Step 1–Preparing the Site for an MX10016 | 2

Step 2–Unpacking the MX10016 | 4

Step 3–Mounting the Router Chassis | 7

Step 4–Installing Line Cards | 11

Step 5–Installing the Front Panel | 14

Step 6–Connecting Power to the Chassis | 16

Step 7–Connecting to the Network | 28

Step 8–Performing Initial Configuration | 29

Safety Warnings Summary | 30

Quick Start Description

This Quick Start contains information you need to install and configure the MX10016 router. For complete installation

instructions, see the MX10016 Universal Routing Platform Hardware Guide at https://www.juniper.net/documentation/.

WARNING: This guide contains a subset of MX10016 safety information. For the complete list of safety

warnings for the MX10016 see the MX10016 Hardware Guide. See MX10016 Universal Routing Platform

Hardware Guide at https://www.juniper.net/documentation/.

Step 1–Preparing the Site for an MX10016

IN THIS SECTION

Rack-Mounting Requirements | 2

Clearance Requirements | 3

Cooling and Airflow Requirements | 3

MX10016 is a rigid sheet-metal router-chassis that houses field replaceable units (FRUs) such as control boards, Switch

fabric boards (SFBs), power supplies, fan trays, and line cards. The router chassis ships in a cardboard box that has a

two-layer wooden pallet base. The router chassis is bolted to the pallet base. You can install an MX10016 router in a

standard 19 in. (48.26 cm) equipment rack by using the supplied rack-mounting kit and the front-mounting bracket that

is attached to the chassis.

Before you install an MX10016, make sure the site meets all the power, cooling, and clearance requirements. See the site

preparation guidelines and power requirements in the MX10016 Universal Routing Platform Hardware Guide

Rack-Mounting Requirements

The MX10016 router chassis is designed to be installed in standard 19-in. wide four-post racks that are spaced at 1 U

(1.75 in. or 4.45 cm) increments.

You can stack one MX10016 chassis at the bottom of a four-post rack if:

•The rack is 42 U or greater.

•The rack meets the strength requirements to support the weight.

•The facility can provide adequate power and cooling.

Before installing the chassis, ensure that:

•The rack rails are spaced widely enough to accommodate the router chassis’ external dimensions. The outer edges of

the front-mounting brackets extend the chassis width to 19 in. (48.26 cm).

•The rack is strong enough to support the weight of the router and cabling.

•The spacing of rails and adjacent racks allows for proper clearance around the router and rack.

Clearance Requirements

For the cooling system to function properly, the airflow around the chassis must be unrestricted. You must allow sufficient

clearance around the installed chassis for cooling and maintenance (see Figure 1).

Figure 1: Clearance Requirements for Airflow and Hardware Maintenance for an MX10016

g050723

Clearan ce requi red

f or main t enan ce

19"

(4 8 .3 cm)

32"

(81 .3 cm)

35 "

(88 .9 cm)

f or main t enan ce Clearan ce requi red

Front mounting flange

24 " ( 6 1cm) 24 " ( 6 1cm)

FRUs

Ports

17.4"

3" (7.6 cm)

4 " (10.2 cm)

Power cable depth

5.1" (13 cm.)

Cable management depth

6.1" (15.5 cm.)

Front panel depth

12" (30.5 cm)

For airflow

(4 4.2 cm)

(Mounting

flange width)

12" (30.5 cm.)

For airflow

If you are mounting an MX10016 in a rack with other equipment, ensure that the exhaust from other equipment does

not blow into the intake vents of the chassis.

Cooling and Airflow Requirements

The cooling system in an MX10016 chassis consists of dual fan trays and dual fan tray controllers. There is no air filter in

an MX10016.

The air intake to cool the chassis is located on the port (line card) side of the chassis. Air flows into the chassis from the

ports in the control boards and line cards, through the Switch Fabric Boards (SFBs), and exits from the fan trays and the

power supplies. This airflow is called port-to-FRU cooling or airflow out (AFO). See Figure 2.

Figure 2: Airflow Through an MX10016

Follow these guidelines:

•For the cooling system to function properly, the airflow around the chassis must be unrestricted.

•If you are mounting an MX10016 in a rack with other equipment, ensure that the exhaust from other equipment does

not blow into the intake vents of the chassis.

•Leave at least 24 in. (61 cm) both in front of and behind the MX10016 for service personnel to remove and install

hardware components. To be NEBS GR-63 compliant, allow at least 30 in. (76.2 cm) in front of the rack and 24 in. (61 cm)

behind the rack.

Step 2–Unpacking the MX10016

NOTE: The chassis is maximally protected inside the shipping box. Do not unpack it until you are ready to begin

installation.

Ensure that you have the following parts and tools available to unpack the MX10016:

•A 13/32 in. (10 mm) open-end or socket wrench to remove the bracket bolts from the shipping pallet

•A box cutter or packing knife to slice open the nylon straps and tape that seal the crate and boxes

The chassis ships in a cardboard box that has a two-layer wooden pallet base with foam cushioning between the layers.

The router chassis is bolted to the pallet base.

The shipper has the option to either ship the front panel separately or to ship along with the chassis. If the front panel

arrives with the chassis, set aside the front panel box until you are ready to verify the contents of the order.

To unpack the chassis (see Figure 3):

Figure 3: Shipping Crate and Accessory Box

1. Move the shipping box to a staging area as close to the installation site as possible. While the chassis is bolted to the

pallet, you can use a forklift or pallet jack to move it. Make sure there is enough space to remove components from

the chassis.

2. Position the shipping box with the arrows pointing up.

3. Slice the nylon straps with the box cutter that hold the shipping boxes to the pallet.

4. Lift the shipping box off the chassis.

5. Remove the cardboard accessory box.

6. Remove the foam padding from the top of the box.

7. Remove the plastic cover from the router chassis.

8. Use a 13/32 in. (10 mm) open-end or socket wrench to remove the four sets of bracket bolts that secure the chassis

to the shipping pallet (see Figure 4).

Figure 4: Bracket Bolt Removal

g009762

9. Unpack the accessory box and lay out the contents so that they are ready for use.

10. Verify that your order includes all appropriate parts.

11. Store the brackets and bolts inside the accessory box.

12. Save the shipping box and packing materials in case you need to move or ship the router at a later time.

Step 3–Mounting the Router Chassis

IN THIS SECTION

Installing the Mounting Hardware | 7

Mounting the MX10016 Using a Mechanical Lift | 9

To install the MX10016, first install the mounting hardware and then use a mechanical lift to load the chassis into the

rack.

Installing the Mounting Hardware

Install the mounting hardware on the rack before installing the router. The MX10016 comes with a four-piece set of

mounting brackets that support the chassis in the rack.

NOTE: Two-post installation racks are not supported.

The four mounting bracket pieces are:

•1 left front mounting bracket. The bracket is labeled “LEFT FRONT” on the side of the bracket that faces the interior of

the rack, near the holes for attaching the bracket to the rack.

•1 right front mounting bracket. The bracket is labeled “RIGHT FRONT” on the side of the bracket that faces the interior

of the rack, near the holes for attaching the bracket to the rack.

•2 rear mounting brackets. These brackets are labeled “REAR” on the side of the bracket that faces the interior of the

rack, near the holes for attaching the bracket to the rack. The rear brackets are interchangeable; you can use either of

the rear brackets with the right or left front-mounting bracket.

Ensure that you have the following parts and tools available to install the mounting brackets:

•A Phillips (+) screwdriver, number 1, 2, or 3, depending on the size of your rack-mounting screws

•A Phillips (+) screwdriver, number 2, to install the screws that connect the rear-mounting and front-mounting brackets

•16 mounting screws appropriate for your rack to attach the 4 mounting bracket pieces to the rack

When you install the mounting brackets, the adjustable portion of the brackets overlap. Use the overlap area to adjust

the total bracket length to fit any of the four standard rack sizes: 19 in. (483 mm), 23.62 in. (600 mm), 30 in. (762 mm), or

31.5 in. (800 mm).

To install the mounting brackets in a four-post rack:

1. Remove the mounting brackets from the accessory box.

2. Decide where to place the chassis in the rack. If the rack is empty, mount the router in the lowest possible location.

See “Rack-Mounting Requirements” on page 2.

3. Position the left front adjustable mounting bracket at the desired position in the left side of the rack and line up its

front screw holes with the holes in the rack. Use four mounting screws appropriate for your rack to attach the left

front bracket to the rack.

4. Position one of the rear brackets at the left rear of the rack on the same level as the left front bracket, so that the rear

bracket overlaps with the left front bracket. The screw holes for connecting the front and rear brackets should overlap.

Use four mounting screws appropriate for your rack to attach the rear bracket to the rack.

5. Connect left front and rear brackets (see Figure 5):

a. Insert six of the screws provided with the mounting brackets into the overlapping bracket holes.

b. Hand-tighten the screws fully (to 12–16 in.-lb torque) using a number 2 Phillips screwdriver.

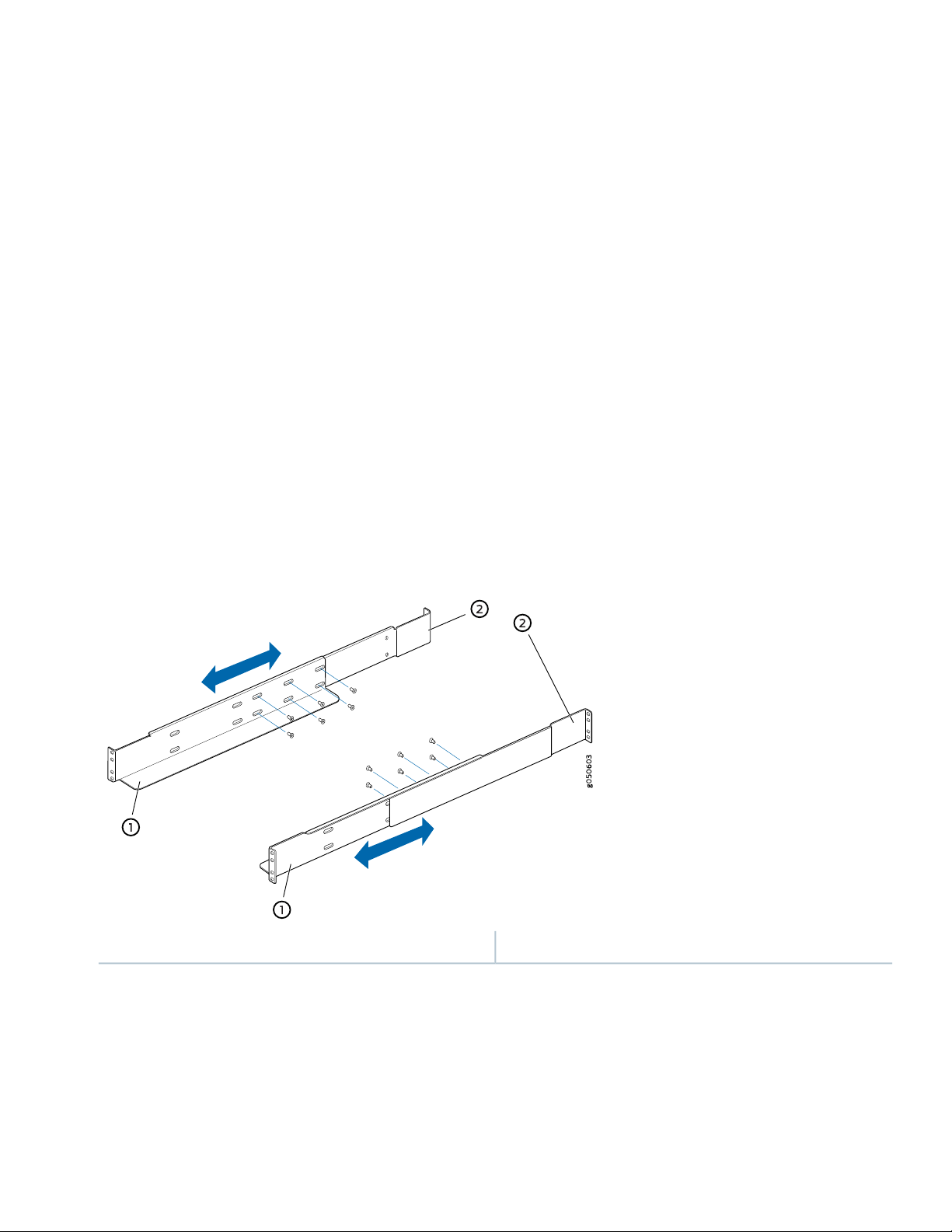

Figure 5: Mounting Brackets for 4-Post Rack Installation

2—1—Rear adjustable mounting bracketsFront adjustable mounting brackets

6. Position the right front adjustable mounting bracket at the desired position in the right side of the rack opposite the

installed left front bracket, so that it is on the same rack level as the left bracket. If the right and left front brackets are

not on the same level, the chassis will rest at an angle in the rack instead of resting flat and level. Line up the right

bracket's front screw holes with the holes in the rack. Use four mounting screws appropriate for your rack to attach

the right front bracket to the rack.

7. Position the other rear bracket at the right rear of the rack on the same level as the right front bracket, so that the rear

bracket overlaps with the right front bracket. The screw holes for connecting the front and rear brackets should overlap.

Use four mounting screws appropriate for your rack to attach the rear bracket to the rack.

8. Connect the right front and rear brackets (see Figure 5):

a. Insert six of the screws provided with the mounting brackets into the overlapping bracket holes.

b. Hand-tighten the screws fully (to 12–16 in.-lb torque) using a number 2 Phillips screwdriver.

Mounting the MX10016 Using a Mechanical Lift

Because of the router's size and weight, the MX10016 can safely be installed only by using a mechanical lift.

CAUTION: Do not install line cards in the chassis until after you mount the chassis securely on a rack

or cabinet.

CAUTION: Before front-mounting the router on a rack or cabinet, have a qualified technician verify that

the rack or cabinet is strong enough to support the router's weight and is adequately supported at the

installation site.

Ensure that you have the following parts and tools available to install the router:

•A mechanical lift rated for 1000 lbs. (453.6 kg)

•12 mounting screws appropriate for your rack

•A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack-mounting screws

CAUTION: If you are installing more than one router in a rack or cabinet, install the first router at the

bottom of the rack.

To install the router using a mechanical lift (see Figure 6):

1. Ensure that the rack or cabinet is placed in its permanent location and is secured to the building. Ensure that the

installation site allows adequate clearance for both airflow and maintenance. For details, see “Cooling and Airflow

Requirements” on page 3.

2. Load the router onto the lift, making sure it rests securely on the lift platform.

Figure 6: Loading the MX10016 into a Rack By Using a Mechanical Lift

g100421

3. Using the lift, align the router in front of the rack, centering it in front of the mounting brackets.

4. Lift the chassis approximately 0.75 in. (1.9 cm) above the surface of the mounting brackets. Align the chassis as close

as possible to the mounting brackets.

5. Carefully slide the chassis onto the adjustable mounting brackets until the front-mounting brackets attached to the

chassis contact the rack rails. The mounting brackets ensure that the holes in the front-mounting brackets align with

the holes in the rack rails. See Figure 7.
