Quick Start Guide
MX10004
IN THIS GUIDE
Step 1: Begin | 1
Step 2: Up and Running | 8
Step 3: Keep Going | 12
Step 1: Begin
SUMMARY
In this guide, we provide a simple, three-step path, to quickly
get you up and running with your new MX10004 router.
We've simplied and shortened the installaon and
conguraon steps. You'll learn how to install the MX10004
in a rack, power it up, and congure basic sengs.
IN THIS SECTION
Meet the MX10004 | 1
Rack It | 2
Power On | 7
Meet the MX10004
The Juniper Networks® MX10004 is the most compact, high-density, and power-ecient modular chassis in the
MX10000 line of modular packet-roung transport routers. At only 7 U in height, the MX10004 is designed for today’s
space-constrained facilies. The MX10004 supports Juniper’s 400 GbE architecture with inline Media Access Control
Security (MACsec) on all ports for point-to-point security on Ethernet links. MX10004 provides 1 GbE, 10 GbE, 25 GbE,
40 GbE, 50 GbE, 100 GbE, or 400 GbE modular soluons that support up to 38.4 Tbps of throughput.
Rack It
IN THIS SECTION
What's in the Box? | 2
What Else Do I Need? | 3
Assemble the Rack Mount Kit | 3
Mount the MX10004 in the Rack and Ground the Chassis | 4
What's in the Box?
Along with your MX10004 router, you’ll nd:
• Rack-mount kit
• Twelve Phillips 8-32 x .375 in. at-head screws
• Two mounng blades
• A mounng tray
• A rear safety restraint
• Front door
• An accessory kit with:
• RJ-45 Ethernet cable
• RJ-45 to DB9 rollover cable
•Electrostac discharge (ESD) wrist strap with cable
• Media kit (ash drives, PCMCIA card adapter)
• Ground chassis lug, 2-hole, 10-32, 6 AWG
• Six power cord retainer clips, for AC conguraons
2
What Else Do I Need?
• A mechanical li rated for 250 lb (113.4 kg). You can mount an MX10004 router manually or by using a mechanical
li. Because of the router's size and weight, we strongly recommend that you use a mechanical li to mount the
MX10004. In this guide, we show you how to mount the router using a mechanical li.
• 4 AWG (21.1 mm²) stranded wire grounding cable rated 75° C or per local electrical code
• A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack-mount screws
• Twenty eight rack mount screws appropriate for your rack to secure the mounng blades, mounng tray, chassis,
and safety restraint to the rack
• A number 3 Pozidriv or Phillips (+) screwdriver for the grounding screws
CAUTION: Ensure that a licensed electrician aaches the appropriate grounding lug to your grounding
cable. Using a grounding cable with an incorrectly aached lug can damage the router.
Assemble the Rack Mount Kit
Here's how to assemble the MX10004 rack-mount kit in a four-post rack:
1. Review the General Safety Guidelines and Warnings.
2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to a site
ESD point.

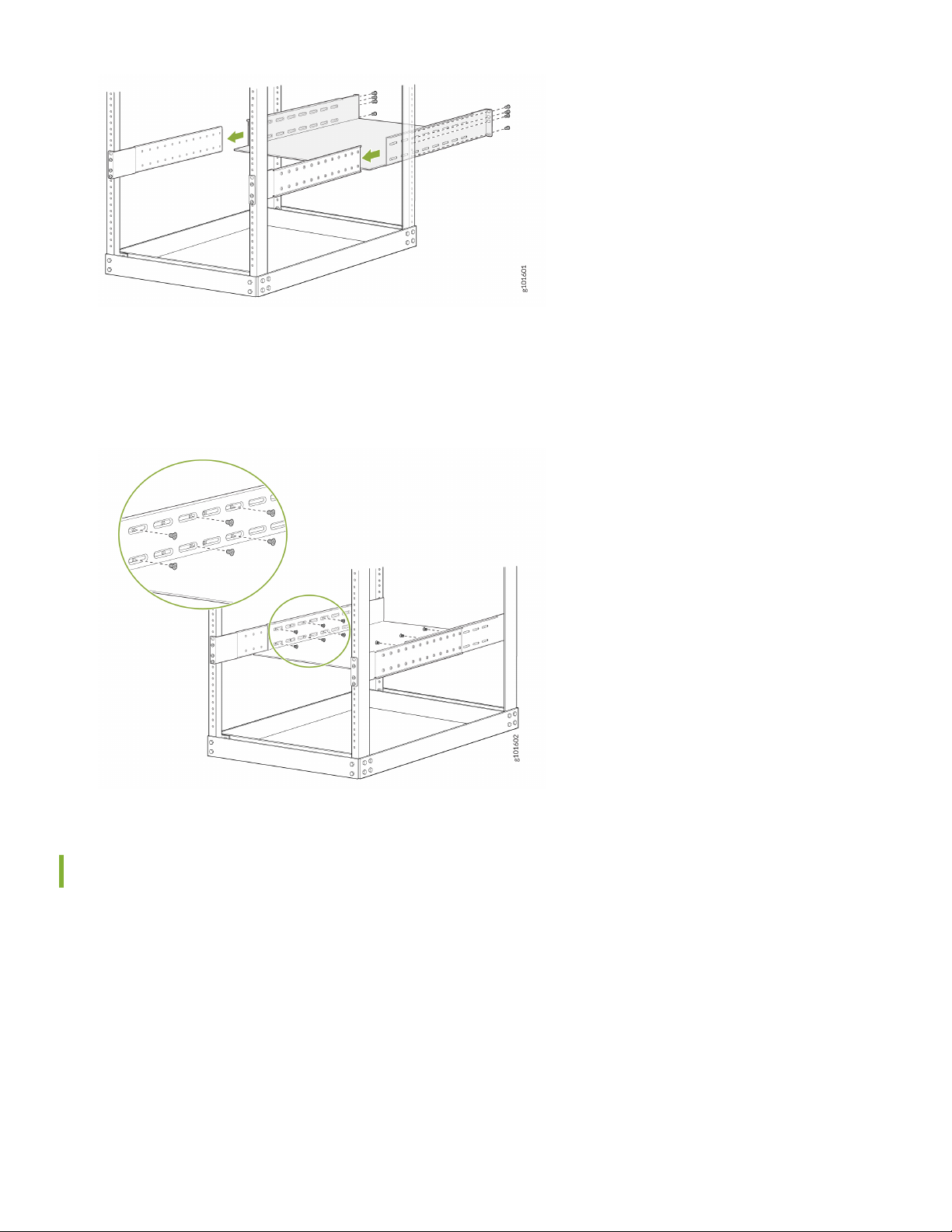

3. Aach the mounng blades to the front rack posts by using six rack mount screws.
4. From the rear of the rack, slide the mounng tray into the rear posts of the rack such that the mounng blades slide
into the grooves on the mounng tray.
3
5. Aach the mounng tray to the rear rack posts by using eight rack mount screws.
6. Check that the mounng tray is level.
7. Aach the mounng tray to the mounng blades in the rack with the 12 Phillips 8-32 x .375 in. at-head screws.
Mount the MX10004 in the Rack and Ground the Chassis
Here’s how to install the MX10004 in a four-post rack:
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to a site
ESD point.

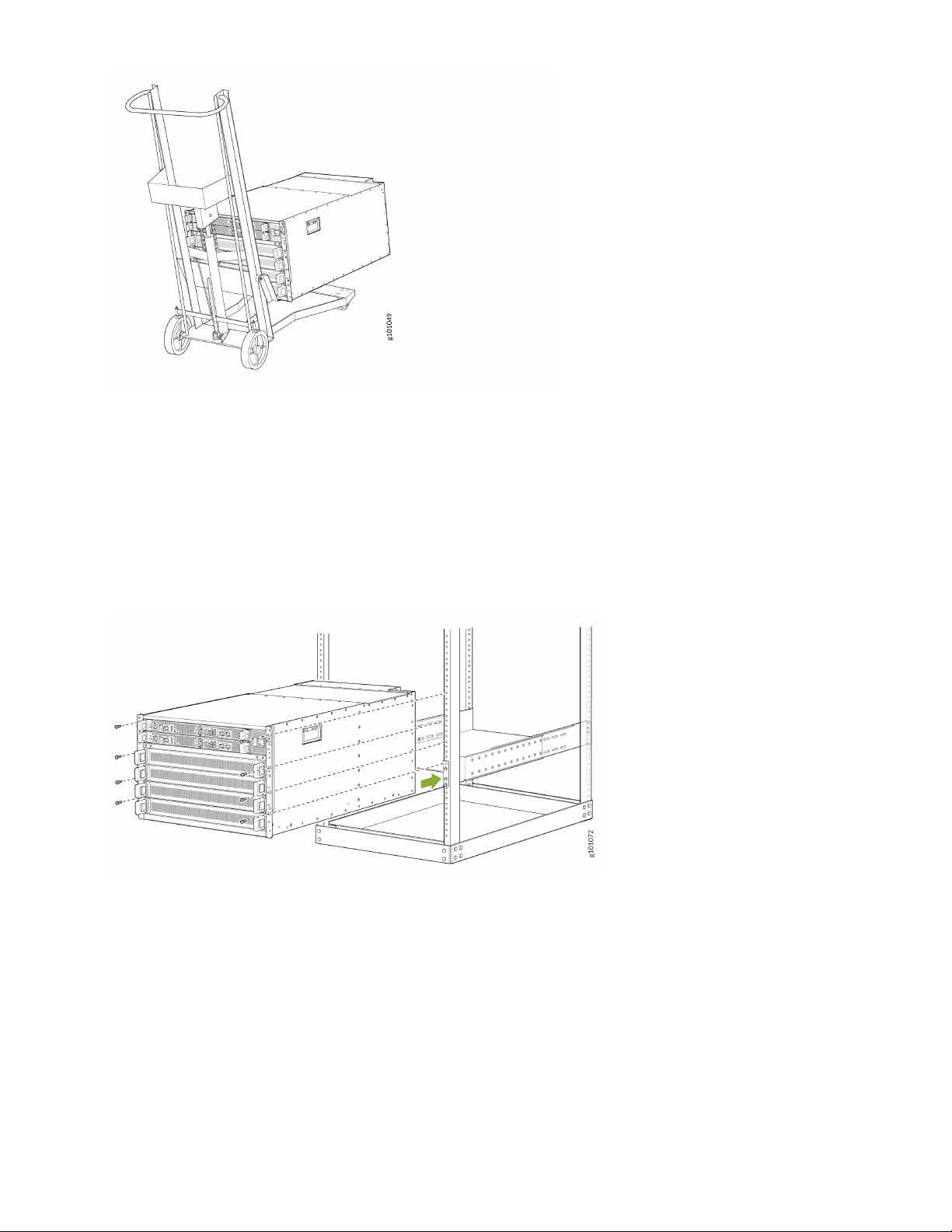

2. Load the router onto the li, making sure it rests securely on the li plaorm.
4
3. Align the router in front of the rack, centering it in front of the mounng tray.
4. Li the chassis approximately 0.75 in. (1.9 cm) above the surface of the mounng tray. Align the chassis as close as
possible to the mounng tray.
5. Carefully slide the chassis onto the mounng tray unl the chassis anges touch the rack rails.
6. Starng at the boom, aach the chassis to the rack by inserng eight rack mount screws through each open
ange hole and rack hole.
7. Move the li away from the rack.
8. Check the alignment of the router. The rack mount screws on each side of the rack should line up, and the router
should be level. Tighten the screws.
9. Insert the safety restraint between the rear posts of the rack. It should rest on the top of the chassis and align with
the holes in the rack.
10. Aach the restraint to the rack by inserng six mounng screws through each ange hole and rack hole and
ghtening the screws.
5
11. Install the line cards:
a. Remove the line card cover by grasping the handles and pulling straight out to expose the slot for the line card.
Save the cover.
NOTE: If you are not installing a line card do not remove the line card cover.
b. Slide the line card all the way into the slot unl the handle holes line up.
c. Rotate the handles simultaneously into the chassis unl the card is fully seated and the handles are vercal.
12. Install the opcs and oponal cable management system.
13. Li the front door and line up the capve screws in the door with the holes in the chassis ange.
Aach the door to the chassis and rack using the capve screws. Turn the screws unl they are nger ght.
14. Have a licensed electrician aach the cable lug (provided in the accessory kit) to the grounding cable.
15. Remove the two M6 screws with aached washers below the boom power supply using a Pozidriv or Phillips
screwdriver.
16. Place the chassis grounding lug and cable over the screw holes with the cable connecon poinng to the le. Place
the two screws with aached washers over the grounding lug and grounding cable. Tighten the two M-6 screws
using a Pozidriv or Phillips screwdriver.
6
Power On
Now that you’ve installed your MX10004 in the rack and grounded the chassis, you’re ready to connect it to power.
The MX10004 supports AC, DC, high-voltage alternang current (HVAC), and high-voltage direct current (HVDC). In
this guide, we show you how to connect AC power. For DC, HVAC, and HVDC installaons, see MX10004 Universal
Roung Plaorm Hardware Guide.
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to one of
the ESD grounding points on the router.
2. Turn o the power switch on the power supply.
3. If the power source outlet has a power switch, turn it o.
4. Aach each AC power supply to a dedicated power source.
NOTE: If you need power source redundancy, you can aach each power cable to separate power sources.
5. For each AC power cable, insert the end of the cable with the Anderson connector into the power supply. The
connector snaps and locks the cable into posion.
WARNING: Ensure that the power cord does not block access to router components or drape
where people can trip on it.
6. Set the three DIP switches on the power supply to indicate whether one or both power feeds are used, and to
indicate the amperage of the feeds. Together, these switches determine if the chassis operates at 3,000 W, 5,000
W, or 5,500 W. If you're using both power feeds, set switch 1 and switch 2 to the on (|) posion. Power is shared. If
you’re not using power source redundancy, set the unused source to the o (O) posion. The LED turns red and
indicates an error if a power source input is not in use and the DIP switch is on (|).
7
Switch State Descripon
1 On INP1 is present.
O INP1 is not present.
2 On INP2 is present.
O INP2 is not present.
3 On Enabled for 30-A feed; 5,000 W for
single feed, 5,500 W for dual feeds.
O Enabled for 20-A feed; power supply
capacity is 3,000 W.
7. Plug the AC power cord into the power outlet.
8. If the power source outlet has a power switch, turn it on.
9. Turn on the power switch on the power supply.
10. If you’re using two power feeds, verify that the 1 and 2 LEDs on the power supply faceplates are steadily lit. These
LEDs correspond to INP1 and INP2.
Step 2: Up and Running
SUMMARY
Now that the MX10004 is powered on, let’s do some inial
conguraon to get the router up and running on the
network. It’s simple to provision and manage the MX10004
on your network.
IN THIS SECTION
Connect to the Router and Enter Conguraon
Mode | 8
Connect to the Router and Enter Conguraon Mode
Before you begin conguring the router:
• Ensure that the Roung Control Board (RCB) has the Junos OS Release 22.3R1 or later operang system installed.
8
• If you want to use an RCB that has Junos OS release prior to 22.3R1 or if the show version command displays the
router model as mx10016-olive, you must use the USB install method (not the CLI method) to upgrade the Junos OS
release on the RCB to 22.3R1 or later.
1. Connect the console port on the MX10004 to a laptop or PC using the supplied RJ-45 cable and RJ-45 to DB-9
adapter. The console (CONSOLE) port is located on the Roung and Control Board (RCB).
2. Verify that your laptop or PC has the following default values:
• Baud Rate—9600
• Flow Control—None
• Data—8
• Parity—None
• Stop Bits—1
• DCD State—Disregard
3. Log in as root. There is no password. If the soware boots before you connect to the console port, you might need
to press the Enter key for the prompt to appear.
login: root
4. Start the CLI.
root@% cli
5. Enter conguraon mode.
root> configure
6. Add a password to the root administraon user account.
[edit]
root@# set system root-authentication plain-text-password
New password:
password
Retype new password:
password
9
NOTE: Oponally, instead of conguring the root password at the [edit system] hierarchy level, you can use
a conguraon group to strengthen security.
7. (Oponal) Congure the name of the router. If the name includes spaces, enclose the name in quotaon marks (“ ”).
You can congure the router name at the [edit system] hierarchy level.
[edit]
root@# set system host-name
host-name
If your MX10004 router has two RCBs, it is recommended you use a conguraon group. You can use group-name
as re0 or re1.
[edit]
root@# set groups
group-name
system host-name
host-name
For Example:
[edit]
root@# set groups re0 system host-name alpha-router0
[edit]
root@# set groups re1 system host-name alpha-router1
8. Congure the default gateway.
[edit]
root@# set routing-options static route default next-hop
address
9. Congure the IP address and prex length for the router management interface.
[edit]
root@# set interfaces em0 unit 0 family inet address
address/prefix-length
NOTE: The management port, em0 (MGMT for RJ-45 connecons) is found on the front of the RCBs of the
MX10004 router.
If your MX10004 router has two RCBs, you can congure each RCB with a separate IP address for the
management Ethernet interface.
10
