Replacing the SRX5600 Services Gateway Fan Tray

To replace a fan tray, perform the following procedures in sequence:

1. Removing the SRX5600 Services Gateway Fan Tray on page 1

2. Installing the SRX5600 Services Gateway Fan Tray on page 2

Removing the SRX5600 Services Gateway Fan Tray

NOTE: To prevent overheating, install the replacement fan tray immediately after

removing the existing fan tray.

To remove the fan tray (see Figure 1):

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to one of the ESD points on the chassis.

2. Loosen the captive screws on the fan tray faceplate.

3. Grasp the fan tray handle and pull it out approximately 1 to 3 inches.

WARNING: To avoid injury, keep tools and your fingers away from the fans as you

slide the fan tray out of the chassis. The fans might still be spinning.

4. Press the latch located on the inside of the fan tray to release it from the chassis.

5. Place one hand under the fan tray to support it and pull the fan tray completely

out of the chassis.

Replacing the SRX5600 Services Gateway Fan Tray ■1

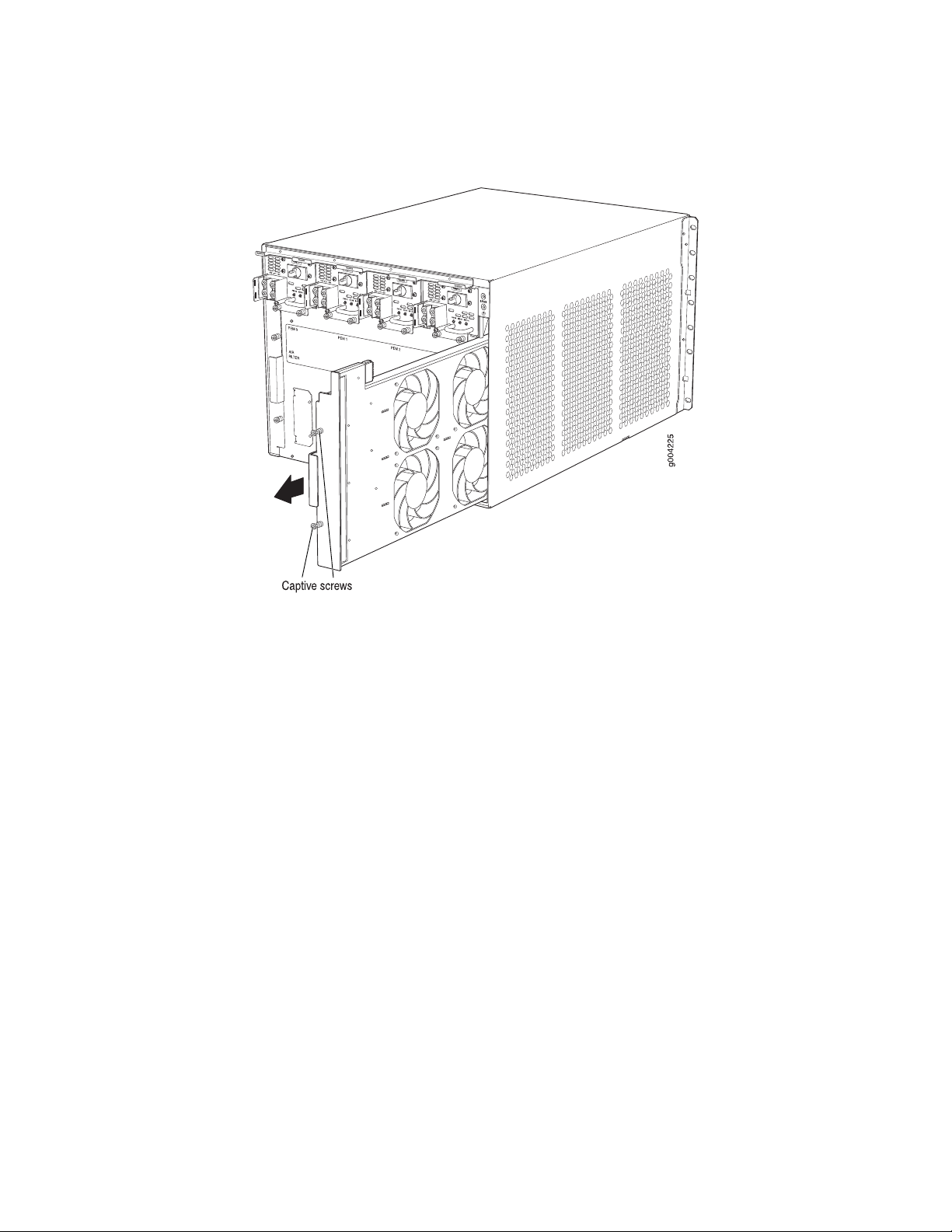

Figure 1: Removing the Fan Tray

Installing the SRX5600 Services Gateway Fan Tray

To install the fan tray (see Figure 2):

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to one of the ESD points on the chassis.

2. Grasp the fan tray handle and insert it straight into the chassis. Note the correct

orientation by the this side up label on the top surface of the fan tray.

3. Tighten the captive screws on the fan tray faceplate to secure it in the chassis.

2■Installing the SRX5600 Services Gateway Fan Tray

Figure 2: Installing the Fan Tray

Published: 2009-11-03

Installing the SRX5600 Services Gateway Fan Tray ■3
