Quick Start

SRX345

IN THIS GUIDE

Step 1: Begin | 1

Step 2: Up and Running | 5

Step 3: Keep Going | 11

Step 1: Begin

IN THIS SECTION

Meet the SRX345 | 2

Install the SRX345 in a Rack | 2

Power On | 4

In this guide, we provide a simple, three-step path, to quickly get you up and running with your new SRX345. We’ve

simplified and shortened the installation and configuration steps, and included how-to videos. You'll learn how to install

the SRX345 in a rack, power it up, and deploy it on your network using the CLI.

NOTE: We think you'll want to check out our Guided Setup: SRX300 Line Firewalls. Our Guided Setup picks

up where this Day One+ ends, providing step-by-step instructions on how to easily secure and validate your

branch location.

Are you interested in getting hands-on experience with the topics and operations covered in this guide? Visit

Juniper Networks Virtual Labs and reserve your free sandbox today! You’ll find the Junos Day One Experience

sandbox in the stand alone category.

Meet the SRX345

The Juniper Networks®SRX345 Firewall securely consolidates security, routing, switching, and WAN connectivity in a

compact 1-U chassis. It supports up to 5-Gbps firewall throughput and 800-Mbps IPsec VPN to meet the needs of midsize,

distributed-enterprise locations. Along with Juniper Sky™ Enterprise and Contrail Service Orchestration®(CSO), the

SRX345 delivers fully automated SD-WAN to both enterprises and service providers. A zero-touch provisioning (ZTP)

feature simplifies branch network connectivity for initial deployment and ongoing management.

The SRX345 has eight 1 GbE RJ-45 ports, eight 1 GbE SFP ports, one management port, one console port, and four

Mini-Physical Interface Module (Mini-PIM) slots. The RJ-45 and SFP ports are MACsec capable. The SRX345 AC models

have either a single AC power supply or dual AC power supplies. The SRX345 DC models have a single power supply.

This guide covers SRX345 AC models.

Install the SRX345 in a Rack

IN THIS SECTION

What’s in the Box? | 2

What Else Do I Need? | 2

Rack It | 3

What’s in the Box?

•SRX345 Firewall

•A power cord appropriate for your geographic location

•A USB cable

•Two mounting brackets

•Eight mounting screws to attach the mounting brackets to the SRX345

What Else Do I Need?

You’ll also need:

•Someone to help you do the installation

•Rack mount screws appropriate for your rack

•A number two Phillips (+) screwdriver

•DB-9 to RJ-45 cable or a DB-9 to RJ-45 adapter with a CAT5E copper cable—We no longer include a DB-9 to RJ-45

cable or a DB-9 to RJ-45 adapter with a CAT5E copper cable as part of the device package. If you require a console

cable, you can order it separately with the part number JNP-CBL-RJ45-DB9 (DB-9 to RJ-45 adapter with a CAT5E

copper cable).

Rack It

Here’s how to install the SRX345 in a rack:

1. Review General Safety Guidelines and Warnings.

2. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the

other end to a site ESD point.

3. Attach the mounting brackets to the sides of the SRX345 using the eight mounting screws and the screwdriver.

Depending on how you’d like the SRX345 to sit in the rack, you can attach the mounting brackets to the front or center

mounting holes.

4. Lift the SRX345 and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack

rail, making sure that the SRX345 is level.

5. While you’re holding the SRX345 in place, have a second person insert and tighten the rack mount screws to secure

the mounting brackets to the rack. Make sure to tighten the screws in the two bottom holes first and then tighten the

screws in the two top holes.

6. Check that the mounting brackets on each side of the rack are level.

Power On

Now that you’ve installed your SRX345 in the rack, you’re ready to connect it to power.

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the other end of the ESD strap

to the ESD point on the rack.

2. Attach a grounding cable to earth ground, and then attach the other end to the grounding point on the side panel of

the SRX345.

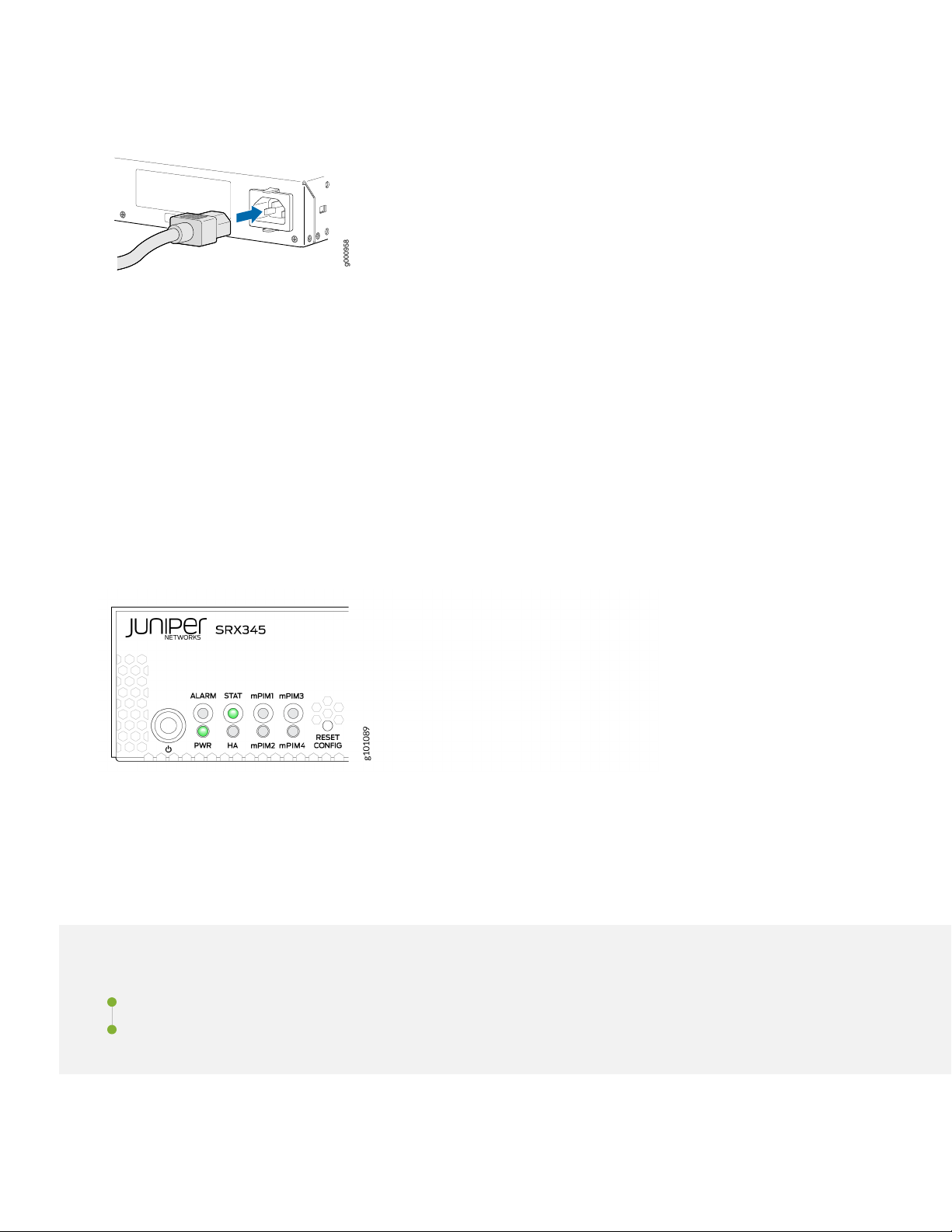

3. Plug the power cord into the SRX345 rear panel.

g000958

4. If the AC power source outlet has a power switch, turn it off.

5. Plug the other end of the power cord into the AC power source outlet.

6. If the AC power source outlet has a power switch, turn it on.

7. If you are using a SRX345 Firewall with dual AC power supplies, then repeat Step 3 through Step 5 for the second

power supply.

The SRX345 powers up as soon as you connect it to power. When the PWR and STAT LEDs on the front panel are lit

solid green, the SRX345 is ready to use.

Step 2: Up and Running

IN THIS SECTION

SRX345 Provisioning Options | 6

Initial Configuration Using the CLI | 6

Now that the SRX345 is powered on, let’s do some initial configuration to get it up and running on the network.

NOTE: Be sure to check out our Guided Setup: SRX300 Line Firewalls. Our Guided Setup picks up where this

Day One+ leaves off, providing step-by-step instructions on how to easily secure and validate your branch

location.

SRX345 Provisioning Options

It’s simple to provision and manage the SRX345 and other devices on your network. You can choose the configuration

tool that’s right for you:

•Junos CLI commands. In this guide we show you how to configure the SRX345 with CLI commands that leverage the

plug and play factory defaults.

•J-Web, Juniper Networks Setup wizard that is preinstalled on the SRX345. For information on performing initial

configuration using the J-Web setup wizard see Configure SRX Devices Using the J-Web Setup Wizard in the J-Web

User Guide for SRX Series Devices.

•Juniper Sky™ Enterprise, Juniper Networks-hosted public cloud-based Software as a Service (SaaS) solution. You’ll need

to have a Juniper Sky Enterprise subscription service before you can use it to configure the SRX345. For more information,

check out the Juniper Sky Enterprise Getting Started Guide.

•Juniper Networks Contrail Service Orchestration (CSO). To use CSO, you’ll need an authentication code. See the Contrail

Service Orchestration (CSO ) Deployment Guide.

If you are using Junos OS Release 19.2 or earlier, you can use Juniper Networks Network Service Controller to configure

the SRX345 with ZTP. Network Service Controller is a component of CSO. See Configure the Device Using ZTP with

Juniper Networks Network Service Controller.

Initial Configuration Using the CLI

IN THIS SECTION

Connect to the Serial Console Port | 7

Perform Initial Configuration | 8

Congratulations! Your SRX is Up and Running | 9

You can use the console port on the SRX to do the initial configuration. This section assumes you start from a factory

default configuration. See SRX345 Firewall Hardware Guide for details on the SRX345 factory default configuration.

After you configure the SRX345, you can log in on a local LAN port, or remotely over the WAN interface, to manage and

configure the SRX using the CLI or J-Web.

We recommend that you use the ge-0/0/0 interface for WAN connectivity on the SRX345. By default, this interface is

set to receive its Internet access configuration from the service provider.

NOTE: This examples assumes you are using DHCP to configure the WAN interface. If the WAN provider does

not support DHCP, you’ll need to manually configure the WAN interface and related static routing. See Junos

Initial Configuration.

Have this information handy before you begin the initial configuration:

•Root password

•Hostname

Connect to the Serial Console Port

1. Plug one end of the Ethernet cable into the RJ-45 to DB-9 serial port adapter for your SRX345.

NOTE: We no longer include a DB-9 to RJ-45 cable or a DB-9 to RJ-45 adapter with a CAT5E copper cable

as part of the device package. If you require a console cable, you can order it separately with the part number

JNP-CBL-RJ45-DB9 (DB-9 to RJ-45 adapter with a CAT5E copper cable).

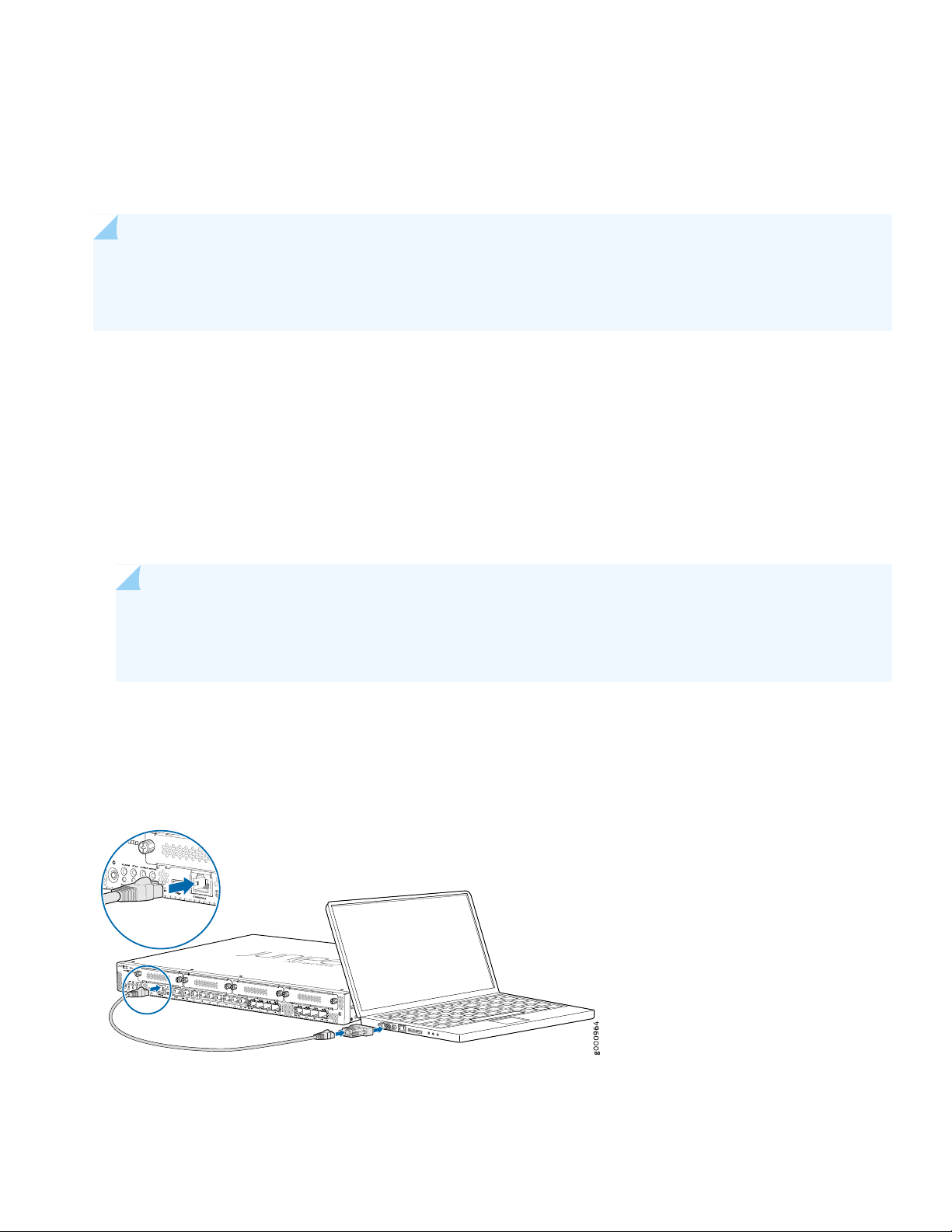

2. Plug the RJ-45 to DB-9 serial port adapter into the serial port on the management device.

3. Connect the other end of the Ethernet cable to the serial console port on the SRX345.

4. Start your asynchronous terminal emulation application (such as Microsoft Windows HyperTerminal) and select the

appropriate COM port to use (for example, COM1).

5. Verify that the serial port settings are set to the default:

•Baud rate—9600

•Parity—N

•Data bits—8

•Stop bits—1

•Flow control—none

NOTE: You can also connect to the SRX345 using a mini-USB console port. See the SRX345 Hardware Guide.

Perform Initial Configuration

1. Login as the root user and start the CLI. You don't need a password if you're running the factory default.

root@%cli

root>

NOTE: You can view the factory-default settings with the show configuration operational mode command.

2. Enter configuration mode.

root> configure

[edit]

root#

3. Since you're doing the initial configuration manually, you'll need to remove ZTP from the configuration. This stops the

periodic log messages that report on ZTP status.

Set the root authentication password and commit the change to deactivate ZTP.

[edit]

root# delete chassis auto-image-upgrade

root# delete system phone-home

root# set system root-authentication plain-text-password

New password: password

Retype new password: password

Issue the commit command to activate the candidate configuration that disables ZTP:

[edit]

root# commit

4. Enable root login over SSH, and allow SSH access over the WAN interface (ge-0/0/0).

[edit]

root# set system services ssh root-login allow

root# set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services ssh

5. Configure the hostname.

[edit]

root# set system host-name host_name

6. That’s it! The initial configuration is complete. Commit the configuration to activate the changes on the SRX.

[edit]

root# commit

Congratulations! Your SRX is Up and Running

Your SRX345 is now online and providing secure Internet access to devices attached to the LAN ports. You can manage

the device locally and remotely, using the Junos CLI, J-Web, or a cloud based provisioning service. Here's what your

network looks like:

jn-000272

Sky Enterprise

Remote Management

Station

SRX345

(Factory Default

+ Initial CLI Config)

DHCP Clients

Internet

CSO

DHCP Server

UntrustTrust

ge-0/0/0

(DHCP Client)

SNAT

(DHCP Server

192.168.1.0/24)

Local Management

Station (Optional)

ge-0/0/1-14

A few things to keep in mind about your new SRX345 branch network:

•You access the SRX CLI or J-Web user interface locally using the 192.168.1.1 address. To access the SRX remotely,

specify the IP address assigned by the WAN provider. Simply issue a show interfaces ge-0/0/0 terse CLI command to

confirm the address in use by the WAN interface.

•The management interface is configured as a DHCP server for the 192.168.1.0/24 subnet.

•Devices attached to the LAN ports are configured to use DHCP. They receive their network configuration from the

SRX. These devices obtain an IP address from the 192.168.2.0/24 address pool and use the SRX as their default gateway.

•All LAN ports are in the same subnet with Layer 2 connectivity. All traffic is permitted between trust zone interfaces.

•All traffic originating in the trust zone is permitted in the untrust zone. Matching response traffic is allowed back from

the untrust to the trust zone. Traffic that originates from the untrust zone is blocked from the trust zone.

•The SRX performs source NAT (S-NAT) using the WAN interface’s IP for traffic sent to the WAN that originated from

the trust zone.

•Traffic associated with specific system services (HTTPS, DHCP, TFTP, and SSH) is permitted from the untrust zone to

the local host. All local host services and protocols are allowed for traffic that originates from the trust zone.
