JRC NSVS776 Manuel utilisateur

NSVS776 Jan. 2005

Application

374MHz WLAN

Electrical Specification: (Table 1)

The device characteristics are measured in the circuit shown in Fig.1.

Maximum Rating: (Table 2)

Mechanical Specification: (Fig.2)

Package is designed as small as 5.2x4.5x1.5[mm3] for SMD (Surface Mount Device) type.

Notice:

This part is electrostatic discharge sensitive and may be damaged by improper handling.

Communications Equipment Division

Communications Equipment Marketing Department

10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,

Tokyo, 160-8328 Japan

Tel. +81 3-3348-3845

Fax. +81 3-3348-3935

http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)

http://www.jrc.co.jp/eng/product/saw/index.html(English)

Table 1. Electrical Specifications

Parameter Spec. Typ.

Input and Output Impedance - 50Ω

Nominal Center Frequency (f0) - 374MHz

Insertion Loss 365.5~382.5MHz 12.0dB max. 8.0dB

Passband Ripple 366.5~381.5MHz 1.0dB max. 0.8dB

Group Delay Ripple 366.5~381.5MHz 100nsec max. 50nsec

274~341MHz 40dB min. 45dB

341~352MHz 40dB min. 42dB

352~357.5MHz 35dB min. 37dB

390.5~396MHz 30dB min. 37dB

396~430MHz 35dB min. 37dB

Out of Band Rejection

(Relative to Minimum

InsertionLoss)

430~474MHz 40dB min. 45dB

(Operating Temperature Range: -30~+80ºC)

Table 2. Maximum Ratings

Parameter Rating

Maximum Input Power +10dBm

Maximum DC Voltage 7.5V

Operating Temperature Range -30~+80ºC

Storage Temperature -30~+80ºC

JRC SAW FILTER

NSVS776

NSVS776 Jan. 2005

5.2±0.2

4.5±0.2

1.5±0.2

(1.2)

(1.55)

(1.27)

(0.75)

(0.8)

(1) (a) (b)

(2)

(3)

[8x]

[2x]

[5x]

345

SAW

1.27

1.0

5.3

1.6

1.0

6.0

Via-Hole(

0.3)

[6x]

[3x]

Marking

(1) Manufacture’s Mark

(2) Lot Number

(a) Year

(b) Month

*Oct.--- X

Nov.--- Y

Dec.--- Z

(3) Part number Mark

Pin no. Connection

1 GND

2 IN

3 IN

4 GND

5 GND

6 OUT

7 OUT

8 GND

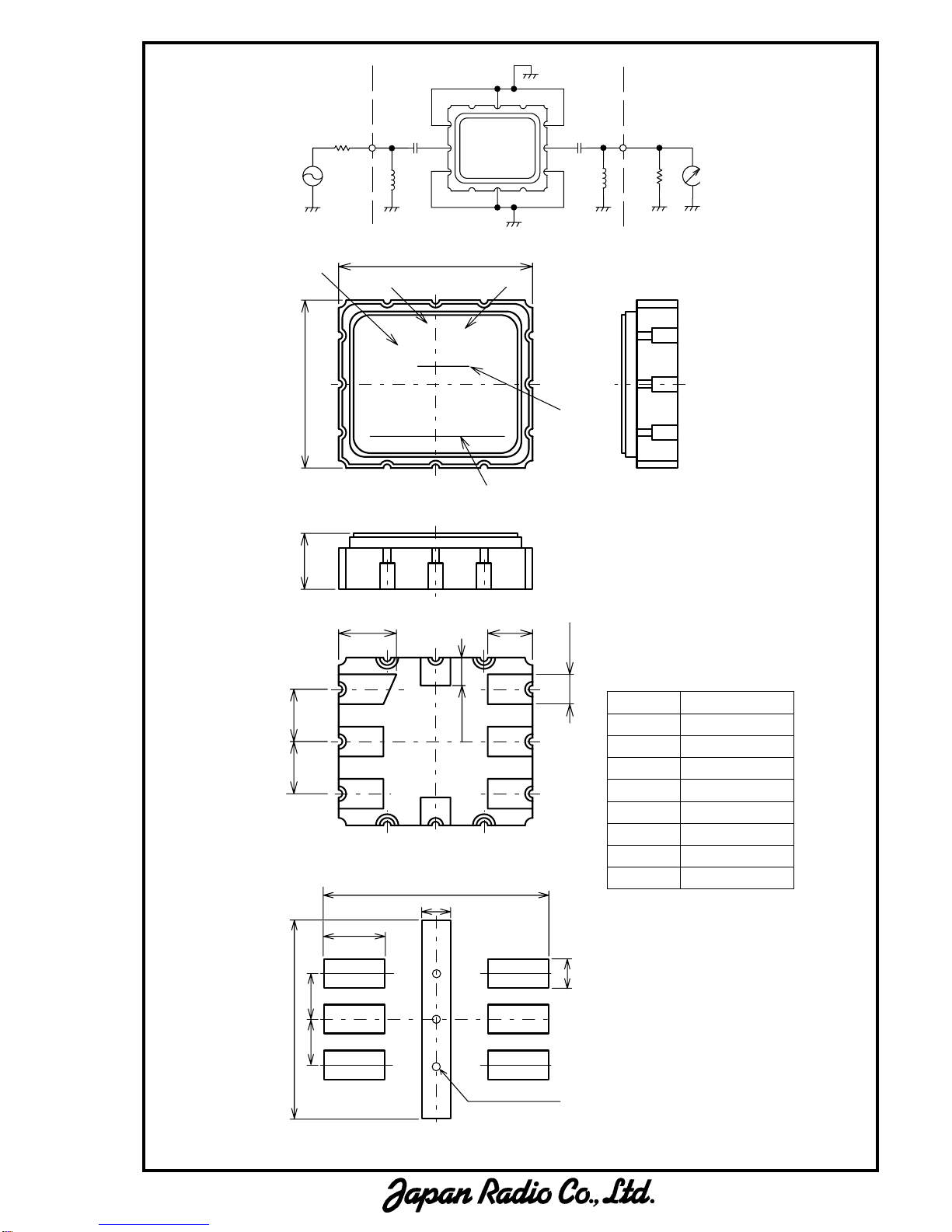

Fig.1 Measuring Circuit

Fig.2 Package dimensions (in mm)

Fig.3 Desirable land area (in mm)

J51

776

50Ω∗OUT

50Ω∗

15nH

10nH

27pF 22pF

NSVS776 Jan. 2005

Notice

1. Use this component within operating temperature range. It might not be

satisfied with electrical specification without operating temperature range.

When it is used less than -30ºC or more than +80ºC, it might be a cause of

degradation or destruction of the component. Even if it endures during a short

time, it causes degradation of qualification.

2. When soldering iron is used, solder with the temperature at the tip of soldering

iron: 350ºC max., the time of soldering: 10 seconds max., the power of

soldering iron: 30W max..

3. Notice that the allowed time of soldering with soldering iron is accumulated

time, when soldering is repeated.

4. As rapid temperature change for cleaning after reflow soldering might be a

cause of destruction clean this component after confirming that temperature of

this component goes down to room temperature.

5. Confirm that there are not any influence for qualification to this component in

mounting on PCB when this component is cleaned.

6. As it might be a cause of degradation of destruction to apply static electricity to

this component, do not apply static electricity or excessive voltage while

assembling and measuring. And do not transport this component with bare

hand.

7. As it might be a cause of degradation or destruction to apply D.C. voltage

between each terminal, apply D.C. voltage 7.5V max. in actual circuit.

Note

1. This specification specifies the quality of this component as a single unit. Make

sure that this component is evaluated and confirmed against this specification

when it is mounted to your products.

2. The information contained herein may be changed without prior notice. It is

therefore advisable to contact Japan Radio Company before proceeding with the

design of equipment incorporating this product.

3. The products are designed to be used with ordinary electronic equipment (data

and communications equipment, office equipment, audio-video equipment,

measuring instruments, etc). Japan Radio Company does not assume any

liability for the case using the products with the application required high

reliability or safety extremely (such as space equipment, sea-bottom equipment,

medical equipment etc). When intending to use any our product please

contact our sales representatives in advance.

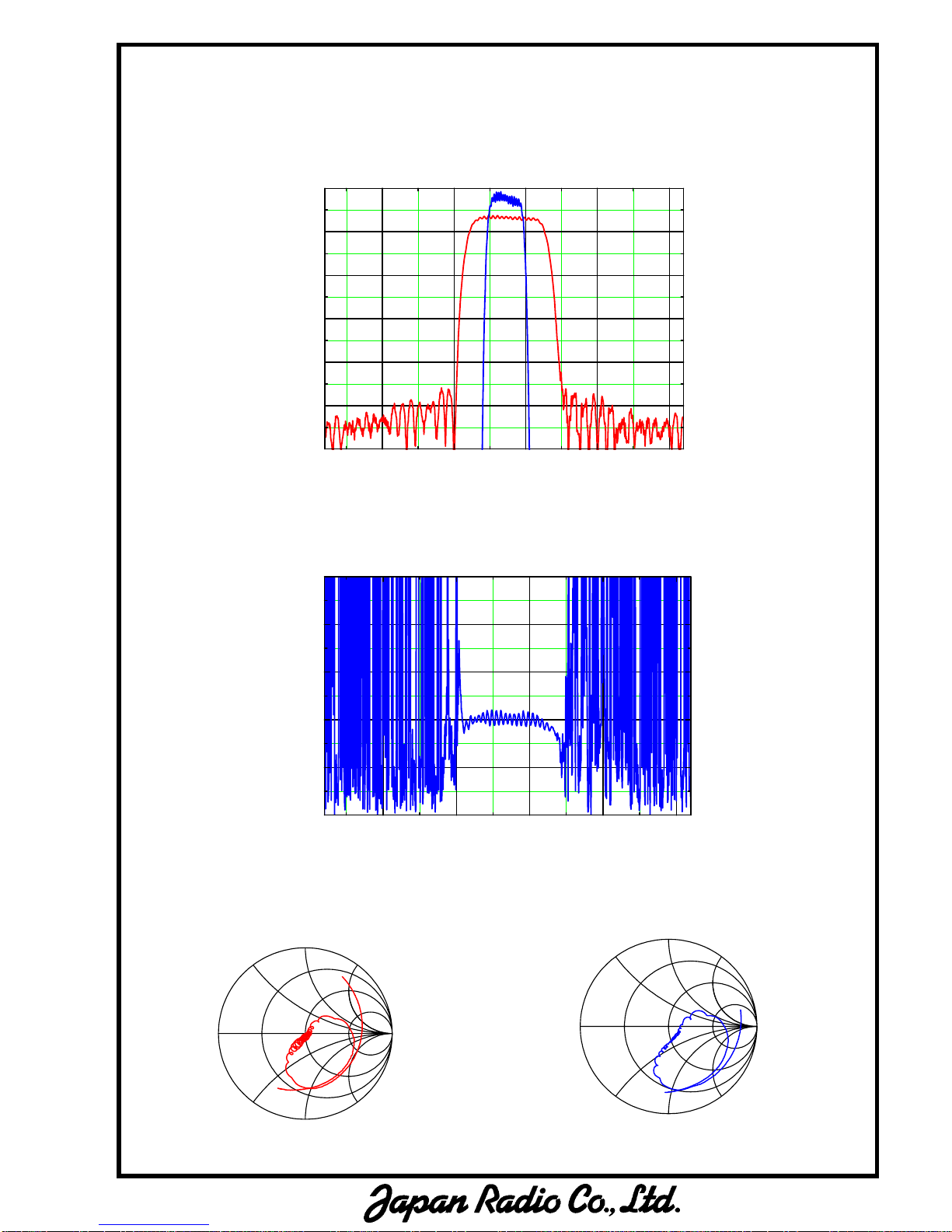

FREQUENCY CHARACTERISTICS

NSVS776 Jan. 2005

S22

S11

340 360 380 400 420

Frequency [MHz]

Insertion Loss [dB]

340 360 380 400 420

200

400

600

800

1000

Frequency [MHz]

Group Delay [ns]
