JRC NSVS1097 Manuel utilisateur

NSVS1097 Jan. 2005

Application

243.95MHz PHS Base-Station 1st IF

Electrical Specification: (Table 1)

The device characteristics are measured in the circuit shown in Fig.1.

Table 1. Electrical Specifications Spec. Typ.

243.95MHz -

±130kHz -

4.0dB 3.3dB

0.85dB 0.40dB

0.85us 0.40us

Attenuation f0±600kHz 25dB 30dB

f0±10.7MHz 50dB 65dB

f0±21.4MHz 60dB 65dB

(Operating Temperature Range : -30〜+85℃)

Item

Nominal Center Frequency (f0)

3dB Band Width

Insertion Loss at f0

Ripple f0±100kHz

Group Delay Time Ripple f0±100kHz

Maximum Rating: (Table 2)

Mechanical Specifications: (Fig.2)

Package is designed as small as 3.5x3.5x1.0[mm3] for SMD (Surface Mount Device) type.

Notice:

This part is electrostatic discharge sensitive and may be damaged by improper handling.

Table 2. Maximum Ratings

Item Rating

Maximum Input Power +5dBm

Operating Temperature Range -30~+85ºC

Storage Temperature -40~+95ºC

JRC SAW FILTER

NSVS1097

Communications Equipment Division

Communications Equipment Marketing Department

10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,

Tokyo, 160-8328 Japan

Tel. +81 3-3348-3845

Fax. +81 3-3348-3935

http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)

http://www.jrc.co.jp/eng/product/saw/index.html (English)

NSVS1097 Jan. 2005

Pin no. Connection

1 GND

2 IN/OUT

3 GND

4 GND

5 GND

6 OUT/IN

7 GND

8 GND

3.5±0.2

3.5 0.2

1.0 0.2

(0.95) (0.8)

[5x]

(2.54)

(1.27)

(0.6)

[8x]

(0.6)

(1.0)

(2)

(1)

(c)

(b)

(a)

[2x]

0.8

4.3 0.8

[6x]

1.3

[6x]

1.27

4.3

Via-Hole(φ

0.3)

1.27

345

50Ω

OUT

Ω

Fig.1 Measuring circuit

SAW

511

Fig.3 Desirable land area (in mm)

Marking

(1) Lot Number

(a) Year

(b) Month

Oct. --- X

Nov. --- Y

Dec. --- Z

0- 90

10 - 19 1

20 - 31 2

(2) Part number Mark

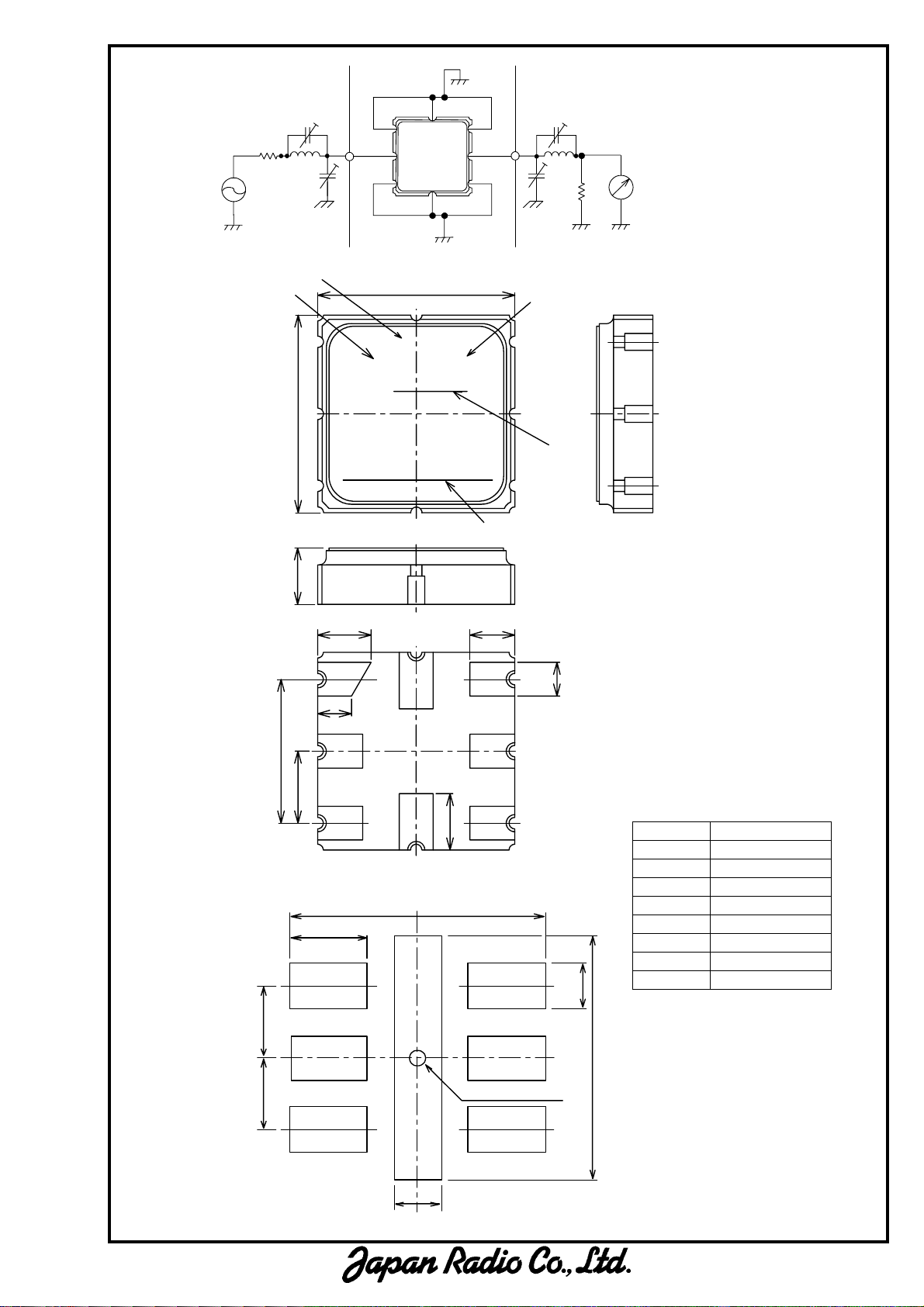

Fig.2 Package Dimensions (in mm)

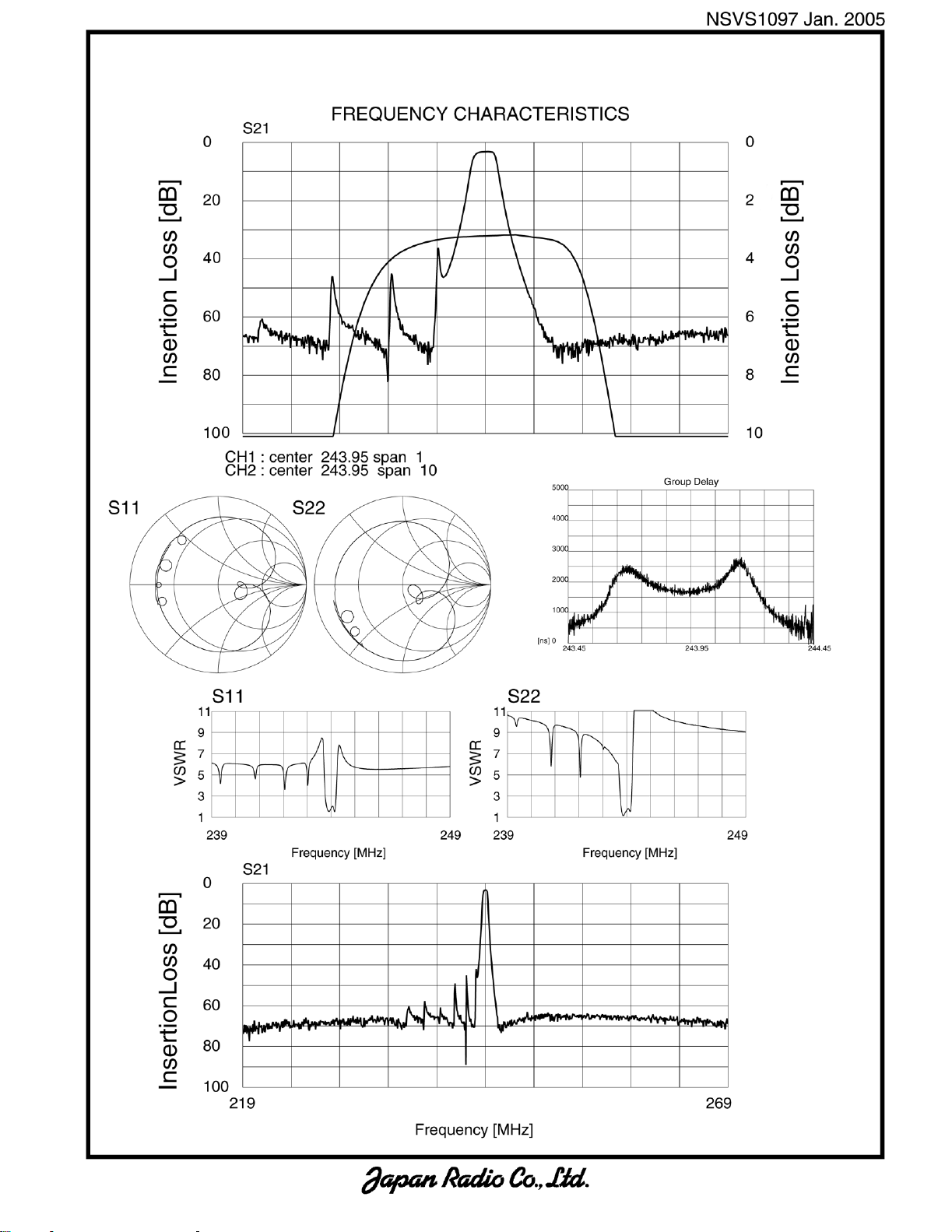

NSVS1097 Jan. 2005

Notice

1. Use this component within operating temperature range. It might not be

satisfied with electrical specification without operating temperature range.

When it is used less than –30ºC or more than +85ºC, it might be a cause of

degradation or destruction of the component. Even if it endures during a short

time, it causes degradation of qualification.

2. When soldering iron is used, solder with the temperature at the tip of

soldering iron: 350ºC max., the time of soldering: 10 seconds max., the power

of soldering iron: 30W max..

3. Notice that the allowed time of soldering with soldering iron is accumulated

time, when soldering is repeated.

4. As rapid temperature change for cleaning after reflow soldering might be a

cause of destruction clean this component after confirming that temperature

of this component goes down to room temperature.

5. Confirm that there are not any influence for qualification to this component in

mounting on PCB when this component is cleaned.

6. As it might be a cause of degradation of destruction to apply static electricity

to this component, do not apply static electricity or excessive voltage while

assembling and measuring. And do not transport this component with bare

hand.

Note

1. This specification specifies the quality of this component as a single unit. Make

sure that this component is evaluated and confirmed against this specification

when it is mounted to your products.

2. The information contained herein may be changed without prior notice. It is

therefore advisable to contact Japan Radio Company before proceeding with

the design of equipment incorporating this product.

3. The products are designed to be used with ordinary electronic equipment (data

and communications equipment, office equipment, audio-video equipment,

measuring instruments, etc). Japan Radio Company does not assume any

liability for the case using the products with the application required high

reliability or safety extremely (such as space equipment, sea-bottom

equipment, medical equipment etc). When intending to use any our product

please contact our sales representatives in advance.

NSVS1097 Jan. 2005

345

IN50ΩOUT

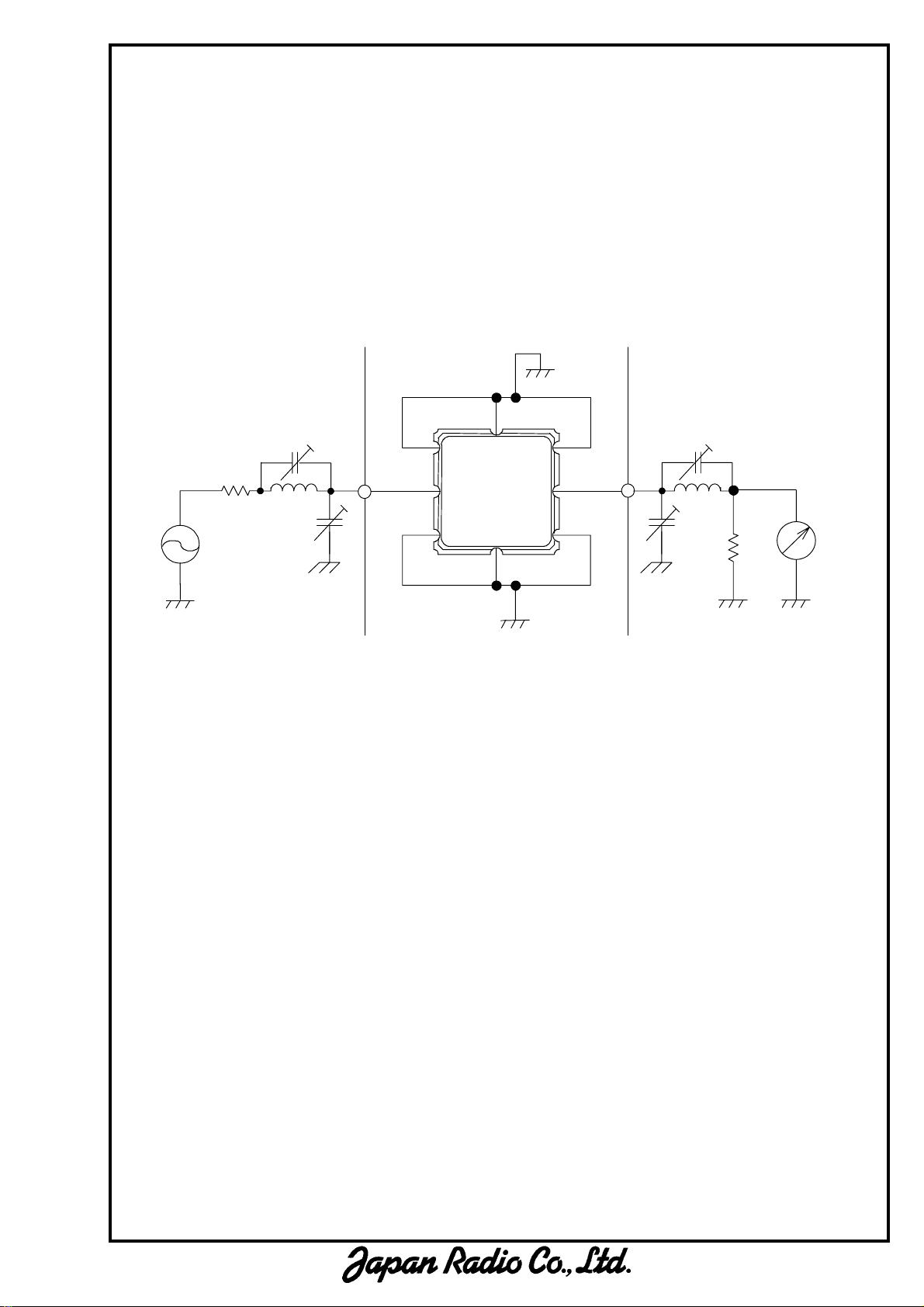

Fig. 4

SAW

LQW18ANR10G00D

100nH

Ω

TZY2Z2R5A001B00

0.65 - 2.5 pF

TZY2Z2R5A001B00

0.65 - 2.5 pF

TZY2Z2R5A001B00

0.65 - 2.5 pF

TZY2Z2R5A001B00

0.65 - 2.5 pF

LQW18ANR10G00D

100nH
