JRC NSVS1061 Manuel utilisateur

NSVS1061 Jan. 2005

JRC SAW FILTER

NSVS1061

Application

174MHz GPS

Electrical Specification: (Table 1)

The device characteristics are measured in the circuit shown in Fig.1.

Maximum Rating: (Table 2)

Mechanical Specifications:

Package is designed as small as 9.1x4.8x1.3[mm3] for SMD (Surface Mount Device) type.

Notice:

This part is electrostatic discharge sensitive and may be damaged by improper handling.

Table 1. Electrical Specifications

Parameter Spec. Typ.

Input and Output Impedance - 50Ω

Nominal Center Frequency (f0) - 174 MHz

3dB Bandwidth - 22 MHz

Insertion Loss 163.0~185.0MHz 12.0 dB 10.0 dB

Response Variation 163.0~185.0MHz 1.5 dB 1.0 dB

Group Delay Variation 163.0~185.0MHz 150 ns 100 ns

Out of Band Rejection 149~157MHz

191~199MHz 30 dB

30 dB 40 dB

30 dB

(Operating Temperature Range: -20~+70ºC)

Table2. Maximum Ratings

Item Rating

Maximum Input Power +10dBm

Maximum DC Voltage 7.5V

Operating Temperature Range -20~+70ºC

Storage Temperature -30~+80ºC

Communications Equipment Division

Communications Equipment Marketing Department

10-1,Nishi-Shinjuku 6-chome Shinjuku-ku,

Tokyo. 160-8328 Japan

Tel. +81 3-3348-3845

Fax. +81 3-3348-3935

http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)

http://www.jrc.co.jp/eng/product/saw/index.html (English)

NSVS1061 Jan. 2005

50O

OUT

50O

12 3

876

SAW

*20nH

120pF

*murata LQW18A series

Fig.1 Measuring circuit

9.10±0.15

4.8±0.15

(R0.2)

[4×]

(0.65)

(2.54) (2.54)

(1.0)

(0.8)

[10×]

(R0.2)

(2.54)

１２３

４

５

６

７

８

９

No. Connection

1 GND(PKG)

2 GND(PKG)

3 GND(PKG)

4 OUT/IN

5 GND(signal)

6 GND(PKG)

7 GND(PKG)

8 GND(PKG)

9 IN/OUT

10 GND(signal)

1.3 max.

Ｊ４５１

１０６１

(1)

①②

(2)

(3)

(1.15）

[10×]

(R0.15)

[10×]

Marking

(1)Manufacture's Mark

(2)Lot Number

①Year

②Month *Oct.‑‑‑X

Nov.‑‑‑Y

Dec.‑‑‑Z

③Day 1‑9 ‑‑‑0

10‑19‑‑‑1

20‑31‑‑‑2

(3)Part Number Mark

③

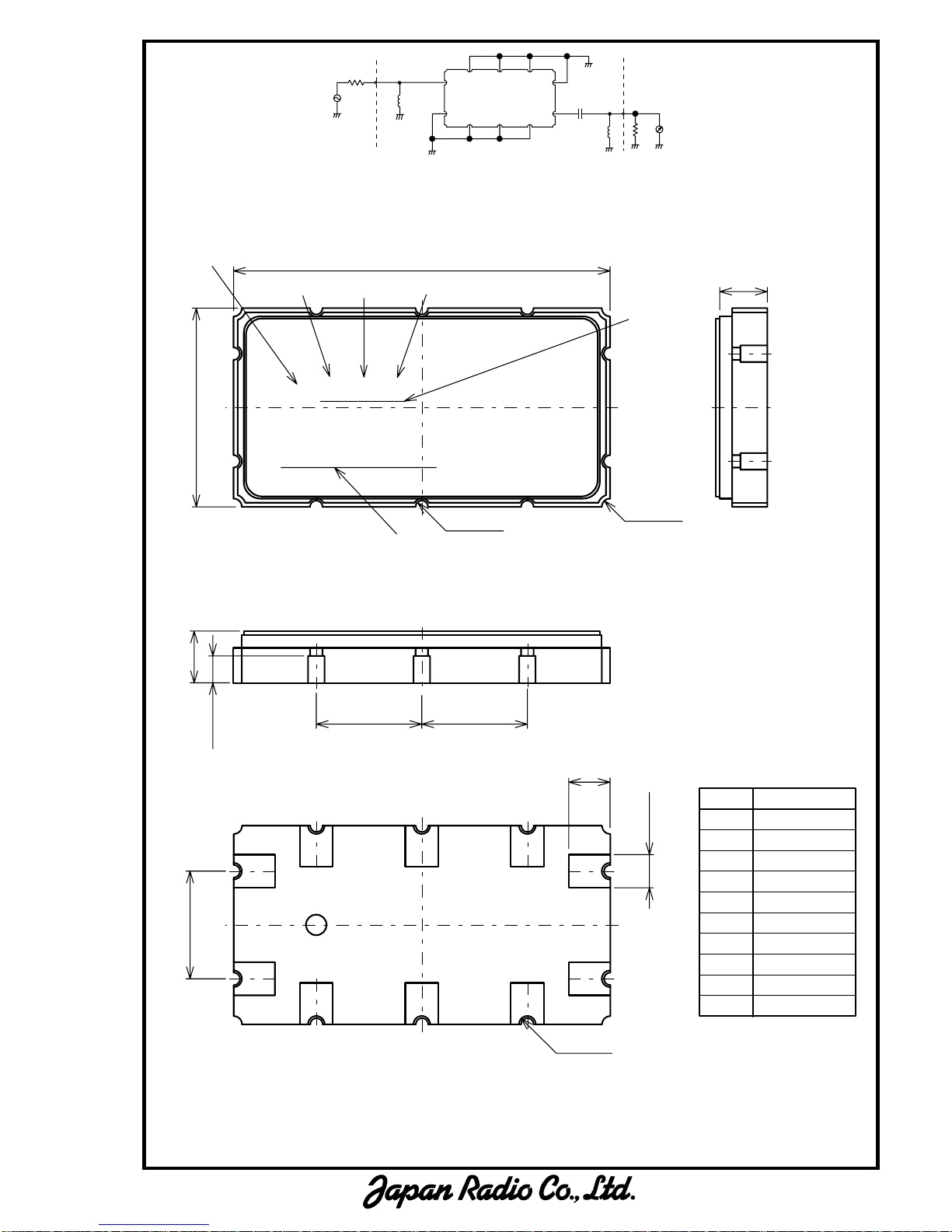

Fig.2 Package dimensions(in mm)

NSVS1061 Jan. 2005

Notice

1. Use this component within operating temperature range. It might not be

satisfied with electrical specification without operating temperature range.

When it is used less than -20ºC or more than +70ºC, it might be a cause of

degradation or destruction of the component. Even if it endures during a short

time, it causes degradation of qualification.

2. When soldering iron is used, solder with the temperature at the tip of soldering

iron: 350ºC max., the time of soldering: 10 seconds max., the power of

soldering iron: 30W max..

3. Notice that the allowed time of soldering with soldering iron is accumulated

time, when soldering is repeated.

4. As rapid temperature change for cleaning after reflow soldering might be a

cause of destruction clean this component after confirming that temperature of

this component goes down to room temperature.

5. Confirm that there are not any influence for qualification to this component in

mounting on PCB when this component is cleaned.

6. As it might be a cause of degradation of destruction to apply static electricity to

this component, do not apply static electricity or excessive voltage while

assembling and measuring. And do not transport this component with bare

hand.

7. As it might be a cause of degradation or destruction to apply D.C. voltage

between each terminal, apply D.C. voltage 7.5V max. in actual circuit.

Note

1. This specification specifies the quality of this component as a single unit. Make

sure that this component is evaluated and confirmed against this specification

when it is mounted to your products.

2. The information contained herein may be changed without prior notice. It is

therefore advisable to contact Japan Radio Company before proceeding with

the design of equipment incorporating this product.

3. The products are designed to be used with ordinary electronic equipment (data

and communications equipment, office equipment, audio-video equipment,

measuring instruments, etc). Japan Radio Company does not assume any

liability for the case using the products with the application required high

reliability or safety extremely (such as space equipment, sea-bottom equipment,

medical equipment etc). When intending to use any our product please

contact our sales representatives in advance.

NSVS1061 Jan. 2005

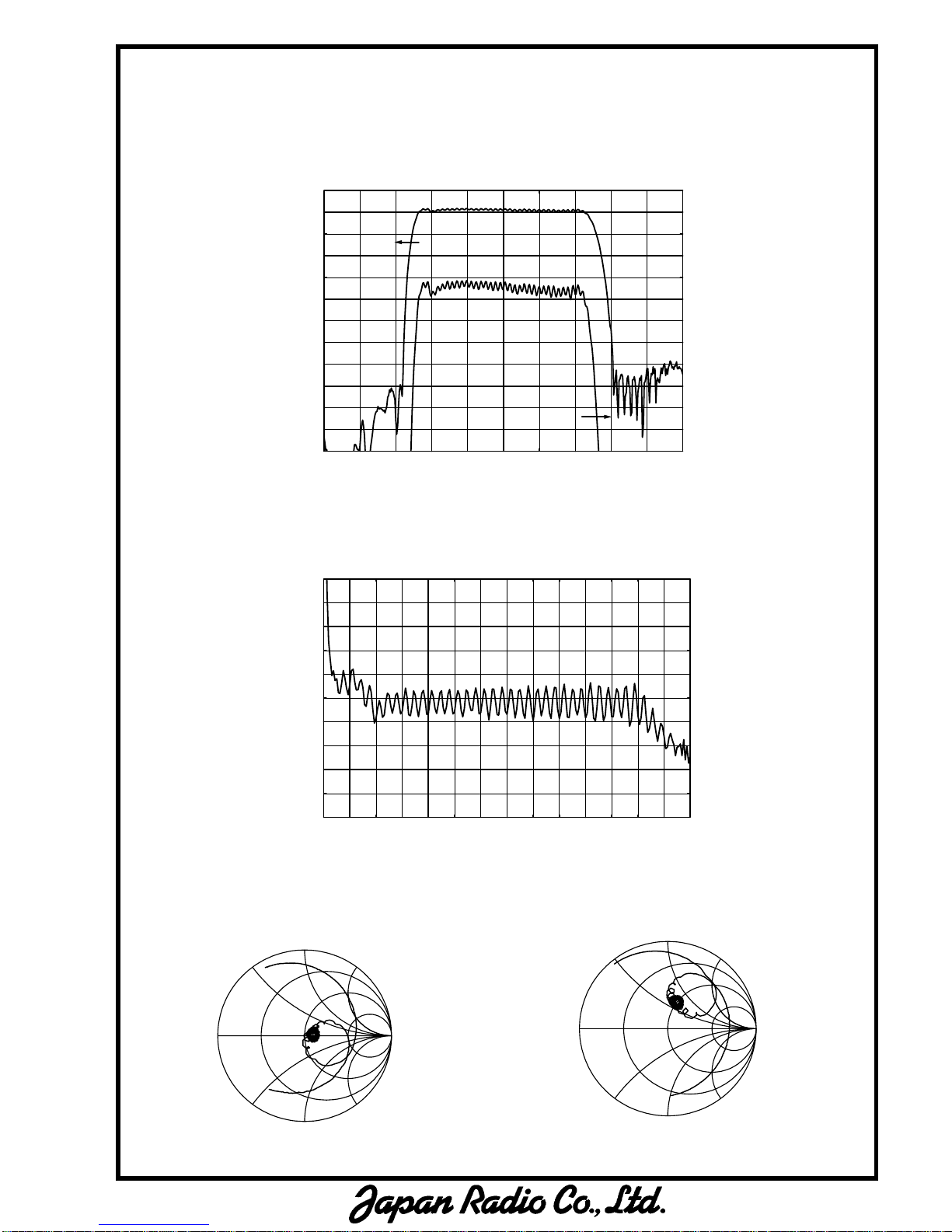

FREQUENCY CHARACTERISTICS

S22

S11

154 164 174 184 194

Frequency [MHz]

Insertion Loss [dB]

162 168 174 180 186

500

600

700

800

900

1000

Frequency [MHz]

Group Delay [ns]
