Jonix cube Manuel utilisateur
MADE IN ITALY
AIR PURIFICATION DEVICE
WITH ADVANCED COLD PLASMA TECHNOLOGY
USE AND MAINTENANCE MANUAL
These instructions are translated from Italian (the original language).
JONIX srl reserves every right concerning this manual, including the right to make any necessary change or improvement
to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual
without JONIX srl’s consent.
3
TABLE OF CONTENTS
1 - GENERAL INFORMATION 5
1.1 - SERIAL NUMBER PLATE 5
1.2 - LIABILITY 5
1.3 - SYMBOLS 6
2 - WARNINGS AND GENERAL PROHIBITIONS 6
3 - THE OPERATING SYSTEM 8
4 - TECHNICAL DATA 9
4.1 - COMPONENT DESCRIPTION 9
4.2 - TECHNICAL FEATURES 9
4.3 - SPARE PARTS AVAILABLE ON ORDER 9
5 - RECEPTION, TRANSPORT AND STORAGE 10
5.1 - PACKAGING 10
5.2 - HANDLING AND TRANSPORT 10
5.3 - INSPECTION UPON RECEPTION 10
5.4 - STORAGE 10
5.5 - HANDLING DEVICE IN OPERATING CONDITIONS 10
6 - INSTALLATION AND COMMISSIONING 11
6.1 - SAFETY STANDARDS 11
6.2 - GETTING STARTED 12
6.3 - CHOOSING THE INSTALLATION SITE 12
6.4 - ELECTRICAL CONNECTIONS 13
6.5 - ELECTRIC POWER SUPPLY 13
6.6 - USING THE DEVICE 13
6.7 - CONTROL PANEL 14
7 - MAINTENANCE 16
7.1 - WARNINGS 16
7.2 - ROUTINE MAINTENANCE 16
7.2.1 - Cleaning the ionising generators 16
7.2.2 - Cleaning the filter 20
7.2.3 - External cleaning of the equipment 20
7.3 - SPECIAL MAINTENANCE 21
7.3.1 - Replacing the ionising generators 21
8 - OPERATIONAL CHECK AND TROUBLESHOOTING 24
9 - DISPOSAL 25
WARRANTY CONDITIONS 26
EC DECLARATION OF CONFORMITY 27
4
Thank you for choosing JONIX cube.
This manual contains information and what is deemed necessary for transporting, installing,
using and maintaining the JONIX cube.
Improper installation of the device and/or failure to comply with the instructions in this manual,
may invalidate the warranty that the Manufacturer issues for its products.
The Manufacturer is not liable for any direct and/or indirect damage caused by incorrect installation
or damage caused by the units installed by inexperienced and/or unauthorised staff. At the time of
purchase, check that the device is intact and complete.
The Manufacturer declines any liability in case of personal injury or property damage resulting
from any improper use of the device or from the failure to observe the use and safety instructions
specified in this manual. In any such case, any warranty claim will be void.
Any complaints must be submitted in writing within 8 days of receiving the goods.
For more information, download of the manual or video tutorial, we invite you to visit
www.jonixair.com.
5
A
B
C
D
E
A Trade name
B Item code
C Serial Number
D Electric power supply type
E Electric power consumption
1.1 SERIAL NUMBER PLATE
1 - GENERAL INFORMATION
The equipment described in this manual is provided with a plate containing the equipment and
Manufacturer data:
The JONIX cube ioniser is in compliance with Directives: 2006/42/CE, 2011/65/UE, 2014/30/
UE, 2014/35/UE and subsequent amendments.
IMPORTANT WARNING
The JONIX cube ioniser is designed and made to sanitise the air in
residential environments (homes, offices, shops) that are incompatible
with toxic and flammable gases. It is therefore strictly forbidden to use the
device in environments where the air is mixed with and/or altered by other
gaseous compounds and/or solid particles. Using the device for purposes
other than those intended and that do not comply with those described in
this manual, will immediately relieve the manufacturer and its distributors
from any direct and/or indirect liability.
Failure to comply with the instructions contained in this Use and maintenance manual relieves the
Manufacturer from any liability. For any information not included or that cannot be deduced from
the Manual, consult the Manufacturer directly.
JONIX srl
Viale Spagna 31/33
35020 Tribano - PD - Italy
http://www.jonixair.com
In particular, if equipment maintenance is carried out in a way that is not in compliance with
the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX srl is
relieved from any liability inherent to safety of persons and faulty operation of the equipments.
1.2 LIABILITY
6
This instruction manual is an integral part of the device and therefore must be kept
carefully and must ALWAYS accompany the device, even in the event that it is sold
to another owner or user. In the event that it is damaged or lost contact JONIX srl
for another copy or download the document from www.jonixair.com.
Repairs and maintenance work must be carried out by JONIX srl authorised staff
or by qualified staff according to the provisions set out by this manual. Do not alter
or tamper with the device as it can lead to hazards and the manufacturer of the
device shall not be liable for any damage caused.
After removing the packaging check that the contents are intact and complete. In
the event of a noncompliance please contact the Company that sold you the device.
2 - WARNINGS AND GENERAL PROHIBITIONS
HAZARD: It refers to dangerous situations that may result from the use of the device,
in order to ensure personal safety.
WARNING: It refers to integrations or suggestions concerning the proper use of the
device.
FORBIDDEN: This symbol refers to operations that must be avoided under any
circumstances, and hence forbidden.
HIGH VOLTAGE HAZARD!
Do not open or remove any doors or protections before disconnecting the voltage
supply.
WARNING!
It is mandatory to use protective gloves.
Please pay utmost attention to the following symbols and their meaning. They emphasise specific
information, such as:
1.3 SYMBOLS
WASTE FROM ELECTRICAL AND ELECTRONIC EQUIPMENT.
The crossed-out wheelie bin symbol on the equipment label indicates that the
equipment is compliant with the Waste Electrical and Electronic Equipment (WEEE)
Directive. Disposing of the equipment freely in the environment or illegally disposing of
the equipment are punishable by law.
7
This device is not intended for use by people (including children) with reduced
physical, mental or sensory capabilities or without experience and knowledge,
unless they are supervised or are given instructions to use the appliance by a
person responsible for their safety. Take suitable precautions to prevent children
from playing with the device.
Do not carry out any maintenance or cleaning operations without having first
disconnected the device from the mains, by turning the main system switch to
“OFF”.
Do not touch the device if you are barefoot and with parts of the body that are wet
or damp.
Do not alter the safety or adjustment devices without prior authorisation and
instructions from the manufacturer of the device.
Please note that the use of products that require electricity, involves the observance of some
crucial safety rules such as:
When installing and operating this product, it is mandatory to observe the
requirements and instructions specified in this manual.
JONIX srl disclaims any liability for damage caused to people, animals or
property due to installation, adjustment and maintenance errors or by improper
use.
Do not pull, detach or twist the electrical wires coming out of the device, even
when it is disconnected from the mains.
Do not open the panels for accessing the internal parts of the device without
having first turned the system switch to “OFF”.
Do not stand, sit and/or rest any type of object on the device.
Not dispose of or leave the packaging materials within reach of children because
it can be potentially dangerous.
Do not spray or throw water or other liquids directly onto the device.
8
H2O, O3, VOC
Among the wide range of air ionisers available on the market, the JONIX cube ioniser is a
top of the range device that combines high performance and a modern and attractive design.
This air ioniser promotes the controlled formation of particular ionic species (electrically charged
species) in the air, through an electrostatic field that simulates the natural process that normally
occurs through solar radiation, mechanically or by means of other physical phenomena. The
particular ionic species produced are historically and scientifically proven to be beneficial in
people, especially those with a negative electrical charge (arising from individual or small groups
of molecules that receive an electron).
The feature that makes the JONIX cube stand
out compared to similar products is the use of
next generation ionising units, characterised
by high efficiency and selectivity, which do not
produce any significant increase of undesirable
sub-products in irritating or even toxic amounts.
Other important features of the device are:
-
Low power consumption.
-
Strong deodorising action:
it fights odours caused by smoke, cooking food, pets, footwear,
sportswear, etc., giving the room an intense scent of fresh air.
-
Natural process
:it does not use or produce chemicals.

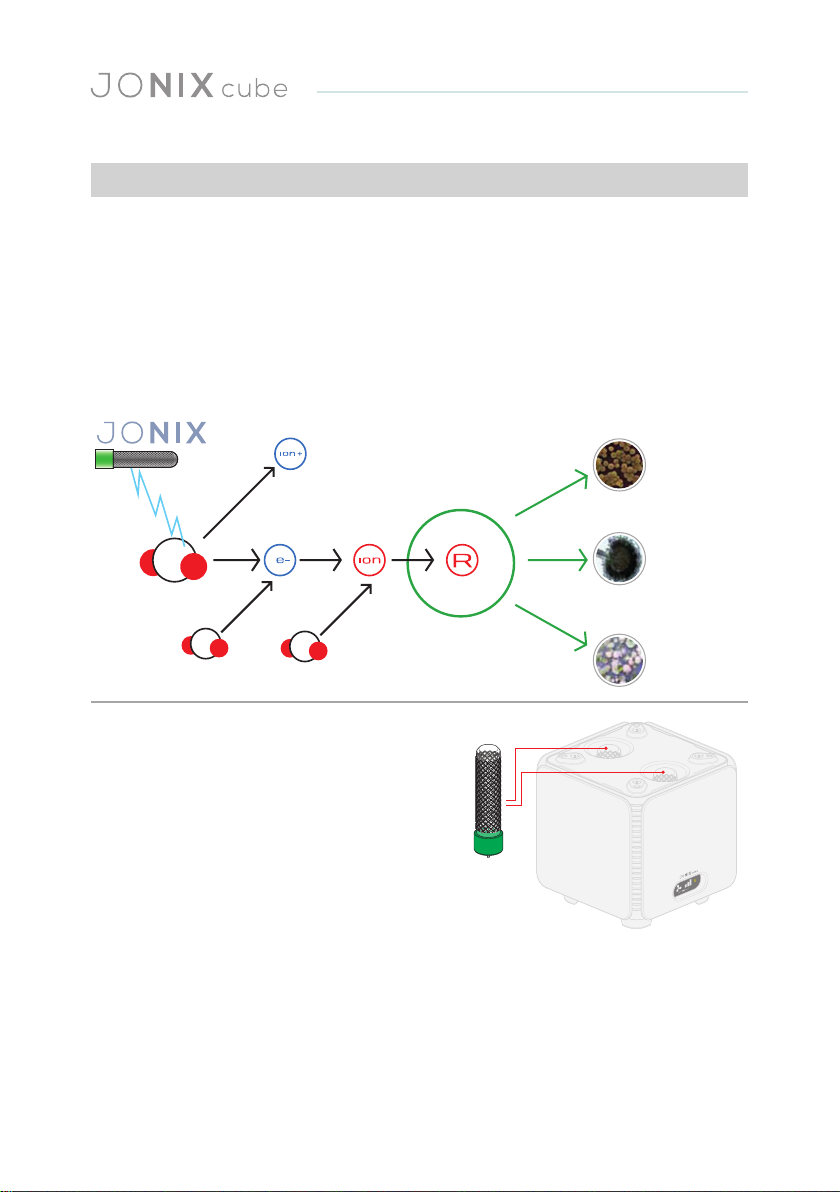

3 - THE OPERATING SYSTEM
electric
field
< 3000W
free electron
Staphilococcus
Aureus
Aspergillus
Niger
Saccharomyces
Cerevisiae
neutral molecule
(O2, CO2, H2O)
gas molecule
(O2, O3, NO, NO2)
stable negative
ion
(O, O2, O3)
BACTERIA
FUNGI
MOLDS AND YEASTS
M
I
C
R
O
B
I
C
I
D
A
L
A
C
T
I
O
N
free radical
OH, HO2, HO2- •
The device has a safety switch, positioned in such a way that when the protection cover (also
accidental) is opened, the power supply to the ionizing units and the fan is removed.
9
02
03
05
09
04
02
01
03
06
07
08
4 - TECHNICAL DATA
01 Protection lid 04 Power cable socket 07 Filter cover
02 Ionizing generator 05 Main switch 08 Power cable (provided)
03 Earthing spring 06 Control Panel 09 Protection fuses
4.1 COMPONENT DESCRIPTION
Model Dimensions
(WxDxH) [mm] Power Supply Consumption
[W]
Electrical
Absorption [mA]
Weight
[Kg]
JONIX cube 238 x 238 x 260 230 V / ~1 / 50Hz 10 51 4
4.2 TECHNICAL FEATURES
Code Description Notes
71KT000001 CUBE GENERATORS SPARE PART KIT 2 Ionising generators
JX40000001 CUBE POWER CABLE 3x0.75 cable, SP8848 schuko plug and 90° IEC60320 C13 connector
JX40000002 PROTECTION FUSE 1 quick blow glass fuse 5x20 1A ‘F’
4.3 SPARE PARTS AVAILABLE ON ORDER
10
5 - RECEPTION, TRANSPORT AND STORAGE
5.2 HANDLING AND TRANSPORT
To handle the device use appropriate means, depending on the weight, as required
by Directive 89/391/EEC and subsequent amendments.
Please take great care while unloading and positioning the devices, to prevent
damaging the casing or components. Avoid uncontrolled rotations.
The JONIX cube device, together with the accessories, is shipped in special protective
packaging. The materials that were not installed for technical requirements are supplied packed
with suitable packaging secured to the inside or outside of the device itself.
The packaging contains:
- JONIX cube.
- Schuko type power plug.
- Operating and maintenance manual (with Declaration of Conformity).
5.1 PACKAGING
Any type of complaint must be sent in writing within eight days from receiving the
goods.
When you receive the device please check all its parts, in order to make sure that it has not been
damaged during transport.
Any damage must be reported to the carrier, by filling in the relevant section on the delivery note
and specifying the type of damage.
5.3 INSPECTION UPON RECEPTION
The Manufacturer disclaims any liability for damage due to incorrect unloading
failure to protect the device from the elements.
In the event of extended storage keep the devices away from dust and sources of vibration and
heat.
5.4 STORAGE
ìJONIX cube device is easy movable in various environments, because it is provided with
reduced dimensions (see Chapter 4 "Technical Data").
5.5 HANDLING DEVICE IN OPERATING CONDITIONS
