Wall Station (PWS)
Installation Guide and User Manual
JOHNSON SYSTEMS INC.
WWW.JOHNSONSYSTEMS.COM
WWW.JOHNSONSYSTEMS.COM
2
For Technical Assistance
1. Refer to your product user manual. The most current revision is
available online: www.johnsonsystems.com/presidor.htm
2. Contact the “point-of-sale” dealer or distributor from which this product
was originally purchased, and ask for technical assistance.
3. If neither of the above can provide you with the necessary information,
please contact our factory via email ([email protected])
or phone (403-287-8003) during business hours (Monday to Friday,
8:00AM to 5:00PM MST).
Contents
Characteristics .................................................................................................4
Drawings & Details ..........................................................................................4
Description of Operation ..................................................................................6
Installation .......................................................................................................6
Model PWS-70P-DMX .....................................................................................7
Model PWS-20P-RETRO ..............................................................................10
Installation Procedure ....................................................................................13
PWS Removal ..............................................................................................13
Replacement Plastic Kits ...............................................................................14
Presidor™ Adaptor Plates .............................................................................14
Presidor™ Surface Boxes .............................................................................14
Initial Set Up and Station Conguration.........................................................15
Power Up ..................................................................................................15
Main Menu ................................................................................................15
Initial Setup And Conguration .................................................................16
Recording A Preset ........................................................................................26
DMX Snapshot . ............................................................................................26
Program A Preset ..........................................................................................27
Preset Playback.............................................................................................29
Firmware Upgrades .......................................................................................29
WWW.JOHNSONSYSTEMS.COM 3
Introduction
DMX Snapshot and Multi-Zone Controls

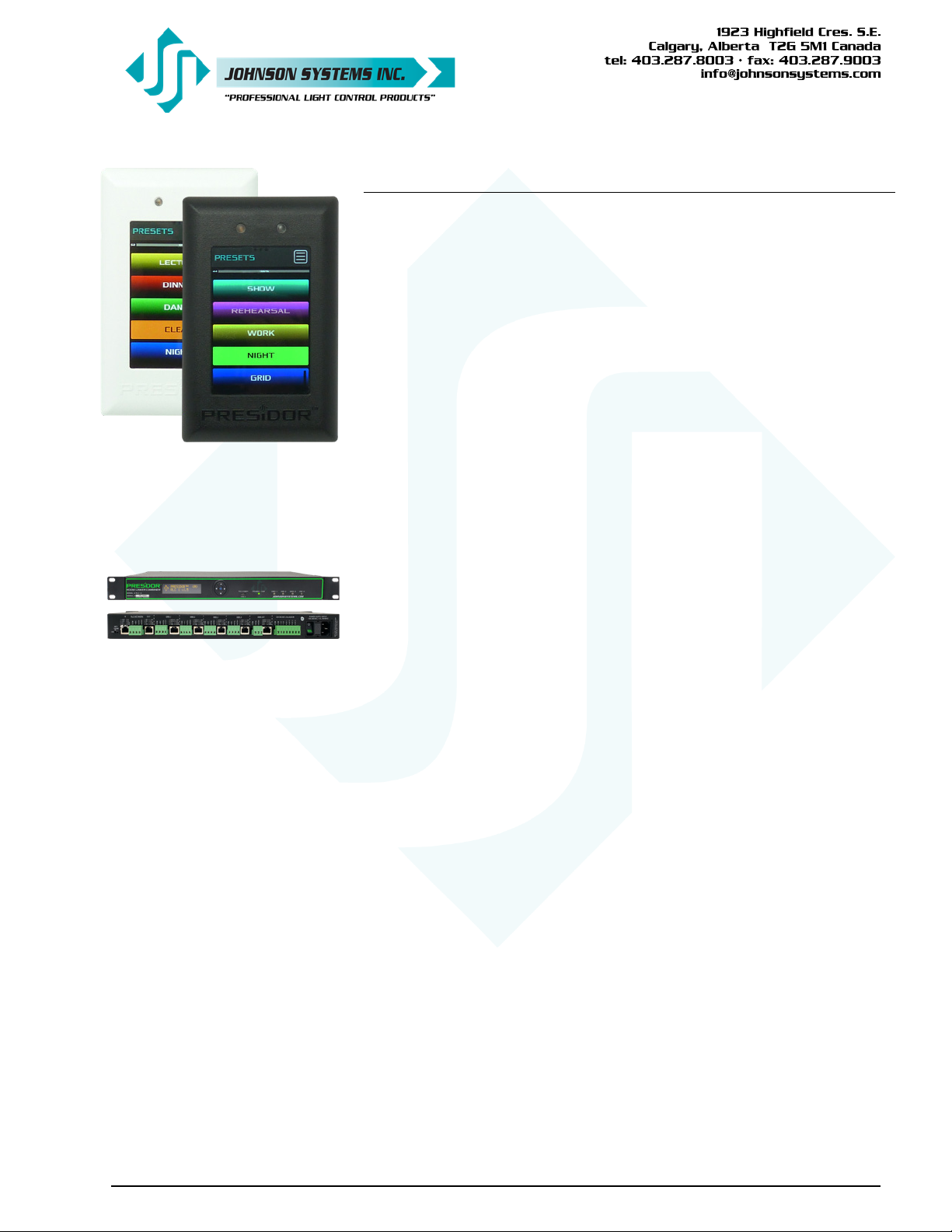

Presidor™ Wall Stations (PWS) represent the next step in Architainment
Lighting Controls. Intuitive operation is coupled with state-of-the-art
capacitive touch technology permitting powerful distributed lighting controls
for single or multi-room environments. Attractive 1 gang “Patent Pending”
design is supported by color-matched adapter plates up to 7 gang and
surface mount back boxes. Supporting up to 70 presets on a single universe
of DMX512, a PWS can operate as either a DMX console or a DMX
snapshot/playback device. Flexible and programmable auxiliary contact
input, RS232 input and real-time scheduling allow for a myriad of interface
possibilities with Building Management and Show Control systems. Wiring
topology is fast, simple and inexpensive with standard Cat5/5e or Cat6
cabling using standard RJ-45 connectors or existing Belden #9773 wiring
using standard Phoenix style connectors. Daisy-chain up to 15 stations per
room for multi-room environments for up to 25 rooms when using one or
more Presidor™ Room Linker/Combiner (PRLC).
Typical applications are wide ranging from theatre house lights, moving
lights, LED xtures, churches, corporate boardrooms, hotel ballrooms,
convention facilities, museums, art galleries and other DMX512 or RS232
controlled devices.
Features
•
Attractive “Patent Pending” screwless design is ergonomic and sealed to dust.
• 70 presets on one universe of DMX512 channels.
• Operates as either a DMX console or a DMX snapshot/playback device.
• State-of-the-art high speed, low power “green” processor and ancillary
circuitry with a power consumption < 1⁄4 Watt.
• RS232 Input.
• Bluetooth ready for remote preset activation via cell phone.
• Dual integrated light pipes allow for both automatic proximity sense and
ambient light sense.
• Embedded programming with alphanumeric preset labeling.
• Intuitive navigation allows ease of operation.
• Unique interactive real-time functionality including manually activated digital
sliders.
• Password-protected access for customized security.
• Up to 15 daisy-chained stations per room/zone power and data inclusive
over Cat5/5e/6 or 3-Pair cable.
• Up to 25 rooms/zones per DMX universe with the use of Presidor™ Room
Linker/Combiner (PRLC).
• Small compact size permits installation in standard, readily available single
gang electrical back boxes.
• Available in white or black with optional color-matched adapter plates and
surface mount back boxes allow for virtually unlimited retrot possibilities.
• Patent Pending.
Presidor™ Wall Stations (PWS)
Presidor™ Room Linker/Combiner (PRLC)
WWW.JOHNSONSYSTEMS.COM
4
Characteristics
• Voltage: 5 - 48VDC operational range. 48VDC when used with PRLC-4 Room Linker/Combiner
(48VDC supplied by PRLC-4).
• Power Consumption: < 1 Watt per station during operation and < 1⁄4 Watt during standby mode.
• Cabling: Model #PWS-70P-DMX; RS485 Cat5/5e/6 cable (RJ-45) or retrot into existing Belden
#9773 or equivalent (terminal block), 300m max. (1000').
Model #PWS-20P-RETRO; 4 x #22 AWG or larger wires, Typical 1000' or 300m on
#18 AWG wiring.
• Operating Conditions: 0°C to 40°C (32°F to 105°F); 10-90% relative humidity, non-condensing.
Drawings & Details
Models: PWS-70P-DMX & PWS-20P-RETRO
WWW.JOHNSONSYSTEMS.COM
6
Settings Screen
1. DMX Channel Setup
2. Aux Switch Input
3. Schedule
4. Audio
5. Date/Time
6. Bluetooth (Future)
7. Motion Detection
8. Info
9. Sync And Lock
10. Password
11. Backlight
12. Preset Enable/Disable
Status LED's
Green – Room Linker Combiner
Blue – Bluetooth (Future)
Flashing Yellow – DMX wiring reversed
Status LED's
Description of Operation
Presidor™ Wall Stations (PWS) are designed to support up to 15 stations per room/zone wiring in a daisy-chain
topology. There must be a Main Station in each wiring LAN (Local Area Network) with one Main PWS per room/
zone. Each LAN and Main PWS may have up to 14 Secondary PWS’s connected to it. The Main PWS will output
DMX data for the room directly to the DMX receiving device or to a DMX input of a Presidor™ Room Linker
Combiner (PRLC-4) in a multi-room application.
Installation
There are two models of PWS, both are available in white or black.
Model# PWS-70P-DMX
Model# PWS-20P-RETRO
Although both models share the same operation, the installation and wiring of each is slightly different due to the
different data protocol used.
WWW.JOHNSONSYSTEMS.COM 7
Model PWS-70P-DMX
Model #PWS-70P-DMX is designed for new applications where CAT5/5e or CAT6 can be provided or retrot
applications where existing Belden #9773 exists. Capable of up to 70 presets, this model will accept DMX512
on its input and output DMX512 when congured as a room Main Station. Inter-room communication between
multiple PWS will be PMX multiplex (RS485) protocol.
Model PWS-70P-DMX Configuration and DIP Switch Settings
Important!
One station in each LAN must be designated as a Main PWS (switch 4 ON). Only one Main Station per
LAN. All Secondary PWS connected to the Main PWS (maximum 14 PWS) must have switch 4 turned OFF.
Important! Communication between Main PWS and Secondary PWS is PMX protocol (Presidor™ Multiplex).
This RS485 protocol requires active termination (switch 2 ON) on the rst and the last PWS in the LAN for each
room/zone.
WWW.JOHNSONSYSTEMS.COM
8
DIP SWITCH #2 ON FOR 1st & LAST
ROOM STATIONS
DIP SWITCH #2 ON FOR 1st & LAST
ROOM STATIONS
Typical PWS-70P-DMX Wiring and Connection Detail
Typical PWS-70P-DMX Single Room Wiring Topology #1
Typical PWS-70P-DMX Single Room Wiring Topology #2
WWW.JOHNSONSYSTEMS.COM 9
SECONDARY 2SECONDARY 1MAIN
DMX IN from
Console or DMX Source
AUX Sensor /
Contact
Cat 5/5e/6
Patch Cable
Cat 5/5e/6
Patch Cable
Cat 5/5e/6
Patch Cable
Cat 5/5e/6
Patch Cable
To Secondary
PWS 3-14
Typical PWS-70P-DMX Multi-room Wiring Topology
PWS-70P-DMX Cat 5/5e/6 Interconnect
PRLC - Room Linker Combiner
WWW.JOHNSONSYSTEMS.COM
10
Model PWS-20P-RETRO
Model PWS-20P-RETRO is designed specically for use in Heritage Buildings using existing wiring not capable
of RS485. Communication is performed via a proprietary Unipolar Bi-Directional (UBD) low baud rate protocol.
This permits digital control upgrades to facilities that would otherwise be faced with a very expensive wiring
replacement cost!
Minimum of 4 wires required. Maximum distance dependent on wire type and gauge.
Typical 1000' or 300m on #18 AWG wiring.
Model PWS-20P-RETRO Configuration and DIP Switch Settings
Important!
One station in each wiring LAN must be designated as a Main PWS (switch 4 ON). Only one Main Station
per LAN. All Secondary PWS connected to the Main PWS (maximum 14 PWS) must have switch 4 turned OFF.
