TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions 1

Applications

The TEC Series Wireless Thermostat Controller

System provides wireless networked control of

Heating, Ventilating, and Air Conditioning (HVAC)

equipment on a Building Automation System (BAS)

that enables remotemonitoring and programming. This

TEC Series System integrates into a supervisory

controller using BACnet® Internet Protocol (IP) or

BACnet Master-Slave/Token-Passing (MS/TP)

communications.

TEC20 Coordinators allow the supervisory controller to

communicate with multiple TEC Wireless Thermostat

Controllers.TEC200x-3 Series Wireless Thermostat

Controllers provide networked control of a variety of

staged equipment. TEC2003-3 Multi-Stage Wireless

Thermostat Controllers control multi-stage packaged

heating/cooling equipment.

The wireless mesh network uses ZigBee™technology

to enable remote monitoring and programming and to

enhance reliability by providing redundant transmission

paths through other TEC Wireless Thermostat

Controllers, creating a resilient, self-healing mesh

network.

North American Emissions Compliance

United States

IMPORTANT: The TEC2003-3 Wireless

Thermostat Controller is intended to provide an input

to equipment under normal operating conditions.

Where failure or malfunction of the thermostat

controller could lead to personal injury or property

damage to the controlled equipment or other

property, additional precautions must be designed

into the control system. Incorporate and maintain

other devices, such as supervisory or alarm systems

or safety or limit controls, intended to warn of or

protect against failure or malfunction of the

thermostat controller.

This equipment has been tested and found to

comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when this equipment is

operated in a commercial environment. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is

likely to cause harmful interference, in which case

the user will be required to correct the interference

at his/her own expense.

RF Transmitters: Compliance Statement

(Part 15.19)

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference,

and

2. This device must accept any interference

received, including interference that may cause

undesired operation.

Warning (Part 15.21)

Changes or modifications not expressly approved by

the party responsible for compliance could void the

user’s authority to operate the equipment.

TEC2003-3 Multi-Stage Wireless Thermostat Controller

Installation Instructions

TEC2003-3 Part No. 24-9890-730, Rev. B

Issued April 7, 2009

Supersedes June 20, 2008

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions2

Canada

Mounting

Location Considerations

Locate a thermostat controller:

• on a partitioning wall, approximately 1.5 m (5 ft)

above the floor in a location of average

temperature

• away from direct sunlight, radiant heat, outside

walls, outside doors, air discharge grills, or

stairwells, or from behind doors

• away from steam or water pipes, warm air stacks,

unconditioned areas (not heated or cooled), or

sources of electrical interference

Allow for vertical air circulation to the thermostat

controller.

Wireless Signal Transmission Range

Line-of-sight transmission ranges between a

TEC20 Coordinator and a TEC Wireless Thermostat

Controller (or between TEC Wireless Thermostat

Controllers) can be less than the recommended

distances shown in Table 1. The effective transmission

range for indoor applications varies because of Radio

Frequency (RF) signal absorption and reflection due to

metal obstructions, walls (or floors), and furniture found

in typical building interiors.

For detailed information on locating devices for

optimum signal strength, refer to the Wireless Metasys

System Location Guide (LIT-12011294).

Mounting the Thermostat Controller

Follow these steps to mount the thermostat controller:

1. Use a Phillips-head screwdriver to loosen the

security screw on the bottom of the cover.

2. Pull the bottom edge of the cover and open the

thermostat controller as illustrated in Figure 1.

3. Carefully pull the locking tabs on the right side of

the mounting base, and unlock the Printed Circuit

Board (PCB). Open the PCB to the left as

illustrated in Figure 2.

4. Pull approximately 152 mm (6 in.) of wire from the

wall, and insert the wire through the hole in the

mounting base.

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

RF Transmitters: Industry Canada Statement

The term IC before the certification/registration

number only signifies that the Industry Canada

technical specifications were met.

Le terme « IC » précédant le numéro d'accréditation/

inscription signifie simplement que le produit est

conforme aux spécifications techniques d'Industry

Canada.

Table 1: Recommended Transmission Ranges

Type Distance

Through Walls 10 m (30 ft)

Open Space 30 m (100 ft)

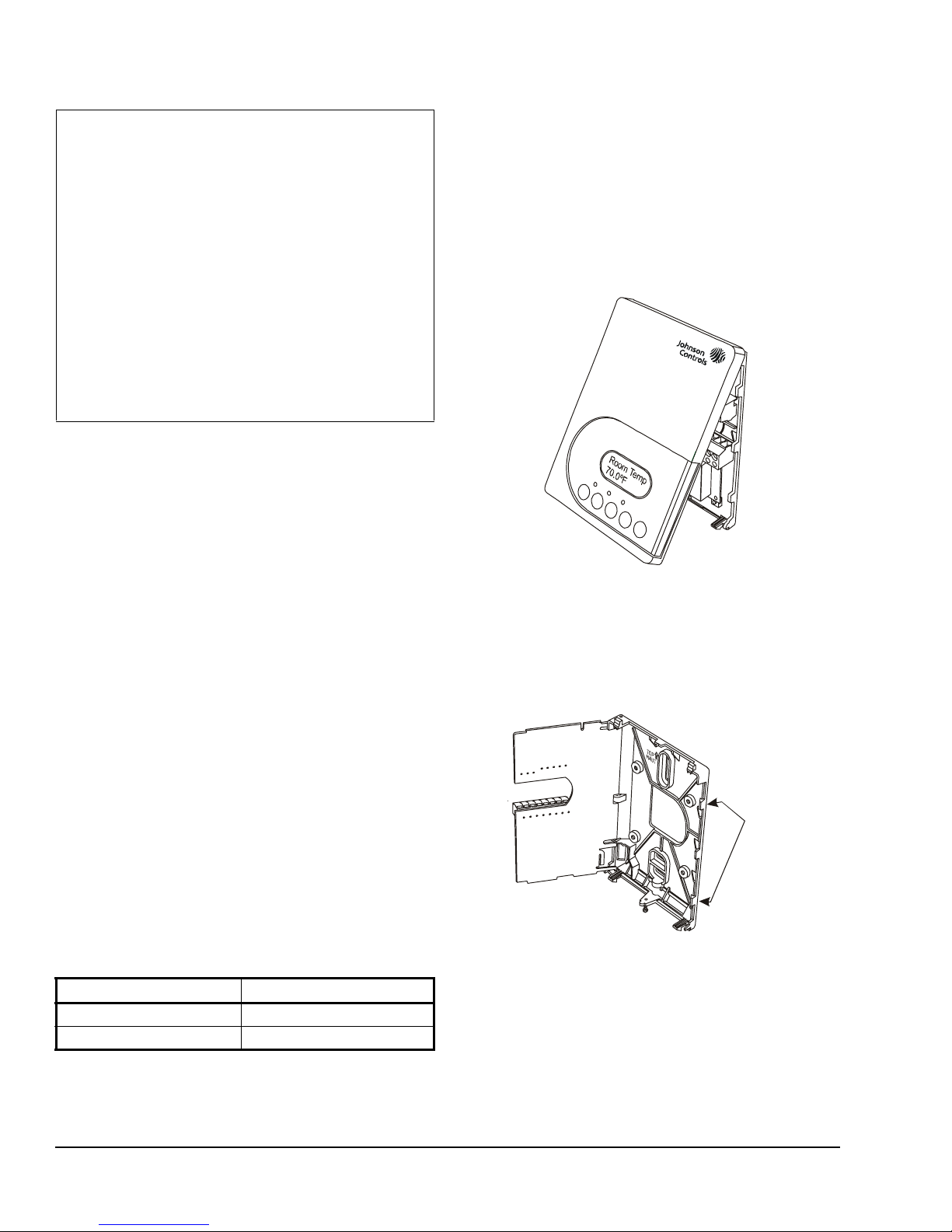

Figure 1: Removing the Cover

FIG:cvr_rmvl

Figure 2: Opening the PCB

PCB

Locking

Tabs

FIG:prntd_crct_brd

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions 3

5. Align the mounting base on the wall and use the

base as a template to mark the two mounting hole

locations.

Note: Be sure to position the mounting base so that

the arrow on the base points upward to indicate the top

of the thermostat controller.

6. Drill a 5 mm (3/16 in.) hole at each of the two

marked locations and tap nylon anchors (included)

flush to the wall surface.

Note: Other means of anchoring the device may be

desired, depending on the wall medium.

7. Position the mounting base on the wall, and use

the two mounting screws (included) to secure the

base to the surface as illustrated in Figure 3.

Note: Be careful not to overtighten the mounting

screws.

8. Swing the PCB back to the right, and carefully

snap it into the locking tabs on the mounting base.

9. Remove the screw terminal blocks as illustrated in

Figure 4.

Note: Other means of anchoring the device may be

desired, depending on the wall medium.

Wiring

When replacing an existing thermostat controller,

remove and label the wires to identify the terminal

functions. When replacing a thermostat controller of the

same model, simply remove the old screw terminal

blocks and reinsert them onto the PCB of the

replacement thermostat controller.

To wire the thermostat controller:

1. Strip the ends of each wire 6 mm (1/4 in.) and

connect them to the appropriate screw terminals as

indicated in Figure 5 and Table 2.

Note: If multiple wires are inserted into the screw

terminals, be sure to properly twist the wires together

prior to inserting them into the screw terminals.

2. Carefully push any excess wire back into the wall.

Seal the hole in the wall with fireproof material to

prevent drafts from affecting the ambient

temperature readings.

Note: Seal the hole in the wall with fireproof material

to prevent drafts from affecting the ambient

temperature readings.

3. Reinsert the screw terminal blocks onto the PCB.

4. Reattach the cover to the mounting base (top side

first).

5. Use a Phillips-head screwdriver to reinstall the

security screw on the bottom of the cover.

See Figure 5, Figure 6, and Table 2 for information on

wiring the thermostat controllers.

Figure 3: Securing the Mounting Base to the Wall

FIG:mntng_bs

Figure 4: Removing the Screw Terminal Blocks

FIG:trmnl_blcks

CAUTION: Risk of Electric Shock.

Disconnect the power supply before

making electrical connections to avoid

electric shock.

CAUTION: Risk of Property Damage.

Do not apply power to the system before

checking all wiring connections. Short

circuited or improperly connected wires

may result in permanent damage to the

equipment.

IMPORTANT: Make all wiring connections in

accordance with local, national, and regional

regulations. Do not exceed the electrical ratings of

the thermostat controller.

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions4

Figure 5: TEC2003-3 TEC Thermostat Controller

Terminals

Y2 Y1 G RC CRH W1 W2

BI1 BI2 RS

Scom

Five-Pole

Left Top Connector Three-Pole

Right Top

Connector

Seven-Pole Bottom Connector

Aux

FIG:TEC2003_term

12345678

10 11 12 13 14 15 16

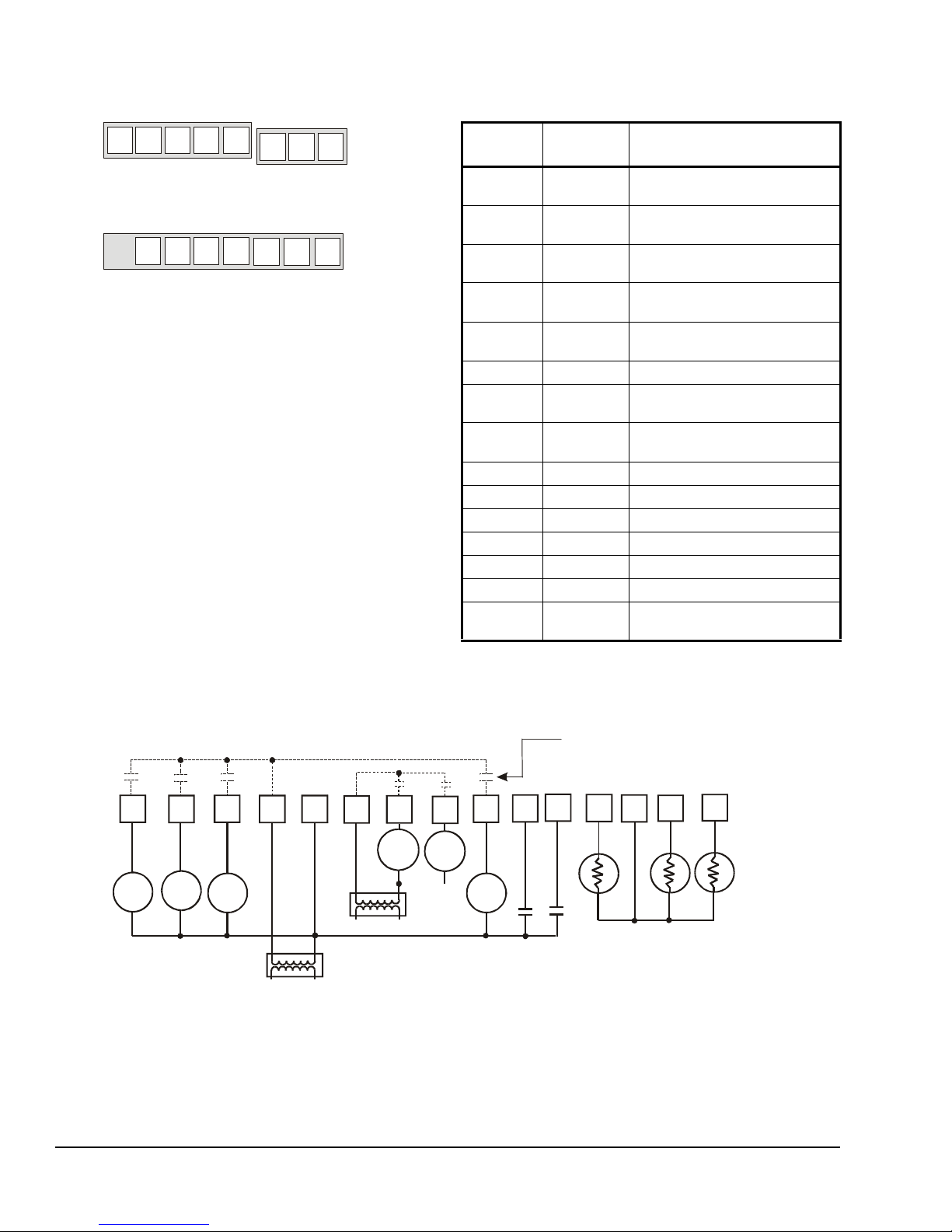

Figure 6: Wiring the TEC2003-3 Thermostat Controller

FIG:TEC2003_3_app

24 VAC

Thermostat Power

Y2 Y1 RC C

If using the same power source

for the thermostat and heating loads,

install a jumper across RC and RH.

Heat 1 Heat 2

RH W1 W2 Aux

Aux

Cool 1

BI2BI1

Remote

Monitoring

Supply

Temperature

Sensor

Auxiliary/

Outdoor

Air Sensor

Cool 2

Fan

Scom

RS MS

Isolated Contact

• Lighting

• On/Off Actuation

• Exhaust Fan

Remote

Room

Sensor

Table 2: TEC2003-3 Thermostat Controller

Terminals

Terminal

Number Terminal

Label Function

1Y2 Energizes on a call for Second-

Stage Cooling

2Y1 Energizes on a call for First-

Stage Cooling

3G Energizes Fan in accordance

with Selected Fan Mode

4RC 24 VAC from Equipment

Transformer

5C 24 VAC (Common) from

Equipment Transformer

6RH 24 VAC for Heating Stage

7W1 Energizes on a call for First-

Stage Heating

8W2 Energizes on a call for Second-

Stage Heating

10 Aux Auxiliary Output

11 BI1 Configurable Binary Input 1

12 BI2 Configurable Binary Input 2

13 RS Remote Room Sensor

14 Scom Sensor Common

15 OS Auxiliary Outdoor Air Sensor

16 MS Remote Monitoring Supply

Temperature Sensor

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions 5

Setup and Adjustments

Overview

Figure 7 shows the front cover of the thermostat

controller, including features used for setting up and

adjusting the thermostat controller.

User Interface Keys

The user interface consists of keys on the front cover

as illustrated in Figure 7. The function of each key is as

follows:

•UsetheYES/SCROLL key to:

- confirm menu selections and to advance to the

next menu item

- stop the Status Display Menu from scrolling

and to manually scroll to the next parameteron

the menu

Note: When the thermostat controller is left

unattended for 45 seconds, the display resumes

scrolling.

•UsetheNO key to decline a parameter change and

to advance to the next menu item.

•UsetheMENU key to:

- access the Main User Menu or to exit the menu

(See the Main User Menu section.)

- access the Installer Configuration Menu or to

exit the menu (See the Installer Configuration

Menu section.)

•UP/DOWN arrow keys change the configuration

parameters and activate a setpoint adjustment.

Light-Emitting Diodes (LEDs)

System Activity LEDs indicate the status and actions of

the thermostat controller.

•TheFAN LED is on when the fan is on.

•TheHEAT LED is on when heating or reheat is on.

•TheCOOL LED is on when cooling is on.

The Status LED, located beneath the cover, flashes at

five-second intervals to provide indication of the

network status of the thermostat controller. See

Table 3.

Backlit Liquid Crystal Display (LCD)

The thermostat controller includes a 2-line, 8-character

backlit display. Low-level backlighting is present during

normal operation, and it brightens when any user

interface key is pressed. The backlight returns to low

level when the thermostat controller is left unattended

for 45 seconds.

Status Display Menu

The Status Display Menu displays during normal

operation. This menu scrolls through several

parameters:

• Room Temperature

• System Mode

• Schedule Status (Occupied/Unoccupied/Override)

• Outdoor Temperature – An outdoor air temperature

sensor must be connected.

• Applicable Alarms – The backlight lights up as an

alarm condition is displayed.

Figure 7: Front Cover

FIG:TEC200x-3_frnt

ES NO

70.0ºF

Room Temp

Backlit

Plain-Text

LCD

System

Activity

LEDs

Intuitive

Operation

Keys

Status LED

(beneath cover)

Table 3: Status LED

Flashes per

5-Second

Interval

Condition Indicated

1Power On

2Power On, Communicating

3Power On, Communicating, Found

Wireless Network

4Power On, Communicating, Found

Wireless Network, Communicating with

TEC20 Coordinator

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions6

Configuring the Thermostat Controller

Main User Menu

Use the Main User Menu to access and change the

basic operating parameters of the thermostat controller.

During normal operation, press the MENU key once to

access the Main User Menu. This menu is most

commonly used by the zone occupant, and includes

the following parameters:

• Temperature Setpoints

• System Mode

•FanMode

• The Main User Menu uses Auto Help. Auto Help

displays automatically in the Main User Menu

when there is a pause in programming activity.

Installer Configuration Menu

The thermostat controller comes from the factory with

default settings for all configurable parameters. The

default settings are shown in Table 4. To reconfigure

the parameters via the thermostat controller, follow the

steps in this section.

To access the Installer Configuration Menu, press and

hold the MENU key for approximately 8 seconds. Once

the Installer Configuration Menu begins, release and

press the NO key to scroll through the parameters

listed in Table 4. When the desired parameter is

displayed, use the YES key to choose the desired

selection option. Press the YES key and then the NO

key to continue scrolling through the parameters.

When the thermostat controller is in the Installer

Configuration Menu and left unattended for

approximately 8 seconds, the thermostat controller

reverts to the Status Display Menu.

For further information, see the Programming the

Thermostat Controller section.

Configuring the Wireless Mesh Network Settings

Use the following process to configure the wireless

mesh network settings.

1. Select a PAN ID and Channel. Use these same

values for every TEC Wireless Thermostat

Controller (and the associated coordinator) on the

same wireless mesh network.

2. Select a Com Address for each TEC Wireless

Thermostat Controller (1 to 254). This address

must be unique to each TEC Wireless Thermostat

Controller on the same wireless network (that is,

unique to the PAN ID and Channel combination).

Configuring Inputs BI1 and BI2

When BI1 and BI2 are configured for an alarm

condition, an alarm condition is displayed locally when

the input is closed. An alarm message is included on

the scrolling Status Display Menu and when the

message is displayed, the backlight momentarily

lights up.

Both inputs can be configured to the Selection Options

included in Table 4.

Table 4: Installer Configuration Menu (Part 1 of 4)

Parameter

Appearing

on Display

Description and Default Selection Options

Com addr Wireless address at the thermostat

controller; Default: 4Range: 000 to 254

Addresses of each item on the wireless bus must be uniquely

numbered, increasing from 1.

Note: Setting this parameter to 0 disables the function.

PAN ID Sets the Personal Area Network

Identification (PAN ID) of the

wireless network. All devices on a

network must have the same

PAN ID setting to communicate with

each other. Default: 0

Range: 0to 500

Note: Setting this parameter to 0 disables the function.

Channel Sets the mesh network channel the

device uses for communication.

Only devices using the same mesh

network channel can communicate

with each other. Default: 10

Range: 11 to 26

Note: Setting this parameter to 10 disables the function.

GET FROM Parameter not available at this time. N/A

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions 7

BI1 Configuration of Binary Input 1.

Default: None (None): No function is associated with an input.

(Service): A Service alarm is displayed on the thermostat controller

when the input is energized. This input can be tied into the air

conditioning unit control card, which provides an alarm should there

be a malfunction.

(Filter): A Filter alarm is displayed. This alarm can be connected to

a differential pressure switch that monitors a filter.

(RemOVR): Temporary occupancy request via a remote input. This

override function is controlled by a manual remote occupancy

override. When enabled, this condition disables the override

capability of the thermostat controller.

(RemNSB): Remote Night Setback (NSB) via a time clock input, an

occupancy sensor, or from a voltage-free contact.

Contact open = Occupied; contact closed = Unoccupied.

BI2 Configuration of Binary Input 2.

Default: None (None): No function is associated with an input.

(Service): A Service alarm is displayed on the thermostat controller

when the input is energized. This input can be tied into the air

conditioning unit control card, which provides an alarm should there

be a malfunction.

(Filter): A Filter alarm is displayed. This alarm can be connected to

a differential pressure switch that monitors a filter.

(RemOVR): Temporary occupancy request via a remote input. This

override function is controlled by a manual remote occupancy

override. When enabled, this condition disables the override

capability of the thermostat controller.

(RemNSB): Remote Night Setback (NSB) via a time clock input, an

occupancy sensor, or from a voltage-free contact.

Contact open = Occupied; contact closed = Unoccupied.

Lockout Selectable Lockout Levels for

limiting end user keypad interaction.

Default: 0

Function Level

(0) (1) (2)

Resume/Override

Scheduling Access Access No Access

Permanent

Temperature

Setpoints

Access No Access No Access

Temporary

Temperature

Setpoints

Access Access No Access

System Mode Setting Access No Access No Access

Fan Mode Setting Access No Access No Access

Pwr del1Sets the delay time period at

thermostat controller power up, or at

each time power is removed and

reapplied, before any operation

(fan, heating, or cooling) is

authorized. Also can be used to

sequence the startup of multiple

units in one location.

Default: 10.0 sec

Range: 10.0 to 120.0 sec

Table 4: Installer Configuration Menu (Part 2 of 4)

Parameter

Appearing

on Display

Description and Default Selection Options

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions8

Frost pr Provides a minimum heating

setpoint of 5.5°C/42.0°F to prevent

freezing in the zone controlled by

the thermostat controller.

Default: off

(on): Enabled

(off): Disabled

Heat max2Sets the Occupied and Unoccupied

maximum Heating setpoint values.

Default: 32.0°C/90.0°F

Range: 4.5°C/40.0°F/to 32.0°C/90.0°F

Cool min2Sets the Occupied and Unoccupied

minimum Cooling setpoint values.

Default: 12.0°C/54.0°F

Range: 12.0°C/54.0°F to 37.5°C/100.0°F

Anticycl Anti-Short Cycle timer sets the

minimum on/off times for heating

and cooling stages.

Default: 2.0 min

Range: 0.0 to 5.0 min adjustable in 1-minute increments

Set the anti-short cycle timer to 0.0 min for equipment that already

has its own anti-short cycle timer.

Heat cph Sets the maximum number of

Heating cycles per hour.

Default: 4.0

Range: 3.0 to 8.0 cycles per hour

Cool cph Sets the maximum number of

Cooling cycles per hour.

Default: 4.0

Range: 3.0 or 4.0 cycles per hour

Deadband Sets the minimum deadband

between the heating and cooling

setpoints.

Default: 1.0C°/2.0F°

Range: 1.0C°/2.0F° to 2.0C°/4.0F° adjustable in 0.5C°/1.0F°

increments

Fan cont Determines how the fan is activated

in response to a call for heating or

cooling.

Default: on

(off): Enables the thermostat controller to activate the fan in

response to a call for cooling only.

(on): Enables the thermostat controller to activate the fan in

response to a call for heating or cooling.

When there is a call for auxiliary heating, the fan is activated by the

equipment fan and limit control.

Fan del Fan delay extends fan operation

after a heating or cooling cycle has

ended.

Default off

(on): Extends fan operation by 60 seconds after a heating or cooling

cycle has ended.

(off): No extension of fan operation after a heating or cooling cycle

has ended.

The fan delay is only active when the fan is in the Auto mode.

TOccTime Sets the duration of the Temporary

Occupancy Time when the heating

or cooling setpoints in the Occupied

mode are established by:

• an Override Function enabled in

the Main User Menu (when the

thermostat controller is in the

Unoccupied mode)

• a temporary heating or cooling

setpoint

default: 3.0 hrs

Range: 0.0 to 12.0 hrs adjustable in 1-hour increments

Table 4: Installer Configuration Menu (Part 3 of 4)

Parameter

Appearing

on Display

Description and Default Selection Options

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions 9

Programming the Thermostat Controller

After configuring the thermostat controller by means of

the Installer Configuration Menu, program its operating

parameters by means of the Main User Menu. Access

this menu by pressing the MENU key during normal

operation. The Main User Menu contains the basic

operating features of the thermostat controller.

The Main User Menu also uses Auto Help, which is

displayed automatically in the menu when there is a

pause in programming activity. To exit Auto Help,

continue with the programming selection. When the

thermostat controller is in the Main User Menu and is

left unattended for 45 seconds, the menu reverts to the

Status Display Menu.

Cal RS Sets the desired room air

temperature sensor calibration

(offset). The offset can be added to

or subtracted from the actual

displayed room temperature.

Default: 0.0C°/0.0C°F

Range: -2.5C°/-5.0F° to 2.5C°/5.0F° adjustable in 0.5C°/1.0F°

increments

Cal OS Sets the desired outdoor air

temperature sensor calibration

(offset). The offset can be added to

or subtracted from the actual

displayed room temperature.

Default: 0.0C°/0.0F°

Range: -2.5C°/-5.0F° to 2.5C°/5.0F° adjustable in 0.5C°/1.0F°

increments

H stage Reverts the operation of a two-stage

thermostat controller to a

single-stage thermostat controller

when the second heating stage is

not needed.

Default: 2.0

(1.0): One Stage

(2.0): Two Stages

C stage Reverts the operation of a two-stage

thermostat controller to a

single-stage thermostat controller

when the second cooling stage is

not needed.

Default: 2.0

(1.0): One Stage

(2.0): Two Stages

H lock Discontinues heating operation in

response to the outdoor air

temperature. Requires that an

outdoor air temperature sensor be

installed and connected.

Default: 49°C/120°F

Range:-26°C/ -15°F to 49°C/120°F adjustable in 5C°/5F°

increments

C lock Discontinues cooling operation in

response to the outdoor air

temperature. Requires that an

outdoor air temperature sensor be

installed and connected.

Default: -40°C/-40°F

Range: -40°C/-40°F to 35°C/95°F adjustable in 5C°/5F° increments

Aux cont Energizes peripheral devices

(lighting equipment, exhaust fans,

and economizers).

Default: n.o.

(n.c.): Contact open = Occupied; contact closed = Unoccupied.

(n.o.): Contact closed = Occupied; contact open = Unoccupied.

The contact toggles with the internal Occupied/Unoccupied

schedule (or the NSB contact on one of the digital inputs, if used).

1. When adjusting the numeric value, press the UP or DOWN arrow key to change the value by single increments; press and

hold the UP or DOWN arrow key to change the numeric value in increments of ten.

2. When adjusting the temperature, press the UP or DOWN arrow key to change the value in 0.5F°/0.5C° increments; press

and hold the UP or DOWN arrow key to change the value in 5.0F°/5.0C° increments.

Table 4: Installer Configuration Menu (Part 4 of 4)

Parameter

Appearing

on Display

Description and Default Selection Options

TEC2003-3 Multi-Stage Wireless Thermostat Controller Installation Instructions10

Enabling Override Schedule

Note: The Override Schedule prompt only appears

when the thermostat controller is in the unoccupied

state (Unoccupied Mode).

This menu selection gives the user the option of

overriding the unoccupied setpoints with the occupied

setpoints for the amount of time specified under the

TOccTime parameter. See Table 4.

Note: If one of the binary inputs is configured to

operate as a remote override contact, this menu is

disabled.

To override the unoccupied state while in the Main User

Menu:

1. Press the NO key to all prompts until the Override

Schedule prompt appears. If the thermostat

controller is in the unoccupied state, this is the first

prompt.

2. Press the YES key to enable the temporary

override. The thermostat controller returns to the

Status Display Menu.

When scrolling through the Status Display Menu,

Override now appears for the schedule status

parameter.

Resuming the Programmed Schedule

This menu only appears when the thermostat controller

is in the override mode.

To resume the schedule while in the Main User Menu:

1. Press the NO key to all prompts until the Resume

Schedule prompt appears. If the thermostat

controller is in the override state, this is the first

prompt.

2. Press the YES key to resume the programmed

schedule.

The thermostat controller returns to the Status Display

Menu.

Entering Permanent Temperature Setpoints

The first prompt appearing in the Main User Menu of

the thermostat controller when in the occupied state is

to set the permanent temperature setpoint. Permanent

setpoints are stored in the programmed schedule.

To enter the permanent heating and cooling setpoints

for the Occupied and Unoccupied Modes, follow the

steps in Table 5. When changing the temperatures,

press the keys once to change the temperature in

0.5F°/0.5C° increments; press and hold down the keys

to change the temperature in 5.0C°/5.0F° increments.

Table 5: Entering Permanent Temperature

Setpoints (Part 1 of 2)

Thermostat

Controller

Display

Description

Press the MENU key while in the

Status Display Menu to enter the

Main User Menu.

Press the NO key to all prompts until

the temperature setpoint prompt

appears on the display (it may be the

first prompt). Press the YES key to

enter the temperature setting menu.

Press the YES key to change the

occupied cooling setpoint. Press the

NO key to advance to the occupied

heating setpoint menu.

Press the UP/DOWN arrow keys to

set the temperature. Press the YES

key to store the value and advance to

the next menu.

Press the YES key to change the

occupied heating setpoint. Press the

NO key to advance to the unoccupied

cooling setpoint menu.

Press the UP/DOWN arrow keys to

set the temperature. Press the YES

key to store the value and advance to

the next menu.

Press the YES key to change the

unoccupied cooling setpoint. Press

the NO key to advance to the

unoccupied heating setpoint.

Press the UP/DOWN arrow keys to

set the temperature. Press the YES

key to store the value and advance to

the next menu.

RoomTemp

75.0°F

Temperat

set? Y/N

Cooling

set? Y/N

Cooling

75.0°F

Heating

set? Y/N

Heating

68.0°F

Unocc CL

set? Y/N

Unocc CL

80.0°F

Table des matières

Autres manuels Johnson Controls Thermostat

Johnson Controls

Johnson Controls T8690 Mode d'emploi

Johnson Controls

Johnson Controls TVI-TD-6007 Series Manuel utilisateur

Johnson Controls

Johnson Controls TEC3023-14-000 Manuel utilisateur

Johnson Controls

Johnson Controls TEC3000 Series Manuel utilisateur

Johnson Controls

Johnson Controls T5000 Manuel utilisateur

Johnson Controls

Johnson Controls S1-TTSCC01 Mode d’emploi

Johnson Controls

Johnson Controls T8200-TB20-9JF0 Series Manuel utilisateur

Johnson Controls

Johnson Controls T8000 Series Manuel utilisateur

Johnson Controls

Johnson Controls T600HPN-4 Manuel utilisateur

Johnson Controls

Johnson Controls TEC22 4-3 Series Manuel utilisateur

Johnson Controls

Johnson Controls Hx 3 S1-THXU430W Manuel utilisateur

Johnson Controls

Johnson Controls TEC3330-1 Series Manuel utilisateur

Johnson Controls

Johnson Controls T7600 Manuel utilisateur

Johnson Controls

Johnson Controls TEC2101-3 N2 Manuel utilisateur

Johnson Controls

Johnson Controls T701DFN-1 Manuel utilisateur

Johnson Controls

Johnson Controls T-4002 Manuel utilisateur

Johnson Controls

Johnson Controls A19 Series Manuel utilisateur

Johnson Controls

Johnson Controls TEC2104-1 Manuel utilisateur

Johnson Controls

Johnson Controls GLAS Manuel utilisateur

Johnson Controls

Johnson Controls METASYS TEC1100 Series Manuel de service

Johnson Controls

Johnson Controls TEC2216-4 Manuel utilisateur

Johnson Controls

Johnson Controls T2000 Series Manuel utilisateur

Johnson Controls

Johnson Controls NXT-TSO-01 TSO Manuel utilisateur

Johnson Controls

Johnson Controls T-3102 Manuel d'utilisation et d'entretien

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
