T9600

LCD Digital Thermostat

Installation Guide

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

Building Efciency

Headquarters: Milwaukee, Wisconsin, USA

Branch Officies: Principal Cities World-wide

Johnson Controls®are registered trademarks of Johnson Controls.

All other marks herein are the marks of their respective owners.

www.johnsoncontrols.com

*241144700004B*

87.77

87.77 60.00

13.83

45.83

> 50 cm

> 150 cm

°C

ON / OFF

AUTO

°C/°F

TiO2/ESP

Timer

Symbol

ON OFF

• Ambient

• 工作环境

MAX

40 °C

104 °F

MIN

0 °C

-32 °F

MAX

60 °C

140 °F

MIN

-10 °C

-14 °F

MAX 90% RH

MIN 10% RH

 

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

T9600-TF20-1JS0

GND

MODBUS

NTC OCC

B ACOM

100-240 VAC 50/60Hz

LowHi Med

FAN

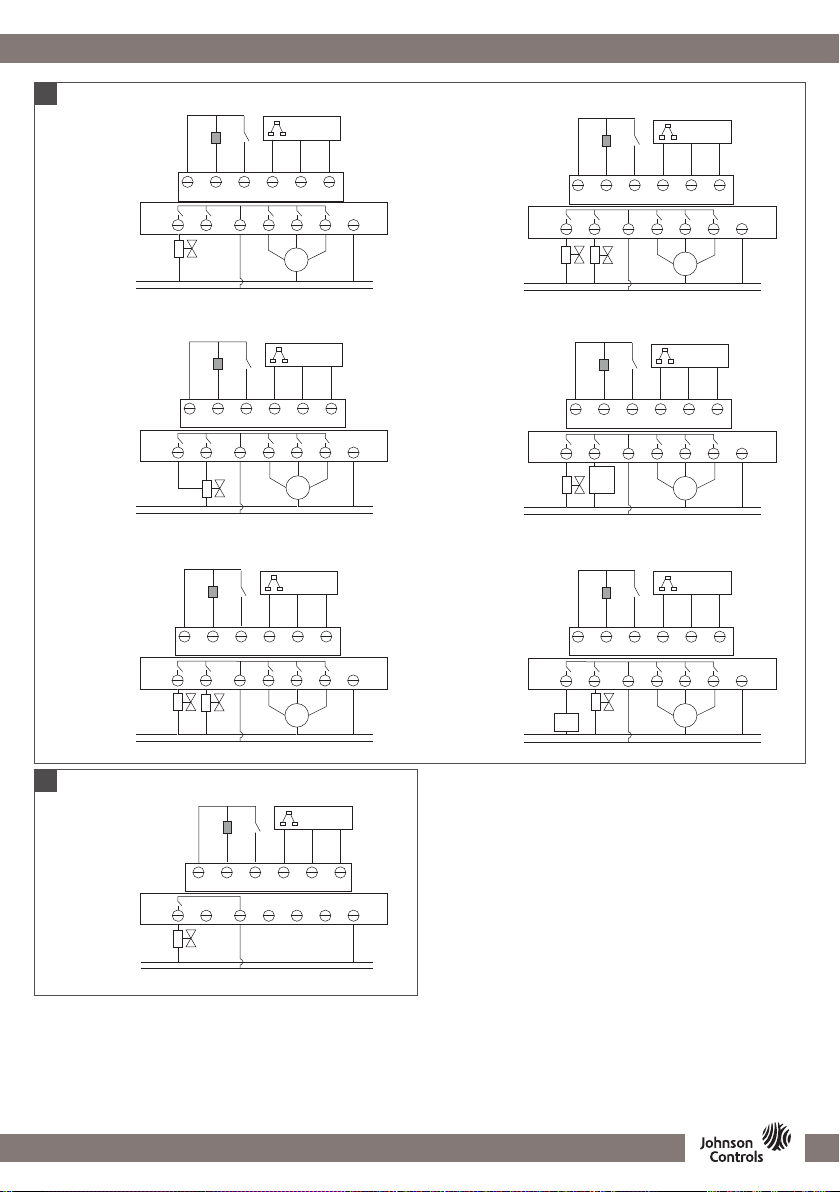

2-pipe FCU (relay)

2管制开关阀

Cool/

Heat

100-240 VAC 50/60Hz

COOL HEAT

GND

MODBUS

NTC OCC B ACOM

LowHi Med

FAN

4-pipe FCU (relay)

4管制开关阀

100-240 VAC 50/60Hz

ON OFF

GND

MODBUS

NTC OCC B ACOM

LowHi Med

FAN

2-pipe, 3 wire (relay)

2管制3线开关阀

100-240 VAC 50/60Hz

TiO2

ESP

GND

MODBUS

NTC OCC B ACOM

LowHi Med

FAN

2-pipe FCU (relay)

with TiO2/ESP

2管制开关阀+TiO2/ESP

Cool/

Heat

100-240 VAC 50/60Hz

FLOOR

HEAT

GND

MODBUS

NTC OCC B ACOM

LowHi Med

FAN

2-pipe FCU (relay)

with floor heating

2管制开关阀+地暖

Cool/

Heat

100-240 VAC 50/60Hz

RV = REVERSING VALVE

CMP = COMPRESSOR

CMP RV

GND

MODBUS

NTC OCC B ACOM

LowHi Med

FAN

Water source heat pump

水源热泵

T9603-T000-1JF0

NTC OCC COM

B AGND

100-240 VAC 50/60Hz

HEAT

MODBUS

Single stage heater

单级制热

English 中文

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

T9600-TF21-1JS0

GND NTC OCC COM

FAN

LHI MED

B A

AO1 GND

0-10 VDC

NLOW

24 VAC

COM

100-240 VAC 50/60Hz

MODBUS

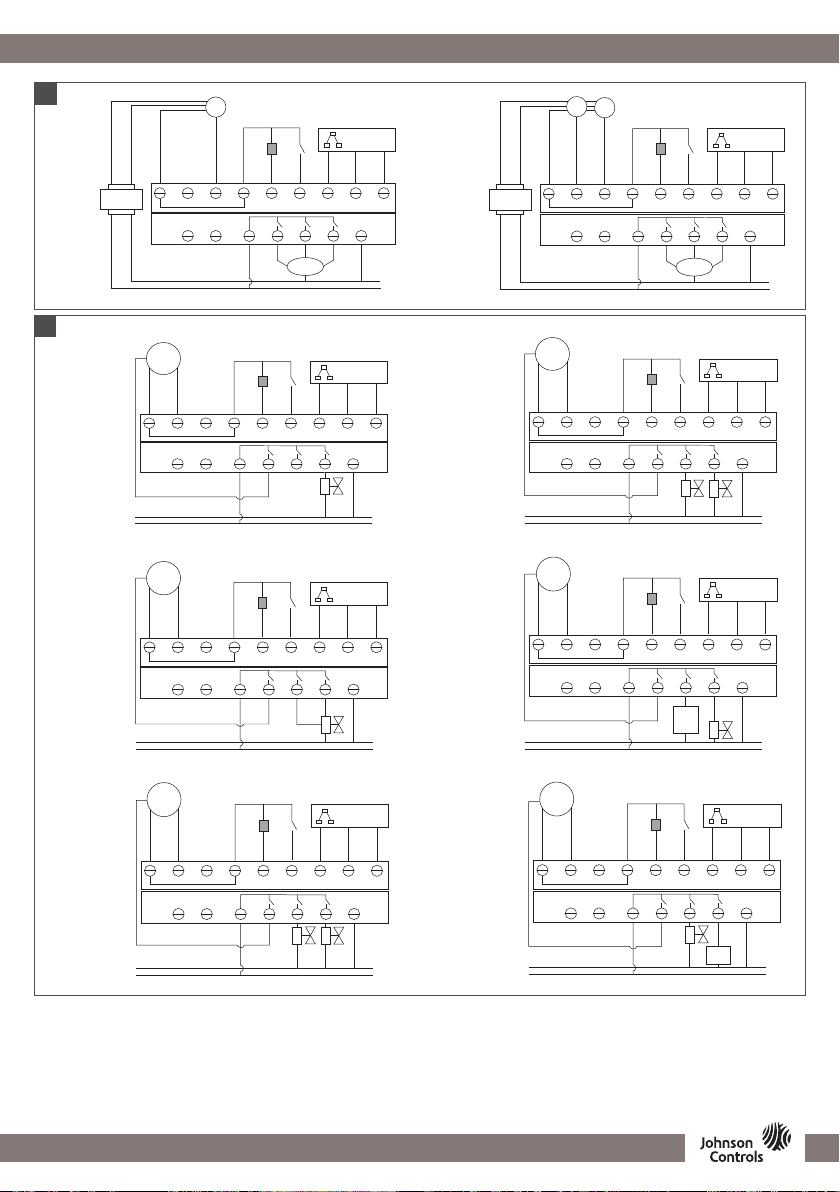

2-pipe FCU (prop) 3 speed fan

2管制比例阀，三速风机

GND NTC OCC COM

FAN

LHI MED

B A

AO1 GND

0-10 VDC

NLOW

24 VAC

COM

100-240 VAC 50/60Hz

MODBUS

AO2

HEAT

COOL

4-pipe FCU (prop) 3 speed fan

4管制比例阀，三速风机

T9601-TF20-1JS0

2-pipe FCU (relay) with ECM Fan

2管制开关阀，三速风机

GND

MODBUS

NTC OCC COM

F-ON

B A

GND

0-10 V

100-240 VAC 50/60Hz

ECM

FAN

Cool/

Heat

V3 V2

4-pipe FCU (relay) with ECM Fan

4管制开关阀，ECM风机

GND

MODBUS

NTC OCC COM

F-ON

B A

GND

100-240 VAC 50/60Hz

FAN

V1V2

OOL

HEAT

0-10 V

ECM

FAN

2-pipe 3 wire (relay) with ECM fan

2管制三线阀，ECM风机

GND NTC OCC COM

F-ON

B AGND

100-240 VAC 50/60Hz

FAN

ONOFF

0-10 V

ECM

FAN MODBUS

GND NTC OCC COM

F-ON

B A

GND

100-240 VAC 50/60Hz

FAN

V1V2

TiO2

ESP

0-10 V

ECM

FAN MODBUS

2-pipe ON/OFF with TiO2/ESP

and ECM fan

2管制开关阀+ TiO2/ESP,

ECM风机

Cool/

Heat

GND NTC OCC COM

F-ON

B A

GND

100-240 VAC 50/60Hz

FAN

FLOOR

HEAT

0-10 V

ECM

FAN MODBUS

2-pipe FCU with floor heating

and ECM fan

2管制开关阀带地暖，ECM风机

Cool/

Heat

GND NTC OCC COM

F-ON

B A

GND

100-240 VAC 50/60Hz

FAN

V1V2

RV = REVERSING VALVE

CMP = COMPRESSOR

CMP

0-10 V

ECM

FAN MODBUS

Water source heat pump

with ECM fan

水源热泵, ECM风机

English 中文

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

T9601-TF20-1JS0

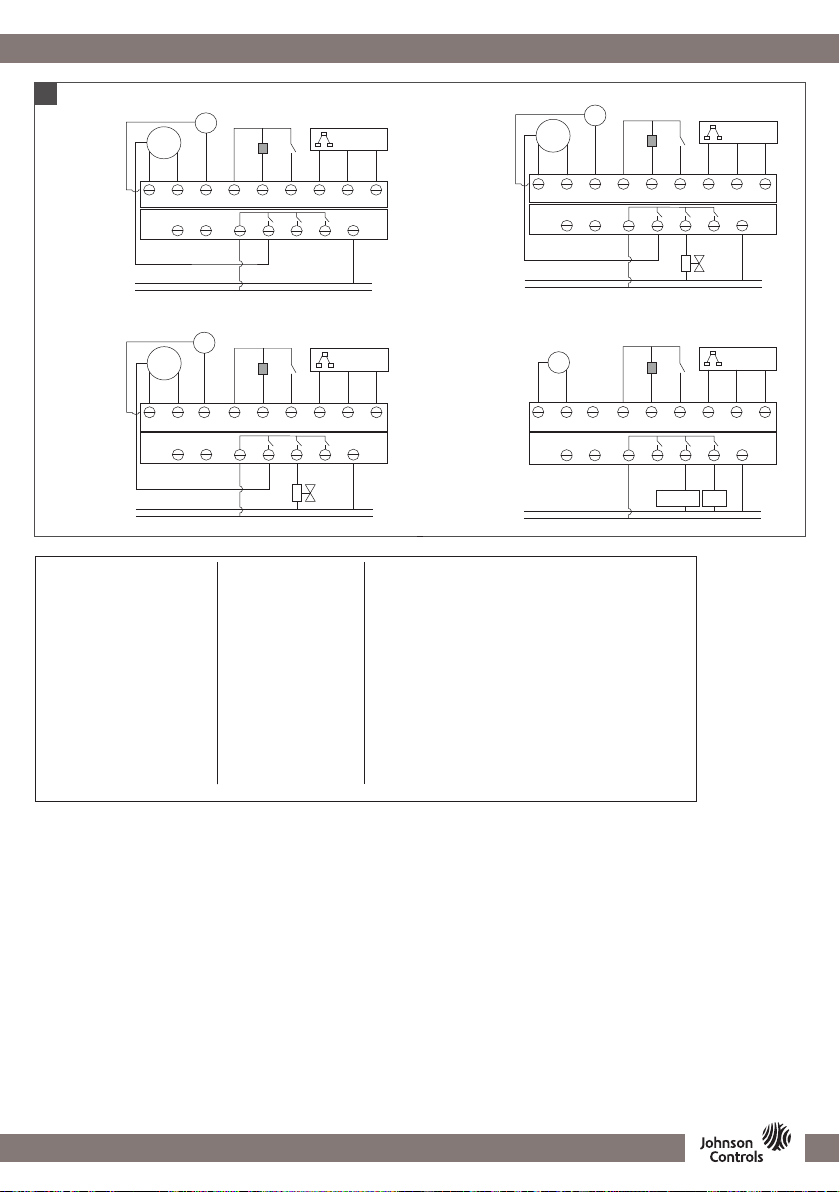

2-pipe FCU (prop) with ECM Fan

2管制调节阀，ECM风机

GND

MODBUS

NTC OCC COM

F-ON

B AGND

100-240 VAC 50/60Hz

ECM

FAN

FAN AO1

V3 V1V2

Cool/

Heat

2-pipe FCU (prop)

with floor heating

2管制调节阀带地暖，ECM风机

GND

MODBUS

NTC OCC COM

F-ON

B AGND

100-240 VAC 50/60Hz

ECM

FAN

FAN AO1

FLOOR

HEAT

V1V2V3

Cool/

Heat

2-pipe FCU (prop) with radiator

and ECM fan

2管制调节阀+ 电加热, ECM风机

MODBUS

NTC OCC COM

F-ON

B AGND

100-240 VAC 50/60Hz

ECM

FAN

FAN AO1

HEAT

COOL

GND

L N

V1V2V3

AHU

空气处理机

MODBUS

NTC OCC COM

B AGND

100-240 VAC 50/60Hz

FAN

DAMPER FAN

GND

L N

V1V2V3

Cool/

Heat

English 中文

图例：

MODBUS：

A： MODBUSA线

B： MODBUSB线

COM： MODBUS公共端

NTC： 温度传感器

OCC： 门卡开关

ECMFAN： ECM风机

FAN： 风机

AO1： 模拟输出1

AO2： 模拟输出2

AI： 模拟输入/阀反馈

HEAT： 热水阀

COOL： 冷水阀

FLOORHEAT：地暖阀

LOW： 风机低速档位

MED： 风机中速档位

HI： 风机高速档位

TiO2： TiO2二氧化钛

ESP： Electro-staticPrecipitator静电除尘设备

CMP：Compressor压缩机

RV： ReversingValve换向阀

F-ON：风机开关

GND:地

L：火线

N：零线

V1：阀1

V2：阀2

TR：变压器

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

English

Callout Feature

ACooling

BHeating

CVentilation

DAuto mode

EFan auto

FFan speed Hi/Med/Low

GTio2/ESP

HFloor heating

IOccupancy

JAlarm

KLock

LValve status

MRemote sensor

NCommunication

OCompressor protection

PDelay time

QTemperature and humidity value

RLow temperature protection

SDehumidify

T9600 interface

INSTALLATION INSTRUCTIONS FOR THE TECHNICIAN / FITTER

READ THIS INSTRUCTION SHEET AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING AND

SAVE IT FOR FUTURE USE

REPAIR AND REPLACEMENT

Do not attempt to repair the T9 Series thermostat. In case of an improperly functioning control, contact the nearest Johnson Controls®representative, and

specify the desired product code number. When contacting the supplier for a replacement, state the type/model number of the control located on the data

plate or cover label.

IMPORTANT

• Use this T9 Series thermostat only as an operating control. Where failure or malfunction of the T9 Series thermostat could lead to personal injury or

property damage to the controlled equipment or other property, additional precautions must be designed into the system. Incorporate and maintain other

devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the T9 Series

thermostat.

• Do not install this thermostat in condensing, wet, or damp environments. Moisture may cause damage to the thermostat.

• Do not remove PCB from the enclosure cover. Removing the PCB from the enclosure cover voids the product warranty.

• Make all wiring connections in accordance with local, national, and regional regulations. Do not exceed the T9 Series thermostat’s electrical ratings.

WARNING

Disconnect power supply before making electrical connections. Contact with components carrying hazardous voltages can cause electrical shock and may

result in severe personal injury or death.

• Risk of Electrical Shock: Ground the thermostat according to local, national, and regional regulations. Failure to ground the thermostat may result in

electrical shock and severe personal injury and death.

• Risk of Electrical Shock and Property Damage: Insulate and secure each unused wire lead before applying power to the thermostat.

Failure to insulate and secure each unused wire lead may result property damage, electrical shock, and severe personal injury or death.

Callout Feature

APower button

BWorking mode button

CGeneral button

DFan speed adjustment button

EUp and down buttons

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

English

USER SETTING

Press and button for 5 seconds at power off mode to get in parameter list. Press to scroll forward and Mbutton to scroll backward in

the list and use and button to change parameter value. For T9603-T000-1JF0, press and hold for 3 seconds to access the parameter

list and press to scroll foward through the list.

PARAMETER SETTING (PART 1/2)

Code

T9600-

TF20-

1JS0

T9603-

T000-

1JF0

T9601-

TF20-

1JS0

T9600-

TF21-

1JS0 Parameter name Default Function

02 ■ ■ ■ ■ MAC (Modbus) 01 Mac address for Modbus

1-96

04 ■ ■ ■ ■ MUTE 00

Enable/disable the beep when push touch button:

00: Disable

01: Enable

05 ■ ■ ■ ■ OFFSET 0°C/

0°F

Offset to be compensate the room temperature:

Step: 0.5°C (1°F)”

Range: 5°C~-5°C (9°F- -9°F)

06 ■ ■ ■ UNOCC-CLG-SP 26°C/

79°F

Cooling setpoint unoccupied mode.

Not available for Boiler application

Step: 0.5°C (1°F)

Range: 22°C~32°C (72°F-90°F)

07 ■ ■ ■ ■ UNOCC-HTG-SP 18°C/

64°F

Heating setpoint unoccupied mode.

Step: 0.5°C (1°F)

Range: 10°C~21°C (50°F-70°F)

08 ■ ■ SMPL-TM 10 s

Sample time,

PID parameter, only for PID

Range: 1~99 s

09 ■ ■ PB 5

Proportion band,

PID parameter, only for PID

Range: 1~10

10 ■ ■ KI 10

Integration parameter,

PID parameter, only for PID

Range: 0~99

11 ■ ■ ■ ■ BL-TIMER 30 Backlight timer.

Range: 0~99 s

12 ■ ■ ■ ■ PWR-F-RSTT 02

Restart after power failure:

00: OFF

01: ON

02: Recovery

13 ■ ■ TIO2ESP-CTL 00

TIO2ESP control:

00: Automatic

01: Manual

For TIO2ESP application

15 ■ ■ ■ ■ BAUD_MODBUS 00

Baud rate for Modbus:

00: 9600

01: 4800

...Continued...

INSTRUCTIONS

On/Off Setting: Press to turn on, press again to turn off, close the fan and valve.

Mode Selection: Press Mto change the working mode, for cooling, for heating, for venting, for auto cooling or

heating mode. is available only for 4-pipe application or 2-pipe application when BI-FUNCTION is Change Over Sensor

input.

Temperature Setting: Press either or button to increase or decrease the temperature by 0.5°C/1°F.

Fan Speed Adjustment: Press to switch the fan mode, auto ash, high , medium , low fan.

Note: Fan stops at Floor Heating Mode, until FH-FAN parameter set to enable, for single stage oor heating application only.

Delay On/Off setup: Press and hold button 5 seconds, then “ON” appears, press button to switch On or Off delay,

then press or to adjust the minute by 30 minutes.

Note: Time-On/Off setting performs only once within one day.

Delay On/Off Cancel: Press and hold button 5 seconds, then “ON” appears, press button to switch to check On or Off

delay time, then press or adjust the time to “00:00”.

Lock setup: If Lock function is enabled, the thermostat locks automatically after 30 seconds unused.

Unlock function: Press and hold the button 5 seconds to unlock. T9603-T000-1JF0 has no button, press and hold the

button 5 seconds to unlock instead.

Tio2/ESP Manual: When Tio2/ESP function is set to Manual, press button once, to switch Tio2/ESP On or Off.

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

English

PARAMETER SETTING (PART 2/2)

Code

T9600-

TF20-

1JS0

T9603-

T000-

1JF0

T9601-

TF20-

1JS0

T9600-

TF21-

1JS0 Parameter Name Default Function

16 ■ ■ ■ ■ KEY-LOCK 00

Key lock function:

00: No Lockout

01: Level 1 ->Lock all keys

02: Level 2 ->Lock the keys except Fan Speed and Temp

Adjustment keys

03: Level 3 ->Lock the ON/OFF and Clock keys

04: Level 4 ->Lock the keys except ON/OFF key

17 ■ ■ ■ ■ TEMP-DISP 00

UI display room temperature or set point:

00: Room Temperature

01: Setpoint

18 ■ ■ ■ ■ UNIT 01

Unit selection:

00: IP

01: SI

19 ■DAMP-OPEN-TIME 0 Damper opening time, for AHU application

range 0-99 (0=75 s, 99=174 s)

20 ■ ■ ■ ■ SF-VERSION Software version, read only

SERVICE SETTING (Setting through professional)

In the Setting page press button for 3 seconds to get in Service page, the occupancy icon shows. Press to scroll forward and Mbutton to

scroll backward in the list and use and button to change parameter value. For T9603-T000-1JF0, press and hold for 3 seconds to access

the parameter list and press to scroll foward through the list.

PARAMETER SETTING (PART 1/2)

Code

T9600-

TF20-

1JS0

T9603-

T000-

1JF0

T9601-

TF20-

1JS0

T9600-

TF21-

1JS0 Parameter name Default Function

02 ■ ■ ■ ■ FRST-PRT 00

Frost protection:

00: No

01: Yes

03 ■ ■ FH-FAN 00

Enable/disable fan output when floor heater

00: Disable

01: Enable

04 ■ ■ ■ APPLICATION 00

T9600- TF20-1JS0:

00: 2pipe FCU (relay)

01: 4pipe FCU (relay)

02: 2pipe 3 wire (relay)

03: 2pipe FCU (relay) with floor heating

04: 2pipe FCU (relay) with TiO2/ESP

05: water source heat pump

T9601- TF20-1JS0:

00: 2-pipe FCU (relay), ECM fan

01: 4-pipe FCU (relay), ECM fan

02: 2-pipe 3 wire (relay), ECM fan

03: 2-pipe FCU with floor heater, ECM fan

04: 2-pipe FCU with TiO2/ESP, ECM fan

05: water source heat pump, ECM fan

06: 2-pipe FCU (prop), ECM fan

07: 2-pipe FCU (prop) with floor heater, ECM fan

08: 2-pipe FCU (prop) with radiator, ECM fan

09. AHU

T9600- TF21-1JS0:

00: 2-pipe FCU, three speed fan

01: 4-pipe FCU, three speed fan

05 ■ ■ ■ ■ DOWN-SET-LIMIT 5°C/

41°F

lower setpoint limit

Range: 0°C~36°C (32°F-97°F)

06 ■ ■ ■ ■ UP-SET-LIMIT 35°C/

95°F

Upper setpoint limit

Range: 2°C~37°C (36°F~99°F)

07 ■ ■ ■ ■ FP-SP 5°C/

41°F

Frost protection setpoint.

Step: 0.5°C (1°F)

Range: 0°C~20°C (32°F-68°F)

08 ■ECM-MIN-V 3 V

ECM Min voltage.

Min voltage below which the fan output is 0%.

Step: 0.5 V

Range: 0 V~10 V

...Continued...

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

Note

• Terminal blocks changes depending on the application selected, check the table beside rst

• The relay output are line voltage, they are connected with Terminal “L” internally

• The digital input “OCC” can assume different meaning depending on parameter 12 setting

• The T9603-T000-1JF0 does not feature the and Mbutton. To access the User Setting parameter list, press the button 5 s instead. Press the

button to scroll through the list. Under User Setting menu, press the button 5 s to access Service Setting parameter list. Press the button to scroll

through the list.

1.T9603-T000-1JF0 BI Input default 04 Warning. Options: 00: Occupancy Input, 04: Warning

PARAMETER SETTING (PART 2/2)

Code

T9600-

TF20-

1JS0

T9603-

T000-

1JF0

T9601-

TF20-

1JS0

T9600-

TF21-

1JS0 Parameter Name Default Function

09 ■ECM-MAX-V 10 V

ECM Max voltage.

Max voltage below which the fan output is 100%.

Step: 0.5 V

Range: 0 V~10 V

10 ■ ■ STG-DFFR 3°C/5°F

floor heater Stage temperature difference

Step: 0.5°C (1°F)

Range: 0°C~10°C (0°F-18°F)

11 ■ ■ ■ ■ HTRSS 1°C/2°F Hysteresis for ON/OFF control

Range: 1~5

12 ■ ■1■ ■ BI-FUNCTION 02

00: Occupancy Input

01: Dew Point Risk Input

02: Filter Alarm Input

03: Change Over Sensor Input

04: Warning

13 ■ ■ ■ MODE-RST 00

00: No Restriction

01: Cooling only

02: Heating only

14 ■ ■ ■ FAN-RST 03

00: No Fan

01: One Speed Fan

02: Two Speed Fan

03: Three Speed Fan

15 ■ ■ ■ FAN-DB 01

Fan operation in deadband:

00: OFF

01: Low

16 ■ ■ ■ UNOCC-FAN 00

Fan mode in unoccupied:

00: OFF

01: Low

17 ■ ■ HTG-STG 02

00: One Heating Stage - Fan Coil

01: One Heating Stage - Floor Heating

02: Two heating stage

18 ■ ■ ■ ■ BI-PLRT 01

BI polarity:

00: Normally Close

01: Normally Open

19 ■ ■ ■ ■ OCC-OVRD 00

Override the OCC-S value:

00: No Override

01: Occupied

02: Unoccupied

20 ■ ■ ■ ■ SNS-TYPE 00 00: JCI type 10K NTC

01: China type 10K NTC

21 ■ ■ ■ FAN-DELAY 00 Fan off delay after valve closed, in seconds(0-99 s)

22 ■ECM-RLY 00 00: Disable

01: Enable

English

ALARM CODE DESCRIPTION

Item Code Description

1 E1 Internal sensor warning.

2 HI High temperature warning. Room temperature >55°C (>131°F)

3 LO Low temperature warning. Room temperature <0°C (<32°F) or internal sensor opened.

4 E5 Dew point risk warning. Valves and fan are shut off when error is active.

8 E6 Filter alarm

9 E7 BI warning

ashes when there is a communication error.

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

安装指导

请在安装前仔细阅读该安装指导和安全警告

维修和替换：

不要试图现场维修T9000系列温控器。如果T9000不能正常工作，请与附近江森自控办事处联系。当联系办事处更换产品的时

候，请说明外部标签或参数表上印有的类型/型号。

重要：

•T9000系列温控器仅用作设备控制。当T9000系列温控器调节装置失灵或故障时可能会导致人员伤害，财产损失及其他设备损坏。请在系统中增

加预防措施，如使用监控及报警系统、保护开关等，来加强此温度调节装置的机能失效和故障时的保护。

•不要把T9000装在结露、潮湿或有湿气处。湿气会损坏温控器。

•不要拆卸外壳中的PCB，拆卸PCB板将不再享有质保服务。

•使所有接线符合国家、地区和当地的规定。不要超过T9000系列温控器电气参数。

•使用前请移除LCD塑料保护壳。

警告：

在进行电器接线时确保电源断开。在带电时连接各部件可能引起电击，从而导致人员受伤甚至死亡。

•电击危险：按照国家、地区和当地的规定给温控器接地。接地失效可能导致电击和人员受伤甚至死亡。

•电击危险和财产损失：在温控器通电前把未使用的线头保护好，使之绝缘。任何一个未使用的线头未被绝缘和保护可能导致财产损失，电击和

人员受伤甚至死亡。

中文

编号功能

A开关键

B模式键

C功能键

D风速键

E上下调节键

编号功能

A制冷

B制热

C通风

D自动模式

E自动风速

F风速高中低

GTio2/ESP

H地暖

I占用模式

J警告

K键盘锁

L阀状态

M外置传感器

N通讯

O压缩机保护中

P延时

Q温度/湿度读数

R低温保护

S除湿

T9600 界面

T9600

P/N 24-11447-00004 Rev. B Issue Date: 11 2020

用户设置

关机状态下同时按 和 键5秒进入用户设置页面，参数设定列表按M或 切换参数，按键∧和∨键调整参数。对于

T9603-T000-1JF0，按住 3秒钟以访问参数列表，然后按 向前滚动列表。

编号

T9600-

TF20-

1JS0

T9603-

T000-

1JF0

T9601-

TF20-

1JS0

T9600-

TF21-

1JS0 参数名默认值功能含义

02 ■ ■ ■ ■ Modbus地址 01 1-96

04 ■ ■ ■ ■ 静音 00 00:禁用

01:启用

05 ■ ■ ■ ■ 温度偏移 0°C/

0°F

阶跃:0.5°C (1°F)”

设定范围:5°C~5°C (-9°F~9°F)

06 ■ ■ ■ 无人状态制冷设定值 26°C/

79°F

设置每步:0.5°C (1°F)”

设定范围:22°C~32°C (72°F-90°F)

07 ■ ■ ■ ■ 无人状态制热设定值 18°C/

64°F

阶跃:0.5°C (1°F)”

设定范围:10°C~21°C (50°F-70°F)

08 ■ ■ 采样时间 10 s 设定范围:1~99s

09 ■ ■ PB 5设定范围:1~10

10 ■ ■ KI 10 设定范围:0~99

11 ■ ■ ■ ■ 背光时间 30 设定范围:0~99s

12 ■ ■ ■ ■ 断电重启 02

00:关闭

01:启动

02:恢复

13 ■ ■ TiO2/ESP操作 00 00:与风机联动

01:单独操作（通用键）

15 ■ ■ ■ ■ 波特率 00 00:9600

01:4800

16 ■ ■ ■ ■ 按键锁 00

00:禁用

01:锁定所有按键

02:除风速及温度调节按键，锁定其他按键

03:锁定开关及通用按键

04:除开关键，锁定其他按键

17 ■ ■ ■ ■ 默认显示 00 00:室内温度

01:温度设定值

18 ■ ■ ■ ■ 温度单位 00 00:摄氏度(°C)

01:华氏度(°F)

...继续...

使用说明

开关机设置：按 键一次开机；再按一次关机，同时关闭风机盘管、电动阀。

模式调节：开机状态下，按M键进行工作模式切换。液晶显示 表示制冷，显示 表示制热，显示 表示通风, 表

示自动转换制冷制热模式（仅4管制FCU，或2管制FCU，BI输入功能设置为制冷制热模式转换）。

温度设置：在开机状态下，按 或 可进行设置温度的调节，每按一次，温度变化0.5℃/1°F。

风速调节：温控器有4种风机速度，自动 闪烁、高 、中 、低 风速。按 按钮，将循环切换。

注意：地暖模式下，地暖模式-风机设置成启用，风机才可以打开，仅单地暖模式下。

定时开关机设置：开机状态下，按 键，直至出现“on”符号，再次按 键以切换设置“On”延时开或者“Off”延时开

时间，按 或 键调整，每按一次变化30分钟。

注意：设定一次定时开关机时间只能执行一次，即只在一天内有效。

取消定时开关机设置：开机状态下，按 键，直至出现“on”符号，再次按 键以切换查看“On”延时开或者“Off”延

时开时间，按 或 键调整，每按一次变化30分钟，将时间调整为“00:00”，即为取消定时功能。

按键锁功能：如果温控器开启了锁按键功能，在没有人使用的情况下30秒后会自动把按键锁上，禁止其他人员对温控器进

行操作。

按键解锁：按风速按键 5秒即可解锁（在没有人使用的情况下30秒后会自动把按键锁上）。T9603-T000-1JF0没有风速键

，按 键5秒解锁。

Tio2/ESP功能：仅在Tio2/ESP应用，且Tio2/ESP操作设定为手动操作,按 键马上释放以切换Tio2/ESP启用/停止。

中文

Table des matières

Autres manuels Johnson Controls Thermostat

Johnson Controls

Johnson Controls TEC3330-1 Series Manuel utilisateur

Johnson Controls

Johnson Controls T8800 Series Manuel utilisateur

Johnson Controls

Johnson Controls TEC22 2-3 LonWorks Series Manuel utilisateur

Johnson Controls

Johnson Controls T26 Series Manuel utilisateur

Johnson Controls

Johnson Controls GLAS Manuel de service

Johnson Controls

Johnson Controls T6634-TE21 Manuel utilisateur

Johnson Controls

Johnson Controls WT-4002-MCR Manuel utilisateur

Johnson Controls

Johnson Controls T7200 Manuel utilisateur

Johnson Controls

Johnson Controls T6000 Series Manuel utilisateur

Johnson Controls

Johnson Controls T9580 Mode d'emploi

Johnson Controls

Johnson Controls TEC2045-2 Manuel utilisateur

Johnson Controls

Johnson Controls T2000 series Manuel utilisateur

Johnson Controls

Johnson Controls TEC2627-2 Manuel d'exploitation et d'entretien

Johnson Controls

Johnson Controls TEC3000 Series Manuel utilisateur

Johnson Controls

Johnson Controls T600HPP-2 Manuel utilisateur

Johnson Controls

Johnson Controls TEC3000 Series Manuel utilisateur

Johnson Controls

Johnson Controls TEC2003-3 Manuel utilisateur

Johnson Controls

Johnson Controls T9200 Manuel utilisateur

Johnson Controls

Johnson Controls A19BAC Manuel utilisateur

Johnson Controls

Johnson Controls TEC2216-4 Manuel utilisateur

Johnson Controls

Johnson Controls T600HCN-3 Manuel utilisateur

Johnson Controls

Johnson Controls T7200 Manuel utilisateur

Johnson Controls

Johnson Controls T701DFP-4 Manuel utilisateur

Johnson Controls

Johnson Controls T8200-TB20-9JS0/9JR0 series Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
