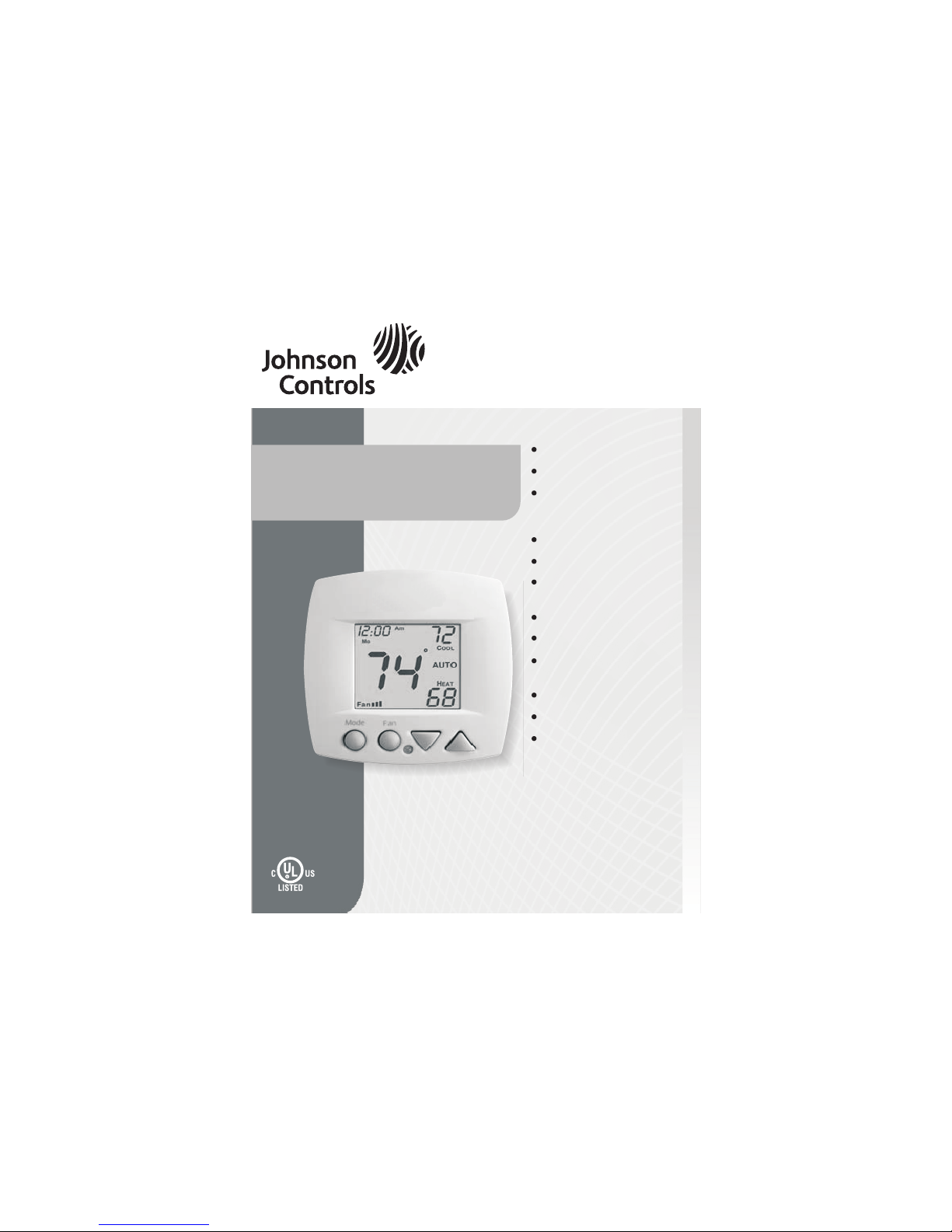

Johnson Controls T701DFP-1 Manuel utilisateur

2 or 4 pipe systems

7-Day Programmable

Thermostat

Remote sensor ready

Self-prompting programming

Auto 2-pipe changeover

when used with accessory

changeover sensor

Dry contact equipped

Backlit display

One For AllTM

works with

most all fan coil systems

Electric heat ready

Non-volatile

memory

Dual setpoint with

adjustable deadband

Keypad lockout

Configurable display

Display either F or C

Owner’s Manual

model T701DFP-1

Thermostat

Fan Coil

P/N T701DFP-1

Table Of Contents

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

BASIC OPERATION

PROGRAMMING Occupied / Unoccupied

OVERRIDING THE DAILY

SCHEDULE

ADVANCED SETUP

ABOUT ADVANCED FEATURES

& OPERATION

WARRANTY

Page 1

CAUTION

WARNING

SELECTING THE HEAT

OR COOL MODE

Follow Installation Instructions

carefully. Disconnect Power

to the Heater/Air Conditioner

before removing the old therm-

ostat and installing the new

thermostat.

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user

will be required to correct the interference at his/her own expense.

United States

Canada

North American Emissions Compliance

This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la Classe (A) respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

‘

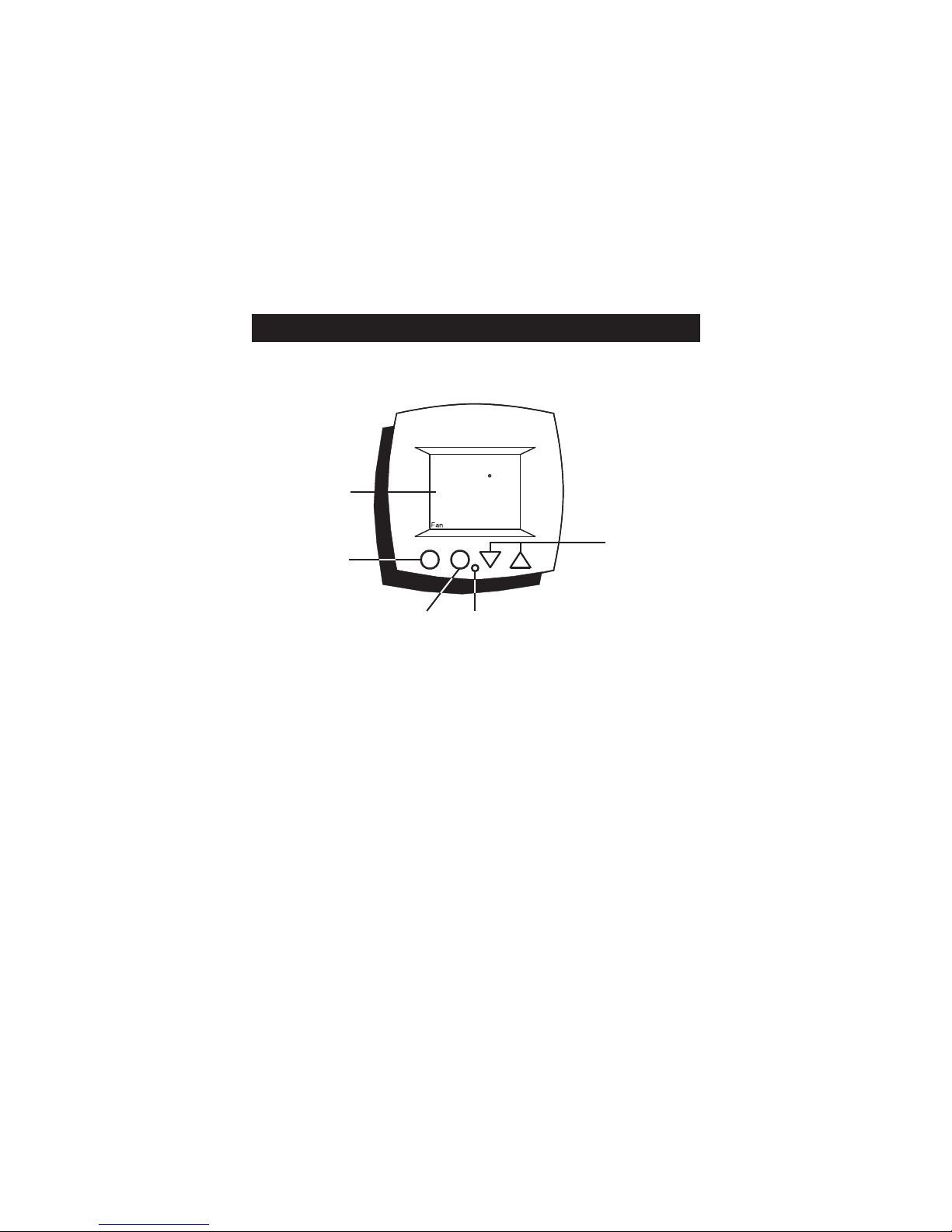

Front Panel

Page 2

Liquid Crystal Display

with Thermoglow

Up/Down Buttons

Mode Button

Fan/Override Button

Heat or Cool Indicator

Heat = Red, Cool = Green

COOL

HEAT

AUTO

I2:00

Mode Fan

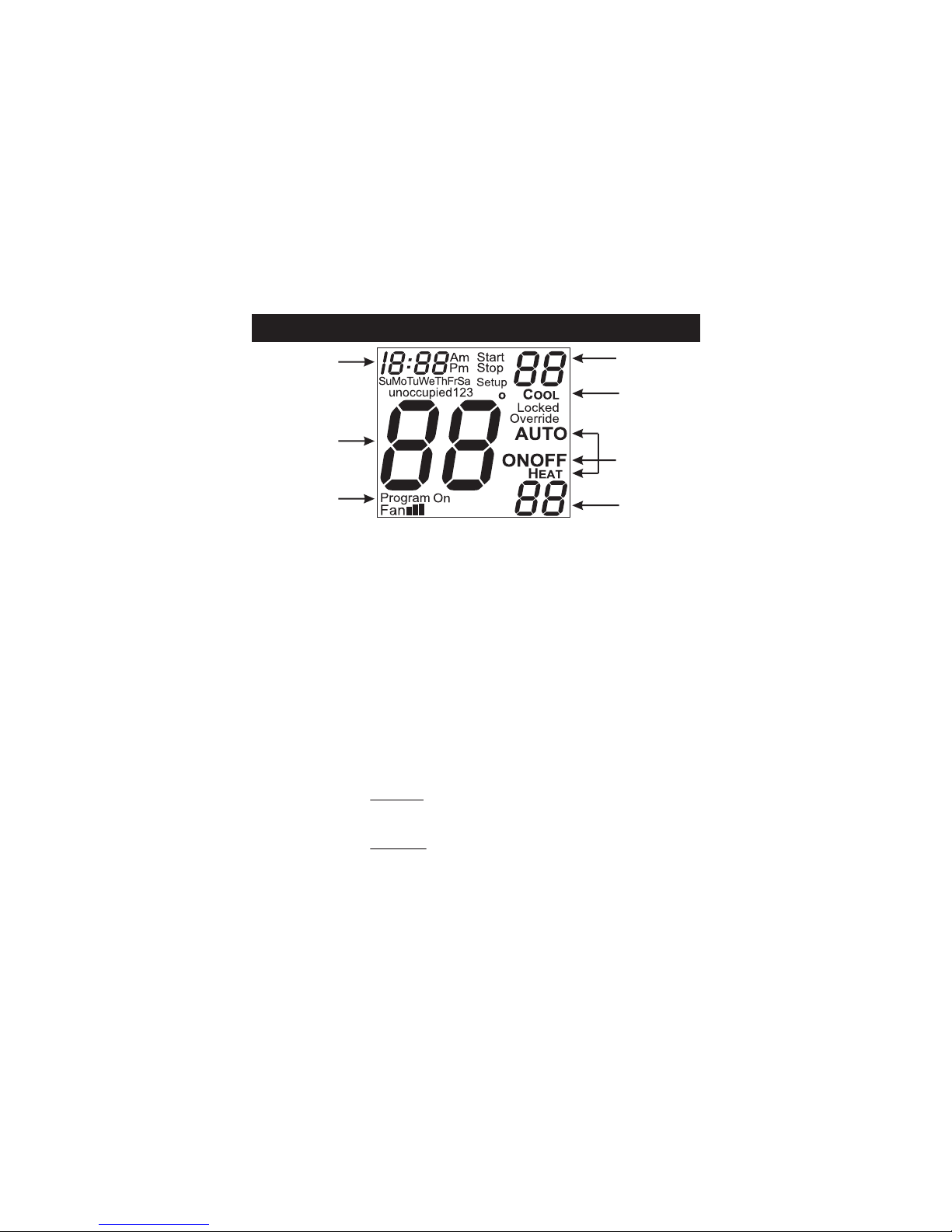

Display

Page 3

OUTSIDE

Mode Indicators - Page 7-10

Selects the operational mode of the equipment.

HEAT - Indicates the heating mode.

COOL - Indicates the cooling mode.

AUTO - Indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

PROGRAM ON - Indicates the time period

program is enabled to run.

OFF - Indicates heating and cooling are turned off.

Clock with Day of the Week - Page 6

Indicates the current time and day. This clock is

also used to program the time period schedules.

Room Temperature Display

Indicates current room temperature.

Desired Set Temperature - Page 11

Indicates desired room temperature(s).

Display

unoccupied

SuMoTuWeThFrSa

123

I2:00

Page 4

Stop

Start

Setup

COOL

HEAT

Override

Locked

AUTO

OUTSIDE

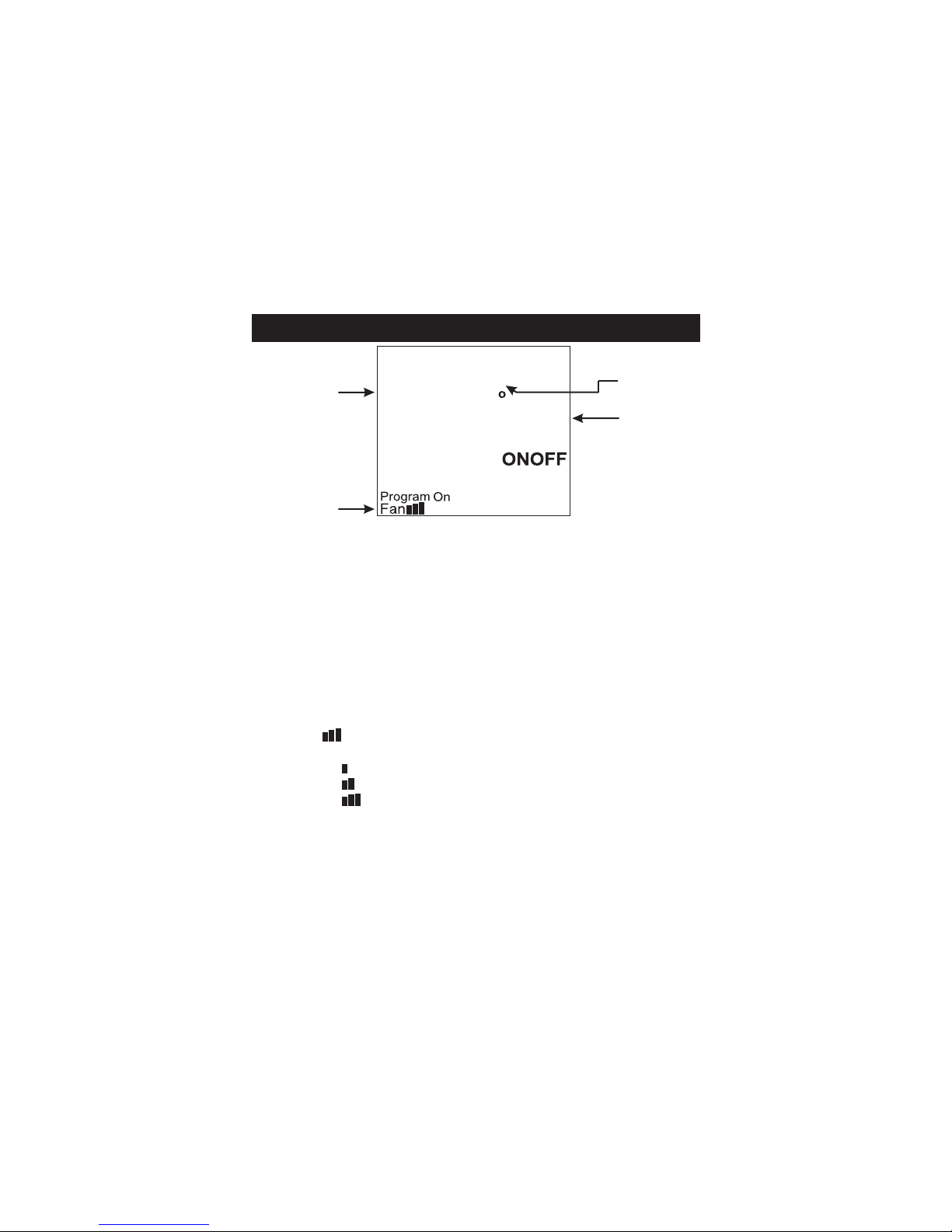

Override icon - Pages 12 & 21

Indicates the program is currently being overridden

for up to six hours.

Occupied & Unoccupied icons - Pages 13-16

Indicates the program number: Occupied 1,2,3 or

Unoccupied.

Setup icon - Pages 18-22

Indicates the thermostat is in the advanced setup

mode.

Fan icon - Page 11

Indicates fan operation.

Fan = low speed

Fan = medium speed

Fan = high speed

When only the Fan icon is displayed, the fan is in

the Auto mode and will run only when necessary to

heat or cool.

Display

unoccupied

SuMoTuWeThFrSa

123

I2:00

Page 5

Stop

Start

Setup

COOL

HEAT

Override

Locked

AUTO

OUTSIDE

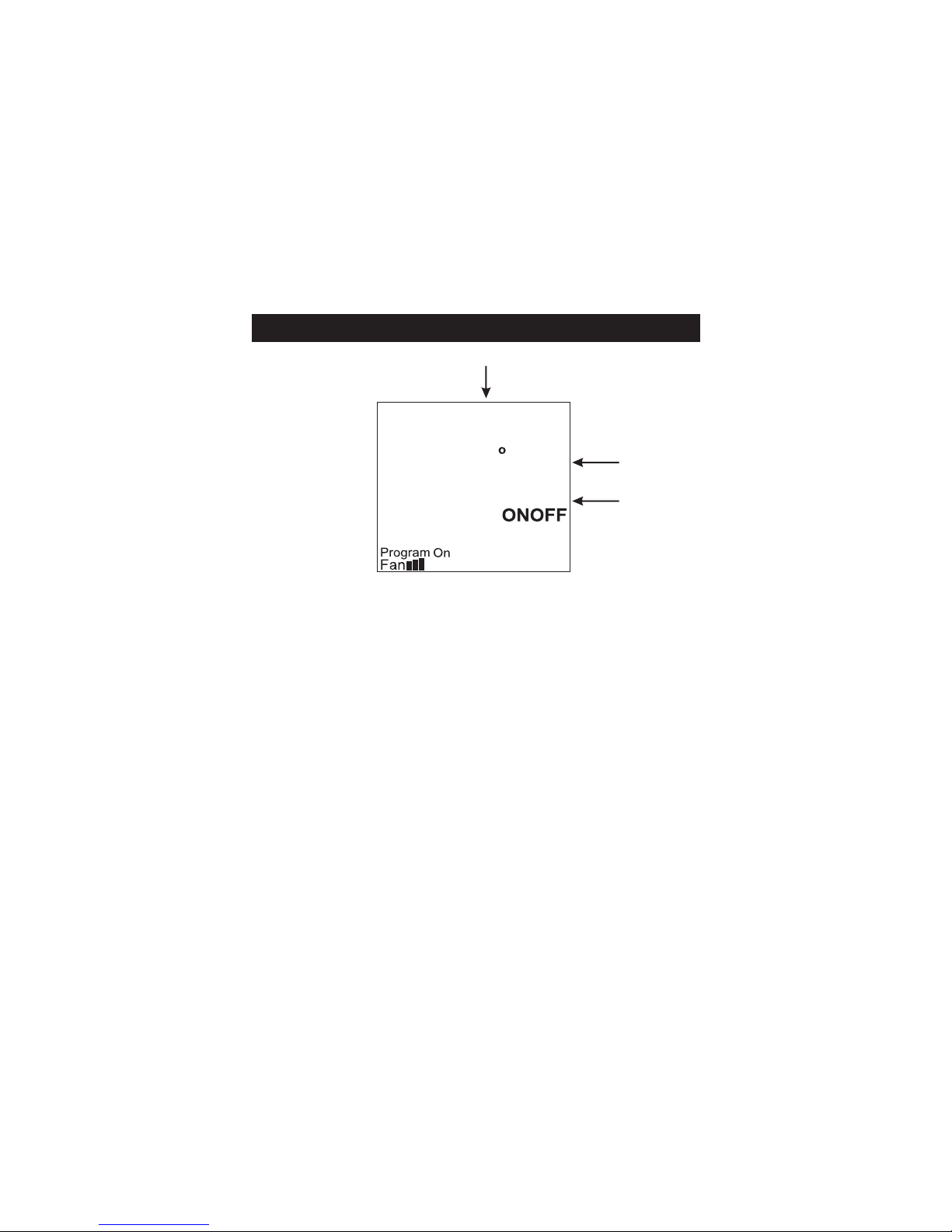

Start & Stop icons - Pages 14-16

Appear when programming occupied time periods.

Locked icon - Page 30

Indicates keypad has been locked.

Outside icon - Pages 21 & 31

Indicates the temperature displayed is from the

optional outside sensor.

The thermostat is preprogrammed from the factory to

operate a 4 pipe system without the need for further

programming. To optimize the installation of this

thermostat for a 2 pipe system, follow the instructions

in the Advanced Setup section. Page 19

Press the MODE and FAN buttons

at the same time for two seconds

to enter Setup screens.

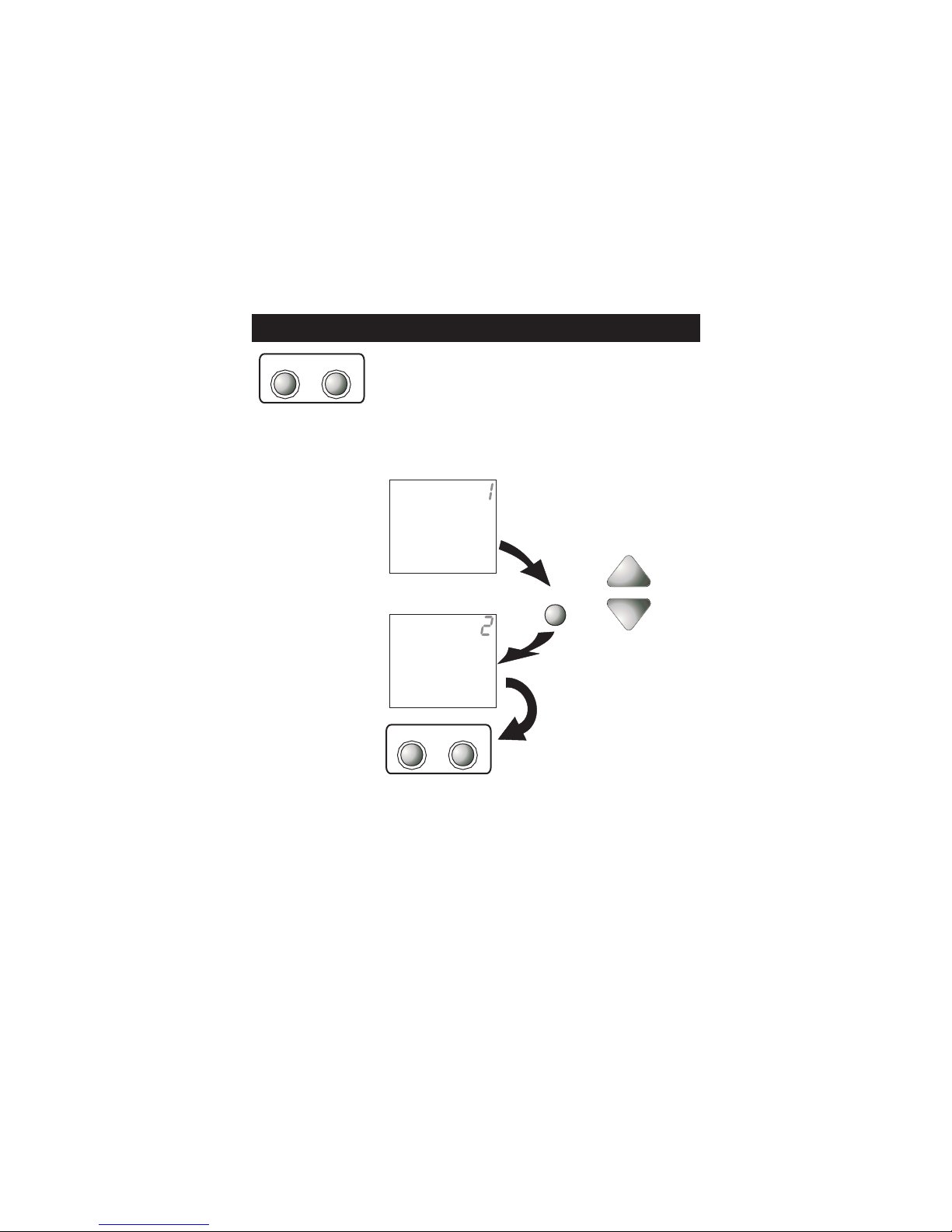

Quick Start Set the Clock and Go

Press

MODE

Setting the Clock

Setting the Day

Setup

I2:00

SetupMo

MODE FAN

Press the MODE

and FAN buttons

at the same time

t o r e t u r n t o

normal operation.

Page 6

To adjust the

Clock or Day, use

buttons.

During Setup and

Programming:

Pressing the UP or

DOWN button will

modify the flashing

selection.

Tip: To change

hours quickly,

press and hold

the FAN button

and press the

UP or DOWN

button.

70 68

HEAT

I2:00

COOL

I2:00

COOL

HEAT

AUTO

I2:00

occupied

ProgramOn

COOL

HEAT

I2:00

OFF

I2:00

Press

MODE

Press

MODE

Page 7

The HEAT setting indicates

the temperature that the room

has to fall to before the

heating source will turn

on to heat the room.

Heating Only

The COOL setting indicates

the temperature that the room

has to rise to before the

cooling source will turn

on to cool the room.

Cooling Only

OFF indicates both heating

and cooling are turned off.

Off

AUTO will automatically

select heat or cool based

on room temperature

demand.

Heating or Cooling

Time Schedule for

Heating or Cooling

Program On will activate

the stored timer operation

for the heating and cooling

setpoints (occupied or

unoccupied periods).

Select Mode by Pressing the MODE Button

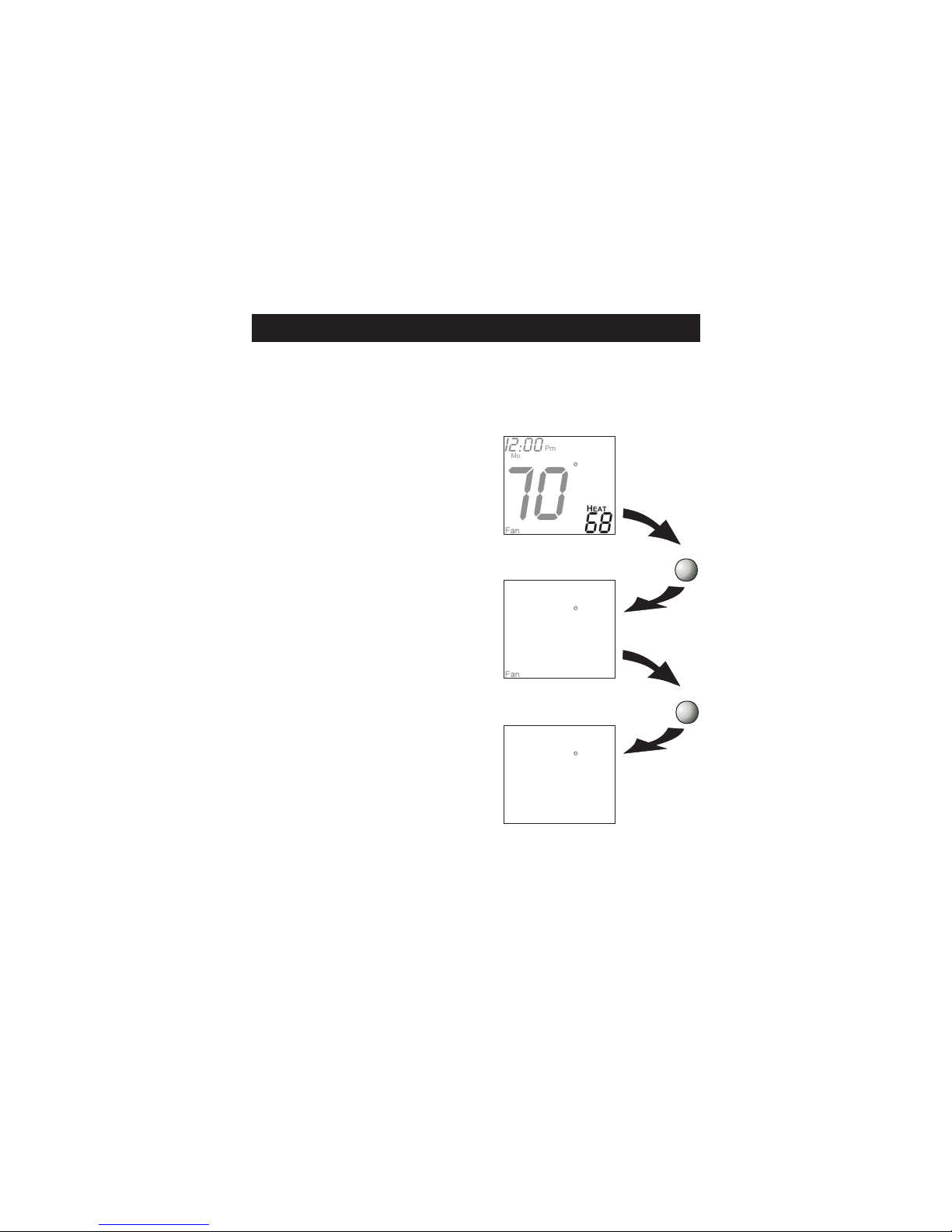

Selecting the Heat or Cool Mode 4-Pipe Operation

Heat Only

Step #6 = 1 in the Advanced Setup section,

page 19.

70 68

HEAT

I2:00

70 68

occupied

ProgramOn

HEAT

I2:00

OFF

I2:00

Press

MODE

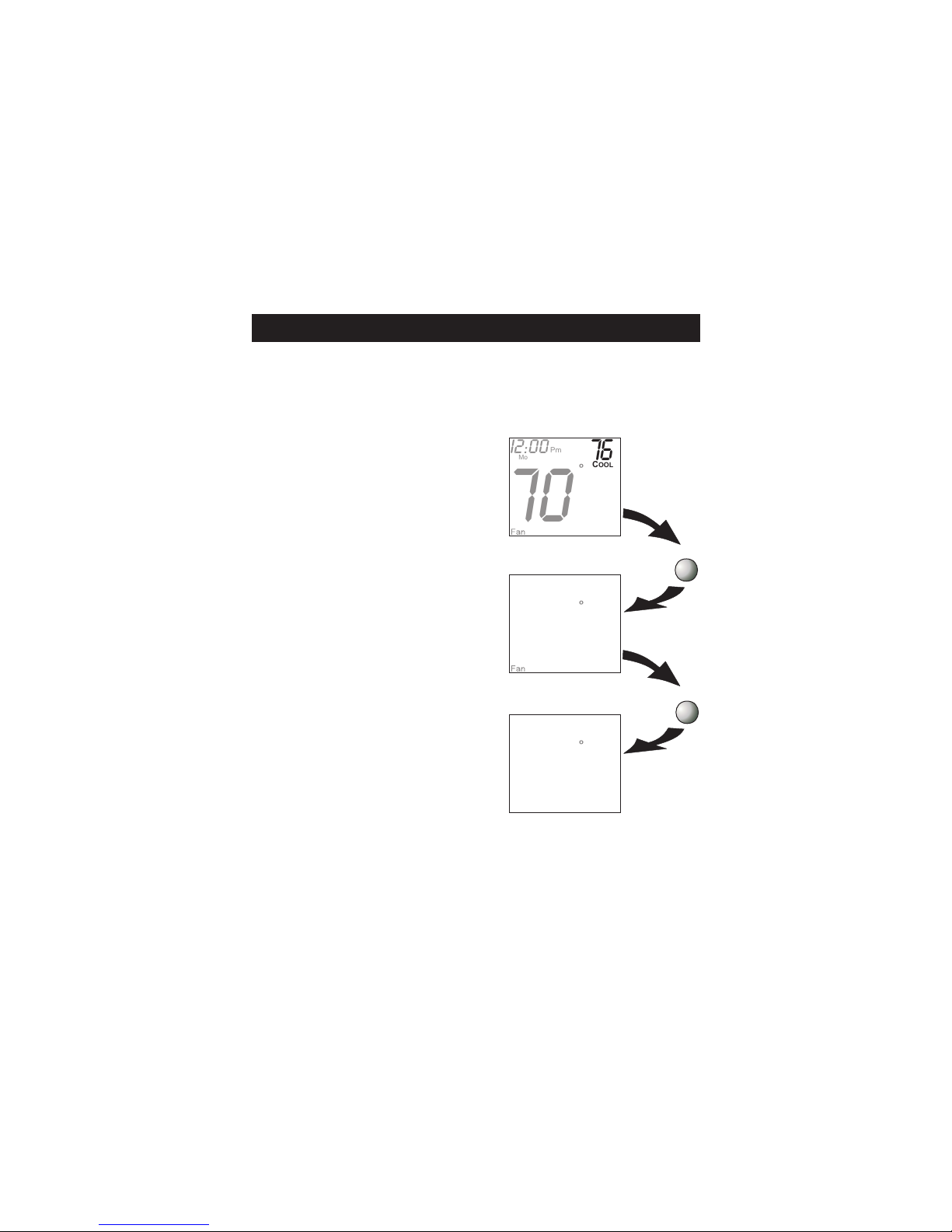

Selecting the Heat or Cool Mode 2-Pipe Operation

The HEAT setting indicates

the temperature that the room

has to fall to before the

heating source will turn

on to heat the room.

Heating Only

Time Schedule for

Heating or Cooling

Program On will activate

the stored timer operation

for the heating and cooling

setpoints (occupied or

unoccupied periods).

OFF indicates both heating

and cooling are turned off.

Off

Page 8

Cool Only

Step #6 = 2 in the Advanced Setup section,

page 19.

occupied

ProgramOn

COOL

I2:00

OFF

I2:00

Press

MODE

COOL

I2:00

Selecting the Heat or Cool Mode 2-Pipe Operation

The COOL setting indicates

the temperature that the room

has to rise to before the

cooling source will turn

on to cool the room.

Cooling Only

OFF indicates both heating

and cooling are turned off.

Off

Time Schedule for

Heating or Cooling

Program On will activate

the stored timer operation

for the heating and cooling

setpoints (occupied or

unoccupied periods).

Page 9
