V400DA

USER'S MANUAL

M/B For Socket-A Athlon XP/Duron Processor

NO. G03-V400DA1A

Release date: December 2002

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

USER’S NOTICE................................................................................ ii

MANUAL REVISION INFORMATION.............................................. 1

COOLING SOLUTIONS ................................................................... 1

CHAPTER 1 INTRODUCTION OF V400DA MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD ............................................... 2

1-2 SPECIFICATION .................................................................... 3

1-3 PERFORMANCE LIST............................................................. 4

1-4 LAYOUT DIAGRAM & JUMPER SETTING ................................ 5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS ........................................ 7

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING.................... 7

2-3 INSTALL CPU ........................................................................ 9

2-3-1 GLOSSARY...........................................................................9

2-3-2 ABOUT AMD ATHLON XP & DURON 462-PIN CPU ....................10

2-4 INSTALL MEMORY................................................................ 11

2-5 EXPANSION CARD ................................................................. 12

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION .............12

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD.................................12

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD.......13

2-5-4 AGP SLOT ............................................................................13

2-6 CONNECTORS, HEADERS....................................................... 13

2-6-1 CONNECTORS ......................................................................13

2-6-2 HEADERS.............................................................................16

2-7 STARTING UP YOUR COMPUTER ........................................... 19

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP.................................................................. 20

3-2 GETTING HELP ..................................................................... 20

3-3 THE MAIN MENU................................................................... 21

3-4 STANDARD CMOS FEATURES................................................. 22

3-5 ADVANCED BIOS FEATURES .................................................. 23

3-6 ADVANCED CHIPSET FEATURES ............................................ 25

3-6-1 DRAM TIMING SETTINGS............................................. 26

3-6-2 AGP TIMING SETTINGS................................................ 27

3-6-3 PCI TIMING SETTINGS................................................. 27

3-7 INTEGRATED PERIPHERALS.................................................. 28

3-7-1 ONCHIP IDE FUNCTION ............................................... 28

3-7-2 ONCHIP DEVICE FUNCTION ......................................... 29

3-7-3 ONCHIP SUPER IO FUNCTION ...................................... 30

TABLE OF CONTENT

3-8 POWER MANAGEMENT SETUP............................................... 31

3-8-1 WAKE UP EVENTS....................................................... 32

3-8-1.1 IRQS ACTIVITIES...................................................33

3-9 PNP/PCI CONFIGURATION SETUP .......................................... 33

3-9-1 IRQ RESOURCES ......................................................... 34

3-10 PC HEALTH STATUS ............................................................. 34

3-11 MISCELLANEOUS CONTROL................................................. 35

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ............................. 36

3-13 SET SUPERVISOR/USER PASSWORD ...................................... 36

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

MAGIC INSTALL SUPPORTS WINDOWS 9X/NT/2K/XP ..................... 37

4-1 VIA 4 IN 1 INSTALL VIA SERVICE PACK 4 IN 1 DRIVER ................ 38

4-2 SOUND INSTALL CMI AUDIO CODEC DRIVER ........................ 39

4-3 PC-HEALTH WINBOND HARDWARE DOCTOR MONITORING SOFTWARE

........................................................................ 41

4-3-1 HOW TO UTILIZE PC-HEALTH....................................... 41

4-4 MAGIC BIOS

INSTALL BIOS LIVE UPDATE UTILITY ........................ 42

4-5 PC-CILLIN INSTALL PC-CILLIN2002 ANTI-VIRUS PROGRAM .......... 43

4-6 USB 2.0 INSTALL VIA USB 2.0 DEVICE DRIVER ...............................44

4-7 HOW TO DISABLE ON-BOARD SOUND .................................... 45

4-8 HOW TO UPDATE BIOS .......................................................... 45

USER’S NOTICE

THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT

MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN

ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE

MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE V400DA MOTHER

-BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT

WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES

THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE

OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY

NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE

COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION

AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Release December 2002

Item Checklist

 V400DA Motherboard

 Cable for IDE/Floppy

 CD for motherboard utilities

□Cable for USB Port 3/4 (Option)

 V400DA User’s Manual

AMD Athlon™ XP / Duron™ Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal

management becomes increasingly crucial when building computer systems. Maintaining the

proper thermal environment is key to reliable, long-term system operation. The overall goal

in providing the proper thermal environment is keeping the processor below its specified

maximum case temperature. Heatsinks induce improved processor heat dissipation through

increased surface area and concentrated airflow from attached fans. In addition, interface

materials allow effective transfers of heat from the processor to the heatsink. For optimum

heat transfer, AMD recommends the use of thermal grease and mounting clips to attach the

heatsink to the processor.

When selecting a thermal solution for your system, please refer to the website below for

collection of heatsinks evaluated and recommended by AMD for use with AMD processors.

Note, those heatsinks are recommended for maintaining the specified Maximum T case

requirement. In addition, this collection is not intended to be a comprehensive listing of all

heatsinks that support AMD processors.

For vendor list of heatsink and fan, please visit：

http://www1.amd.com/products/duron/thermals

http://www1.amd.com/products/athlon/thermals

Chapter 1

Introduction of V400DA Motherboard

1-1 Feature of motherboard

The V400DA motherboard is design for use AMD Athlon/Duron/Athlon XP

200MHz/266MHz/333MHz (Double Data Rate) Front Side Bus Frequency CPU,

which utilize the Socket-A design and the memory size expandable to 3.0GB.

V400DA motherboard use the newest VIA KT400 chipset, whose 333/266MHz

(Double Data Rate) Front Side Bus frequency delivers a clear upgrade path to the

future generation of 200/266/333MHz processors. The V400DA provided 266/333/

400MHz memory frequency supported DDR266/DDR333 DDR SDRAM. The V400DA

motherboard offers ULTRA ATA 133 to provide speedier HDD throughout that

boosts overall system performance.

These motherboards also has an integrated AC’97 2.1 CODEC on board which is

fully compatible with Sound Blaster Prothat gives you the best sound quality and

compatibility. It Supports 4 channel Speaker for 3D Surround Effect.

For those wanting even greater graphic performance, an AGP 8X slot is included on

the board.

With USB control as well as capability of expanding to 6 USB function ports support

USB2.0/USB1.1 Devices, the V400DA meet future USB demand also this motherboard

has built-in hardware monitor function. This will monitor and protect your

computer.

A special design in hardware for protecting Athlon XP CPU from burned, the

system will auto shutdown power supply when CPU is overheat or the CPU FAN is

stop.

In V400DA we design in DDR memory 2.5V Voltage, AGP 1.5V Voltage those can

minor adjustable in BIOS setup. This design can let users approach over clock

demand and also can make system more stable. The V400DA motherboard provides

special function in BIOS Setup to setting CPU Host clock step by step increasing let

users to approach over clocking.

V400DA provides high performance & meets future specification demand. It is

really wise choice for your computer.

1-2 Specification

Spec Description

Design ∗ ATX form factor 4 layers PCB size: 30.5x21.0cm

Chipset ∗ VIA KT400 North Bridge Chipset for V400DA

∗ VIA VT8235 South Bridge

CPU Socket ∗ Support AMD Athlon 700MHz∼1.4GHz processor

∗ Support AMD Duron 600MHz∼1.3GHz processor

∗ Support AMD Athlon XP1500+~XP2700+ processor

∗ Support 200MHz/266MHz/333MHz (Double Data Rate)

Front Side Bus frequency processors

∗ Reserves support for future AMD Athlon/Duron /Athlon

XP processors

Memory Socket ∗ 184-pin DDR module socket x3

∗ Support DDR266/DDR333 DDR SDRAM

∗ Expandable to 3.0GB

Expansion Slot &

Headers

∗ AGP slot x1 support AGP 3.0 & 4X mode

∗ 32-bit PCI slot x5

∗ CNR slot x1

Integrate IDE ∗ Two PCI IDE controllers support PCI Bus Mastering,

ATA PIO/DMA and the ULTRA DMA 33/66/100/133

functions that deliver the data transfer rate up to 133

MB/s

Audio ∗ AC’97 Digital Audio controller integrated

∗ AC’97 Audio CODEC on board

∗ Audio driver and utility included

∗ Support 4 channel Speaker for 3D surround effect

BIOS ∗ Award 2MBit Flash ROM

Multi I/O ∗ PS/2 keyboard and PS/2 mouse connectors

∗ Floppy disk drive connector x1

∗ Parallel port x1

∗ Serial port x2

∗ USB2.0 connector x2

∗ USB2.0 headers x2 (connecting cable option)

∗ Audio connector (Line-in, Line-out , MIC & Game Port)

1-3 Performance List

The following performance data list is the testing result of some popular benchmark

testing programs. These data are just referred by users, and there is no responsibility

for different testing data values gotten by users (the different Hardware & Software

configuration will result in different benchmark testing results.)

Performance Test Report

CPU: AMD Athlon XP 2000+

DRAM: 256MB DDR266 X1 (SAMSUNG DDR K4H280838B-TCB0)

256MB DDR333 X1 (MICRON DDR MT46V16M8-6)

VGA Expansion Card: NVDIA Geforce 2 MX400 (1024x768 Hi-color)

Hard Disk Driver: IBM DTLA-305040 (ATA-100)

BIOS: Award Optimal default

OS: Win 98SE

DDR266 DDR333

3D Mark 2000 5678 5687

3D Mark 2001 2554 2550

3D Winbench 2000 105 105

Final Reality 10.34 10.39

Content Creation Winstone 2000 50 50.3

Content Creation Winstone 2001 63.6 64.5

Content Creation Winstone 2002 23.6 23.9

Business Winstone2001 53.9 53.7

Winbench 99:

CPU Mark 99 152 151

FPU Winmark 99 9140 9140

Business Disk Winmark99 7440 7690

Hi-end Disk Winmark99 19600 19400

Business Graphic Winmark 794 790

Hi-end Graphic Winmark 2390 2400

SYS Mark 2000/2001 : SISMark 2000/2001 Rating (Internet Content

Creation / Office Productivity)

SISMark 2000 282 (298/270) 285 (302/272)

SISMark 2001 166 (178/154) 171 (180/163)

SISOFT Sandra 2001 :

Dhrystone ALU MIPS 4640 4657

Whetstone FPU MFLOPS 2280 2303

Int ALU/RAM MB/S 761 827

Float FPU/RAM MB/S 804 892

Integer SSE2 IT/S 9320 9302

Floating- Point SSE2 MB/S 10706 10780

QUAKE3 DEMO1 FPS 178.9 185.2

DEMO2 FPS 186.5 191.9

WCPUID System/CPU Clock 133.79/1672.32 133.79/1672.32

1-4 Layout Diagram & Jumper Setting

COM1 COM2

PS/2 Mouse

PS/2 Keyboard

USB

LINE-OUT

LINE-IN

MIC

PRINT GAME/MIDI PORT

Front Panel Audio

PC99 Back Panel

CD Audio

K/B Power ON

Jumper (JP1)

USB Port

2MBit Flash ROM BIOS

FAN2

Floppy Connector

VIA KT400 Chip

Front Panel Connector

ATA 133 IDE

Connector

Clear CMOS (JBAT)

ATX Power Connector

CPU FAN

CPU Socket

DDR Socket X3

VIA VT8235 Chip

Wake On LAN

FAN1

Winbond 83697HF

Chip

IR Connector

CNR Slot

PCI Slot

AGP Slot

CPU Front Side Bus

Frequency Jumper (JP4)

PS2 KB/Mouse Port

USB Port

(USB1, USB2)

Jumpers

Jumper Name Description Page

JP4 CPU Front Side Bus Frequency 4-pin Block P.7

JBAT CMOS RAM Clear 3-pin Block P.7

JP1 Keyboard Power On Enable/Disabled 3-pin Block P.8

Connectors

Connector Name Description Page

ATXPOW ATX Power Connector 20-pin Block P.13

J2 PS/2 Mouse & PS/2 Keyboard

Connector

6-pin Female P.14

J3 USB Port Connector 4-pin Connector P.14

PARALLEL Parallel Port Connector 25-pin Female P.14

AUD_GAME Audio/Game Connector 3 phone jack + 15-pin Connector P.14

COM1/COM2 Serial Port COM1/2 Connector 9-pin Connector P.14

FDD Floppy Driver Connector 34-pin Block P.14

IDE1 Primary IDE Connector 40-pin Block P.15

IDE2 Secondary IDE Connector 40-pin Block P.15

Headers

Header Name Description Page

AUDIO Line-In/Out, MIC header 10-pin Block P.16

USB1/USB2 USB Port Headers 9-pin Block P.16

IDE LED IDE activity LED 2-pin Block P.16

TB LED Turbo LED switch 2-pin Block P.16

RESET Reset switch lead 2-pin Block P.17

SPEAKER Speaker connector 4-pin Block P.17

PWR LED Power LED 2-pin Block P.17

PW BN Power switch 2-pin Block P.17

WOL Wake On-LAN Headers 3-pin Block P.17

FAN1,FAN2,CPUFAN FAN Headers 3-pin Block P.18

IR IR infrared module Headers 5-pin Block P.18

CDIN1 CD Audio-In Headers 4-pin Block P.18

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 462 CPU Socket 462-pin PPGA CPU Socket P.10

DDR1, DDR2, DDR3 DDR SDRAM Module

Socket

184-pin DDR SDRAM Module

Expansion Socket

P.11

PCI1, PCI2, PCI3,

PCI4, PCI5

PCI Slot 32-bit PCI Local Bus Expansion slots P.12

AGP AGP 8X Mode Slot AGP Expansion Slot P.13

Chapter 2

Hardware installation

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard setting

2. Install CPU

3. Install Memory

4. Install Expansion cards

5. Connect Ribbon cables, Panel wires, and power supply

6. Setup BIOS

7. Install software driver & utility

2-2 Checking Motherboard’s Jumper Setting

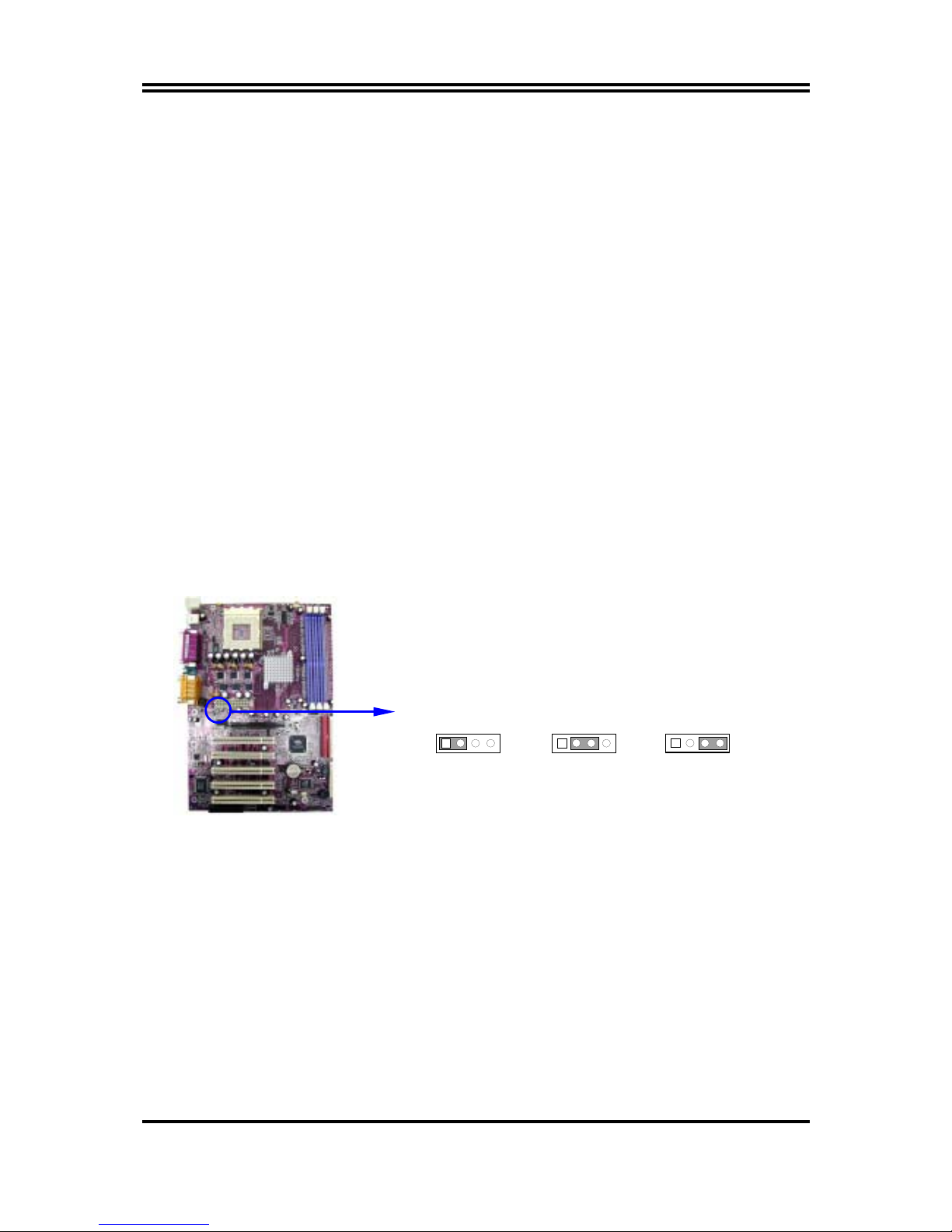

(1) CPU Front Side Bus Frequency Setting (4-pin) : JP4

CPU Front Side Bus Frequency Setting

1-2 : 100MHz

(Default)

JP4

1 4

2-3 : 133MHz

JP4

1 4

3-4 : 166MHz

JP4

1 4

Note: CPU Front Side Bus Frequency also can setting step by step in BIOS SETUP,

please refer page 35 Miscellaneous Control in Host Clock at Next.

(2) CMOS RAM Clear (3-pin) : JBAT

A battery must be used to retain the motherboard configuration in CMOS RAM short

1-2 pins of JBAT to store the CMOS data.

To clear the CMOS, follow the procedure below:

1. Turn off the system and unplug the AC power

2. Remove ATX power cable from ATX power connector

3. Locate JBAT and short pins 2-3 for a few seconds

4. Return JBAT to its normal setting by shorting pins 1-2

5. Connect ATX power cable back to ATX power connector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JETWAY Carte mère

JETWAY

JETWAY J-630AF Manuel utilisateur

JETWAY

JETWAY JNP891 Series Manuel utilisateur

JETWAY

JETWAY 865GVBMS Manuel utilisateur

JETWAY

JETWAY MM10-H6100 Manuel utilisateur

JETWAY

JETWAY NF835F Series Manuel utilisateur

JETWAY

JETWAY I402R2A Manuel utilisateur

JETWAY

JETWAY IN73M3 Manuel utilisateur

JETWAY

JETWAY MI23 Series Manuel utilisateur

JETWAY

JETWAY PLE01 Manuel utilisateur

JETWAY

JETWAY NF36-2600 Manuel utilisateur

JETWAY

JETWAY 917GBAR3A Manuel utilisateur

JETWAY

JETWAY 754TURBOR208 Manuel utilisateur

JETWAY

JETWAY 865GF Manuel utilisateur

JETWAY

JETWAY P5M Manuel utilisateur

JETWAY

JETWAY 630DFR1A Manuel utilisateur

JETWAY

JETWAY S447R1C Manuel utilisateur

JETWAY

JETWAY TA77AG Manuel utilisateur

JETWAY

JETWAY 845GEA1A Manuel utilisateur

JETWAY

JETWAY ARMR3288W Series Manuel utilisateur

JETWAY

JETWAY G03-NC94-F Manuel utilisateur

JETWAY

JETWAY G03-NF96-F Manuel utilisateur

JETWAY

JETWAY 623DM Manuel utilisateur

JETWAY

JETWAY S446R2A Manuel utilisateur

JETWAY

JETWAY R3399X-2C Series Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
