JETWAY V333UR1A Manuel utilisateur

V333U

USER'S MANUAL

M/B For Socket-A Athlon/Duron Processor

NO. G03-V333UR1A

Release date: July 2002

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

USER’S NOTICE................................................................................ ii

MANUAL REVISION INFORMATION.............................................. 1

COOLING SOLUTIONS ................................................................... 1

CHAPTER 1 INTRODUCTION OF V333U MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD ............................................... 2

1-2 SPECIFICATION .................................................................... 3

1-3 PERFORMANCE LIST............................................................. 4

1-4 LAYOUT DIAGRAM & JUMPER SETTING ................................ 5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS ........................................ 7

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING.................... 7

2-3 INSTALL CPU ........................................................................ 9

2-3-1 GLOSSARY...........................................................................9

2-3-2 ABOUT AMD ATHLON & DURON 462-PIN CPU .........................10

2-4 INSTALL MEMORY................................................................ 11

2-5 EXPANSION CARD ................................................................. 12

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION .............12

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD.................................12

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD.......13

2-5-4 AGP SLOT ............................................................................13

2-6 CONNECTORS, HEADERS....................................................... 13

2-6-1 CONNECTORS ......................................................................13

2-6-2 HEADERS.............................................................................16

2-7 STARTING UP YOUR COMPUTER ........................................... 19

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP.................................................................. 20

3-2 GETTING HELP ..................................................................... 20

3-3 THE MAIN MENU................................................................... 21

3-4 STANDARD CMOS FEATURES................................................. 22

3-5 ADVANCED BIOS FEATURES .................................................. 23

3-6 ADVANCED CHIPSET FEATURES ............................................ 25

3-6-1 DRAM TIMING SETTINGS............................................. 26

3-6-2 AGP TIMING SETTINGS................................................ 27

3-6-3 PCI TIMING SETTINGS................................................. 27

3-7 INTEGRATED PERIPHERALS.................................................. 28

3-7-1 ONCHIP IDE FUNCTION ............................................... 28

3-7-2 ONCHIP DEVICE FUNCTION ......................................... 29

3-7-3 ONCHIP SUPER IO FUNCTION ...................................... 30

TABLE OF CONTENT

3-8 POWER MANAGEMENT SETUP............................................... 31

3-8-1 WAKE UP EVENTS....................................................... 32

3-8-1.1 IRQS ACTIVITIES...................................................33

3-9 PNP/PCI CONFIGURATION SETUP .......................................... 33

3-9-1 IRQ RESOURCES ......................................................... 34

3-10 PC HEALTH STATUS ............................................................. 34

3-11 MISCELLANEOUS CONTROL................................................. 35

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ............................. 36

3-13 SET SUPERVISOR/USER PASSWORD ...................................... 36

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000......... 37

4-1 VIA 4 IN 1 INSTALL VIA SERVICE PACK 4 IN 1 DRIVER ................ 38

4-2 SOUND INSTALL CMI AUDIO CODEC DRIVER ........................ 39

4-3 PC-HEALTH WINBOND HARDWARE DOCTOR MONITORING SOFTWARE

........................................................................ 41

4-3-1 HOW TO UTILIZE PC-HEALTH....................................... 41

4-4 MAGIC BIOS

INSTALL BIOS LIVE UPDATE UTILITY ........................ 42

4-5 PC-CILLIN INSTALL PC-CILLIN2002 ANTI-VIRUS PROGRAM .......... 43

4-6 USB 2.0 INSTALL VIA USB 2.0 DEVICE DRIVER ...............................44

4-7 HOW TO DISABLE ON-BOARD SOUND .................................... 45

4-8 HOW TO UPDATE BIOS .......................................................... 45

USER’S NOTICE

THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT

MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN

ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE

MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE V333U MOTHER-

BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL

CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS

MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE

FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING

DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,

INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY

NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE

COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION

AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Release July 2002

Item Checklist

 V333U

 Cable for IDE/Floppy

 CD for motherboard utilities

□Cable for USB Port 3/4 (Option)

 V333U User’s Manual

AMD Athlon™ / Duron™ Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal

management becomes increasingly crucial when building computer systems.

Maintaining the proper thermal environment is key to reliable, long-term system

operation. The overall goal in providing the proper thermal environment is keeping

the processor below its specified maximum case temperature. Heatsinks induce

improved processor heat dissipation through increased surface area and concentrated

airflow from attached fans. In addition, interface materials allow effective transfers

of heat from the processor to the heatsink. For optimum heat transfer, AMD

recommends the use of thermal grease and mounting clips to attach the heatsink to

the processor.

When selecting a thermal solution for your system, please refer to the website below

for collection of heatsinks evaluated and recommended by AMD for use with AMD

processors. Note, those heatsinks are recommended for maintaining the specified

Maximum T case requirement. In addition, this collection is not intended to be a

comprehensive listing of all heatsinks that support AMD processors.

For vendor list of heatsink and fan, please visit：

http://www1.amd.com/products/duron/thermals

http://www1.amd.com/products/athlon/thermals

Chapter 1

Introduction of V333U Motherboard

1-1 Feature of motherboard

The V333U motherboard is design for use AMD Athlon/Duron/Athlon XP 200MHz

/266MHz (Double Data Rate) Front Side Bus Frequency CPU, which utilize the

Socket-A design and the memory size expandable to 3.0GB.

This motherboard use the newest VIA KT333 chipset, whose 133MHz/266MHz

(Double Data Rate) Front Side Bus frequency and 333MHz memory interface

delivers a clear upgrade path to the future generation of 266MHz processors and

DDR200/DDR266/DDR333 DDR SDRAM. The V333U motherboard offers ULTRA

ATA 133 to provide speedier HDD throughout that boosts overall system

performance.

These motherboards also has an integrated AC’97 2.1 CODEC on board which is

fully compatible with Sound Blaster Prothat gives you the best sound quality and

compatibility. It Supports 4 channel Speaker for 3D Surround Effect.

For those wanting even greater graphic performance, an AGP 4X slot is included on

the board.

With USB control as well as capability of expanding to 6 USB function ports support

USB2.0/USB1.1 Devices, the V333U meet future USB demand also this motherboard

has built-in hardware monitor function. This will monitor and protect your

computer.

A special design in hardware for protecting Athlon XP CPU from burned, the

system will auto shutdown power supply when CPU is overheat or the CPU FAN is

stop.

In V333U we design in CPU Vcore Voltage, DDR memory 2.5V Voltage, AGP

1.5V Voltage those can minor adjustable in BIOS setup. This design can let users

approach over clock demand and also can make system more stable. The V333U

motherboard provides special function in BIOS Setup to setting CPU Host clock step

by step increasing let users to approach over clocking, and special design in

hardware to protect BIOS from virus crash BIOS data.

V333U provides high performance & meets future specification demand. It is really

wise choice for your computer.

1-2 Specification

Spec Description

Design ∗ ATX form factor 4 layers PCB size: 30.5x21.0cm

Chipset ∗ VIA KT333/VT8235 Chipset

CPU Socket ∗ Support AMD Athlon 700MHz∼1.4GHz processor

∗ Support AMD Duron 600MHz∼1.3GHz processor

∗ Support AMD Athlon XP1500+~XP2200+ processor

∗ Support 200MHz/266MHz (Double Data Rate) Front

Side Bus frequency processors

∗ Reserves support for future AMD Athlon/Duron /Athlon

XP processors

Memory Socket ∗ 184-pin DDR module socket x3

∗ Support DDR266/DDR200/DDR333 DDR SDRAM

∗ Expandable to 3.0GB

Expansion Slot &

Headers

∗ AGP slot x1 support AGP 2.0 & 4X mode

∗ 32-bit PCI slot x5

∗ CNR slot x1

Integrate IDE ∗ Two PCI IDE controllers support PCI Bus Mastering,

ATA PIO/DMA and the ULTRA DMA 33/66/100/133

functions that deliver the data transfer rate up to 133

MB/s

Audio ∗ AC’97 Digital Audio controller integrated

∗ AC’97 Audio CODEC on board

∗ Audio driver and utility included

∗ Support 4 channel Speaker for 3D surround effect

BIOS ∗ Award 2MBit Flash ROM

Multi I/O ∗ PS/2 keyboard and PS/2 mouse connectors

∗ Floppy disk drive connector x1

∗ Parallel port x1

∗ Serial port x2

∗ USB2.0 connector x2

∗ USB2.0 headers x2 (connecting cable option)

∗ Audio connector (Line-in, Line-out , MIC & Game Port)

1-3 Performance List

The following performance data list is the testing result of some popular benchmark

testing programs. These data are just referred by users, and there is no responsibility

for different testing data values gotten by users (the different Hardware & Software

configuration will result in different benchmark testing results.)

Performance Test Report

CPU: AMD Athlon XP 2000+

DRAM: 256MB DDR266 X1 (SAMSUNG DDR K4H280838B-TCB0)

256MB DDR333 X1 (MICRON DDR MT46V16M8-6)

VGA Expansion Card: NVDIA Geforce 2 MX400 (1024x768 Hi-color)

Hard Disk Driver: IBM DTLA-305040 (ATA-100)

BIOS: Award Optimal default

OS: Win 98SE

DDR266 DDR333

3D Mark 2000 5678 5687

3D Mark 2001 2554 2550

3D Winbench 2000 105 105

Final Reality 10.34 10.39

Content Creation Winstone 2000 50 50.3

Content Creation Winstone 2001 63.6 64.5

Content Creation Winstone 2002 23.6 23.9

Business Winstone2001 53.9 53.7

Winbench 99:

CPU Mark 99 152 151

FPU Winmark 99 9140 9140

Business Disk Winmark99 7440 7690

Hi-end Disk Winmark99 19600 19400

Business Graphic Winmark 794 790

Hi-end Graphic Winmark 2390 2400

SYS Mark 2000/2001 : SISMark 2000/2001 Rating (Internet Content

Creation / Office Productivity)

SISMark 2000 282 (298/270) 285 (302/272)

SISMark 2001 166 (178/154) 171 (180/163)

SISOFT Sandra 2001 :

Dhrystone ALU MIPS 4640 4657

Whetstone FPU MFLOPS 2280 2303

Int ALU/RAM MB/S 761 827

Float FPU/RAM MB/S 804 892

Integer SSE2 IT/S 9320 9302

Floating- Point SSE2 MB/S 10706 10780

QUAKE3 DEMO1 FPS 178.9 185.2

DEMO2 FPS 186.5 191.9

WCPUID System/CPU Clock 133.79/1672.32 133.79/1672.32

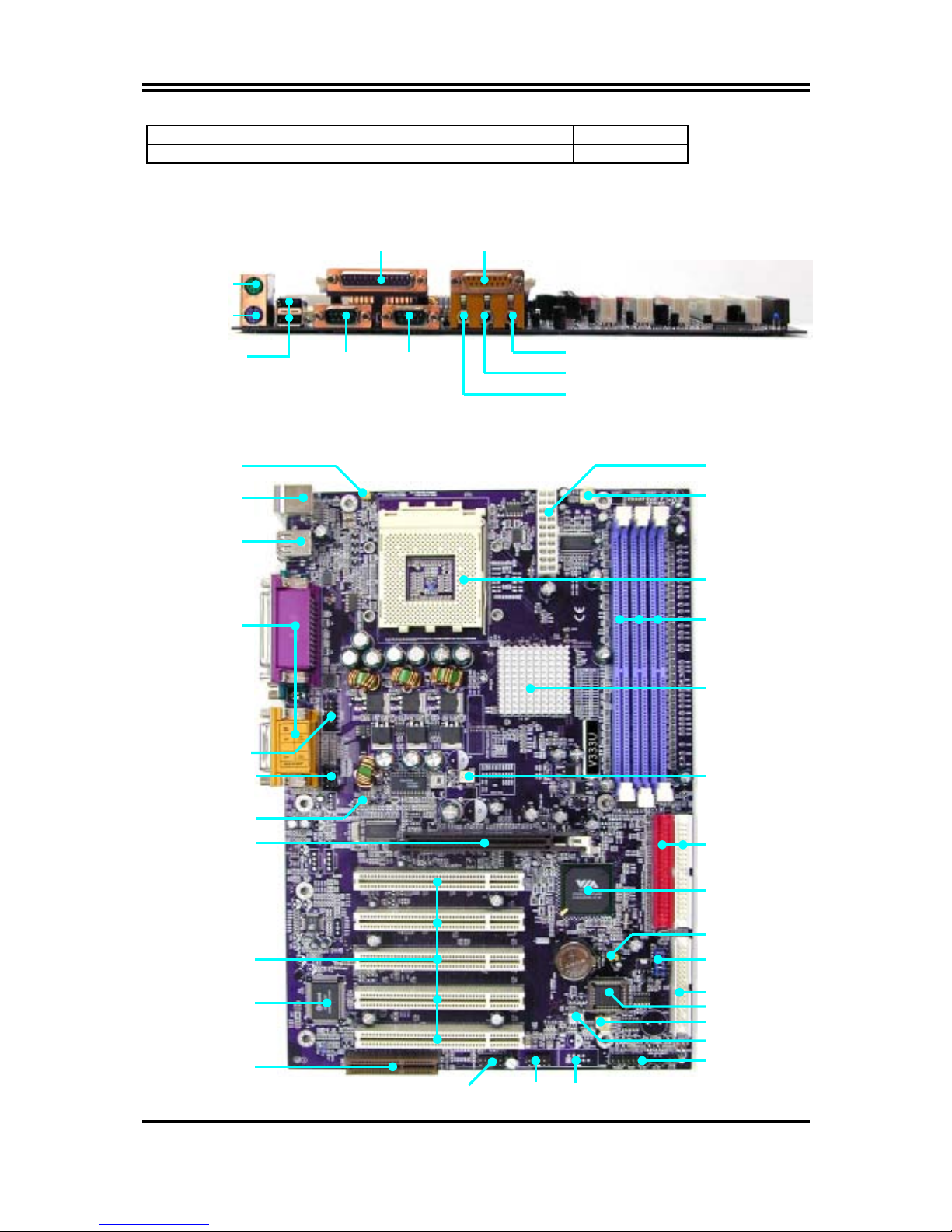

1-4 Layout Diagram & Jumper Setting

COM1 COM2

PS/2 Mouse

PS/2 Keyboard

USB

LINE-OUT

LINE-IN

MIC

PRINT GAME/MIDI PORT

Winbond 83697HF

Chip

IR Connector

CNR Slot

Front Panel Audio

PC99 Back Panel

CD Audio

PCI Slo

AGP Slot

K/B Power ON

Jumper (JP1)

FAN2

Floppy Connector

VIA KT333 Chip

Front Panel Connector

ATA 133 IDE

Connector

Clear CMOS (JBAT)

ATX Power

Connector

CPU FAN

2MBit Flash ROM BIOS

(JP6)

CPU Ratio Selector

CPU Socket

DDR Socket X3

VIA VT8235 Chip

Wake On LAN

FAN1

CPU Front Side Bus

Frequency Jumper (JP4)

PS2 KB/Mouse Port

USB Port

Jumpers

Jumper Name Description Page

JP6 CPU Ratio Selector 10-pin Block P.7

JP4 CPU Front Side Bus Frequency 4-pin Block P.8

JBAT CMOS RAM Clear 3-pin Block P.8

JP1 Keyboard Power On Enable/Disabled 3-pin Block P.9

Connectors

Connector Name Description Page

ATXPOW ATX Power Connector 20-pin Block P.13

J2 PS/2 Mouse & PS/2 Keyboard

Connector

6-pin Female P.14

J3 USB Port Connector 4-pin Connector P.14

PARALLEL Parallel Port Connector 25-pin Female P.14

AUD_GAME Audio/Game Connector 3 phone jack + 15-pin Connector P.14

COM1/COM2 Serial Port COM1/2 Connector 9-pin Connector P.14

FDD Floppy Driver Connector 34-pin Block P.14

IDE1 Primary IDE Connector 40-pin Block P.15

IDE2 Secondary IDE Connector 40-pin Block P.15

Headers

Header Name Description Page

AUDIO Line-In/Out, MIC header 9-pin Block P.16

USB1/USB2 USB Port Headers 9-pin Block P.16

IDE LED IDE activity LED 2-pin Block P.16

TB LED Turbo LED switch 2-pin Block P.16

RESET Reset switch lead 2-pin Block P.17

SPEAKER Speaker connector 4-pin Block P.17

PWR LED Power LED 2-pin Block P.17

PW BN Power switch 2-pin Block P.17

WOL Wake On-LAN Headers 3-pin Block P.17

FAN1,FAN2,CPUFAN FAN Headers 3-pin Block P.18

IR IR infrared module Headers 5-pin Block P.18

CDIN1 CD Audio-In Headers 4-pin Block P.18

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 462 CPU Socket 462-pin PPGA CPU Socket P.10

DDR1, DDR2, DDR3 DDR SDRAM Module

Socket

184-pin DDR SDRAM Module

Expansion Socket

P.11

PCI1, PCI2, PCI3,

PCI4, PCI5

PCI Slot 32-bit PCI Local Bus Expansion slots P.12

AGP AGP 4X Mode Slot AGP Expansion Slot P.13

USB Port

(USB1, USB2)

Chapter 2

Hardware installation

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard setting

2. Install CPU

3. Install Memory

4. Install Expansion cards

5. Connect Ribbon cables, Panel wires, and power supply

6. Setup BIOS

7. Install software driver & utility

2-2 Checking Motherboard’s Jumper Setting

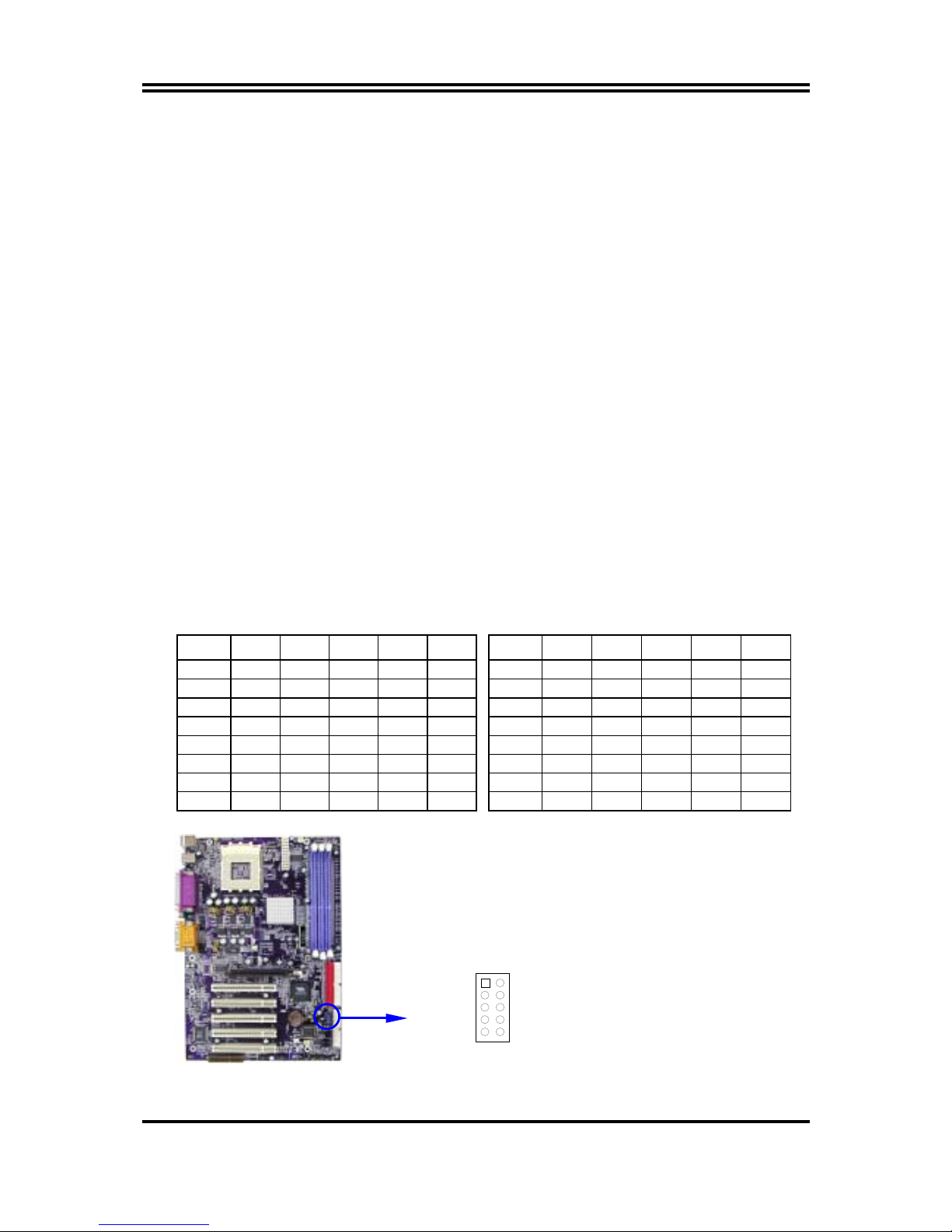

1. CPU Ratio Selector (10-pin) : JP6

Ratio

1 2 3 4 5 Ratio

1 2 3 4 5

5.0x ON ON ON OFF ON 9.0x ON ON ON OFF OFF

5.5x ON OFF ON OFF ON 9.5x ON OFF ON OFF OFF

6.0x ON ON OFF OFF ON 10.0x ON ON OFF OFF OFF

6.5x ON OFF OFF OFF ON 10.5x ON OFF OFF OFF OFF

7.0X ON ON ON ON OFF 11.0x ON ON ON ON ON

7.5x ON OFF ON ON OFF 11.5x ON OFF ON ON ON

8.0x ON ON OFF ON OFF 12.0x ON ON OFF ON ON

8.5x ON OFF OFF ON OFF 12.5x ON OFF OFF ON ON

CPU Ratio Selector

JP6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JETWAY Carte mère

JETWAY

JETWAY A76M Series Manuel utilisateur

JETWAY

JETWAY 601CFR4A Manuel utilisateur

JETWAY

JETWAY 618AFR5A Manuel utilisateur

JETWAY

JETWAY V333DAR1C Manuel utilisateur

JETWAY

JETWAY G03-NP93-F Manuel utilisateur

JETWAY

JETWAY 830CF Manuel utilisateur

JETWAY

JETWAY V500DAR1A Manuel utilisateur

JETWAY

JETWAY 613CN Manuel utilisateur

JETWAY

JETWAY S450R2A Manuel utilisateur

JETWAY

JETWAY NC97 Manuel utilisateur

JETWAY

JETWAY NF596 Manuel utilisateur

JETWAY

JETWAY J-630AF Manuel utilisateur

JETWAY

JETWAY NF835 Series Manuel utilisateur

JETWAY

JETWAY V4MDMPR3A Manuel utilisateur

JETWAY

JETWAY I402R2A Manuel utilisateur

JETWAY

JETWAY NC8J Series Manuel utilisateur

JETWAY

JETWAY 939AGPR210 Manuel utilisateur

JETWAY

JETWAY P4XFAR5A Manuel utilisateur

JETWAY

JETWAY PT800DB - REV 1.0 Manuel utilisateur

JETWAY

JETWAY MI12-00V Series Manuel utilisateur

JETWAY

JETWAY 875PMAXR2A Manuel utilisateur

JETWAY

JETWAY IPC Series Manuel utilisateur

JETWAY

JETWAY V623DMR1A Manuel utilisateur

JETWAY

JETWAY I406R1A Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
